Oasis OASIS-30, OASIS-36 User Manual

1310836-07 MAR 02 2016

OASIS

Open Air Cooler

User Manual OASIS-30 & OASIS-36 Models

Oice: 1.888.685.9959

Tech Support: 1.888.685.8324

www.mtlcool.com

7880 Boul. Industriel,

Chambly, Quebec

J3L 4X3

TABLE OF CONTENTS

UNPACK AND INSPECTION �� 1

PALLET REMOVAL �� 1

SAFETY AND PRECAUTIONS �� 2

PROPER DISPOSAL OF THE REFRIGERATOR �� 2

REFRIGERANT DISPOSAL �� 2

HOW TO CONNECT ELECTRICITY �� 2

SAFETY PRECAUTIONS �� 2

MAINTENANCE �� 3

INSTALLATION �� 4

INSTALLATION REQUIREMENTS �� 4

ELECTRICAL REQUIREMENTS �� 4

ADDING/REPLACING ARTWORK IN THE HEADER �� 4

APPLYING DECAL GRAPHICS ON GLASS �� 4

WARRANTY INFORMATION �� 6

ANNEX 1� CONTROLLER SETTINGS �� 8

SF-102 �� 8

CAREL PJEZ �� 9

1310836-07 | MAR 02 2016

UNPACK & INSPECTION

All MTL Cool equipment is packaged in a manner to prevent from damage in transport and for the unit to remain visible for a visual inspection. Equipment is palletized, shrink wrapped and sometimes boxed.

WARNING

At time of delivery, carefully examine the

equipment for any damage that may have

occurred in transit.

All damages should be noted on the bill of

lading or delivery receipt.

The equipment should be unpacked as soon as possible. Verify that all equipment including internal components and glass were not damaged in transit.

If any damage is found please contact MTL Cool at 1-888- 685-8324 immediately to report the damage. If possible please take pictures of the damage.

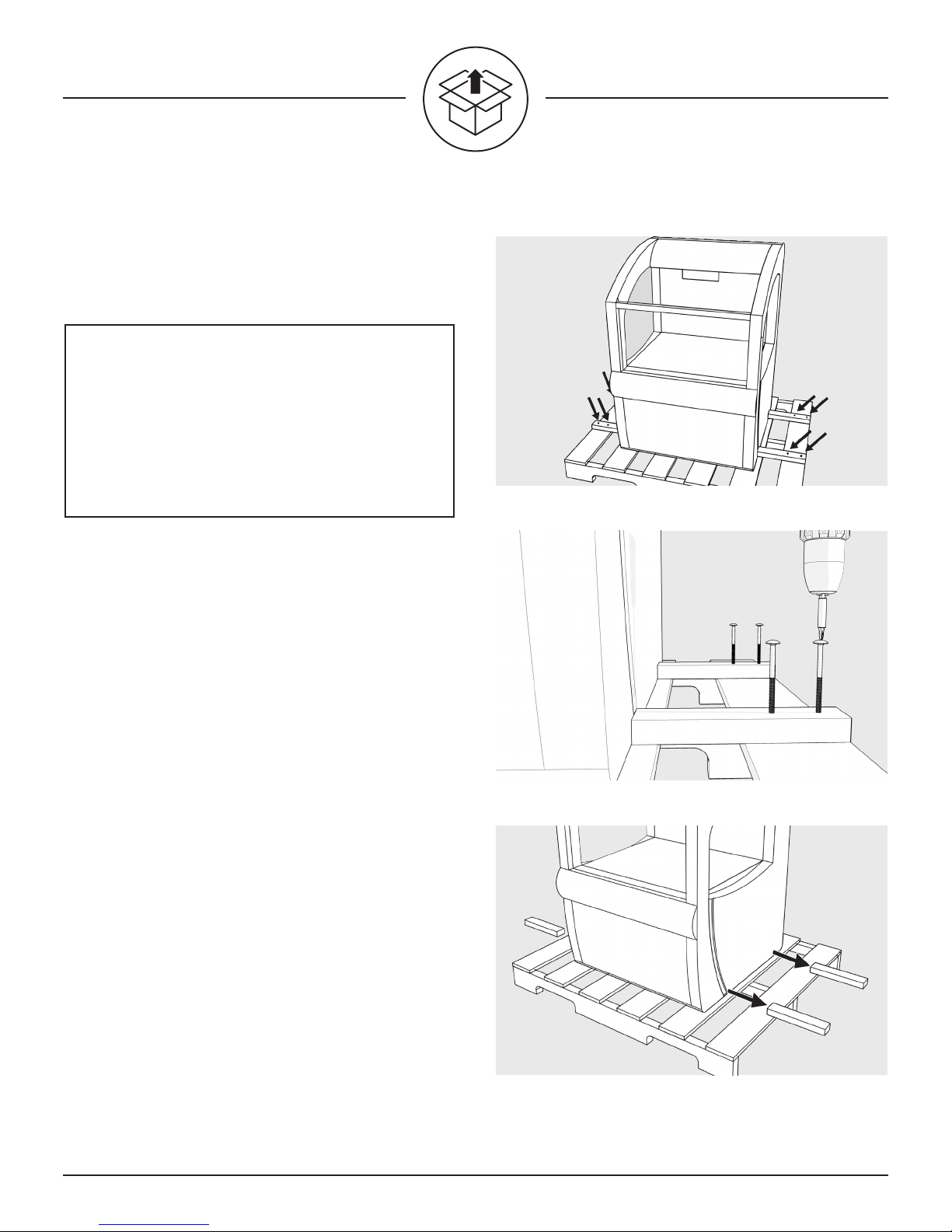

PALLET REMOVAL

The Oasis Grab N’ Go cooler is secured to the pallet beneath it.

Please follow the instructions below to safely detach the cooler from the pallet

Locate the 8 Phillips head screws securing the wood

1

blocks to the pallet. There are 4 on each side of the cooler.

1

2

Unscrew the 8 screws using a Phillips head screw driver

2

or power drill.

Slide the wood blocks out of the tracks. The cooler is

3

now detached from the pallet.

1310836-07 | MAR 02 2016

3

Unpack & Inspection

1

SAFETY & PRECAUTIONS

DANGER!

RISK OF CHILD ENDANGERMENT

PROPER DISPOSAL OF THE REFRIGERATOR

To avoid the possibility of child endangerment, please take the following precautions before throwing away the refrigerator:

• Leave the shelves in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the refrigerator.

!

not le exposed or dangling to prevent accidental injury.

SAFETY PRECAUTIONS

Keep the unit upright during transportation. If the unit is tilted during transportation, please allow the unit to sit upright for a minimum of 2 hours before plugging in the unit.

Ensure that there is a minimum of 3 inch of space behind the unit for air circulation.

(A metal “spine” may be pre-installed on the rear of the cooler ensuring there is always space behind the cooler).

Place the cooler on a level surface.

REFRIGERANT DISPOSAL

All refrigeration products contain refrigerants, which under the Guidelines of Federal Law must be removed before disposal of product. It is the consumer’s responsibility to comply with federal and local regulations when disposing of this product.

• Never clean refrigerator parts with ammable uids.

The fumes can create a re hazard or explosion.

• DO NOT store or use gasoline or any other ammable vapors and liquids in the vicinity of this or any other

refrigerator. The fumes can create a re hazard or an

explosion.

HOW TO CONNECT ELECTRICITY

This refrigerator should be properly grounded for your safety.

It is your responsibility and obligation to have the proper outlet installed. The power cord of this refrigerator is equipped with either three-prong plug (115v) 5-15P plug. DO NOT, under any circumstances, cut or remove the third ground prong from the power cord supplied.

Place the unit in a dry environment for optimal performance.

Do not obstruct the ventilation both at the bottom front and interior of the cooler.

Before using this freezer/refrigerator, it must be positioned and installed in accordance with the installation Instructions (see page 4).

DO NOT allow children to climb, hang or stand on the shelves in the freezer/refrigerator. Serious damage could be caused to both the children and the unit.

DO NOT touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.

Before cleaning or making any repairs, unplug the freezer/ refrigerator.

Repair or replace immediately all power cords that have become frayed or otherwise damaged.

DO NOT place the cooling cabinet on top of the electrical plug.

The cord should be secured behind the refrigerator and

2

DO NOT use an extension cord with this appliance. If the

Safety & Precaution

1310836-07 | MAR 02 2016

power cord is too short, have a qualied electrician or

service technician install an outlet near the appliance. Use

of an extension cord can negatively aect the performance

of the unit. The refrigerator should always be plugged

into it’s own individual electrical circuit (unless specied

otherwise), which has a voltage rating that matches the rating plate.

MAINTENANCE

The cooler should be cleaned once a week with power supply disconnected. In cleaning, please use mild rinsing water or non-corrosive cleanser essence.

It is recommended that preventative maintenance be performed on the unit every 6 months.

When removing the refrigerator from the wall, be careful not to roll over or damage the power cord.

This unit is covered by a 1 year limited warranty.

1310836-07 | MAR 02 2016

Safety & Precaution

3

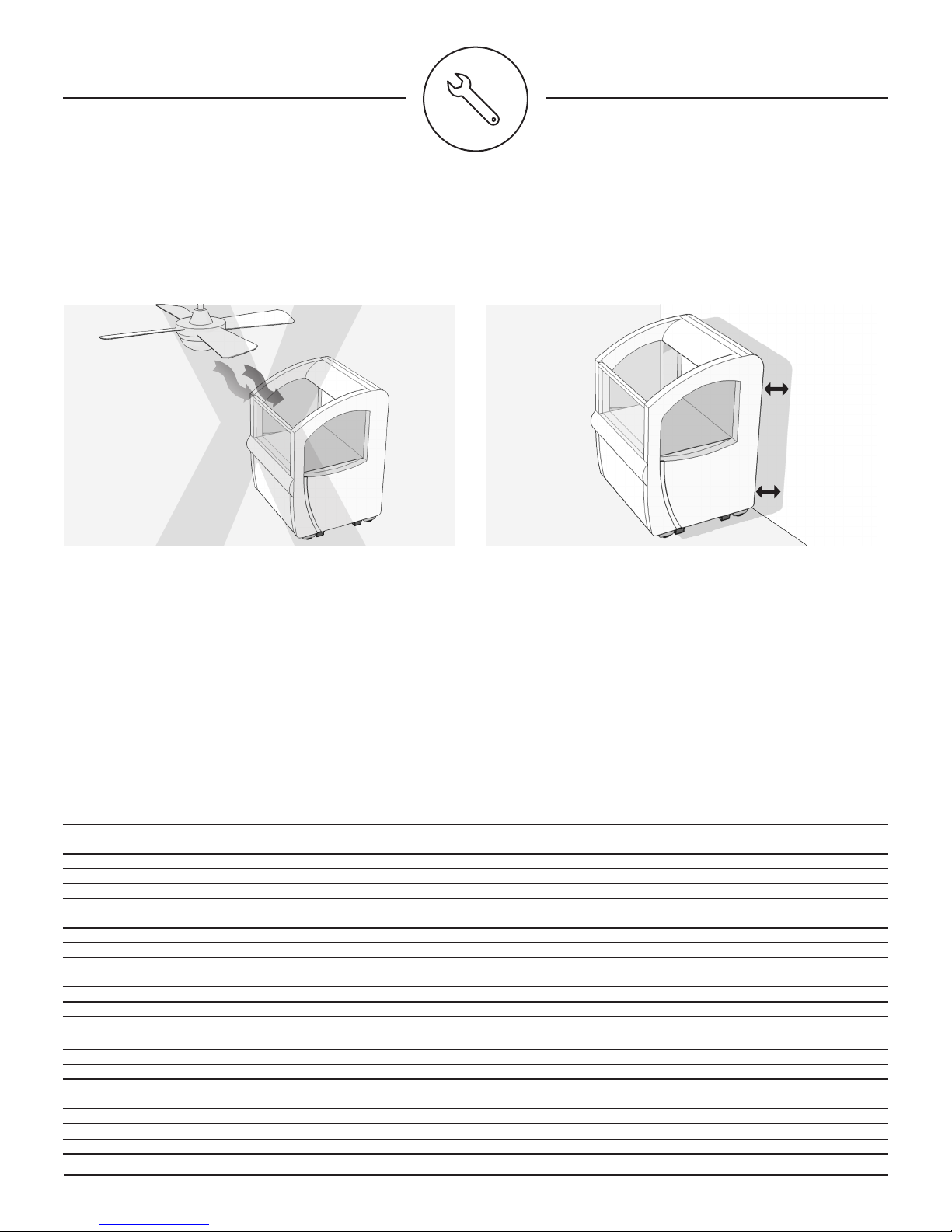

INSTALLATION

X

INSTALLATION REQUIREMENTS

DO NOT place the cooler in a location with air dras that

1

could disrupt the air curtain

DO NOT place the cooler in a location with ambient

3

temperatures over 75°F or 50%RH

ELECTRICAL REQUIREMENTS

• A dedicated power line from the breaker box

• 20 Amp Breaker

There must be at least 2 inches of space behind the unit

2

at all times to ensure proper air ow.

Note: Even though

there are no vents

at the back of the Oasis, the air intake will come

from behind the

unit.

Cooler should not be placed near other equipment that

4

can be expelling heat. (example, Chicken warming stations)

Please consult factory for voltage drop calculations based on line lengths, see below.

• The wire gauge should be suicient to limit voltage drop under 15 amp load to 3%.

WIRE GAUGE FOR 3% VOLTAGE DROP IN SUPPLY CIRCUITS

Amps 20 30 40 50 60 70 80 90 100 120 140 160 2 14 14 14 14 14 14 14 14 14 14 14 14 3 14 14 14 14 14 14 14 14 14 14 14 14 4 14 14 14 14 14 14 14 14 14 14 14 12 5 14 14 14 14 14 14 14 14 14 12 10 10 5 14 14 14 14 14 14 14 14 12 10 10 10 7 14 14 14 14 14 12 12 12 10 10 10 8 8 14 14 14 14 12 12 12 10 10 10 8 8 9 14 14 14 12 12 12 10 10 10 8 8 8 10 14 14 14 12 12 12 10 10 10 8 8 8 12 14 14 12 12 10 10 10 8 8 8 8 6 14 14 14 12 10 10 10 8 8 8 6 6 6 16 14 14 12 10 10 8 8 8 8 6 6 6

18 14 12 10 10 8 8 8 8 8 8 8 5 20 14 12 10 10 8 8 8 6 6 6 5 5 25 12 10 10 8 8 6 6 6 6 5 4 4 30 12 10 8 8 6 6 6 6 5 4 4 3 35 10 10 8 6 6 6 5 5 4 4 3 2 40 10 8 8 6 6 5 5 4 4 3 2 2 45 10 8 6 6 6 5 4 4 3 3 2 1 50 10 8 6 6 5 4 4 3 3 2 1 1

4

Installation

1310836-07 | MAR 02 2016

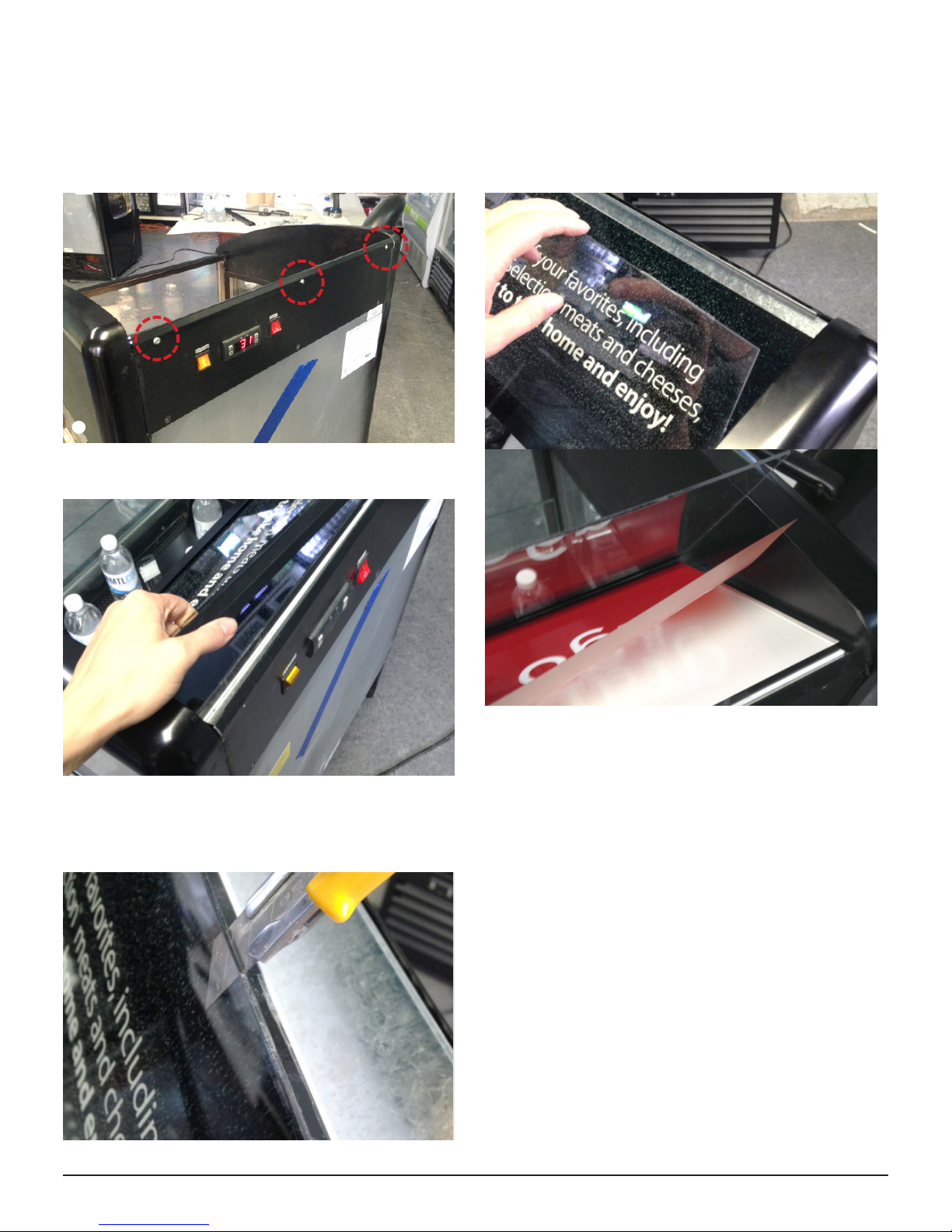

ADDING OR REPLACING THE ARTWORK IN THE HEADER OF THE UNIT

Power o & unplug Oasis unit

1

Remove top three screws at the back of the unit ▼

2

Remove the header frame ▼

3

Li the top sheet, remove the artwork and replace it. ▼

5

The artwork is sandwiched between two sheets of

4

plastic. Use a knife or box cutter to cut the tape holding

the two sheets together. ▼

x x

Reassemble: Replace the tape along the edges of the

6

plastic sheets & secure the header frame with the three screws.

APPLYING DECAL GRAPHICS ON GLASS

Wet the glass and the sticky side of the graphics with

1

soapy water (a small amount of soap diluted with water in a spray bottle, or use Windex)

Apply the graphics. The soapy water allows you to move

2

them around on the glass until they are in the proper position.

Use a squeegee or a malleable straight edge to remove

3

all excess water and air bubbles beneath the graphics.

Once dry, verify that the edges of the graphics are

4

properly glued. Give the edges a nal press if needed.

1310836-07 | MAR 02 2016

Installation

5

WARRANTY INFORMATION

ONE YEAR PARTS AND LABOUR WARRANTY:

MTL Technologies, Inc. (“MTL Cool”) warrants that every new MTL Cool refrigerated display cooler, the cabinet, and all parts shall not contain any defects in material or workmanship, under normal and proper use and

maintenance service as specied by MTL Cool and upon

proper installation and startup in accordance with the instructions provided with each MTL Cool unit. Except as otherwise set forth herein, MTL Cool’s obligation under this warranty is limited to a period of one year from the date of original shipment.

Any parts covered under this warranty that MTL Cool determines to have been defective within the one year Warranty Period is limited to the repair or replacement, including labour charges of defective parts or assemblies. The labour warranty shall include standard straight time labour charges only and reasonable travel time as determined by MTL Cool.

MTL Cool must authorize all labour. All costs not covered under warranty will be the responsibility of the original purchaser.

Our obligation under this warranty shall be limited to repairing or replacing F.O.B. factory any of such products, which proves thus defective which our examination shall disclose to our satisfaction to be defective.

Any part returned to the company under the terms of this warranty must be accompanied by a record of the cabinet model, the MTL Cool serial number located on the back of the unit, and a return authorization number, and such return shall be on the basis of TRANSPORTATION CHARGES PREPAID BY MTL COOL.

Improper operation due to low or high voltage conditions, inadequate wiring, and accidental damage are not manufacturing defects and are strictly the responsibility of the purchaser.

The term “original purchaser” as used herein shall

be deemed to mean that person, rm, association of

corporation for whom the Refrigeration Unit referred to herein is originally purchased.

NO CLAIMS CAN BE MADE AGAINST THIS

WARRANTY FOR LOSS OF PRODUCT

These warranties are in lieu of all other warranties, expressed or implied, and of all other obligations or liabilities on our part. We neither assume nor authorize any other person to assume for us any other obligation or liability in connection with the sale of said refrigeration units or any part thereof. This warranty shall not be transferred and shall be honoured only in so far as to the original purchaser.

WARRANTY CLAIMS All claims for labour or parts must be made directly through MTL Cool. All claims should include: model number of the unit, the serial number of the cabinet, proof of purchase, date of installation, and all pertinent information supporting the existence of the alleged defect.

In case of a warranty claim relating to compressors, the compressor model tag must be returned to MTL Cool along with the above listed information.

TRANSPORTATION CLAIMS In the event parts need to be sent back to MTL Cool, MTL Cool will accept parts under this warranty on the basis of transportation charges prepaid by MTL Cool.

WHAT IS NOT COVERED BY THIS WARRANTY Except as otherwise set forth herein, MTL Cool’s sole obligation under this warranty is limited to either repair or

replacement of parts, subject to the additional limitations

below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.

NO CONSEQUENTIAL DAMAGES

MTL Cool is not responsible for economic loss, prot loss,

or special, indirect, or consequential damages, including without limitation, losses or damages arising from food or product spoilage claims whether or not on account of

6

Warranty information

1310836-07 | MAR 02 2016

refrigeration failure.

WARRANTY IS NOT TRANSFERABLE

This warranty is not assignable and applies only in favour of the original purchaser / user to whom delivered. Any unauthorized assignment or transfer shall void all warranties, expressed or implied, including all warrant of

merchantability or tness for a particular purpose.

IMPROPER USAGE MTL Cool assumes no liability for parts or labour coverage for component failure or other damages resulting from improper usage or installation, moving to another location, or failure to clean and/or maintain product as set forth in the warranty packet provided with the unit.

ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGES DURING TRANSIT, INSTALLATION, MOVING TO ANOTHER LOCATION, FIRE, FLOOD, OR ACTS OF GOD

MTL Cool is not responsible for the repair or replacement of any parts that MTL Cool determines have been caused

aer the date of purchase by alteration, neglect, abuse,

misuse, accident, damage during transit or installation,

re ood, or act of God.

IMPROPER ELECTRICAL CONNECTIONS MTL Cool is not responsible for the repair or replacement of failed or damaged components resulting from electrical power failure, the use of extension cords, low or high voltage, or voltage drops to the unit.

ITEMS THE WARRANTOR WILL NOT PAY FOR

Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.

Service calls to repair or replace appliance light bulbs or

broken shelves. Consumable parts (such as lters) are

excluded from warranty coverage.

Damage resulting from accident, alteration, misuse,

abuse, re, ood, acts of God, improper installation not in

accordance with electrical or plumbing codes, or use of products not approved by warrantor.

Replacement parts or repair labour costs for units operated outside the U.S. or Canada.

Expenses for travel and transportation for product service in remote locations.

The removal and reinstallation of your display cooler if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE: THERE ARE NO OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY, EXCEPT THE ONE YEAR PARTS & LABOUR WARRANTY AS DESCRIBED ABOVE. THESE WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, INCLUDING IMPLIED WARRANTY AND MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.

OUTSIDE NORTH AMERICA

This warranty does not apply to any warranty claims made on products sold or used outside of the United States and Canada.

LIMITATION OF LIABILITY

MTL Cool or their ailiates shall not be liable for any

indirect, incidental, special or consequential damages, or losses of a commercial nature arising out of malfunctioning equipment or its parts or components thereof, as a result of defects in material or workmanship.

THE ORIGINAL OWNER’S SOLE AND EXCLUSIVE REMEDY AND MTL COOL’S SOLE AND EXCLUSIVE LIABILITY SHALL BE LIMITED TO THE REPAIR OR REPLACEMENT OF PARTS OR COMPONENTS CONTAINED IN THE EQUIPMENT IDENTIFIED ABOVE WHICH UNDER NORMAL USE AND SERVICE MALFUNCTION AS A RESULT OF DEFECTS IN MATERIAL OR WORKMANSHIP, SUBJECT TO THE APPLICABLE PROVISIONS AND LIMITATIONS STATED ABOVE.

MTL COOL IS NOT LIABLE FOR ANY DAMAGE OR LAW SUITS RELATED TO WATER LEAKS COMING FROM THE COOLER OR FREEZER. IF A COOLER OR FREEZER IS LEAKING, IMMEDIATELY TURN THE DISPLAY OFF AND UNPLUG IT. CLEAN UP THE WATER AND CALL OUR SERVICE DEPARTMENT AT 1-888-685-8324.

Repairs to parts or systems resulting from unauthorized

modications made to the display cooler.

1310836-07 | MAR 02 2016

Warranty information

7

CONTROLLER SETTINGS

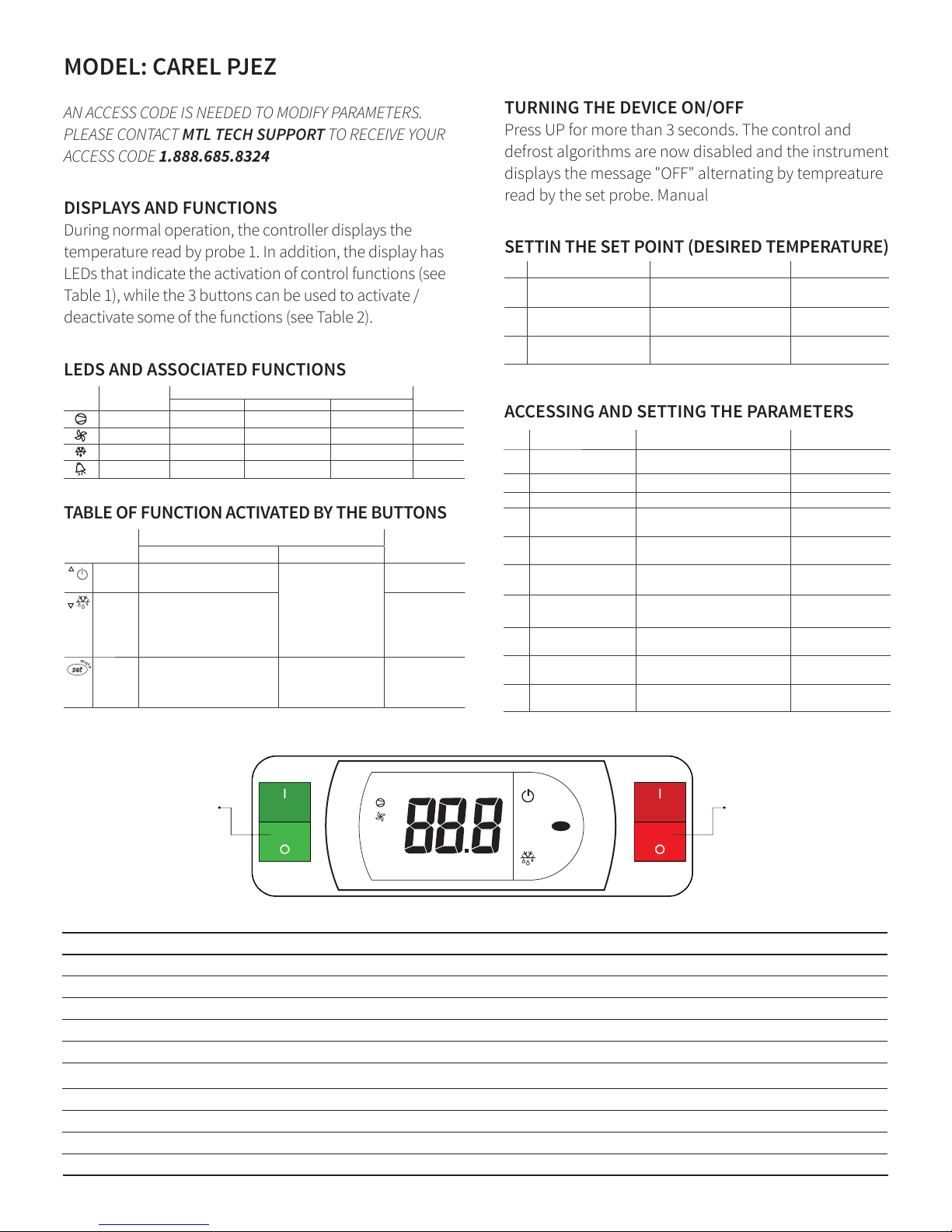

Please verify the make and model of the controller before going forward.

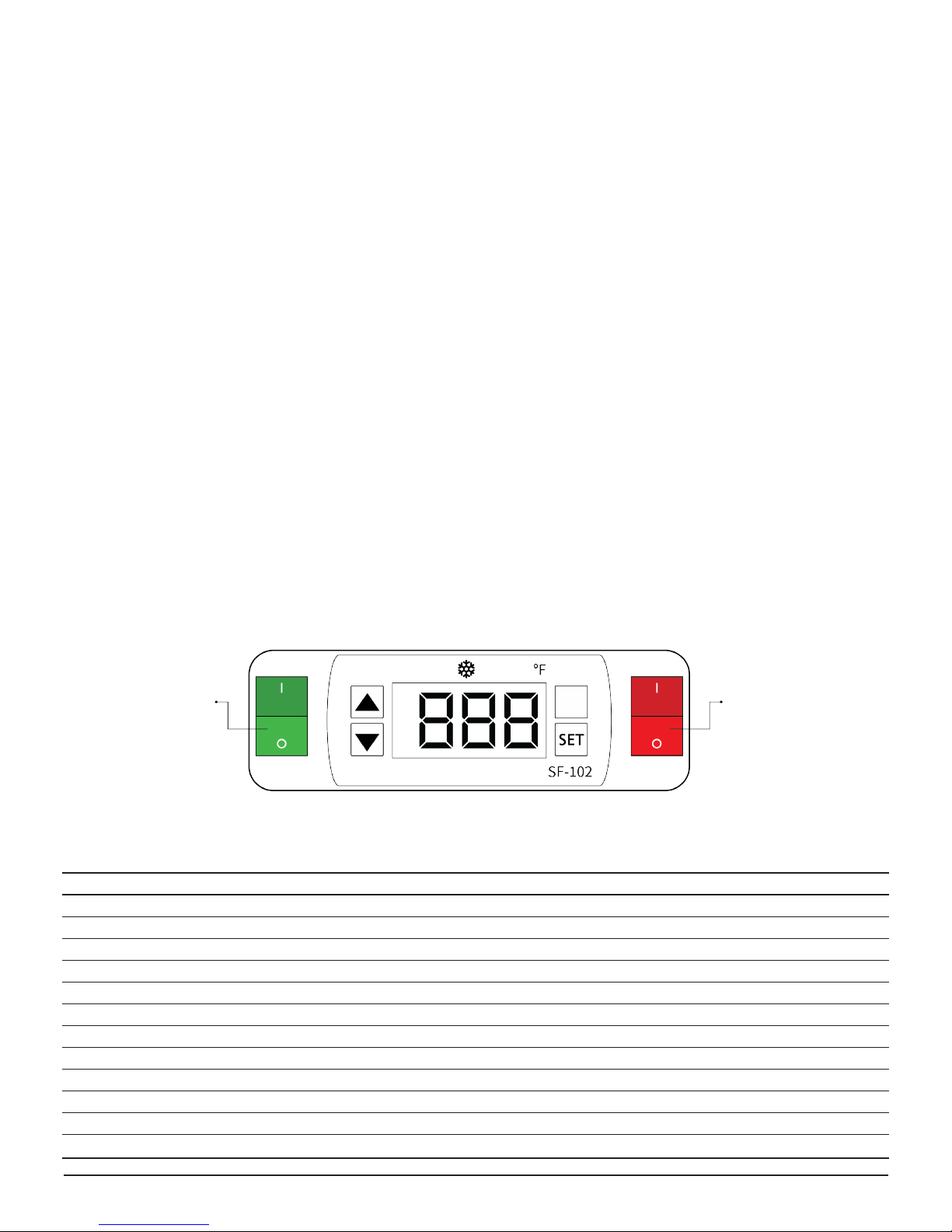

MODEL: SF-102

AN ACCESS CODE IS NEEDED TO MODIFY PARAMETERS. PLEASE CONTACT MTL TECH SUPPORT TO RECEIVE YOUR ACCESS CODE 1.888.685.8324

Set temperature (compressor stop temperature)

1

adjustment

• Press SET button, the set temperature is displayed.

Set the parameters

2

• Press SET button, hold for 6 seconds to enter the

parameter setup mode while E1 ashes.

• Press ▲ or ▼ to modify and store the displayed values

• Press SET button again to toggle through the parameters (see table below).

• Press SET button to exit the adjustment and display the unit interior temperature.

• Press ▲ or ▼ buttons, the value will be displayed and

can be modied and stored.

• If idle for 10 or more seconds, the unit interior temperature will be displayed.

• If idle for 10 seconds the unit interior temperature will be displayed.

Cooler

ON/OFF Switch

Lighting ON/OFF Switch

FACTORY SETTINGS SF-102

Parameter Function Set Range Factory Settings

S Set Point 30-41 ºF / -1 to 5 ºC 26 ºF

E1 Lower set point limit 28 ºF / -45 ºC 24 ºF

E2 Raise set point limit 41 ºF / 45 ºC 32 ºF

E3 Temperature Hysteresis 1~18 ºF / 1-10 ºC 3 ºF

E4 Comp. start delay time 0 ~ 10 min 4 min

E5 Oset on room temp. -5 ~ 5 ºF / -5 to 5 ºC 0 ºF

E6 Oset on evap. temp. -5 ~ 5 ºF / -5 to 5 ºC 0 ºF

F1 Max. frost duration 1~60 min 40 min

F2 Defrost interval time 0 ~ 24 hr 3 HR

F3 Defrost termination temp. 32~68 ºF / 0~20 ºC 47 ºF

F4 Display during defrost 0=Norm. disp., 1=Last value before defrost 1 ºF

C1 Temperature unit °C , °F ºF

8

Controller Settings

1310836-07 | MAR 02 2016

MODEL: CAREL PJEZ

AN ACCESS CODE IS NEEDED TO MODIFY PARAMETERS. PLEASE CONTACT MTL TECH SUPPORT TO RECEIVE YOUR ACCESS CODE 1.888.685.8324

DISPLAYS AND FUNCTIONS

During normal operation, the controller displays the temperature read by probe 1. In addition, the display has LEDs that indicate the activation of control functions (see Table 1), while the 3 buttons can be used to activate / deactivate some of the functions (see Table 2).

LEDS AND ASSOCIATED FUNCTIONS

TABLE OF FUNCTION ACTIVATED BY THE BUTTONS

TURNING THE DEVICE ON/OFF

Press UP for more than 3 seconds. The control and defrost algorithms are now disabled and the instrument displays the message "OFF" alternating by tempreature read by the set probe. Manual

SETTIN THE SET POINT (DESIRED TEMPERATURE)

ACCESSING AND SETTING THE PARAMETERS

TABLE OF FUNCTIONS ACTIVATED BY THE BUTTONS

normal operation

Tab. 2

TABLE OF FUNCTIONS ACTIVATED BY THE BUTTONS

button

normal operation

start up

pressing the button alone pressed together

up ON/OFF

more than 3 s: toggle ON/OFF

Pressed together start/stop continuous cycle

-

down defrost

more than 3 s: start/stop defrost

for 1 s display ﬁ rmware vers. code

set mute - 1 s.: display/set the setpoint

- more than 3 s: access parameter setting menu (enter password ‘22’)

- mute audible alarm (buzzer)

- for 1 s RESET current EZY set

Tab. 2

SETTING THE SETPOINT (DESIRED TEMPERATURE)

gninaeMtceffEnoitcApetS

1

TABLE OF FUNCTIONS ACTIVATED BY THE BUTTONS

button

normal operation

start up

pressing the button alone pressed together

up ON/OFF

more than 3 s: toggle ON/OFF

Pressed together start/stop continuous cycle

-

down defrost

more than 3 s: start/stop defrost

for 1 s display ﬁ rmware vers. code

set mute - 1 s.: display/set the setpoint

- more than 3 s: access parameter setting menu (enter password ‘22’)

- mute audible alarm (buzzer)

- for 1 s RESET current EZY set

Tab. 2

SETTING THE SETPOINT (DESIRED TEMPERATURE)

gninaeMtceffEnoitcApetS

1

Keep SET button pressed for 2 s

After 1 sec currently setpoint value will ﬂ ash on display

It’s regulation setpoint currently active

2 Press UP or DOWN buttons Setpoint value will chang

3 Press SE T button Controller will visualize temperature

read by probes again

Setpoint is modiﬁ ed and saved

Tab. 3

ACCESSING AND SETTING THE PARAMETERS

Set desired value

TABLE OF FUNCTIONS ACTIVATED BY THE BUTTONS

button

normal operation

start up

pressing the button alone pressed together

up ON/OFF

more than 3 s: toggle ON/OFF

Pressed together start/stop continuous cycle

-

down defrost

more than 3 s: start/stop defrost

for 1 s display ﬁ rmware vers. code

set mute - 1 s.: display/set the setpoint

- more than 3 s: access parameter setting menu (enter password ‘22’)

- mute audible alarm (buzzer)

- for 1 s RESET current EZY set

Tab. 2

SETTING THE SETPOINT (DESIRED TEMPERATURE)

gninaeMtceffEnoitcApetS

1

Keep SET button pressed for 2 s

After 1 sec currently setpoint value will ﬂ ash on display

It’s regulation setpoint currently active

2 Press UP or DOWN buttons Setpoint value will chang

3 Press SET button Controller will visualize temperature

read by probes again

Setpoint is modiﬁ ed and saved

Tab. 3

ACCESSING AND SETTING THE PARAMETERS

gninaeMtceffEnoitcApetS

1 Keep SET button pressed

for 3 s

After 3 sec display will visualize “ PS ” Password is requested

2 Press SET button again Display will visualize “ 0 ” blinking

3 Press UP or DOWN button Visualized value on display will change 22 ”

4 Press SET button After 5 sec the ﬁ rst parameter, “ /5”, will be

visualized on display

It’s the name of the ﬁ rst parameter

5 Press UP or DOWN button Parameter list will be scrolled on display

(refer to Table of parameters)

Select desired parameter

6 Press SET button Display will visualize value of the selected

parameter

It’s the currently parameter value

7 Press UP or DOWN button Parameter value visualized on display will

change

Set desired value

8 Press SET button Display will visualize parameter name

again

Attention : parameters updating is not yet active

9 Repeat steps 5, 6, 7 and 8

for all desired parameters

10 Keep SET button

Controller will visualize temperature read

Attention: now parame-

Insert password “

Set desired value

Keep SET button pressed for 2 s

2 Press UP or DOWN buttons Setpoint value will chang

After 1 sec currently setpoint value will ﬂ ash on display

It’s regulation setpoint currently active

Set desired value

icon function normal operation

compressor

ON OFF blink

on oﬀ request ON fan on oﬀ request ON defrost on oﬀ request ON alarm all no alarm - ON

button

up ON/OFF

down defrost

pressing the button alone pressed together

more than 3 s: toggle ON/OFF

more than 3 s: start/stop defrost

Pressed together start/stop continuous cycle

set mute - 1 s.: display/set the setpoint

- more than 3 s: access parameter setting menu (enter password ‘22’)

- mute audible alarm (buzzer)

- for 1 s RESET

FACTORY SETTINGS CAREL

Parameter Function Set Range Factory Settings

Cooler

ON/OFF Switch

PS Password 0 - 200 22

-

/5 Select °C / °F 0 - 1 1 ºF

r1 Minimum set point allowed to the user -50.0 - r2 24 ºF

r2 Maximum set point allowed to the user r1 - 200 32 ºF

rd Control dierential (hysteresis) 0.0 - 19.0 3 ºF

c2 Min. compressor o time 0 - 100 4 min

d1 Interval between two defrosts 0 - 199 3 hr

dt End defrost temperature 50.0 - 130.0 47 ºF

dP Max. or eective defrost duration 1 - 199 40 min

1310836-07 | MAR 02 2016

Set point 24º - 32º F 26 ºF

3 Press SET button Controller will visualize temperature

start up

1 Keep SET button pressed

for 3 s

Tab. 1

start up

-

for 1 s display ﬁ rmware vers. code

current EZY set

2 Press S ET button again Display will visualize “ 0” blinking

3 Press U P or DOWN button Visualized value on display will change 22 ”

4 Press S ET button After 5 sec the ﬁ rst parameter, “ /5”, will be

5 Press U P or DOWN button Parameter list will be scrolled on display

6 Press S ET button Display will visualize value of the selected

7 Press U P or DOWN button Parameter value visualized on display will

8 Press S ET button Display will visualize parameter name

9 Repeat steps 5, 6, 7 and 8

for all desired parameters

10 Keep SET button

pressed for 5 s

SET

Controller Settings

read by probes again

After 3 sec display will visualize “ PS” Password is requested

visualized on display

(refer to Table of parameters)

parameter

change

again

Controller will visualize temperature read by probes again

Lighting ON/OFF Switch

Setpoint is modiﬁ ed and saved

Insert password “

It’s the name of the ﬁ rst parameter

Select desired parameter

It’s the currently parameter value

Set desired value

Attention : parameters updating is not yet active

Attention: now parameters updating will be active

gninaeMtceffEnoitcApetS

Tab. 3

Tab. 4

9
