Oasis M140R, ML110R, DFL-2011 Owner’s Manual

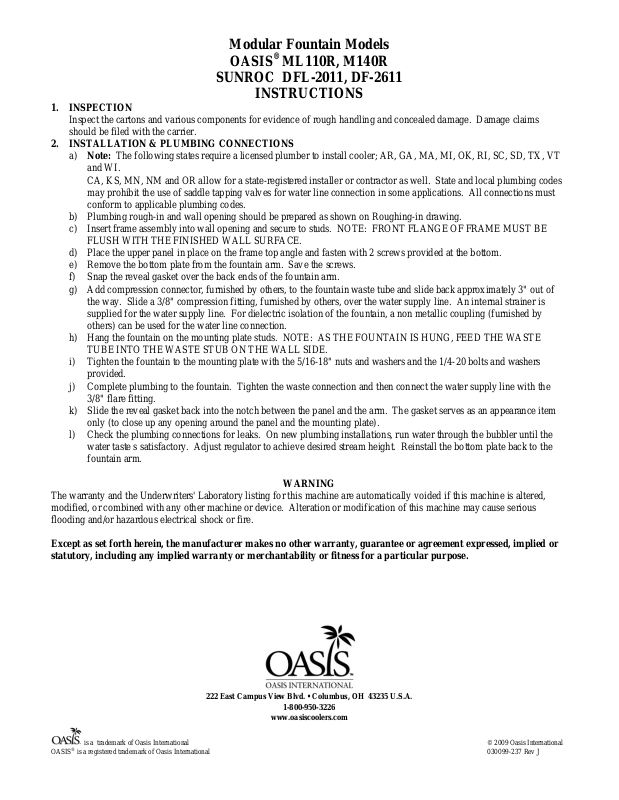

Modular Fountain Models

OASIS

®

ML110R, M140R

SUNROC DFL-2011, DF-2611

INSTRUCTIONS

1. INSPECTION

Inspect the cartons and various components for evidence of rough handling and concealed damage. Damage claims
should be filed with the carrier.

2. INSTALLATION & PLUMBING CONNECTIONS

a) Note: The following states require a licensed plumber to install cooler; AR, GA, MA, MI, OK, RI, SC, SD, TX, VT

and WI.
CA, KS, MN, NM and OR allow for a state-registered installer or contractor as well. State and local plumbing codes
may prohibit the use of saddle tapping valves for water line connection in some applications. All connections must
conform to applicable plumbing codes.

b) Plumbing rough-in and wall opening should be prepared as shown on Roughing-in drawing.
c) Insert frame assembly into wall opening and secure to studs. NOTE: FRONT FLANGE OF FRAME MUST BE

FLUSH WITH THE FINISHED WALL SURFACE.

d) Place the upper panel in place on the frame top angle and fasten with 2 screws provided at the bottom.
e) Remove the bottom plate from the fountain arm. Save the screws.
f) Snap the reveal gasket over the back ends of the fountain arm.
g) Add compression connector, furnished by others, to the fountain waste tube and slide back approximately 3" out of

the way. Slide a 3/8" compression fitting, furnished by others, over the water supply line. An internal strainer is
supplied for the water supply line. For dielectric isolation of the fountain, a non metallic coupling (furnished by
others) can be used for the water line connection.

h) Hang the fountain on the mounting plate studs. NOTE: AS THE FOUNTAIN IS HUNG, FEED THE WASTE

TUBE INTO THE WASTE STUB ON THE WALL SIDE.

i) Tighten the fountain to the mounting plate with the 5/16-18" nuts and washers and the 1/4-20 bolts and washers

provided.

j) Complete plumbing to the fountain. Tighten the waste connection and then connect the water supply line with the

3/8" flare fitting.

k) Slide the reveal gasket back into the notch between the panel and the arm. The gasket serves as an appearance item

only (to close up any opening around the panel and the mounting plate).

l) Check the plumbing connections for leaks. On new plumbing installations, run water through the bubbler until the

water taste s satisfactory. Adjust regulator to achieve desired stream height. Reinstall the bottom plate back to the
fountain arm.

WARNING

The warranty and the Underwriters' Laboratory listing for this machine are automatically voided if this machine is altered,
modified, or combined with any other machine or device. Alteration or modification of this machine may cause serious
flooding and/or hazardous electrical shock or fire.

Except as set forth herein, the manufacturer makes no other warranty, guarantee or agreement expressed, implied or
statutory, including any implied warranty or merchantability or fitness for a particular purpose.
