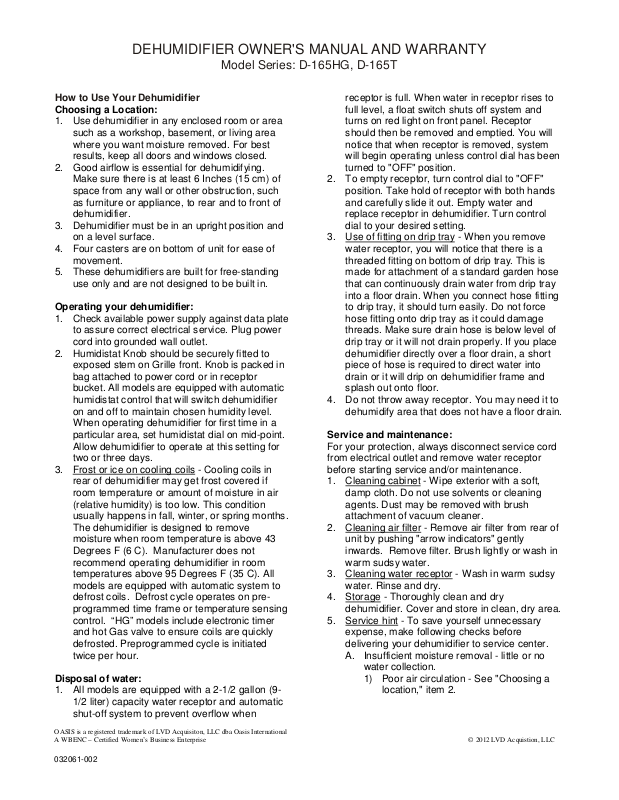

DEHUMIDIFIER OWNER'S MANUAL AND WARRANTY

Model Series: D-165HG, D-165T

How to Use Your Dehumidifier

Choosing a Location:

1. Use dehumidifier in any enclosed room or area
such as a workshop, basement, or living area
where you want moisture removed. For best
results, keep all doors and windows closed.

2. Good airflow is essential for dehumidifying.
Make sure there is at least 6 Inches (15 cm) of
space from any wall or other obstruction, such
as furniture or appliance, to rear and to front of
dehumidifier.

3. Dehumidifier must be in an upright position and
on a level surface.

4. Four casters are on bottom of unit for ease of
movement.

5. These dehumidifiers are built for free-standing
use only and are not designed to be built in.

Operating your dehumidifier:

1. Check available power supply against data plate
to assure correct electrical service. Plug power
cord into grounded wall outlet.

2. Humidistat Knob should be securely fitted to
exposed stem on Grille front. Knob is packed in
bag attached to power cord or in receptor
bucket. All models are equipped with automatic
humidistat control that will switch dehumidifier
on and off to maintain chosen humidity level.
When operating dehumidifier for first time in a
particular area, set humidistat dial on mid-point.
Allow dehumidifier to operate at this setting for
two or three days.

3. Frost or ice on cooling coils - Cooling coils in
rear of dehumidifier may get frost covered if
room temperature or amount of moisture in air
(relative humidity) is too low. This condition
usually happens in fall, winter, or spring months.
The dehumidifier is designed to remove
moisture when room temperature is above 43
Degrees F (6 C). Manufacturer does not
recommend operating dehumidifier in room
temperatures above 95 Degrees F (35 C). All
models are equipped with automatic system to
defrost coils. Defrost cycle operates on pre­programmed time frame or temperature sensing
control. “HG” models include electronic timer
and hot Gas valve to ensure coils are quickly
defrosted. Preprogrammed cycle is initiated
twice per hour.

Disposal of water:

1. All models are equipped with a 2-1/2 gallon (9­1/2 liter) capacity water receptor and automatic
shut-off system to prevent overflow when

receptor is full. When water in receptor rises to
full level, a float switch shuts off system and
turns on red light on front panel. Receptor
should then be removed and emptied. You will
notice that when receptor is removed, system
will begin operating unless control dial has been
turned to "OFF" position.

2. To empty receptor, turn control dial to "OFF"
position. Take hold of receptor with both hands
and carefully slide it out. Empty water and
replace receptor in dehumidifier. Turn control
dial to your desired setting.

3. Use of fitting on drip tray - When you remove
water receptor, you will notice that there is a
threaded fitting on bottom of drip tray. This is
made for attachment of a standard garden hose
that can continuously drain water from drip tray
into a floor drain. When you connect hose fitting
to drip tray, it should turn easily. Do not force
hose fitting onto drip tray as it could damage
threads. Make sure drain hose is below level of
drip tray or it will not drain properly. If you place
dehumidifier directly over a floor drain, a short
piece of hose is required to direct water into
drain or it will drip on dehumidifier frame and
splash out onto floor.

4. Do not throw away receptor. You may need it to
dehumidify area that does not have a floor drain.

Service and maintenance:

For your protection, always disconnect service cord
from electrical outlet and remove water receptor
before starting service and/or maintenance.

1. Cleaning cabinet - Wipe exterior with a soft,
damp cloth. Do not use solvents or cleaning
agents. Dust may be removed with brush
attachment of vacuum cleaner.

2. Cleaning air filter - Remove air filter from rear of
unit by pushing "arrow indicators" gently
inwards. Remove filter. Brush lightly or wash in
warm sudsy water.

3. Cleaning water receptor - Wash in warm sudsy
water. Rinse and dry.

4. Storage - Thoroughly clean and dry
dehumidifier. Cover and store in clean, dry area.

5. Service hint - To save yourself unnecessary
expense, make following checks before
delivering your dehumidifier to service center.
A. Insufficient moisture removal - little or no

water collection.

1) Poor air circulation - See "Choosing a
location," item 2.

OASIS is a registered trademark of LVD Acquisiton, LLC dba Oasis International
A WBENC – Certified Women’s Business Enterprise © 2012 LVD Acquistion, LLC

032061-002

2) Room temperature and relative humidity
– See "Operating your dehumidifier,”
item 3.

B. Runs continuously.

1) Check humidistat control setting. Is it on
"Max Dry"?

2) Are windows and doors closed?

3) Is area too large for capacity of unit?

C. Dehumidifier will not start.

1) Check control dial.

2) Check outlet. Plug lamp or other
appliance into outlet to make certain
power is available.

3) Check fuse or circuit breaker.

4) Replacement of power cord should only
be carried out by properly trained and
equipped personal.

Electrical Information:

1. Available power supply must agree with that
listed on dehumidifier data plate. NEVER plug
your dehumidifier into an extension cord, only
plug your dehumidifier into a wall outlet that is
rated at or above electrical requirements noted
on data label.

2. Never operate a dehumidifier in environment
where it is likely that standing water will
accumulate around unit. If this condition should
occur, FOR YOUR SAFETY, UNPLUG
DEHUMIDIFIER CORD before stepping into
water accumulated around dehumidifier.

3. DO NOT operate dehumidifier if it is in a
damaged condition.

4. If supply cord is damaged, it must be replaced
by manufacturer or its service agent or a suitably
qualified person in order to avoid a hazard.

Warranty

FIRST YEAR:

The Manufacturer promises the original purchaser (user)
to repair, replace, credit or, at the Manufacturer’s option,
to replace any part of this water cooler which proves to be
inoperative due to a defect in material or workmanship under
normal use, for a period of one year from the date of original
installation or for a period of eighteen (18) months after date
of shipment from the factory, whichever occurs first. During
the one year warranty, the Manufacturer will either replace,
credit, or repair, through its approved service center or factory
repair department, provide labor and parts necessary to
correct such inoperative condition at no charge, if the water
cooler has been installed and operated in accordance with
the written instructions furnished with the water cooler.
If it becomes necessary to ship the inoperative water cooler
to the approved service center or factory repair department,
the Manufacturer will pay the transportation charges both
ways via common carrier. Local delivery charges are not
covered.
The cost of labor required to disconnect and reconnect
plumbing and electrical connections will be the responsibility
of the user (owner).

SECOND THRU FIFTH YEARS:

The Manufacturer promises in the Second thru Fifth years
to repair, credit (Pro-rated Value Based on the Remaining
Warranty Period), or at its option, to replace any part of the
sealed refrigeration system (compressor, condenser, evaporator,
and interconnecting refrigerant lines) which prove to be
inoperative due to a defect in material or workmanship. The
Manufacturer will provide the labor at no charge through its
approved service center or the factory repair department to
install such parts of the sealed refrigeration system.
If it becomes necessary to ship the inoperative water cooler
to the approved service center, the Manufacturer will pay the
transportation charge both ways via common carrier. Local
delivery charges are not covered.
The cost of labor to diagnose a sealed refrigeration system

OASIS is a registered trademark of LVD Acquisiton, LLC dba Oasis International
A WBENC – Certified Women’s Business Enterprise © 2012 LVD Acquistion, LLC

OASIS INTERNATIONAL

222 East Campus View Blvd. • Columbus, OH 43235 U.S.A.

www.oasiscoolers.com

032061-002

failure or the cost of labor required to disconnect and reconnect
plumbing and electrical connections, will be the responsibility
of the user (owner).

Warning:

This warranty for this machine is automatically voided if this
machine is altered, modified, or combined with any other machine
or device. Alteration or modification of this machine may cause
serious flooding and/or hazardous electrical shock or fire.
Except as set forth herein, the Manufacturer makes no other
warranty, guarantee or agreement expressed, implied or
statutory, including any implied warranty of merchantability or
fitness for a particular purpose.

Normal responsibilities of the user:

1. Use of the machine in accordance with instructions in the

customer`s manual.

2. Proper installation in accordance with printed instructions.

3. Any damage to finish after installation.

4. Cleaning of condenser or evaporator coils.

5. Service required due to Acts of God. floods, fire, alteration,

abuse or misuse.

6. Connection to power supply of proper voltage as shown on

date plate, replacement of blown fuses (the fuse to be of similar
type and rating), repair of any loose connections or defects in
wiring that is part of the building power supply.
The user should keep a copy of the bill of sale, cancelled check,
or payment record, verifying purchase date to validate this
guarantee.
There are no other warranties expressed or implied, covering this
appliance, except this warranty which is in lieu of all other
warranties including any implied warranty of merchantability or
fitness for a particular purpose. In no event shall the manufacturer
be liable for special indirect or consequential damages, nor for
any delay in the performance of this warranty due to cause
beyond its control.
The manufacturer authorizes no other person to change or add to
any of the obligations hereunder.

1-800-950-3226
