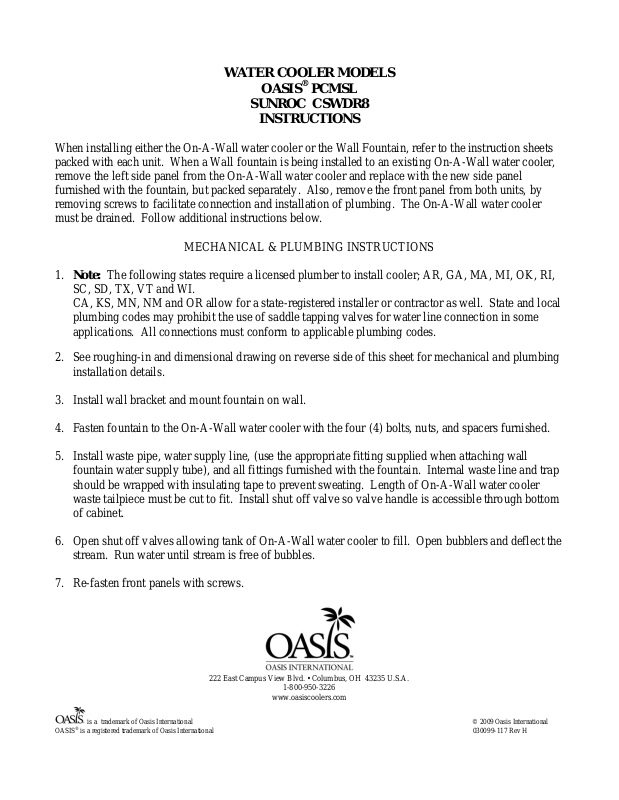

WATER COOLER MODELS

OASIS

®

PCMSL

SUNROC CSWDR8

INSTRUCTIONS

When installing either the On-A-Wall water cooler or the Wall Fountain, refer to the instruction sheets
packed with each unit. When a Wall fountain is being installed to an existing On-A-Wall water cooler,
remove the left side panel from the On-A-Wall water cooler and replace with the new side panel
furnished with the fountain, but packed separately. Also, remove the front panel from both units, by
removing screws to facilitate connection and installation of plumbing. The On-A-Wall water cooler
must be drained. Follow additional instructions below.

MECHANICAL & PLUMBING INSTRUCTIONS

1. Note: The following states require a licensed plumber to install cooler; AR, GA, MA, MI, OK, RI,

SC, SD, TX, VT and WI.
CA, KS, MN, NM and OR allow for a state-registered installer or contractor as well. State and local
plumbing codes may prohibit the use of saddle tapping valves for water line connection in some
applications. All connections must conform to applicable plumbing codes.

2. See roughing-in and dimensional drawing on reverse side of this sheet for mechanical and plumbing

installation details.

3. Install wall bracket and mount fountain on wall.

4. Fasten fountain to the On-A-Wall water cooler with the four (4) bolts, nuts, and spacers furnished.

5. Install waste pipe, water supply line, (use the appropriate fitting supplied when attaching wall

fountain water supply tube), and all fittings furnished with the fountain. Internal waste line and trap
should be wrapped with insulating tape to prevent sweating. Length of On-A-Wall water cooler
waste tailpiece must be cut to fit. Install shut off valve so valve handle is accessible through bottom
of cabinet.

6. Open shut off valves allowing tank of On-A-Wall water cooler to fill. Open bubblers and deflect the

stream. Run water until stream is free of bubbles.

7. Re-fasten front panels with screws.
