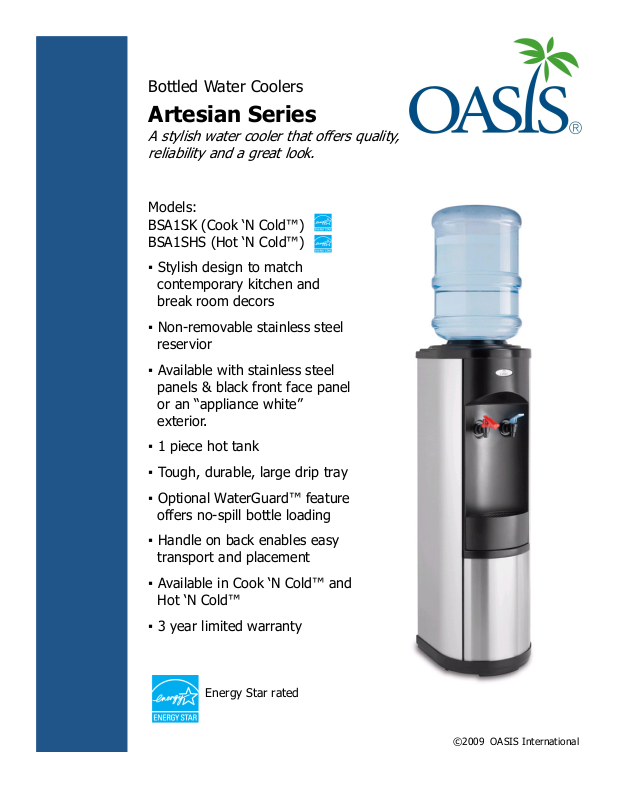

Oasis BSA1SHS User Manual

Bottled Water Coolers

Artesian Series

A stylish water cooler that offers quality,
reliability and a great look.

Models:
BSA1SK (Cook ‘N Cold™)
BSA1SHS (Hot ‘N Cold™)

▪ Stylish design to match

contemporary kitchen and
break room decors

▪ Non-removable stainless steel

reservior

▪ Available with stainless steel

panels & black front face panel
or an “appliance white”
exterior.

▪ 1 piece hot tank

▪ Tough, durable, large drip tray

▪ Optional WaterGuard™ feature

offers no-spill bottle loading

▪ Handle on back enables easy

transport and placement

▪ Available in Cook ‘N Cold™ and

Hot ‘N Cold™

▪ 3 year limited warranty

Energy Star rated

©2009 OASIS International

Artesian Series

Technical Data & Specifications

Dimensions:
W 12” x D 12 1/2” x H 35 7/8”

Net Weight (approx.): 37 lbs.

Cabinet: Stylish design to match contempo-

rary kitchen and break room decors. Type
300 series stainless steel or powdercoated
steel panels with top, base and front in sturdy
high density polyethylene.

Cold Water Refrigeration Unit:

cooled condenser. Internally spring mounted, her­metically sealed compressor with automatic over­load protector. No lubrication needed. Refrigerant
is controlled accurately by a capillary tube.

Cold Water Thermostat:

Temperature is con­trolled by an adjustable thermostat with “Off” posi­tion that is easily accessible on the rear of the unit.

Cold Water Reservoir:

Type 300 series
stainless steel. External copper refrigerant coil.
Encased in pre-fitted molded plastic foam insula­tion.

1 Piece Hot Water Tank:

500 watt heating
element. One piece tank is easy to replace or ser­vice without breaking soldered refrigeration con­nections. The hot tank is type 300 series stainless
steel.

Hot Water Capacity:

45 x 6 oz cups of piping

hot water per hour. 1 1/2 quart storage tank.

Hot Water Thermostat:

Adjustable thermostat

with safety limiter.

Hot Water Safety Faucet:

requires a two-step action that is easy for adults to
use, but helps to protect small children. Faucets
are made of durable polypropylene.

Convection

Self closing faucet

Cold Water Capacity Table

Room
Temp

70°F
80°F
90°F

100°F

Drip Receptor:

Water
Temp

70°F
80°F
90°F

100°F

Gallons per hour

of 50°F Water

1.4

1.0

0.6

0.4

# of 3oz cups

per hour

59
42
25
17

Drip tray lifts out for easy re-

moval. Molded for durability, dishwasher safe.

Electrical:

115 volts, 60 Hertz. Water cooler
compressor 1/20 hp. Three wire service cord and
polarized plug furnished.

Warranty

:(Within the Continental Limits of the
United States and Canada) Limited three year war­ranty. Three years on the sealed refrigeration sys­tem, one year on most component parts. Detailed
warranty certificate enclosed with each water
cooler; sample copy available upon request.

Components in this water cooler are lead free as
defined by the Safe Drinking Water Act Amend­ments of 1986 and the Lead Contamination Control
Act of 1988. Model Listed by Underwriter’s Labora­tories to U.S. and Canadian Standards.

Specifications are subject to change without notice. Bottle not included with cooler.
©2009 OASIS International. OASIS® and the palm tree designs are registered trademarks of OASIS International. WaterGuard™, Hot ‘N Cold™, and
Cook ‘N Cold™ are trademarks of OASIS International.

OASIS International ● 222 East Campus View Blvd. ● Columbus, OH 43235 ● www.oasiswatercoolers.com ● 614.861.1350 ● 614.322.4557 Fax
