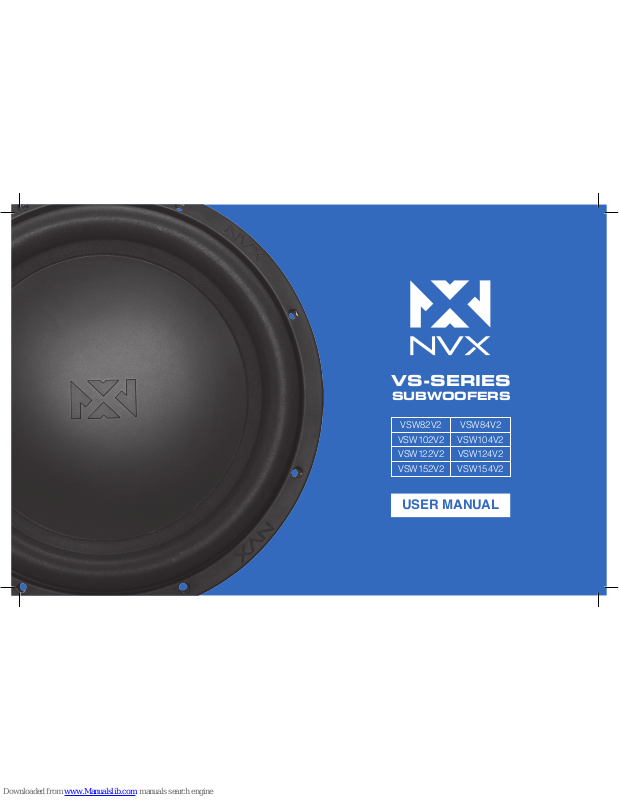

NVX VSW82V2, VSW102V2, VSW122V2, VSW152V2, VSW84V2 User Manual
...
VS-SERIES
SUBWOOFERS
USER MANUAL
VSW82V2
VSW102V2
VSW122V2
VSW152V2
VSW84V2
VSW104V2
VSW124V2
VSW154V2
1
NVX VS-SERIES
THANK YOU FOR CHOOSING NVX
Congratulations on the purchase of your new NVX subwoofer. The VS-Series V2 subwoofer
you hold in your hands is the culmination of an extensive research, development and real
world testing process. While this isn’t the easiest way to build a sub, the time and personal
attention we dedicate reects in the quality and performance of the nished product. We are
proud to build NVX subwoofers and are condent you will be proud to own one.
We have incorporated many features in the VS-Series V2 that will separate NVX from the
competition. Utilizing our engineering strengths and woofer knowledge, we created VS-Series
V2 to deliver amazing SQ (Sound Quality) and performance while providing the best value in
its class.
Visit: nvx .com | Call: 213.444.1689 | 15303 Ventura Blvd. 9th Flo or, Sherman Oaks, C A 91403
2
SUBWOOFERS
SPECIFICATIONS
Results vary based on enclosure type and volume. See pages 4 and 5.
A
B
D
C
Model N umber
VSW82V2 VSW84V2 VSW102V2 VSW104V2 VSW122V2 VSW124V2 VSW152V2 VSW154V2
Power Range (R MS) 250- 400 Watts 2 50-40 0 Watts 350-500 Watts 350-500 Watts 450-600 Watts 450-600 Watts 600 - 750 Wa tts 600 - 750 Wat ts
Impedance
per Voice Coil
2 Ohms 4 Ohms 2 Ohms 4 Ohms 2 Ohms 4 Ohms 2 Ohms 4 Ohms
Frequency Res ponse 20-200 Hz 20-200 Hz 20-200 Hz 20-200 Hz 20-200 Hz 20-200 Hz 20 - 200 H z 20 - 200 H z
Xmax 9 mm 9 mm 11 m m 11 m m 12 mm 12 mm 12 mm 12 mm
Fs 53 Hz 53 Hz 3 0 Hz 30 Hz 25 Hz 25 Hz 2 3 Hz 23 Hz
Vas 6.65 L 6.65 L 27.7 3 L 27.7 3 L 66.24 L 66.24 L 179. 78 L 179.7 8 L
Sd 20 .11 2 0.11 33.00 33.00 49.08 49.08 85.50 85. 50
Qts 0.59 5 0.595 0.476 0 .476 0. 396 0.396 0.489 0.489
SP L (1W/M ) 85 85 87 87 90 90 92 92
QES 0.694 0.694 0.537 0.537 0.437 0.437 0.532 0.532
Net Weight 12.04 lb s (5.45 kg) 12.04 lbs (5.45 kg) 13.15 lbs (5.95 kg) 13.15 lbs (5.95 kg) 15.5 8 lbs (7.05 kg) 15.58 lbs (7.05 kg) 16.90 lbs (7.65 kg) 16.9 0 lbs (7.65 kg)
A Overall Diameter
8.50” (216 mm) 10.35” (26 3 mm) 12.44” (316 mm) 15.47” (39 3 mm)
B Mounting Diameter
7.82” (198.50 mm) 9.65” (24 5 mm) 11.63” (295.5 0 mm) 14.69” (373 mm)
C Cutout Diameter
7.20” (183 mm) 9.15” (236 mm) 11.12” (282.50 mm) 14.06” (357 mm)
D Mounting Depth
4. 37” (111 mm) 5.00” (127 mm) 5.95” (151 mm) 6.83” (173.5 0 mm)
3
NVX VS-SERIES
Model N umber
VSW82V2/
VSW84V2
VSW102V2/
VSW104V2
VSW122V2/
VSW124V2
VSW152V2/
VSW154V2
Recommended
Enclosure Volum e
0.65 ft.
3
0.70 ft .
3
1.75 ft .
3
2.75 ft.
3
Tuning Frequency 43 Hz 34 Hz 32 Hz 32 Hz
Ideal Power R MS 250 Watts 35 0 Watts 450 Watts 60 0 Watts
F3 39 Hz 29 Hz 31 Hz 35 Hz
Model N umber
VSW82V2/
VSW84V2
VSW102V2/
VSW104V2
VSW122V2/
VSW124V2
VSW152V2/
VSW154V2
Recommended
Enclosure Volum e
0.35 ft .
3
1.00 f t.
3
1.25 f t.
3
1.75 ft .
3
Ideal Power R MS 400 Watt s 500 Watt s 600 Watt s 750 Watts
F3 64 Hz 4 5 Hz 55 Hz 3 9 Hz
FC 70 Hz 51 Hz 51 H z 47 Hz
QTC 0.780 0.820 0.670 0.890
The enclosure designs listed below will give you the best possible
performance from your VS-Series V2 subwoofer. NVX subwoofers
are optimized for use in both ported and sealed enclosures, each of
which has distinct sonic characteristics.
PORTED BOX
Ported boxes are the enclosure type we recommend for
optimum performance of your VS-Series V2 Subwoofer.
A ported box features a vent or port to couple the woofer’s backwave with the front-wave. This results in markedly improved
efciency and low frequency response.
These enclosures are somewhat larger than the sealed alternative.
ENCLOSURES
SEALED BOXES
A sealed enclosure offers improved acoustic suspension and
cone control, which reduces distortion and increases the power
handling capabilities of the subwoofer. They are smaller than
their ported counterparts, and offer atter bass response with
more consistency across the frequency range.
