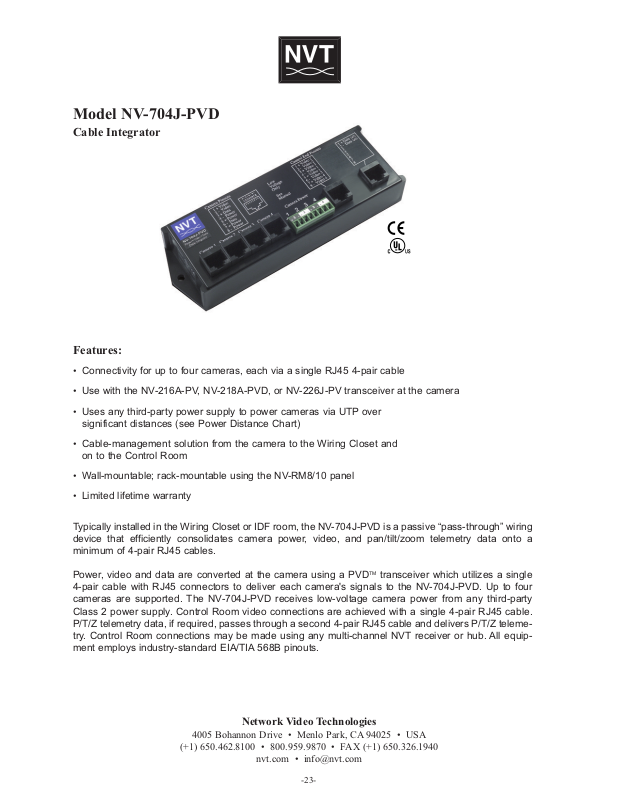

NVT NV-704J-PVD Specsheet

Model NV-704J-PVD

Cable Integrator

Features:

• Connectivity for up to four cameras, each via a single RJ45 4-pair cable

• Use with the NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera

• Uses any third-party power supply to power cameras via UTP over

significant distances (see Power Distance Chart)

• Cable-management solution from the camera to the Wiring Closet and
on to the Control Room

• Wall-mountable; rack-mountable using the NV-RM8/10 panel

• Limited lifetime warranty

Typically installed in the Wiring Closet or IDF room, the NV-704J-PVD is a passive “pass-through” wiring
device that efficiently consolidates camera power, video, and pan/tilt/zoom telemetry data onto a
minimum of 4-pair RJ45 cables.

Power, video and data are converted at the camera using a PVDTMtransceiver which utilizes a single
4-pair cable with RJ45 connectors to deliver each camera's signals to the NV-704J-PVD. Up to four
cameras are supported. The NV-704J-PVD receives low-voltage camera power from any third-party
Class 2 power supply. Control Room video connections are achieved with a single 4-pair RJ45 cable.
P/T/Z telemetry data, if required, passes through a second 4-pair RJ45 cable and delivers P/T/Z teleme­try. Control Room connections may be made using any multi-channel NVT receiver or hub. All equip­ment employs industry-standard EIA/TIA 568B pinouts.

Network Video Technologies

4005 Bohannon Drive • Menlo Park, CA 94025 • USA

(+1) 650.462.8100 • 800.959.9870 • FAX [phone]

nvt.com • [e-mail]

-23-

RJ45

1
2
3
4
5
6
7
8

Video White/Orange
Video Orange/White
Data White/Green
Power Blue/White
Power White/Blue
Data Green/White
Power White/Brown
Power Brown/White

+

­+

­+

­+

-

Camera Pinouts and UTP Color Code

Model NV-704J-PVD

Cable Integrator

Technical Specifications

WIRE DISTANCE (Power Distance Charts)

Supply voltage, wire resistance and minimum camera operating
voltage determine the maximum camera distance. Examples
assume a minimum 21 VAC at the 24 VAC camera:

CONTROL

UTP, RJ45 Connectors 100 ohms

ENVIRONMENTAL

Temperature -22 to +167 °F (-30 to +75 °C)
Humidity (non-condensing) 0 to 95%

VIDEO

UTP, RJ45 Connectors 100 ohms

POWER

16 to 24AWG (0.5mm to 1.3mm)

MECHANICAL

Dimensions, excluding brackets and connectors

7.3in x 2.35in x 1.65in (184mm x 60mm x 41mm)
Weight 0.6lb (0.32kg)
Material Black ABS
Mounting Two 0.175in (4,4mm diameter holes)

6.75in (171,5mm) apart

Two NV-704J-PVDs can be mounted to an NV-RM 8/10 Rackmount
Panel

Notes: Wire should be Cat5 or better/ low voltage camera power, video and RS-422
or RS-485 data may reside within the same wire bundle, however do not run 24 or
28VAC within the same wire bundle as other telecom or datacom signals.

4005 Bohannon Drive • Menlo Park, CA 94025 • USA

(+1) 650.462.8100 • 800.959.9870 • FAX [phone]

Specifications subject to change without notice.

Network Video Technologies

nvt.com • [e-mail]

-24-
