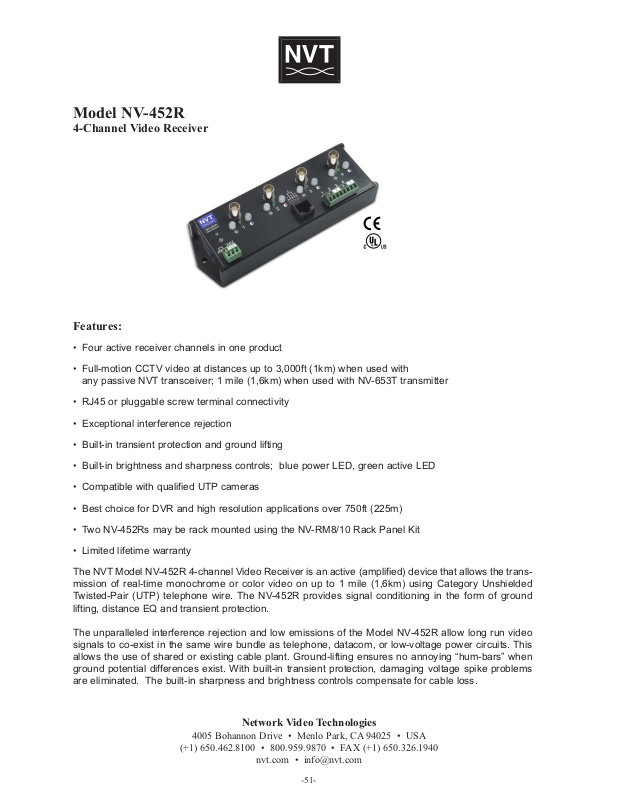

NVT NV-452R Specsheet

Model NV-452R

4-Channel Video Receiver

Features:

• Four active receiver channels in one product

• Full-motion CCTV video at distances up to 3,000ft (1km) when used with
any passive NVT transceiver; 1 mile (1,6km) when used with NV-653T transmitter

• RJ45 or pluggable screw terminal connectivity

• Exceptional interference rejection

• Built-in transient protection and ground lifting

• Built-in brightness and sharpness controls; blue power LED, green active LED

• Compatible with qualified UTP cameras

• Best choice for DVR and high resolution applications over 750ft (225m)

• Two NV-452Rs may be rack mounted using the NV-RM8/10 Rack Panel Kit

• Limited lifetime warranty

The NVT Model NV-452R 4-channel Video Receiver is an active (amplified) device that allows the trans­mission of real-time monochrome or color video on up to 1 mile (1,6km) using Category Unshielded
Twisted-Pair (UTP) telephone wire. The NV-452R provides signal conditioning in the form of ground
lifting, distance EQ and transient protection.

The unparalleled interference rejection and low emissions of the Model NV-452R allow long run video
signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This
allows the use of shared or existing cable plant. Ground-lifting ensures no annoying “hum-bars” when
ground potential differences exist. With built-in transient protection, damaging voltage spike problems
are eliminated. The built-in sharpness and brightness controls compensate for cable loss.

Network Video Technologies

4005 Bohannon Drive • Menlo Park, CA 94025 • USA

(+1) 650.462.8100 • 800.959.9870 • FAX [phone]

nvt.com • [e-mail]

-51-

1+
2

-

3+
4

-

5+
6

-

7+
8

-

Ch. 1

Ch. 4

Ch. 3

Ch. 2

Model NV-452R

4-Channel Video Receiver

Technical Specifications

VIDEO

Frequency Response DC to 5 MHz
Adjustable Brightness and Sharpness Controls
Common-mode / Differential-mode rejection

15 KHz to 5 MHz 60 dB typ

Impedance

Coax, female BNC 75 ohms
UTP, Screw terminal block or RJ45 100 ohms

LED INDICATORS

Blue “Power-On”; Green “Active” signal present

WIRE TYPE

Network Wiring One Unshielded Twisted Pair

(for each video signal)

24-16 AWG (0,5-1,31mm)
Category Type 2 or better
Impedance 100 ± 20 ohms
DC Loop Resistance 52 ohms per 1,000ft

(18 ohms per 100m)

Differential Capacitance 19 pF/ft max

(62 pF/m max)

Typical Application

CONNECTORS

Use either terminal or RJ45 (not both)

POWER

24VAC / DC (transformer not included) 250 mA max
One floating power supply may power multiple NV-452R receivers

ENVIRONMENTAL

Ambient temperature +32 to +122 °F (0 to +50 °C)
Humidity (non-condensing) 0 to 95%
Transient Immunity per ANSI / IEEE 587 C62.41

MECHANICAL

Dimensions, excluding brackets and connectors

7.3 x 2.35 x 1.65in (184 x 60 x 41mm)
Weight 0.7lb (0,32kg)
Material Black ABS
Mounting Two 0.175 in (4,4mm) diameter holes

6.75in (171,5mm) apart

Two NV-452Rs can be mounted to an NV-RM 8/10 Rackmount Panel

Specifications subject to change without notice.
