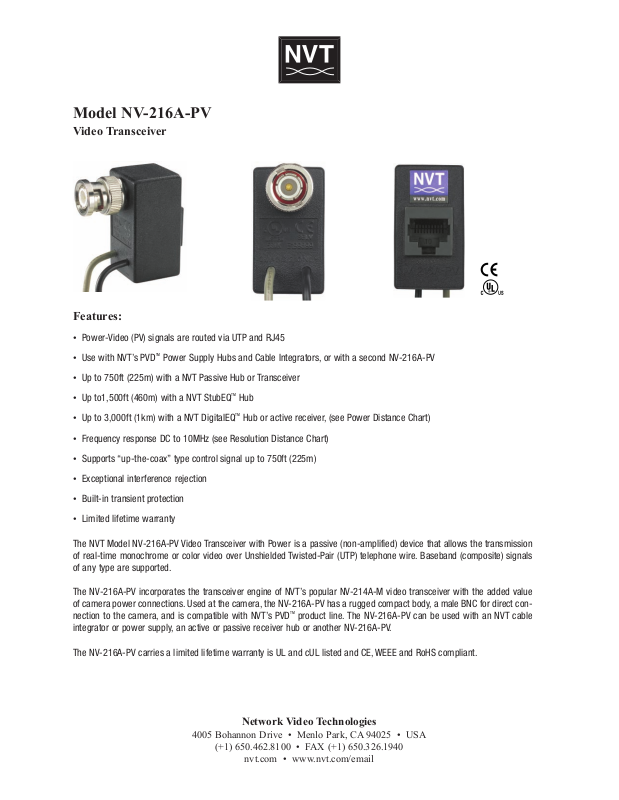

NVT NV-216A-PV Specsheet
Model NV-216A-PV
Video Transceiver
Features:
• Power-Video (PV) signals are routed via UTP and RJ45
• Use with NVT’s PVDTMPower Supply Hubs and Cable Integrators, or with a second NV-216A-PV
• Up to 750ft (225m) with a NVT Passive Hub or Transceiver
• Up to1,500ft (460m) with a NVT StubEQTMHub
• Up to 3,000ft (1km) with a NVT DigitalEQTMHub or active receiver, (see Power Distance Chart)
• Frequency response DC to 10MHz (see Resolution Distance Chart)
• Supports “up-the-coax” type control signal up to 750ft (225m)
• Exceptional interference rejection
• Built-in transient protection
• Limited lifetime warranty
The NVT Model NV-216A-PV Video Transceiver with Power is a passive (non-amplified) device that allows the transmission
of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals
of any type are supported.
The NV-216A-PV incorporates the transceiver engine of NVT’s popular NV-214A-M video transceiver with the added value
of camera power connections. Used at the camera, the NV-216A-PV has a rugged compact body, a male BNC for direct connection to the camera, and is compatible with NVT’s PVDTMproduct line. The NV-216A-PV can be used with an NVT cable
integrator or power supply, an active or passive receiver hub or another NV-216A-PV.
The NV-216A-PV carries a limited lifetime warranty is UL and cUL listed and CE, WEEE and RoHS compliant.
Network Video Technologies
4005 Bohannon Drive • Menlo Park, CA 94025 • USA
(+1) 650.462.8100 • FAX (+1) 650.326.1940
nvt.com • www.nvt.com/email
-1-
1+
2
-
3+
4
-
5+
6
-
7+
8
-
Power
Power
Video
Model NV-216A-PV
Cat 5 Wire Distance
Cat 5 Wire Distance
2
35
315
4
00
4
75
550
6
30
700
780
3 MHz
4 MHz
5 MHz
6 MHz
9
MHz
8 MHz
7 MHz
1
0 MHz
100ft
Camera Lines of Resolution
Frequency
300ft
1,000ft
1 mile
3,000ft
10,000ft
30m
100m
300m
1,6km
1km
3km
M
a
x
P
a
s
s
i
v
e
D
i
s
t
a
n
c
e
M
a
x
S
t
u
b
E
Q
D
i
s
t
a
n
c
e
M
a
x
D
i
g
i
t
a
l
E
Q
D
i
s
t
a
n
c
e
Fixed 24VAC Camera
Power Supply Voltage
Minimum Voltage at Camera
899ft (274m)
1,134ft (346m)
450ft (137m)
567ft (173m)
300ft (91m)
378ft (115m)
1,840ft (561m)
2,320ft (707m)
916ft (279m)
1,155ft (352m)
612ft (186m)
771ft (235m)
NV-216A-PV
B&W Camera 100 mA, 2.4 W
2-pair 24 AWG
2-pair 23 AWG
Color Camera 200 mA, 4.8 W
2-pair 24 AWG
2-pair 23 AWG
Color Camera 300 mA, 7.2 W
2-pair 24 AWG
2-pair 23 AWG
24 VAC
21 VAC
28 VAC
21 VAC
Fixed Dual Voltage 24VAC12/VDC Camera with NV-216A-PV
Power Supply Voltage
Minimum Voltage at Camera
1,753ft (534m)
2,210ft (674m)
874ft (266m)
1,102ft (336m)
583ft (173m)
735ft (224m)
2,454ft (748m)
3,000ft (915m)
1,223ft (373m)
1,542ft (470m)
815ft (250m)
1,025ft (310m)
B&W Camera 100 mA, 2.4 W
2-pair 24 AWG
2-pair 23 AWG
Color Camera 200 mA, 4.8 W
2-pair 24 AWG
2-pair 23 AWG
Color Camera 300 mA, 7.2 W
2-pair 24 AWG
2-pair 23 AWG
24 VAC
14 VAC
28 VAC
14 VAC
Video Transceiver
Technical Specifications
V I D E O D I S T A N C E R E C O M M E N D A T IO N S
P O W E R D I S T A N C E C H A R T S
Supply voltage, wire resistance and minimum camera operating
voltage determine the maximum camera distance. Examples
assume a minimum 21VAC at the camera:
V I D E O
Frequency response DC to 10 MHz
Attenuation 0.5 dB typ
Common-mode / Differential-mode rejection
50 KHz to 10 MHz 60 dB typ
Impedance
Coax, male BNC 75 ohms
UTP, RJ45 data connector 100 ohms
R J 4 5 P I N O U T S
W I R E T Y P E
Network Wiring One unshielded twisted pair
22-24 AWG (0,5-0,64mm)
Category type 2 or better
Impedance 100 ± 20 ohms
DC loop resistance 52 ohms per 1,000ft
(18 ohms per 100m)
Differential capacitance 19 pF/ft max
(62 pF/m max)
E N V I R O N M E N T A L
Temperature -22 to +167 °F (-30 to +75°C)
Humidity (non-condensing) 0 to 95%
Transient immunity per ANSI / IEEE 587 C62.41
M E C H A N I C A L
Body Length 1.6in (40,6mm)
Body Depth 0.88in (22mm)
Body Height (not including BNC) .81in (20,5mm)
Product Weight 1.0oz (30g)
Packaged Weight 2.0oz (57g)
Notes: Actual distance will depend on the camera’s inrush and operating current, minimum operating voltage, and the wire’s environmental temperature. Please consult NVT
Customer Support for further information.
Wire should be category rated Unshielded Twisted-Pair (UTP) cable, Low voltage camera
power, video, and RS-422 or RS-485 telemetry may be sent within the same wire bundle.
Do not run 24VAC or 28VAC in the same wire bundle with analog telecom signals. However
you may share the same wire/cable tray.
An online wire Power Distance Calcula tor is available at www.nvt.com under Product
Support.
R E G U L A T O R Y
Specifications subject to change without notice.
