INTRODUCTION

INTRODUCTION

The NVIDIA® Tesla™ 1U GPU Computing System
simplifies adding GPU computing to rack­mount installations. With Tesla, you can tackle
massive problems with the unprecedented
performance of the many-core architecture
and the C programming enabled by a suite of
developer tools. Tesla enables you to solve
problems faster.

Note: It is important to register your Tesla 1U GPU
Computing System in order to receive NVIDIA Customer
Care online and phone support. To register, please visit:

www.nvidia.com/register.

About This Guide

This installation guide provides instructions to connect the Tesla 1U
GPU Computing System to an NVIDIA-tested host system in a
rack-mount environment. For a list of NVIDIA-tested host systems,
of for information on using the system with applications, refer to the
NVIDIA web site at www.nvidia.com/tesla.





INTRODUCTION



Minimum System Requirements

Prior to unpacking your new NVIDIA Tesla system, confirm
that your host system meets all the system requirements for a
smooth installation.

> System and Platform

z

NVIDIA-tested system or platform

> Operating System

z

Linux 32-bit or 64-bit (Red Hat Enterprise

z

Linux 3, 4, and 5; SUSE 10.3)

> Processor

z

Intel Pentium 4 or Xeon processor or higher

z

AMD Opteron processor or higher

> RAM

z

2 GB minimum, 4 GB recommended

> System Interface

z

PCI Express x16 slot

z

PCI Express x8 slot if you are using the optional
x8 interface card



UNPACKING

UNPACKING

Equipment

Check that you have all of the items you need for installing your Tesla
system. Depending on which Tesla product you purchased and from
whom you purchased it, some accessories may have been ordered
and shipped separately. You should have:

One (1) Tesla 1U GPU
Computing System chassis

The 1U chassis includes four (4) Fermi GPUs.

Two (2) NVIDIA Interface Cards

Installs into the PCI Express x16 slot in the host system.
The card comes with the standard ATX-height bracket
attached. A lowprofile bracket is also provided and can
replace the standard bracket on the card. Your solution
provider may have already configured your cards,
brackets and cables to your specific installation needs.

Two (2) Low-Profile Brackets

Used to replace the standard ATX (long) bracket
shipped attached to the interface card. Your solution
provider may have already configured your cards,
brackets, and cables to your specific installation needs.





UNPACKING



Two (2) Interconnect Cables

Connects from the interface card in the host system to
the Tesla 1U GPU Computing System.

Power Cords

Used to supply power to the Tesla 1U GPU Computing
System. The host system controls the power. Your
solution provider may have already configured your
cards, brackets, and cables to your specific
installation needs.

One (1) Rail Kit

Each rail kit includes two (2) rails for use with a
standard 4-post 19 inch, EIA compliant rack.

WELCOME

Registration Card

Register to gain priority access to NVIDIA’s
Customer Care.

Installation CD

Contains this file (Installation Guide) and all the
necessary drivers to enable the Tesla system. To keep
your drivers current, visit http://developer.nvidia.com/

object/cuda.html and download the latest drivers.

Quick Start Guide

Provides the basic procedures necessary to install and
bring up the Tesla 1U GPU Computing System.



HARDWARE INSTALLATIONS

HARDWARE INSTALL ATIONS

Installing the NVIDIA Tesla 1U GPU Computing
System hardware involves opening up your
computer. Follow all of the safety instructions
provided here to ensure that there is no damage
to you, your host system, or the Tesla unit.

Note: All hardware must be installed prior to installation of
the drivers.

Safety Instructions

To reduce the risk of fire, electric shock, and injury always follow
basic safety precautions. Remember to remove power from your host
system by disconnecting the AC main source before installing any
equipment into the host system chassis. For more information
regarding important safety instructions, refer to the Important Safety
Information section. Do not allow anything to rest on the power cord.
Do not place this product where a person can step or trip on the
power cord.

Before You Begin

The Tesla system must be connected to a host system. The host
system accessing the Tesla system must have one or more open PCIe
slots. Any NVIDIA graphics drivers on your host system should be
uninstalled prior to installing the hardware and software associated
with the Tesla system.





HARDWARE INSTALL ATIONS



Optional Low-Profile Bracket

Before beginning the installation, determine if you are going to need
the Tesla interface card with the standard (full-height ATX) bracket or
the shorter low-profile bracket. If you require the lowprofile bracket,
use the following instructions to replace the standard bracket.
Replacing the bracket requires a Philips #2 screwdriver.

1. Remove the two (2) screws holding the bracket to the card.

2. Re-use those screws to attach the new bracket.

HARDWARE INSTALL ATIONS



Tesla 1U GPU Computing System Installation

Mounting the Tesla System in a Rack

Plan your rack configuration to ensure you have the proper cables to
reach from the Tesla system to your host system. The Tesla system
ships with 0.5-meter cables by default. An optional 2-meter cable is
available.

The Tesla system also ships with rails to fit a 4-post 19-inch EIA rack
as the default configuration.

If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than
room ambient temperature. Therefore, consideration should be given
to installing the equipment in an environment compatible with the
manufacturer’s maximum rated ambient temperature (Tmra). The
maximum operating ambient temperature is 35 ºC.

1 Remove one of the rails from the packing box.
2 Remove the mounting screws attached to either end of the rail.

Set aside as you will need these to secure the rail to the rack at the
end of the steps. Remove any existing graphics card (if there is one).
Save hardware (such as screws and brackets) to use when installing
the NVIDIA graphics card.

Figure 1. Detail of rail for rack mounting

3 Choose either the front or the rear of the rack to start your

rail installation.



HARDWARE INSTALL ATIONS



4 Slide the rail into the side of the rack, and adjust the length

accordingly. Make sure the flare end of the rail is positioned at the
front of the rack.

Figure 2. Detail of putting rail into rack

5 Slide the rail onto rack post. The studs in the front and back should

hold the rail in place temporarily.

6 Use the supplied screws to secure the rails to the rack firmly.

Figure 3. Detail of securing rails in rack

Front of rack

Slide rails to
align the screw
holes

Attach rail to
rear mounting
brackets

Attach rail to
front mounting
brackets

HARDWARE INSTALL ATIONS



7 Repeat Step 1 through Step 7 to install the other rail.
8 Unpack the Tesla system.
9 Align the Tesla system with the installed rails and slide it into

the rack.

Figure 4. Slide the system onto the rails

10 Make sure the status LED on the front panel of the system is located

on the right side for proper installation.

11 Tighten the thumb screws on the front of the unit to secure the Tesla

system to the rack system.

LED display located
on the right side of
the front panel

Align system with
installed rails



HARDWARE INSTALL ATIONS



Connecting to the Host System

Use the following procedures to connect the Tesla 1U GPU Computing
System system to a host system. Before you begin, make sure you
disconnect the power cord to the host system.

1 Install the NVIDIA Interface Card in an open PCIe slot. If your host

system requires a low-profile bracket on the card, replace the
standard bracket with the low profile bracket provided in the box.
Refer to bottom of page 9 of this document for more info.

2 Connect one end of one of the PCIe cables supplied with your system.

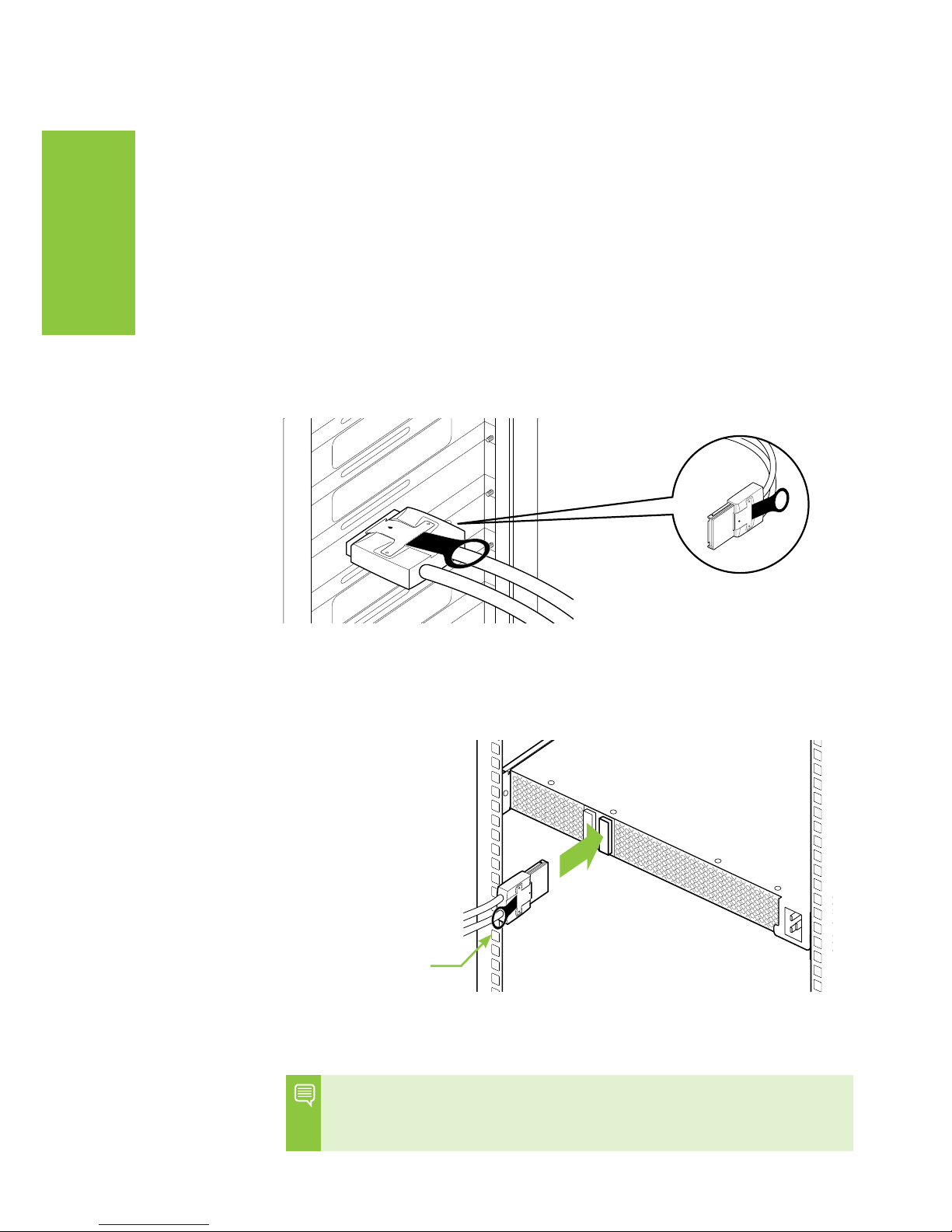

Figure 5. Connecting cable to host system

3 Connect the other end of the cable to the back of the Tesla system.

The thumb tabs on the cable should face outward for the cable to
engage properly.

Figure 6. Connecting PCIe cable to Tesla system

Note: There is no specific order when connecting the
inter-connect cables between the host system and the
Tesla system.

Interconnect cable
connections on the
back of the Tesla
System

Thumb tab should
always be located
on the outside
of the connector

HARDWARE INSTALL ATIONS



4 Connect the power cord to the Tesla system.

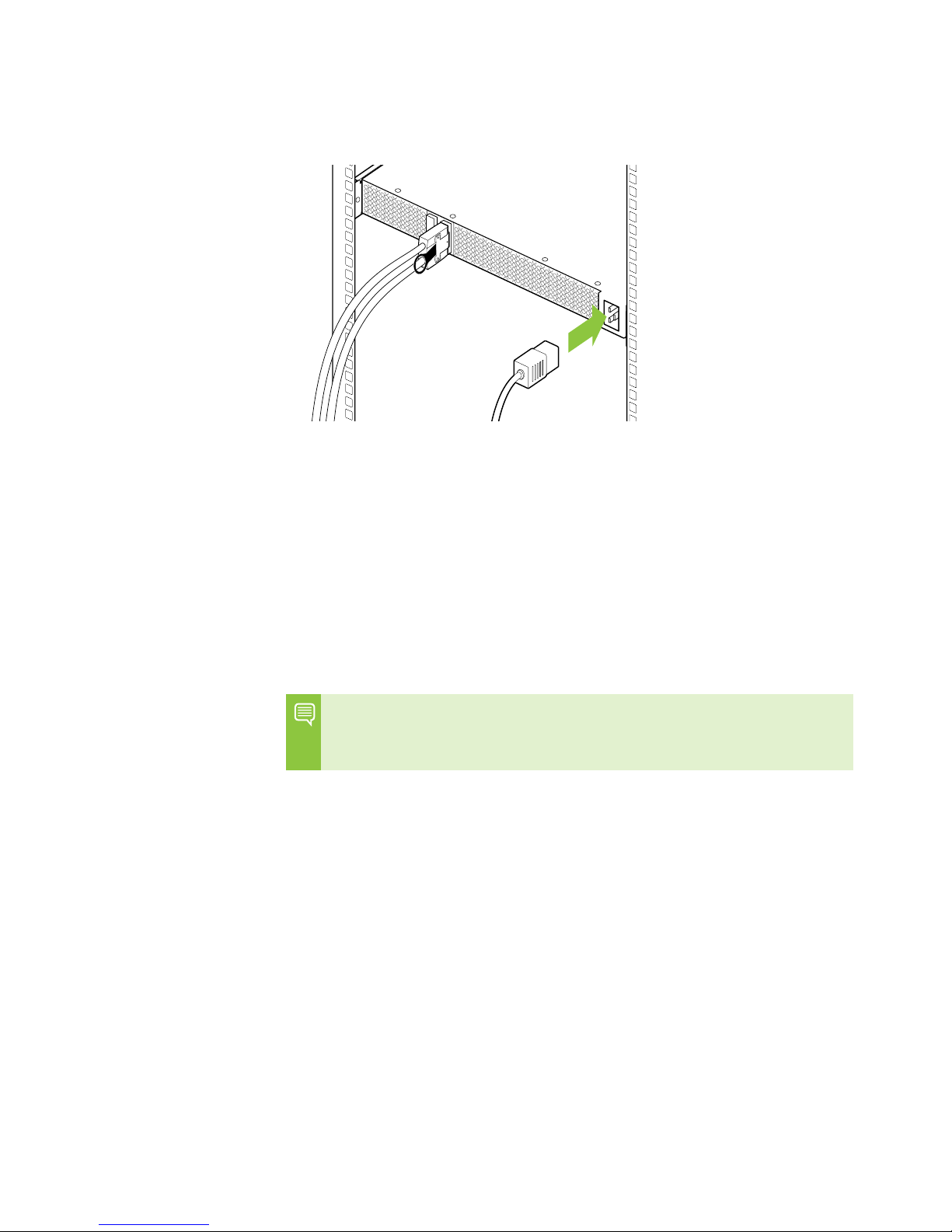

Figure 7. Connecting the power cord

5 Plug the power cord from the Tesla system to an AC outlet (it is

recommended to use a power surge protected outlet).

6 Reconnect the power cord to your host system. The host power cord

should have been unplugged at the beginning of the whole installation
process.

7 Power on the host system. At this time, power is also applied to the

Tesla system.

Note: The power-on state of the Tesla system is controlled by
the host system. The Tesla system is powered on only when
the host system is powered on.







DRIVER INSTALLATION

DRIVER INSTALL ATION

This section contains the instructions to install
the software drivers within a Linux environment.

In addition to the NVIDIA drivers located on the
Installation CD included with your computing
board, the drivers can be downloaded from the
NVIDIA web site at www.nvidia.com.

The driver follows a unified architecture model in
which a single driver set is used for all supported
NVIDIA GPUs. Your previous NVIDIA unified
driver may not support your Tesla board. In that
case, you will need to install the drivers from the
CD or download from www.nvidia.com.

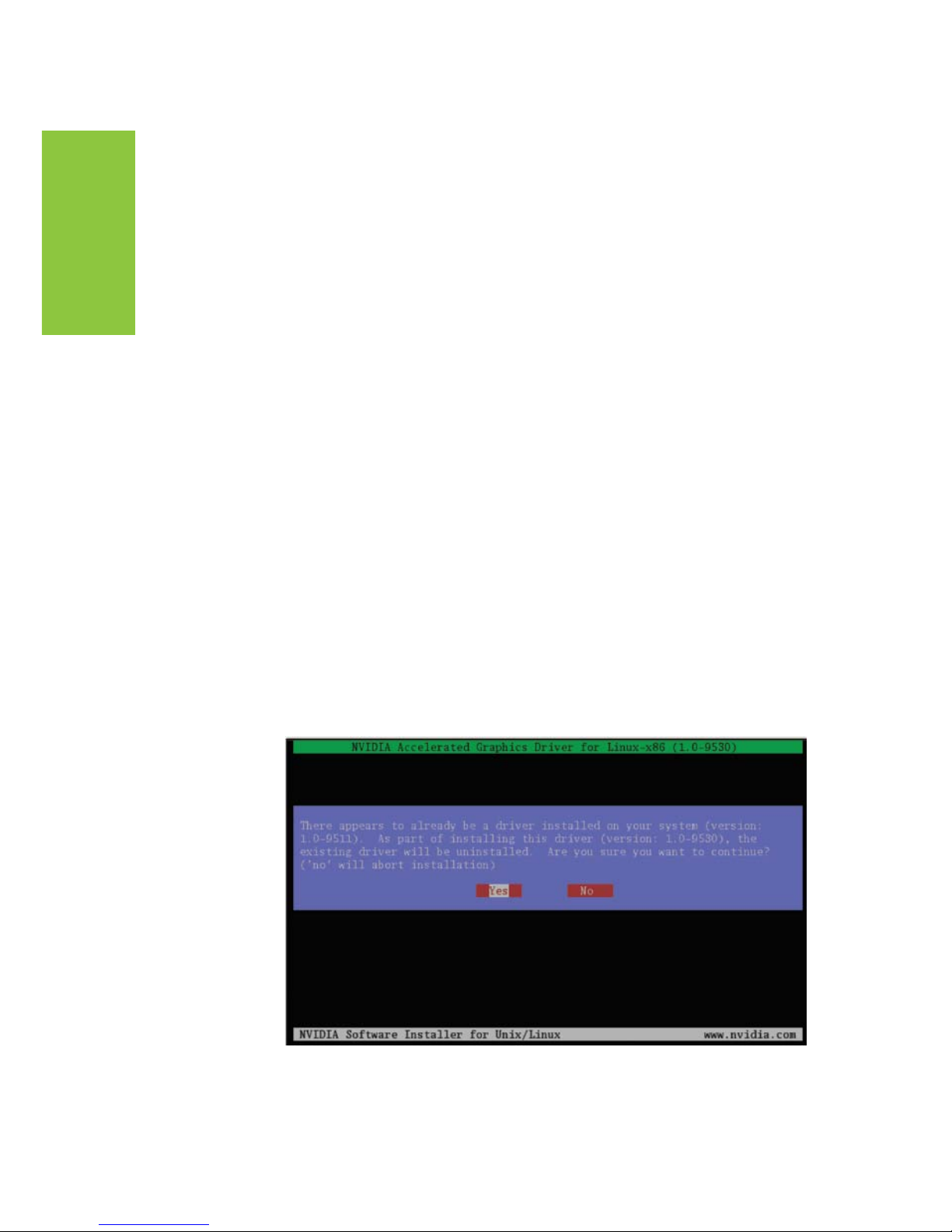

Driver Installation

Before you begin the installation, you should exit the X server and
close all OpenGL applications (it is possible that some OpenGL
applications persist even after the X server has stopped). You should
also set the default run level on your system such that it will boot to
a VGA console and not directly to X. Doing so will make it easier to
recover if there is a problem during the installation process.

Note: Refer to readme.txt located at /usr/share/doc/NVIDIA_
GLX-1.0/README.txt for more detailed information regarding
the linux driver installation.





DRIVER INSTALL ATION



1 Download the 32-bit or 64-bit Linux driver (the driver will have a

name similar to “NVIDIA-Linux-x86-100.14.11-pkg1. run” or
“NVIDIA-Linux-x86_64-100.14.11-pkg2.run”).

2 Change to the directory containing the downloaded file.
3 Run as root the NVIDIA-Linux*.run file downloaded in Step 1. As the

root user you can run the following executables:

In the cd.download_directory, choose either NVIDIA-Linux-x86-

100.14.11-pkg1.run or NVIDIA-Linux-x86_64-100.14.11-pkg2.run.
The NVIDIA-Linux*.run file is a self-extracting archive. When
executed, it extracts the content of the archive and runs the contained
nvidia installer utility, which provides an interactive interface to walk
you through the installation. nvidia-installer will also install itself to /
usr/bin/nvidia-installer, which may be used at some later time to
uninstall drivers, auto download updated drivers, etc.

4 Select Accept to accept the License Agreement.
5 Select Yes if a warning window displays indicating that there are

drivers already installed. Selecting Yes tells the installation process
to overwrite the previously installed drivers.

6 Select Yes when the Kernel Interface window displays. When the

installer runs, it will check for a precompiled kernel interface. If it
does not find one, it will attempt to locate an interface on the NVIDIA
ftp site and then download it.

DRIVER INSTALL ATION



7 Select OK to compile a kernel interface. If a kernel interface cannot

be downloaded, either because the FTP site cannot be reached or
because one is not provided, the installer will check your system for
the required kernel sources and compile the interface for you. You
must have the source code for your kernel installed for compilation
to work. On most systems this means that you will need to locate
and install the correct kernel source, kernel headers or kernel
development package.

Linking of the kernel interface (in the case that the interface
downloaded or compiled at installation) required you to have a linker
installed on your system. The linker, usually /usr/bin/ld is part of the
binutils package. If a precompiled kernel interface is not found, you
must install a linker prior to installing the NVIDIA driver.

8 Run the nvidia-xconfig utility. nvidia-xconfig will find the X configuration

file and modify it to use the NVIDIA X driver. If you have an NVIDIA
device that is graphics output capable, you can answer Yes when
the installer asks if it should run it. If you have no device capable of
displaying graphics output, answer No. If you need to reconfigure
your X server later, you can run nvidia-xconfig again from a terminal.
nvidia-xconfig will make a backup copy of your configuration file
before modifying it.

9 Installation is now complete.

Note: The X server must be restarted for configuration
file changes to take effect. More information about nvidia­xconfig can be found in the nvidia-xconfig manual page by

running: %man.nvidia.config.



DRIVER INSTALL ATION



CUDA Toolkit

1 If desired, download the CUDA Toolkit from

www.nvidia.com/object/cuda_get.html.

2 Change to the directory containing the downloaded file.
3 Run, as root, the NVIDIA_CUDA_TOOLKIT*.run file downloaded

in Step 1.

4 You can either take the default location or installation or change to

the directory of your choice. This document will assume installation
in the default location.

5 Installation of the TOOLKIT is now complete.

CUDA Software Developer’s Kit (SDK)

1 If desired, download the CUDA SDK from

www.nvidia.com/object/cuda_get.html.

2 Change to the directory containing the downloaded file.
3 Run, as root, the NVIDIA_CUDA_SDK*.run file downloaded in Step 1.
4 You can either take the default location or installation or change to

the directory of your choice. This document will assume installation
in the default location.

5 Installation of the SDK is now complete.

DRIVER INSTALL ATION



Verifying Installation if Running X Server

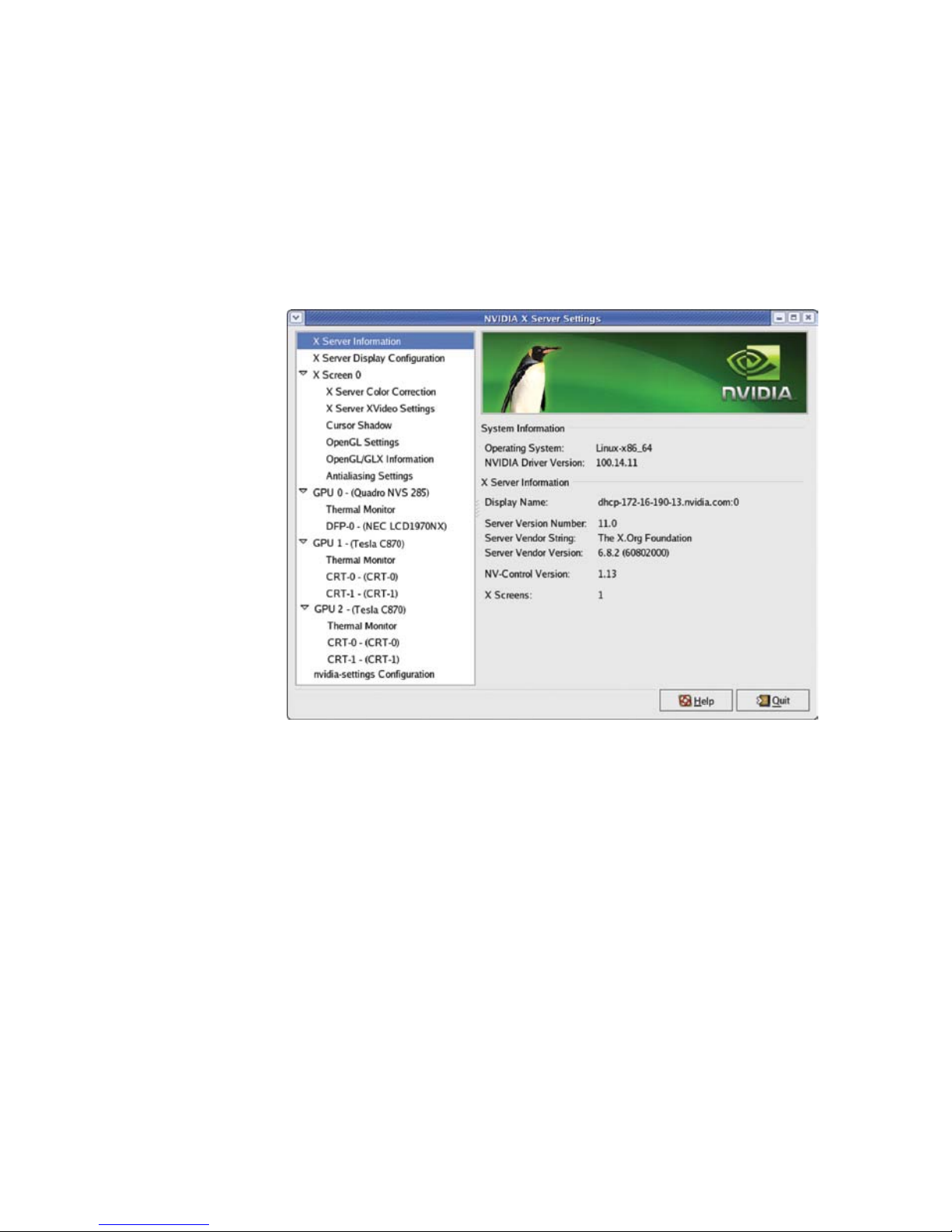

1 Run nvidia-settings to display the server settings window.
2 Verify that the information displayed is correct, indicating proper

functioning.

3 Run an application to verify that your Tesla system is working.

Verifying Linux Installation if Not Running
X Server

1 As root, execute the command:

nvidia-bug-report.shd: nvidia-bugreport.sh

This will create a log file called nvidia-bug-report in your present
working directory. Under the section called lspci in the log file, verify
that there are two GPUs per PCI Express connection. The output
should look something like the example below with the GPUs clearly
identified as NVIDIA Corporation devices, but the device ID may be
different depending on the generation of Tesla system you have:

16:00.0 3D controller: nVidia Corporation: Unknown device 0197 (rev a2)

18:00.0 3D controller: nVidia Corporation: Unknown device 0197 (rev a2)



DRIVER INSTALL ATION

2 Make sure that the following locations of the library files and NVIDIA

compiler are included in your $PATH. The .bashrc file may need to be
modified if the $PATH does not point to the correct files.

These are assuming the default locations were used.

PATH=$PATH:/usr/local/cuda/bin
export PATH
LD_LIBRARY_PATH=/usr/local/cuda/lib
export LD_LIBRARY_PATH

3 Go to the directory or folder that contains the CUDA SDK samples. In

Linux, the default path is: /root/NVIDIA_CUDA_SDK

4 Compile the SDK samples by typing make make from this working

directory.

5 As root, run the sample file called deviceQuery. The user may need

to change to the directory where the NVIDIA SDK files are located.
Usually these are located at /NVIDIA_CUDA_SDK/bin/linux/release.

For Tesla systems, there are two GPUs per PCI Express connection.
Only two devices (Device 0 and Device 1) are shown. Output should
look something like the following:

Device 0: “Tesla 1U GPU”
Major revision number: 1
Minor revision number: 0
Total amount of global memory: 4294268245 bytes
Total amount of constant memory: 65536 bytes
Total amount of shared memory per block: 16384 bytes
Total number of registers available per block: 8192
Warp size: 32
Maximum number of threads per block: 512
Maximum sizes of each dimension of a block: 512 x 512 x 64
Maximum sizes of each dimension of a grid: 65535 x 65535 x 1
Maximum memory pitch: 262144 bytes
Texture alignment: 256 bytes
Clock rate: 1440000 kilohertz

Device 1: “Tesla 1U GPU”
Major revision number: 1
Minor revision number: 0
Total amount of global memory: 4294268245 bytes
Total amount of constant memory: 65536 bytes
Total amount of shared memory per block: 16384 bytes



DRIVER INSTALL ATION



Total number of registers available per block: 8192
Warp size: 32
Maximum number of threads per block: 512
Maximum sizes of each dimension of a block: 512 x 512 x 64
Maximum sizes of each dimension of a grid: 65535 x 65535 x 1
Maximum memory pitch: 262144 bytes
Texture alignment: 256 bytes
Clock rate: 1440000 kilohertz
Test PASSED
Press ENTER to exit...

6 As root, run the sample file called bandwidthTest. The user may need

to change to the directory where the NVIDIA SDK files are located.
Usually they are located at /NVIDIA_CUDA_SDK/bin/linux/release.
Output should look something like the example below, but bandwidth
will be higher if your host supports PCIe Gen2 speeds:

Quick Mode
Host to Device Bandwidth for Pageable memory
Transfer Size (Bytes) Bandwidth(MB/s)
33554432 999.4

Quick Mode
Device to Host Bandwidth for Pageable memory
Transfer Size (Bytes) Bandwidth(MB/s)
33554432 720.8

Quick Mode
Device to Device Bandwidth
Transfer Size (Bytes) Bandwidth(MB/s)
33554432 57204.1

&&&& Test PASSED
Press ENTER to exit...







REFERENCES AND RESOURCES



REFERENCES AND RESOURCES

Getting Driver Updates

During NVIDIA software installation, the installation wizard provides
an option to check for updated software online. You can also
download software updates by visiting: www.nvidia.com/cuda.







REGISTRATION, WARRANTY, AND SUPPORT



REGISTRATION, WARRANTY,
AND SUPPORT

Registering Your Tesla 1U GPU
Computing System

Registering your Tesla system gives you priority access to the
NVIDIA Customer Care support center. Once you have completed
registration, you will be given a user ID and password for online
Customer Care. You can also elect to receive automatic email
notification of special promotions and software updates to ensure
that your Tesla system continues to operate optimally.

Warranty and Support

The Tesla 1U GPU Computing System is covered by a 36-month
warranty. Complete warranty details are available at

www.nvidia.com/warranty.

For support, please visit the Customer Care center at

www.nvidia.com/support. The site offers access to a broad range

of product information.







COMPLIANCE AND CERTIFICATIONS



COMPLIANCE AND
CERTIFICATIONS

The NVIDIA Tesla 1U GPU Computing System is compliant with the
relevant regulations and has received the required certifications from:

> Bureau of Standards, Metrology, and Inspection (BSMI)
> Australian Communications Authority (C-Tick)
> Conformité Européenne (CE)
> Federal Communications Commission (FCC)
> IECEE CB Scheme (CB)
> Industry Cananda Interference-Causing Equipment Standard

(ICES)

> Ministry of Information and Communication (MIC)
> Russian System GOST R (GOST-R)
> Underwriters Laboratories (UL, CUL)
> Voluntary Control Council for Interference (VCCI)



COMPLIANCE AND CERTIFICATIONS

US Federal Communications
Commission Compliance

FCC – Federal Communications Commission

Title 47 of Code of Federal Regulation (CFR) part 15 - Radio frequency
devices; Subpart B - Unintentional Radiator.

CAUTION: Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void the

user's authority to operate the equipment

.

Note: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his
own expense.

Canada Compliance

Industry Canada

ICES-003: Digital Apparatus: Spectrum Management and
Telecommunications Policy; Interference-Causing Equipment
Standard.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.



COMPLIANCE AND CERTIFICATIONS



Australia and New Zealand Compliance

C-Tick

The Australian Communications Authority (ACA) and the Radio
Spectrum Management Group (RSM) of New Zealand

AS/NZS CISPR 22:2006 Standard

Information technology equipment-Radio disturbance
characteristics-limit and methods of measurement.

ATTENTION: This is a Class A product. In a domestic environ-

ment this product may cause radio interference in which case

the user may be required to take adequate measures.

Japan Compliance

VCCI: Voluntary Control Council

For Interference by Information Technology Equipment.

> V-1/07.04: Agreement of Voluntary Control Council for

Interference by Information Technology Equipment

> V-2/07.04: Rules for Voluntary Control Measures
> V-3/07.04: Normative Annex 1 Technical Requirements
> V-4/07.04: Normative Annex 1-1 Supplementary Test Conditions

for Equipment under Test



COMPLIANCE AND CERTIFICATIONS

Korea Compliance

MIC - Ministry of Information and Communication

> KN 22 (CISPR 22): Information technology equipment-Radio

disturbance characteristics - limit and methods of measurement

> KN 24 (CISPR 24): Information technology equipment - immunity

characteristics-limit and methods of measurement

Taiwan Compliance

BSMI - Bureau of Standards, Metrology and Inspection

> CNS 13438 (CISPR 22): Information technology equipment-Radio

disturbance characteristics-limit and methods of measurement

> CNS 14336 (IEC 60950-1): Information Technology Equipment –

Safety - Part 1: General Requirement



COMPLIANCE AND CERTIFICATIONS



European Union Compliance

CE: European Conformity (Conformité Européenne)

The equivalent international standards are in parentheses:

> Product complies with both the EMC Directive (2004/108/EC) and

the Low Voltage Directive (2006/95/EC) issued by the Commission
of the European Community.

> Compliance with these directives implies conformity to the

following European Norms

> EN-55022 (CISPR 22): Information technology equipment-Radio

disturbance characteristics - limit and methods of measurement

> EN 55024 (IEC 61000-4-2, 3, 4, 5, 6, 8, 11): Information technology

equipment - immunity characteristics limit and methods of
measurement

> EN 61000-3-2 (IEC 61000-3-2): Electromagnetic compatibility

(EMC)-Part 3-2: Limits-Limits for harmonic current emissions
(equipment input current ≤16 A per phase)

> EN 61000-3-3 (IEC 61000-3-3): Electromagnetic compatibility

(EMC)-Part 3-3: Limits-Limitation of voltage changes, voltage
fluctuations and flicker in public low-voltage supply systems, for
equipment with rated current ≤16 A per phase and not subject to
conditional connection)

> EN 60950-1 (IEC 60950-1): Information Technology Equipment-

Safety-Part 1: General Requirement

WARNING: This is a Class A product. In a domestic environment

this product may cause radio interference in which case the user

may be required to make adequate measures.

Russian System GOST R (GOST-R)

GOST-R Certification System

> GOST R IEC 60950-1: Information technology equipment – Safety

–Part 1: General Requirement



COMPLIANCE AND CERTIFICATIONS

> GOST R 51318.22-99: Information technology equipment – Radio

disturbance characteristics - limit and methods of measurement

> GOST R 51318.24-99(IEC 61000-4-2, 3, 4, 5, 6, 8, 11): Information

technology equipment – immunity characteristics - limit and
methods of measurement

> GOST R 51317.3.2-2006(passage 6 and 7) (IEC 61000-3-2):

Electromagnetic compatibility(EMC) - Part 3-2: Limits - Limits for
harmonic current emissions (equipment input current ≤ 16A per
phase)

> GOST R 51317.3.3-99(IEC 61000-3-3): Electromagnetic

compatibility(EMC)- Part 3-3: Limits-Limitation of voltage
changes, voltage fluctuations and flicker in public low-voltage
supply systems, for equipment with rated current ≤ 16A per phase
and not subject to conditional connection)

> “Class A” Equipment(Business purpose info/telecommunications

equipment)

UL, CUL Compliance

UL– Underwriters Laboratories

> UL60950-1:2006: Information technology equipment - Safety -

Part 1: General requirement

> CSA C22.2 No. 60950-1:2006: Information Technology equipment -

Safety - Part 1: General requirement

CB Scheme

CB–IECEE CB Scheme

> IEC 60950-1:2001: Information technology equipment – Safety –

Part 1: General requirement







IMPORTANT SAFETY
INFORMATION

IMPORTANT SAFETY INFORMATION

NVIDIA products are designed to operate safely when installed
and used according to the product instructions and general safety
practices. The guidelines included in this document explain the
potential risks associated with computer operation and provide
important safety practices designed to minimize these risks. By
carefully following the information contained in this document and
the specific instructions provided with your product, you can protect
yourself from hazards and create a safer computer work environment.

The product is designed and tested to meet IEC-60950, the Standard
for the Safety of Information Technology Equipment. This also covers
the national implementation of IEC-60950 based safety standards
around the world (e.g., UL-60950). These standards reduce the risk of
injury from the following hazards:

> Electric shock: Hazardous voltage levels contained in parts of the

product.

> Fire: Overload, temperature, material flammability.
> Mechanical: Sharp edges, moving parts, instability.
> Energy: Circuits with high energy levels (240 voltamperes) or

potential as burn hazards.

> Heat: Accessible parts of the product at high temperatures.
> Chemical: Chemical fumes and vapors.
> Radiation: Noise, ionizing, laser, ultrasonic waves
> Neutral Fusing: CAUTION - DOUBLE POLE/NEUTRAL FUSING

To reduce the risk of bodily injury, electric shock, fire and damage to the
equipment, observe all precautions included in this guide.



IMPORTANT SAFETY INFORMATION

Symbols on Equipment

This symbol in conjunction with any of the following
symbols indicates the presence of a potential hazard.
The potential for injury exists if warnings are not
observed. Consult your documentation for specific
details.

This symbol indicates the presence of hazardous energy
circuits or electric shock hazards. Refer all servicing to
qualified personnel.

WARNING: To reduce the risk of injury from electric
shock hazards, do not open this enclosure. Refer all
maintenance, upgrades and servicing to qualified
personnel.

This symbol indicates the presence of electric shock
hazards. The area contains no user or field service able
parts. Do not open for any reason.

WARNING: To reduce risk of injury from electric shock
hazards, do not open this enclosure.

This symbol indicates the presence of a hot surface or
hot component. If this surface is contacted the potential
for injury exists.

WARNING: To reduce the risk of injury from a hot
component, allow the surface to cool before touching.

This symbol indicates that the component exceeds
the recommended weight for one individual to handle
safety.

WARNING: To reduce the risk of personal injury or
damage to the equipment, observe local occupational
health and safety require and guidelines for manual
material handling.

This symbol indicates the presence of a sharp edge or
object that can cause cuts or other bodily injury.

WARNING: To prevent cuts or other bodily injury, do not
contact sharp edge or object.

This symbol indicates the presence of mechanical
parts that can result in pinching, crushing or other
bodily injury.

WARNING: To avoid risk of bodily injury, keep away from
moving parts.

This symbol indicates the presence of a potential tip
over hazard that can result in bodily injury.

WARNING: To avoid risk of bodily injury, follow all
instructions for maintaining stability of the equipment

during transport, installation.





IMPORTANT SAFETY INFORMATION

General Precautions

To reduce the risk of personal injury or damage to the equipment:

> Shut down the product and disconnect all AC power cords and

cables before installation.

> Do not connect or disconnect any cables when performing

installation, maintenance, or reconfiguration of this product
during an electrical storm.

> Never turn on any equipment when there is evidence of fire, water,

or structural damage.

> Place the product away from radiators, heat registers, stoves,

amplifiers, or other products that produce heat.

> Never use the product in a wet location.
> Use only with a rack, cart, stand, tripod, or bracket recommended

by NVIDIA, or sold with the product. Or it will cause serious bodily
injury and serious damage to the product.

> Avoid inserting foreign objects through openings in the product.
> Do not use conductive tools that could bridge live parts.
> Do not make mechanical or electrical modifications to the

equipment.

> Use the product only with approved equipment.
> Follow all cautions and instructions marked on the equipment.
> Do not attempt to defeat safety interlocks (where provided).

If the product sustains damage requiring service, disconnect the
product from the AC electrical outlet and refer servicing to an
NVIDIA authorized service provider. Examples of damage requiring
service include:

> The power cord, extension cord or plug has been damaged.
> Liquid has been spilled on the product or an object has fallen into

the product.

> The product has been exposed to rain or water.
> The product has been dropped or damaged.
> Noticeable signs of overheating.



IMPORTANT SAFETY INFORMATION

Precautions for Installation, Maintenance
and Servicing

To reduce the risk of electric shock or damage to the equipment
when installing, maintaining or servicing products, observe the
following precautions.

Installation

> Follow the pre- and post-installation procedures in other parts

of the manual.

> Follow the installation and configuration instructions in

the manual.

> In some geographical areas it may be advisable to install lightning

protection for product.

> Ensure reliable grounding of rack mounted equipment have

been maintained.

Maintaining and Servicing:

> Product contains power supplies that are capable of producing

hazardous energy levels. The installation of internal options
and routine maintenance and service of this product should
be performed by individuals who are knowledgeable about the
procedures, precautions, and hazards associated with equipment
containing hazardous energy levels.

> Do not exceed the level of repair specified in the procedures

in the product documentation. All troubleshooting and repair
procedures are detailed to allow only subassembly or modulelevel
repair. Because of the complexity of the individual boards and
subassemblies, do not attempt to make repairs at the component
level or to make modifications to any printed wiring board.
Improper repairs can create a safety hazard.

> Verify that the AC power supply branch circuit that provides power

to the rack is not overloaded. This will reduce the risk of personal
injury, fire, or damage to the equipment. The total rack load
should not exceed 80 percent of the branch circuit rating. Consult
the electrical authority having jurisdiction over your facility wiring
and installation requirements.

> The covers should remain locked during normal operation.



IMPORTANT SAFETY INFORMATION



> The system should be installed in a controlled access location

where only qualified personnel have access to the system.

> Upon completion of any services or repairs to the product, have

your authorized service provider perform any safety checks
required by the repair procedure or by local codes to determine
that the product is in proper operating condition.

> Power down the equipment and disconnect all AC power cords

and cable before removing any access covers.

> Do not replace components while power is applied to the product.
> First, shut down the product and disconnect all AC power cords.
> Allow the product to cool before removing covers and touching

internal components.

> Move products with casters carefully. Avoid quick stops and

uneven surfaces.

> Do not block the opening used for ventilation, since these ensure

reliable operation of product and protect it from overheating. And
opening should be kept free of dust and debris.

> Allow sufficient air circulation around and prevent direct exposure

to radiant heat sources.

> Before cleaning, unplug the product from the power source.

Use a damp cloth for cleaning. Do not use liquid cleaners or
aerosol cleaners.

Precautions for Power Connection

Power Cords

To reduce the risk of electric shock or damage to the equipment:

> Use power cables provided with this product.
> If you have to change the power cords for any reason, use an

approved power cord.

> Not all power cords have the same current ratings. If you have

questions about the type of power cord to use, contact an
authorized service provider.



IMPORTANT SAFETY INFORMATION

> You must use a power cord rated for your product and for the

voltage and current marked on the electrical ratings label of
the product. The voltage and current rating of the cord must
be greater than the voltage and current rating marked on the
product.

> Make sure that the total amperage rating of all products plugged

into an extension cord or power strip does not exceed 80 percent
of the ampere ratings limit for the extension cord or power strip.

> The product is equipped wit a three-wire electrical grounding

type plug that has a third pin for ground. This plug only fits into a
grounded electrical power outlet.

> Plug the power cord into a grounded (earthed) electrical outlet

that is easily accessible at all times.

> Do not disable the power cord grounding plug. The grounding plug

is an important safety feature.

> Do not place objects on AC power cords or cables. Arrange them

so that no one may accidentally step on or trip over them.

> Do not pull on a cord or cable. When unplugging from the

electrical outlet grasp the cord by the plug.

> When possible, use one hand only to connect or disconnect cables.
> Do not modify power cables or plugs. Consult a licensed

electrician or your power company for site modifications.

z

For Finland: Laite on liitettävä suojamaadoituskoskettimilla
varustettuun pistorasiaan

z

For Norway: Apparatet må tilkoples jordet stikkontakt

z

For Sweden: Apparaten skall anslutas till jordat uttag

Power Supply

> Ensure that the voltage and frequency of your power source

match the voltage and frequency inscribed on the equipment’s
electrical rating label. If you have the question about the type of
power source to use, contact your authorized service.

> Connect to a properly wired and grounded electrical outlet.

Always follow your local/national wiring rules.



IMPORTANT SAFETY INFORMATION



> The socket-outlet shall be installed near the equipment and shall

be easily accessible.

> If want to help protect your system from sudden, transient

increases and decreases in electrical power, a surge suppressor,
line conditioner and so on could be used.

> This system is suitable for connection to an IT power system.

Precautions for Communication Cable

To reduce the risk of exposure to shock hazard from
communication cable:

> Do not connect communication cable during a lightening storm.
> There may be a remote risk of electric shock from lightening.
> Do not connect or use communication cable in a wet location.
> Disconnect the communication cable before opening a product

enclosure, touching or installing internal components.

Precautions for Installing System Unit in Racks

Stability

To reduce the risk of personal injury or damage to the equipment,
be sure that:

> The rack is properly stabilized and supported before installing.
> The leveling jacks are extended to the floor.
> The full weight of the rack rests on the leveling jacks.
> The stabilizing feet are attached to the rack if it is a single-

rack installation.

> The racks are coupled together in multiple-rack installations.
> Only one component is extended at a time. A rack may become

unstable if more than one component is extended for any reason.

> You load the rack from the bottom up and load the heaviest item

into the rack first.

> You do not attempt to move a fully loaded equipment rack. Remove

equipment from the rack before moving the rack.



IMPORTANT SAFETY INFORMATION

> The product is properly mated with the rails. Products that are

improperly mated with the rails may be unstable.

> No objects are placed on top of a rack-mounted device.
> Installation of the equipment in a rack should be such that the

amount of airflow required for safe operation of the equipment is
not compromised.

> Reliable earthing (grounding) of rack-mounted equipment should

be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit
(for example, use of a power strip).

Manual Material Handling

To reduce the risk of personal injury or damage to the equipment:

> Observe local occupational health and safety requirements and

guidelines for manual materials handling.

> Obtain adequate assistance to lift and stabilize the product during

installation or removal. Do not move large racks by yourself.

> Remove all pluggable power supplies and modules to reduce the

weight of the product.

> Use caution when pressing the component rail release latches

and sliding a component into the rack. The slide rails could pinch
your fingers.

> Do not extend the components from the rack too quickly as the

moving weight may damage the supporting rails.

Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.





Notice
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES,

DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND
SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES
NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH
RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED
WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS
FOR A PARTICULAR PURPOSE.

Information furnished is believed to be accurate and reliable. However, NVIDIA
Corporation assumes no responsibility for the consequences of use of such
information or for any infringement of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise under
any patent or patent rights of NVIDIA Corporation. Specifications mentioned in this
publication are subject to change without notice. This publication supersedes and
replaces all information previously supplied. NVIDIA Corporation products are not
authorized for use as critical components in life support devices or systems without
express written approval of NVIDIA Corporation.

Trademarks

NVIDIA, the NVIDIA logo, and Tesla are trademarks or registered trademarks of NVIDIA
Corporation in the United States and other countries. Other company and product names
may be trademarks of the respective companies with which they are associated.

Copyright

© 2010 NVIDIA Corporation. All rights reserved.

www.nvidia.com
