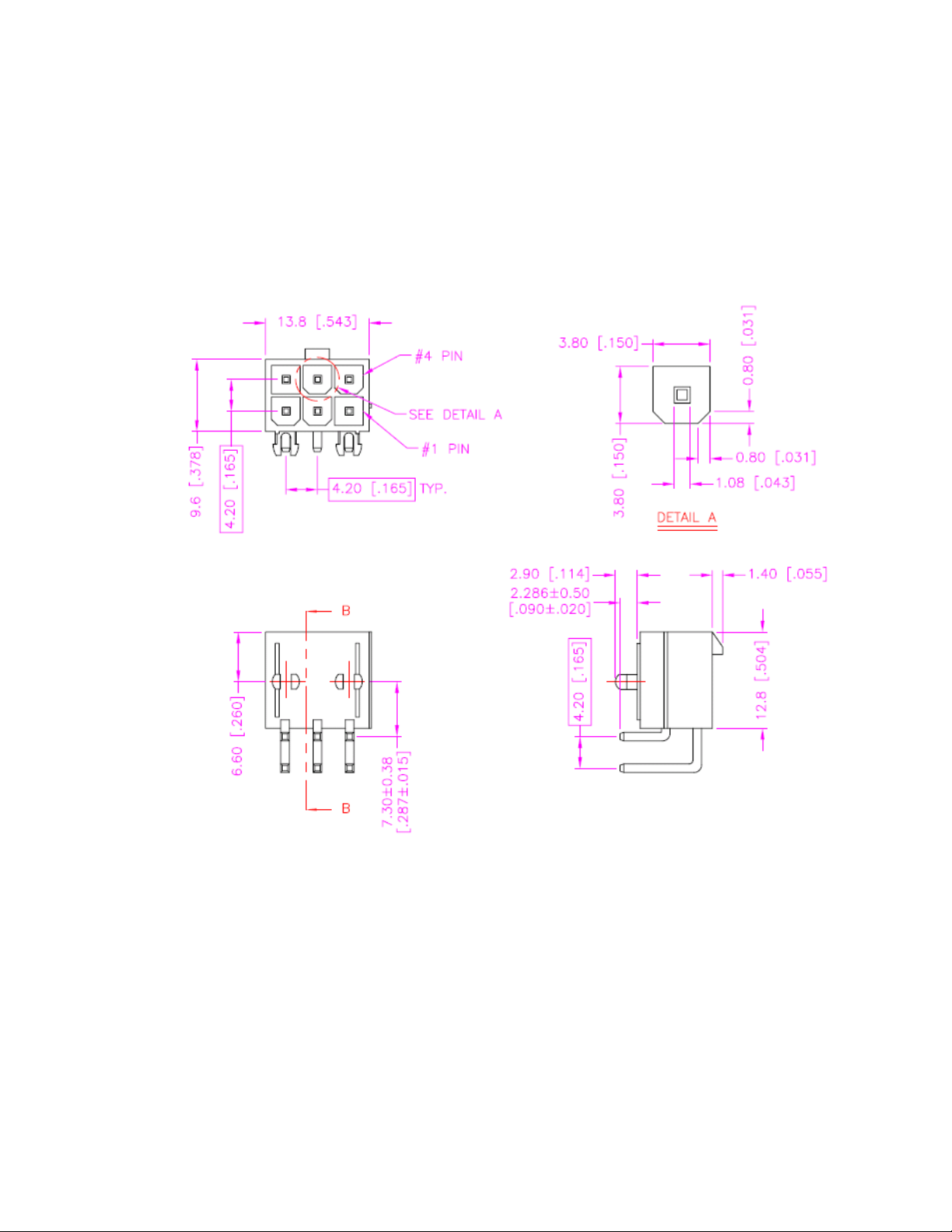

Figure 5. 6-Pin PCI Express Power Connector .......................................................... 10

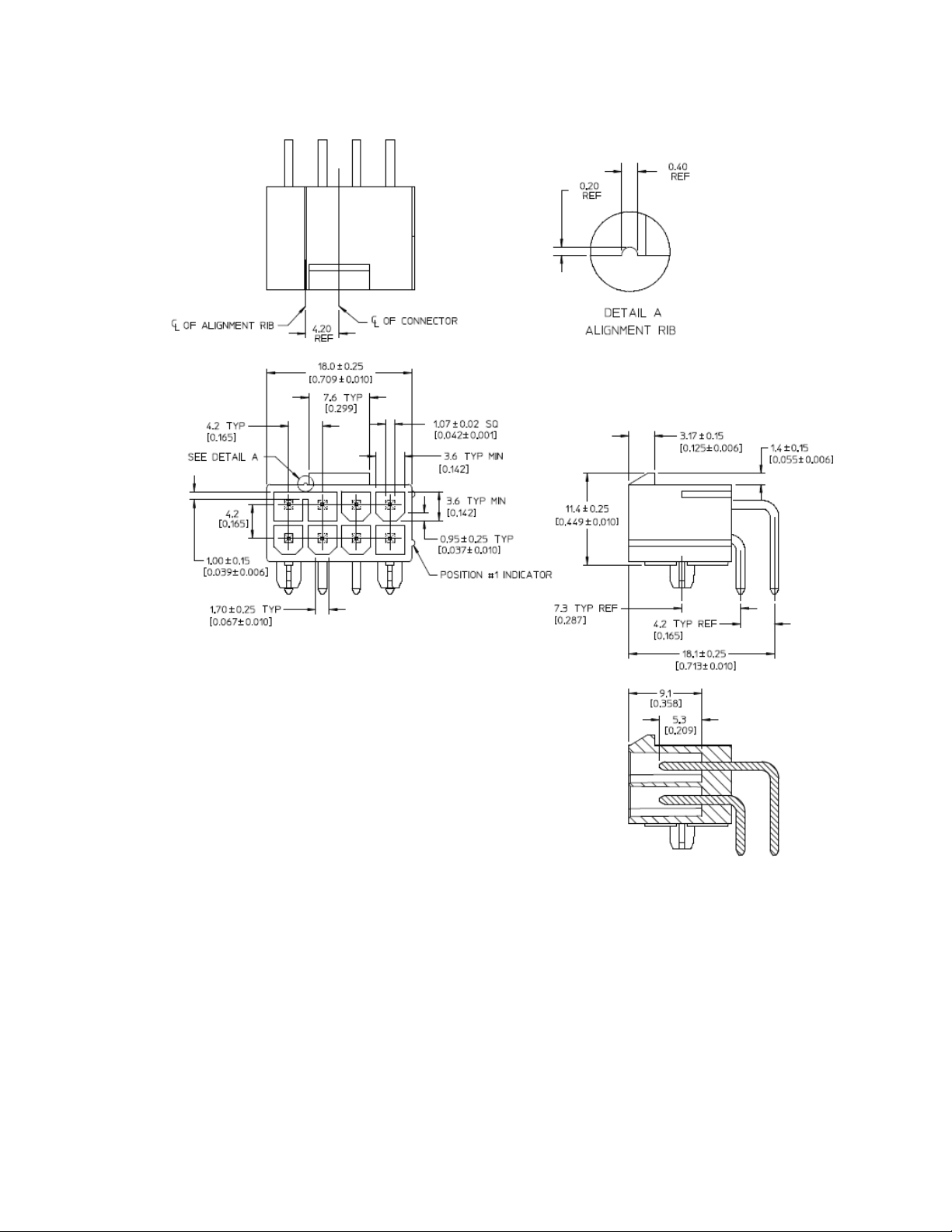

Figure 6. 8-Pin PCI Express Power Connector .......................................................... 11
LIST OF TABLES
Table 1. nvidia-smi Commands ............................................................................ 5
Table 2. Board Environmental Conditions ............................................................... 6
Table 3. Board Configuration .............................................................................. 7
Table 4. 6-Pin PCI Express Power Conn ect or Pi nout ................................................. 12
Table 5. 8-Pin PCI Express Power Conn ect or Pi nout ................................................. 12
Table 6. Auxiliary Power Connectors ................................................................... 13
Table 7. Power Requirements ............................................................................ 14
Table 8. Languages Supported ........................................................................... 16
Tesla K40 GPU Accelerator BD-06902-001_v05 | iv
Page 5
OVERVIEW
The NVIDIA® Tesla® K40 graphics processing unit (GPU) is a PCI Express, dual-slot
computing module in the Tesla (267 mm length) form factor comprised of a single
GK110B GPU. The Tesla K40 is designed for servers and offers a total of 12 GB of
GDDR5 on-board memory and supports PCI Express Gen3. The Tesla K40 uses a passive
heat sink for cooling.
Tesla K40 boards ship with ECC enabled by default protecting the register files, cache
and DRAM. With ECC enabled, some of the memory is used for the ECC bits, so the
user available memory is reduced by ~6.25%. On the Tesla K40 the total available
memory with ECC turned on will be ~11.25 GB.
Figure 1. K40 Passive Board
Tesla K40 GPU Accelerator BD-06902-001_v05 | 1
Page 6
KEY FEATURES
GPU
Number of processor cores: 2880
Core clocks
● Base clock: 745 MHz
● Boost clocks: 810 MHz and 875 MHz
Package size: 45 mm × 45 mm 2397-pin ball grid array (S-FCBGA)
Note: All boards ship with core clock set to the base clock value. Boost clocks can
be selected using NVML or NVSMI. Refer to the NVML/NVSMI documentation for
more details.
Board
Overview
PCI Express Gen3 ×16 system interface
Physical dimensions: 111.15 mm (height) × 267 mm (length), dual-slot
Thermal Solution
Passive heat sink
Display Connectors
None
Power Connectors
One 6-pin PCI Express power connector
One 8-pin PCI Express power connector
Memory
Memory clock: 3.0 GHz
Memory bandwidth 288 GB/sec
Interface: 384-bit
● Total board memory: 12 GB
● 24 pieces of 256M × 16 GDDR5, SDRAM
BIOS
2Mbit serial ROM
BAR1 size: 16 GB
Tesla K40 GPU Accelerator BD-06902-001_v05 | 2
Page 7
Overview
NVIDIA GPU BOOST ON TESLA K40
NVIDIA GPU Boost™ is a feature available on Tesla K40. It makes use of any power
headroom to run the core clock to a higher frequency. Application workloads that have
power headroom can run at high GPU clocks to boost application performance.
Note: The memory clock remains constant at 3 GHz. It's likely that the effective
memory bandwidth uti lization will change depending on the core clock frequency.
NVIDIA GPU Boost for HPC Workloads
NVIDIA GPU Boost for Tesla K40 is optimized to deliver a robust and deterministic
boost behavior for a wide range of HPC workloads.
Tesla K40 gives full control to end-users to select the core clock frequency that fits their
workload the best. The workload may have one or more of the following characteristics.
Problem set is spread across multiple GPUs and requires periodic synchronization.
Problem set spread across multiple GPUs and runs independent of each other.
Workload has “compute spikes.” For example, some portions of the workload are
extremely compute intensive pushing the power higher and some portions are
moderate.
Workload is compute intensive through-out without any spikes.
Workload requires fixed clocks and is sensitive to clocks fluctuating during the
execution.
Workload runs in a cluster where all GPUs need to start, finish, and run at the same
clocks.
Workload or end user requires predictable performance and repeatable results.
Datacenter is used to run different types of workload at different hours in a day to
better manage the power consumption.
Some boards in a cluster have access to better cooling than others.
By default the Tesla K40 ships with the core clock set to the base clock. HPC workloads
can have one or more characteristics as described. When selecting one of the supported
boost clocks a good strategy is to characterize the workload with the available boost
clocks. For example, DGEMM/Linpack are extremely demanding on power. Therefore,
the “base clock” may be the correct choice when running Linpack. Some workloads in
life sciences, manufacturing, CFD, CAD, etc., may have power headroom and can take
advantage of one of the boost clocks.
Tesla K40 GPU Accelerator BD-06902-001_v05 | 3
Page 8
Overview
API FOR NVIDIA GPU BOOST ON TESLA
Tesla K40 gives full control to end-users to select the core clock frequency via NVML or
nvidia-smi. NVML is a C-based API for monitoring and managing the various states of
Tesla products. It provides a direct access to submit queries and commands via
. NVML documentation is available at https://developer.nvidia.com/nvidia-
smi
management-library-nvml
nvidia-
Tesla K40 GPU Accelerator BD-06902-001_v05 | 4
Page 9
Overview
Table 1 gives a summary of the nvidia-smi commands for using NVIDIA GPU Boost
on Tesla.
Table 1. nvidia-smi Commands
Usage Command
View the clocks the Tesla board supports nvidia-smi –q –d SUPPORTED_CLOCKS
Set one of the supported clocks nvidia-smi -ac <MEM clock, Graphics clock>
Make the clock settings persistent across
driver unload
Make the clock settings revert to base clocks
after driver unloads (or turn off the
persistent mode)
To view the clock in use, use the command nvidia-smi -q –d CLOCK
To reset clocks back to the base clock (as
specified in the board specification)
To allow “non-root” access to change
graphics clock
nvidia-smi -pm 1
nvidia-smi -pm 0
nvidia-smi –rac
nvidia-smi -acp 0
When using non-default applications clocks, driver persistence mode should be enabled.
®
Persistence mode ensures that the driver stays loaded even when no NVIDIA
CUDA®
or X applications are running on the GPU. This maintains current state, including
requested applications clocks. If persistence mode is not enabled, and no applications
are using the GPU, the driver will unload and any current user settings will revert back
to default for the next application. To enable persistence mode run '
pm 1'.
sudo nvidia-smi -
The driver will attempt to maintain requested applications clocks whenever a CUDA
context is running on the GPU. However, if no contexts are running the GPU will revert
back to idle clocks to save power and will stay there until the next context is created.
Thus, if the GPU is not busy, you may see idle current clocks even though requested
applications clocks are much higher.
Note: By default changing the application clocks requires root access. If the user
does not have root access, the user can request his or her cluster manager to allow
non-root control over application clocks. Once changed, this setting will persist for
the life of the driver before reverting back to root-only defaults. Persistence mode
should always be enabled whenever changing application clocks, or enabling nonroot permissions to do so.
Tesla K40 GPU Accelerator BD-06902-001_v05 | 5
Page 10
Overview
TESLA K40 BLOCK DIAGRAM
Figure 2 is the block diagram for the Tesla K40 GPU dual-slot computing processor
module.

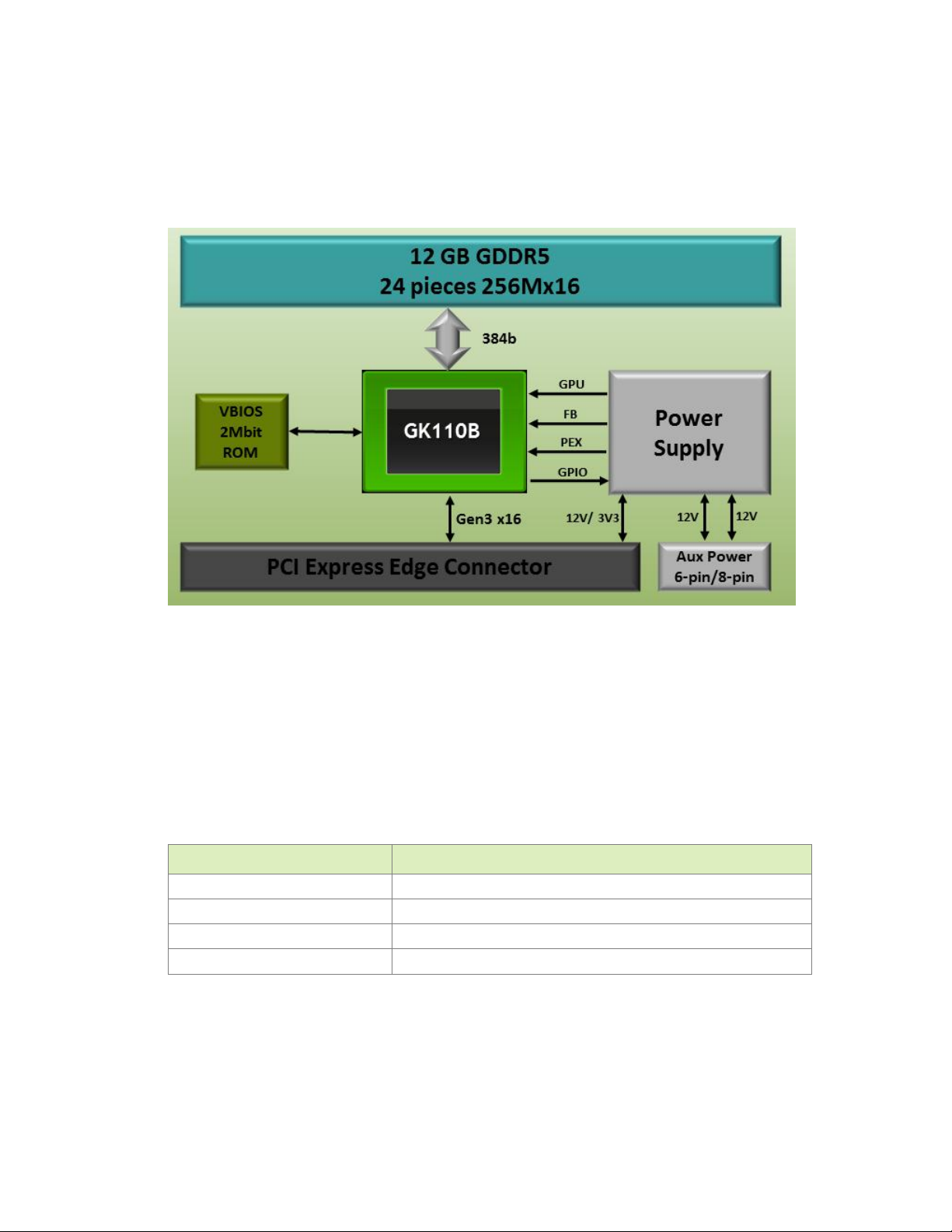

Figure 2. Tesla K40 Block Diagram
ENVIRONMENTAL CONDITIONS
Table 2 lists the environmental operating and storage conditions for the Tesla K40 board.
Table 2. Board Environmental Conditions
Specifications Conditions
Operating temperature 0 °C to 45 °C
Storage temperature -40 °C to 75 °C
Operating humidity 5% to 90% RH
Storage humidity 5% to 95% RH
Tesla K40 GPU Accelerator BD-06902-001_v05 | 6
Page 11
CONFIGURATION
• 8-pin PCI Express power connector
The Tesla K40 board is available in the following configuration.
Table 3. Board Configuration
Specifications Tesla K40
Generic SKU reference 699-22081-0202-xxx
Chip GK110B
Core clocks
Memory clock 3.0 GHz
Memory size 12 GB
Memory I/O 384-bit GDDR5
Memory configuration 24 pieces of 256M × 16 GDDR5 SDRAM
Display connectors None
Power connectors
Board power 235 W
Power cap level 235 W
BAR1 size 16 GB
Extender support Straight extender is the default and the
Hockey stick defeat Not supported
Idle power 16 W
Thermal cooling solution Passive heat sink
Mean time between failures (MTBF) GB@ 35C : 282,847 hours
ASPM Off
• Base clock: 745 MHz
• Boost clocks: 810 MHz and 875 MHz
• 6-pin PCI Express power connector
long offset extender is available as an
option.
GF@ 35C : 252,222 hours
Overview
Tesla K40 GPU Accelerator BD-06902-001_v05 | 7
Page 12
MECHANICAL SPECIFICATIONS
PCI EXPRESS SYSTEM

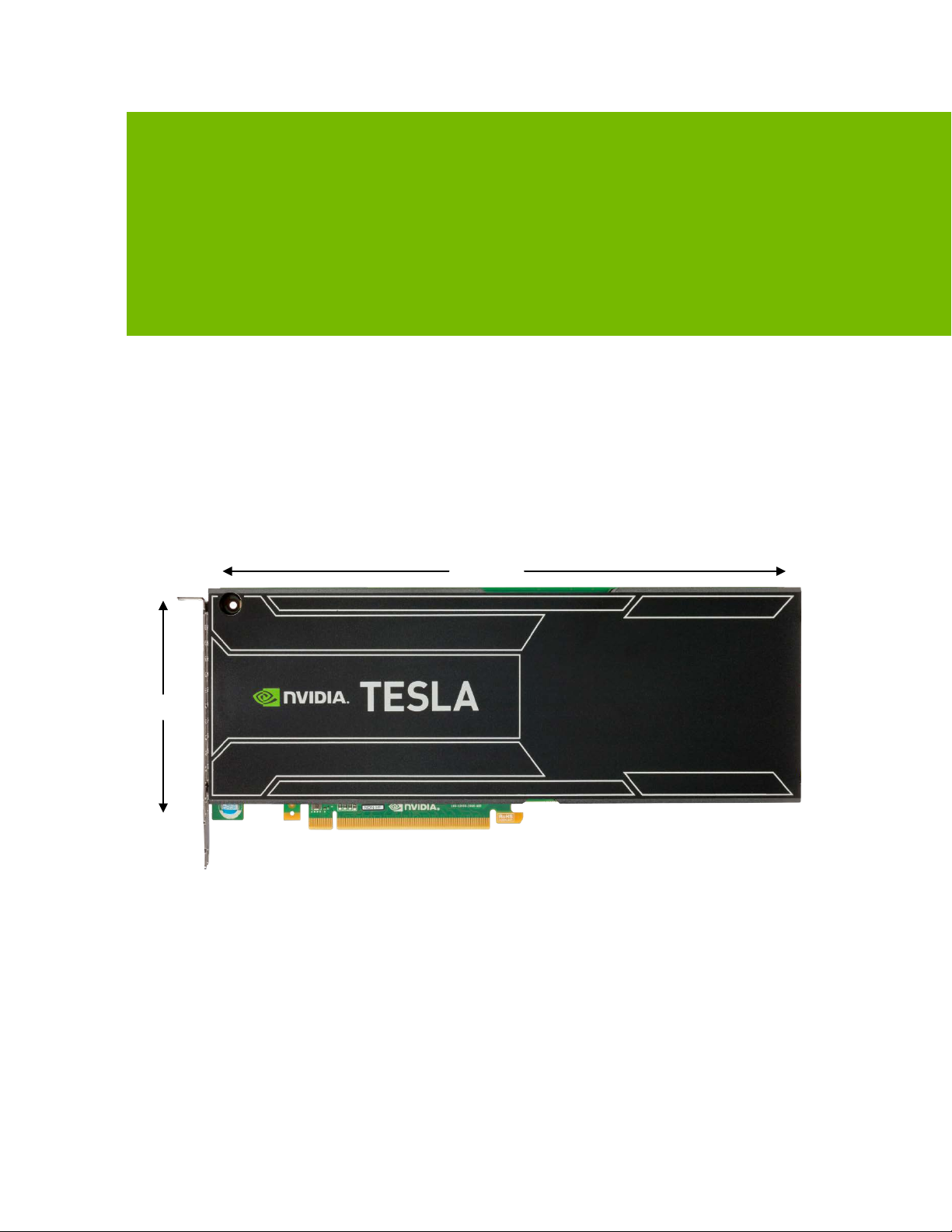

The Tesla K40 board (Figure 3) conforms to the PCI Express full height form factor.
111.15 mm
Figure 3. Tesla K40 GPU Accelerator
TESLA K40 BRACKET
267 mm
As shown in Figure 4, the Tesla K40 includes a vented bracket. If you are an OEM who
qualifies for bracket modifications, you have the option of receiving your module with
no bracket installed.
Tesla K40 GPU Accelerator BD-06902-001_v05 | 8
Page 13
Figure 4. Tesla K40 Bracket
Mechanical Specifications
Tesla K40 GPU Accelerator BD-06902-001_v05 | 9
Page 14
Mechanical Specifications
POWER CONNECTORS
The Tesla K40 GPU accelerator is a performance optimized, high-end product and uses
power from the PCI Express connector as well as external power connectors.
Figure 5 and Figure 6 show the specifications and Table 4 and Table 5 show the pinouts
for the 6-pin and 8-pin PCI Express power connectors.
Figure 5. 6-Pin PCI Express Power Connector
Tesla K40 GPU Accelerator BD-06902-001_v05 | 10
Page 15
Mechanical Specifications
Figure 6. 8-Pin PCI Express Powe r Connector
Tesla K40 GPU Accelerator BD-06902-001_v05 | 11
Page 16
Table 4. 6-Pin PCI Express Power Connector Pinout
Pin Number Description
1 +12 V
2 +12 V
3 +12 V
4 GND
5 Sense
6 GND
Table 5. 8-Pin PCI Express Power Connector Pinout
Pin Number Description
1 +12 V
2 +12 V
3 +12 V
4 Sense1
5 GND
6 Sense0
7 GND
8 GND
Mechanical Specifications
Tesla K40 GPU Accelerator BD-06902-001_v05 | 12
Page 17
POWER SPECIFICATIONS
The Tesla K40 GPU accelerator requires power from the PCI Express connector as well
as one or two auxiliary power connectors.
Table 6. Auxiliary Power Connectors
8-Pin Header 6-Pin Header Support Notes
Connect 8-pin cable Connect 6-pin cable Yes
Connect 8-pin cable No cable installed Yes 8-pin cable must supply
175 W
Connect 6-pin cable Connect 6-pin cable No 8-pin connector should
always be connected
Note: Detailed information about power draw by rail will be available to
authorized system partners in the Tesla K40 system design guide.
Tesla K40 GPU Accelerator BD-06902-001_v05 | 13
Page 18
Power Specifications
Table 7 provides the power requirements used in thermal and power measurements for
the Tesla K40.
Table 7. Power Requirements
Voltage Rail
(Volts)
Voltage Tolerance
(Minimum)
Voltage Tolerance
(Maximum)
Maximum Currents
(Amps)
3.3 -8% +8% 1.0
12 -8% +8% 19.6
Note:
System power qualification with the Te sl a car ds should be done with the Thermal Design Power (TDP)
application provided by NVIDIA.
The peak current values are c h arac terized over a 1 ms time interval, with 5-sig ma c on fidence. These are
values based on characterization data usin g the TDP application u n der TDP test condition s. Peak current
values may be highe r with applications that c on su m e m ore power than the TD P application.
Tesla K40 GPU Accelerator BD-06902-001_v05 | 14
Page 19
SUPPORT INFORMATION
CERTIFICATES AND AGENCIES
Agencies
Australian Communications Authority and Radio Spectrum Management Group of
New Zealand (C-Tick)
Bureau of Standards, Metrology, and Inspection (BSMI)
Conformité Européenne (CE)
Federal Communications Commission (FCC)
Industry Canada - Interference-Causing Equipment Standard (ICES)
Korean Communications Commission (KCC)
Underwriters Laboratories (cUL)
Voluntary Control Council for Interference (VCCI)
Tesla K40 GPU Accelerator BD-06902-001_v05 | 15
Page 20
LANGUAGES
Table 8. Languages Supported
Support Information
Windows Server
2008 and Windows
English (US) X X
English (UK) X
Arabic X
Chinese, Simplified X
Chinese, Traditional X
Danish X
Dutch X
Finnish X
French X
French (Canada) X
German X
Italian X
Japanese X
Korean X
Norwegian x
Portuguese (Brazil ) X
Russian X
Spanish X
Spanish (Latin America) X
Swedish X
Thai X
Server 2008 R2
Linux
Note: CUDA software is on l y supported in English (U.S.)
Tesla K40 GPU Accelerator BD-06902-001_v05 | 16
Page 21
Notice
The information provided in this specification is believed to be accurate and reliable as of the date provided.
However, NVIDIA Corporation (“NVIDIA”) does not give any representations or warranties, expressed or
implied, as to the accuracy or completeness of such information. NVIDIA shall have no liability for the
consequences or use of such information or for any infringement of patents or other rights of third parties
that may result from its use. This publication supersedes and replaces all other specifications for the product
that may have been previously sup plied.
NVIDIA reserves the right to make corrections, modifications, enhancements, improvements, and other
changes to this specification, at any time and/or to discontinue any product or service without notice.
Customer should obtain the latest relevant specification before placing orders and should verify that such
information is current and complete.
NVIDIA products are sold subject to the NVIDIA standard terms and conditions of sale supplied at the time of
order acknowledgement, unless otherwise agreed in an individual sales agreement signed by authorized
representatives of NVIDIA and customer. NVIDIA hereby expressly objects to applying any customer general
terms and conditions wit h regard to the purchase of the NVIDIA product refere nced in this specification.
NVIDIA products are not designed, authorized or warranted to be suitable for use in medical, military,
aircraft, space or life support equipment, nor in applications where failure or malfunction of the NVIDIA
product can reasonably be expected to result in personal injury, death or property or environmental damage.
NVIDIA accepts no liability for inclusion and/or use of NVIDIA products in such equipment or applications and
therefore such inclusion and/or use is at customer’s own risk.
NVIDIA makes no representation or warranty that products based on these specifications will be suitable for
any specified use without further testing or modification. Testing of all parameters of each product is not
necessarily performed by NVIDIA. It is customer’s sole responsibility to ensure the product is suitable and fit
for the application planned by customer and to do the necessary testing for the application in order to avoid
a default of the application or the product. Weaknesses in customer’s product designs may affect the quality
and reliability of the NVIDIA product and may result in additional or different conditions and/or requirements
beyond those contained in this specification. NVIDIA does not accept any liability related to any default,
damage, costs or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any
manner that is contrary to this specification, or (ii) customer p roduct desig ns.
No license, either expressed or implied, is granted under any NVIDIA patent right, copyright, or other NVIDIA
intellectual property right under this specification. Information published by NVIDIA regarding third-party
products or services does not constitute a license from NVIDIA to use such products or se rvices or a warranty
or endorsement thereof. Use of such information may require a license from a third party under the patents
or other intellectual property rights of the third party, or a license from NVIDIA under the patents or other
intellectual property rights of NVIDIA. Reproduction of information in this specification is permissible only if
reproduction is approved by NVIDIA in writing, is reproduced without alteration, an d is accompanied by all
associated conditions, limitations, and notices.
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER
DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO
WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND
EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR
A PARTICULAR PURPOSE. Notwithstanding any damages that customer might incur for any reason whatsoever,
NVIDIA’s aggregate and cumulative liability towards customer for the products described herein shall be
limited in accordance with the NVIDIA terms and conditions of sale fo r the product.
Trademarks
NVIDIA, the NVIDIA logo, CUDA, NVIDIA GPU Boost, and Tesla are trademarks and/or registe red trademark s of
NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of
the respective companies with which they are associated.
Copyright
© 2013 NVIDIA Corporation. All rights reserved.
www.nvidia.com
Loading...
