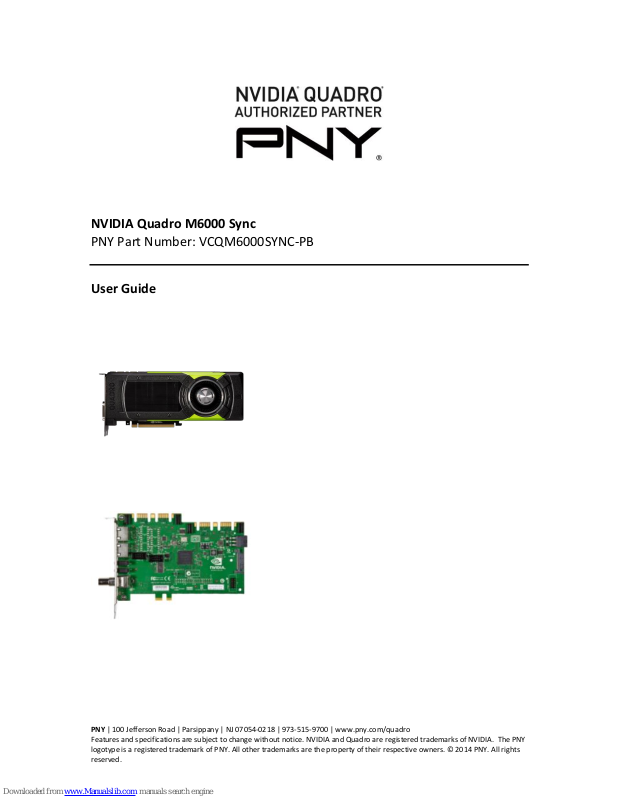

NVIDIA Quadro M6000 Sync
PNY Part Number: VCQM6000SYNC-PB
User Guide
PNY | 100 Jefferson Road | Parsippany | NJ 07054-0218 | 973-515-9700 | www.pny.com/quadro
Features and specifications are subject to change without notice. NVIDIA and Quadro are registered trademarks of NVIDIA. The PNY
logotype is a registered trademark of PNY. All other trademarks are the property of their respective owners. © 2014 PNY. All rights
reserved.
NVIDIA Quadro M6000 Sync Hardware Components
The NVIDIA Quadro M6000 Sync consists of the following components:
NVIDIA Quadro M6000 graphics board
NVIDIA Quadro Sync board
Two 6-pin auxiliary power cables
Stereo connector bracket
Three Display Port to DVI-D SL adapters
DVI to VGA adapter
Three ribbon cable retention clips
Four ribbon connector cables
Software installation disc with PDF documentation
Printed NVIDIA Quadro Sync Quick Start Guide
NVIDIA Quadro M6000 Sync Overview
The NVIDA Quadro M6000 Sync delivers Frame Lock/Genlock and advannced programmable
graphics for industrial, visualization and collaborative applications, by providing features for
advanced multi-system visualization and multi-device film and video environments. This
sophisticated professional visualization solution is GPU-driven by the NVIDIA Quadro M6000,
while features such Frame Lock, Genlock, and synchronized Frame Buffer Swap and refresh rate
are supported by a companion NVIDIA Quadro Sync board.
The Quadro M6000 requires an open x16 PCIe interface slot with an adjacent open slot (doublewidth board). The NVIDIA Quadro Sync board is designed to fit into any available expansion slot
within 6 to 24 inches of the NVIDIA Quadro M6000. The Quadro Sync requires power via a 6-pin
power connector or SATA power connector. The Quadro Sync card can host up to four (4)
NVIDIA Quadro M6000 boards.
Frame Lock allows the display channels from multiple workstations to be synchronized, creating
one large “virtual display” that can be driven by a multi-system cluster for performance
scalability.
Genlock allows the graphics output to be synchronized to an external source, typically for film
and broadcast video applications.
The NVIDIA Quadro M6000 and NVIDIA Quadro Sync will synchronize up to four displays
simultaneously (1 DVI-DL or 4 Display Port), provided they are all in same display mode, which
means the same resolution and refresh rate on all four displays.
NVIDIA Quadro M6000 Overview
The NVIDIA Quadro M6000 graphics board is a PCI Express full-height form factor (4.376 inches
by 10.5 inches) graphics add-in card based on the NVIDIA Quadro M6000 graphics processing
unit (GPU). It is targeted as a high-performance desktop graphics solution for PCI Express
NVIDIA Quadro M6000 Sync User Guide 2
systems. The NVIDIA Quadro M6000 graphics board offers 12GB of GDDR5 GPU memory and
supports display types ranging from analog CRTs to the latest digital flat panels.
NVIDIA Quadro M6000 Photo
NVIDIA Quadro Sync Photo
Refer to the NVIDIA Quadro Sync Quick Start Guide which covers the various connectors
available and how to connect the Quadro Sync board to the Quadro M6000.
NVIDIA Quadro M6000 Sync User Guide 3
NVIDIA Quadro M6000 Specifications and Features
GPU: NVIDIA Quadro M6000
Maximum core clock: 988 MHz
CUDA cores: 3072
GPU memory: 12GB GDDR5
Memory clock: 3300MHz
Memory interface: 384-bit
Memory bandwidth: 317 GB/s
GPU memory: 12 GB GDDR5
PCI Express: PCIe Gen 3.0 x16
Auxiliary power: 8-pin connector
Maximum power consumption: 250 W
Physical dimensions: 4.376 x 10.5 inches, dual slot
Display Connectors
One Dual-Link DVI-I connector
Four Display Port 1.2 connectors
Stereo connector (via supplied stereo connector bracket)
Internal Connectors and Headers
8-pin auxiliary power connector
Sync connector
SLI connector
Stereo header
Display Support
Maximum VGA resolution: 2048 x 1536 x 32 bpp at 85Hz
Maximum DVI Dual Link resolution: 2560 x 1600 x 32 bpp at 60Hz
Maximum Display Port 1.2 resolution: 4096 x 2160 x 36 bpp at 60Hz
High-bandwidth digital content protection (HDCP) support
NVIDIA Quadro Sync Specifications and Features
Quadro Sync Board
Six layer printed circuit board (PCB)
Physical dimensions: 6.15” inches x 4.37” inches
Power: 6-pin PCI or SATA power connector
Maximum power consumption: 12 W
Connectors and Status Indicators
4 SLI-style edge fingers for connection to compatible GPUs
BNC house sync
RJ45 1
RJ45 2
st
Frame Lock sync (using CAT5 straight-through cable)
nd
Frame Lock sync (using CAT5 straight-through cable)
Frame Lock and Stereo Sync Status LEDs
NVIDIA Quadro M6000 Sync User Guide 4
8-Pin Auxiliary Power
Connector
Results
8-pin cable connected
Full Power
Not connected
Message on display will alert
user to connect AUX power.
NVIDIA Quadro Sync Key Features
Synchronization of up to four Maxwell GPU’s and up to 16 display or projector per
system.
- Increasing the density of GPU and displays per system reduce the total number of
system in a visualization cluster and minimizes operation complexity.
Enable Mosaic technologies on up to 16 displays or projectors in any system
- Scale any application across synchronized displays or projectors from any system.
Future like Projector Overlap and an integrated geometry and intensity adjustment
give you pixel-accurate display surface
A research lab can create a stereoscopic 3D 3x3 or 4x4 display walls with just one
system, instead of three or four.
A flight simulator can move from HD resolution to four-input 4K projectors with the
same size visualization cluster.
A broadcaster can power 16HD –display video wall for on air display with just one
system.
BNC House Sync Connector Video Format Support
720 x 486_59.94i NTSC
720 x 576_50i PAL
1280 x 720_59.94p
1280 x 720_60i
1920 x 1035_59.54i
1920 x 1080_60i
1920 x 1080_59.94i (same as 1929 x 1080_29.97 psf)
1920 x 1080_50i (same as 1920 x 1080_25 psf)
1920 x 1080_24psf
1920 x 1080_23.976psf
TTL level sync pulse
NVIDIA Quadro M6000 Auxiliary Power Requirements
Driver Support:
Windows 8.1, 8, 7, Vista, and Linux (32- and 64-bit)
NVIDIA Quadro M6000 Sync User Guide 5
Quadro M6000, Quadro Sync and Mosaic Configuration Options
1) Four display configuration with Quadro M6000 and Quadro Sync.
2) Eight (1 x 8 or 2 x 4) display configuration with two Quadro M6000s and Quadro Sync.
NVIDIA Quadro M6000 Sync User Guide 6
3) Twelve (4 x 3) display configurations with three Quadro M6000s and Quadro Sync.
NVIDIA Quadro M6000 Sync User Guide 7
4) Sixteen (4 x 4) display configurations with four Quadro M6000s and Quadro Sync.
Motherboard, Power Supply, and System Enclosure Selection
The Quadro Sync card supports up to four Quadro M6000 boards. The number of M6000’s that
can be installed will vary by motherboard, system enclosure, and power supply capacity. When
configuring a multi-M6000 system choose all of these components accordingly. Also pay
attention to thermal capacity since multiple ultra-high-performance M6000 boards, based on
wattage utilized, generate a significant heat load.
NVIDIA Quadro M6000 Sync User Guide 8
