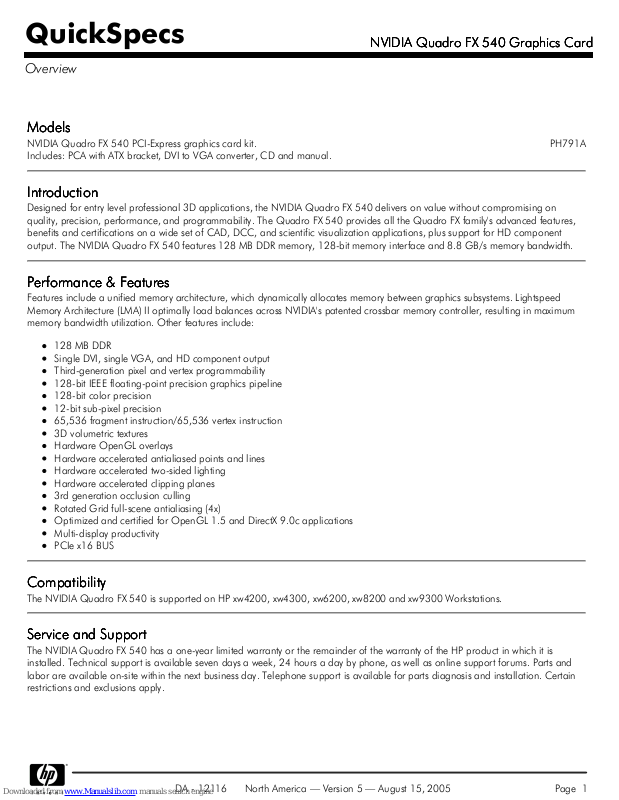

Nvidia Quadro FX 540 Specification
Models
ModelsModels
Models
NVIDIA Quadro FX 540 PCI-Express graphics card kit.
Includes: PCA with ATX bracket, DVI to VGA converter, CD and manual.
PH791A
Introduction
IntroductionIntroduction
Introduction
Designed for entry level professional 3D applications, the NVIDIA Quadro FX 540 delivers on value without compromising on
quality, precision, performance, and programmability. The Quadro FX 540 provides all the Quadro FX family's advanced features,
benefits and certifications on a wide set of CAD, DCC, and scientific visualization applications, plus support for HD component
output. The NVIDIA Quadro FX 540 features 128 MB DDR memory, 128-bit memory interface and 8.8 GB/s memory bandwidth.
Performance & Features
Performance & FeaturesPerformance & Features
Performance & Features
Features include a unified memory architecture, which dynamically allocates memory between graphics subsystems. Lightspeed
Memory Architecture (LMA) II optimally load balances across NVIDIA's patented crossbar memory controller, resulting in maximum
memory bandwidth utilization. Other features include:
128 MB DDR
Single DVI, single VGA, and HD component output
Third-generation pixel and vertex programmability
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
65,536 fragment instruction/65,536 vertex instruction
3D volumetric textures
Hardware OpenGL overlays
Hardware accelerated antialiased points and lines
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd generation occlusion culling
Rotated Grid full-scene antialiasing (4x)
Optimized and certified for OpenGL 1.5 and DirectX 9.0c applications
Multi-display productivity
PCIe x16 BUS
Compatibility
CompatibilityCompatibility
Compatibility
The NVIDIA Quadro FX 540 is supported on HP xw4200, xw4300, xw6200, xw8200 and xw9300 Workstations.
Service and Support
Service and SupportService and Support
Service and Support
The NVIDIA Quadro FX 540 has a one-year limited warranty or the remainder of the warranty of the HP product in which it is
installed. Technical support is available seven days a week, 24 hours a day by phone, as well as online support forums. Parts and
labor are available on-site within the next business day. Telephone support is available for parts diagnosis and installation. Certain
restrictions and exclusions apply.
QuickSpecs
NVIDIA Quadro FX 540 Graphics Card
NVIDIA Quadro FX 540 Graphics CardNVIDIA Quadro FX 540 Graphics Card
NVIDIA Quadro FX 540 Graphics Card
Overview
DA - 12116 North America — Version 5 — August 15, 2005
Page 1
Form Factor
Form FactorForm Factor
Form Factor
ATX, 4.376" x 7.0"
Single slot
Graphics Controller
Graphics ControllerGraphics Controller
Graphics Controller
NVIDIA NV43GL
Bus Type
Bus TypeBus Type
Bus Type
PCI-Express x16, <75W power consumption
RAMDAC
RAMDACRAMDAC
RAMDAC
Dual 400 MHz integrated
Memory
MemoryMemory
Memory
128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture storage
8.8 GB/sec graphics memory bandwidth
Connectors
ConnectorsConnectors
Connectors
DVI + VGA + 10-pin HDTV Out (HD cable purchased separately)
Multi-monitor support
Multi-monitor supportMulti-monitor support
Multi-monitor support
Integrated analog display controller supporting one analog display at 2048x1536 @ 75Hz, one digital
display at 1600x1200 @ 60Hz.
Additional product
Additional productAdditional product
Additional product
features
featuresfeatures
features
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware accelerated Overlay Planes
Hardware accelerated two-sided lighting
Hardware accelerated antialiased points and lines
3D Volumetric Texture support
Hardware accelerated Occlusion Culling
Compliant with Microsoft®/Intel® PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Shading architecture
Shading architectureShading architecture
Shading architecture
Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Optimized compilers for Cg, OpenGL shading language, and Microsoft HLSL
Supported graphics APIs
Supported graphics APIsSupported graphics APIs
Supported graphics APIs
OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available graphics drivers
Available graphics driversAvailable graphics drivers
Available graphics drivers
HP-tested: Microsoft Windows® XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html
.
Maximum Resolution
Maximum ResolutionMaximum Resolution
Maximum Resolution
DVI output - drives digital display at resolutions up to 1600x1200 @ 60Hz
Internal 400MHz RAMDACs - drives dual analog displays up to 2048x1536 @ 75Hz each
© Copyright 2005 Hewlett-Packard Development Company, L.P.
All rights reserved. HP and the HP logo are trademarks of the Hewlett Packard Company in the U.S. and/or other countries.
Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries. NVIDIA and Quadro are
trademarks of NVIDIA Corporation. All other product names mentioned herein may be trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or omissions contained herein. The information is provided as is without
warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
QuickSpecs
NVIDIA Quadro FX 540 Graphics Card
NVIDIA Quadro FX 540 Graphics CardNVIDIA Quadro FX 540 Graphics Card
NVIDIA Quadro FX 540 Graphics Card
Technical Specifications
DA - 12116 North America — Version 5 — August 15, 2005
Page 2
