Nvidia nView 3.0 Desktop Manager Version 52.14 for Windows User's Guide

ForceWare nView 3.0 Desktop Manager
User’s Guide
Version 52.14 for Windows
NVIDIA Corporation November 2003 Second Edition
NVIDIA nView Desktop Manager User’s Guide
Published by NVIDIA Corporation 2701 San Tomas Expressway Santa Clara, CA 95050
Copyright © 2002 NVIDIA Corporation. All rights reserved.
This software may not, in whole or in part, be copied through any means, mechanical, electromechanical, or otherwise, without the express permission of NVIDIA Corporation.
Information furnished is believed to be accurate and reliable. However, NVIDIA assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties, which may result from its use. No License is granted by implication or otherwise under any patent or patent rights of NVIDIA Corporation.
Specifications mentioned in the software are subject to change without notice.
NVIDIA Corporation products are not authorized for use as critical components in life support devices or systems without express written approval of NVIDIA Corporation.
NVIDIA, the NVIDIA logo, Digital Vibrance Control, GeForce, nfiniteFX, nForce, Quadro, RIVA, TNT, TNT2, TwinView, and Vanta are registered trademarks or trademarks of NVIDIA Corporation in the United States and/or other countries.
Intel and Pentium are registered trademarks of Intel. DirectX, Microsoft, Microsoft Internet Explorer logo, Outlook, PowerPoint, Windows, Windows logo, Windows NT, and/or other Microsoft products referenced in this guide are either registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. OpenGL is a registered trademark of Silicon Graphics Inc.
Other company and product names may be trademarks or registered trademarks of the respective owners with which they are associated.
NVIDIA nView Desktop Manager User’s Guide
Table of Contents
1. Introduction
About this Guide . . . . . . . . . . . . . . . . . . . 1
Other Related Documentation . . . . . . . . . 1
nView vs. NVIDIA Display Properties . . . . . . . 2
Why do I need Desktop Management? . . . . . . 3
About nView Desktop Manager . . . . . . . . . . 3
Multi-Display Support . . . . . . . . . . . . . . 3
Single-Display Support . . . . . . . . . . . . . 4
Release 50: Access Options for the nView
Desktop Manager Control Panel . . . . . . . 4
Release 50: New Features and Support. . . . 6
Release 50: Performance Improvements and
Enhancements . . . . . . . . . . . . . . . . . 6
Release 40: Features and Enhancements . . 7
Feature Enhancements . . . . . . . . . . . 7
New Features . . . . . . . . . . . . . . . . . 7
Key Terms and Concepts . . . . . . . . . . . . . . 8
application . . . . . . . . . . . . . . . . . . . 8
child window . . . . . . . . . . . . . . . . . . 8
Control Panel . . . . . . . . . . . . . . . . . 8
desktop. . . . . . . . . . . . . . . . . . . . . 9
dual-card configuration . . . . . . . . . . . . 9
GPU . . . . . . . . . . . . . . . . . . . . . . 9
keystoning (NVKeystone) . . . . . . . . . . 9
modal dialog box . . . . . . . . . . . . . . . 10
modeless dialog box . . . . . . . . . . . . . 10
multiple-card configuration . . . . . . . . . . 10
multi-display configuration . . . . . . . . . . 10
parent window . . . . . . . . . . . . . . . . . 10
properties panel . . . . . . . . . . . . . . . . 10
single-display configuration . . . . . . . . . 10
skin . . . . . . . . . . . . . . . . . . . . . . . 10
tab . . . . . . . . . . . . . . . . . . . . . . . 11
window . . . . . . . . . . . . . . . . . . . . . 11
window class . . . . . . . . . . . . . . . . . 11
Features and Benefits . . . . . . . . . . . . . . . . 11
Desktop Management Panel . . . . . . . . . . 12
Windows Management . . . . . . . . . . . . . 12
About the Desktops Panel . . . . . . . . . . . . 12
Application Management . . . . . . . . . . . . 13
About the Profiles Panel . . . . . . . . . . . . . 14
Types of Data Saved and Restored by a
Profile . . . . . . . . . . . . . . . . . . . . . 14
Saving Profiles for Different Operating Modes
15
About the User Interface Panel . . . . . . . . 15
About the Tools Panel. . . . . . . . . . . . . . 15
About the Zoom Panel . . . . . . . . . . . . . 16
About the Hot Keys and Effects Panels. . . . 16
About the Mouse Panel . . . . . . . . . . . . . 17
Setup Wizard and Online Help. . . . . . . . . 18
Application Compatibility . . . . . . . . . . . . . . 18
Examples of Incompatible Applications . . . . 18
Skinning Utilities: Known Issues . . . . . . . . 19
Notes on Feature and Configuration Support . . 19
Feature Support . . . . . . . . . . . . . . . . . 19
Multi-Display Setup: Tips and Requirements. 20 Multi-Display Configuration: Tips and
Requirements . . . . . . . . . . . . . . . . . 20
Multi-Display Mode and Feature Support . . . 20
Examples in this Guide . . . . . . . . . . . . . . . 21
2. Installing and Uninstalling NVIDIA Display Driver Software
Before You Begin . . . . . . . . . . . . . . . . . . 22
About the NVIDIA Display Driver Installation . . 23
File Locations . . . . . . . . . . . . . . . . . . 23
Preserving Desktop Manager Settings Before
Upgrading Your Software . . . . . . . . . . . 23
Uninstalling the NVIDIA Display Driver Software 24
Using the NVIDIA Display Driver Menu. . . . . . 25
NVIDIA Settings Utility. . . . . . . . . . . . 27
3. System Requirements
Operating Systems . . . . . . . . . . . . . . . 30
Minimum Hard Disk Space . . . . . . . . . . . 31
Software: NVIDIA Display Driver . . . . . . . 32
Optional Software: Internet Explorer . . . . . 32
Optional: System Administrator Access
Privileges . . . . . . . . . . . . . . . . . . . . 32
Hardware: Supported NVIDIA Products . . . 33
Supported Languages . . . . . . . . . . . . . 35
4. Using the Desktop Manager
Setup Wizard
About the Setup Wizard . . . . . . . . . . . . . . 36
Multi-Display Auto-Launch Wizard: Multi-Display
vs. Single-Display Setup . . . . . . . . . . . 37
Manually Starting the Wizard Using the Wizard
Option . . . . . . . . . . . . . . . . . . . . . . 37
NVIDIA Corporation i
User’s Guide Table of Contents
Enabling nView Desktop Manager From the
Windows Control Panel . . . . . . . . . . . 38
Starting the Wizard from the nView Desktop Manager Desktop Management Panel . . . 40

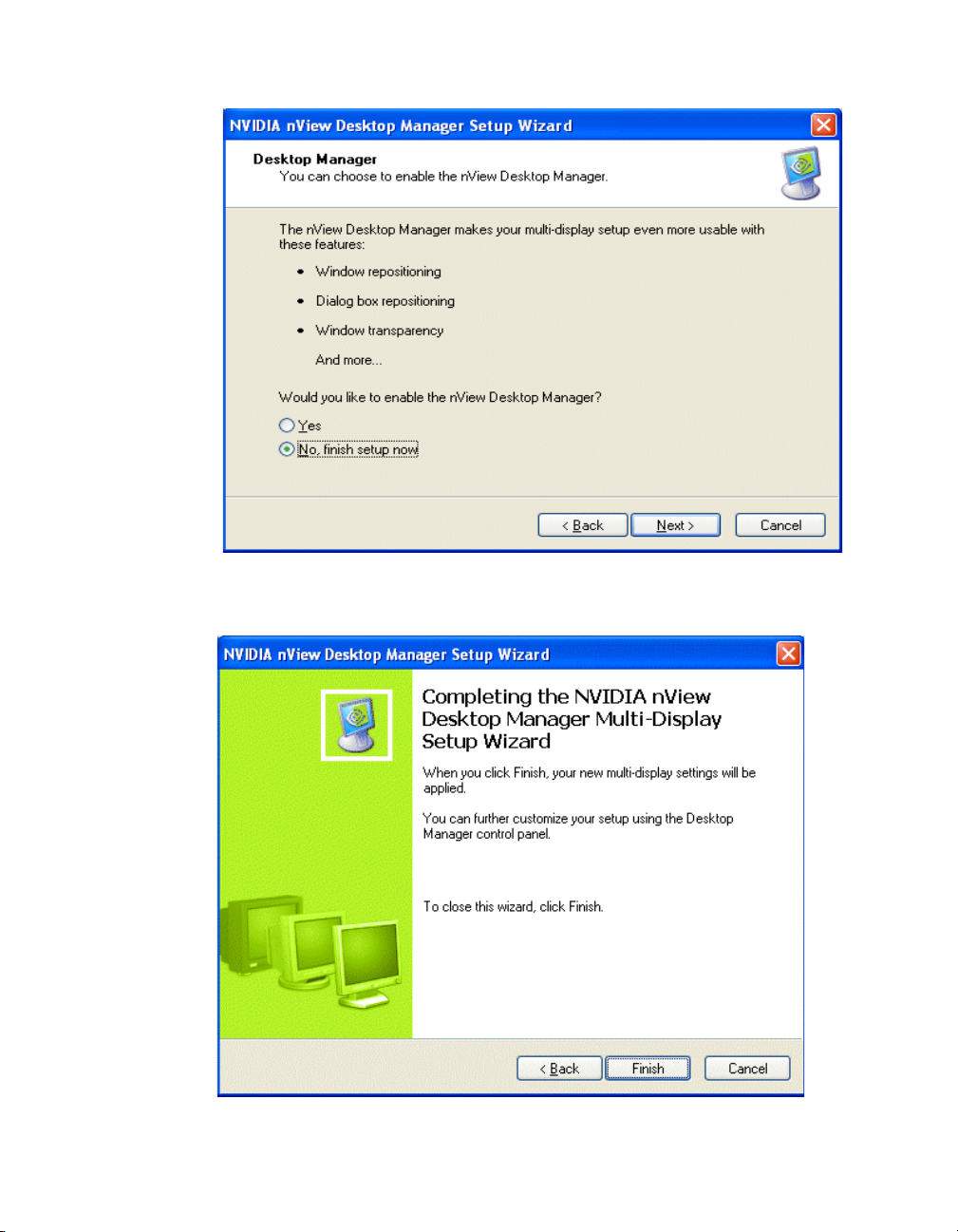

About Using the Setup Wizard . . . . . . . . . . . 40
Notes Before You Begin . . . . . . . . . . . . . 40
Auto-Launch Wizard Pages After First-Time
Installation. . . . . . . . . . . . . . . . . . . . . . 41
Desktop Management Wizard Pages . . . . . . . 50
Desktop Management Wizard Pages for NVIDIA
Quadro GPU-based Graphics Cards. . . . . . . 55
5. Accessing and Enabling the
nView Desktop Manager Control Panel
Overview of Procedure . . . . . . . . . . . . . . . 57

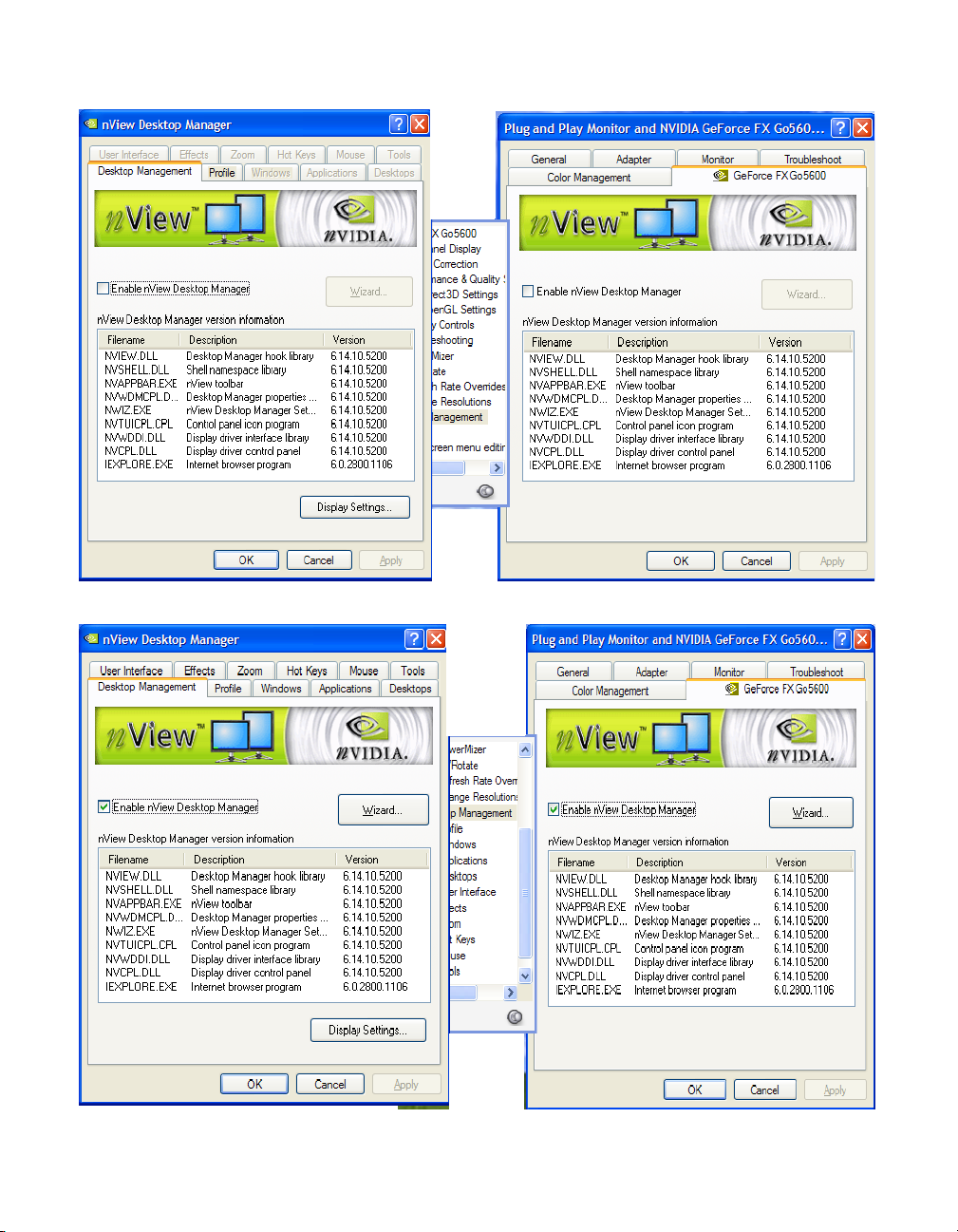

Accessing and Enable nView Desktop Manager
from the Windows Control Panel . . . . . . . . . 60
Enabling and Accessing Desktop Manager from the
nView Display Properties Menu . . . . . . . . . 61
Enabling Desktop Manager from the NVIDIA
Settings Icon . . . . . . . . . . . . . . . . . . . . 63
Using the NVIDIA Settings icon. . . . . . . . . 65
Accessing Windows Display Properties Settings.66
Troubleshooting . . . . . . . . . . . . . . . . . . . 67
6. Working With Profiles
About Profiles. . . . . . . . . . . . . . . . . . . . . 68
About Saving and Restoring Your Display Mode
Information . . . . . . . . . . . . . . . . . . . 70
About Saving Open Application States: For
Quadro-based GPUs only . . . . . . . . . . . 70
Benefits of Using Profiles . . . . . . . . . . . . . . 70
Profiles Options . . . . . . . . . . . . . . . . . . . 71
List of Profiles . . . . . . . . . . . . . . . . . . . . 72
Current Profile . . . . . . . . . . . . . . . . . . . . 73
Loading a Profile . . . . . . . . . . . . . . . . . . . 73
Creating a Profile. . . . . . . . . . . . . . . . . . . 73
Saving a Profile . . . . . . . . . . . . . . . . . . . 75

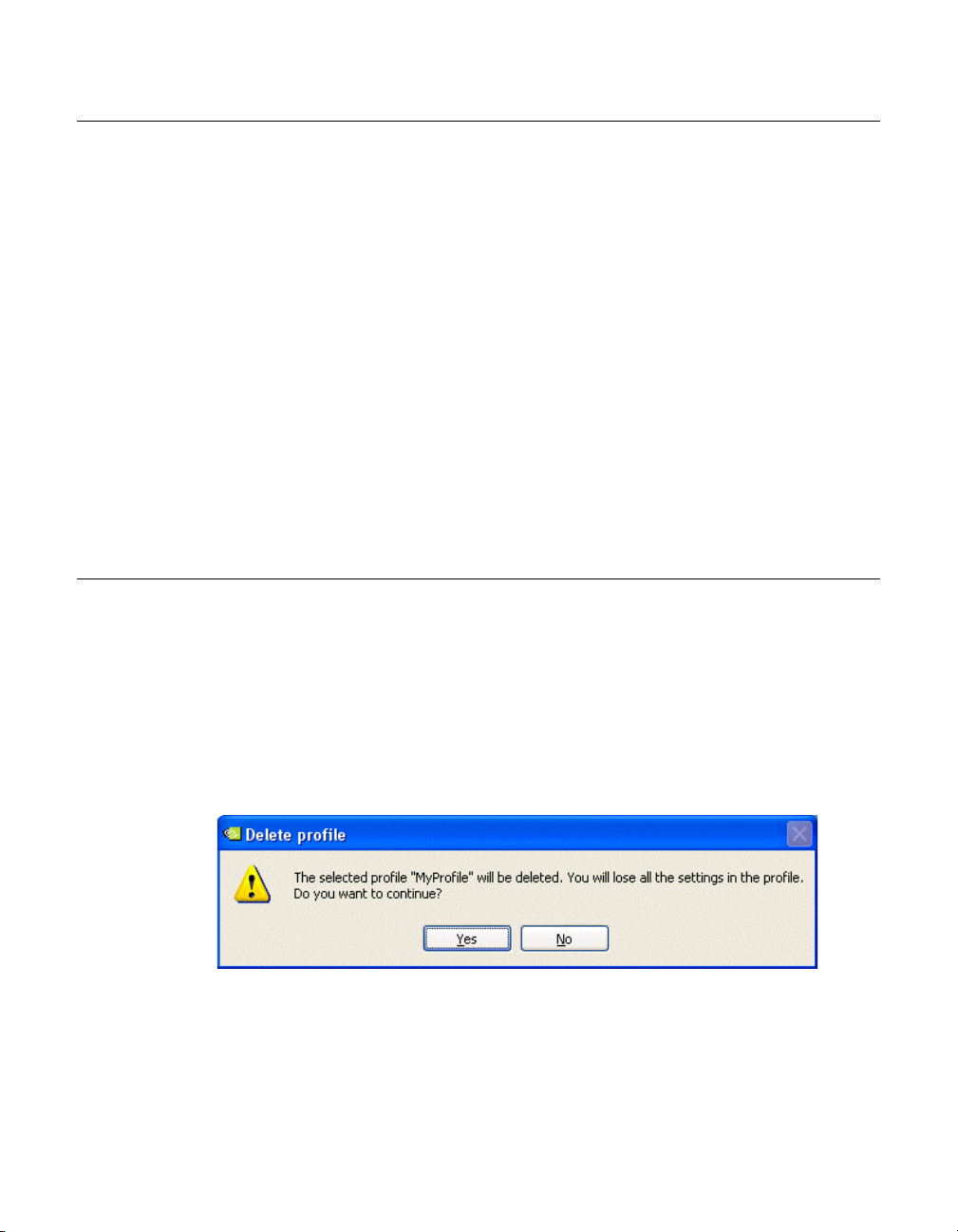

Deleting a Profile . . . . . . . . . . . . . . . . . . . 75
Copying Profiles for Use on Another Computer .76
7. Managing Windows
About Windows Options. . . . . . . . . . . . . . . 77
Windows Panel Options . . . . . . . . . . . . . . . 78
Window Settings . . . . . . . . . . . . . . . . . . . 79
Enable Window Spanning Across Displays . . 79
Enable child window spanning across
displays . . . . . . . . . . . . . . . . . . . . 79
Open window on . . . . . . . . . . . . . . . 80
Prevent windows from opening off-screen 80
Limit taskbar to a single display . . . . . . 80
Dialog Box Settings . . . . . . . . . . . . . . . . . 80
Enable dialog box repositioning . . . . . . . . 80
Move to display n . . . . . . . . . . . . . . 80
Move to display where cursor appears . . 81 Move to display where application appears 81
Center dialog box on display . . . . . . . . 81
8. Managing Desktops
About Desktops Options . . . . . . . . . . . . . . 82

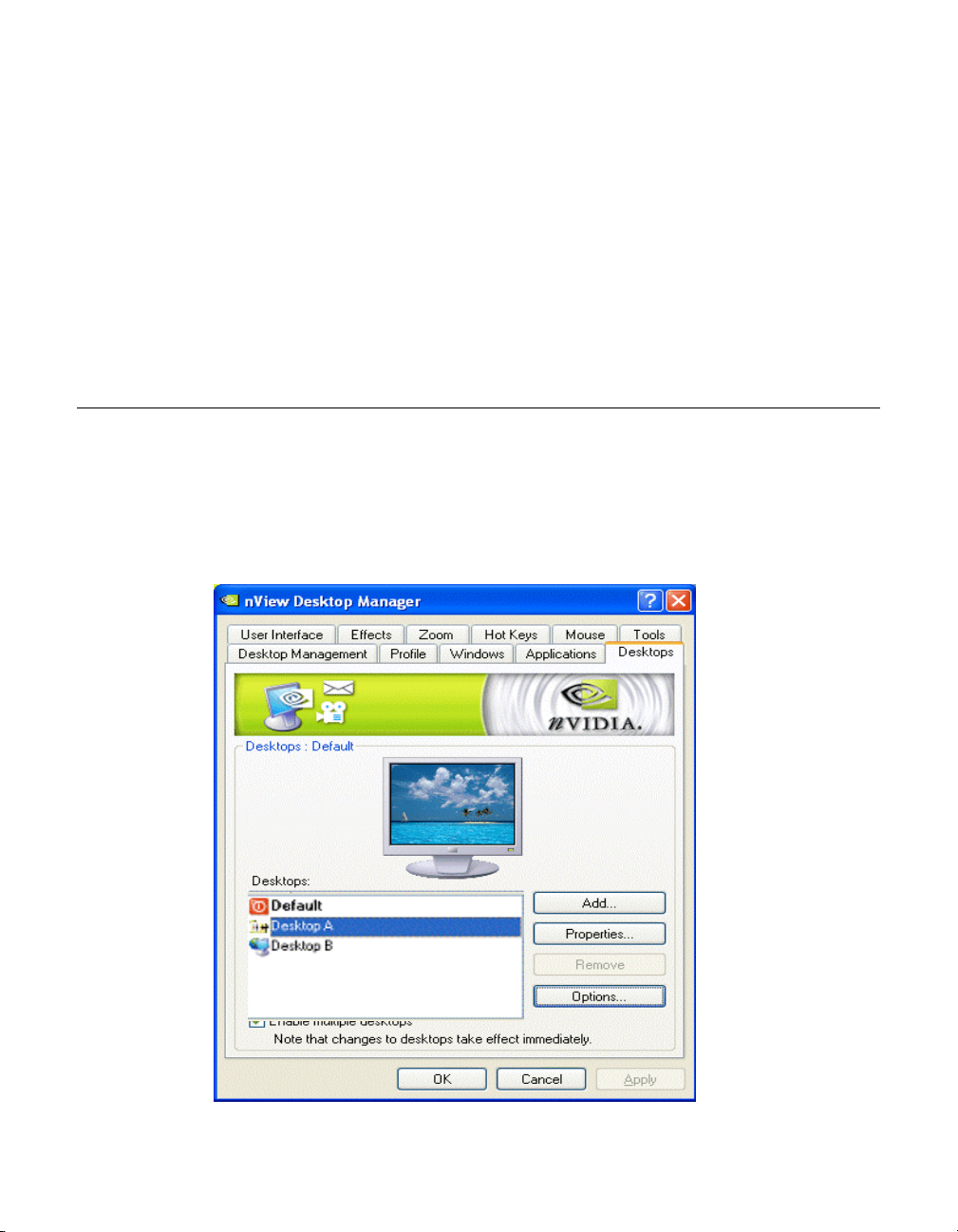

Accessing the Desktops Tab . . . . . . . . . . . . 83
Notes Before You Begin . . . . . . . . . . . . . . 84
Desktops List . . . . . . . . . . . . . . . . . . . . 84
Creating Desktops . . . . . . . . . . . . . . . . . 84
Using the “Add” Option . . . . . . . . . . . 85
Activating or Switching Desktops . . . . . . . . . 86
Activating Desktops from the NVIDIA
Settings icon . . . . . . . . . . . . . . . . . 87
Activating Desktops From the Windows
Desktop Properties Menu . . . . . . . . . . 87
Activating Desktops from Desktop Explorer88
Activating Desktops With Hot Keys . . . . 88
Renaming Desktops . . . . . . . . . . . . . . . . 88
Removing Desktops . . . . . . . . . . . . . . . . 88
Properties: Changing Wallpaper and Desktop Icons
88
Selecting a Background for the Desktop . . . 89 Selecting Separate Backgrounds Per Display 90
Selecting a Desktop Icon . . . . . . . . . . . . 90
Multiple Desktop Global Options . . . . . . . . . 91
Show Desktop Name When Switching . . . . 91
Enable Desktops in Windows Explorer . . . . 92
Using nView Desktop Explorer . . . . . . . 93
Creating Desktops from Desktop Explorer 93
Renaming, Deleting, and Activating Desktops
from Desktop Explorer. . . . . . . . . . . . 94
Enhancing the Desktop Explorer
“Thumbnails” View . . . . . . . . . . . . . . 95
Using the Thumbnail Styles. . . . . . . . . 96
Moving Applications Between Desktops or to
a New Desktop . . . . . . . . . . . . . . . . 96
Accessing Other Application Settings from
Desktop Explorer. . . . . . . . . . . . . . . 98
Advanced Options . . . . . . . . . . . . . .101
Maximize Desktop Switching Speed . . . . .101
Show Command Prompt Windows on All
Desktops . . . . . . . . . . . . . . . . . . . .101
ii NVIDIA Corporation
User’s Guide Table of Contents
Force Desktop to Redraw in One Step. . . . 101
Allow Desktop to Use Different Resolutions. 101 Reset Desktops to the Current Resolution . 101
9. Using the User Interface Options
About User Interface Options . . . . . . . . . . . 102
Accessing the User Interface Tab . . . . . . . . 103
General Options . . . . . . . . . . . . . . . . . . 104
Enabling General Options . . . . . . . . . . . 104
Enable nView Options in the Windows Right-
click Menu . . . . . . . . . . . . . . . . . . 104
Show Notification Messages on Taskbar . 104
Enable nView Task Switcher. . . . . . . . 104
Enable nView Toolbar . . . . . . . . . . . 104
Enable Display Gridlines . . . . . . . . . . 112
Windows and Applications Options . . . . . . . 114
Adding the nView Desktop Manager Title Bar
Buttons. . . . . . . . . . . . . . . . . . . . . 114
Show Button for nView Options . . . . . . 114
Show button for full-desktop maximize . . 115 Show button for single-display maximize 116 Show button for “Collapse to Title Bar” . . 117
About the Title Bar Buttons LED Status
Indicators . . . . . . . . . . . . . . . . . . . 118
About the nView Options Menu . . . . . . . . 119
Add nView Options to System Menus . . . . 119
nView Menu Options . . . . . . . . . . . . . . 119
nView Menu: Description of Options . . . . . 122
nView Maximize. . . . . . . . . . . . . . . 122
Send window to. . . . . . . . . . . . . . . . 122
Send application to . . . . . . . . . . . . . . 122
Transparent (alpha blended). . . . . . . . 122
Always on top . . . . . . . . . . . . . . . . 122
Visible on all desktops . . . . . . . . . . . 123
Collapse to desktop. . . . . . . . . . . . . 123
Individual Settings . . . . . . . . . . . . . 123
Individual Settings: Clear all . . . . . . . . 125
Individual Settings: Other Methods of
Clearing . . . . . . . . . . . . . . . . . . . 125
Menu Options . . . . . . . . . . . . . . . . 125
About this Application … . . . . . . . . . . 125
Application-specific nView Menu Options 125
10. Using Effects
About Effects . . . . . . . . . . . . . . . . . . . . 127
Accessing the Effects Tab . . . . . . . . . . . . . 128
Window Drawing Enhancements. . . . . . . . . 128
Make Windows Minimize and Maximize Faster
128
Make Windows Transparent When Dragged.128
Require Shift key to be held down . . . . . 129
Enable Taskbar Transparency . . . . . . . . .129
Transparency Level . . . . . . . . . . . . .129
Windows Color Keying . . . . . . . . . . . . . . .130
Enable Windows Color Keying . . . . . . . . .130
Manipulating Color-Keyed Windows Using
Hot Keys . . . . . . . . . . . . . . . . . . .130
Automatically Assign Colors to Windows .130
Colored Application Window Borders . . . . . 131
11. Using Zoom Options
About Zoom Options . . . . . . . . . . . . . . . .134
Accessing the Zoom Tab . . . . . . . . . . . . . .135
Zoom Features: Display Properties vs. Desktop
Manager . . . . . . . . . . . . . . . . . . . . . .136
Zoom Window Styles . . . . . . . . . . . . . . . . 137
Magnifying Glass . . . . . . . . . . . . . . . .137
Centered on Cursor . . . . . . . . . . . . . . . 137
Fixed Frame . . . . . . . . . . . . . . . . . . .137
Using the Mouse Wheel to Change Zoom Levels .
137
Showing the Cursor in a Zoom Window . . . . .138
Automatically Moving Zoom Window to the Next
Screen . . . . . . . . . . . . . . . . . . . . . . . 138
Enabling Bi-Directional Editing . . . . . . . . . .138
Inverting the Colors of the Zoomed Image . . . .139
Zooming Video Playback (disables overlay) . . .139
Showing the Zoom Window . . . . . . . . . . . . 139
Zoom Window Menus . . . . . . . . . . . . . . 140
Zoom Level . . . . . . . . . . . . . . . . . .140
Zoom Refresh . . . . . . . . . . . . . . . .140
Zoom Style . . . . . . . . . . . . . . . . . .141
Using Cursor Style Zoom . . . . . . . . . . 142
Using Magnifying Glass Style Zoom . . . . 143
Using Fixed Frame Zoom . . . . . . . . . .143
Full Screen Video Zoom . . . . . . . . . . . . . .147
12. Using Hot Keys
About Hot Key Options . . . . . . . . . . . . . . .148
Accessing the Hot Keys Tab . . . . . . . . . . . . 149
Selecting an Action . . . . . . . . . . . . . . . . .150
Windows and Applications Actions . . . . . .150
Desktop Management Actions . . . . . . . . .151
Window Management Actions . . . . . . . . .151
Display Mode Actions . . . . . . . . . . . . . .151
Display Settings Actions . . . . . . . . . . . .152
Miscellaneous Actions . . . . . . . . . . . . . 153
Adding a Hot Key . . . . . . . . . . . . . . . . . . 153
NVIDIA Corporation iii
User’s Guide Table of Contents
Examples of Actions Requiring Additional
Information . . . . . . . . . . . . . . . . . . 154
“Move window to display…” . . . . . . . . 154
“Show color-keyed window” . . . . . . . . 155
Removing a Hot Key. . . . . . . . . . . . . . . . 156
Removing All Hot Keys . . . . . . . . . . . . . . 156
Active Hot Keys List . . . . . . . . . . . . . . . . 156
13. Configuring Mouse Effects
About Mouse Effects. . . . . . . . . . . . . . . . 158
Mouse Panel Options . . . . . . . . . . . . . . . 159
General Settings . . . . . . . . . . . . . . . . . . 159
Enable Throw Window Actions . . . . . . . . 159
Jump Dead Screen Areas . . . . . . . . . . . 159
Toggle Window Z-Order with Middle Mouse
Button . . . . . . . . . . . . . . . . . . . . . 160
Automatically Activate Windows Under Cursor
160
Change window Z-order when activating . . 160
Kinematics . . . . . . . . . . . . . . . . . . . . . 161
Enable Mouse Gestures . . . . . . . . . . . . 161
Gesture Sensitivity . . . . . . . . . . . . . . . 161
Require Shift key to be held down . . . . . . 161
Operate on Window Under Cursor . . . . . . 161
Shake Mouse Horizontally. . . . . . . . . . . 161
Shake Mouse Vertically . . . . . . . . . . . . 161
Rotate Mouse Clockwise . . . . . . . . . . . 162
Adding a Window Class . . . . . . . . . . . . . .175
Disabling an nView Desktop Manager Function .177
Individual Settings. . . . . . . . . . . . . . . . . .177
Launch Settings . . . . . . . . . . . . . . . . .178
Application Extensions . . . . . . . . . . . . . . .179
Internet Explorer Options . . . . . . . . . . . .179
Add Microsoft Internet Explorer Double Right-
click and Shift-left-click Extensions . . . .180
Add Microsoft Internet Explorer Popup
Preventer Extensions . . . . . . . . . . . .181
Add Microsoft PowerPoint Slide Show Extension
182
14. Using Tools Options
About Tools Options . . . . . . . . . . . . . . . . 164
Accessing the Tools Tab. . . . . . . . . . . . . . 164
Display Quality: NVKeystone . . . . . . . . . . . 165
Enable NVKeystone Display Correction . . . 165 Enable NVKeystone Option in Desktop Menu .
166
Accessing NVKeystone . . . . . . . . . . . . 166
NVKeystone Menu . . . . . . . . . . . . . . . 166
NVKeystone Adjustment Screen . . . . . . . 167
NVKeystone Options . . . . . . . . . . . . . . 167
Display Quality: Show Flat Panel Calibration
Screen . . . . . . . . . . . . . . . . . . . . . . . 169
15. Managing Applications:
For Advanced Users
Accessing the Applications Panel . . . . . . . . 170
About the Applications Panel . . . . . . . . . . . 171
Adding an Application . . . . . . . . . . . . . . . 173
Removing an Application . . . . . . . . . . . . . 174
About Windows Classes . . . . . . . . . . . . . 174
iv NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
List of Tables
Table 1.1 Multi-Display Mode and Feature Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Table 3.1 Operating System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 3.2 Hard Disk Space Requirements — English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Table 3.3 Hard Disk Space Requirements — Non-English Languages . . . . . . . . . . . . . . . . . . . 31
Table 3.4 Hard Disk Space Requirements — Full International Package . . . . . . . . . . . . . . . . . . 31
Table 3.5 Supported NVIDIA GPUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
NVIDIA Corporation v
NVIDIA nView Desktop Manager User’s Guide
List of Figures
Figure 1.1 Windows 2000 Control Panel with nView Desktop Manager Item (icon) . . . . . . . . . . . . . . . . 2
Figure 1.2 nView Desktop Manager Properties: Tabbed Control Panel vs. Menu Style . . . . . . . . . . . . . . . 5
Figure 2.1 NVIDIA GPU Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 2.2 NVIDIA Display Properties Menu: Expanded with Scroll Bar and Hidden . . . . . . . . . . . . . . 26
Figure 2.3 NVIDIA Display Properties: NVIDIA Menu (Windows XP/2000) . . . . . . . . . . . . . . . . . . 28
Figure 2.4 NVIDIA Display Properties: NVIDIA Menu (Windows 9x) . . . . . . . . . . . . . . . . . . . . . . 28
Figure 4.1 nView Desktop Manager Enabled: nView Properties Appear on Desktop Menu . . . . . . . . . . . 38
Figure 4.2 Default Desktop Managment Panels: Tabbed and Menu Views . . . . . . . . . . . . . . . . . . . . 39
Figure 4.3 Desktop Managment Panels After Enabling Desktop Manager . . . . . . . . . . . . . . . . . . . . 39
Figure 4.4 Auto-Launch Wizard Welcome Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 4.5 Auto-Launch Wizard Setup Option: “Typical Setup” Selected . . . . . . . . . . . . . . . . . . . . . 42
Figure 4.6 Auto-Launch Wizard Setup Option: Display Settings for Typical Setup . . . . . . . . . . . . . . . . 42
Figure 4.7 Auto-Launch Wizard Setup Options Page: “Custom Setup” Selected . . . . . . . . . . . . . . . . . 43
Figure 4.8 Auto-Launch Wizard: Multi-Display Mode Page: Dualview Mode Selected . . . . . . . . . . . . . 43
Figure 4.9 Auto-Launch Wizard Display Settings Page for Dualview Mode ( 2 CRT Example) . . . . . . . . . 44
Figure 4.10 Auto-Launch Wizard: Multi-Display Mode Page: Span Mode Selected . . . . . . . . . . . . . . . 44
Figure 4.11 Auto-Launch Wizard Display Settings Page for Span Mode (Exampe 1) . . . . . . . . . . . . . . . 45
Figure 4.12 Auto-Launch Wizard Display Settings Page for Span Mode (Exampe 2) . . . . . . . . . . . . . . 45
Figure 4.13 Auto-Launch Wizard Display Settings Page for Span Mode (Exampe 3) . . . . . . . . . . . . . . . 46
Figure 4.14 Auto-Launch Wizard Display Settings Page for Span Mode (Exampe 4) . . . . . . . . . . . . . . 46
Figure 4.15 Auto-Launch Wizard Multi-Display Mode Page: Clone Mode Selected . . . . . . . . . . . . . . . 47
Figure 4.16 Auto-Launch Wizard Display Settings Page for Clone Mode (2 CRT Example) . . . . . . . . . . . 47
Figure 4.17 Auto-Launch Wizard Page: NOT Enabling Desktop Manager . . . . . . . . . . . . . . . . . . . . 48
Figure 4.18 Auto-Launch Wizard Completion Without Enabling nView Desktop Manager . . . . . . . . . . . 48
Figure 4.19 Auto-Launch Wizard: Enabling nView Desktop Manager l . . . . . . . . . . . . . . . . . . . . . . 49
Figure 4.20 Auto-Launch Wizard Completion Without Enabling nView Desktop Manager . . . . . . . . . . . 49
Figure 4.21 nView Desktop Manager Control Panel Launched . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Figure 4.22 Desktop Management Wizard: Welcome Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Figure 4.23 Desktop Management Wizard: Profiles Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Figure 4.24 Desktop Management Wizard: Window Management Page (1) . . . . . . . . . . . . . . . . . . . 52
Figure 4.25 Desktop Management Wizard: Window Management Page (2) . . . . . . . . . . . . . . . . . . . 52
Figure 4.26 Desktop Management Wizard: Window Management Page (3) . . . . . . . . . . . . . . . . . . . 53
Figure 4.27 Desktop Management Wizard: Enabling nView Desktop Manager Page (1) . . . . . . . . . . . . . 53
Figure 4.28 Desktop Management Wizard: Window Transparency Page . . . . . . . . . . . . . . . . . . . . . 54
Figure 4.29 Desktop Management Wizard: Completion Page . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Figure 4.30 Desktop Management Wizard: Profiles Page for NVIDIA Quadro-based GPUs (1) . . . . . . . . . 55
NVIDIA Corporation vi
User’s Guide List of Figures
Figure 4.31 Wizard Window Management Page for NVIDIA Quadro-based GPUs (2) . . . . . . . . . . . . . . 56
Figure 5.1 nView Desktop Manager Enabled: nView Properties Appear on Desktop Menu . . . . . . . . . . . 58
Figure 5.2 nView Desktop Manager Disabled: nView Properties Removed from Desktop Menu . . . . . . . . 58
Figure 5.3 Desktop Management Panel After Enabling Desktop Manager . . . . . . . . . . . . . . . . . . . . 59
Figure 5.4 nView Desktop Manager Enabled on the nView Display Properties Menu . . . . . . . . . . . . . . 59
Figure 5.5 Windows Control Panel With NVIDIA nView Desktop Manager Program . . . . . . . . . . . . . . 60
Figure 5.6 Desktop Managment Panel: Before and After Desktop Manager is Enabled . . . . . . . . . . . . . . 61
Figure 5.7 Accessing Desktop Manager from the nView Display Properties Menu . . . . . . . . . . . . . . . . 62
Figure 5.8 nView Desktop Manager Enabled on the nView Display Properties Menu . . . . . . . . . . . . . . 63
Figure 5.9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figure 5.10 NVIDIA Settings Icon on the Windows Taskbar . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figure 5.11 NVIDIA Settings icon: nView Desktop Manager Settings . . . . . . . . . . . . . . . . . . . . . . 65
Figure 5.12 Desktop Managment Panel: Accessing the Windows Display Properties Settings Panel . . . . . . . 66
Figure 6.1 Profiles Panel for NVIDIA GeForce-based GPUs . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Figure 6.2 Creating a New Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Figure 6.3 Profiles Panel After Adding a Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Figure 6.4 Deleting a Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Figure 7.1 Windows Panel in nView Dualview Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Figure 7.2 Windows Panel Options for NVIDIA Quadro-based GPUs. . . . . . . . . . . . . . . . . . . . . . . 79
Figure 8.1 Desktops Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Figure 8.2 Creating a Desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Figure 8.3 Viewing the Added Desktop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Figure 8.4 NVIDIA Settings icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Figure 8.5 Accessing Desktops Through the NVIDIA Settings icon . . . . . . . . . . . . . . . . . . . . . . . . 87
Figure 8.6 Changing Properties for Multiple Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Figure 8.7 Desktop Explorer Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Figure 8.8 Desktop Explorer Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Figure 8.9 Desktop Explorer Nodes in Windows Explorer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Figure 8.10 Desktop Explorer: Main Pop-up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Figure 8.11 Entering a Desktop Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Figure 8.12 Desktop Explorer: Desktop Pop-up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Figure 8.13 Desktop Explorer: nView Desktop Thumbnails Styles . . . . . . . . . . . . . . . . . . . . . . . . 97
Figure 8.14 Desktop Explorer: “Send to Desktop n” Application Settings . . . . . . . . . . . . . . . . . . . . 98
Figure 8.15 Desktop Explorer: After Setting “Visible on all desktops” . . . . . . . . . . . . . . . . . . . . . . 99
Figure 8.16 Desktop Explorer: “Collapse to Desktop n” Application Setting . . . . . . . . . . . . . . . . . . . 100
Figure 8.17 Desktop Explorer: After Setting “Collapse to Desktop n” . . . . . . . . . . . . . . . . . . . . . . .100
Figure 9.1 User Interface Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Figure 9.2 Appearance of the Enabled “Default” nView Toolbar: “Show title” mode.. . . . . . . . . . . . . . .105
Figure 9.3 Actions: Show Text Enabled; Profiles: No Text/Title Enabled . . . . . . . . . . . . . . . . . . . . .105
NVIDIA Corporation vii
NVIDIA nView Desktop Manager User’s Guide
Figure 9.4 Actions and Profiles: Show Text and Show Title Are Both Disabled. . . . . . . . . . . . . . . . . .105
Figure 9.5 ScreenTips text for an Action Toolbar Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Figure 9.6 Appearance of Profiles, Actions, and Desktop Menus in nView Toolbar. . . . . . . . . . . . . . . .106
Figure 9.7 nVIew Toolbar: View Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Figure 9.8 nView Toolbar: Toolbars Menu.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Figure 9.9 nView Toolbar: Attach Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Figure 9.10 nView Toolbar: Actions Menu with Show Text/Title Enabled. . . . . . . . . . . . . . . . . . . . .108
Figure 9.11 Customize Toolbar Dialog Box: Available from the Actions Menu Only.. . . . . . . . . . . . . . .109
Figure 9.12 nView Toolbar: Desktops Menu with Show Text/Title Enabled. . . . . . . . . . . . . . . . . . . .109
Figure 9.13 nVIew Toolbar: Profiles Menu with Show Text/Title AND Show Text Only Enabled. . . . . . . . . 110
Figure 9.14 nView Toolbar: Actions Menu with Show Text/Title AND Show Title Only Enabled. . . . . . . . . 111
Figure 9.15 nView Toolbar: Profiles Menu with Show Title Enabled. . . . . . . . . . . . . . . . . . . . . . . . 112
Figure 9.16 Edit Display Gridlines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Figure 9.17 Gridlines Setup (1): Grid and Anchor Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Figure 9.18 Gridlines Setup (2): Use Grids With . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Figure 9.19 Accessing the nView Desktop Manager Options Menu Using the nView Options Menu Button . . 115
Figure 9.20 User Interface Panel Options (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Figure 9.21 Application Title Bar (Full Desktop or Single Display) Maximize Button . . . . . . . . . . . . . . 117
Figure 9.22 Window Appearance Using the “Collapse to Title Bar Button” . . . . . . . . . . . . . . . . . . . . 117
Figure 9.23 nView Desktop Manager Button Bar: LED Indicator and nView Options Menu Button . . . . . . . 118
Figure 9.24 Accessing the nView Desktop Manager Options Menu . . . . . . . . . . . . . . . . . . . . . . . .120
Figure 9.25 nView Menu Options Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Figure 9.26 Individual Application Settings Dialog Box: 2 Examples . . . . . . . . . . . . . . . . . . . . . . . 124
Figure 9.27 Prompt for Clearing Individual Settings for an Application . . . . . . . . . . . . . . . . . . . . . .125
Figure 9.28 Sample “About this Application” Information Box . . . . . . . . . . . . . . . . . . . . . . . . . .126
Figure 10.1 Effects Panel for NVIDIA GeForce-based GPUs . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Figure 10.2 Effects Panel for NVIDIA Quadro-based GPUs . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Figure 10.3 Color Key Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Figure 10.4 Sample Colored Application Window Borders . . . . . . . . . . . . . . . . . . . . . . . . . . . .132
Figure 11.1 Zoom Panel for Magnifying Glass and Center on cursor Zoom Styles . . . . . . . . . . . . . . . . 135
Figure 11.2 Zoom Panel for Fixed Frame Zoom Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136
Figure 11.3 Zoom Level Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Figure 11.4 Zoom Refresh Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Figure 11.5 Zoom Style Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Figure 11.6 Cursor Style Zoomed Area in Zoom Window (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Figure 11.7 Cursor Style Zoomed Area in Zoom Window (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Figure 11.8 Magnifying Glass Style Zoom Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Figure 11.9 Magnifying Glass Style Zoom Window Over Zoom Area . . . . . . . . . . . . . . . . . . . . . . .144
Figure 11.10 Magnifying Glass Style Zoomed Area in Zoom Window (1) . . . . . . . . . . . . . . . . . . . . 144
viii NVIDIA Corporation
User’s Guide List of Figures
Figure 11.11 Magnifying Glass Style Zoomed Area in Zoom Window (2) . . . . . . . . . . . . . . . . . . . .145
Figure 11.12 Zoom Window-Fixed Frame Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
Figure 11.13 Magnified Area in Zoom Window: Zoom Window . . . . . . . . . . . . . . . . . . . . . . . . .146
Figure 12.1 nView Desktop Manager Properties: Hot Keys Panel . . . . . . . . . . . . . . . . . . . . . . . . .149
Figure 12.2 Hot Keys Properties Dialog Box Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
Figure 12.3 Hot Keys Properties Dialog Box: for “Move window to display…” Action . . . . . . . . . . . . . 155
Figure 12.4 Hot Keys Properties Dialog Box: for “Show color-keyed window” Action . . . . . . . . . . . . . 156
Figure 12.5 nView Desktop Manager Properties: Active Hot Keys List . . . . . . . . . . . . . . . . . . . . . . 157
Figure 13.1 Mouse Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160
Figure 14.1 nView Desktop Manager Properties: Tools Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .165
Figure 14.2 NVKeystone Option in Windows Desktop Properties Menu . . . . . . . . . . . . . . . . . . . . .166
Figure 14.3 NVKeystone Adjustment Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .168
Figure 14.4 NVKeystone Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Figure 15.1 nView Desktop Manager Properties: Applications Panel . . . . . . . . . . . . . . . . . . . . . . . 171
Figure 15.2 Add Application Dialog Boxes (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Figure 15.3 Add Application Dialog Boxes (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Figure 15.4 Add Class Dialog Boxes (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176
Figure 15.5 nView Desktop Manager Properties (Applications): Disable nView Desktop Manager Functions . .177
Figure 15.6 Individual Application Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178
Figure 15.7 Application Extensions Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Figure 15.8 Internet Explorer Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181
Figure 15.9 Internet Explorer Popup Preventer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182
Figure 15.10 Internet Explorer Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
NVIDIA Corporation ix
NVIDIA nView Desktop Manager User’s Guide
x NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
C HAPTER
I
NTRODUCTION
The following major topics are discussed in this chapter:
“About this Guide” on page 1
“nView vs. NVIDIA Display Properties” on page 2
“Why do I need Desktop Management?” on page 3
“About nView Desktop Manager” on page 3
“Key Terms and Concepts” on page 8
“Features and Benefits” on page 11
“Application Compatibility” on page 18
“Notes on Feature and Configuration Support” on page 19
“Examples in this Guide” on page 21

About this Guide

This is a user’s guide addressed to end users of the NVIDIA® nView™ Desktop Manager, which is a desktop and application management tool that runs on Windows operating systems.
O
ther Related Documentation
• If you are primarily using the NVIDIA display properties features for NVIDIA GeForce-based graphics processing units (GPUs), see the NVIDIA ForceWare Release 50 Graphics Drivers User’s Guide.
NVIDIA Corporation 1
Chapter 1 Introduction
• The document titled NVIDIA ForceWare Driverss: Release 50 Notes enables add-in-card (AIC) producers and original equipment manufacturers (OEMs) to monitor performance improvements and bug fixes in the driver.

nView vs. NVIDIA Display Properties

The NVIDIA Display Driver software includes two software components: nView and NVIDIA Display Properties.
nView represents a collection of multi-display technologies encompassing driver support, multi-display GPU architecture, and desktop management support. The primary nView component is the Desktop Manager, which is a user-level application utility that focuses on making you more productive when working on your Windows desktop.
Note: Desktop Manager is now a separate item on the Windows Control
Panel group (Figure 1.1). You can click this item to access the nView Desktop Manager properties panel.
Figure 1.1
Windows 2000 Control Panel with nView Desktop Manager Item (icon)
NVIDIA Display Properties refers to the NVIDIA Windows Control Panel­based user interface, which you can access from the Windows Display Properties > Settings > Advanced option and configure the advanced display properties of the current release of the NVIDIA Windows Display Driver software.
Note: The NVIDIA Display Properties also includes the nView Display Mode
option, which lets you configure multi-display support for Clone and/or Span modes if you are using an NVIDIA GPU-based card that supports multiple displays. See Table 3.5, “Supported NVIDIA GPUs”.
2 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Why do I need Desktop Management?

As users run more and more applications and process even more information, their screen sizes are getting larger and larger. Larger screen area simply makes users more productive.
One of the more cost effective and common ways of increasing screen area is to use multiple displays and/or multiple desktops (for single-display users), which allow you to place your applications on multiple displays having ready and immediate access to the information they contain.
While large screens and multiple displays and desktops are a great way of increasing your visible work area, these larger desktops start becoming more difficult to manage. Once simple operations such as finding your mouse cursor or even a window can become very time-consuming when you have to hunt through several screens.
In addition, using multiple displays results in additional issues such as the screen split between two displays – windows that are placed on this screen split are extremely difficult to read. So, while larger desktop areas promise to dramatically increase your productivity, there are user interface issues that can make it difficult to use at times.
A “desktop manager” manages your large desktop and takes care of many of the user interface issues that result from moving to a larger desktop area. You can think of a desktop manager as being an extension of the windows user interface tailored for large desktops.

About nView Desktop Manager

nView Desktop Manager supports both single-display and multi-display configurations running with single-display, multi-display, or multiple graphics cards based on NVIDIA GPUs.

Multi-Display Support

The Desktop Manager feature set primarily focuses on multi-display use by workstation users in finance, corporate, digital content creation (DCC) and similar organizations as well as in the mobile (laptop) markets. Therefore, to take advantage of the full feature set of the Desktop Manager, you need a multi­display configuration. With multiple displays, you can view a single application as a large window stretching across several displays, or you can display different applications on each monitor. Using a multi-display configuration is an efficient and cost-effective way to increase the size of your computer display area, commonly called the “desktop”.
NVIDIA Corporation 3
Chapter 1 Introduction

Single-Display Support

Desktop Manager is designed for broad applications across the wide range of NVIDIA product lines and markets. Therefore, single-display users can also take advantage of many of its features. Although you cannot use multi-display features in a single-display configuration, you can create multiple desktops and use hot keys, NVKeystone, and windows effects.

Release 50: Access Options for the nView Desktop Manager Control Panel

Note: Starting from this current release (Release 50) of the NVIDIA display
driver, all nView Desktop Manager features accessible from the nView Desktop Manager control panel are also accessible from the NVIDIA display properties menu, shown in Figure 1.2.
In the previous Release 40 NVIDIA drivers, the nView Desktop Manager control panel was a standalone user interface with feature-specific tabs to access a variety of configurable Desktop Manager options.
In the current Release 50 NVIDIA display driver, the nView Desktop Manager control panel can be opened as a standalone user interface and the exact options can be accessed from the NVIDIA display properties menu because the Desktop Manager control panel options have also been integrated into the NVIDIA display properties control panel menu (Figure 1.2).
Once nView Desktop Manager is enabled, its control panel is easily accessible from a variety of areas on your desktop, as explained in “Accessing and
Enabling the nView Desktop Manager Control Panel” on page 57, For example,
it is available from:
• the Windows Control Panel group
• the desktop (right click) properties menu
• the NVIDIA Settings taskbar icon
• the NVIDIA display properties control panel menu
When you first open the nView Desktop Manager control panel, the default Desktop Management tab is displayed. Once you enable the Enable nView Desktop Manager option, the remaining tabs (or menu items) are available and configurable, as described in “Features and Benefits” on page 11.
Note: Individual chapters in this guide describe the various categories of
features to configure.
4 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 1.2
nView Desktop Manager Properties: Tabbed Control Panel vs. Menu Style
nView Desktop Manager control panel
Options as tabs
- Desktop Management,
- Profiles
- Windows
- Applications
- Desktops
- Tools
- Hot Keys
- Mouse
- Zoom
- Effects
- User Interface
Options as menu items
within the NVIDIA display properties menu
NVIDIA Corporation 5
Chapter 1 Introduction

Release 50: New Features and Support

•nView toolbar lets you dock hot keys and other actions — such as desktop switching, mode switching, and profile loading — on a toolbar for easy access.
• Profiles can store and load the open application state.
• Kinematic mouse actions such as switching to the next or previous desktop
can be accomplished by specific mouse movements such as shakes or circular motions. Mouse features also include throw-action detection for a more interactive “movie style” user interface.
• Resolution per desktop support allows each desktop can be set to a different resolution.
• Application display exclusions and inclusions allows the user to set up applications to always launch on a specified monitor, or never launch on a specified monitor.
• Microsoft Internet Explorer pop-up prevention
Monitor grids allows display devices to be divided into subgrids which—for the purposes of geometric operations such as application window maximizing—act as separate display devices.
• NVKeystone luma compensation

Release 50: Performance Improvements and Enhancements

• Desktop switching speed has increased by 40%.
• Integrated control panels -- The nView Desktop Manager control panel is
now consolidated with the NVIDIA display properties control panel.
• New nView Desktop Manager Setup Wizard includes mode set support for nView Standard, Clone, Spanning, and Dualview modes.
• Driver independence allows nView to be installed independently of the graphics drivers, with no version interdependencies.
6 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Release 40: Features and Enhancements

Feature Enhancements
The following features have been enhanced in the previous Release 40 NVIDIA nView Desktop Manager:
Operating System Support includes Windows NT 4.0, Windows 9x/Me, and Windows 2000/XP.
• Profile feature. Display modes are now saved to and loaded from each profile.
• Multiple desktop support contains the following new features:
Support for multi-display wallpaper selection. (See “Properties: Changing
Wallpaper and Desktop Icons” on page 88.)
Graphical display in Windows Explorer shell extension
Support for icons to represent desktops. (“Properties: Changing Wallpaper
and Desktop Icons” on page 88.)
Support for arbitrary positioning of windows on the desktops
Zoom support includes:
New fixed-frame zoom (See “Fixed Frame” on page 137.)
Bi-directional zoom editing capability (See “Enabling Bi-Directional
Editing” on page 138.)
New Features
The following are features that have been added to the new version of NVIDIA nView Desktop Manager:
• nView Task Switcher. When enabled, nView adds a desktop switcher in addition to the standard application tab switcher. By default, this additional “switch desktop” functionality is accessed through a Alt-~ keystroke combination which you can change through options in the Hot Key panel. See “Enable nView Task Switcher” on page 104.
Color-keyed windows allows the user to color key windows for easy identification when activating them on the desktop. See “Enable Windows
Color Keying” on page 130.
• NVKeystone™ allows real-time image correction on portable projectors and heads-up displays.
For example, NVKeystone can be set to compensate for keystoning effects on your windows display, allowing you to fix distorted projection images. This feature is primarily for laptop (mobile) computers.
2
NVIDIA Corporation 7
Chapter 1 Introduction
See “Accessing NVKeystone” on page 166.
Taskbar and Menu Transparency. See “Using Effects” on page 127.
New window actions, such as‚ Collapse
New applications settings, including a full set of application launch and disable settings. See “Managing Applications: For Advanced Users” on
page 170.

Key Terms and Concepts

Desktop Manager can manage and control many items on your desktop. Generally, it operates on two types of desktop objects – “windows” or “applications”.

application

An application (or program) can have any number of windows. Some applications have only a single window such as Calculator or Notepad. Other applications can have many windows such as Outlook where you can open several E-mail windows, have your Inbox open, open calendars, etc.
Desktop Manager can perform operations on applications as well as windows. In the case of applications, the operation is performed on every window that is part of that application only if the operation is enabled through the Individual Settings feature of that application.
If you run multiple copies of an application, any operation you perform on a copy of the application will apply to every copy of the application that is running.

child window

A child window refers to any “sub” window of the main or “parent” application window. For example, in the Microsoft Excel application, you can open several worksheets at once inside the main Excel window. Each worksheet is a child window of Excel.
2
NVKeystone is not supported on graphics cards based on the TNT, TNT2 or Vanta product
families.

Control Panel

Refers to the Windows Control Panel group, which you can access by clicking
Start > Settings > Control Panel from the Windows desktop. NVIDIA nView Desktop Manager is a clickable icon in this group of icons. When you click
this icon, the nView Desktop Manager properties panel (shown in Figure 1.2) appears.
8 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Note: The nView Desktop Manager properties panel in earlier revisions of the
this document was called the nView Desktop Manager control panel.

desktop

A “desktop” is the on-screen work area on which windows, icons, menus, and dialog boxes appear. You can create multiple desktops on single-display systems or multi-display systems, thereby increasing your work area.
dialog box
Dialog boxes are user-input windows that contain command (buttons) and various kinds of options through which you can carry out a particular command or task. For example, in a Windows application “Save As” dialog box, you must indicate the folder to contain the document to be saved and the name of that document when saving it.
Also see the definition of “modal dialog box” and “modeless dialog box” on this page.

dual-card configuration

A setup where two or more display devices are connected to two NVIDIA GPU­based graphics cards installed in the computer.
GPU
graphics processing unit (GPU). NVIDIA graphics chip products are called GPUs. Supported NVIDIA GPUs are listed in “Supported NVIDIA GPUs” on
page 33.

keystoning (NVKeystone)

Keystoning describes the distortion that occurs when your display is projected onto a curved surface or is projected at an oblique angle to a surface.
For example, if a projector were used to project an image on a flat wall, the projector would ideally be set up to point straight at the wall. If you then angled the projector right or left, you would see the image on the wall distort.
As a second example, if you projected your image onto a curved wall instead of a flat wall, you would also see your image distorted. This type of distortion is called “keystoning.”
The nView Desktop Manager feature called NVKeystone that can compensate for this effect. For details on using this feature, see “Using Tools Options” on
page 164.
NVIDIA Corporation 9
Chapter 1 Introduction

modal dialog box

A dialog box that puts you in the state or “mode” of being able to work only in the dialog box. You cannot make a modal dialog box inactive. It can only be closed by clicking one of its buttons.

modeless dialog box

A dialog box that resembles a document window without a collapse box. You can make a modeless dialog box inactive and active again without closing it.

multiple-card configuration

A setup where two or more display devices are connected to two (or more) NVIDIA GPU-based graphics cards in the computer.

multi-display configuration

A setup where two or more display devices are connected to either a multi­display NVIDIA GPU-based graphics card in the computer; or two (or more) NVIDIA GPU-based graphics cards in the computer.

parent window

A “parent” window refers to the “main” default launch window that you see when an application opens. For example, in the Microsoft Outlook application, the main window is your “Inbox”, since that’s the first window that launches when you open Outlook.

properties panel

NVIDIA nView Desktop Manager is a clickable icon in the Windows Control Panel group of icons. When you click this icon, the nView Desktop Manager properties panel (shown in Figure 1.2) appears.
Note: The nView Desktop Manager properties panel in earlier revisions of the
this document was called the nView Desktop Manager control panel.

single-display configuration

A setup where only one display device is connected to the NVIDIA GPU-based graphics card in your computer.

skin

A file that customizes the “look and feel” of the Windows graphical user interface.
10 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
tab
Individual Desktop Manager “tabs” (i.e., Profiles, Effects, Windows, Hot Keys, and Desktops) are available from the nView Desktop Manager properties panel.

window

A “window” is any independent window on your desktop. Applications such as Outlook or Explorer may have several windows, which are all part of the same application. Windows can be dragged around the screen, opened and closed, and resized. Desktop Manager allows you to do even more with windows such as make them transparent or force them always to be on top of other windows.

window class

(For advanced users only.)
Every type of window shown on your desktop has what is called a “window class” that describes the type of window it is. These window classes are shared between different applications. Normally, this window class information is hidden from users as there is no need to know it. nView Desktop Manager, however, allows you to perform operations on window classes as well as applications. This allows nView Desktop Manager to be set up to treat certain types or classes of windows differently. Because window classes are shared between applications, by individually configuring a particular window class, you can modify behavior for all applications that use windows of that class.
For example, all dialog boxes have a window class of #32770. nView Desktop Manager can be set up to disable transparency for all #32770 class windows. The effect of this would be that no dialog boxes from any application would ever be transparent.
For details on using this feature, see “Managing Applications: For Advanced
Users” on page 170.

Features and Benefits

The Desktop Manager application engine consists of several features that manage windows, desktops, displays, applications, hot keys, and window effects. This section provides an overview of the key functions in terms of these features.
For details on these features and how to use them, refer to individual chapters in this guide.
Note: A few features may be restricted to users with System Administrator
access privileges under Windows XP/2000 and Windows NT 4 and will be noted as such, where applicable in this guide.
NVIDIA Corporation 11
Chapter 1 Introduction

Desktop Management Panel

When you first launch nView Desktop Manager, the Desktop Management panel appears. It provides the following information and features:
• nView Desktop Manager file name, description, and version information
• Lets you toggle between enabling and disabling nView Desktop Manager
• Gives you quick access to the Desktop Manager Setup Wizard
• Gives you quick access to the Windows Display Properties Settings panel

Windows Management

The windows management features are available on the Windows panel of nView Desktop Manager properties.
Multi-display features allow you to:
• Configure your system to prevent windows from stretching across (spanning) displays
• Configure where dialog boxes pop up on your desktop. You can have them appear centered on the display device on which your cursor is displayed
• and much more...
For complete details on using Windows Management features, see “Managing
Windows” on page 77.

About the Desktops Panel

Using the Desktops panel of nView Desktop Manager properties, you can
• Create up to 32 different desktops, each with its own background. Use multiple desktops to reduce the clutter on your desktop – you can group similar applications on different desktops and quickly switch between them.
• Open and move applications between different desktops and switch between desktops with a single keystroke
• Configure multiple-desktop options including,
Set per desktop resolutions
Show the desktop name while switching desktops
Show your desktops, including a graphical birds-eye view of each desktop
within Windows Explorer
and more. . .
12 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
• Manage your desktop in several ways to suite your style. You can access and, therefore, switch between desktops using various methods, including:
Use hot keys
Right click on any desktop
Your folder tree in Windows Explorer
Options from an NVIDIA Settings icon on your Windows taskbar
A desktop toolbar (enabled from the User Interface panel) that can be
floating or docked to your Windows taskbar
nView task switcher (enabled from the User Interface panel)
For complete details on using Desktops Management features, see “Managing
Desktops” on page 82.

Application Management

The application management functionality of nView Desktop Manager is available from the Applications panel. You can use the options on the Applications panel to do the following tasks:
• Perform operations on entire applications, such as moving an entire application to a desktop or to a monitor.
• Set up your Window Manager to function differently for different applications. For example, you may never want a Word window to span multiple displays; however, you may want a spreadsheet, such as Excel windows, to span multiple displays so you can see all the columns.
• Save all your customized Desktop Manager settings for an application when you close it and restore them when you reopen the application.
For example, if you enable the Individual Settings feature, the application manager can remember if you closed the Microsoft Word application on your second desktop and whether or not the Word window was transparent when you closed it. When you re-open Word, it automatically opens on your second desktop and have transparency enabled.
Using this feature, you can also specify that Word always launches on a specific desktop with a specific state (such as Transparent or Always on top).
Extend certain applications. While every window under Desktop Manager has an extended menu giving options such as transparency or desktop visibility, certain applications such as Internet Explorer 5.0 have additional nView menu options allowing you to be more productive with the application.
NVIDIA Corporation 13
Chapter 1 Introduction

About the Profiles Panel

You can quickly set up the Desktop Manager using the Profiles panel on nView Desktop Manager properties.
Desktop Manager lets you save a snapshot of all desktop management settings to the disk, including all individual application, NVKeystone, and other settings to a data file called a “profile”. In addition, profiles can save and restore display mode, system power profile, and Windows taskbar location. Display mode information includes the number and position of enabled display device, each display device’s refresh rate, resolution, color depth, etc. For details, see Types of Data Saved and Restored by a Profile below.
Note: Beginning with the current NVIDIA Release 50 driver, profiles can also
save and load the open application states under NVIDIA Quadro­series GPUs only.
You can then reload your profile on any computer at any point in the future. If you switch computers, upgrade your operating system, or are configuring an office, you can simply save all your settings to a profile and then load those settings on any computer that you want.
Note: If you are using an NVIDIA Quadro-based graphics card, the nView
Desktop Manager installation comes with several pre-defined profiles to get you started quickly. These profiles contain the basic settings for different user levels and industries. You can start with one of these pre­defined profiles and tailor it to your own needs.
Types of Data Saved and Restored by a Profile
Specific types of NVIDIA display driver and display mode settings that can be saved in a profile are:
• NVIDIA Display Driver Settings
Desktop colors
Performance and quality settings, including OpenGL and Direct3D
Overlap and edge blending settings (applies to Quadro FX series of GPUs)
Overlay and full screen video settings
• Desktop Management Settings include:
• Open application state
• Desktop Management
• Display mode information
Taskbar position
14 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Computer power state
Saving Profiles for Different Operating Modes
If you use a notebook (laptop) computer, you may want Desktop Manager to be set up differently when you are docked than when you are not docked. Using profiles, you can create a docked and undocked profile and switch between them. You can even set up a hot key to load a profile so you can switch with a single keystroke.
Profiles management features are discussed in “Working With Profiles” on
page 68

About the User Interface Panel

The nView Desktop Manager User Interface options let you customize the user interface that is used on your desktop. Using the User Interface features, you can do the following:
• Control nView Desktop Manager access and notification messages
• Switch between desktops
• Dock profiles, actions, and desktops on an nView toolbar
• Define gridlines on each of your monitors, which divides your display area o function as sub-monitors for easily performing tasks involving dialog box repositioning, window spanning and window maximize operations, etc.
• Add application title bar buttons that give you quick and easy access to nView features and also provide feedback about the application state.
For example, the application title bar “maximize” button maximizes an application window to full desktop in Dualview, Clone, and Single-Display mode or a single display screen in nView Horizontal or Vertical Span mode.
• The nView options menu on each application window let you access nView options (features), which can also be customized for individual applications.
The User Interface features are discussed in “Using the User Interface Options”
on page 102.

About the Tools Panel

For details on using the Tools features, see “Using Tools Options” on page 164.
The nView Desktop Manager toolbox includes several utilities designed to solve specific user problems. You can use tools, such as “NVKeystone” and “flat panel calibration” to improve your display quality. Utilities include anti-
NVIDIA Corporation 15
Chapter 1 Introduction
keystoning support and flat panel monitor calibration screens are designed to improve windows multi-display features.
The Tools panel contains the following key features:
NVKeystone can be set to compensate for keystoning effects on your windows display, allowing you to fix distorted projection images. This feature is primarily for laptop (mobile) computers.
Analog flat panel calibration displays a screen on your display optimized for your flat panel’s auto-calibrate feature allowing for improved image quality during the “auto-sync” process.
Automatically align displays will snap multiple displays into alignment if they are slightly misaligned. This also fixes certain Windows issues where Windows can sometimes leave small gaps between displays.

About the Zoom Panel

The Zoom panel shows you a user-definable zoom area of your desktop. Basic Zoom styles include
Cursor – window shows area around cursor.
Magnifying Glass – you can drag the zoom window around to zoom the
area of the desktop on which you place the zoom window.
Fixed Frame – lets you define a fixed zoom source for the window.
Other zoom features include:
• Using the mouse wheel to dynamically change zoom levels
• Using the auto-move feature to keep the zoom window out of your way.
• Using bi-directional zoom editing to edit through your zoom window.
• Inverting colors of the zoomed image for better visibility.
• For additional details,

About the Hot Keys and Effects Panels

The Effects and Hot Key panel options offer additional enhancements, including:
• Faster opening and closing of windows
• Making windows transparent when dragged and making the taskbar transparent
16 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Note: The transparency level is a global level affecting all applications. Note
that this value is one which can be individualized for an application
• A “zoom” tool that lets you see a zoomed view of the area around the cursor. You can even use the zoom tool like a magnifying glass and drop it on top of what you want to magnify on the desktop
• A full set of hot keys. Virtually every action from toggling a window to be transparent to jumping to a different desktop can be assigned to a hot key.
• For NVIDIA Quadro-based cards, the color keying feature allows you to color windows with different borders, which is most useful with individual application settings and hot keys
For details on using the above features, see the following chapters, as appropriate:
“Using Zoom Options” on page 134
“Using Effects” on page 127
“Using Hot Keys” on page 148.

About the Mouse Panel

The Mouse panel of the nView Desktop Manager properties lets you configure a variety of mouse-related actions for easier navigation.
A few key features are described here:
•The throw window action allows you the “throw” a window to a screen edge using your mouse.
Throw Sensitivity can be adjusted using a slider
•The Jump dead screen areas option will cause the mouse to jump dead areas in non-rectangular multi-display configurations as long as you are moving your mouse at a reasonable speed.
Toggle window Z-order with middle mouse button option does the same as the hot key only with the mouse and to the window that contains the cursor.
Auto-activate windows under cursor – does just that
Kinematics and gestures features allow you to
Assign mouse movements to trigger different actions (same actions as hot
keys)
Adjust the gestures with a Gesture Sensitivity slider
Use a key press to control these actions
NVIDIA Corporation 17
Chapter 1 Introduction

Setup Wizard and Online Help

•A Setup Wizard helps you get started with Desktop Manager.
• On-line Help displays context-sensitive help when using Desktop Manager configuration options.

Application Compatibility

While the vast majority of applications are compatible with desktop and windows management, there are some applications that are not. If Desktop Manager detects these types of applications, it will not attempt to manage them. Depending upon the level of compatibility of the application, Desktop Manager may offer varying levels of functionality.
Functionality that may be disabled for these applications includes support for Transparency and Individual Settings features, window position management, nView Desktop Manger menu options, and/or multiple desktop support.
If an application window supports the nView Options Menu, but does not support certain Desktop Manager functions, a menu item called About this app... is added to the application’s nView option menu. In this case, you can click on this menu item to display information about the features that have been disabled for the application.
If you have any nView title bar buttons enabled, then an nView application status indicator appears to the left of the nView buttons. If the application does not support certain nView functions, this indicator will be red; otherwise it will be black. If the indicator is red, you can click it to display information about the features that have been disabled for this application. For further details, see
“Using the User Interface Options” on page 102.

Examples of Incompatible Applications

Examples of application windows that do not support certain Desktop Manager features include:
Command prompt (DOS window) under all operating systems. (All desktop management features are disabled.)
Solitaire and Freecell under Windows Me. (All window management features are disabled.)
Microsoft PowerPoint. (The transparency feature is disabled.)
18 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Skinning Utilities: Known Issues

If you use skins, Desktop Manager has been tested with several commonly available “skinning” utilities with no known compatibility issues other than those listed below.
Some skins do not expose the application window’s system menu on its window frame (title bar). As a result, the nView options menu can only be accessed from either a title bar button (see “Show Button for nView Options” on page 114) or a hot key but not from the application window’s system menu.
However, you can still access the nView options menu by right clicking the application on the taskbar. For details on the methods available for accessing an application’s system menu, see “Add nView Options to System Menus” on
page 119.

Notes on Feature and Configuration Support

“Feature Support” on page 19
“Multi-Display Setup: Tips and Requirements” on page 20

Feature Support

• To access NVIDIA nView-based features using the nView Desktop Manager driver, you need
a multi-display graphics card based on any of the NVIDIA GPUs that
support multiple displays on a single graphics card, as indicated in Table
3.5, and
at least two display devices connected to the card.
• Other non-nView features are supported by either single-display or multi­display NVIDIA GPU-based cards; i.e., you can connect only one display device, such as a monitor, and access these features, provided the NVIDIA GPU supports these features.
• The options shown in the NVIDIA properties panels may vary depending on the specific NVIDIA GPU you are using. For example, one or more options that are available for a specific GPU-based card, such as a GeForce4 Ti or GeForce4 MX, may not be available on a GeForce2 Pro or other types of products.
NVIDIA Corporation 19
Chapter 1 Introduction

Multi-Display Setup: Tips and Requirements

• When using a multi-display setup under Windows 2000/XP, running Windows in “Dualview” mode is strongly recommended.
• When running Windows with multiple cards (i.e., two or more NVIDIA GPU-based graphics card are installed in your computer), note the following:
Using cards based on the same NVIDIA GPU is strongly recommended.
The same NVIDIA driver (version) must be installed for each card.
Note: For details on using multi-display modes, see the ForceWare Release 50
Graphics Drivers User’s Guide.

Multi-Display Configuration: Tips and Requirements

• When running Windows XP or Windows 2000 with more than two active displays, using “Dualview” mode is strongly recommended.
• When running Windows with multiple cards (i.e., two or more NVIDIA GPU-based graphics card are installed in your computer), note the following:
Using cards based on the same NVDIA GPU is strongly recommended.
The same NVIDIA driver (version) must be installed for each card.
Note: For details on using multi-display modes, see the ForceWare Release 50

Multi-Display Mode and Feature Support

Table 1.1 lists details of supported operating system modes and Desktop
Manager features for Windows 2000, XP, and 9x.
Table 1.1
Supported Modes and Features
Is there nView Dualview support (default) for up to nine (9) display devices?
Is nView Clone mode supported?
Are nView Span (Horizontal/ Vertical) modes supported?
Note: In Span mode, a maximum of two (2) display devices are supported.
Multi-Display Mode and Feature Support
Graphics Drivers User’s Guide.
Windows XP
Windows 2000 Windows NT 4.0 Windows 9x
Yes Yes Yes Yes
Yes Yes Yes Yes
Yes
Yes Yes
NA
20 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Table 1.1
Supported Modes and Features
Does switching between nView Span/Clone mode and nView Dualview mode require restarting your computer?
Are all nView Desktop Manager features supported?
Hardware Acceleration?
• DirectX operations are accelerated if window is constrained to a single monitor otherwise operation is redirected to the software.
• OpenGL support
Multi-Display Mode and Feature Support (continued)
Windows XP
No
Yes
Yes

Examples in this Guide

• For example purposes, most of the NVIDIA panels shown in this guide feature the NVIDIA GeForce FX 5900 Ultra GPU-based graphics card. You may be using a different NVIDIA GPU-based graphics card, in which case you will see the exact name of the GPU you are using reflected in the NVIDIA GPU tab.
Windows 2000 Windows NT 4.0 Windows 9x
Yes Yes
Yes Yes, except
transparency, mouse, application bar, gridlines, and NVKeystone features
Yes DirectX: Yes
OpenGL: Acceleration
is disabled in Multiview mode.
NA
Yes, except
transparency, gridlines, and mouse features.
Yes
Note: As noted earlier, in the current Release 50 NVIDIA display driver, the
nView Desktop Manager control panel can be opened as a standalone user interface and the exact options can be accessed from the NVIDIA display properties menu.
• The example Desktop Manager panels in this guide will show the tabbed version of the control panel instead of the NVIDIA menu version. See Figure
1.2, “nView Desktop Manager Properties: Tabbed Control Panel vs. Menu Style” on page 5.
• The Windows XP panels shown in this document apply also to Windows 2000 functionality, unless noted otherwise.
• The Windows Me panels shown in this document also apply also to Windows 98/95 functionality, unless noted otherwise.
NVIDIA Corporation 21

Chapter 2 Installing and Uninstalling NVIDIA Display Driver Software

C HAPTER
I
NSTALLING AND
U
NINSTALLING
NVIDIA D
This chapter contains the following major sections:
“Before You Begin” on page 22
“About the NVIDIA Display Driver Installation” on page 23
“Uninstalling the NVIDIA Display Driver Software” on page 24
“Using the NVIDIA Display Driver Menu” on page 25

Before You Begin

In order to access the NVIDIA Display Properties tabs, the latest version of the NVIDIA Display Drivers software for your Windows operating system must be installed on your computer.
• If you do not have System Administrator access privileges, it is assumed that the appropriate person with System Administrator access in your organization will set up and install the NVIDIA Display Driver software on your computer.
• This chapter discusses the installation process but does not provide step-by­step instructions on how to perform an actual installation.
ISPLAY
D
RIVER
S
OFTWARE
• For details on configuring and using the nView Desktop Manager application component of the NVIDIA Display Driver, see the NVIDIA nView Desktop Manager 2.0 User’s Guide.
22 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

About the NVIDIA Display Driver Installation

The nView Desktop Manager feature is part of your NVIDIA Display Driver Installation files and, therefore, is automatically installed when the NVIDIA Display Driver software is installed.
NVIDIA Driver Installation provides both an method and an InstallShield Wizard-based installation method.
.inf
file-based installation

File Locations

• The installation process copies all necessary files for operation into the appropriate directories.
• The nView system files are copied to your
• Predefined nView Desktop Manager (
Windows\nView
Note: Under Windows 2000/XP, new profiles that you create are saved in the
Documents and Settings\All Users\Application Data\ nView_Profiles
• As part of the installation process, an uninstall is registered in your system.
• Under Windows Me and Windows XP, the NVIDIA driver is installed in “Dualview” display mode. However, note that the second display is not activated (turned on) by default. You need to enable it. For details on enabling Dualview mode, see the ForceWare Release 50 Graphics Drivers User’s Guide.
• Under Windows 2000, the NVIDIA display driver software is installed in Span mode for all NVIDIA GPU-based graphics cards, except Quadro the NVS series cards, which are installed in Dualview mode.
directory.
directory.
Windows\System
.tvp
) profile files are saved in the
directory.

Preserving Desktop Manager Settings Before Upgrading Your Software

You can preserve your Desktop Manager settings by using profiles when you upgrade your software.
Follow the steps below and/or refer to the NVIDIA nView Desktop Manager 2.0 User’s Guide for details.
1 Before uninstalling or installing software, save your current nView Desktop
Manager settings to a new profile.
For example, name this profile “
NVIDIA Corporation 23
My Settings
”.
Chapter 2 Installing and Uninstalling NVIDIA Display Driver Software
2 Open the Profiles directory.
You should see your new profile
Settings.tvp
3 You can copy this file to a disk in your A: drive or to a different directory on
.
.tvp
file in this directory; for example,
your hard drive.
4 Uninstall the currently installed NVIDIA Display Driver software on your
system. See details in Uninstalling the NVIDIA Display Driver Software below.
5 Install the new version of the NVIDIA Display Driver software.
6 Copy your profile
7 Start nView Desktop Manager and load your profile.
.tvp
file back into the Profiles directory.
When you load this profile, all your nView Desktop Manager settings, including Individual Settings you may have set up for applications, are restored.

Uninstalling the NVIDIA Display Driver Software

Note: It is highly recommended that you follow the steps in this section to
completely uninstall the NVIDIA Display Driver software before installing a new version of the software.
To uninstall the NVIDIA Display Driver software, follow these steps:
My
1 From the Windows taskbar, click Start > Settings > Control Panel to open
the Control Panel windows.
2 Double click the Add/Remove Programs item.
3 Click the NVIDIA Windows Display Drivers item from the list.
4 Click Change/Remove.
5 Click Yes to continue.
A prompt appears asking whether you want to delete all of the saved nView profiles.
If you click Yes, all of the nView software and all of your saved profiles
will be deleted.
If you click No, the nView software is removed, but the profile file are
saved in the
Windows\nView
directory on your hard disk.
Your system now restarts.
24 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Using the NVIDIA Display Driver Menu

Once your NVIDIA display driver software is installed, you can access the NVIDIA display driver features that are available on the Media Center menu by using the procedures that are explained and illustrated in this section.
1 From your Windows desktop, right click to display the desktop menu and
click Properties > Settings (tab) and then Advanced.
You will see the name of your NVIDIA GPU on a tab (Figure 2.1).
Figure 2.1
NVIDIA GPU Tab
2
Click the NVIDIA GPU tab, which displays the name of the NVIDIA GPU­based graphics card that is installed on your computer.
The NVIDIA menu appears as shown in Figure 2.2.
3 To toggle between hiding and showing the menu, click the green button on
the NVIDIA menu.
(Figure 2.2 also shows the GPU panel with a hidden menu.)
4 Click the scroll bar (Figure 2.2) and drag it left or right to view the entire
contents of the longer menu names.
Note: You can right-click on the scroll bar to see tool tips (Figure 2.2).
NVIDIA Corporation 25
Chapter 2 Installing and Uninstalling NVIDIA Display Driver Software
Figure 2.2
Click this green button to
NVIDIA Display Properties Menu: Expanded with Scroll Bar and Hidden
hide the NVIDIA menu.
Right click on the scroll bar to view this tool tip for using the scroll bar.
Click this green button to display the NVIDIA menu.
26 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
From the NVIDIA menu, you can access all the NVIDIA properties panels where you can configure the following NVIDIA Display Driver features.
• nView Display Mode. This option does not appear if you have only one display device attached. It appears only when you have more than one display device attached.
• Performance and Quality Settings
• Direct3D Settings
• OpenGL Settings
• Overlay Controls
• Troubleshooting
• NVRotate
• Full Screen Video
• NVRotate
• Temperature Settings. This option is available only with the GeForce FX
GPU and only if the feature is enabled on GPUs that are older than the GeForce FX)
• Screen Menus
• Desktop Manager. For details on using the Desktop Manager features, see
the nView Desktop Manager User’s Guide for the Release 50 driver.
To view any of the properties panels, simply click the choice on the menu.
Figure 2.3 shows a sample nView Display Modes panel for Windows 2000/XP
and Figure 2.4 shows one for Windows Me/9x.

NVIDIA Settings Utility

The NVIDIA Settings is a new application that can be used in place of the NVIDIA display properties menu described earlier.
You can access NVIDIA Settings by clicking the NVIDIA Settings icon, which you can optionally add to the Windows taskbar.
This taskbar utility menu items that provide access to the same display settings that the regular NVIDIA menu contains, in additional to direct access to certain application-specific options such as those for nView Desktop Manager, OpenGL and Direct3D customized settings, and others.
For details on enabling the NVIDIA Settings icon, see “Using the NVIDIA
Settings icon” on page 65.
NVIDIA Corporation 27
Chapter 2 Installing and Uninstalling NVIDIA Display Driver Software
Figure 2.3
Figure 2.4
NVIDIA Display Properties: NVIDIA Menu (Windows XP/2000)
NVIDIA Display Properties: NVIDIA Menu (Windows 9x)
28 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
NVIDIA Corporation 29

Chapter 3 System Requirements

C HAPTER
S
YSTEM
This chapter contains the following topics:
“Operating Systems” on page 30
“Minimum Hard Disk Space” on page 31
“Software: NVIDIA Display Driver” on page 32
R
EQUIREMENTS
“Optional Software: Internet Explorer” on page 32
“Optional: System Administrator Access Privileges” on page 32
“Hardware: Supported NVIDIA Products” on page 33
“Supported Languages” on page 35

Operating Systems

This release of the nView Desktop Manager driver is designed for the Microsoft
Table 3.1
Operating System Minimum Requirements
Windows XP Home
Windows XP Professional
Windows XP Media Center
Windows XP Media Center Edition 2004
Windows Server 2003 x64
Windows XP AMD64
Windows 2000
Windows NT 4.0 Service Pack 6
operating systems listed in Table 3.1:
Operating System Requirements
30 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Table 3.1
Operating System Requirements (continued)
Operating System Minimum Requirements
Windows Me
Windows 98 Microsoft DirectX™ 5
Note: Windows 98 and Me are collectively called Windows 9x in this guide.

Minimum Hard Disk Space

The minimum hard disk space requirements for each operating system are listed in Table 3.2, Table 3.3, and Table 3.4.
Table 3.2
Operating System Minimum Disk Space Required
Windows XP 19.2 MB
Windows 2000 19.2 MB
Windows NT 15.2 MB
Windows Me 19.3 MB
Windows 98 19.3 MB
Windows 95 19.3 MB
Hard Disk Space Requirements — English
Table 3.3
Hard Disk Space Requirements — Non-English Languages
Operating System Minimum Requirements
Windows XP 24.9 MB
Windows 2000 24.9 MB
Windows NT 24.8 MB
Windows Me 24.8 MB
Windows 98 24.8 MB
Windows 95 24.8 MB
Table 3.4
Hard Disk Space Requirements — Full International Package
Operating System Minimum Requirements
Windows XP 44.1 MB
Windows 2000 44.1 MB
Windows NT 40.0 MB
Windows Me 44.1 MB
Windows 98 44.1 MB
Windows 95 44.1 MB
NVIDIA Corporation 31
Chapter 3 System Requirements

Software: NVIDIA Display Driver

Make sure the current version of the NVIDIA Display Driver software for your Windows operating system has been installed on your computer.
Consult your System Administrator if you are unsure about the version that is installed.
For further information on driver installation, see “Installing and Uninstalling
NVIDIA Display Driver Software” on page 22.

Optional Software: Internet Explorer

You must have installed Microsoft Internet Explorer 6.0 or later version in order to access the “Desktop Explorer” feature as well as specific nView Menu Options that are available for Internet Explorer. See “Internet Explorer Options”
on page 179.

Optional: System Administrator Access Privileges

You can use nView Desktop Manager with or without System Administrator access privileges.
Note: However, certain Profiles features require System Administrator
privileges under Windows NT 4.0 and Windows 2000/XP.
32 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Hardware: Supported NVIDIA Products

Table 3.5 lists the NVIDIA products supported by the NVIDIA Display Driver
software and the number of displays the GPU-based card supports.
Note: Some Desktop Manager features support only certain NVIDIA GPUs,
which are noted in this table and where applicable in this guide.
Note: The Desktop Manager “transparency” feature works best with NVIDIA
GPUs that have higher performance than GeForce2 GTS.
Table 3.5
Supported NVIDIA GPUs
Number of Displays
NVIDIA Workstation
NVIDIA Desktop Products
nForce2 S
nForce2 ST nForce2 G
nForce2
420/420D
nForce
nForce 220/220D
GeForce FX 5950 Ultra 2 — applies to all GPUs
GeForce FX 5700 Ultra GeForce FX 5700
GeForce FX Go5700 GeForce FX Go5750
GeForce FX 5900
GeForce FX 5900 Ultra GeForce FX 5950
GeForce FX 5200 Ultra GeForce FX 5200
GeForce FX Go5100 GeForce FX Go5200
GeForce FX 5600 Ultra GeForce FX 5600
GeForce FX 5600 SE
GeForce FX Go5600
GeForce FX 5800 Ultra GeForce FX 5800
GeForce4 Ti 4800 GeForce4 Ti 4800 SE GeForce4 Ti 4200
GeForce4 4200Go
Products
Quadro FX 1100 2 — applies to all GPUs
Quadro FX 3000 2 — applies to all GPUs
Quadro FX 500 Quadro NVS 280 PCI
Quadro FX Go700 2 — applies to all GPUs
Quadro FX 2000 Quadro FX 1000
Quadro4 980 XGL Quadro4 780 XGL
Quadro4 Go700
Supported Per Card
2— applies to all GPUs
in this category.
1— applies to all GPUs in this category.
in this category.
in this category.
in this category.
2 — applies to all GPUs in this category.
in this category.
2 — applies to all GPUs in this category.
2 — applies to all GPUs in this category.
NVIDIA Corporation 33
Chapter 3 System Requirements
Table 3.5
Supported NVIDIA GPUs (continued)
Number of Displays
NVIDIA Workstation
NVIDIA Desktop Products
GeForce4 Ti 4600 GeForce4 Ti 4400 GeForce4 Ti 4200 GeForce4 440 Go GeForce4 420 Go GeForce4 410 Go
GeForce3 GeForce3 Ti 500 GeForce3 Ti 200
GeForce4 MX 440 GeForce4 MX 440 SE GeForce4 MX 420 x
GeForce4 MX 460 GeForce4 MX 440 GeForce4 MX 440-SE GeForce4 MX 420
GeForce2 Ti GeForce2 Ultra GeForce2 Pro GeForce2 GTS
GeForce2 MX GeForce2 MX400 GeForce2 MX200 GeForce2 MX100 GeForce2 Go
GeForce 256 Quadro 1 — applies to all GPUs
NVIDIA RIVA TNT2™ Ultra NVIDIA RIVA TNT2 Pro NVIDIA RIVA TNT2 NVIDIA RIVA TNT2 M64 NVIDIA Vanta™ NVIDIA Vanta LT
NVIDIA RIVA TNT™
Products
Quadro4 900 XGL Quadro4 750 XGL Quadro4 700 XGL
Quadro DCC 1 — applies to all GPUs
Quadro4 580 XGL Quadro NVS 280 Quadro4 380 XGL
Quadro4 550 XGL Quadro NVS 200
Quadro NVS 400 4 — applies to all GPUs
Quadro2 Pro 1 — applies to all GPUs
Quadro2 MXR Quadro2 EX Quadro2 Go
--- 1 — applies to all GPUs
---
Supported Per Card
2 — applies to all GPUs
in this category.
in this category.
2 — applies to all GPUs in this category.
2 — applies to all GPUs in this category.
in this category.
in this category.
2 — applies to all GPUs in this category
in this category.
in this category.
1 — applies to all GPUs in this category.
34 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Supported Languages

The following languages are supported in the NVIDIA panels that are accessible from the Windows Display Properties > Settings > Advanced option.
English (USA) German Portuguese (Brazil) English (UK) Greek Portuguese (Euro/Iberian) Arabic Hebrew Russian Chinese (Simplified) Hungarian Slovak Chinese (Traditional) Italian Slovenian Czech Japanese Spanish Danish Korean Spanish (Latin America) Dutch Norwegian Swedish Finnish Polish Thai French Turkish
NVIDIA Corporation 35

Chapter 4 Using the Desktop Manager Setup Wizard

C HAPTER
U
SING THE
This chapter contains the following major sections:
“About the Setup Wizard” on page 36
“About Using the Setup Wizard” on page 40
D
ESKTOP
S
M
ETUP
W
ANAGER
IZARD
“Auto-Launch Wizard Pages After First-Time Installation” on page 41
“Desktop Management Wizard Pages” on page 50
“Desktop Management Wizard Pages for NVIDIA Quadro GPU-based
Graphics Cards” on page 55

About the Setup Wizard

The nView Desktop Manager Setup Wizard is a series of dialog boxes that guides you in setting the most common global settings for window, desktop, and application management.
Each Wizard page (window) contains descriptive text for a specific option and, in some cases, an illustration that shows the effect of the option; for example, window repositioning or spanning. You can also chose to skip major option groups.
There are two nView Desktop Manager Wizards.
36 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Multi-Display Auto-Launch Wizard: Multi-Display vs. Single-Display Setup

The Multi-Display Setup Wizard automatically launches after a first-time NVIDIA driver installation when there are at least two display devices attached. After this initial wizard launch, you cannot access this particular wizard until you uninstall the NVIDIA driver and then reinstall.
If you are setup with a multi-display configuration (i.e., you have more than one display device connected), the first time you start Windows on your computer after installing the NVIDIA Windows Display Driver software, the Wizard starts automatically. On subsequent Windows sessions, you can start the Wizard from the Wizard option on the nView Desktop Manager properties
Desktop Management panel.
Note: If you are setup with only a single display device, the first time you start
Windows on your computer after the installation of the NVIDIA Windows Display Driver software, the Wizard does not start automatically. You can start the Wizard option from the Desktop Management panel on the nView Desktop Manager control panel, as shown in Figure 4.3.

Manually Starting the Wizard Using the Wizard Option

If you want to use the nView Desktop Manager Wizard after the Multi-Display Setup Wizard has gone through the auto-launch process, you have to invoke the nView Desktop Manager Wizard using the Wizard option from the Desktop Management panel on the nView Desktop Manager control panel, as shown in
Figure 4.3.
This sections contains the following topics:
“Enabling nView Desktop Manager From the Windows Control Panel” on
page 38
“Starting the Wizard from the nView Desktop Manager Desktop
Management Panel” on page 40
NVIDIA Corporation 37
Chapter 4 Using the Desktop Manager Setup Wizard
Enabling nView Desktop Manager From the Windows Control Panel
Note: If you haven’t yet enabled nView Desktop Manager (i.e., when you right
click on your Windows desktop, you do not see nView Properties as a menu option),follow these steps; otherwise, go directly to “Starting the
Wizard from the nView Desktop Manager Desktop Management Panel” on page 40.
1 From your Windows desktop, click Start > Settings > Control Panel.
2 Locate the NVIDIA nView Desktop Manager icon and double-click it to
display the Desktop Management panel (Figure 4.2).
3 To enable Desktop Manager, click the Enable nView Desktop Manager
check box and click Apply. Figure 4.3 shows the Desktop Manager Desktop Management panel after Desktop Manager is enabled.
4 From your Windows desktop, right click to display the properties menu,
which will now contain the nView Properties option (shown earlier in
Figure 5.1).
Figure 4.1
nView Desktop Manager Enabled: nView Properties Appear on Desktop Menu
5
Once you have loaded Desktop Manager, to unload it, uncheck the Enable nView Desktop Manager check box on the Desktop Manager Desktop Management tab (shown in Figure 4.2 and Figure 4.3) and click Apply.
38 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 4.2
Figure 4.3
Default Desktop Managment Panels: Tabbed and Menu Views
Desktop Managment Panels After Enabling Desktop Manager
NVIDIA Corporation 39
Chapter 4 Using the Desktop Manager Setup Wizard
Starting the Wizard from the nView Desktop Manager Desktop Management Panel
Note: If nView Desktop Manager is already enabled, follow these steps;
otherwise, see “Enabling nView Desktop Manager From the Windows
Control Panel” on page 38.
1 Right click from your Windows desktop and click nView Properties.
2 From the Desktop Management tab that appears (Figure 4.3), click Wizard.

About Using the Setup Wizard

The figures in this section show a few examples of the step-by-step Wizard pages you will see when running the Desktop Manager Wizard.
Use the following guidelines when using the Wizard:
• Use the Back and Next options to navigate through the windows.
• Carefully read the content of each Wizard page, which serves as a quick overview of key Desktop Manager features and lets you enable/disable certain key features by clicking an option.
• If you enable a feature, note that you can change this setting later through the Desktop Manager control panel tabs or menu options,
• If you do not want to enable one or more features in a given window, click Next to go to the next window.

Notes Before You Begin

There may be some variation in the number and type of Wizard windows that appear, depending on your configuration; i.e., whether you are running Windows Me/9x (limited Desktop Manager features), multiple displays or single-display connected, and so on.
• For example, if your system only has one display device connected and no gridlines defined, Window Management Wizard pages (e.g, Figure 4.24 through Figure 4.26) will not appear.
• Also note that because transparency is not a supported feature under Windows 9x or Windows NT 4.0, the Wizard page containing this option (Figure 4.28) will not be available under those operating systems.
40 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Auto-Launch Wizard Pages After First-Time Installation

The auto-launch Wizard pages in this section are automatically launched when you start up your Windows desktop after a first-time installation of the NVIDIA display driver software. Use these wizard pages to
• Set up multiple-displays
• Enable and launch the nView Desktop Manager control panel
Note: Based on your display device configuration and the options you choose
on a Wizard page, the Wizard pages you will see may differ from the examples given in this section.
Figure 4.4
Auto-Launch Wizard Welcome Page
NVIDIA Corporation 41
Chapter 4 Using the Desktop Manager Setup Wizard
Figure 4.5
Figure 4.6
Auto-Launch Wizard Setup Option: “Typical Setup” Selected
Auto-Launch Wizard Setup Option: Display Settings for Typical Setup
42 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 4.7
Figure 4.8
Auto-Launch Wizard Setup Options Page: “Custom Setup” Selected
Auto-Launch Wizard: Multi-Display Mode Page: Dualview Mode Selected
NVIDIA Corporation 43
Chapter 4 Using the Desktop Manager Setup Wizard
Figure 4.9
Figure 4.10
Auto-Launch Wizard Display Settings Page for Dualview Mode ( 2 CRT Example)
Auto-Launch Wizard: Multi-Display Mode Page: Span Mode Selected
44 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 4.11
Figure 4.12
Auto-Launch Wizard Display Settings Page for Span Mode (Exampe 1)
Auto-Launch Wizard Display Settings Page for Span Mode (Exampe 2)
NVIDIA Corporation 45
Chapter 4 Using the Desktop Manager Setup Wizard
Figure 4.13
Figure 4.14
Auto-Launch Wizard Display Settings Page for Span Mode (Exampe 3)
Auto-Launch Wizard Display Settings Page for Span Mode (Exampe 4)
46 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 4.15
Figure 4.16
Auto-Launch Wizard Multi-Display Mode Page: Clone Mode Selected
Auto-Launch Wizard Display Settings Page for Clone Mode (2 CRT Example)
NVIDIA Corporation 47
Chapter 4 Using the Desktop Manager Setup Wizard
Figure 4.17
Figure 4.18
Auto-Launch Wizard Page: NOT Enabling Desktop Manager
Auto-Launch Wizard Completion Without Enabling nView Desktop Manager
48 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 4.19
Figure 4.20
Auto-Launch Wizard: Enabling nView Desktop Manager l
Auto-Launch Wizard Completion Without Enabling nView Desktop Manager
NVIDIA Corporation 49
Chapter 4 Using the Desktop Manager Setup Wizard
Figure 4.21
nView Desktop Manager Control Panel Launched

Desktop Management Wizard Pages

The Wizard pages in this section are available when you click the Wizard option from the Desktop Management panel of the nView Desktop Manager control panel, as sown in Figure 4.2 and Figure 4.3.
Note: Based on your display device configuration and the options you choose
on a Wizard page, the Wizard pages you will see may differ from the examples given in this section.
50 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 4.22
Figure 4.23
Desktop Management Wizard: Welcome Page
Desktop Management Wizard: Profiles Page
NVIDIA Corporation 51
Chapter 4 Using the Desktop Manager Setup Wizard
Figure 4.24
Figure 4.25
Desktop Management Wizard: Window Management Page (1)
Desktop Management Wizard: Window Management Page (2)
52 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 4.26
Figure 4.27
Desktop Management Wizard: Window Management Page (3)
Desktop Management Wizard: Enabling nView Desktop Manager Page (1)
NVIDIA Corporation 53
Chapter 4 Using the Desktop Manager Setup Wizard
Figure 4.28
Figure 4.29
Desktop Management Wizard: Window Transparency Page
Desktop Management Wizard: Completion Page
54 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Desktop Management Wizard Pages for NVIDIA Quadro GPU-based Graphics Cards

Note: The Wizard pages in this section are available only if you have an
NVIDIA Quadro GPU-based graphics card installed.
You can access these Wizard pages when you click the Wizard option from the Desktop Management panel of the nView Desktop Manager control panel, as sown in Figure 4.2 and Figure 4.3.
Figure 4.30
Desktop Management Wizard: Profiles Page for NVIDIA Quadro-based GPUs (1)
NVIDIA Corporation 55
Chapter 4 Using the Desktop Manager Setup Wizard
Figure 4.31
Wizard Window Management Page for NVIDIA Quadro-based GPUs (2)
56 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
C HAPTER
A
CCESSING AND
D
ESKTOP
This chapter contain the following major sections:
“Overview of Procedure” on page 57:
“Accessing and Enable nView Desktop Manager from the Windows
Control Panel” on page 60
M
ANAGER
E
NABLING THE NVIEW
C
ONTROL
P
ANEL
“Enabling and Accessing Desktop Manager from the nView Display
Properties Menu” on page 61
“Enabling Desktop Manager from the NVIDIA Settings Icon” on page 63
“Accessing Windows Display Properties Settings” on page 66
“Troubleshooting” on page 67

Overview of Procedure

You can access the nView Desktop Manager control panel using any of the following methods:
• Double-click the NVIDIA nView Desktop Manager item from the Windows control panel.
• After enabling nView Desktop Manager, right click on your Windows desktop and choose Properties. Then click Settings (tab) > Advanced > NVIDIA GPU tab > the Desktop Management menu option.
• After enabling nView Desktop Manager, right click on your Windows desktop and choose nView Properties (Figure 5.1).
NVIDIA Corporation 57
Chapter 5 Accessing and Enabling the nView Desktop Manager Control Panel
Once you have installed the NVIDIA Driver software with the nView Desktop Manager features, you can enable (load) and disable (unload) the Desktop Manager control panel using a variety of methods, as discussed in this section:
1 After you enable Desktop Manager (following the instructions in this
chapter), you can right click to display the Windows desktop popup (right­click) menu, which will now contain the nView Properties option, as shown in Figure 5.1.
Figure 5.1
nView Desktop Manager Enabled: nView Properties Appear on Desktop Menu
Figure 5.2
2
Click nView Properties to open the nView Desktop Manager properties
nView Desktop Manager Disabled: nView Properties Removed from Desktop Menu
panel, which will open on the Desktop Management panel, as shown in
Figure 5.3 and Figure 5.4.
58 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 5.3
Figure 5.4
Desktop Management Panel After Enabling Desktop Manager
nView Desktop Manager Enabled on the nView Display Properties Menu
NVIDIA Corporation 59
Chapter 5 Accessing and Enabling the nView Desktop Manager Control Panel
Note: Several Desktop Manager functions such as performing operations on
multiple windows within an application require Desktop Manager to be loaded before you start the application.
Note: In the current Release 50 NVIDIA display driver, the display
properties options and the Desktop Manager options have been consolidated to one menu. Therefore, another way to access and enable nView Desktop Manager is through the Windows Display Properties Settings tab (as explained in a later section).

Accessing and Enable nView Desktop Manager from the Windows Control Panel

To access nView Desktop Manager settings from the Windows Control Panel, follow these steps:
1 From your Windows desktop, click Start > Settings > Control Panel.
2 From the Name column, double-click NVIDIA nView Desktop Manager
(Figure 5.5) to display the nView Desktop Manager properties panel (Figure
5.6).
Figure 5.5
Windows Control Panel With NVIDIA nView Desktop Manager Program
Click the Enable nView Desktop Manager option to check the check box
3
and click Apply.
The feature tabs are now all enabled, as shown in Figure 5.6.
4 From your Windows desktop, right click to display the properties menu,
which will now contain the nView Properties option (Figure 5.1).
60 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
In the future, you can click nView Properties to open the nView Desktop Manager window shown in Figure 5.6.
5 If you disable the Enable nView Desktop Manager check box that you
enabled in step 3, the nView Properties option is removed from your Windows desktop menu, as shown in Figure 5.2.
Figure 5.6
Desktop Managment Panel: Before and After Desktop Manager is Enabled

Enabling and Accessing Desktop Manager from the nView Display Properties Menu

In the current Release 50 NVIDIA display driver, the display properties options and the Desktop Manager options have been consolidated to one menu. Therefore, another way to access and enable nView Desktop Manager is through the Windows Display Properties Settings tab, as follows:
1 From your Windows desktop, right click to display the properties menu.
Then click Properties > Settings > Advanced > the NVIDIA GPU tab and the Desktop Management option from the NVIDIA menu that appears (Figure 5.7).
NVIDIA Corporation 61
Chapter 5 Accessing and Enabling the nView Desktop Manager Control Panel
Figure 5.7
Accessing Desktop Manager from the nView Display Properties Menu
Click the Enable nView Desktop Manager check box and click Apply.
2
Notice that the various Desktop Manager features that previously appeared as tabs now appear as menu options (Figure 5.8).
The Windows desktop menu now also contain the nView Properties option (Figure 5.1), from which you can access the tabbed-style nView Desktop Manager properties (Figure 5.6).
If you disable the Enable nView Desktop Manager check box that you enabled in step 2, the nView Properties option is removed from your Windows desktop menu (Figure 5.2).
62 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 5.8
nView Desktop Manager Enabled on the nView Display Properties Menu

Enabling Desktop Manager from the NVIDIA Settings Icon

The NVIDIA Settings icon lets you enable and access Desktop Manager and also easily access the nView Desktop Manager properties windows, including the feature tabs. Using this icon, you can also access various nView display properties options such, OpenGL, Direct3D, Color Correction, and NVRotate, including the Windows Display Properties Settings panel.
Follow these steps to enable the NVIDIA Settings icon from the nView display properties Troubleshooting panel.
1 Right-click from your desktop to display the properties menu and then click
Properties > Settings > Advanced > the NVIDIA GPU tab > Troubleshooting option from the NVIDIA menu. Figure 5.9 shows the
Troubleshooting panel.
NVIDIA Corporation 63
Chapter 5 Accessing and Enabling the nView Desktop Manager Control Panel
Figure 5.9
Troubleshooting
1
Click the check box Display the NVIDIA Settings icon in the taskbar to enable the options.
2 Click Apply. The icon is added to the Windows taskbar as shown in Figure
5.10.
Figure 5.10
Windows Taskbar
From the Windows taskbar, simply right click the NVIDIA Settings icon and
3
NVIDIA Settings Icon on the Windows Taskbar
NVIDIA Settings icon
then select the options you want from the menu that appears (Figure 5.11).
64 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Using the NVIDIA Settings icon

To use the NVIDIA Settings icon on the Windows taskbar (Figure 5.11) simply right click the icon and then select the options you want from the menu that appears. The Desktop Manager menu is shown in Figure 5.11.
1 To enable Desktop Manager, right click the NVIDIA Settings icon on the
Windows taskbar and click nView Desktop Manager > Enable nView (Figure 5.11).
Figure 5.11
Click nView Properties to
open the nView Desktop Manager properties panel
Click nView Desktops to view desktops you
.
have created.
NVIDIA Settings icon: nView Desktop Manager Settings
Click nView Profiles to view saved profiles.
2
Again, right click the NVIDIA Settings icon on the Windows taskbar and click Desktop Manager to confirm that the Enable nView option is now checked (Figure 5.11).
You can open the nView Desktop Manager control panel by clicking
You can view saved profiles by clicking the nView Profiles option
You can view desktops you’ve created by clicking the nView Desktops
3 To disable Desktop Manager, right click the NVIDIA Settings icon on the
Windows taskbar and click Desktop Manager > Disable nView.
4 Again, right click the NVIDIA Settings icon on the Windows taskbar and
click Desktop Manager to confirm that the “Disable nView” option is now checked.
nView Properties from this menu.
option.
NVIDIA Corporation 65
Chapter 5 Accessing and Enabling the nView Desktop Manager Control Panel

Accessing Windows Display Properties Settings

From the Desktop Management panel, click the Display Settings . . option (Figure 5.12) to access the Windows Display Properties Settings panel.
Figure 5.12
Desktop Managment Panel: Accessing the Windows Display Properties Settings Panel
Click Display Settings to open the Windows Display Properties Settings panel
66 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Troubleshooting

If you have trouble accessing the nView Desktop Manager properties panel, verify that a current version of the NVIDIA Display Driver software is installed on your system. You can follow these steps to verify this:
1 From your Windows desktop, right click to display the properties menu and
then select Properties > Settings tab to access the Display Properties Settings panel.
The “Display” field shows the name of your NVIDIA-GPU based graphics card; for example, “Monitor name on NVIDIA Quadro2 MXR/EX”.
2 Click Advanced and the NVIDIA GPU tab.
3 Verify that the “Driver Version Information” box lists the most recent
versions of the NVIDIA driver files. Scroll down to confirm that all files have the same version number. If there’s any discrepancy, make sure you or your system administrator uninstalls the NVIDIA driver software according to the instructions in “Uninstalling the NVIDIA Display Driver Software” on
page 24 and then reinstall the software.
Note: Make sure that the file
nvdesk32.dll
does not appear on the Driver Version Information list of files. This file is now obsolete and can result in inconsistencies. If you see this file, uninstall the NVIDIA Display Driver software and then re-install a current version.
NVIDIA Corporation 67

Chapter 6 Working With Profiles

C HAPTER
W
ORKING
This chapter discusses the following topics:
“About Profiles” on page 68
“Benefits of Using Profiles” on page 70
“Profiles Options” on page 71
W
ITH
P
ROFILES
“List of Profiles” on page 72
“Current Profile” on page 73
“Loading a Profile” on page 73
“Creating a Profile” on page 73
“Saving a Profile” on page 75
“Deleting a Profile” on page 75
“Copying Profiles for Use on Another Computer” on page 76

About Profiles

Profiles features can be used on both single-display and multi-display computer setups.
Note: Under Windows XP/2000 and Windows NT 4.0, certain options such as
creating, saving and exporting, and deleting profiles are only available to users with Administrator access rights.
Using Profiles options, you can save all your Desktop Manager settings into a single file called a profile. To change how your desktop functions, you can
68 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
subsequently load these profiles with a single “hot key” keystroke or by clicking Load Profile.
A profile can contain all of the settings for nView Desktop Manager, including multiple desktops and their backgrounds, individual (application) settings, user interface settings, NVKeystone settings, window management settings, and display mode settings (e.g., screen resolution, screen refresh rate, etc.).
A profile can also contain
• Display driver settings (color settings, OpenGL settings, etc).
• A set of applications to launch when loaded (i.e., saving open application states).
Note: “Open application state” saving is available with GeForce-based
graphics cards, but with a limitation -- up to eight applications states can be saved and loaded. Quadro-based graphics cards have no limits to the number of applications that can be saves and loaded.
Profiles are a “snapshot” of all your Desktop Manager settings. There is never an “active” profile; instead, you can reload your Desktop Manager settings “snapshot” and then edit it if you need to modify the settings any time in the future. For example, if you switch computers, upgrade your operating system, or are configuring an office, you can simply save all your settings to a profile and then load those settings on any computer that you want.
Note: The profile file is not updated as you change Desktop Manager settings.
Use the Save Profile option to update the profile with your new Desktop Manager settings.
Note: If you are using an NVIDIA Quadro GPU-based graphics card, the
nView Desktop Manager installation comes with several pre-defined profiles to get you started quickly. These profiles contain the basic settings for different user levels and industries. You can start with one of these pre-defined profiles and tailor it to your own needs.
Note: Under Windows XP/2000 and Windows NT 4.0, several profile-related
options are available to only those users with Administrator access rights.
NVIDIA Corporation 69
Chapter 6 Working With Profiles

About Saving and Restoring Your Display Mode Information

As mentioned previously, profiles can save and restore your display mode information, including the number and position of enabled display device, each display device’s refresh rate, resolution, color depth, etc.
Note: Note, however, that unlike desktop management settings, display mode
settings are dependent upon the hardware in your computer and thus may not work when transferred between computers. For example, if a profile was saved with display mode information on a computer that had four displays connected and is then copied to a computer that has only two displays connected, then loading this profile on the two-display computer will not restore the display mode because the physical hardware (i.e., four displays) does not exist on the computer.
About Saving Open Application States: For Quadro­based GPUs only
Note: Beginning with the current NVIDIA Release 50 driver under NVIDIA
Quadro-based GPUs only, profiles can also save and load the open application states.
• A snapshot of all running applications on the system is taken including size, position, window state, and desktop. When this profile is loaded, all of these applications are restored to their proper positions.
• Microsoft Internet Explorer, Windows Explorer, Office, and Exceed applications can also have their data state saved when a profile is saved and restored (when the profile is loaded) including the file/URL/Unix application with which the application may have been working.
Note: If you save with four Internet Explorer windows open and restore while
you have two Internet Explorer windows open, only two new Internet Explorer windows will load.

Benefits of Using Profiles

Using Profiles features, you can tailor different Desktop Manager modes to more closely match your operating needs and then easily switch between profiles with a hot key.
You can use profiles to quickly switch your system configuration, depending on your needs.
70 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
• For example, if you have a notebook computer that is sometimes docked with an extra display device and sometimes undocked, you may want to have dialog boxes pop up on the notebook computer’s screen while undocked but while docked, have dialog boxes appear on the extra display device. In this case, you can set up two profiles on your system; a docked version and an undocked version with different settings. When you switch configuration (i.e., dock or undock your notebook computer), you can load your configuration with a single keystroke.
Note: The loaded profile can also include turning on or off an external
display connected to your notebook computer.
• If you work in a company with an IT department, profiles are even more useful. For example, a System Administrator can define a custom Desktop Manager mode and roll it out in one step to a department or other defined group in the company rather than have to configure each workstation separately. This can help reduce training and support costs since everyone within a group or department can use a common Desktop Manager configuration that is tailored for their needs.

Profiles Options

1 If you need help accessing the nView Desktop Manager control panel, see
“Accessing and Enabling the nView Desktop Manager Control Panel” on page 57.
2 Click the Profiles tab or menu option to display the nView Desktop Manager
Windows panel.
Note: Creating (New Profile), saving and exporting (Save Profile) and deleting
profiles (Delete Profile) are only available to users with System Administrator access privileges.
Note: If you are using an NVIDIA Quadro GPU-based graphics card, additional
pre-defined profiles are provided by NVIDIA and viewable on the Profiles panel.
NVIDIA Corporation 71
Chapter 6 Working With Profiles
Figure 6.1
Profiles Panel for NVIDIA GeForce-based GPUs

List of Profiles

When you go to the Profiles panel, you will see a list of profiles available for loading. Each profile in the list may have one of two icons next to it – a lock/ unlock icon (closed or open padlock) and a monitor icon.
•A locked profile cannot have any settings modified when it is loaded. If you load a locked profile, you will not be able to change your nView settings until an unlocked profile is loaded. Unlocked profiles have no restrictions.
If a profile has a monitor icon next to it, this means that there is display mode information stored in the profile. See Creating a Profile” below for more information.
If a profile has a application icon next to it, this means that application states have been saved within this profile. See Creating a Profile” below for more information.
72 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Current Profile

The “Current Profile” label (shown in Figure 6.1) simply displays the name of the last profile you have loaded or saved.
The Profiles panel example in Figure 6.1 shows the Current Profile as “generic” because generic is highlighted in the list.

Loading a Profile

You can select a profile from the list and select Load Profile to load the profile.
Note: You may see additional profiles set up specifically for your company or
organization if your System Administrator has set up custom profiles and/ or if you are using an NVIDIA Quadro GPU-based graphics card.

Creating a Profile

Click New Profile to create, name, and add a new profile that contains all of the current nView settings. Once saved, you can reload this profile at any time.
Figure 6.1 show the New Profile dialog box. You can include many NVIDIA
display driver options and nView Desktop Management options in the profile by enabling those options in the New Profile dialog box.
If nView Desktop Manager cannot locate the hardware to support the display mode stored in the profile (for example, the profile mode information is to turn on four display devices but the computer that is loading the profile only has two display devices connected), then the display mode loading will silently fail. However, note that the nView Desktop Managements settings in the profile will be loaded.
NVIDIA Corporation 73
Chapter 6 Working With Profiles
Figure 6.2
Figure 6.3
Creating a New Profile
Profiles Panel After Adding a Profile
74 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Saving a Profile

Note: Under Windows NT 4.0 or Windows XP/2000, only users with System
Administrator privileges can save (export) profiles.
The Save Profile option lets you overwrite the existing selected profile with your current nView Desktop Manager settings.
• Predefined nView Desktop Manager (
Windows\nView
• Under Windows 2000/XP, new profiles that you create are saved in the
Documents and Settings\All Users\Application Data\ nView_Profiles
• Once saved, you can reload this profile at any time.
• When you are saving to the profile selected from the list, a warning message indicates that you are about to overwrite the selected profile.
Click Yes to continue; otherwise, click No.

Deleting a Profile

The Delete Profile option lets you to delete the selected profile.
Note: Under Windows NT 4.0 or Windows XP/2000, only users with System
Administrator privileges can delete profiles.
Note: When you are deleting the profile, a warning message indicates that you
are about to lose all the settings in the selected profile you are about to delete. Click Yes to continue with the deletion process; otherwise, click No.
Figure 6.4
directory.
directory.
Deleting a Profile
.tvp
) profile files are saved in the
NVIDIA Corporation 75
Chapter 6 Working With Profiles

Copying Profiles for Use on Another Computer

A profile is simply a Desktop Manager data file. Therefore, it can be copied and pasted like any other file. Profile files are located in the directory on your hard disk and have a
.tvp
extension.
To copy a profile file for use on another system, follow these steps:
Windows\nView
1 From the
Windows\nView
directory on your hard disk, copy the
.tvp
profile file you want to a desired location, such as a diskette (in drive A:) or other network location.
2 Then, be sure to paste this file to the
Users\Application Data\nView_Profiles
Documents and Settings\All
directory directory on the
computer where you plan to load this profile.
3 When you access the Desktop Manager Profiles settings on this new
computer, you will see the name of the profile you just copied.
4 Select the profile and click Load Profile to load this profile.
76 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
C HAPTER
M
ANAGING
This chapter discusses the following major topics:
“About Windows Options” on page 77
“Windows Panel Options” on page 78
“Window Settings” on page 79
W
INDOWS
“Dialog Box Settings” on page 80

About Windows Options

The nView Desktop Manager Windows panel contains features that only apply to multi-display configurations.
Note: The options on this panel will be disabled (grayed) if you are using only
one display.
A key benefit of using windows management features is that you no longer have to spend your time resizing, relocating, or searching for windows because you can specify how you want your windows to function. You can specify how you want windows to operate on your desktops and/or display devices.
For example, when you maximize an application under Span mode, it stretches across all display devices, which can be quite inconvenient. Using Windows management features, you can change this functionality to make the window only maximize to a single display device. Conversely, under Dualview mode, where windows normally maximize to a single screen, you can make applications maximize to the entire desktop.
NVIDIA Corporation 77
Chapter 7 Managing Windows

Windows Panel Options

1 If you need help accessing the nView Desktop Manager control panel, see
“Accessing and Enabling the nView Desktop Manager Control Panel” on page 57.
2 Click the Windows tab or menu option to display the nView Desktop
Manager Windows panel.
Note: Under nView Standard and Clone modes, the options on the Windows
panel will be disabled (grayed out) because they do not apply in those nView modes.
Figure 7.1
Options available in nView Dualview mode
Windows Panel in nView Dualview Mode
Additional option available in nView Span mode
Option for nView “Dualview” mode
Figure 7.1 shows the nView Desktop Manager Windows panels. The panel
image on the right shows an option specific to nView Horizontal or Vertical Span mode.
Note: Windows options do not apply, and therefore are not available, in nView
Clone mode.
Figure 7.2 shows options that are specific to NVIDIA Quadro-based GPUs.
78 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Figure 7.2
Windows Panel Options for NVIDIA Quadro-based GPUs
NVIDIA Quadro-specific option

Window Settings

Note: Be sure to click apply after enabling any of the below settings.

Enable Window Spanning Across Displays

This option allows windows to span (appear across) displays. When the option is disabled, all windows are prevented from spanning displays.
Default: Option is enabled (checked).
Enable child window spanning across displays
To access this option, you must first activate the Enable window spanning across displays option.
Note: If you disable this option, all child windows are prevented from spanning
displays even if the parent window does.
Default: Option is enabled (checked). This means that child windows can span displays.
NVIDIA Corporation 79
Chapter 7 Managing Windows
Open window on
This option allows you to set the display device on which you want applications to open, by default.
To select the display on which you want to open application windows, click the list and select an item.
• Default display
Last display is the display upon which you closed the application.
Note: If you select Last display, the application state (including the
application window maximize or collapse state) is also restored when the application opens.
Start display is the display containing the Start button.
Prevent windows from opening off-screen
Enable this option to prevent windows from opening off the screen.
Limit taskbar to a single display
Note: This option is available only when your nView Display Mode panel is set
to nView Horizontal or Vertical Span mode. It does not apply under nView Dualview mode and therefore is not available.
When this option is enabled, you can limit the taskbar to a single display instead of having it stretched across displays.
Default: The option is disabled (unchecked).

Dialog Box Settings

Note: Be sure to click Apply after enabling any of the below settings.

Enable dialog box repositioning

This option lets you specify the location of dialog boxes.
Default: Option is disabled.
Move to display n
Enable this option and then specify the display device (click the up/down arrow to specify the display device number) to which you want to move dialog boxes.
80 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
Move to display where cursor appears
Enable this option if you want to move dialog boxes to the display device that contains your cursor.
Move to display where application appears
Enable this option if you want to move dialog boxes to the display device that contains your application.
Center dialog box on display
Enable this option (check box) to force dialog boxes to be centered on their target display.
NVIDIA Corporation 81

Chapter 8 Managing Desktops

C HAPTER
M
ANAGING
The following major topics are discussed in this chapter:
“About Desktops Options” on page 82
“Accessing the Desktops Tab” on page 83
“Notes Before You Begin” on page 84
D
ESKTOPS
“Desktops List” on page 84
“Creating Desktops” on page 84
“Activating or Switching Desktops” on page 86
“Renaming Desktops” on page 88
“Removing Desktops” on page 88
“Properties: Changing Wallpaper and Desktop Icons” on page 88
“Using nView Desktop Explorer” on page 93
“Advanced Options” on page 101

About Desktops Options

You can use the Desktop Manager “Desktops” tab to create and configure up to 32 different “virtual” desktops whether you are using a single monitor or multiple monitors.
If you are using a single monitor, you can create a lot of space by distributing one or more applications among different desktops to prevent application clutter on your window. Desktop Manager reduces your desktop clutter by letting you easily move applications to other desktops thus avoiding the need to open/close
82 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
or minimize/maximize applications in order to navigate between them. So, window clutter is reduced without compromising performance or using extra keystrokes.
You can assign customizable names to desktops you create and easily switch between desktops using assigned hot keys, the Windows Explorer-based Desktop Explorer, or even the NVIDIA Settings icon, as explained later in this chapter.
A variety of methods to create, customize, manage, rename, remove, and switch between multiple desktops, as well as easily move applications from one desktop to another are discussed in this chapter.

Accessing the Desktops Tab

1 If you need help accessing the nView Desktop Manager control panel, see
“Accessing and Enabling the nView Desktop Manager Control Panel” on page 57.
2 Click the Desktops tab or menu option to display the nView Desktop
Manager Desktops panel (Figure 8.1).
Figure 8.1
Desktops Panel
NVIDIA Corporation 83
Chapter 8 Managing Desktops

Notes Before You Begin

• Desktop options Add, Properties, Rename, and Remove take immediate effect when clicked.
• Each desktop is identified by a name and can have optional customizations, such as independent backgrounds or icons that identify the desktop in menus and in the Desktop Explorer.
• Windows Control Panel-based nView (Desktop Manager) Properties, command prompt windows, and modal dialog boxes are visible on all desktops. All other applications, by default, launch only on the active desktop unless you have set up individual settings for the application.
• nView does not support different resolutions per desktop. All desktops are automatically set at the same resolution.
• The type of background (wallpaper) selected for your desktop can significantly affect how fast you can switch from one desktop to another. For further details, see the “Note” in “Properties: Changing Wallpaper and
Desktop Icons” on page 88.

Desktops List

The Desktops list box displays a list of all currently available desktops.
• Desktop Manager maintains a minimum of one desktop and a maximum of 32 desktops. By default, there is always one desktop named “Default”; this is the desktop on which you start up.
• The Default desktop is listed first, followed by all other desktops in alphabetical order.
Note: If you disable Desktop Manager, you are returned to the Default desktop
and all open windows are moved to the Default desktop.

Creating Desktops

Multiple desktops can be created either from Desktops panel using the “Add” option, as explained below, or the Explorer shell extension.
Each desktop can be assigned a unique name.
Note: You cannot add duplicate desktop names.
84 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide

Using the “Add” Option

1 From the Desktops panel (Figure 8.1), click Add. The “Create a new
desktop” dialog box prompts for a name of the new desktop (Figure 8.2).
2 If you want to add a Wallpaper background and/or assign the desktop a
unique “Icon”, go the next steps.
Otherwise, click OK to complete adding the desktop and return to the Desktops panel where you will see the new desktop added to the Desktops list.
3 After you enter the desktop name, optionally, you can assign the desktop a
Wallpaper background and/or assign the desktop a unique icon.
For details, see “Selecting a Background for the Desktop” on page 89,
“Selecting Separate Backgrounds Per Display” on page 90, or “Selecting a Desktop Icon” on page 90
Figure 8.2
Creating a Desktop
Enter a name for the desktop.
Note: If you have checked the Enable Desktop Explorer option from the
Multiple Interfaces tab, you can also use the Desktop Explorer node in the Windows Explorer to create desktops. See “Creating Desktops from
Desktop Explorer” on page 102.
NVIDIA Corporation 85
Chapter 8 Managing Desktops
Figure 8.3
Viewing the Added Desktop
Viewing the added desktop.
.

Activating or Switching Desktops

From the “Desktops” tab, double-click the desktop you want to activate from the list of desktops.
Note: The type of background (wallpaper) selected for your desktop can
significantly affect how fast you can switch from one desktop to another
For further details, see the “Note” in “Properties: Changing Wallpaper and
Desktop Icons” on page 88.
You can also use a variety of other methods to switch between desktops as discussed in these sections:
“Activating Desktops from the NVIDIA Settings icon” on page 87
“Activating Desktops From the Windows Desktop Properties Menu” on
page 87
“Activating Desktops from Desktop Explorer” on page 88
86 NVIDIA Corporation
NVIDIA nView Desktop Manager User’s Guide
“Activating Desktops With Hot Keys” on page 88

Activating Desktops from the NVIDIA Settings icon

To activate desktops from the NVIDIA Settings icon (Figure 8.4), follow these steps:
Figure 8.4
Right click the NVIDIA Settings icon from the Windows taskbar, choose
1
Desktop Manager > nView Desktops to display the list of your desktops.
Figure 8.5 shows an example of a list of desktops.
Note: If nView Desktop Manager is disabled, you cannot access the nView
2 Choose the desktop you want to activate.
Figure 8.5
NVIDIA Settings icon
NVIDIA Settings icon
Desktops option. In this case, right click the NVIDIA Settings icon from the Windows taskbar, click Desktop Manager > Enable nView. Again, right click the NVIDIA Settings icon from the Windows taskbar, then click nView Desktops.
Accessing Desktops Through the NVIDIA Settings icon

Activating Desktops From the Windows Desktop Properties Menu

1 Confirm that Desktop Manager is enabled.
2 Right click from your Windows desktop to display the properties menu.
3 Choose nView Desktops to view a list of your desktops.
4 Choose the desktop you want to activate.
NVIDIA Corporation 87
Chapter 8 Managing Desktops

Activating Desktops from Desktop Explorer

See “Renaming, Deleting, and Activating Desktops from Desktop Explorer” on
page 94.

Activating Desktops With Hot Keys

See “Using Hot Keys” on page 148.

Renaming Desktops

Click Rename to rename the selected desktop from a text-input dialog box where you can type in a new name for the selected desktop.
Note: You cannot rename the Default desktop.
You can perform the same function from the Desktop Explorer; see “Renaming,
Deleting, and Activating Desktops from Desktop Explorer” on page 94.

Removing Desktops

Click Remove to remove the selected desktop from the list.
Once you delete a desktop, it is removed from the list of desktops. The applications on the deleted desktop now move to the Default desktop.
Note: You cannot remove the startup (or default) desktop.
You can perform the same function from the Desktop Explorer; see “Renaming,
Deleting, and Activating Desktops from Desktop Explorer” on page 94.

Properties: Changing Wallpaper and Desktop Icons

The Properties option lets you change the background of the selected desktop and assign an icon to represent the desktop.
1 From the Desktops panel, select the desktop for which you want to change
the background and/or icon.
2 Click Properties to open a dialog box where you can set or change the
background wallpaper and icon. From this dialog box, you can perform the following optional tasks, as shown in Figure 8.6:
Browse for different wallpapers (graphics files)
When using multiple display devices, choose separate wallpapers for each
display device.
88 NVIDIA Corporation
