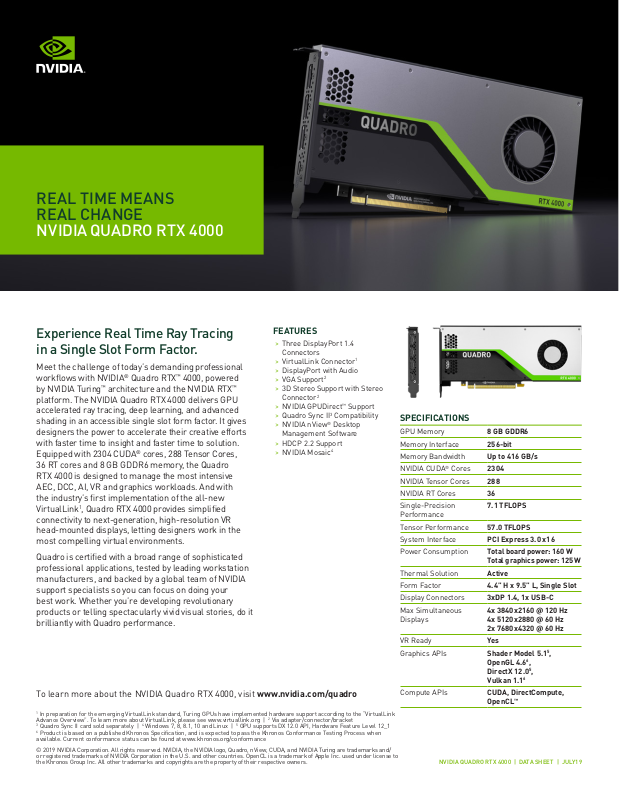

Nvidia 5JV89AT Product Data Sheet

REAL TIME MEANS
REAL CHANGE

NVIDIA QUADRO RTX 4000

Experience Real Time Ray Tracing
in a Single Slot Form Factor.

Meet the challenge of today’s demanding professional
workflows with NVIDIA® Quadro RTX™ 4000, powered
by NVIDIA Turing™ architecture and the NVIDIA RTX™
platform. The NVIDIA Quadro RTX 4000 delivers GPU
accelerated ray tracing, deep learning, and advanced
shading in an accessible single slot form factor. It gives
designers the power to accelerate their creative efforts
with faster time to insight and faster time to solution.
Equipped with 2304 CUDA® cores, 288 Tensor Cores,

FE ATURES

> Three DisplayPort 1.4

Connectors

> VirtualLink Connector
> DisplayPort with Audio
> VGA Support
> 3D Stereo Support with Stereo

Connector

> NVIDIA GPUDirect™ Support
> Quadro Sync II3 Compatibility
> NVIDIA nView® Desktop

Management Software

> HDCP 2.2 Support
> NVIDIA Mosaic

2

2

1

4

36 RT cores and 8 GB GDDR6 memory, the Quadro
RTX 4000 is designed to manage the most intensive
AEC, DCC, AI, VR and graphics workloads. And with
the industry’s first implementation of the all-new
VirtualLink1, Quadro RTX 4000 provides simplified
connectivity to next-generation, high-resolution VR
head-mounted displays, letting designers work in the
most compelling virtual environments.

Quadro is certified with a broad range of sophisticated
professional applications, tested by leading workstation
manufacturers, and backed by a global team of NVIDIA
support specialists so you can focus on doing your
best work. Whether you’re developing revolutionary
products or telling spectacularly vivid visual stories, do it
brilliantly with Quadro performance.

To learn more about the NVIDIA Quadro RTX 4000, visit www.nvidia.com/quadro

1

In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the “VirtualLink

Advance Overview”. To learn more about VirtualLink, please see www.virtuallink.org | 2 Via adapter/connector/bracket

3

Quadro Sync II card sold separately | 4 Windows 7, 8, 8.1, 10 and Linux | 5 GPU supports DX 12.0 API, Hardware Feature Level 12_1

6

Product is based on a published Khronos Specification, and is expected to pass the Khronos Conformance Testing Process when

available. Current conformance status can be found at www.khronos.org/conformance

© 2019 NVIDIA Corporation. All rights reserved. NVIDIA, the NVIDIA logo, Quadro, nView, CUDA, and NVIDIA Turing are trademarks and/
or registered trademarks of NVIDIA Corporation in the U.S. and other countries. OpenCL is a trademark of Apple Inc. used under license to
the Khronos Group Inc. All other trademarks and copyrights are the property of their respective owners.

SPECIFICATIONS

GPU Memory 8 GB GDDR6

Memory Interface 256-bit

Memory Bandwidth Up to 416 GB/s

NVIDIA CUDA® Cores 2304

NVIDIA Tensor Cores 288

NVIDIA RT Cores 36

Single-Precision
Performance

Tensor Performance 57.0 TFLOPS

System Interface PCI Express 3.0 x16

Power Consumption Total board power: 160 W

Thermal Solution Active

Form Factor 4.4” H x 9.5” L, Single Slot

Display Connectors 3xDP 1.4, 1x USB-C

Max Simultaneous
Displays

VR Ready Yes

Graphics APIs Shader Model 5.15,

Compute APIs CUDA, DirectCompute,

NVIDIA QUADRO RTX 4000 | DATA SHEET | JULY19

7.1 TFLOPS

Total graphics power: 125 W

4x 3840x2160 @ 120 Hz
4x 5120x2880 @ 60 Hz
2x 7680x4320 @ 60 Hz

OpenGL 4.66,
DirectX 12.05,
Vulkan 1.16

OpenCL™
