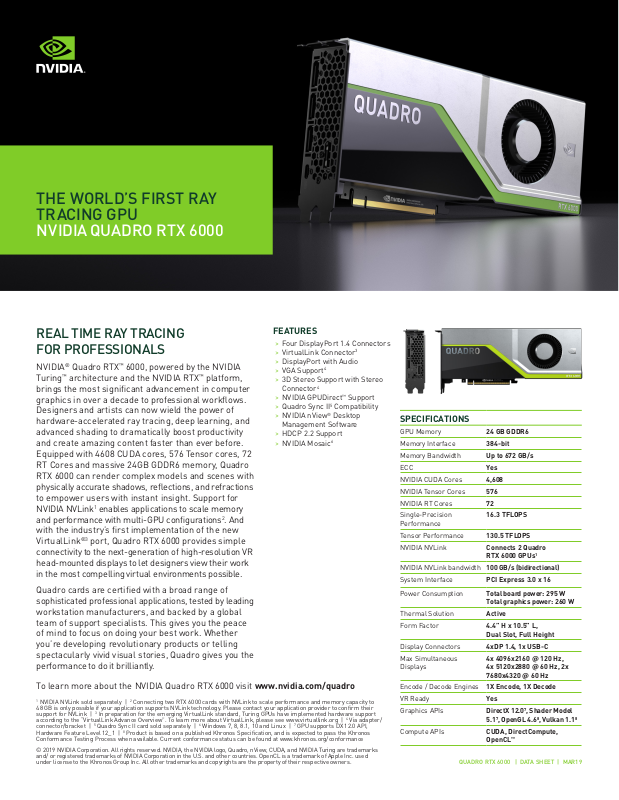

Nvidia 5JH80AA Product Data Sheet
The WorLd’S FIrST raY
TraCING GPu
NVIdIa Quadro rTX 6000
reaL TIMe raY TraCING
For ProFeSSIoNaLS
NVIDIA® Quadro RTX™ 6000, powered by the NVIDIA
Turing™ architecture and the NVIDIA RTX™ platform,
brings the most significant advancement in computer
graphics in over a decade to professional workflows.
Designers and artists can now wield the power of
hardware-accelerated ray tracing, deep learning, and
advanced shading to dramatically boost productivity
and create amazing content faster than ever before.
FEATURES
> Four DisplayPort 1.4 Connectors
> VirtualLink Connector
> DisplayPort with Audio
> VGA Support
> 3D Stereo Support with Stereo
Connector
> NVIDIA GPUDirect™ Support
> Quadro Sync II5 Compatibility
> NVIDIA nView® Desktop
Management Software
> HDCP 2.2 Support
> NVIDIA Mosaic
4
4
3
6
Equipped with 4608 CUDA cores, 576 Tensor cores, 72
RT Cores and massive 24GB GDDR6 memory, Quadro
RTX 6000 can render complex models and scenes with
physically accurate shadows, reflections, and refractions
to empower users with instant insight. Support for
NVIDIA NVLink1 enables applications to scale memory
and performance with multi-GPU configurations2. And
with the industry’s first implementation of the new
VirtualLink®3 port, Quadro RTX 6000 provides simple
connectivity to the next-generation of high-resolution VR
head-mounted displays to let designers view their work
in the most compelling virtual environments possible.
Quadro cards are certified with a broad range of
sophisticated professional applications, tested by leading
workstation manufacturers, and backed by a global
team of support specialists. This gives you the peace
of mind to focus on doing your best work. Whether
you’re developing revolutionary products or telling
spectacularly vivid visual stories, Quadro gives you the
performance to do it brilliantly.
To learn more about the NVIDIA Quadro RTX 6000 visit www.nvidia.com/quadro
1
NVIDIA NVLink sold separately | 2 Connecting two RTX 6000 cards with NVLink to scale performance and memory capacity to
48 GB is only possible if your application supports NVLink technology. Please contact your application provider to confirm their
support for NVLink | 3 In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support
according to the “VirtualLink Advance Overview”. To learn more about VirtualLink, please see www.virtuallink.org | 4 Via adapter/
connector/bracket | 5 Quadro Sync II card sold separately | 6 Windows 7, 8, 8.1, 10 and Linux | 7 GPU supports DX 12.0 API,
Hardware Feature Level 12_1 | 8 Product is based on a published Khronos Specification, and is expected to pass the Khronos
Conformance Testing Process when available. Current conformance status can be found at www.khronos.org/conformance
© 2019 NVIDIA Corporation. All rights reserved. NVIDIA, the NVIDIA logo, Quadro, nView, CUDA, and NVIDIA Turing are trademarks
and/ or registered trademarks of NVIDIA Corporation in the U.S. and other countries. OpenCL is a trademark of Apple Inc. used
under license to the Khronos Group Inc. All other trademarks and copyrights are the property of their respective owners.
SPECIFICATIONS
GPU Memory 24 GB GDDR6
Memory Interface 384-bit
Memory Bandwidth Up to 672 GB/s
ECC Yes
NVIDIA CUDA Cores 4,608
NVIDIA Tensor Cores 576
NVIDIA RT Cores 72
Single-Precision
Performance
Tensor Performance 130.5 TFLOPS
NVIDIA NVLink Connects 2 Quadro
NVIDIA NVLink bandwidth 100 GB/s (bidirectional)
System Interface PCI Express 3.0 x 16
Power Consumption Total board power: 295 W
Thermal Solution Active
Form Factor 4.4” H x 10.5” L,
Display Connectors 4xDP 1.4, 1x USB-C
Max Simultaneous
Displays
Encode / Decode Engines 1X Encode, 1X Decode
VR Ready Yes
Graphics APIs DirectX 12.07, Shader Model
Compute APIs CUDA, DirectCompute,
16.3 TFLOPS
RTX 6000 GPUs
Total graphics power: 260 W
Dual Slot, Full Height
4x 4096x2160 @ 120 Hz,
4x 5120x2880 @ 60 Hz, 2x
7680x4320 @ 60 Hz
5.17, OpenGL 4.68, Vulkan 1.1
OpenCL
Quadro rTX 6000 | daTa SheeT | Mar19
1
™
8
The WorLd’S FIrST raY
TraCING GPu
NVIdIa Quadro rTX 6000
reaL TIMe raY TraCING
For ProFeSSIoNaLS
NVIDIA® Quadro RTX™ 6000, powered by the NVIDIA
Turing™ architecture and the NVIDIA RTX™ platform,
brings the most significant advancement in computer
graphics in over a decade to professional workflows.
Designers and artists can now wield the power of
hardware-accelerated ray tracing, deep learning,
and advanced shading to dramatically boost
productivity and create amazing content faster
than ever before. Equipped with 4608 CUDA cores,
FEATURES
> Four DisplayPort 1.4
Connectors
> VirtualLink Connector
> DisplayPort with Audio
> VGA Support
> 3D Stereo Support with
Stereo Connector
> NVIDIA GPUDirect™ Support
> Quadro Sync II5 Compatibility
> NVIDIA nView® Desktop
Management Software
> HDCP 2.2 Support
> NVIDIA Mosaic
4
3
4
6
576 Tensor cores, 72 RT Cores and massive 24GB
GDDR6 memory, Quadro RTX 6000 can render
complex models and scenes with physically accurate
shadows, reflections, and refractions to empower
users with instant insight. Support for NVIDIA
NVLink1 enables applications to scale memory
and performance with multi-GPU configurations2.
And with the industry’s first implementation of the
new VirtualLink®3 port, Quadro RTX 6000 provides
simple connectivity to the next-generation of
high-resolution VR head-mounted displays to let
designers view their work in the most compelling
virtual environments possible.
Quadro cards are certified with a broad range of
sophisticated professional applications, tested by
leading workstation manufacturers, and backed by
a global team of support specialists. This gives you
the peace of mind to focus on doing your best work.
Whether you’re developing revolutionary products
or telling spectacularly vivid visual stories, Quadro
gives you the performance to do it brilliantly.
To learn more about the NVIDIA Quadro RTX 6000 visit www.nvidia.com/quadro
1
NVIDIA NVLink sold separately | 2 Connecting two RTX 6000 cards with NVLink to scale performance and memory
capacity to 48 GB is only possible if your application supports NVLink technology. Please contact your application
provider to confirm their support for NVLink | 3 In preparation for the emerging VirtualLink standard, Turing GPUs
have implemented hardware support according to the “VirtualLink Advance Overview”. To learn more about VirtualLink,
please see www.virtuallink.org | 4 Via adapter/connector/bracket | 5 Quadro Sync II card sold separately | 6 Windows
7, 8, 8.1, 10 and Linux | 7 GPU supports DX 12.0 API, Hardware Feature Level 12_1 | 8 Product is based on a published
Khronos Specification, and is expected to pass the Khronos Conformance Testing Process when available. Current
conformance status can be found at www.khronos.org/conformance
© 2019 NVIDIA Corporation. All rights reserved. NVIDIA, the NVIDIA logo, Quadro, nView, CUDA, and NVIDIA Turing are
trademarks and/ or registered trademarks of NVIDIA Corporation in the U.S. and other countries. OpenCL is a trademark
of Apple Inc. used under license to the Khronos Group Inc. All other trademarks and copyrights are the property of their
respective owners.
SPECIFICATIONS
GPU Memory 24 GB GDDR6
Memory Interface 384-bit
Memory Bandwidth Up to 672 GB/s
ECC Yes
NVIDIA CUDA Cores 4,608
NVIDIA Tensor Cores 576
NVIDIA RT Cores 72
Single-Precision
Performance
Tensor Performance 130.5 TFLOPS
NVIDIA NVLink Connects 2 Quadro
NVIDIA NVLink bandwidth 100 GB/s (bidirectional)
System Interface PCI Express 3.0 x 16
Power Consumption Total board power: 295 W
Thermal Solution Active
Form Factor 4.4” H x 10.5” L,
Display Connectors 4xDP 1.4, 1x USB-C
Max Simultaneous
Displays
Encode / Decode Engines 1X Encode, 1X Decode
VR Ready Yes
Graphics APIs DirectX 12.07, Shader Model
Compute APIs CUDA, DirectCompute,
16.3 TFLOPS
RTX 6000 GPUs
Total graphics power: 260 W
Dual Slot, Full Height
4x 4096x2160 @ 120 Hz,
4x 5120x2880 @ 60 Hz, 2x
7680x4320 @ 60 Hz
5.17, OpenGL 4.68, Vulkan 1.1
OpenCL
Quadro rTX 6000 | daTa SheeT | Mar19
