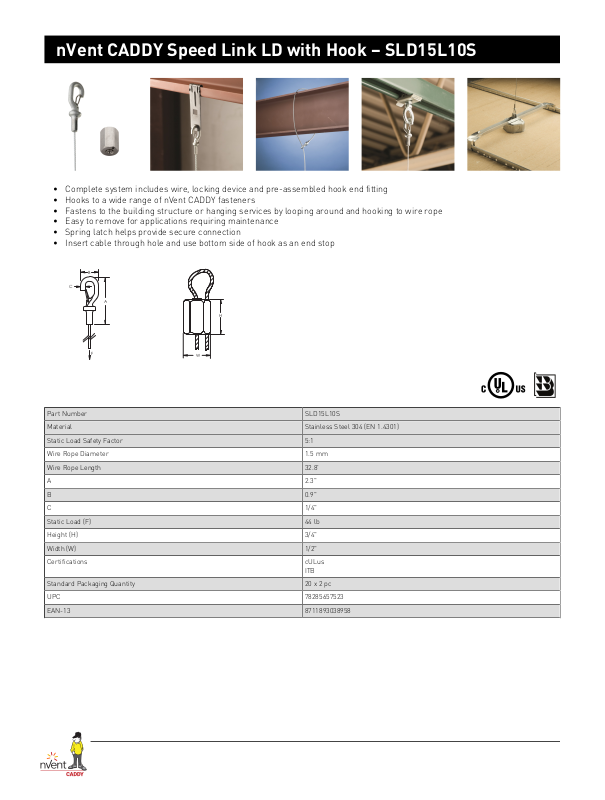

nVent CADDY SLD15L10S Specifications

nVent CADDY Speed Link LD with Hook–SLD15L10S

C

A

B

F

H

W

• Complete system includes wire, locking device and pre-assembled hook end fitting

• Hooks to a wide range of nVent CADDY fasteners

• Fastens to the building structure or hanging services by looping around and hooking to wire rope

• Easy to remove for applications requiring maintenance

• Spring latch helps provide secure connection

• Insert cable through hole and use bottom side of hook as an end stop

Part Number SLD15L10S

Material Stainless Steel 304 (EN 1.4301)

Static Load Safety Factor 5:1

Wire Rope Diameter 1.5 mm

Wire Rope Length 32.8'

A 2.3"

B 0.9"

C 1/4"

Static Load (F) 44 lb

Height (H) 3/4"

Width (W) 1/2"

Certifications cULus

ITB

Standard Packaging Quantity 20 x 2 pc

UPC 78285657523

EAN-13 8711893038958

UL, UR, cUL, cUR, cULus and cURus are registered certification marks of UL LLC.


