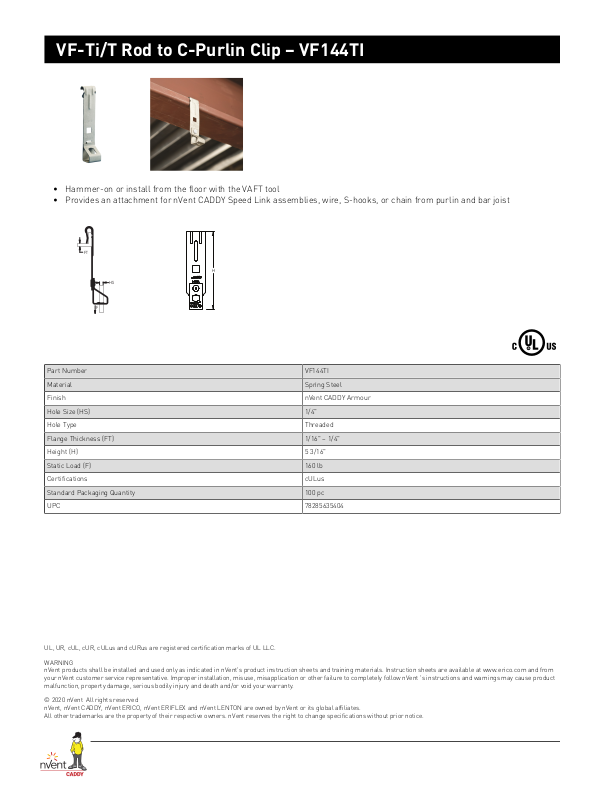

VF-Ti/T Rod to C-Purlin Clip–VF144TI
FT
HS
F
H
• Hammer-on or install from the floor with the VAFT tool
• Provides an attachment for nVent CADDY Speed Link assemblies, wire, S-hooks, or chain from purlin and bar joist
Part Number VF144TI
Material Spring Steel
Finish nVent CADDY Armour
Hole Size (HS) 1/4"
Hole Type Threaded
Flange Thickness (FT) 1/16" – 1/4"
Height (H) 5 3/16"
Static Load (F) 160 lb
Certifications cULus
Standard Packaging Quantity 100 pc
UPC 78285635404
UL, UR, cUL, cUR, cULus and cURus are registered certification marks of UL LLC.
WARNING
nVent products shall be installed and used only as indicated in nVent's product instruction sheets and training materials. Instruction sheets are available at www.erico.com and from
your nVent customer service representative. Improper installation, misuse, misapplication or other failure to completely follow nVent 's instructions and warnings may cause product
malfunction, property damage, serious bodily injury and death and/or void your warranty.
© 2020nVentAll rights reserved
nVent, nVent CADDY, nVent ERICO, nVent ERIFLEX and nVent LENTON are owned by nVent or its global affiliates.
All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without prior notice.
