NÜVE SANAYİ MALZEMELERİ İMALAT VE TİCARET A.ẞ.
OT 020
BENCH TOP STEAM STERILIZER
USER’S MANUAL
NÜVE
SANAYİ MALZEMELERİ İMALAT VE TİCARET A.ẞ.
Esenboğa Yolu 22 km
Akyurt - ANKARA / TURKEY
Tel : (00 90 312) 399 28 30 ( 3 lines ) Fax : (00 90 312) 399 21 97
e-mail: sales@nuve.com.tr
WARRANTY CERTIFICATE
Nüve warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date.
Warranty does not apply to parts normally consumed in operation, current maintenance and the adjustments described in the operating instructions provided with the equipment.
Nüve does not accept any liability in the case where the goods are not used in accordance with their proper intent.
The warranty may not be claimed for damages incurred during the shipment, for damages resulting from improper handling or use, the defects in maintenance, negligence, bad functioning of auxiliary equipment, in the case of force majeure or accident and incorrect power supply.
In the event of failure, Nüve shall be under no liability for any injury, or any loss or damage as the result of the failure other than the guarantee conditions.
BEFORE OPERATING THE INSTRUMENT THIS MANUAL SHOULD BE READ CAREFULLY.
INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF NÜVE. IT MAY NOT BE DUPLICATED OR DISTRIBUTED WITHOUT HIS PERMISSION.
THE VALIDITY OF THE GUARANTEE IS SUBJECT TO THE OBSERVATION OF THE INSTRUCTIONS AND PRECAUTIONS DESCRIBED IN THIS MANUAL.
2
CONTENTS |
Page |
SECTION 1 USE AND FUNCTION |
4 |
SECTION 2 TECHNICAL SPECIFICATIONS |
|
2.1. Technical Specifications Table |
4 |
2.2. General View |
5 |
SECTION 3 INSTALLATION PROCEDURE |
|
3.1. Lifting and Transport |
6 |
3.2. Contents of the Package |
6 |
3.3. Mains Supply |
6 |
3.4. Environmental Conditions |
6 |
3.5. Positioning |
6 |
3.6. Preparation to Sterilization |
7 |

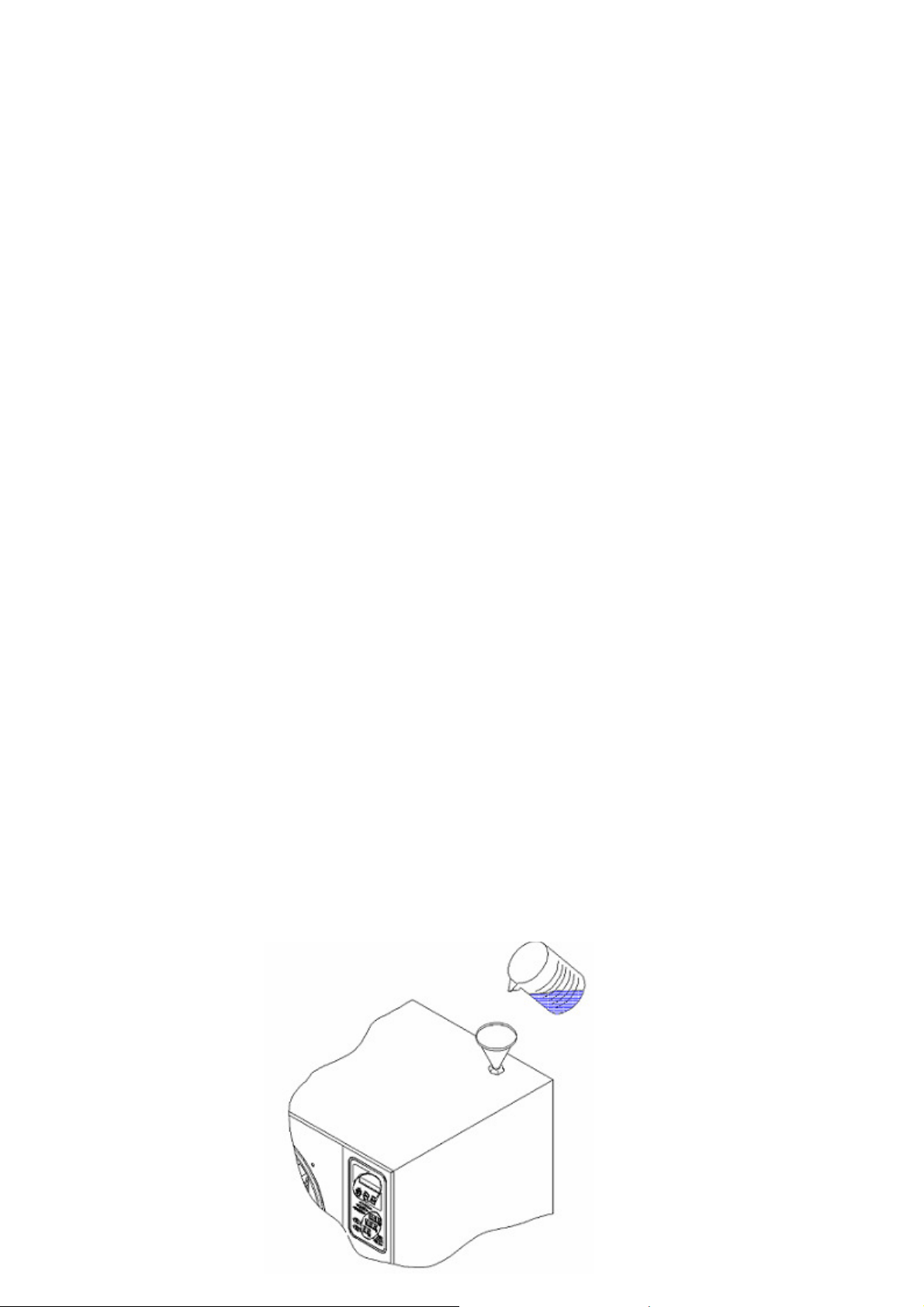

3.6.1 Filling in Distilled Water |
7 |
SECTION 4 OPERATION |
|
4.1. Operation |
8 |

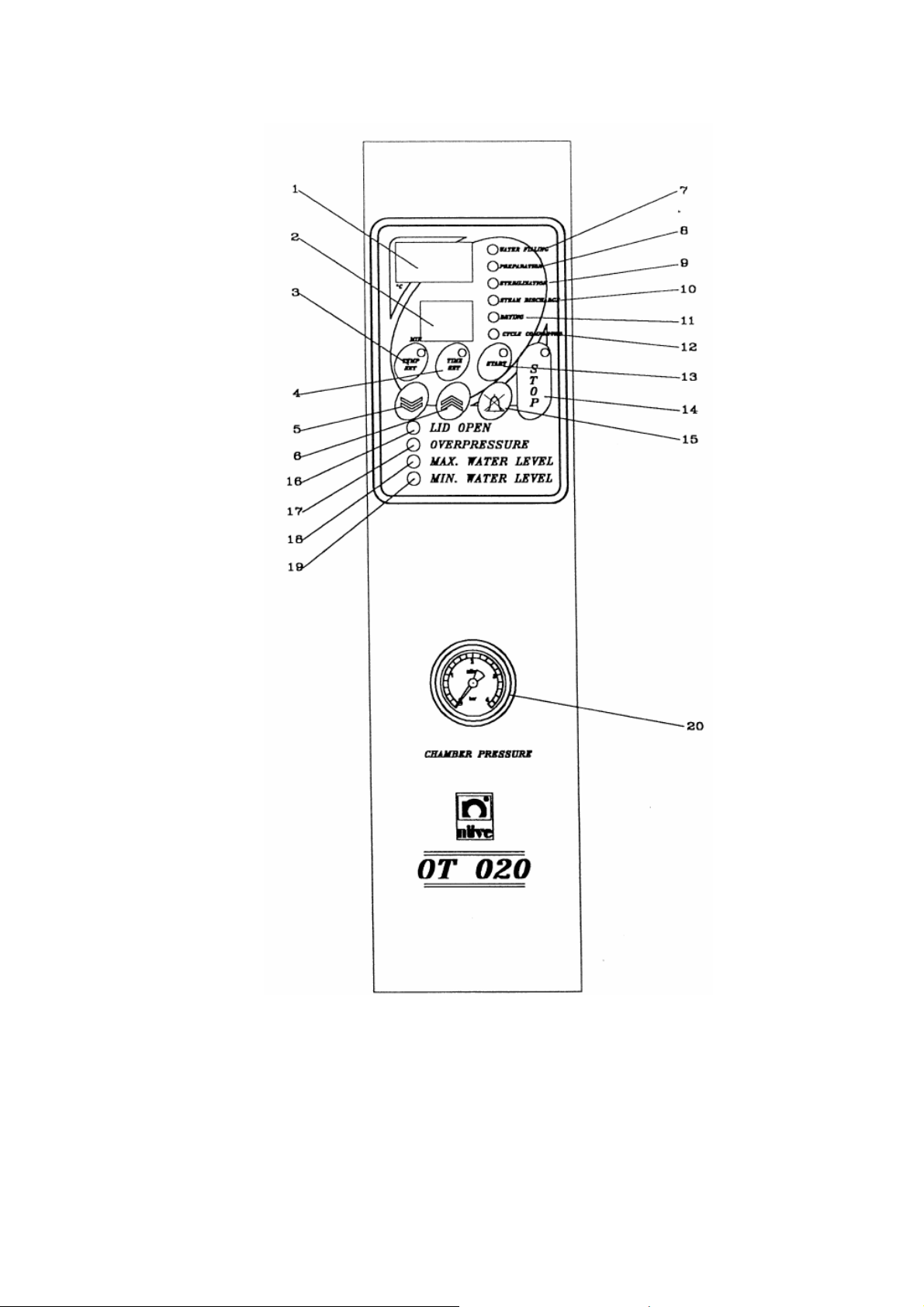

4.2. Control Panel |
8 |
4.3. Programming |
11 |
4.4. Microprocessor Set and Operation Cycles Explanations |
11 |
SECTION 5 CLEANING AND PERIODICAL MAINTENANCE |
|
5.1. Periodical Maintenance |
11 |
5.2. Cleaning |
12 |
SECTION 6 TROUBLESHOOTING |
|
Explanations of Error Codes |
12 |

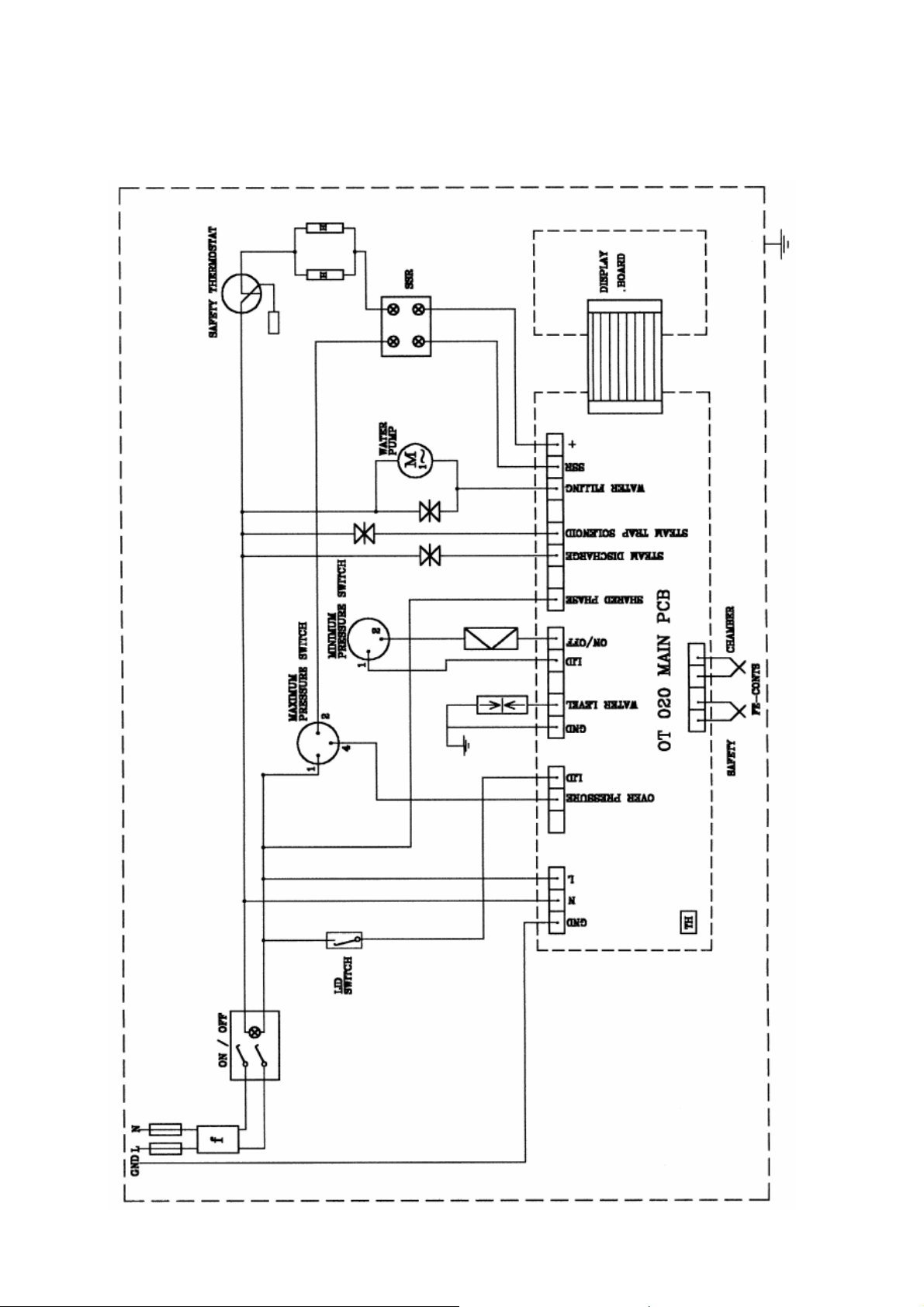

SECTION 7 ELECTRICAL CIRCUIT DIAGRAM |
13 |
3
1. USE AND FUNCTION
OT 020 steam sterilizer is designed for the sterilization of unwrapped medical or dental instruments and materials used in laboratories with pressurized steam.
The OT 020 steam sterilizer heats up to the temperatures between 110°C and 140°C and generates pressurised steam at the same temperatures according to the Pressurized Vessel Principle. The pressurised steam is used to sterilize the samples.
Homogeneous temperature distribution is ensured by means of stainless steel pipe heater in the chamber.
All parts which are exposed to steam and water are made of stainless materials.
Apart from the safety features of the programmable microprocessor control system such as over-pressure and over-temperature control, there are safety thermostat and safety valve to ensure safe working conditions.
Do not operate the steam sterilizer for purposes other than main purpose.
Do not operate the steam sterilizer for purposes other than main purpose. The steam sterilizer is only to be used by authorized people after the user’s manual has been read carefully. Only technical personnel can handle the product in case of any failure.
2. TECHNICAL SPECIFICATIONS
2.1.Technical Specifications Table
TECHNICAL SPECIFICATIONS |
OT 020 |
Temperature Range |
110 ° C / 140 ° C |
|
|
Temperature Sensor |
Fe-Const |
Control System |
Programmable Microprocessor |
Temperature Set and Reading Sensitivity |
1° C |
Sterilization Timer |
1-99 minutes |
Safety System |
3 Kg/cm² safety valve |
|
|
Power Supply |
230 V, 50 Hz |
Power Consumption |
1500 W |
Useful Volume |
20 lt |
Number of Shelves (standard/maximum) |
2/5 |
Internal Material |
Stainless Steel |
External Material |
Epoxy-polyester Painted Steel |
|
|
Internal Dimensions (Ø x D )mm |
265 x 355 |
External Dimensions (W x D x H) mm |
535 x 615 x 500 |
Packing Dimensions (WxDxH) mm |
635 x 635 x 565 |
Net / Packing Weight kg |
60 / 70 Kg |
4

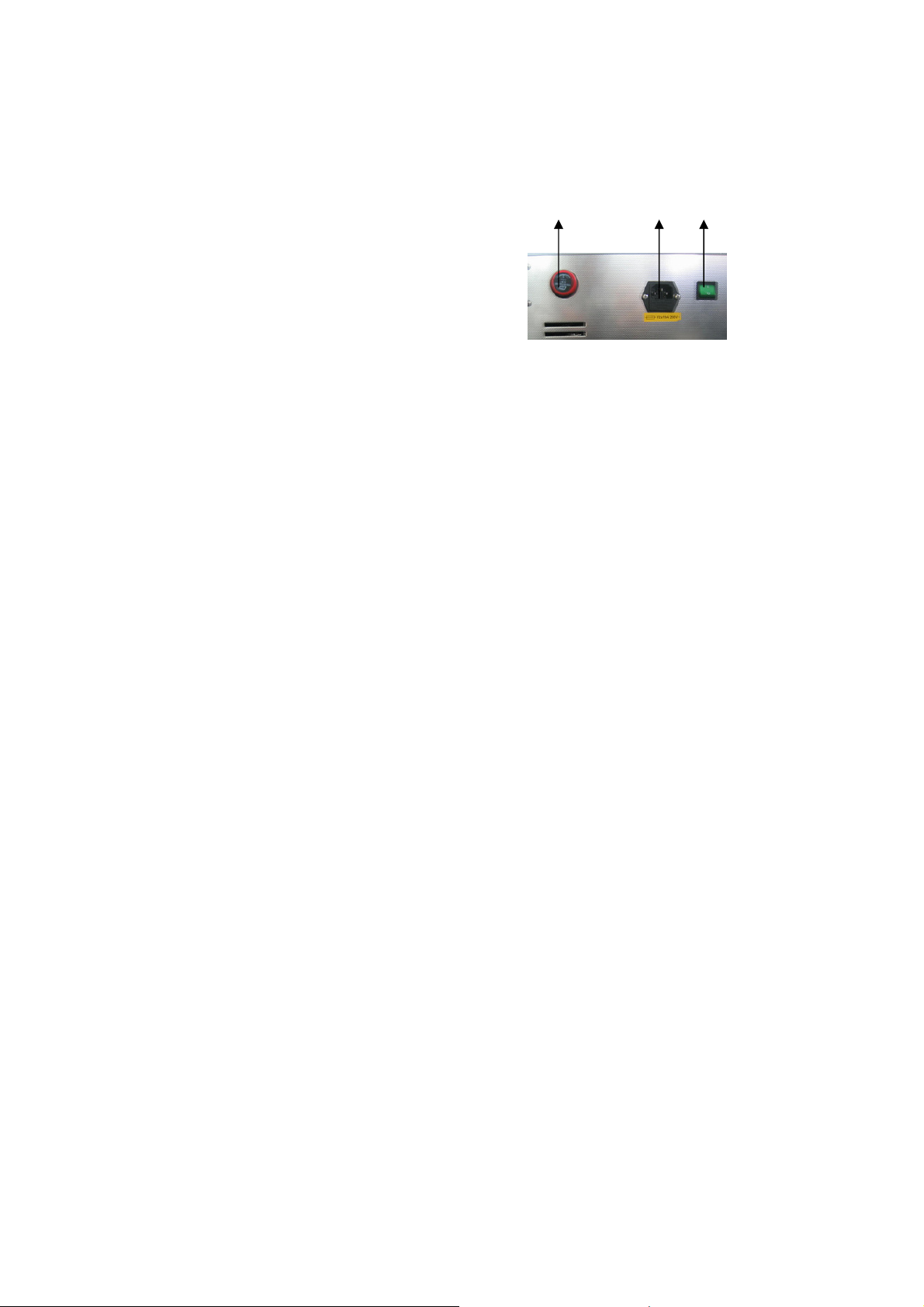

2.2.General View
8
2
1
3 |
4 |
6 |
5 |
7 |
Figure 1
5
