The Intelligent Surveillance Solution
Titan NVR
Server User Manual
Ver. 1.1.0.111026.00
1
Table of Contents
1. Installation ................................................................... 4
1.1 Installation Process ..................................................... 4
1.2 LED Status Definitions ............................................... 12
2. Settings ..................................................................... 13
2.1 Camera Setup ........................................................... 14
2.1.1 Add Cameras by Camera Search........................ 14
2.1.2 Add Cameras Manually ..................................... 15
2.1.3 Modify Camera Information .............................. 17
2.1.4 Modify Camera Parameters ............................... 17
2.1.5 Set up Lens Settings ........................................ 17
2.1.6 Set up 2nd Stream .......................................... 18
2.1.7 View Camera Status ........................................ 19
2.2 Recording & Event Setup ............................................ 21
2.2.1 Recording Mode Setup ..................................... 21
2.2.2 Recording Schedule / Event Setup ..................... 21
2.2.3 Camera Events and Responding Actions Setup .... 25
2.2.4 I/O Box Input and Responding Action Setup........ 27
2.2.5 System Events and Responding Actions Setup ..... 28
2.2.6 SMTP Server Setup .......................................... 29
2.2.7 Add Event Contacts ......................................... 30
2.3 RAID & File Settings .................................................. 31
2.3.1 Create a RAID Volume ..................................... 31
2.3.2 View RAID Volume Status ................................. 33
2.3.3 View Disk Drive Information ............................. 33
2.3.4 Modify RAID Volume ........................................ 34
2.3.5 Delete a RAID Volume ...................................... 36
2.3.6 Format ........................................................... 37
2.4 Auto Backup ............................................................. 38
2.4.1 Set up Backup Schedule ................................... 38
2.4.2 Set up Backup Server ...................................... 39
2.5 Network Setup .......................................................... 40
2.5.1 View Network Status ........................................ 40
2.5.2 Network Settings ............................................. 41
2.5.3 Auto Port-Forwarding ....................................... 42
2.5.4 Network Service Setup ..................................... 43
2.5.5 Master/Slave Configuration ............................... 44
2
2.6 Management ............................................................. 46
2.6.1 View the List of Users ...................................... 46
2.6.2 Create New Users ............................................ 46
2.6.3 Modify User Information ................................... 47
2.6.4 Change a User’s Password ................................ 48
2.6.5 Delete Users ................................................... 48
2.6.6 Import/Export User Account ............................. 48
2.6.7 Online License Activation .................................. 49
2.6.8 Offline License Activation .................................. 50
2.6.9 View the Event Log .......................................... 53
2.6.10 Save Unit Configuration ................................ 54
2.6.11 Load Unit Configuration / Default Settings ....... 55
2.7 System .................................................................... 56
2.7.1 View System Information ................................. 56
2.7.2 Smart Fan Control ........................................... 56
2.7.3 UPS Setup ...................................................... 57
2.7.4 Upgrade the System ........................................ 58
2.7.5 Upgrade Notification ........................................ 58
2.7.6 System Date and Time Setup ............................ 59
2.7.7 Daylight Saving Time Setup .............................. 60
2.7.8 Local Display................................................... 60
2.7.9 Restart the Unit ............................................... 61
2.7.10 Shut Down the Unit ...................................... 62
3. I/O ............................................................................ 63
3.1 Introduction ............................................................. 63
3.1.1 System Introduction ........................................ 63
3.1.2 HW Installation ............................................... 63
3.1.3 Software Installation – SCB-C31........................ 64
3.1.4 Software Installation – SCB-C24/26/28 .............. 65
3.2 Software Setup ......................................................... 67
3.2.1 Add I/O Box .................................................... 67
3.2.2 Modify I/O Box Information .............................. 68
3.2.3 I/O Pin Setting ................................................ 68
3.3 Relative Configuration and Application ......................... 69
3.3.1 Record on Input Trigger .................................... 69
3.3.2 Input and Responding Actions ........................... 69
3.3.3 I/O Control Panel in Live View ........................... 69
4. External Storage ......................................................... 70
3
4.1 Create a Volume on DAS ............................................ 70
4.2 Create an External Storage ......................................... 70
5. Log out ...................................................................... 72
6. Remote PC System Requirements .................................. 73
7. Troubleshooting .......................................................... 74
7.1 Replace a Failed Disk Drive ......................................... 74
7.2 Respond to a Critical RAID Volume .............................. 74
7.3 Respond to a File System Error RAID Volume ................ 74
7.4 Install ActiveX ........................................................... 74
7.5 Cannot Log in to the Unit with Internet Explorer ............ 75
Appendix – RAID System......................................................... 76
Introduction to RAID ......................................................... 76
RAID 0 – Stripe ................................................................ 76
RAID 1 – Mirror ................................................................ 77
RAID 5 – Block Striping with Distributed Parity ..................... 78
RAID 10 – Mirror / Stripe ................................................... 78
Choosing a RAID Level ...................................................... 79
Appendix – Camera Integration ................................................ 81
Camera Supporting List ..................................................... 81
Camera Search Tool .......................................................... 81
Stream Profile .................................................................. 81
4
1. Installation
1.1 Installation Process
Step 1: Unpack the Unit
This package contains the following items:
The unit
Quick Start Guide
Screws for disk drives
Key
Power cord
Warranty card
CD with Install Wizard, NuClient and Offline License Tool
application, user manual, and quick start guide
The electronic components within the unit can be damaged by Electrostatic Discharge
(ESD). Please take precautions at all times when handling the unit or its
sub-assemblies.
To configure the unit, you must install the software onto a desktop/ laptop running
Windows XP-SP3 32bit, Windows 7 32/64bit, Mac OS X v10.6/10.7
Unit front/rear view
(Tower)
5
(Rackmount)
Step 2: Install Hard Drives
Refer to compatibility list and install HDDs. For optimal performance
consideration, install disks with the same model and storage capacity. The
available RAID level depends on the amount of disks installed.
1. Open the lid on the front of the unit enclosure.
2. Pull a HDD tray from the enclosure. See the front view figure.
3. Carefully lock the disks into the HDD tray with screws. 3 screws for each
disk. We recommend locking the screws on the bottom of the disk, instead
of the side of tray. Put the HDD tray back once you finished.
Step 3: Connect to the Network
1. Attach one end of the network cable to the RJ45 network connection. See
the rear view figure.
2. Attach the other end of the network cable to your Ethernet hub or switch.
If there are multiple networks at your facility, note the network to which you connect
the unit. You will need this information during the setup process. Please also enable
the DHCP function within the network, as the unit will retrieve an IP address through
DHCP by default.
1. Key Lock
2. LED Indicators: Power,
LAN1-2, HDD1–4
3. USB x2
4. Power Button
5. PSU Cooling Fan
6. Power Connector
7. VGA
8. eSATA Connector
9. USB x 4
10. Gigabit LAN x 2
11. Main Cooling Fan
6
Step 4: Connect the Power
1. Attach the power cord to the power source.
2. Connect the power cord to the back of the unit enclosure. See the rear view
figure.
3. On the front of the unit, press the power button. See the front view figure.
It takes about a minute for the unit to fully power up. Once it is powered up,
the Power Status LED turns blue. See the front view figure.
Step 5: Install the Software
1. Insert the CD into your CDROM.
2. Double-click Setup.exe to begin installation.
3. Follow the instruction of Setup.exe, and click the Finish button to close
the installer.
Step 6: Set up the Unit
The software Installation Wizard performs the setup procedures on the unit.
After the procedure, you can begin using it.
1. Go to Start > NUUO Titan Series > NUUO Install Wizard.
2. This program will show the default language setting and initiation mode.
3. Choose your preferred language and initiation mode, and then click the
button.
7
Express Mode: you don’t need to set up the network settings, Date/Time
and RAID level.
Advanced Mode: configure all settings manually: network, license,
camera, Date/Time, upgrade notification, and RAID level
4. The Installation Wizard program starts searching for all the units on the
internet currently. Choose one of them, and then click the button.
5. Type in the password, and then click the OK button.
The default Administrator password is “admin”.
6. Name this server and select the network type, and then click the
button.
8
Obtain network settings automatically from external DHCP server:
apply all settings which are automatically generated by the DHCP server,
such as IP, subnet mask, gateway, and DNS.
Configure network settings manually: configure the preferred settings
one by one.
7. Activate camera license to have more channel capacity, and click the
button.
8. Add cameras for this server. There are two ways of adding cameras,
9
selecting the searched cameras and manually configuring the cameras.
Click the button after completing camera list.
Click the Search button.
Select camera and type the camera name, username and password.
10
Add cameras manually.
9. Set up the time zone, date, and time, and adjust daylight saving changes if
needed. Click the button.
10. Check “Enable Upgrade Notification” box if you want to receive
notification when there is a newer FW version. Click the button.
11
11. Follow the following instruction and select the RAID type you want to
create. Click the button.
12. Review your settings. If the settings are correct, click the Finish button to
exit the settings procedure and activate the system.
12
Once the “FINISH” button is clicked, the unit will start working. In order to ensure the
stability of the unit, never pull any disks out when the system is running.
1.2 LED Status Definitions
Function
LED Status
Power Status
Power-on: blue
Power-off: dark
HDD Status (top)
Power-on: blue
Power-off: dark
HDD Activity Status
(bottom)
Healthy: blue with blinking
No disk: dark
Ethernet Status
Linking: blue
Accessing: blue with blinking
No linking: dark
13
2. Settings

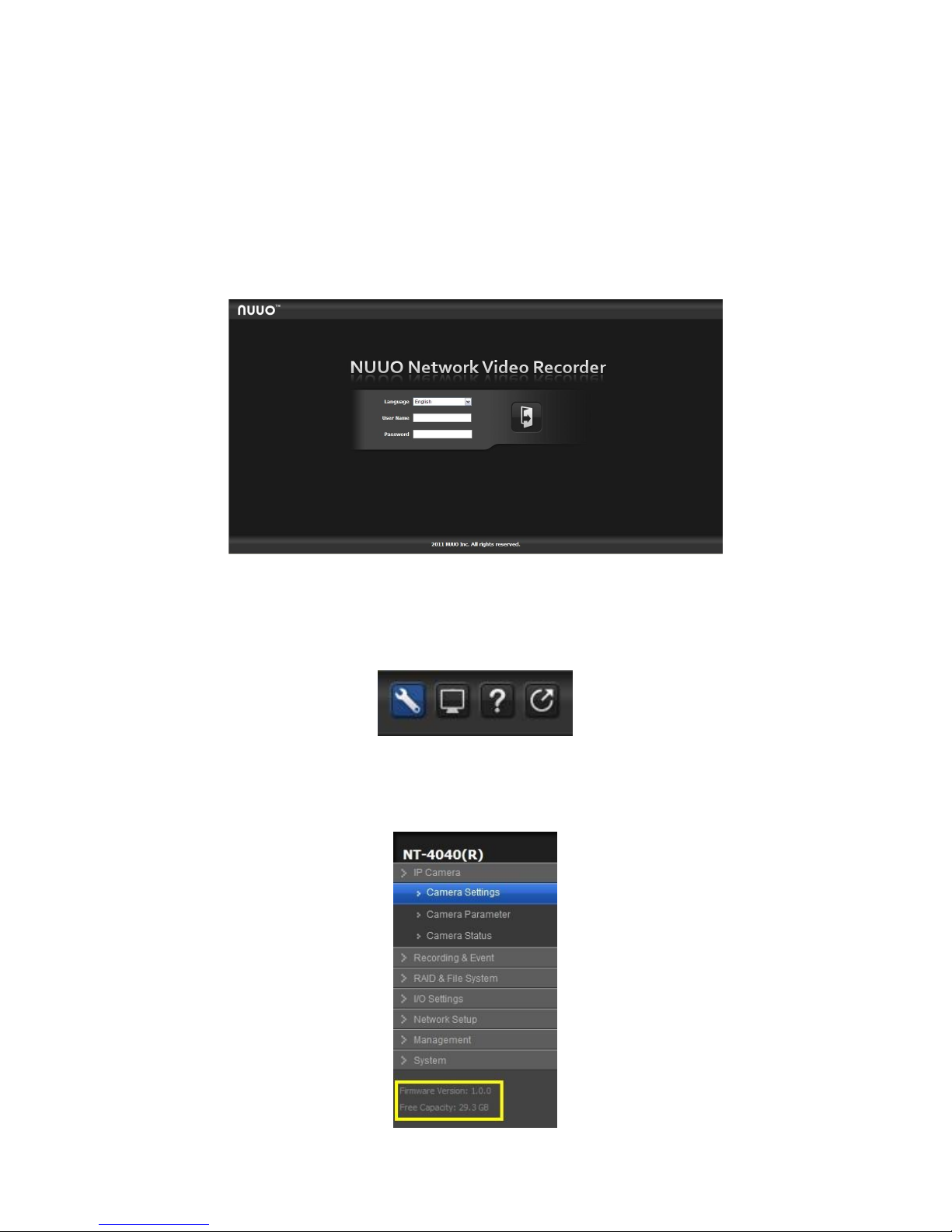

After setting up the unit, log in to the system by entering its IP address in the
browser (Internet Explorer 8 and later, Safari 5.1 7534.48.3, and Firefox
7.0.1). When connecting, choose your language, enter the user name and
password, and then begin using this system.
Take IE as the demonstration browser of this manual.
There are four main functions of this unit: Settings, NuClient, Help Page, and
Logout button. They will be shown on the top of the page. Currently, NuClient
is supported on IE and Firefox only.
Current firmware version and free storage capacity are shown above the
function list.
14
2.1 Camera Setup
2.1.1 Add Cameras by Camera Search
The function enables user to automatically search and add cameras in the
same network. There are two search mechanisms, one is UPnP, another is
camera search tool. Before searching UPnP cameras, make sure that the
cameras possess UPnP function.
1. Log in to the unit.
2. Click IP Camera/ Camera Settings.
3. Click the Camera Search tab.
4. Click the Search button.
5. The system will list all the currently available cameras. The inserted
cameras are shown in blue. Click the icon to add a camera into your
camera list.
6. After clicking the icon, the camera setting page will pop up. Click the
item to which you want to add a camera.
15
7. Insert the camera name, user name, and password.
To have better compatibility between camera and system, please make sure the
privilege of camera credential is admin-level.
8. Click the Add button to add it.
9. After clicking the Add button, the updated camera list will be displayed in
the Camera Setting tab.
2.1.2 Add Cameras Manually
1. Log in to the unit.
2. Click IP Camera / Camera Settings.
3. Click the Camera Settings tab, and the camera list will be displayed on
the bottom of the page.
4. Click on the camera list for the channel you want to add and enter the
camera’s information.
16
Camera name: The name of the camera.
Address: The IP address.
Port: The transmission port.
Administrator Name: Login username.
Password: Login password.
Camera Channel: Select the number of analog cameras supported by
one video server or select the number of IP cameras possessing multiple
lens/channels.
Protocol: Data transmission protocol.
Vendor: Camera vendor name.
Model: Camera model name.
To have better compatibility between camera and system, please make sure the
privilege of camera credential is admin-level.
5. Click the Save button.
Save: Save the information of this camera.
Reset: Return to the latest saved settings of the selected camera.
Clear: Set all the settings to default value.
Auto Detection: After inserting IP address, port, username, and
password, click this button to automatically detect other camera
information, including Channel, Protocol, Vendor, and Model.
17
2.1.3 Modify Camera Information
1. Log in to the unit.
2. Click IP Camera / Camera Settings.
3. Click the Camera Settings tab.
4. Click the camera which you want to modify.
5. Modify the information of this camera.
6. Click the Save button.
7. Use the same method to replace a camera if needed.
2.1.4 Modify Camera Parameters
1. Log in to the unit.
2. Click IP Camera / Camera Parameters.
3. Click the Camera Parameter tab.
4. Click the camera which you want to modify on the camera list.
5. Modify the information of this camera.
6. Click the Save button.
Camera Name: The name of the camera.
Video Format: Choose the type of format which this camera supports.
Frame rate: Select the frame rate of the camera.
Resolution: Select the resolution of the camera.
Quality: Select the image quality of the camera.
Audio: Check the Enable Audio option to view and enable audio
recording.
2.1.5 Set up Lens Settings
1. Log in to the unit.
2. Click IP Camera / Camera Parameters.
18
3. Click the Lens Settings tab.
4. Click the camera which you want to modify in the camera list.
5. Modify the information of this camera.
6. Click the Save button.
Camera Name: The name of the camera.
ImmerVision Lens: Enable the option if ImmerVision lens is installed.
Camera Position: Select the position of the camera.
If users enable the lens while lens is not installed correctly or not even installed, a
warning message will pop up as a notification if users are trying to operate lens on
liveview page.
2.1.6 Set up 2nd Stream
Stream profile is designed for mobile client and lower fps live stream display.
Without stream profile integration, users cannot watch live video on mobile
client nor select lower fps stream on liveview. Further, for performance
consideration, we fix the resolution and framerate for each brand/series. You
can refer to appendix for supporting list.
1. Log in to the unit.
2. Click IP Camera / Camera Parameters.
3. Click the 2nd Stream Settings tab.
19
Stream Profile: The default status is Disable. If you want mobile client
user to access to this camera, you can select Enable, and click Save
button in the middle of the page.
Low Profile: The stream profile, under 300kbps, is designed for mobile
client single-view.
Minimum Profile: The stream profile, under 100 kbps, is designed for
mobile client multi-view.
2.1.7 View Camera Status
1. Log in to the unit.
2. Click IP Camera / Camera Status.
Conn. Status: The status of the connection. Click the Connect or
Disconnect button to change the connection status.
20
Status
Icon
Connection Status
Connected
Connection Status
Disconnected
Connection Status
Connecting
Connection Button
Connected: Normal
Connected: Over
Connection Button
Disconnected: Normal
Disconnected: Over
Rec. Status: The set recording schedule of this camera in this time.
Status
Icon
Recording Status
No Recording
Recording Status
Always Recording –
Recording
Recording Status
Always Recording – Stopped
Recording Status
Schedule Recording –
Recording
Recording Status
Schedule Recording –
Stopped
Recording Status
Manual Recording –
Recording
Recording Status
Manual Recording –Stopped
Framerate: The frame rate of this camera.
Bitrate: The transmission bit rate of this camera.
If your total bitrate becomes red, it means that the loading of the system is too heavy.
21
2.2 Recording & Event Setup
2.2.1 Recording Mode Setup
1. Log in to the unit.
2. Click Recording & Event / Recording settings.
3. Click the Recording Mode tab.
4. If selecting Always Recording, the chosen cameras will begin to record
immediately.
No Recording: Turn off the recording.
Recording by Schedule: Recording by schedule.
Always Recording: Permanently turn on the chosen cameras.
System will do recycling automatically when disks are full.
2.2.2 Recording Schedule / Event Setup
Instead of Always Recording, you can begin the recording by setting the
Recording Schedule.
1. Log in to the unit.
2. Click Recording & Event / Recording Settings.
3. Click the Recording Schedule tab.
4. Check the Day or Week mode.
Day: Schedule the recording to turn the recorder on and off at the same
time every day according to your setting.
Week: Schedule the recording for each day of the week differently.
5. Click the schedule of the camera which needs to be modified.
6. Click the column at the bottom of the page.
22
Insert: Insert new schedules.
Delete: Delete the selected schedule.
Configure: Modify the schedule and recording mode settings.
Copy: Copy current Day Schedule to other channel(s); copy current
Week Schedule to other day(s) of a week or to other channel(s).
23
7. The default setting of the camera’s recording schedule is from 00:00 to
24:00. If you want to modify the time slot, click the Configure button to
modify the default settings first.
8. Choose the recording mode.
Always Record: Always record.
Record on Event: Record when events triggered. The event can be
triggered by Motion or Digital input.
When setting the event Motion, please first ensure that the motion detection function
of the camera has been enabled.
9. If you want to add another new schedule, click the Insert button to add a
new one.
24
10. Click the Save button.
When changing the motion detection settings of a camera, make sure to disconnect
your unit and that camera first. Once you have finished, re-connecting them will
update the settings in your unit.
When setting an event, Motion or Digital input can be triggered from other cameras.
This means that if the system detects motion or digital input from other cameras or I/O
Box, the camera will begin recording.
There is another way to set the schedule. If you want to change the recording time
length, drag the end of the time bar from 24:00 back to the length you wish, and then
drag the beginning of the time bar to the point at which you would like it to commence
recording. (You may also click the Insert button to add new schedules.)
25
2.2.3 Camera Events and Responding Actions Setup
1. Log in to the unit.
2. Click Recording & Event / Event & Action Management.
3. Choose the camera, and then select one of the events. The event list
depends on camera its own ability.
Loading...
