NUUO I/O Device Specification
2012.03.29
1 / 10

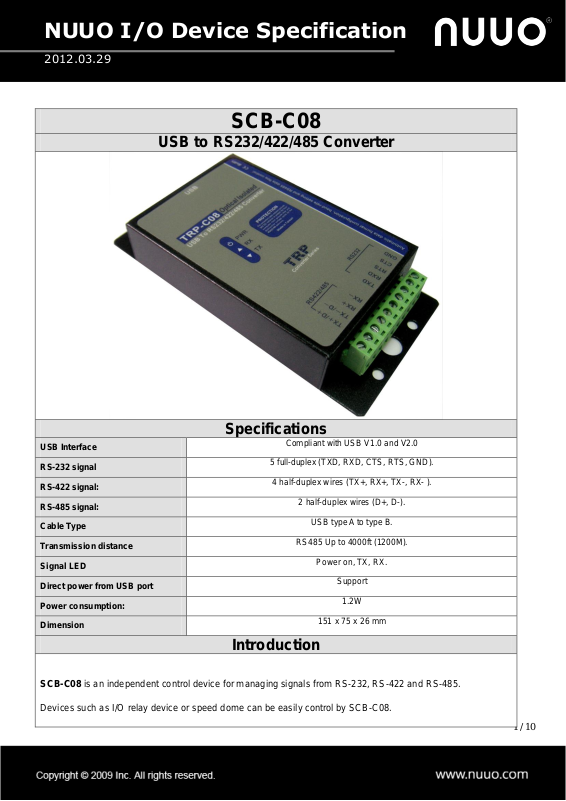

SCB-C08
USB to RS232/422/485 Converter
Specifications
USB Interface
Compliant with USB V1.0 and V2.0
RS-232 signal
5 full-duplex (TXD, RXD, CTS, RTS, GND).
RS-422 signal:
4 half-duplex wires (TX+, RX+, TX-, RX- ).
RS-485 signal:
2 half-duplex wires (D+, D-).
Cable Type
USB type A to type B.
Transmission distance
RS485 Up to 4000ft (1200M).
Signal LED
Power on, TX, RX.
Direct power from USB port
Support
Power consumption:
1.2W
Dimension
151 x 75 x 26 mm
Introduction
SCB-C08 is an independent control device for managing signals from RS-232, RS-422 and RS-485.
Devices such as I/O relay device or speed dome can be easily control by SCB-C08.
2
NUUO I/O Device Specification
2012.03.29
2 / 10
1. Power Connection (USB Internal Bus)
Direct power input from USB bus port, current 100mA/+5V, no external power necessary
2. RS-232 wiring connection
The RS-232 supports 5 channels plus Signal Ground and is configured as DTE like a computer.
Signals are single ended and referred to Ground. To use handshaking or flow control user must set Host PC’s
RTS/CTS during configuration. Refer to the pin assignment for connection as below.
3. RS-485 Wiring connection
The RS-485 mode supports the Transmit and Receive channels using 2-wire half-duplex operation. Refer to the
pin assignment for connection as below.
4. Block Diagram
3
NUUO I/O Device Specification
2012.03.29
3 / 10
5. Application Note
4
NUUO I/O Device Specification
2012.03.29
4 / 10
SCB-C24
16-ch Digital Output Insolated RS485 Module
錯誤!
Specifications
Output Channel
16 digital output channels
Communication Interface
RS-485 differential 2 half / duplex wires
Communication Speed
Baud rate from 1.2 Kbps to 115.2 Kbps
Transmission distance
RS485 Up to 4000ft (1200M).
Signal LED
Power on, all output channels
Dual watchdog
Reset circuit module / Host operating status
Power supply
Screw terminal, or external DC adapter
Power consumption:
1.5W
Dimension
151 x 75 x 26 mm
Introduction
SCB-C26 provides 16 optical isolated digital output channels that allow you to output open collector signal to
driven your devices on RS485 network. All channel features screw terminals for convenient connection of field
signals as well as LED’s to indicate channel status. All inputs are equipped with photo-couplers to protect the
module against high voltage spikes and ground potential differences.
1. Block Diagram
5
NUUO I/O Device Specification
2012.03.29
5 / 10
2. Application Note
6
NUUO I/O Device Specification
2012.03.29
6 / 10
SCB-C26
16-ch Digital Input Insolated RS485 Module
Specifications
Input Channel
16 digital input channels with counter
Counter Channel/Frequency
16 / 100Hz
Communication Interface
RS-485 differential 2 half / duplex wires
Communication Speed
Baud rate from 1.2 Kbps to 115.2 Kbps
Transmission distance
RS485 Up to 4000ft (1200M).
Signal LED
Power on, all input channels
Dual watchdog
Reset circuit module / Host operating status
Power supply
Screw terminal, or external DC adapter
Power consumption:
1.5W
Dimension
151 x 75 x 26 mm
Introduction
SCB-C26 provides 16 optical isolated digital input channels and all of them can be used as counter. All channel
features screw terminals for convenient connection of field signals as well as LED’s to indicate channel status. All
inputs are equipped with photo-couplers to protect the module against high voltage spikes and ground potential
differences.
7
NUUO I/O Device Specification
2012.03.29
7 / 10
3. Block Diagram
4. Application Note
8
NUUO I/O Device Specification
2012.03.29
8 / 10

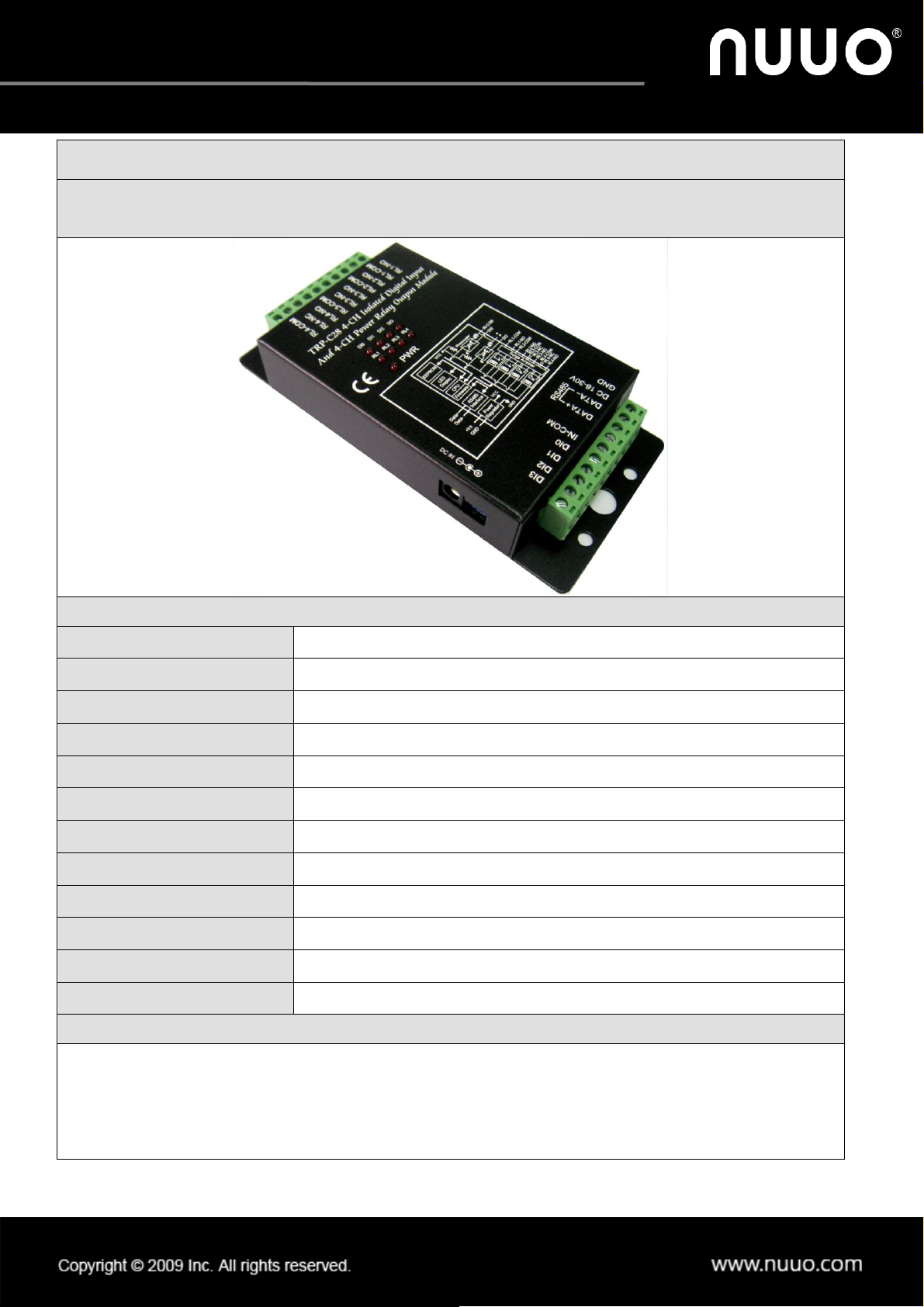

SCB-C28
4ch Isolated Digital Input & 4ch Power Relay Output RS485
module
Specifications
Input Channel
4 digital input channel
Output Channel
4 digital output channel
Counter Channel/Frequency
4 / 100Hz
Communication Interface
RS-485
Communication Speed
Baud rate from 1.2 Kbps to 115.2 Kbps
Relay Type
2 Form A(R1,R2), 2Form C(R3, R4)
Transmission distance
500M
Signal LED
Power on, all input channels
Dual watchdog
Reset circuit module / Host operating status
Power supply
Screw terminal, or external DC adapter
Power consumption:
2.7W
Dimension
151 x 75 x 26 mm
Introduction
SCB-C28 provides with 4 optical isolated digital input channels and 4 power relays output. All channel features
screw terminals for convenient connection of field signals as well as LED’s to indicate channel status. SCB-C28
can be easily control by SCB-C08.
9
NUUO I/O Device Specification
2012.03.29
9 / 10
1. Connection between SCB-C08 and SCB-C28
2. Block Diagram
3. Application Note
10
NUUO I/O Device Specification
2012.03.29
10 / 10

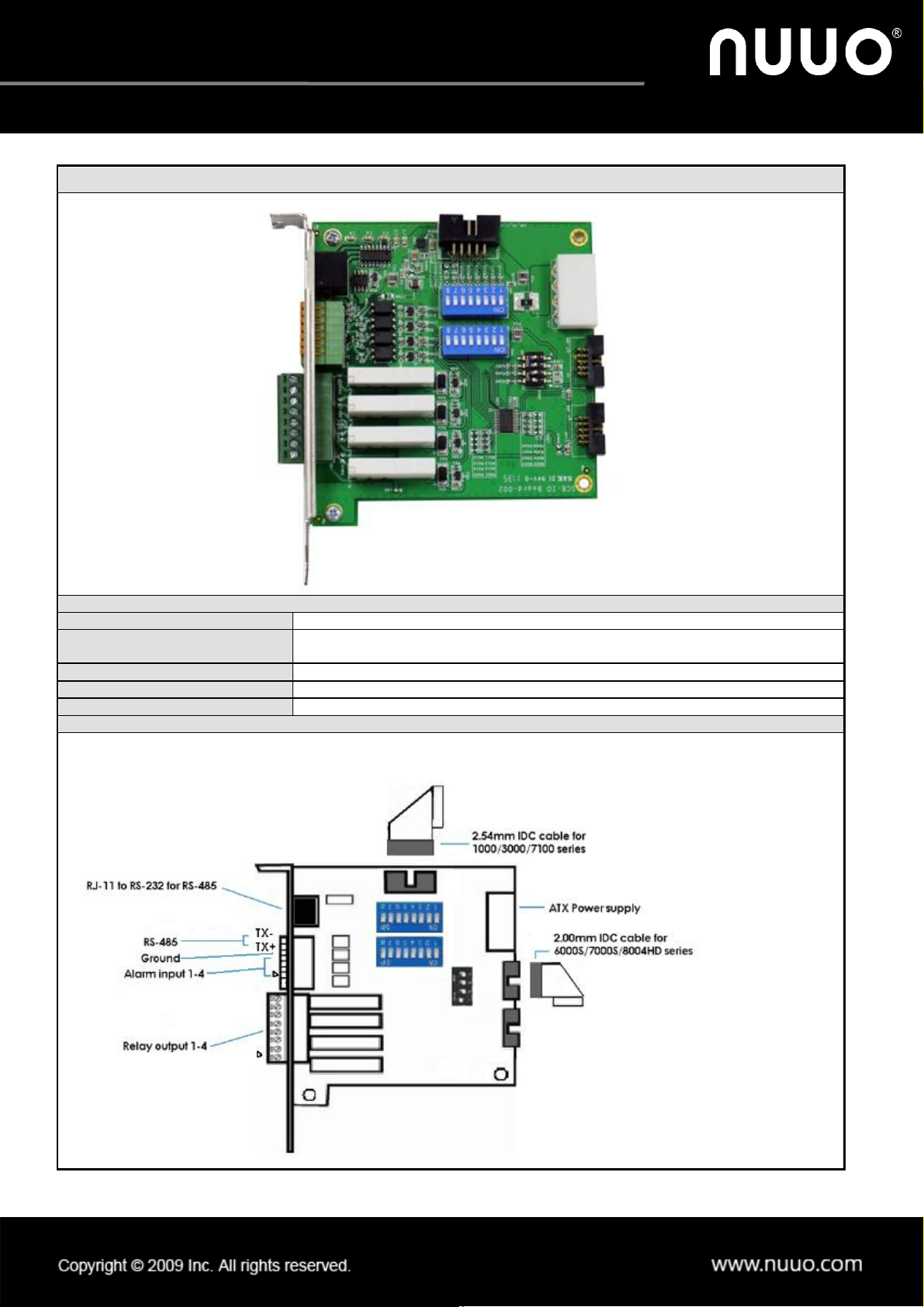

SCB-S-IO
Specifications
Model
SCB-S-IO
Support Capture Card Model
SCB-G3-3000, SCB-G3-1000 Series, SCB-6000(S), SCB-7000(S), SCB-7100 series,
SCB-8004HD series
Input
4 Input
Output
4 Output
Dimension
105 (W) x 120 (H) mm
Introduction
1000/3000/6000/7000/7100 series connect to S-IO via the 2.54mm socket (on the top of S-IO card)
6000S/7000S/8004HD series connect to S-IO via the 2.00mm socket (on the side of S-IO card)
