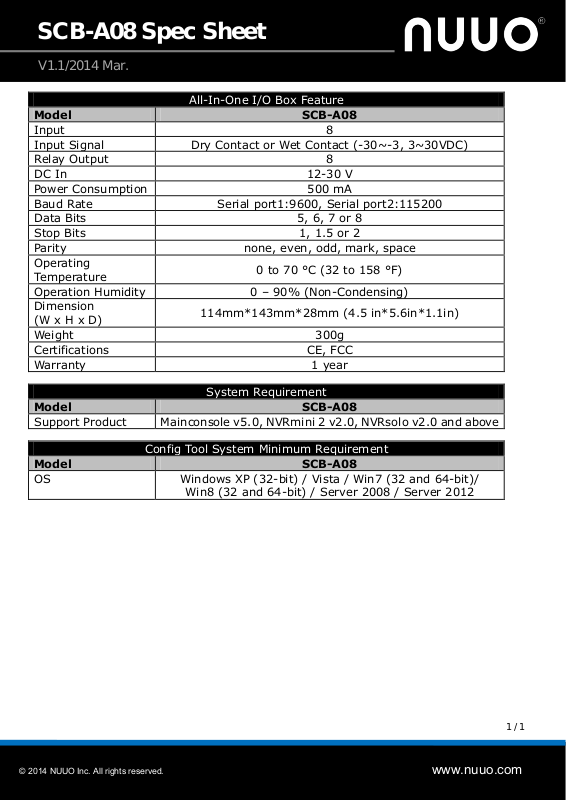

SCB-A08 Spec Sheet
V1.1/2014 Mar.
1 / 1
All-In-One I/O Box Feature
Model
SCB-A08
Input
8
Input Signal
Dry Contact or Wet Contact (-30~-3, 3~30VDC)
Relay Output
8
DC In
12-30 V
Power Consumption
500 mA
Baud Rate
Serial port1:9600, Serial port2:115200
Data Bits
5, 6, 7 or 8
Stop Bits
1, 1.5 or 2
Parity
none, even, odd, mark, space
Operating
Temperature
0 to 70 °C (32 to 158 °F)
Operation Humidity
0 – 90% (Non-Condensing)
Dimension
(W x H x D)
114mm*143mm*28mm (4.5 in*5.6in*1.1in)
Weight
300g
Certifications
CE, FCC
Warranty
1 year System Requirement
Model
SCB-A08
Support Product
Mainconsole v5.0, NVRmini 2 v2.0, NVRsolo v2.0 and above
Config Tool System Minimum Requirement
Model
SCB-A08
OS
Windows XP (32-bit) / Vista / Win7 (32 and 64-bit)/
Win8 (32 and 64-bit) / Server 2008 / Server 2012
