The Intelligent Surveillance Solution

Titan NVR

NuClient User Manual

Ver. 1.3.0.120426.00

Table of Contents

1 Installation / Uninstallation(Windows) ...................................... 4

2 Installation / Uninstallation (Mac) ............................................ 9

3 The Main Server/ Sub Serve Architecture ................................. 17

4 Log in .................................................................................. 18

5 Log out and Exiting ............................................................... 20

6 Display version information .................................................... 21

7 Interface Overview ................................................................ 23

7.1 Menu .............................................................................. 23

7.2 Live View ........................................................................ 24

7.2.1 View List ................................................................. 25

7.2.2 Content List ............................................................. 25

7.2.3 PTZ Control Panel ..................................................... 25

7.2.4 I/O Control Panel ...................................................... 25

7.2.5 Content Properties Panel ........................................... 27

7.2.6 Event Panel ............................................................. 27

7.2.7 View Panel ............................................................... 28

7.2.8 Status Bar ............................................................... 28

7.2.9 Toolbar ................................................................... 29

7.3 Playback ......................................................................... 29

7.3.1 Search Panel ............................................................ 30

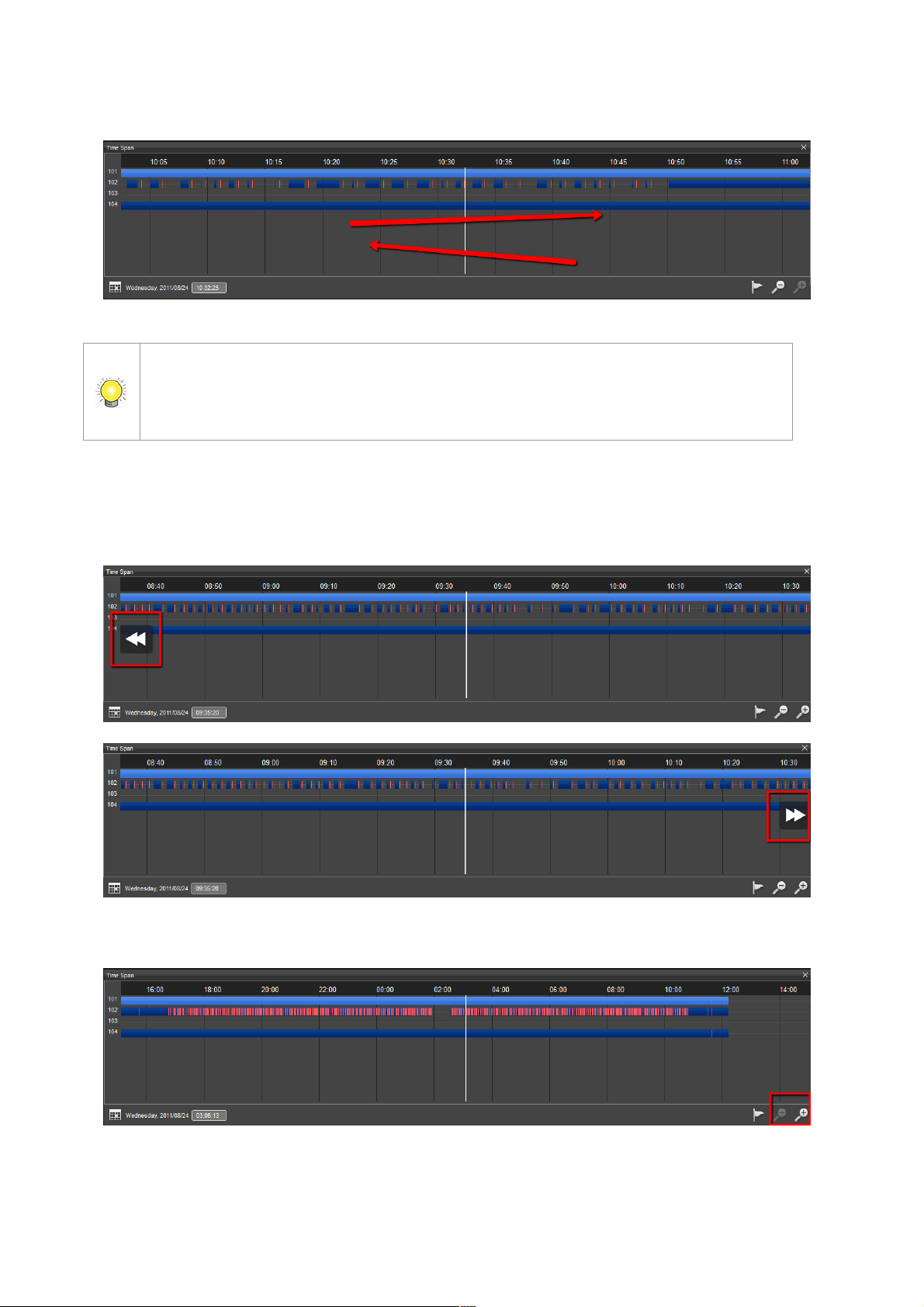

7.3.2 Timeline .................................................................. 30

7.3.3 Time Navigation / View Toolbar .................................. 30

8 Configure ............................................................................. 32

8.1 Configure Views ............................................................... 32

8.1.1 Add A View .............................................................. 33

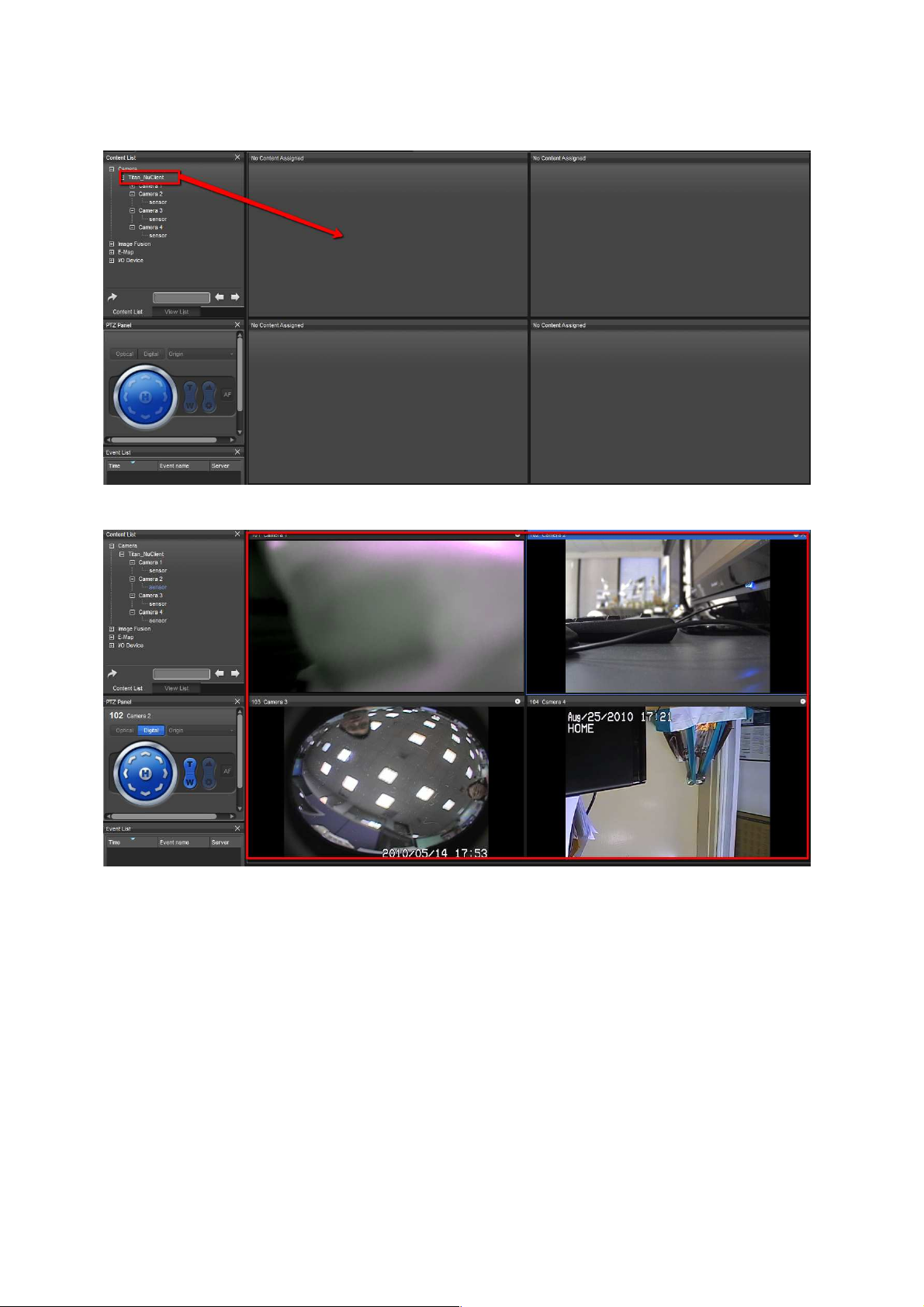

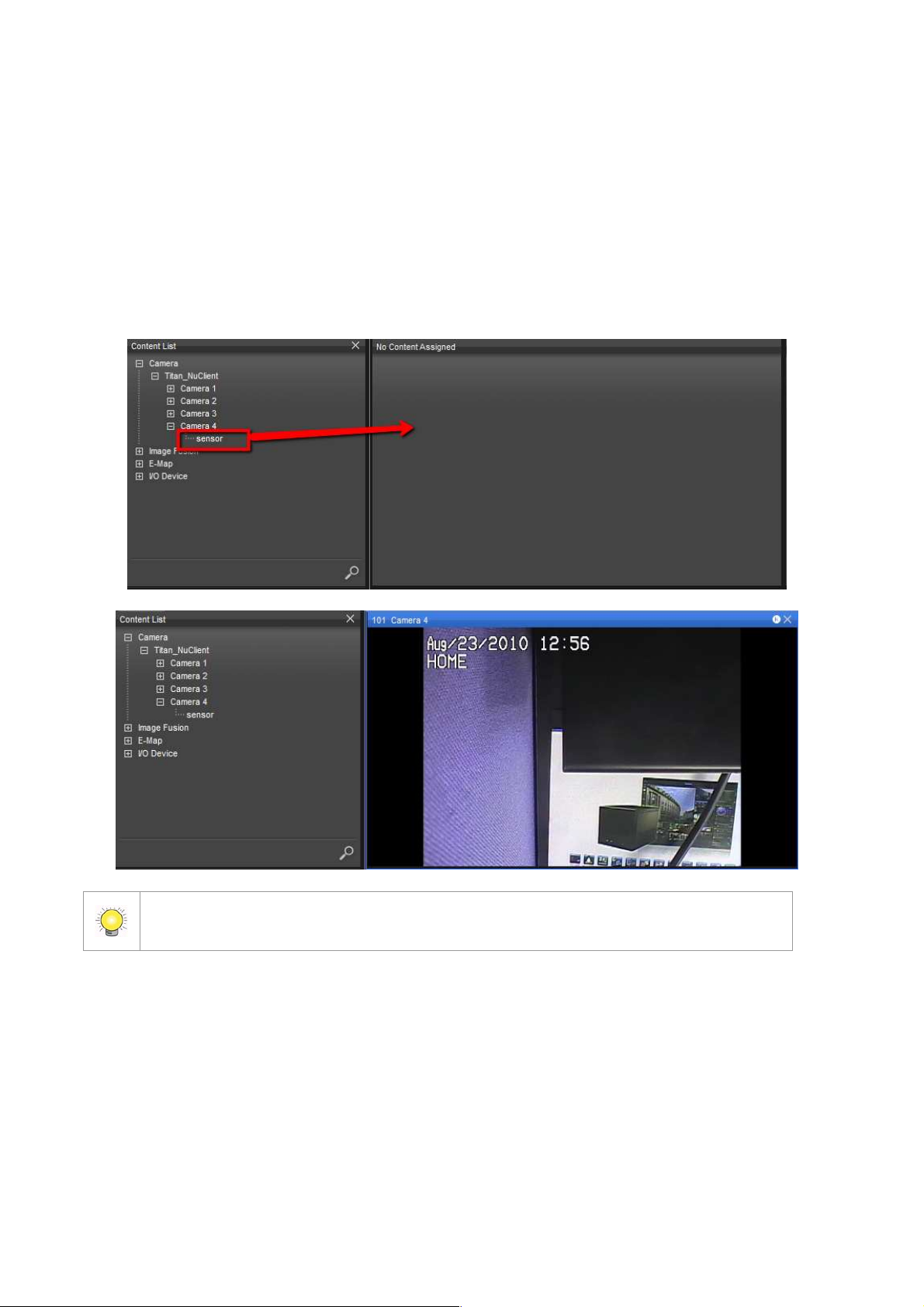

8.1.2 Add cameras to View ................................................ 36

8.1.3 Delete a Camera from View ....................................... 37

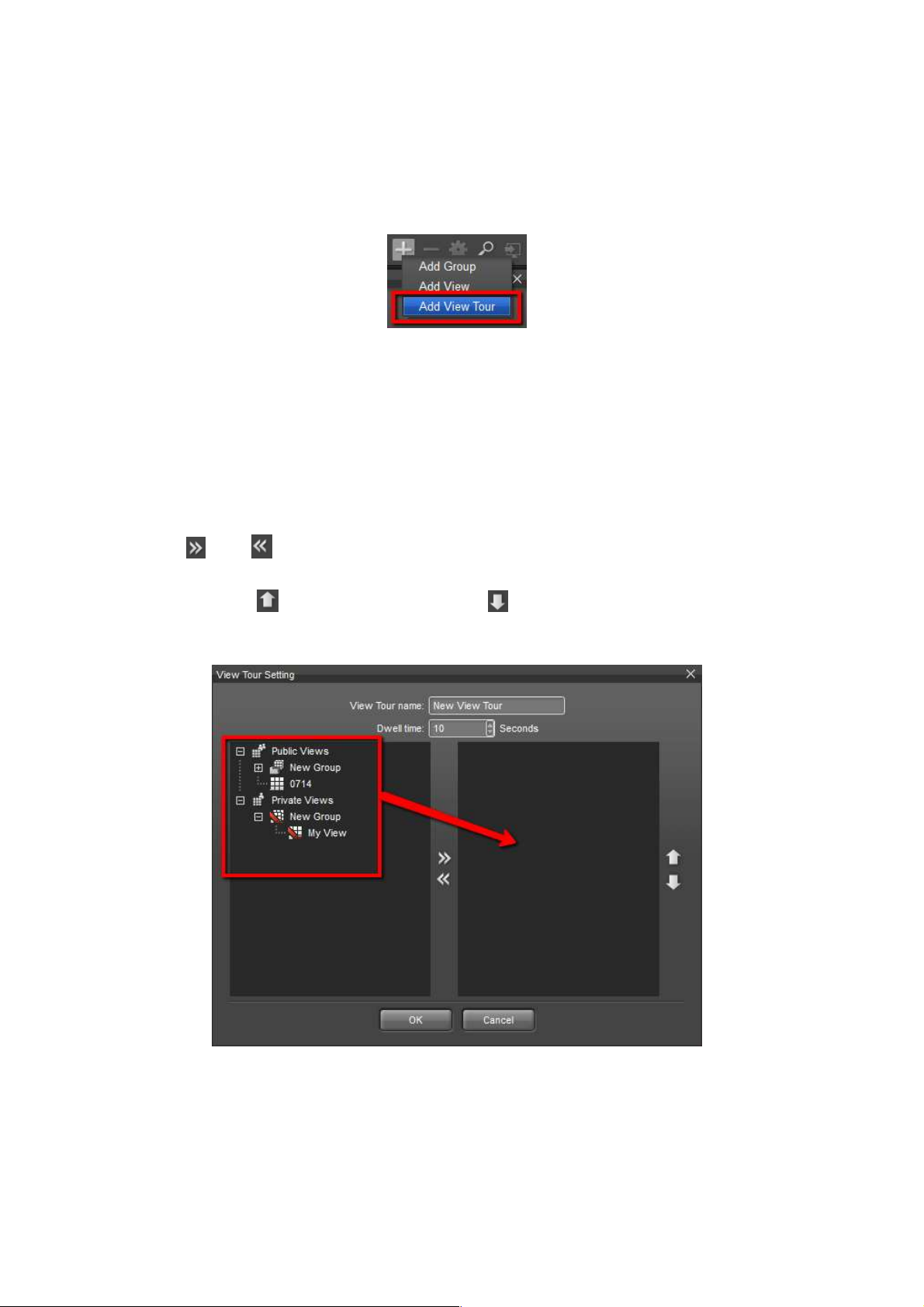

8.1.4 Add A View Tour ....................................................... 39

8.1.5 Search A View .......................................................... 41

8.1.6 Delete A View .......................................................... 41

8.1.7 Duplicate a view or a view tour .................................. 42

8.2 Configure Content ............................................................ 43

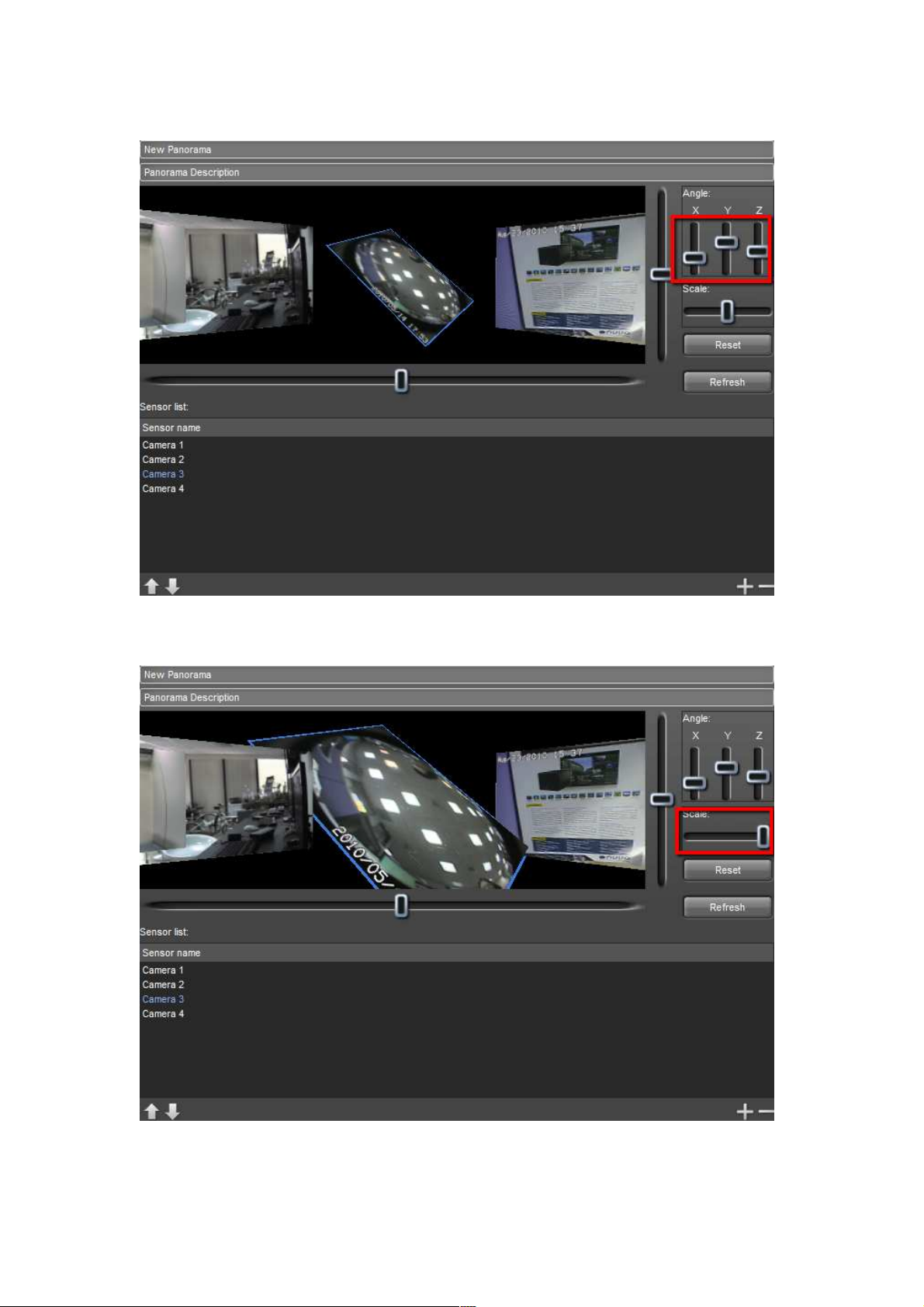

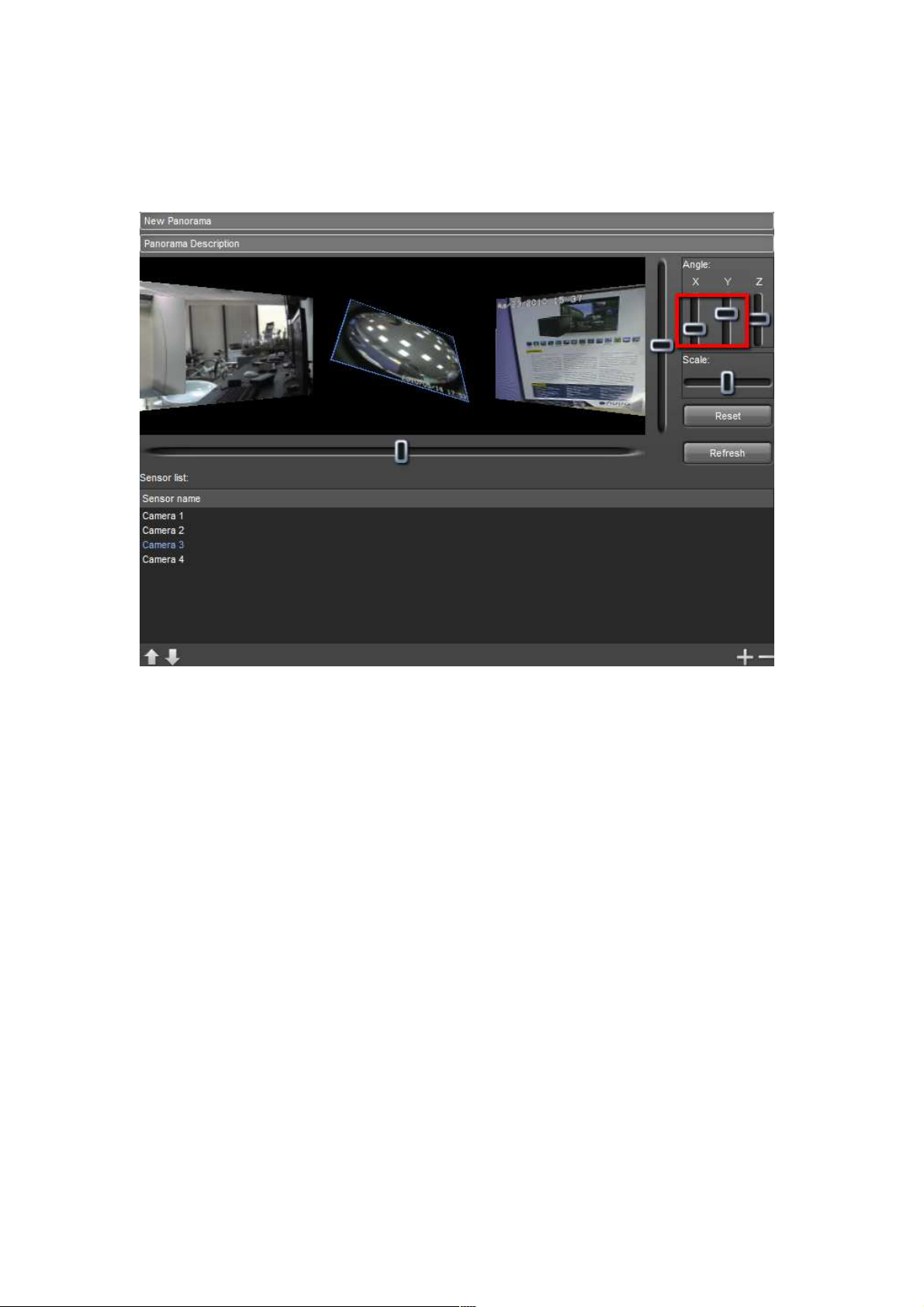

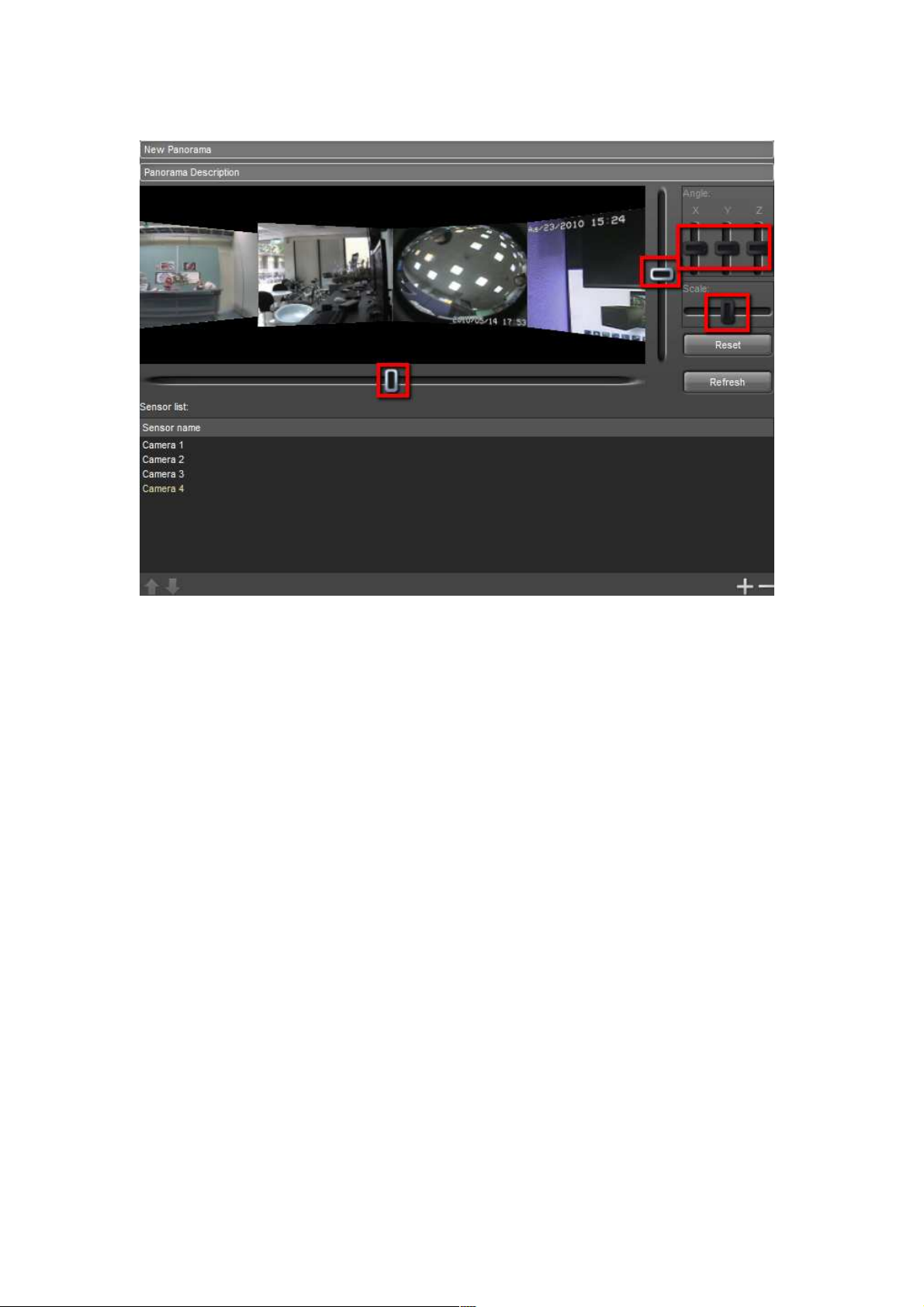

8.2.1 Add image fusion ...................................................... 43

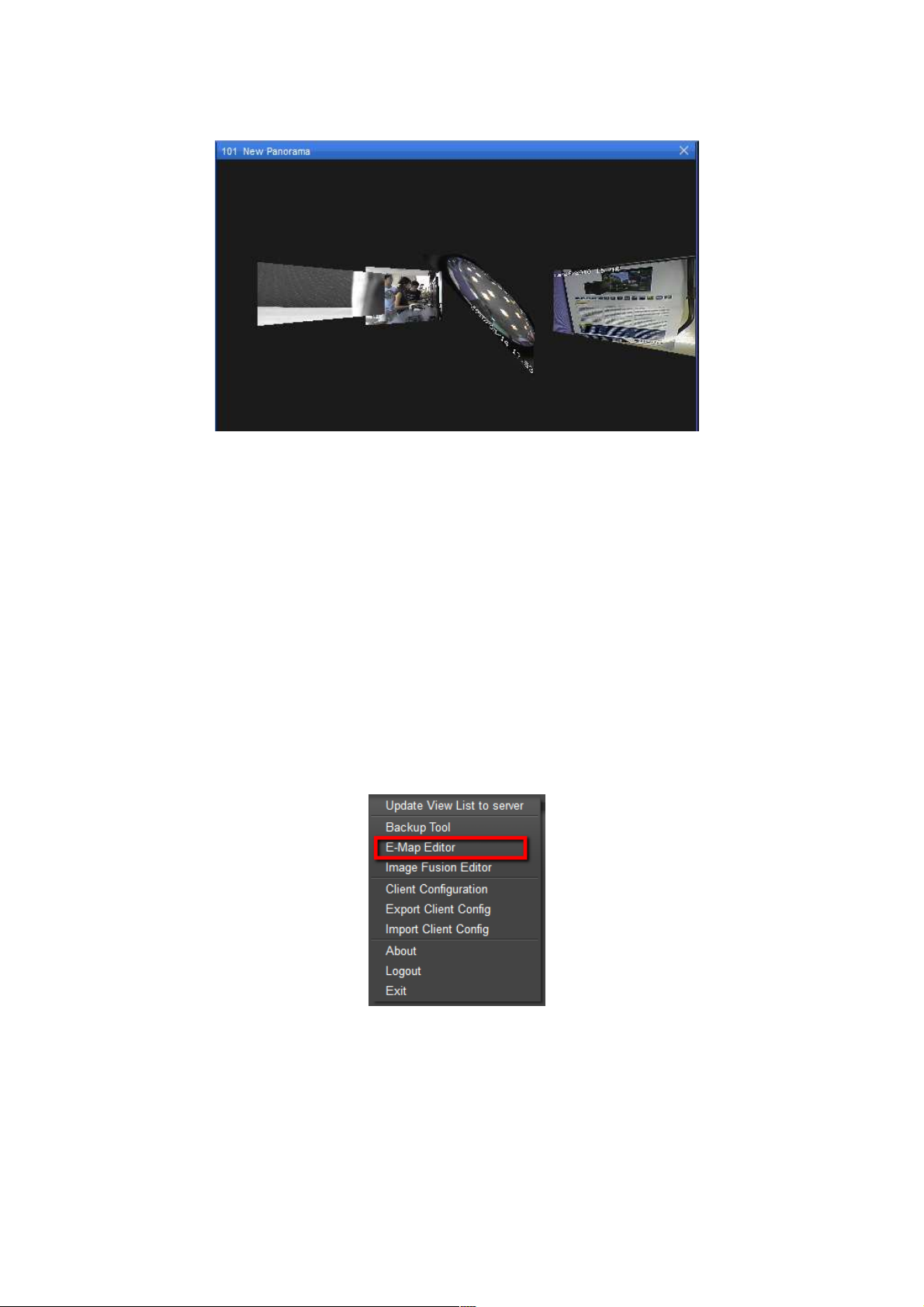

8.2.2 Example of image fusion ........................................... 48

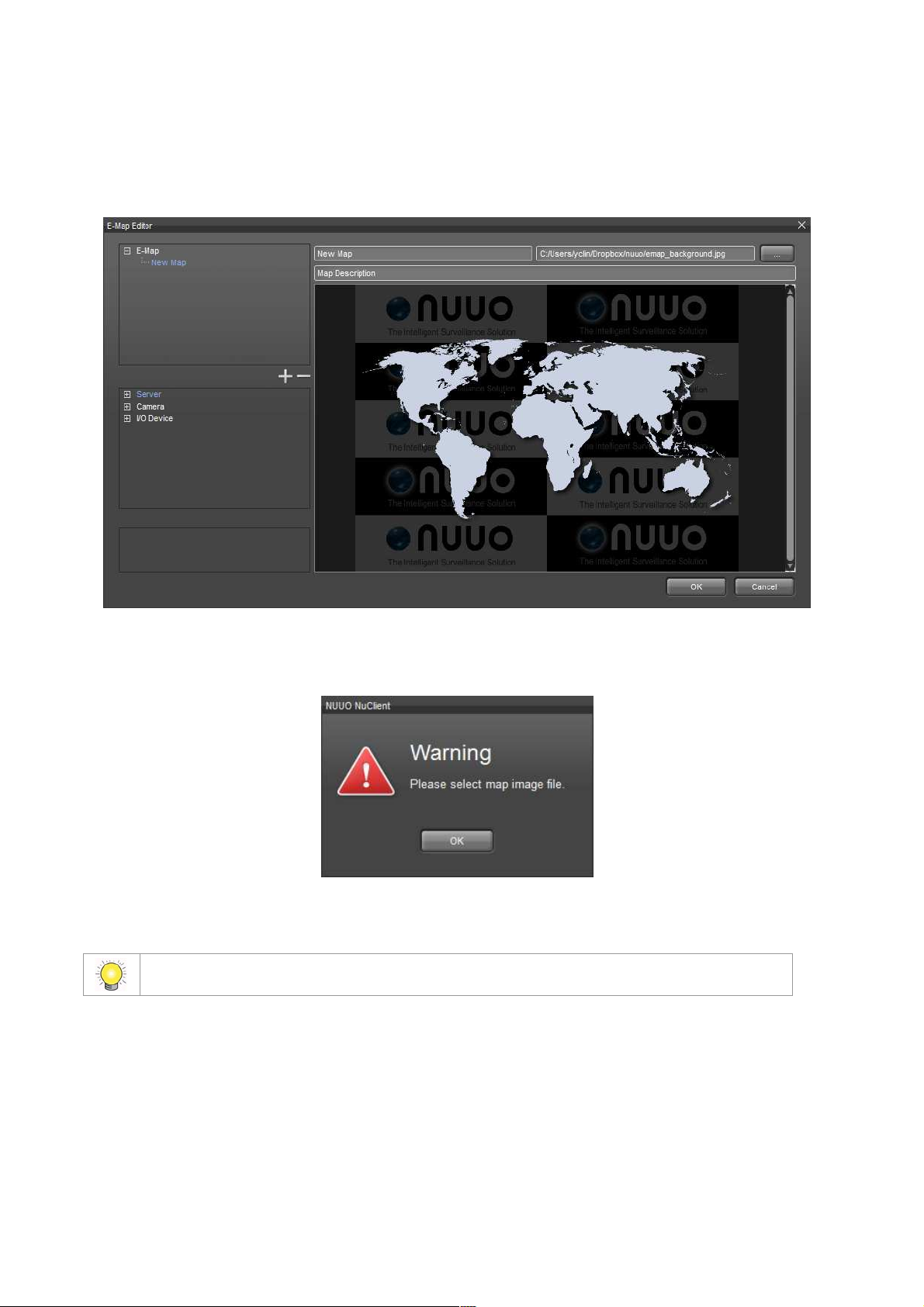

8.3 E-Map ............................................................................. 53

8.3.1 E-Map Editing ............................................................. 53

8.3.2 Properties .................................................................. 59

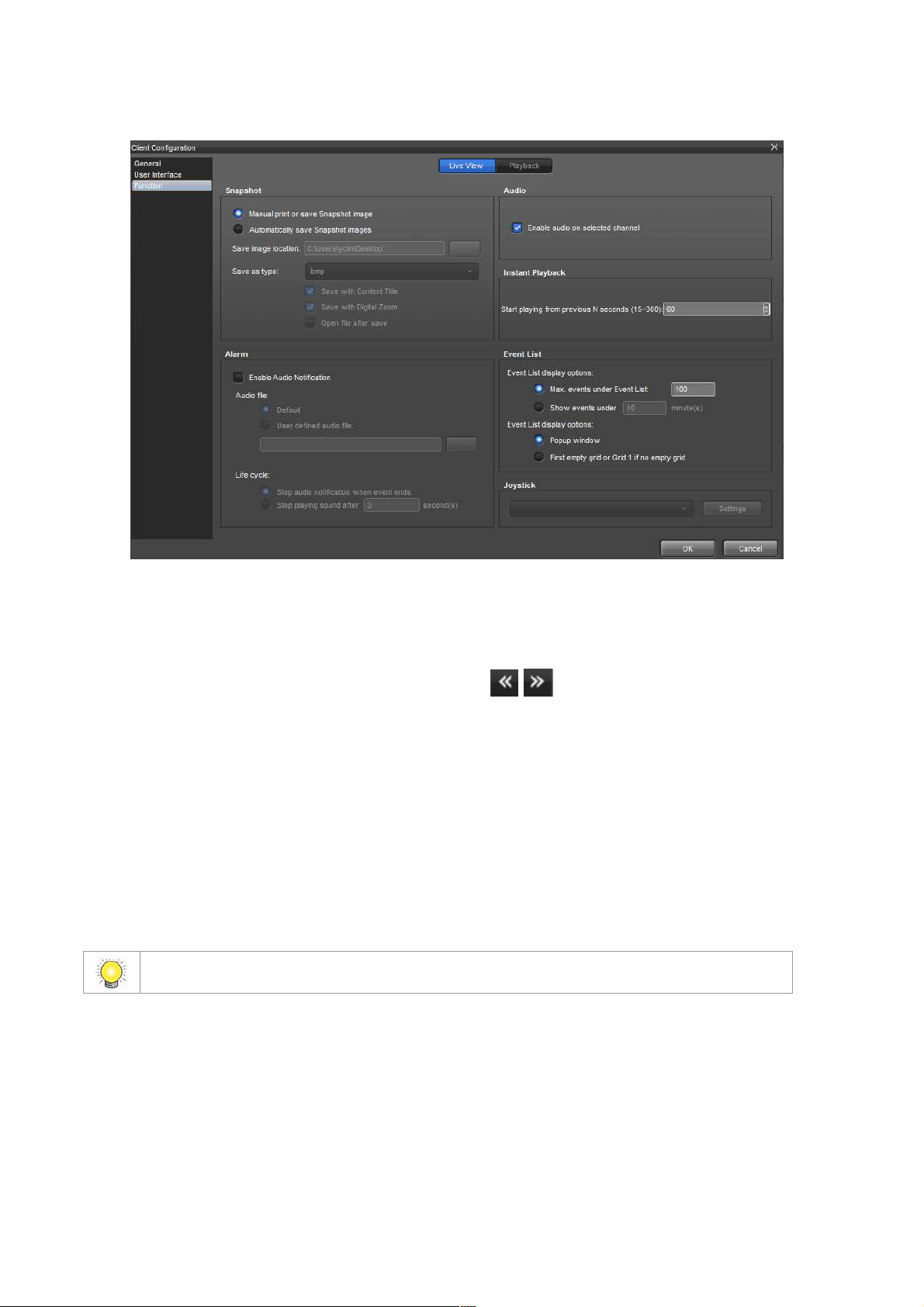

8.4 Application configurations .................................................. 61

8.4.1 General ................................................................... 61

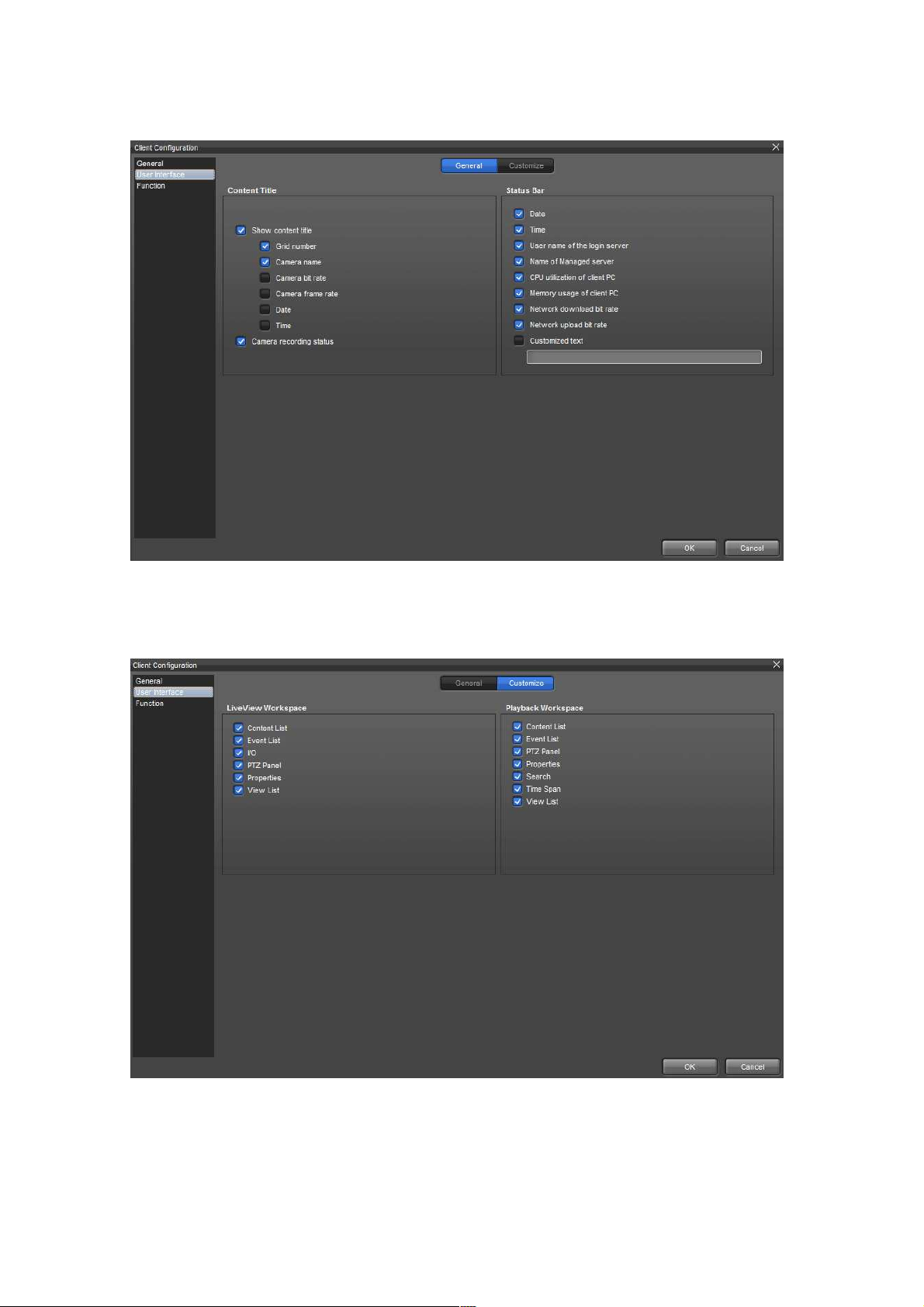

8.4.2 User Interface .......................................................... 63

8.4.3 Function .................................................................. 66

8.5 Export/Import Configurations ............................................ 68

9 Watch Live Video .................................................................. 69

9.1 PTZ ................................................................................ 69

9.1.1 Optical PTZ .............................................................. 69

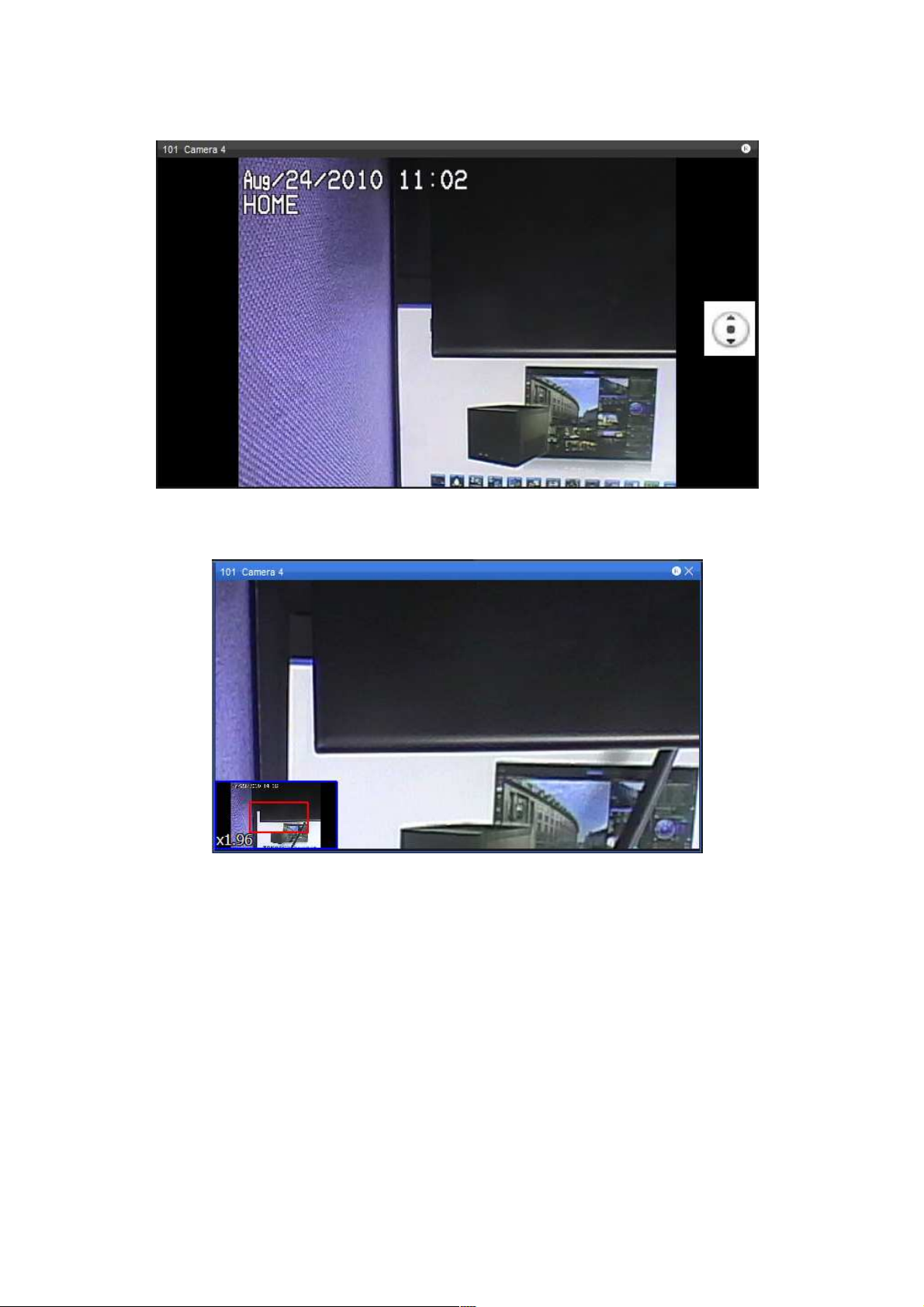

9.1.2 Digital PTZ ............................................................... 70

9.1.3 ImmerVision PTZ ...................................................... 74

9.1.4 The Modes of ImmerVision PTZ .................................. 76

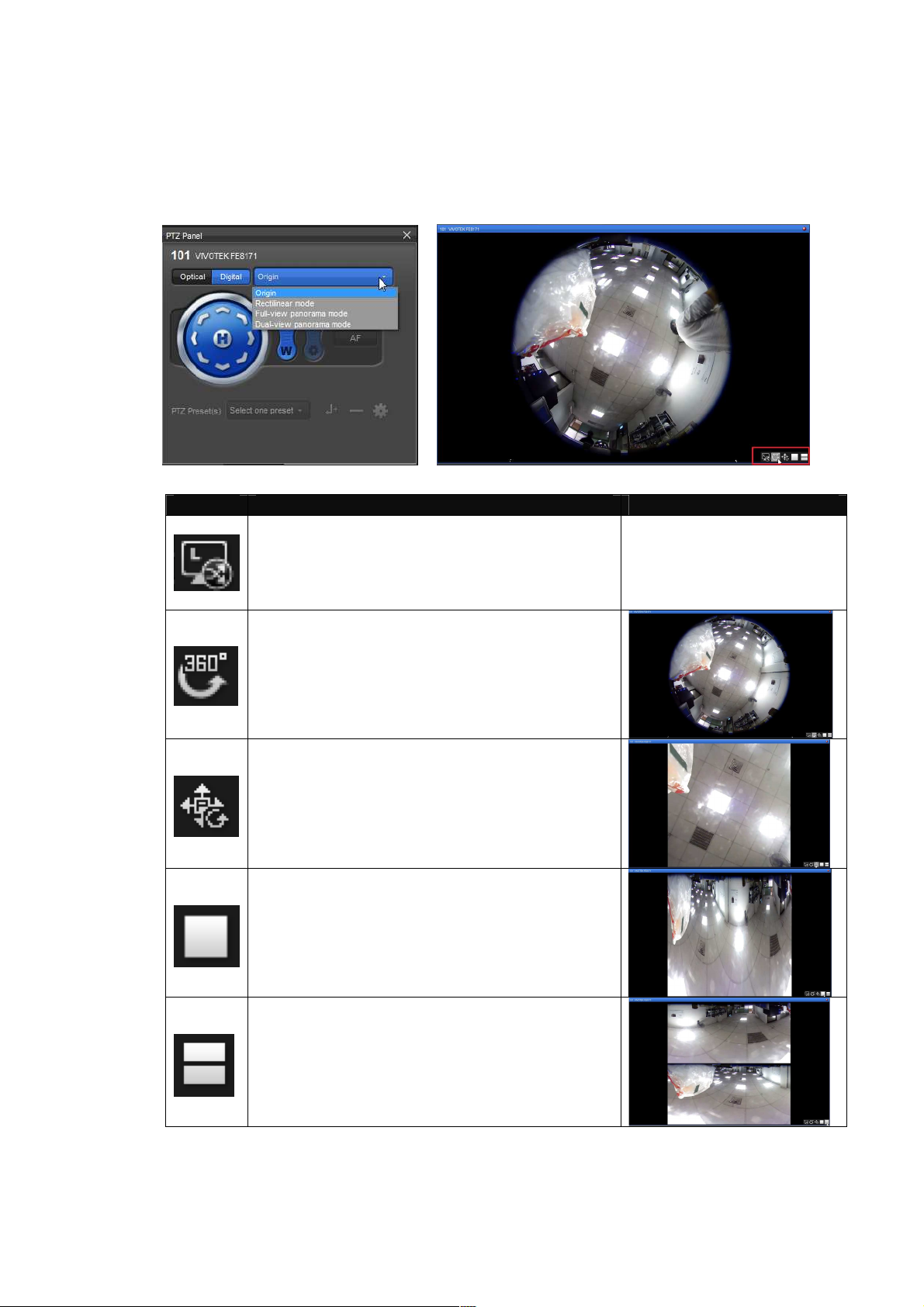

9.1.5 VIVOTEK fisheye mode .............................................. 80

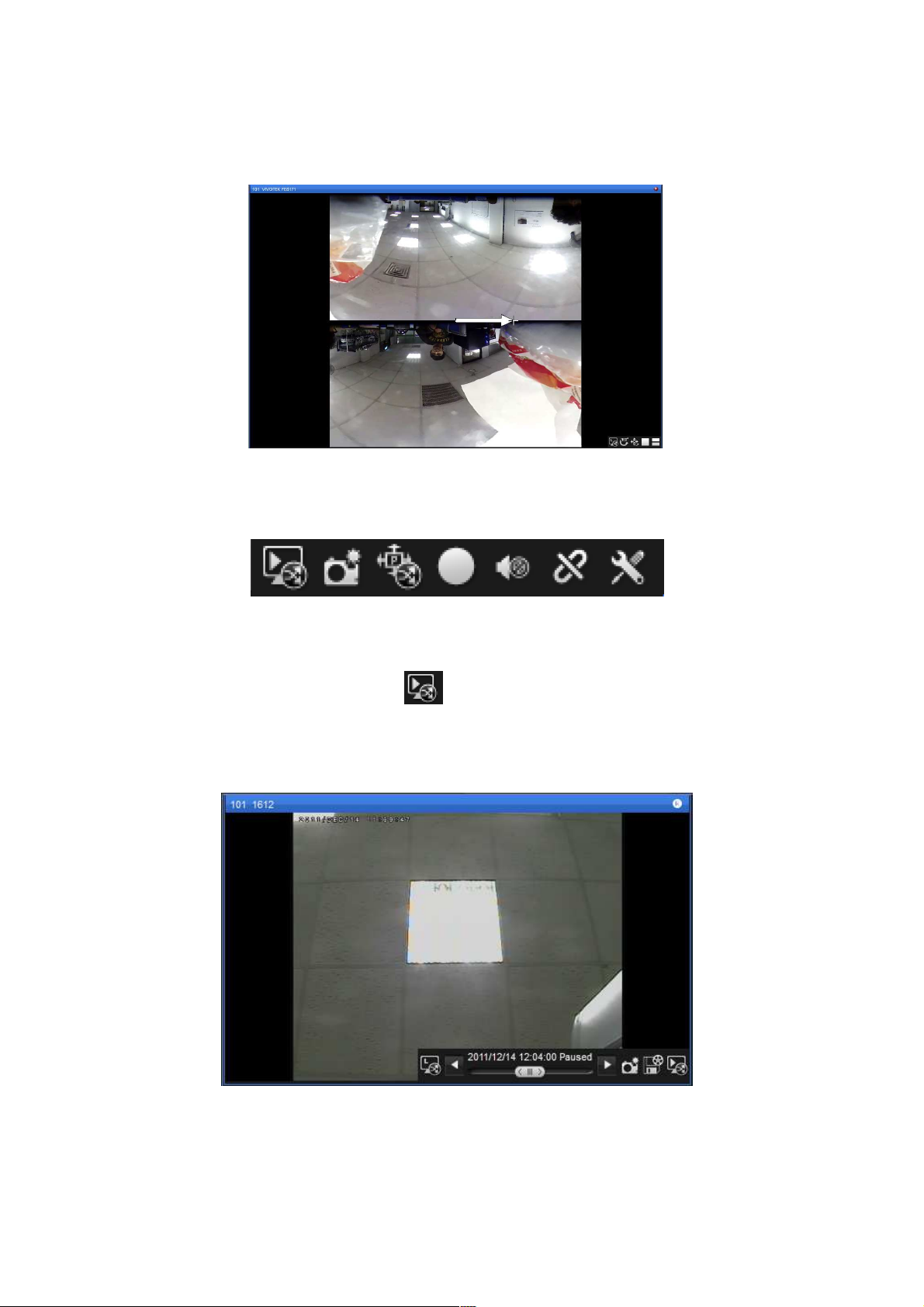

9.2 Toolbar Content ............................................................... 83

9.2.1 Instant Playback ....................................................... 83

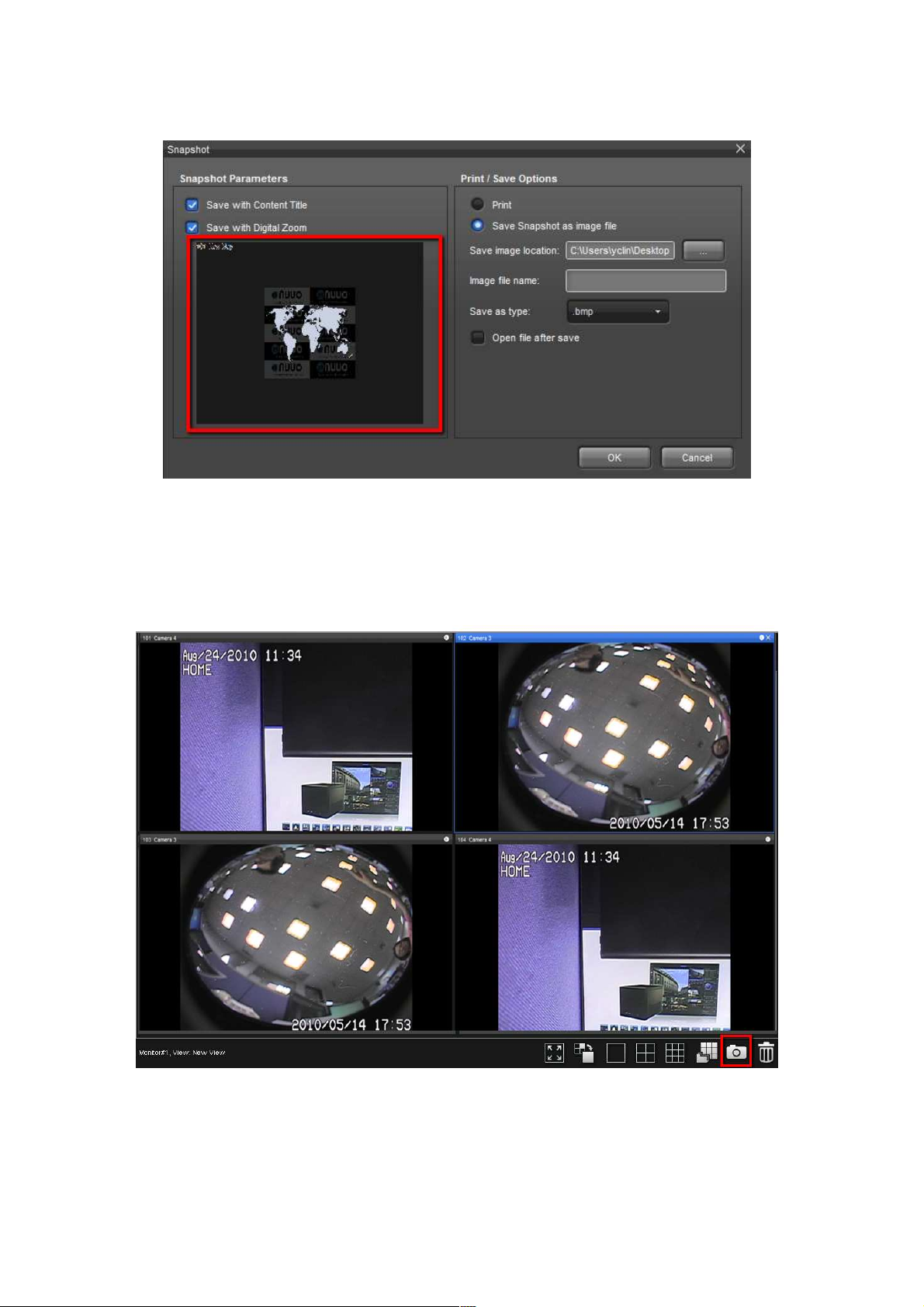

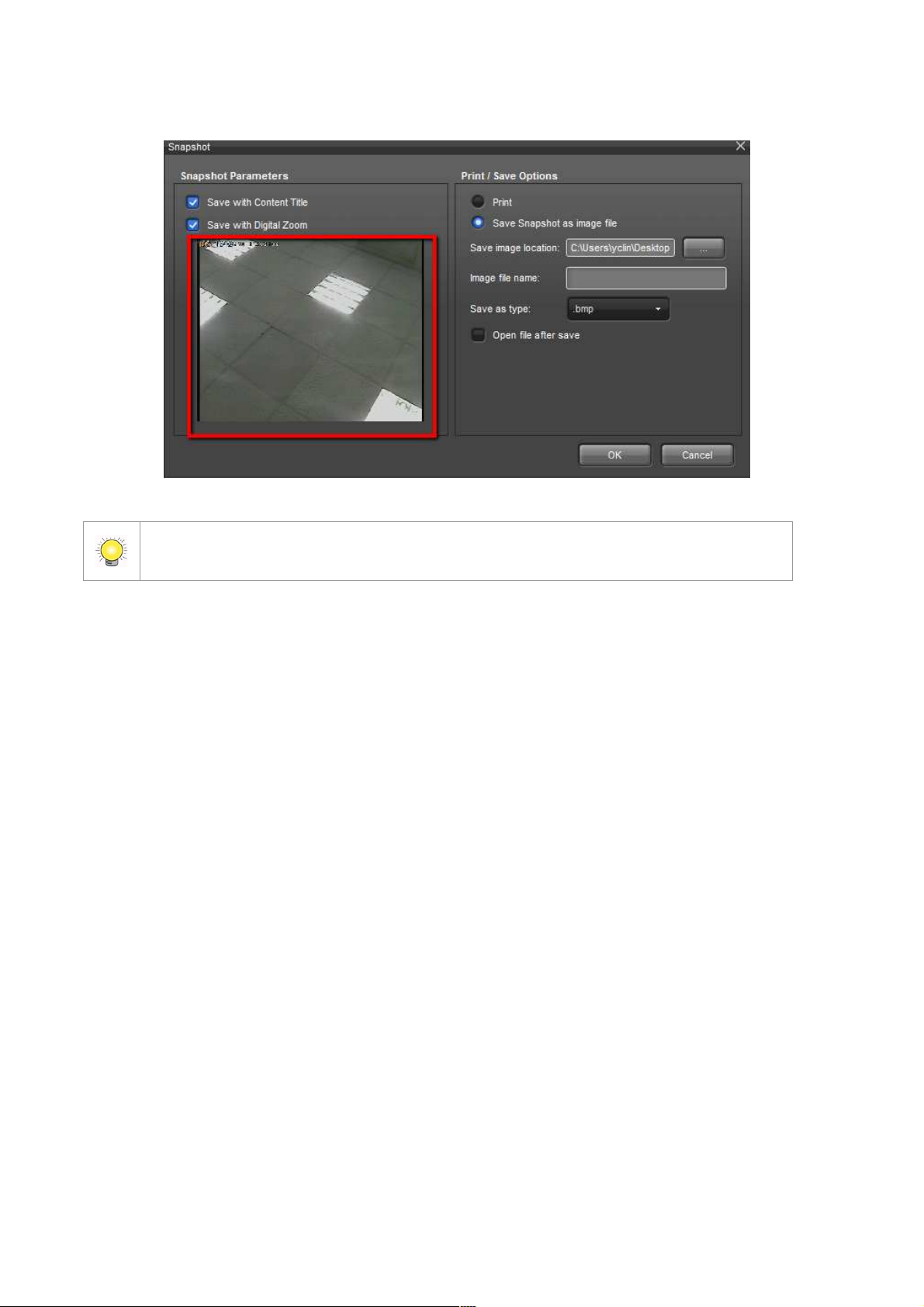

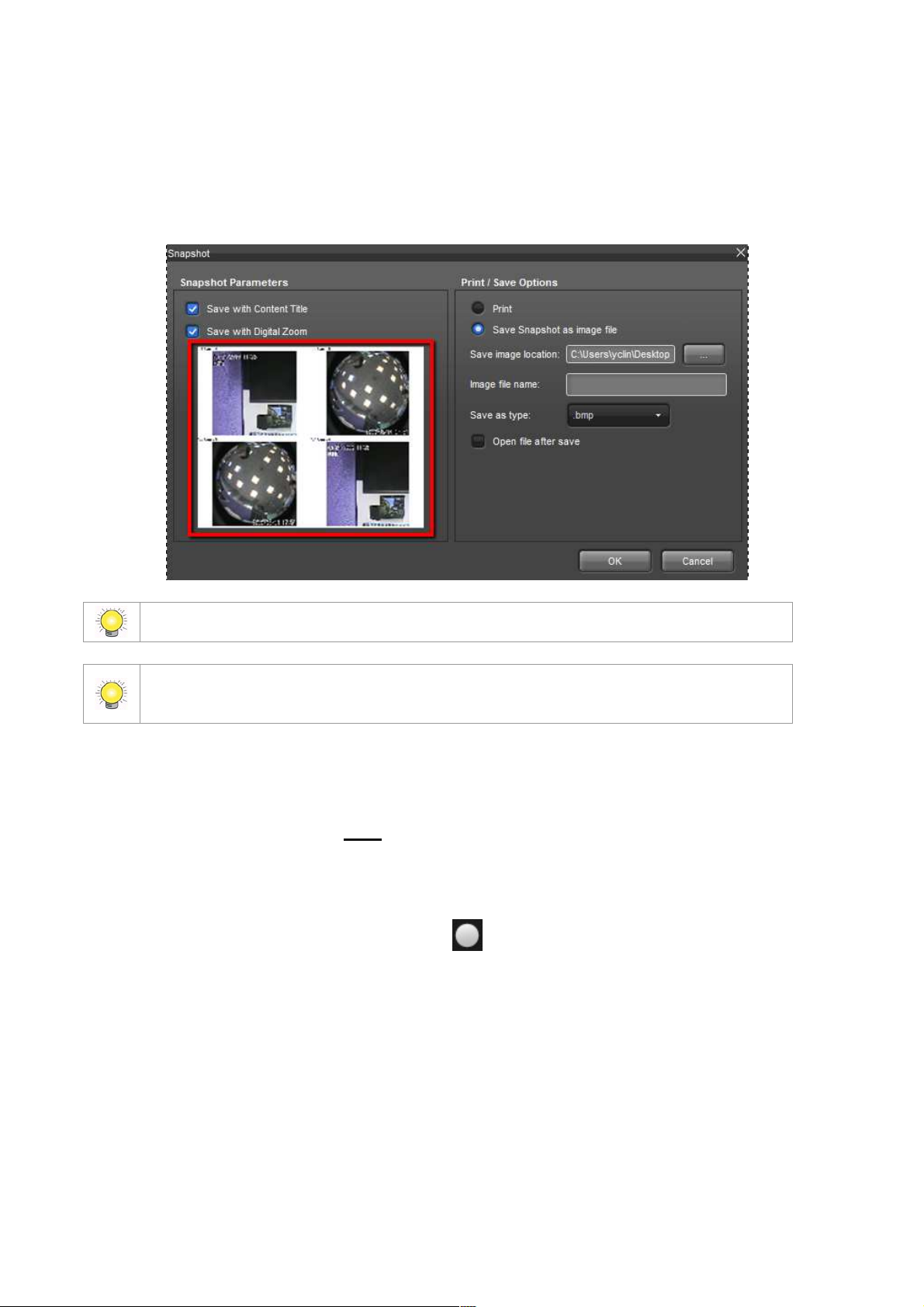

9.2.2 Snapshot ................................................................. 84

9.2.3 PTZ ......................................................................... 87

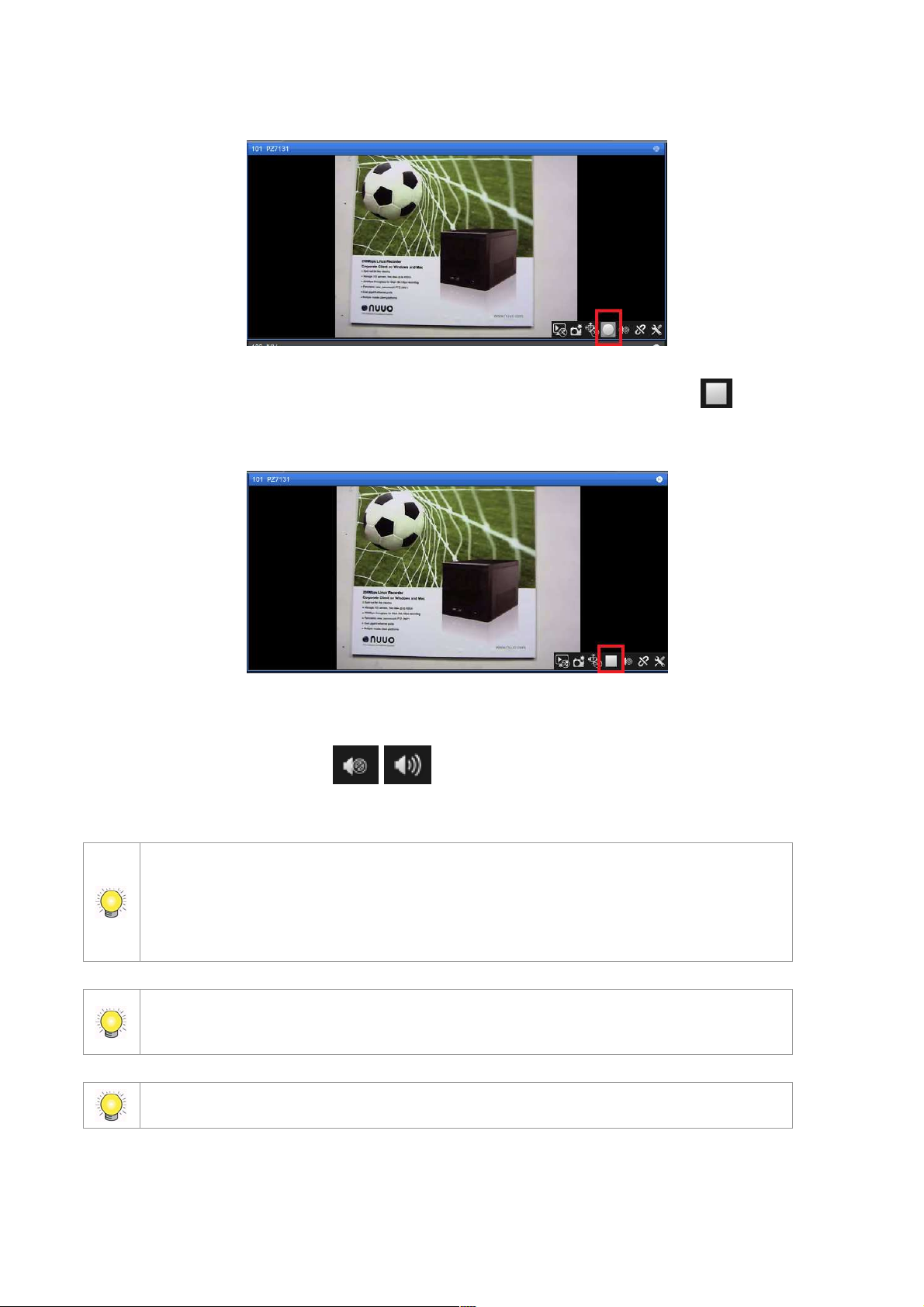

9.2.4 Manually Record Video .............................................. 87

9.2.5 Audio ...................................................................... 88

9.2.6 Connection .............................................................. 89

9.2.7 Connection Settings .................................................. 89

9.3 Property Window .............................................................. 89

9.4 Event List ........................................................................ 90

9.5 Joystick settings ............................................................... 91

10 Watch Recorded Video ......................................................... 93

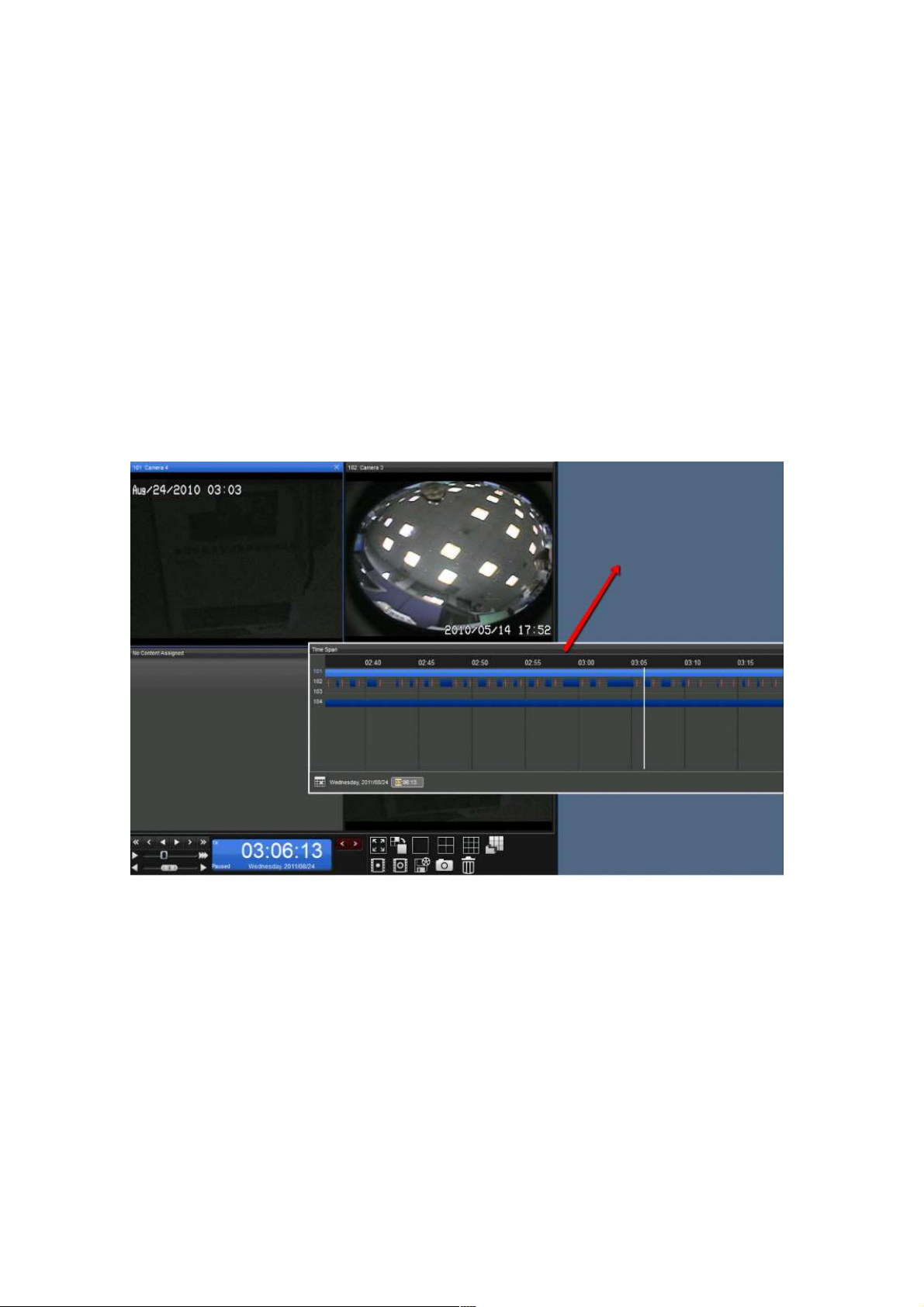

10.1 Search in Timeline ......................................................... 94

10.2 Toolbar Content ............................................................. 99

10.3 The Playback Control Panel ............................................. 99

10.3.1 The Playback Control .............................................. 100

10.3.2 The Date / Time Display .......................................... 101

10.3.3 Event browsing control ............................................ 101

10.4 Export Video ............................................................... 102

10.5 Snapshot / Print .......................................................... 105

10.6 Motion Search ............................................................. 105

11 Backup .............................................................................. 110

1 Installation / Uninstallation(Windows)

1. Insert the CD into your CD-ROM drive and double-click Setup.exe to

begin installation.

2. Click the Next button.

3. Accept the License Agreement and click the Next button.

4. Enter your name and the name of your company, and click the Next

button.

5. There are two types of installation, Complete and Custom.

• Complete: Install everything in this package.

• Custom: Install a custom selection of applications and configure the

installation directory.

Select the installation folder

Select the applications you want to install

6. Click on the Install button to start the installation.

7. The system is being installed.

8. After all the files are installed, the installer will disable UAC on your

Windows, if UAC is not disabled. That will require a restart.

Client

PC Minimum Requirements

Display

OpenGL

2.0 and later

Suppor

ted

RAM

1GB

2GB

User

1. HTTP Web browser

- Internet Explorer 8 and

9. Choose Yes to restart immediately or No to restart later, and click on

Finish.

10. After Windows is restarted, the installation is completed. After the

system is successfully installed, you should find it in your Start Menu, and you may start using the application.

CPU Intel Core 2 Duo, 2.6GHz

Card

Interface

Windows XP 32 bit Windows 7 32/64 bit

later

2. NUUO client application program

2 Installation / Uninstallation (Mac)

1. Insert the CD into your CD-ROM drive and double-click NUUO Titan

Series.mpkg to begin installation.

2. Choose your language and click the Continue button.

3. Click the Continue button and accept the License Agreement.

4. You can choose two types of installation, Install and Customize.

• Install: Install everything in this package.

• Customize: Install a custom selection of applications.

Select the applications you want to install

The install destination only supports the system hard drive at this version.

5. Click on the Install button to start the installation.

6. The system is being installed.

7. Choose Close to finish installation.

Client PC Minimum Requirements

CPU

Intel Core 2 Duo, 2.6GHz

Windows XP 32 bit

Windows 7 32/64 bit

RAM

1GB

2GB

User

3. HTTP Web browser

- Internet Explorer 8 and

4. NUUO client application program

8. After installation finished, you should find it in your Applications, and

you may start using the application.

Display

OpenGL 2.0 and later

Card

Supported

Interface

later and Firefox 7.0.1

Mac 10.6/10.7

We suggest that you avoid using on-board graphics card which will give you a poor

performance. NuClient may pop up an error dialog saying “Videos cannot be

displayed on the Client PC with on-board graphic card” for using an on-board

graphics card.

We also recommend that the drivers of graphics cards be upgraded to the latest versions.

The system requires OpenGL 2.0 or higher versions to be installed. An error

message will pop up if OpenGL 2.0 or higher versions are not found.

The minimum supported screen resolution 1024x768. NuClient will not run under

the minimum resolution.

3 The Main Server/ Sub Serve Architecture

One of the most advanced architecture design in NVRTitan is the Main Server/ Sub Server architecture. In the architecture, NVRTitan is not merely a single recording machine, but also a bridge linking with multiple NVRTitan boxes.

From the perspective of users, they do not need to connect to different NVRTitan boxes one at a time anymore. With NVRTitan, users can connect to just one NVRTitan to monitor the NVRTitan installed in multiple places. Refer to NVRTitan Server User Manual for details.

4 Log in

When the application is opened, you will see a log-in window. Please enter the server address you are going to connect to, the user name, and the password.

After entering the correct user and server information, you will see the main interface of the system.

If too many clients are trying to connecting to a remote server, then an error

message will pop up saying the number of maximum connections has been reached.

5 Log out and Exiting

1. To log out yourself from the system, please go to Menu / Log out.

2. If you make any change in the configurations, you may a dialogs

confirming if you want to update the modification when you log out. To update changes to server, please click the Yes button in the dialog.

3. A progress bar will appear to show the update status.

4. The login window will appear after the update is completed, and you are

logged out from the system when you see this dialog.

Both your primary monitor and secondary monitors will be closed when you log out.

5. After logging out, the system will still be running and stay in main memory.

To exit the system, please choose Exit.

6 Display version information

1. To show the version of NuClient, please click on About.

2. The dialog shows the version, the copyright information, and also the links

to NUUO’s homepage and its technical support site.

http://support.nuuo.com is NUUO’s technical support site. You may find all sorts

of technical information including FAQs, product specifications, and technical contact

information.

Preview:

7 Interface Overview

This chapter briefly describes the components in the interface and also their functions.

7.1 Menu

Clicking on menu, you will see extended functions:

 Update View List to server: Submit the changes you make during

your session. If you don’t have the privilege to modify a View List, an error message will pop up when you try to update modifications. User privilege can be configured on server.

 Backup tool: Save videos as is in local folders.  E-map editor: Open the map editor with which you may insert multiple

maps to add markers to specify the locations of cameras and I/O.

 Image Fusion editor: Open up the image fusion editor which allows

you to create a panoramic view from multiple cameras.

 Client configuration: Show all configurable parameters of NuClient.  Export Client Config: Save NuClient configurations to disk.  Import Client Config: Load NuClient configurations from disk.  About: Show software information.  Logout: Log out the current user. (NuClient will still be running.)  Exit: Log out the current user and exit NuClient.

When you exit NuClient, the display settings (the number of monitors and the view list) will be saved. Next time you open NuClient, it will try to restore the previous display settings.

7.2 Live View

Live view page displays video streams in a grid. Grid types can be configured using the toolbar below the live view area.

If you have multiple monitors, the Live View interface on secondary monitors is very similar. The main difference is in the toolbar.

The interface of Live View on a secondary monitor

Icon Definition

Switch between views

Close Live View on a secondary monitor

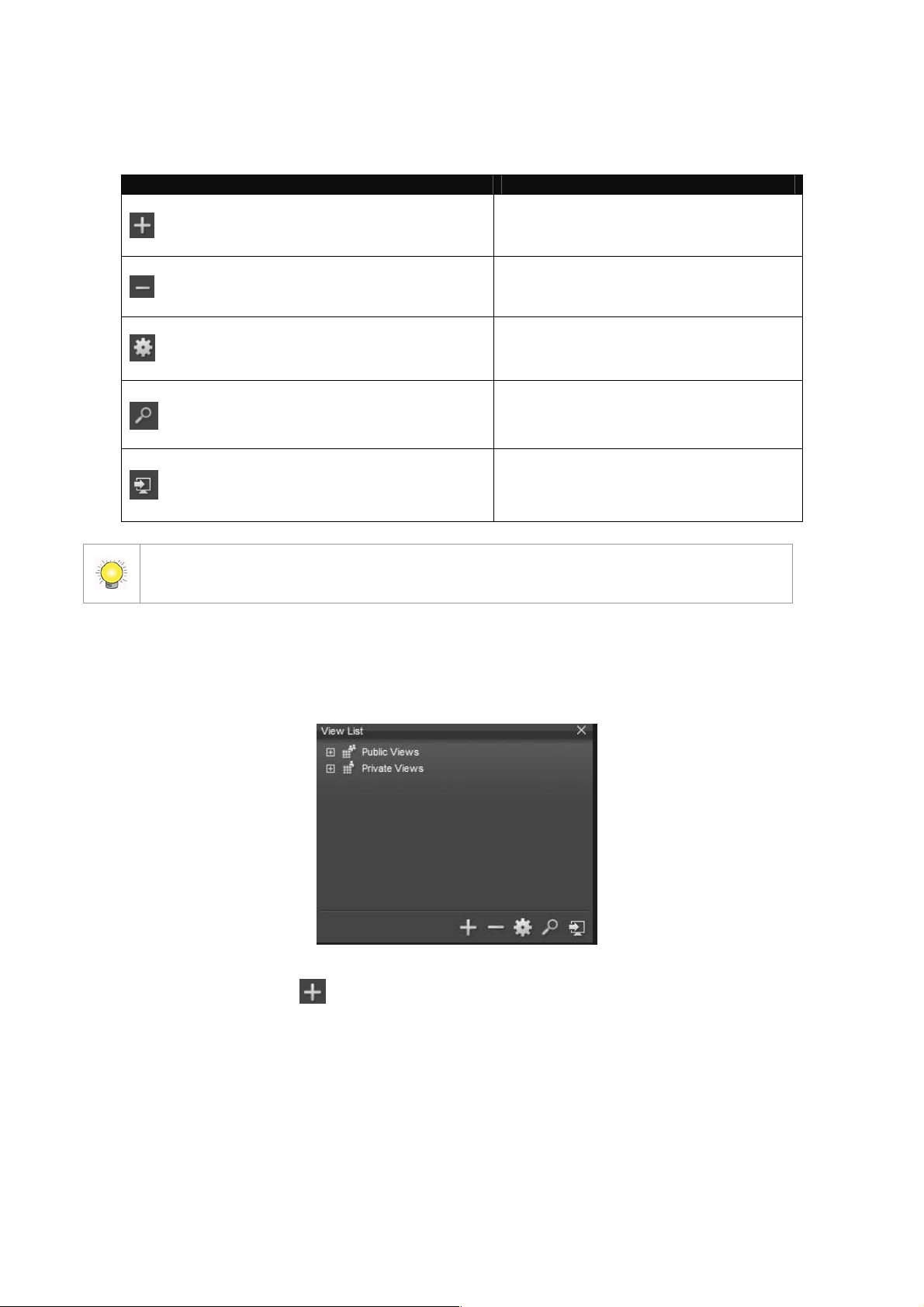

7.2.1 View List

A view is a collection of configurations including those of grid layouts, camera settings, aspect ratios, stream profiles, etc.

7.2.2 Content List

Content List shows all the devices a user have permission to access. A device can be a camera, an I/O device, an image fusion, or an E-map.

Each device node as shown in the screenshot below can be expanded to see the details of each device. Expanding each device will show subordinate items, such as sensors on cameras.

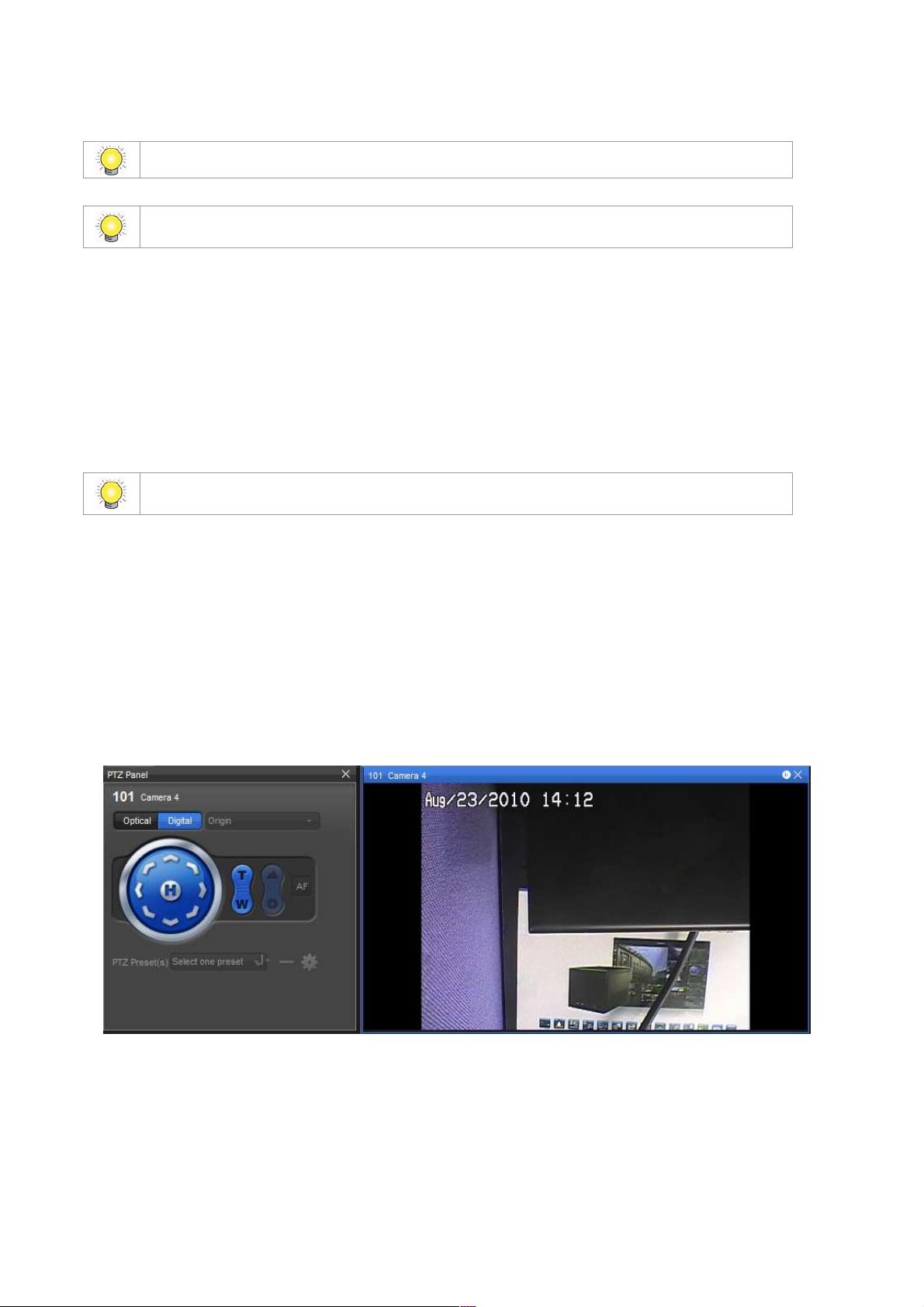

7.2.3 PTZ Control Panel

In the panel, you may control both optical and digital pan/tilt/zoom of your cameras. Optical PTZ is enabled only when a camera has PTZ capability. Digital PTZ is achieved purely by digital image processing, and it is enabled for all cameras.

7.2.4 I/O Control Panel

The status of I/O devices is displayed in panel. You can enable trigger outputs using this panel.

If the current content is an image fusion, in this panel, all of the I/O devices will be

displayed in one list. You may name the I/O devices on Titan server.

I/O configurations of a camera can be immediately shown by clicking on it in

Content List.

Content type

Displayed information in

7.2.5 Content Properties Panel

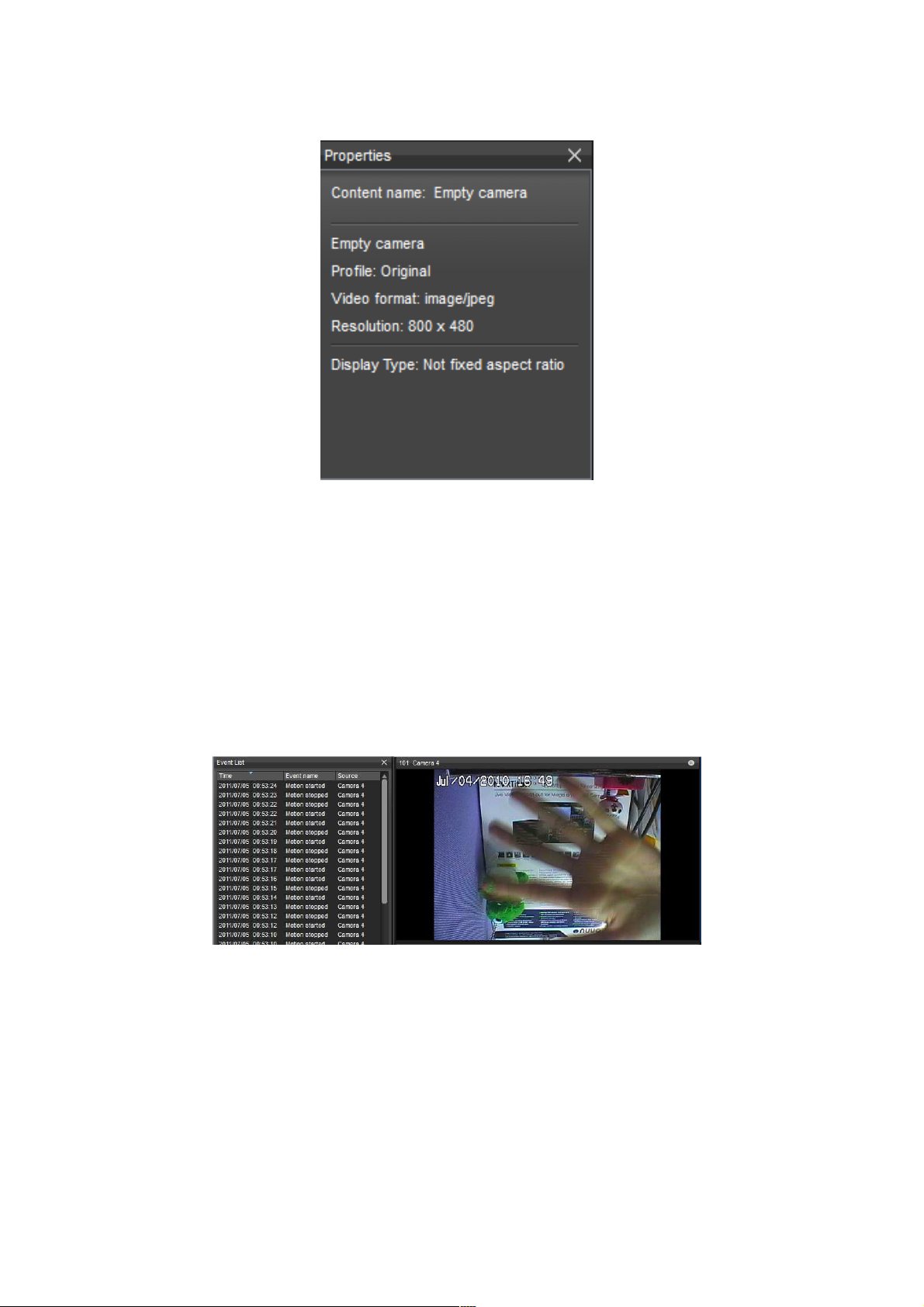

Properties panel shows the information of the current content in focus. The display information varies according to the type of content in a grid cell and according to the type of the current tab.

Camera

Emap

Image fusion

Live View

Camera name Video stream profile Video format Resolution FPS (Frames per second) Bit-rate Display type

Map name Map description

Camera name Video stream profile Video format Resolution

Playback

Camera name Video format Resolution FPS Bit-rate Display type

N/A

Camera name Video format Resolution

Content Properties Panel is a read-only. The properties cannot be modified through

this widget.

Clicking on a camera icon in an E-map will show only the camera name and the video format in the properties panel currently.

7.2.6 Event Panel

The events of cameras and I/O devices are displayed in this panel.

Events and I/O are configured in Titan server.

When an event is triggered and it is associated with a camera, then instant playback

of the camera will pop up. At most 3 instant playback windows can be opened.

7.2.7 View Panel

This is the main video display area. You may decide which device to be viewed in the area, manually record video, and change configurations of video streams.

7.2.8 Status Bar

In the status bar, you may see real-time system information including the

current date/time, user name, the address of the server you connect to, CPU usage, memory usage, network download/upload bit-rates, and custom text.

7.2.9 Toolbar

The toolbar provides several quick buttons of some handy functions.

Icon Definition

Toggle full-screen

Toggle single grid

The favorite grid layouts. This is configurable in Options.

Switch different grid layouts

Take a snapshot

Remove the content in the selected channel

Full-screen display is supported by desktop NuClient, but not by the web edition.

7.3 Playback

The common panels are the same as those seen in Live View page, but there are some extra panels in Playback page.

7.3.1 Search Panel

In this panel, you may set up a search for motion in videos.

7.3.2 Timeline

Timeline is a user-friendly representation of time and recorded data. You may not only quickly have an overview of the time span of video files, but also quickly locate the video at a specified time.

Time navigation is a set of navigation buttons, scroll bars, and image exporting tools.

You can open the system in different screen resolutions and the window can be

resized to fit your needs.

Each component in the interface is a dockable widget which can be placed anywhere in the current window. You may resize each of the components by clicking on the edges of dockable widgets, and you may arrange them in the way you like. Please see the following screenshot for an example.

Live View can be displayed both in the primary monitor and in secondary monitors,

but Playback can open only in the primary monitor.

Public View

Private View

Who can edit?

The users with edit

privilege of the server

Everyone

8 Configure

8.1 Configure Views

A view is the configuration of how you arrange video content in the view area, video stream settings, and the grid layout. Views can be categorized into Public View and Private View. Public Views are configured by the users who have the editing permission on the server and can be viewed by any users. Private views are visible only to who edit them, but every user can view private views.

The comparison between Public View and Private View:

Who can view? Everyone Visible only to view

owners

Icon Definition

Add view/group/view tour

Delete view/group/view tour

Configure view/group/view tour

Send view/group/view tour to a secondary monitor when available

Live View can be displayed both in the primary monitor and in secondary monitors,

but Playback can open only in the primary monitor.

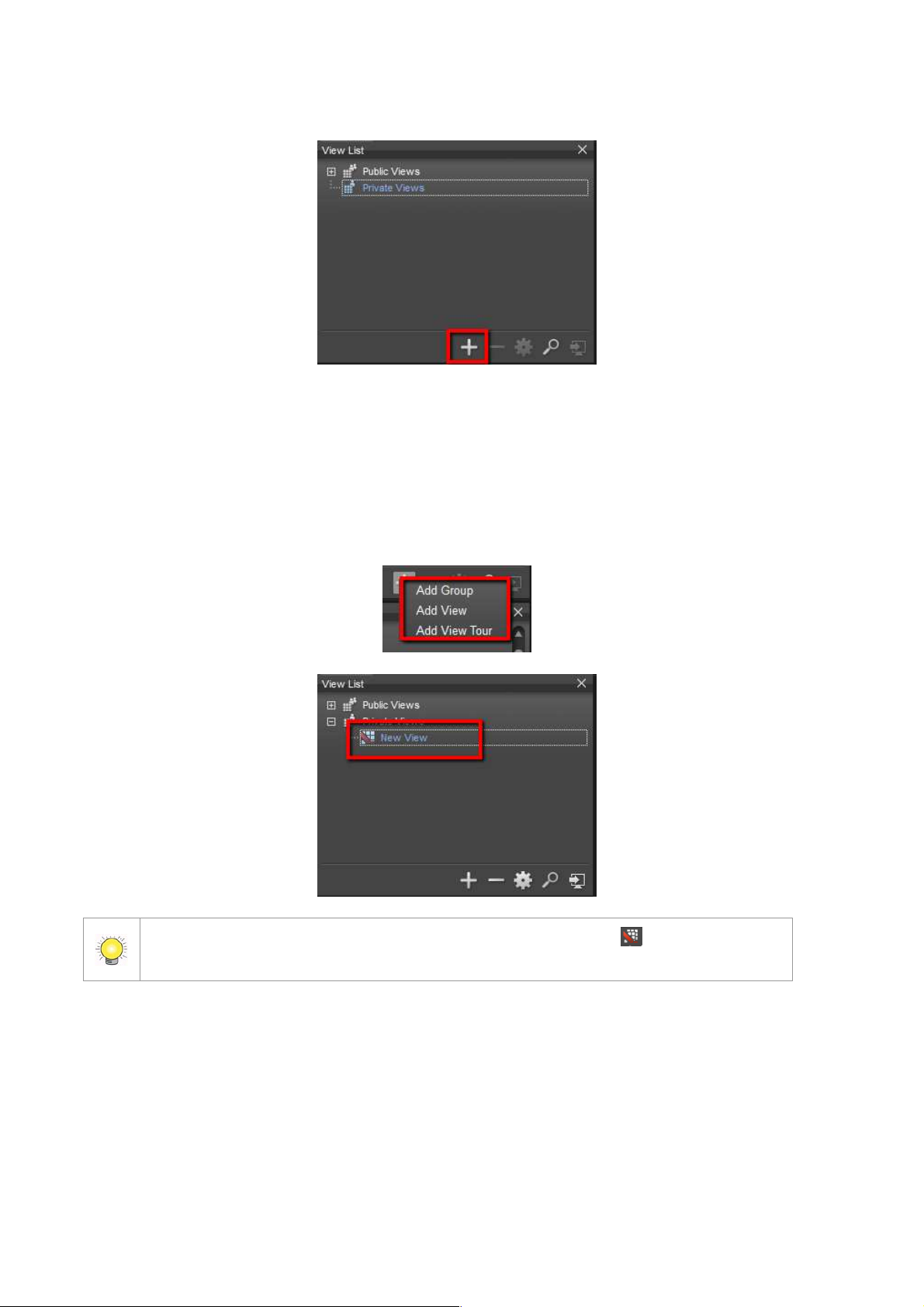

8.1.1 Add A View

1. Select the type of view, either Public or Private, to be created.

2. Click on the Add button.

3. Clicking on the Add button brings up a list of the types of items you may

add to your view list. Besides view, you may also add View Group and View Tour. A view group is a group of views which can be organized into a tree structure. It is good for you to manage views. A view tour is a set of different views which are automatically rotated to show in the view area.

When you modify the content in View List, a modification icon will come with

modified items. Any modification is not saved to remote servers until you upload it.

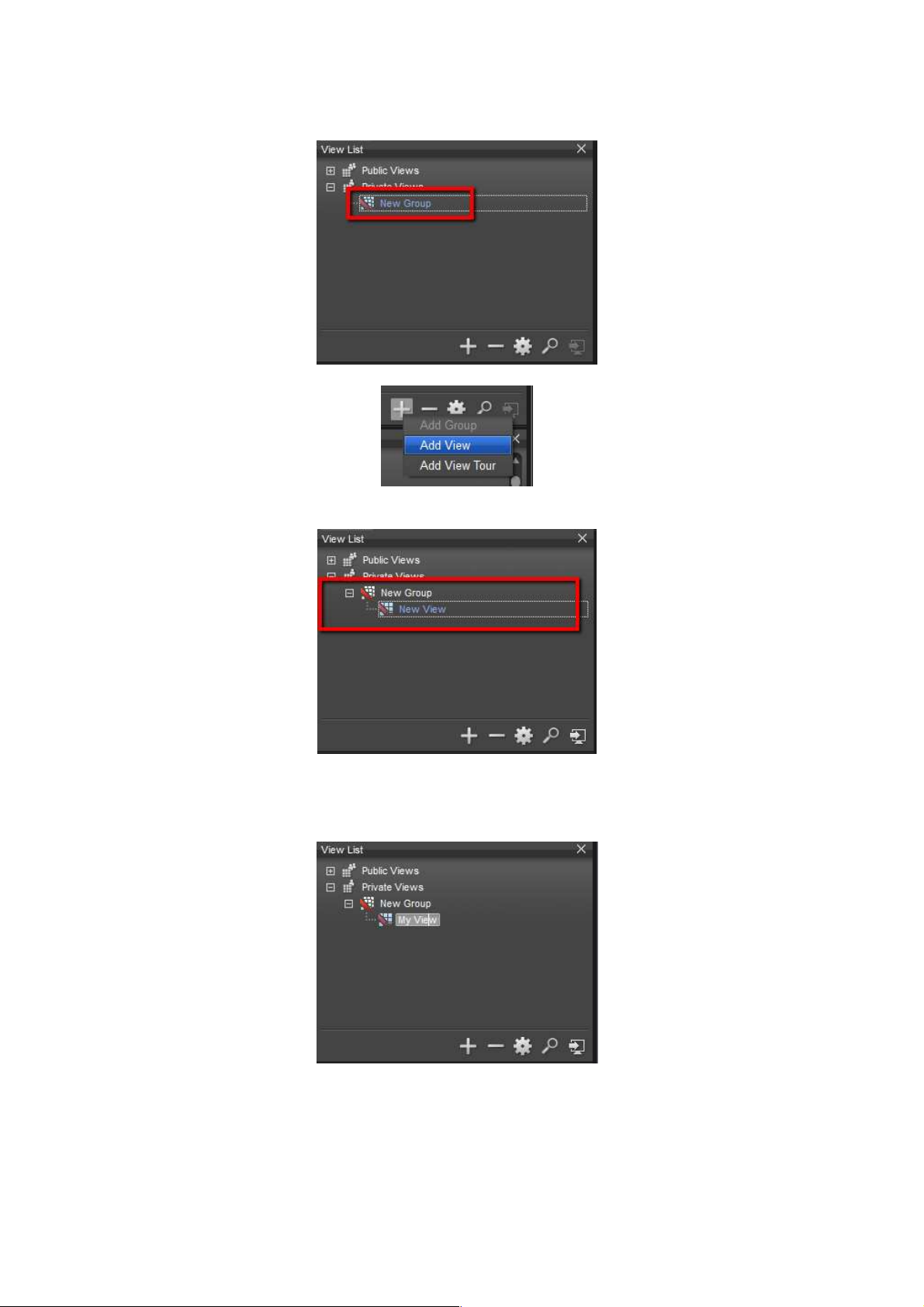

4. Click on Add Group and new view will be added under your selected view

type.

5. You may click on the name to change it.

8.1.2 Add cameras to View

1. There are several ways to put content items onto the view area. You can

drag and drop a server or a single camera.

2. If you drag a single camera or a sensor to a grid cell, then the camera’s

video will show in the cell.

To remove content from the view area, please select one channel and click on the X

in the top-right corner.

3. If you drag a server to the grid, cameras will fill up in the view area until

no grid cells are available to display more video streams.

8.1.3 Delete a Camera from View

1. To delete camera from view is easy.

2. You can click on the title bar of a channel and drag it to the trash can in

the corner.

3. You can also click on the trash can icon in the corner. Clicking on it will

prompt a dialog confirming the removal. Clicking on OK will remove the content from the selected channel.

8.1.4 Add A View Tour

1. Click on Add View Tour.

2. In View Tour Settings, on the left, there are the hierarchy of available

views. The rectangle area on the right is the list of views that are placed on the view tour. On the top, you may set the name of this View Tour and the dwell time. Dwell time is the time interval when a view switches to the next one in a view tour.

3. You may drag and drop views from the left to the right, and you may also

click and to add views to the view tour or remove them.

4. Click the up button and the down button may adjust the order of

the views in a view tour.

5. Clicking on the OK button, you will see a new view tour is added to the

view list. Selecting the view tour, you will see the view area is switching

among different views.

In the corner of view tour, you can switch between previous and next views, and toggle full screen.

Icon Definition

Toggle full-screen

Go to previous view

Pause

Go to next view

8.1.5 Search A View

1. Clicking on the magnifier icon will show a text field.

2. You may type the view you look for. Clicking on the arrows will focus

on the matched results.

8.1.6 Delete A View

If you want to delete a view, click on the Delete button sign.

An error message will pop up if you do not have permissions to modify a view.

8.1.7 Duplicate a view or a view tour

1. Select a view or a view tour

2. Click on and continue to click on Save As …

3. You can enter the name of the duplicated view or view tour and specify the

destination view group.

Virtual

Physi

cal

Content item

Image fusion

and E

map

Camera and I/O device

8.2 Configure Content

A content item is an object which can be placed onto a view. It can be a camera, I/O device, image fusion of video streams, and an E-map. Devices can be categorized into two types: physical and virtual. Cameras and I/O devices are physical devices, and image fusion and E-map are virtual devices.

The information of cameras and I/O devices is automatically downloaded to the system and configured when you connect to a server. Image fusion and E-map are editable and configurable in NuClient.

8.2.1

1. Click on Image Fusion Editor.

2. In the editor window, the left side is the list of existing image fusions. The

Add image fusion

right side is the configuration tool and the list of available cameras.

3. Click on the Add button and a new image fusion will be added.

4. You may click on the name of the created image fusion to change the

name.

5. On the right side, you may change the name and add the description of

the panorama.

6. Click on the Add button at the bottom, and you may start adding cameras

to the current image fusion.

7. Select the cameras you want to add to the image fusion.

8. Selected cameras are highlighted.

9. After cameras are added, you will see camera images are stitched together

in the view area in the center. You may start to adjust orientation of each image of the image fusion.

10. The horizontal and vertical scrollbars beside the view area are for

controlling the viewport of the image fusion. The XYZ scrollbar are for adjusting the angles of an image. The scale scrollbar is for enlarging or shrinking an image.

8.2.2 Example of image fusion

1. Adjust the X-axis of the viewport.

2. Adjust the X angle.

3. Adjust the Y angle.

4. Adjust the Z angle.

5. Scale up the image.

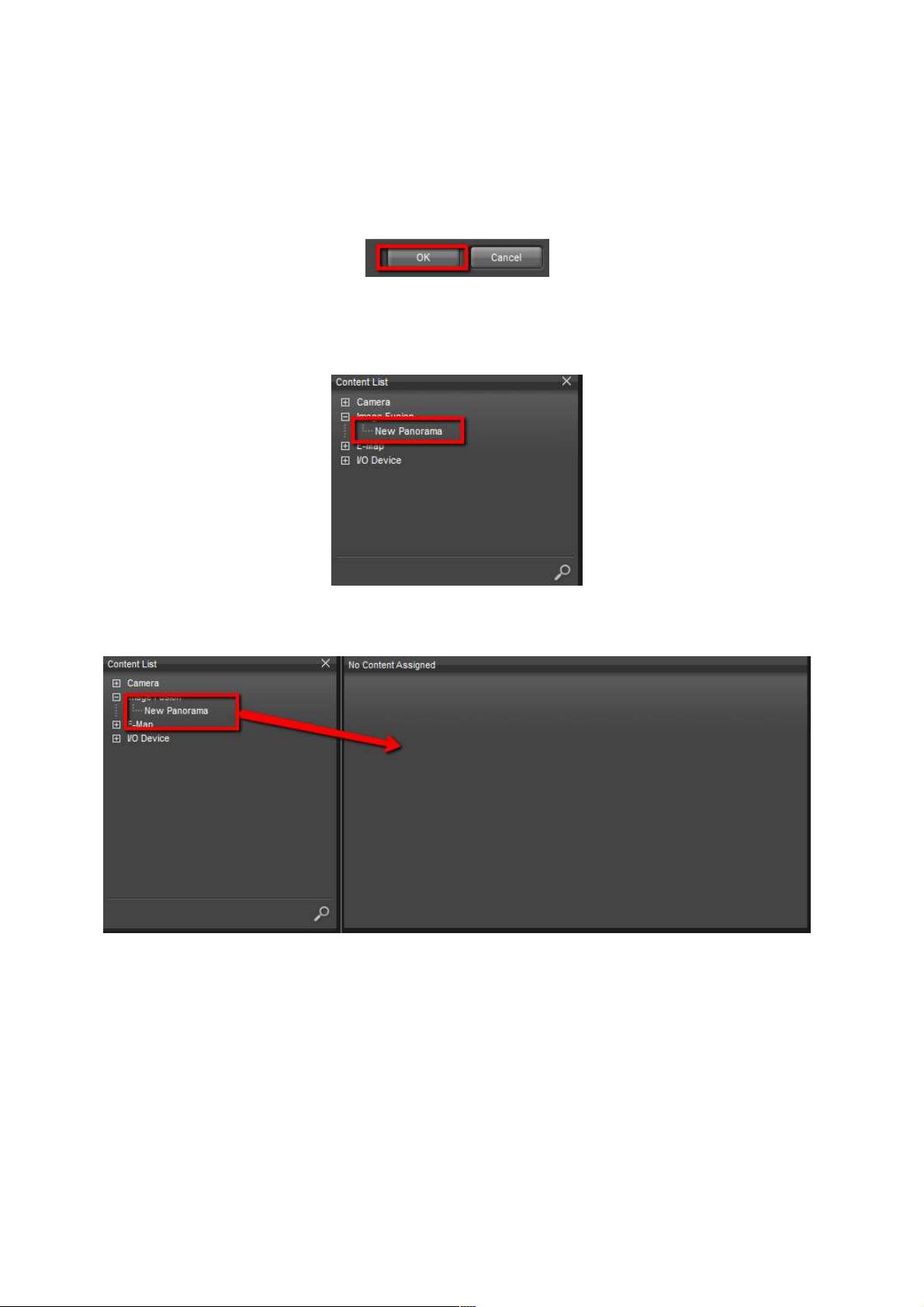

6. After all the changes, click on OK to save the current configuration to the

server.

7. After an image fusion is fully configured, you will find the newly created

image fusion already added to the Content List on the left.

8. You may drag and drop the panorama to the view area.

9. You will see the image fusion presented in the view area.

8.3 E-Map

8.3.1 E-Map Editing

E-map is a graphical way to present cameras and I/O devices in order to give administrator an idea of where a camera is located, and the relationship among those devices. Cameras and I/O are overlaid on a street map, a floor plan, or any other custom image files.

1. To use the function, open E-Map Editor Tool.

2. Existing E-maps are listed on the top-left area and beneath it are cameras

and I/O devices. The image file will be displayed in the black area on the right. Click on the Add button to add an E-map.

3. When a new E-map is added, you will see the fields on the right be

activated. You may change the name, edit the description, and select a map file.

The accepted file formats are PNG, BMP, and JPEG. The maximum file size of each map is 2MB.

4. An image file is added. You can scroll your mouse wheel to zoom in and

out the map image.

If you add a new E-map without specifying a image file, an error dialog will pop up to remind you.

5. Drag servers to the map.

The icons should all be placed on the area of an image and cannot be placed on the black area surrounding an image when you zoom out.

6. Drag cameras to the map.

7. Drag I/O devices to the map.

8. You can adjust the size by clicking on the edge points of an icon.

9. Click on the blue point to rotate an icon.

10. Click on the X icon to delete an icon.

11. To delete multiple icons at one time, select multiple icons and drag them

to the trash can in the corner.

12. After committing the map to server, you may drag it to the view area.

The maximum depth of E

map tree is

10.

An error dialog will pop up when you try to add more than 10 layers of E-maps.

8.3.2 Properties

With an e-map displayed in a channel, you may click on individual items on the map and their properties will be revealed in the properties panel.

• Server Properties

• I/O properties

• Camera Properties

8.4 Application configurations

This chapter describes the applications options and configurable parameters with which you may alter the behavior and the settings of server.

In the dialog of application options, you will see three main categories of options in the list on the left: General, User Interface, and Function.

8.4.1 General

It contains three groups of settings: Client Startup Setting, Monitor Display, and Time Zone.

1. The Client Startup Setting section contains the software behavior when

NuClient is opened or you log in to your operating system.

 Enable auto startup: The system will automatically start up when you

are logged in to your Windows.

 Enable auto login: The system will automatically connects to the

specified server when you open the application.

 Enable full screen: The system will open in full screen if this is enabled.

2. The Monitor Display section is for configuring your favorite grid layouts

and multiple monitors.

 Select layout: You may select up to 4 different grid layouts as your

favorite. The favorite layouts will be displayed in the toolbar.

 Multiple monitors: The system can connect up to 4 monitors and, on

each of them, you may run multiple live view windows in the monitors.

Live view can be opened in any of the 4 monitors, but Playback can run on the first monitor only.

3. The Time Zone section is for configuring the time zone of your computer.

You may use the default time zone or change it to any other zones. It also supports Daylight Saving Time.

8.4.2 User Interface

This set of parameters is for controlling what information and which dockable components to be displayed in the user interface. The options in User Interface are for configuring which information to be displayed in the status bar and in content title. In Customize tab, you can even select which dockable widgets to be displayed. You can refer to the configuration below.

The parameters under Status Bar are displayed in the status bar at the bottom of NuClient. Customized text allows you to type any custom information you want to show in the status bar. The maximum length is 64 Unicode characters. The parameters under Content Title are displayed on the title bar of each channel in view area.

The parameters in Customize are for controlling which dockable component to be displayed in Live View page and Playback page.

For example, select only Content List, Event List, and View List in the

dialog.

The Live View page will show only Content List, Event List, and View List.

Besides the configuration in Option, you may also right-click on the title bar of each dockable component to toggle the appearance of each of them.

8.4.3 Function

This set of options is for configuring application behavior of both Live View and Playback.

1. The options for Live View

 Snapshot: If you select “Automatically save snapshots”, snapshots will

be saved in the specified file format and exported in the specified directory. If you select to save snapshots manually, then you will need to assign the destination folder for snapshots every time you make a snapshot. The default image format is BMP.

 Audio: If the option is enabled, you will hear camera’s audio when you

click on a camera channel if the camera has a microphone.

Hover your mouse pointer over any video channel in the view area, you may enable and disable audio in the content toolbar.

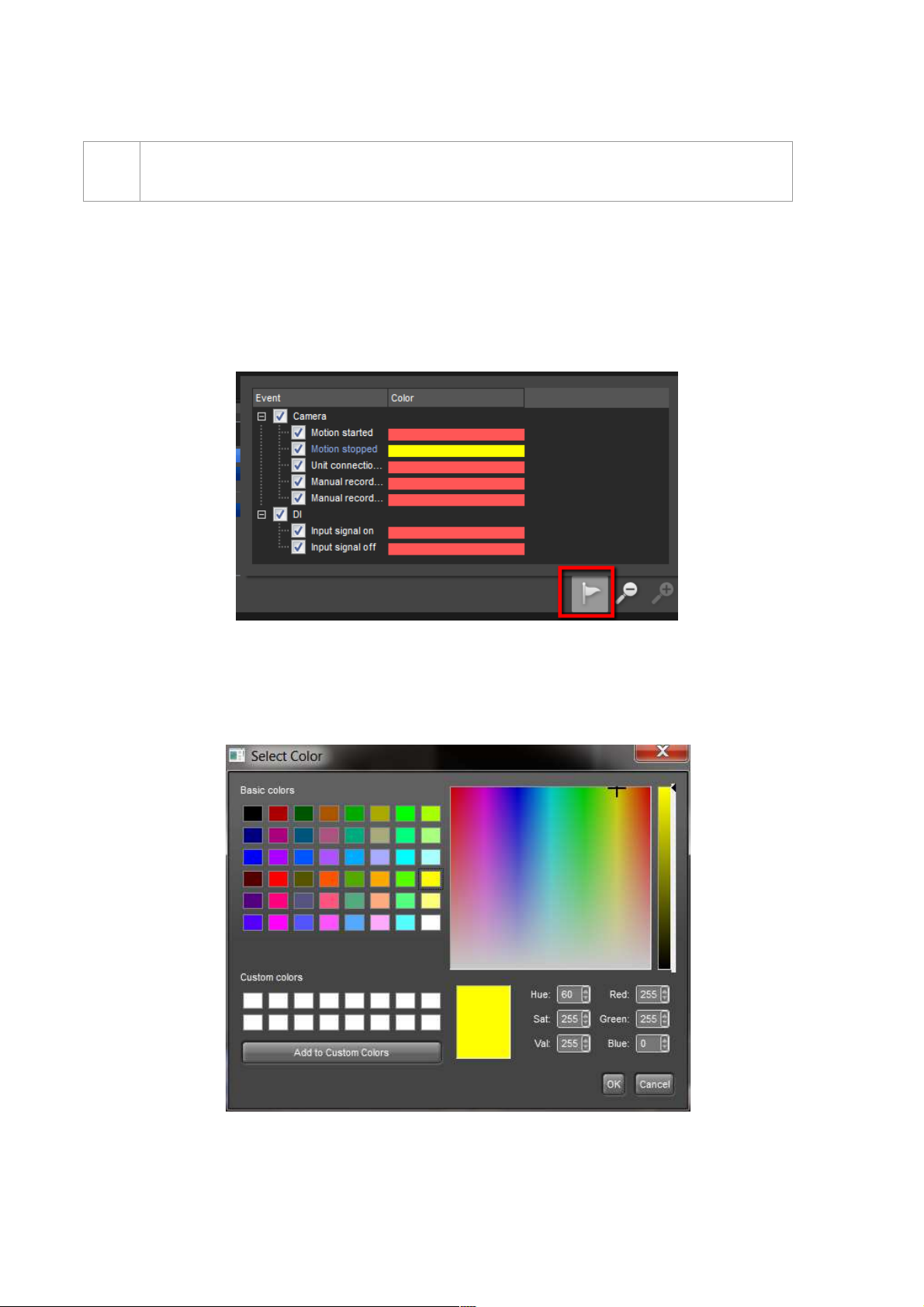

 Alert: If this option is enabled, when events go off on remote servers,

NuClient notify you by playing a sound file.

 Event List: This is for configuring how many events can be displayed in

event list and how frequently events should be removed from event list.

 Joystick: Joystick hot-key settings.

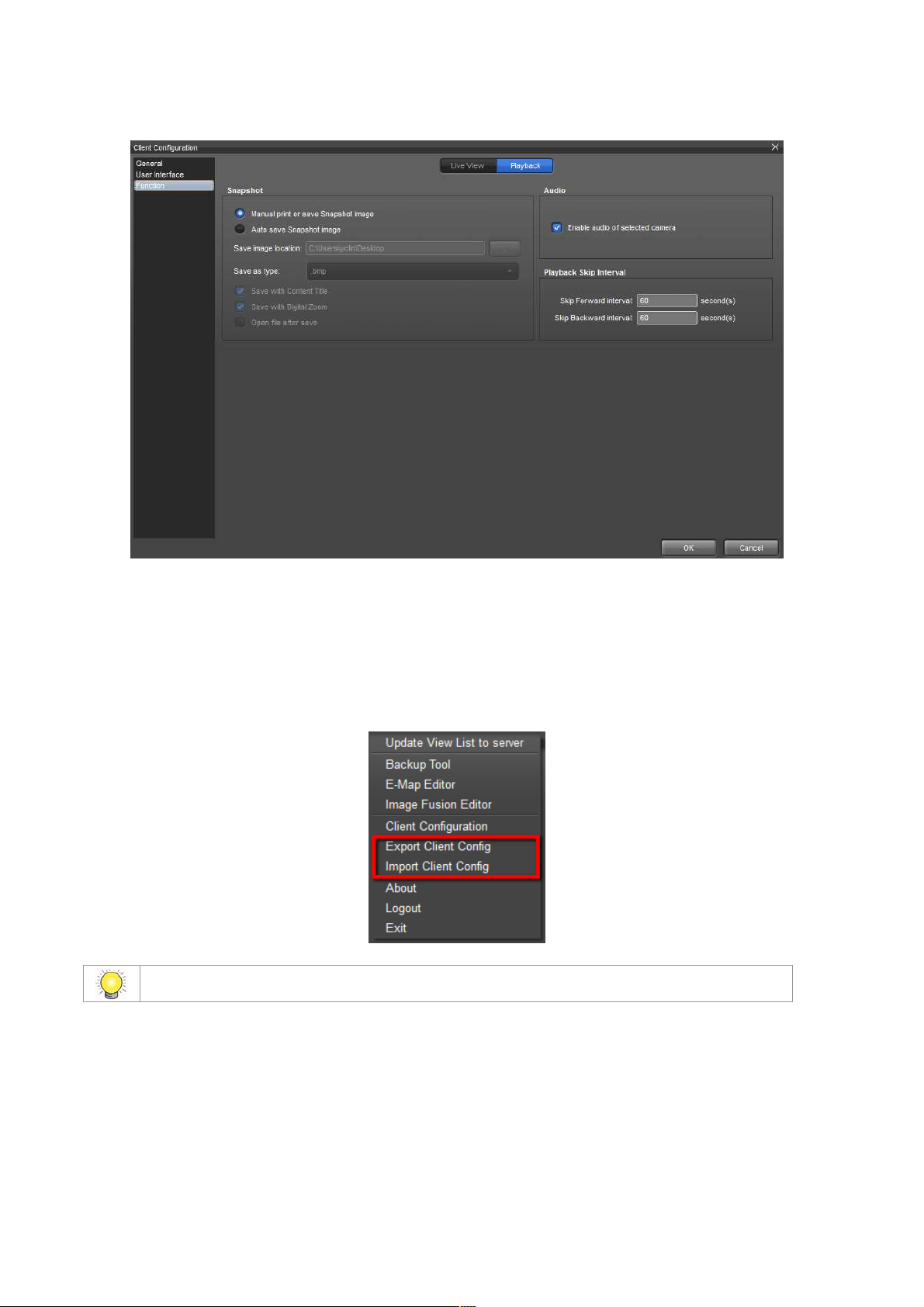

2. The options for Playback

 Playback Interval: Playback interval refers to the difference in time

between two frames when you click . The value ranges from 1 to

3600 seconds.

 Snapshot: If you select “Automatically save snapshots”, snapshots will

 Audio: If the option is enabled, you will hear the audio of a recorded

video when you click on a camera.

A camera must have a microphone and audio must be enabled during recording so that audio can be heard in playback.

8.5 Export/Import Configurations

You may save the current configurations to disks and load saved configurations to the current system in order to save the time for setting system and for deploying configurations.

Configuration files are saved in UserHOME\NUUO.

9 Watch Live Video

In view area, you may add devices from Content List to the view area. You may add not only cameras, but also image fusion, E-Map, and I/O devices to the view area. Refer to the Configure View section to add view, camera, view tour, etc.

9.1 PTZ

PTZ is a mechanism for remote directional and zoom control. PTZ is an abbreviation of Pan, Tilt, and Zoom. Pan refers to horizontal movement of a camera; Tilt refers to vertical movement of a camera; Zoom refers to the change in focal lengths.

9.1.1 Optical PTZ

When you press the arrows and zoom-in/zoom-out, the view will be smoothly zoomed into / out of the area of interest.

Optical PTZ is the default PTZ mode as long as a camera supports it.

 Preset point: Preset points are saved PTZ configurations. When you

select a preset point, a camera will immediately be configured to the preset configurations.

Optical PTZ is supported only in Live View, while digital PTZ is supported both in Live

You may configure up to 16 preset points.

The names of preset may be scrambled if you input Chinese/Japanese/Korean characters. It is usually because cameras do not support those character sets.

9.1.2 Digital PTZ

In contrast to optical PTZ, Digital PTZ is an image-processing algorithm used to magnify each pixel you see in a video image. Since it is merely a software algorithm, digital PTZ is supported with any camera which NuClient connects to. Digital PTZ is supported both in Live View and Playback.

View and Playback.

There are three ways of using digital PTZ in NuClient.

 Draw a rectangle

1. You may draw a rectangle area in your view area. The covered area which

is surrounded dashed lines will be magnified and stretched to the whole view area. As soon as the rectangle is drawn, the view is smoothly zoomed into the area of interest.

2. In the corner, you may find a sub-window showing the full content of the

current camera.

 Use mouse wheel

1. Besides drawing a rectangle, it is even more intuitive to use your mouse

wheel to zoom in and zoom out. You may drag-and-drop the view area to change your viewport of the camera.

2. Likewise, a sub-window showing the full content will appear in the corner.

 Use the on-screen buttons

1. A set of control buttons are also available in PTZ controller if you do not

like the previous methods.

2. The button controls zoom-in and zoom-out.

3. The arrow wheel controls pan and tilt of the current camera.

4. The Home button will show the entire video image in one view area.

9.1.3 ImmerVision PTZ

ImmerVision lens is a 360° panomorph, a particular type of panoramic lens which allows you to monitor 360° of the area where a camera is set up. NuClient supports the PTZ mode, Quad mode, Perimeter mode of ImmerVision lens. For more information of the various modes, please visit the website of ImmerVision: http://www.immervision.com/

1. Log in to the unit.

2. Click IP Camera / Camera Parameters.

3. Click the Lens Settings tab.

4. Click the camera which you want to modify in the camera list.

5. Modify the information of this camera.

6. Click the Save button.

7. After ImmerVision lens is enabled, you will see the video become fisheye

image.

8. In the content toolbar in the corner, there is a new icon . Clicking on

it will lead you to the function icons of Immervision PTZ.

Icon

Purpose

Here is the list of icons and their functions.

Return to the toolbar of live view

Original mode. The original image from the fisheye camera without being processed by any image processing algorithm.

PTZ mode. Pan, Tilt & Zoom are computed by NuClient.

Quad mode. Video is split into 4 separate views simultaneously.

Perimeter mode. In this mode, video is split into a horizontal view of 180°

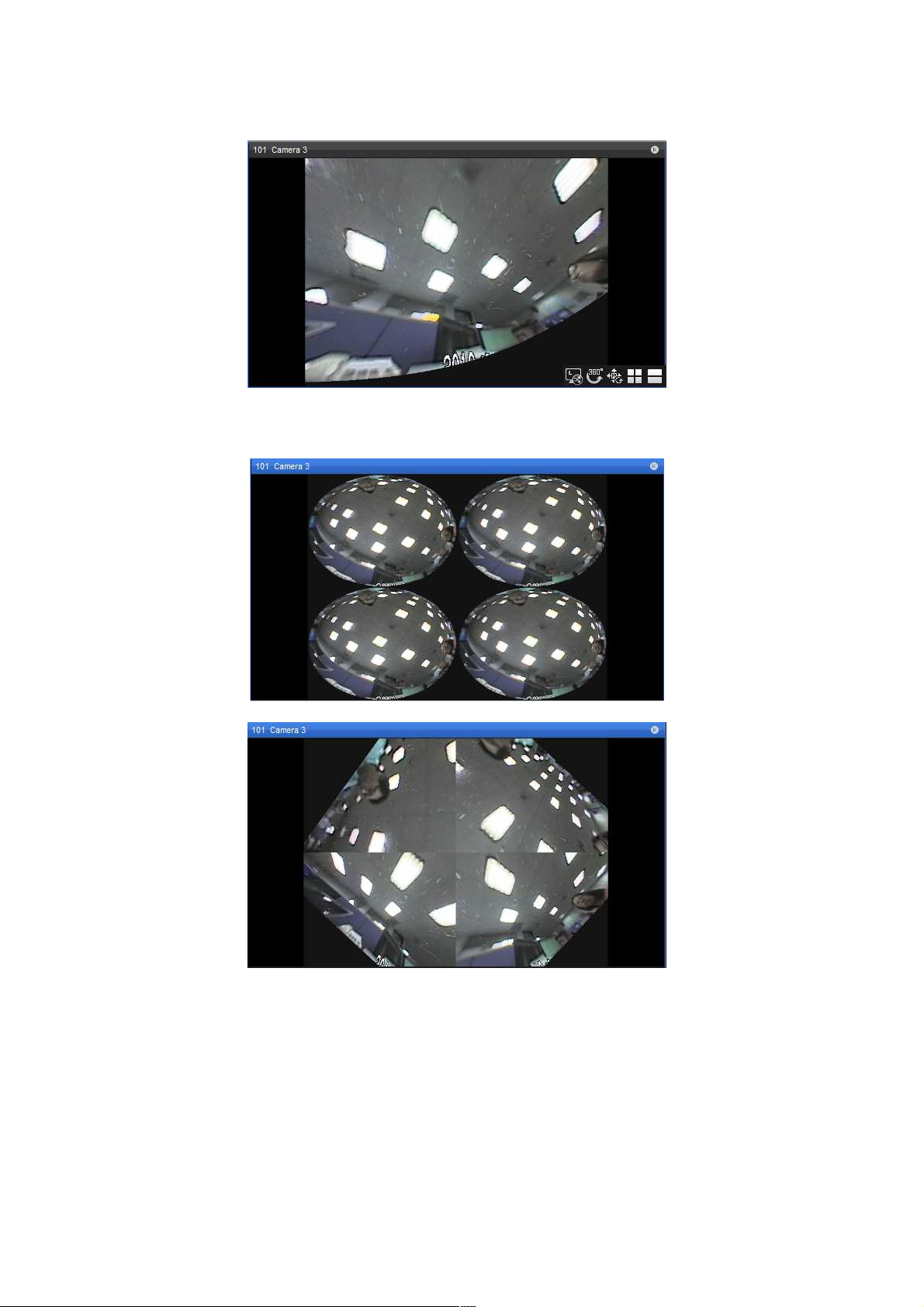

9.1.4 The Modes of ImmerVision PTZ

After ImmerVision PTZ is enabled, you may see the selection menu on the PTZ controller is enabled and it has four different options which correspond to the modes above.

 Original Mode

As soon as the rectangle is drawn, the view is smoothly zoomed into the area of interest.

 PTZ Mode

 Quad Mode

 Perimeter Mode

As of the writing, only a few cameras support Immervision lens. For the list of supported cameras, please check the website of Immervision.

http://www.immervision.com/en/security/security_partners/security_partners_2.php

9.1.5 VIVOTEK fisheye mode

VIVOTEK fisheye is a 360° panomorph, a particular type of panoramic mode which allows you to monitor 360° of the area where a camera is set up. NuClient supports the PTZ mode, Quad mode, Perimeter mode of ImmerVision lens.

1. Log in to the unit.

2. Click IP Camera / Camera Parameters.

3. Click the Lens Settings tab.

4. Click the camera which you want to modify in the camera list.

5. Modify the information of this camera.

6. Click the Save button.

7. Then on NuClient, you will see the video become fisheye image.

8. In the content toolbar in the corner, clicking on , it will lead you to the

function icons of Fisheye mode.

9. Here is the list of icons and their functions. You can choose the mode on

toolbar or on PTZ control panel.

Icon Purpose

Return to the toolbar of live view

Original mode. The original image from the fisheye camera without being processed by any image processing algorithm.

Rectilinear mode. Take on rectilinear view without distort the video.

Full view panorama mode. In this mode, fisheye image will be expanded in to full view.

Perimeter mode. In this mode, video is split into a horizontal view of 180°. If the installation position is ground, it won’t show this mode.

10. Pan and tilt the video by dragging on the video or by PTZ control panel.

9.2 Toolbar Content

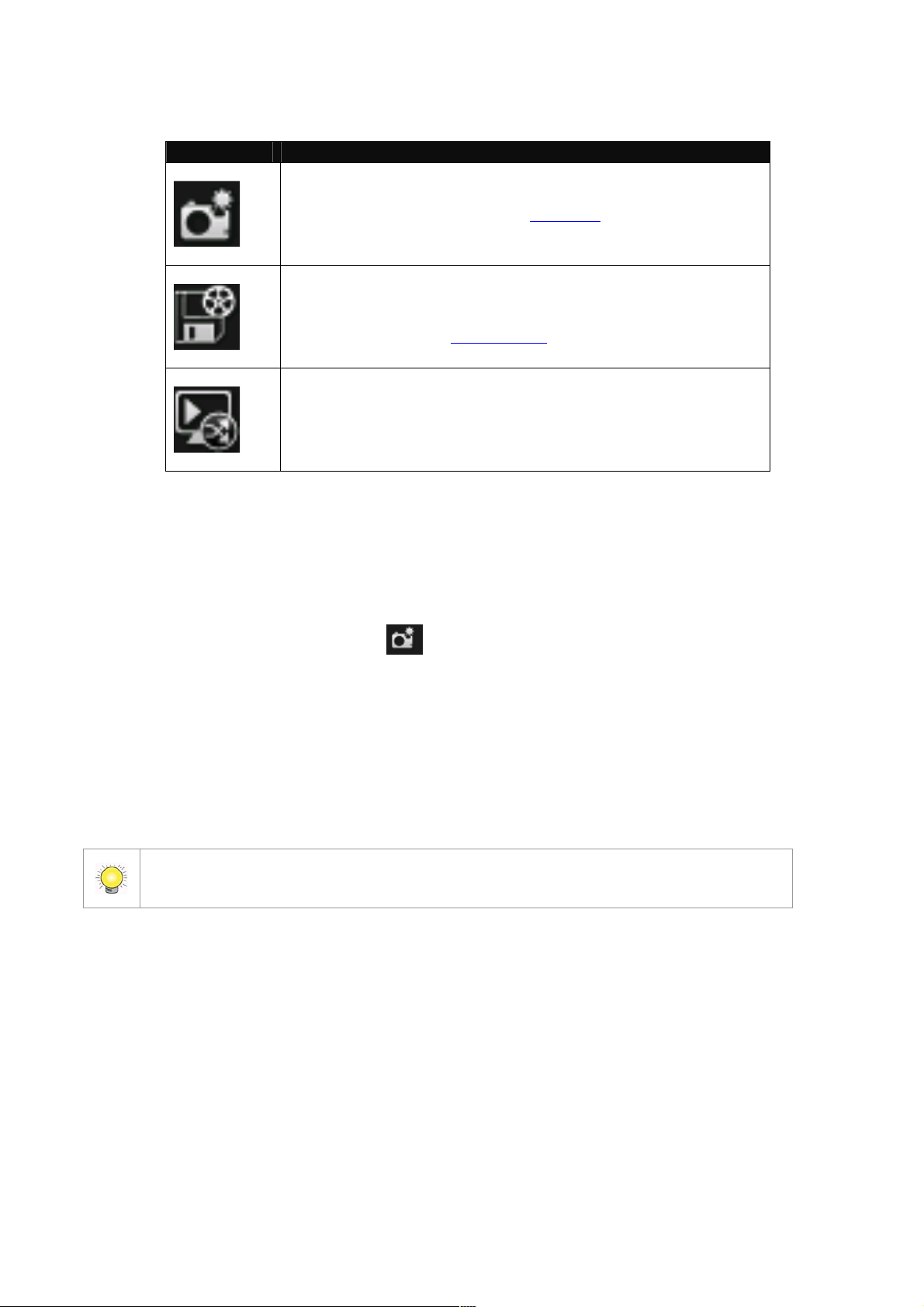

9.2.1 Instant Playback

Click on the Instant Playback icon. You may playback video or reverse-

playback video with this function. Hold the scroll handle in the middle can change the playback speed.

Icon Purpose

Take snapshot. Please also see Snapshot.

Export video. Clicking on it will open a video export dialog. You may set the start time and end time for exporting video files. Please also see Export Video.

Sync to playback. Current instant playback will be opened in playback tab. However, if instant playback runs in a secondary monitor, then the playback will be opened on the primary monitor.

9.2.2 Snapshot

 Snapshot one channel

1. Clicking on the snapshot icon in content toolbar may save the

snapshot of the current video channel at the current moment.

2. You may choose to export title names, enable digital zoom in exported

data, save exported images to files or to printers.

The supported image file formats are BMP and JPEG at the moment. The default

format is JPEG.

If “Open File after save” is checked, the snapshot will open after the snapshot is

saved on disk.

3. If a channel contains an E-map, then the status of the E-map will be

snapshotted. If it contains I/O, then the I/O status will be snapshotted.

 Snapshot whole view area

1. If you want to snapshot all channels on the screen, you need to press the

snapshot icon in view toolbar.

2. All the options are the same, except that the images are segmented into

several different channels. If the content of a channel is E-map or I/O panel, they will also be put in a snapshot.

Snapshot is available only with cameras, not with E-map and I/O.

If “Open File after save” is checked, the snapshot will open after the snapshot is

saved on disk.

9.2.3 PTZ

Please see the section of PTZ for details.

9.2.4 Manually Record Video

1. Click on the Start/Stop Recording icon.

If your camera supports audio but you cannot hear that in

NuClient

, please

make

•

If multiple channels of video streams are running without enough bandwidth,

2. When video is being recorded, the icon will become a square . Click it

again to stop recording.

9.2.5 Audio

Press the speaker icons to enable / disable audio from a camera.

Please note that a camera must support audio for this function to work.

sure:

• Audio is enabled in the admin interface of the camera.

•

Cables are properly connected. Audio is not muted in Windows.

it is possible to hear audio of poor quality. To solve this issue, you may try disconnecting a few cameras.

After switching to different layouts, if a camera is not present in the current grid, you will not able to hear the audio of it.

9.2.6 Connection

Press the chain icon to connect to a camera and disconnect from a camera.

9.2.7 Connection Settings

Connection settings are a set of settings to configure stream profiles and aspect ratio. If a camera has dual streaming, then one of the video streams can be chosen to be displayed in Live View.

Using different stream profiles of a camera may make connections become unstable and disconnect more often, because streaming video in different formats and resolutions will require the CPU on cameras to do extra video processing and it may overload a camera.

9.3 Property Window

Property shows the information of the data in a channel. The information includes the name, the quality of video streams, etc.

9.4 Event List

Event list shows latest events from a camera or from the monitor of system resources, with their date/time information and the source. New events are constantly appended to the top of the list and old events will be removed from the list.

To configure the number of events kept in the list in Live View, go to Client Configuration / Function / Live View / Event List.

The event list in Playback is slightly different and it offers a search interface with several parameters for you to locate events in recording files.

Input signal on

If returned results exceed 1000 records, NuClient will pop up a dialog that reminds you to refine the query.

The list of possible events:

Source type Event name

Camera

Motion started Motion stopped Recording on manual started Recording on manual stopped Unit connection lost

Digital Input

Server Disk abnormal

Input signal off Unit connection lost

Auto backup started Auto backup stopped Auto backup failed Recording setting is changed to always recording Recording setting is changed to schedule recording Recording setting is changed to no recording

9.5 Joystick settings

Merely using mouse and keyboard sometimes can be not so handy for some routine tasks, such as toggling full-screen or switching between different grids. NuClient supports interactions via joystick to make it easier to use the software.

1. When you have any generic USB joystick plugged to your computer, you

will see the joystick option is enabled in the configuration dialog.

2. Click on settings and you will see available buttons and supported

functions in NuClient. You may map a button to the software functions you want.

Type

Functi

Go to monitor #

Go to grid #

Go to

preset #

The supported functions are listed in the table.

View and grid switching

Next view Previous view Next grid Previous grid

Screen layout switching Switch to layout #

Toggle single camera view Toggle full-screen

PTZ control Digital / Optical switch

Zoom in Zoom out

View editing Delete content

10 Watch Recorded Video

When switching from Live View to Playback, View List, Content List, and event

list on the Live View page are identical with the ones on Playback page. Therefore, if you have managed cameras and views, you can select it to check recorded video directly. If you haven’t, please refer to the Configure View section to add view and camera.

10.1 Search in Timeline

The timeline is a user-friendly interface for you to quickly find the video of a certain time period.

Icon Definition

Date/Time selection

Event browsing settings

Zoom out

Zoom in

1. Drag the timeline to the time you look for.

If video content is an image fusion, as long as one camera has recording data, a timeline will be displayed in the area for the video content.

It is possible that a camera has two video streams of different video profiles. If one camera is placed in two grid cells, two timelines will be drawn for each grid cell.

2. When mouse is hovering on both the ends of the timeline, an arrow icon

will show up. Click on it will browse through time more quickly.

3. The two icons in the corner zoom in and out the timeline.

4. Specify the date / time directly using the widget in the corner.

The dates with recording data are shown in boldface.

If a channel does not have recorded at specified time points, a no-video icon will display in the channel.

If a camera is dragged into the playback grid, the same camera will appear in the grid when you switch to LiveView tab.

5. Change event browsing settings. In Timeline, event-triggered recording

data can be shown in different colors. You locate video files more quickly by enabling event browsing in different colors. If you uncheck the event items in the list, the markers of event video will not be shown in Timeline.

Clicking on the color bars will open the color palette.

6. You may change the layout of the timeline if using the horizontal layout is

not convenient.

10.2 Toolbar Content

When mouse is hovering over a video channel, you will see a toolbar in the corner similar to that in Live View.

Icon Definition

Snapshot

Enable / disable audio

Change the aspect ratio of a video

10.3 The Playback Control Panel

The control panel can be divided into 4 different parts which are, from left to right, playback control, the date/time display, timeline browsing, event browsing control, and the toolbar icons.

Nuuo NT-8040RP-US-8T-2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
