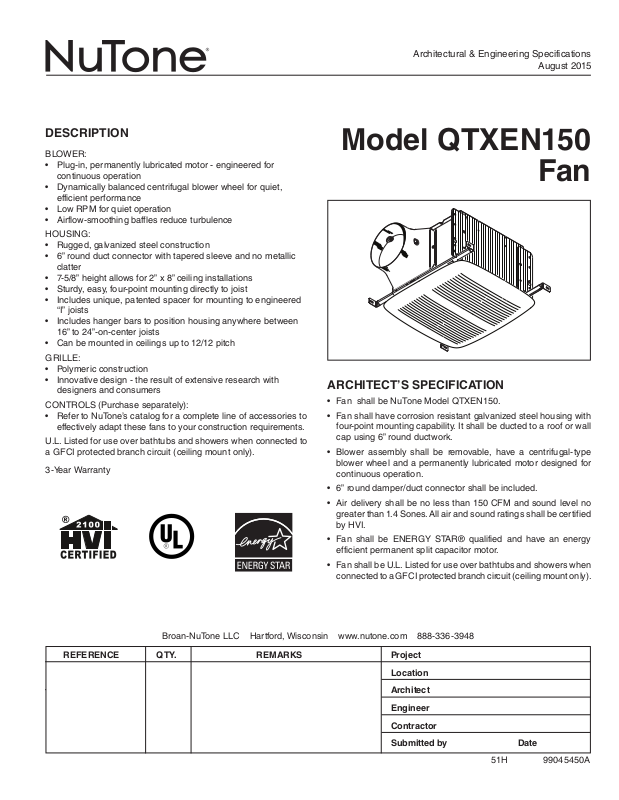

NuTone QTXEN150 Specifications
DESCRIPTION
BLOWER:
• Plug-in, permanently lubricated motor - engineered for
continuous operation
• Dynamically balanced centrifugal blower wheel for quiet,
efficient performance
• Low RPM for quiet operation
• Airflow-smoothing baffles reduce turbulence
HOUSING:
• Rugged, galvanized steel construction
• 6” round duct connector with tapered sleeve and no metallic
clatter
• 7-5/8” height allows for 2” x 8” ceiling installations
• Sturdy, easy, four-point mounting directly to joist
• Includes unique, patented spacer for mounting to engineered
“I” joists
• Includes hanger bars to position housing anywhere between
16” to 24”-on-center joists
• Can be mounted in ceilings up to 12/12 pitch
GRILLE:
• Polymeric construction
• Innovative design - the result of extensive research with
designers and consumers
CONTROLS (Purchase separately):
• Refer to NuTone’s catalog for a complete line of accessories to
effectively adapt these fans to your construction requirements.
U.L. Listed for use over bathtubs and showers when connected to
a GFCI protected branch circuit (ceiling mount only).
3-Year Warranty
Architectural & Engineering Specifications
August 2015
Model QTXEN150
Fan
ARCHITECT’S SPECIFICATION
• Fan shall be NuTone Model QTXEN150.
• Fan shall have corrosion resistant galvanized steel housing with
four-point mounting capability. It shall be ducted to a roof or wall
cap using 6” round ductwork.
• Blower assembly shall be removable, have a centrifugal-type
blower wheel and a permanently lubricated motor designed for
continuous operation.
• 6” round damper/duct connector shall be included.
• Air delivery shall be no less than 150 CFM and sound level no
greater than 1.4 Sones. All air and sound ratings shall be certified
by HVI.
• Fan shall be ENERGY STAR® qualified and have an energy
efficient permanent split capacitor motor.
• Fan shall be U.L. Listed for use over bathtubs and showers when
connected to a GFCI protected branch circuit (ceiling mount only).
Broan-NuTone LLC Hartford, Wisconsin www.nutone.com 888-336-3948
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
51H 99045450A
PERFORMANCE RATINGS
MODEL QTXEN150 FAN
HVI PERFORMANCE
Model
QTXEN150
0.25 120
Pressure (Ps)
AMPS
Model Amps
QTXEN150 0.5
Static Fan
0.10 150 1.4 42.8
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed
by the Home Ventilating Institute, for off-the-shelf
products, as they are available to consumers. Product
performance is rated at 0.1 in. static pressure, based
on tests conducted in a state-of-the-art test laboratory.
Sones are a measure of humanly-perceived loudness,
based on laboratory measurements.
CFM Sones
WEIGHT
Weight
QTXEN150 13.1 lbs
Model
Watts
Shipping
AIR FLOW PERFORMANCE
MODEL QTXEN150
0.8
0.7
0.6
0.5
0.4
0.3
0.2
Static Pressure (in. w.g.)
0.1
0.0
0 20 40 60 80 100 120 140 160 180
Airflow (CFM)
