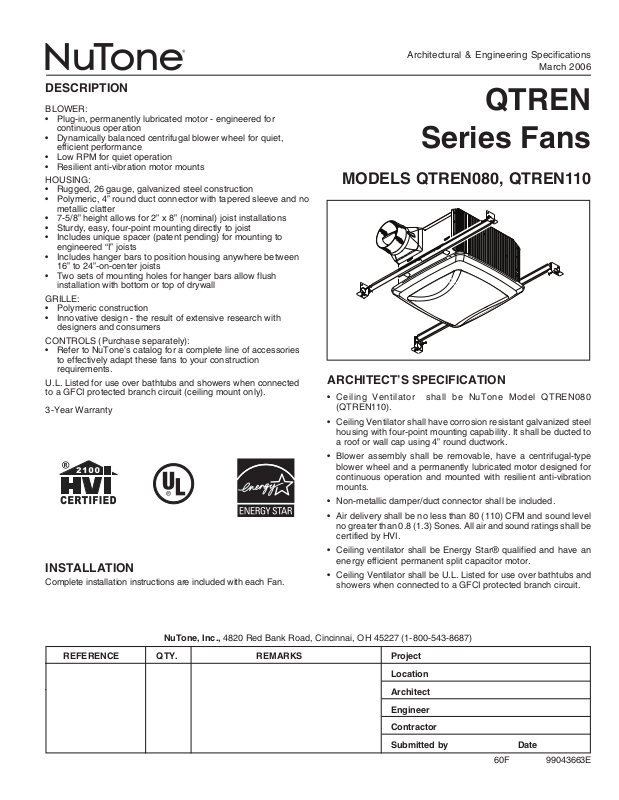

NuTone QTREN110, QTREN080 User Manual

DESCRIPTION

Architectural & Engineering Specifications

March 2006

BLOWER:

• Plug-in, permanently lubricated motor - engineered for
continuous operation

• Dynamically balanced centrifugal blower wheel for quiet,
efficient performance

• Low RPM for quiet operation

• Resilient anti-vibration motor mounts

HOUSING:

• Rugged, 26 gauge, galvanized steel construction

• Polymeric, 4” round duct connector with tapered sleeve and no
metallic clatter

• 7-5/8” height allows for 2” x 8” (nominal) joist installations

• Sturdy, easy, four-point mounting directly to joist

• Includes unique spacer (patent pending) for mounting to
engineered “I” joists

• Includes hanger bars to position housing anywhere between
16” to 24”-on-center joists

• Two sets of mounting holes for hanger bars allow flush
installation with bottom or top of drywall

GRILLE:

• Polymeric construction

• Innovative design - the result of extensive research with
designers and consumers

CONTROLS (Purchase separately):

• Refer to NuTone’s catalog for a complete line of accessories
to effectively adapt these fans to your construction
requirements.

U.L. Listed for use over bathtubs and showers when connected
to a GFCI protected branch circuit (ceiling mount only).

3-Year Warranty

INSTALLATION

Complete installation instructions are included with each Fan.

QTREN

Series Fans

MODELS QTREN080, QTREN110

ARCHITECT’S SPECIFICATION

• Ceiling Ventilator shall be NuTone Model QTREN080
(QTREN110).

• Ceiling Ventilator shall have corrosion resistant galvanized steel
housing with four-point mounting capability. It shall be ducted to
a roof or wall cap using 4” round ductwork.

• Blower assembly shall be removable, have a centrifugal-type
blower wheel and a permanently lubricated motor designed for
continuous operation and mounted with resilient anti-vibration
mounts.

• Non-metallic damper/duct connector shall be included.

• Air delivery shall be no less than 80 (110) CFM and sound level
no greater than 0.8 (1.3) Sones. All air and sound ratings shall be
certified by HVI.

• Ceiling ventilator shall be Energy Star® qualified and have an
energy efficient permanent split capacitor motor.

• Ceiling Ventilator shall be U.L. Listed for use over bathtubs and
showers when connected to a GFCI protected branch circuit.

NuTone, Inc., 4820 Red Bank Road, Cincinnai, OH 45227 (1-800-543-8687)

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

60F 99043663E

PERFORMANCE RATINGS

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 102030405060708090100

Air flo w ( cfm)

Ps (in. w.g.)

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 10 20 30 40 50 60 70 80 90 100 110 120

Air flow (cfm)

Ps (in. w. g.)

QTREN SERIES FANS

HVI PERFORMANCE

Sones CFM

Model @0.1” Ps @0.1” Ps

QTREN080 0.8 80

QTREN110 1.3 110

HVI-2100 CERTIFIED RATINGS comply with
new testing technologies and procedures
prescribed by the Home Ventilating Institute,
for off-the-shelf products, as they are available
to consumers. Product performance is rated
at 0.1 in. static pressure, based on tests
conducted in AMCA’s state-of-the-art test
laboratory. Sones are a measure of humanly­perceived loudness, based on laboratory
measurements.

AMPS

Model Amps

QTREN080 0.4

QTREN110 0.4

WEIGHT

Model Shipping

QTREN080 12.0 lbs.

QTREN110 12.0 lbs

AIR FLOW PERFORMANCE

MODEL QTREN080

Weight

MODEL QTREN110
