NuTone QTREN, QTXN, QTRN, QTXEN User Manual

Ventilation Fans

October 2008

Leadership is measured in all kinds of ways. At NuTone it’s defined with innovative home amenity products that make life more comfortable. Trust us to develop it first, and develop it best.

Silence is what consumers demand more than any other feature in

a bath fan. We hear you, and proudly offer the Ultra Silent the most quiet ventilation fans available. Proven in real-world

installations, they deliver what we promise on the package.

Style can be difficult to define. What’s compelling to one may be passe to another. NuTone solves the issue with a broad variety of product styles, finishes, and shapes—all designed around you.

™

Series,

We don’t build products. We build the industry.

Powerful operation is the ultimate test. And a clear

bathroom mirror after a long relaxing shower is the true measure of bath fan performance. That’s why NuTone engineers the right product for every type of application, room size and need.

4–5 Selection Guidelines 6–7 Installation/Sizing Guide 8–9 Questions & Facts

Single-function 10–13 Ultra Silent™ Fans 14 Bath Fans, Fan Upgrade Kit 15 Heavy Duty Fans,

Radiation Dampers

16–17 Utility Fans 18–19 In-Line Fans

Multi-function 20–21 Ultra Silent™ Fan Lights 22–25 Fan/Lights 25 Heavy Duty Fan/Lights 26–29 Heater/Fan/Lights

Other 30–31 Wall Control Specifications 32 Wall Control Selection 33 Ducting Accessories 34–35 Specifications Matrix

No one provides a broader selection of home ventilation products than NuTone. From the spot ventilation and heating solutions listed above to our beautiful ceiling fans, trust NuTone to improve the comfort of your family and home.

NuTone Ventilation Fans—Selection Guide

NuTone makes the perfect ventilation fan

for every home, decor and budget.

NuTone Ventilation Fans—Selection Guide

What you should consider when buying a bath fan or home ventilation system.

Steamy mirrors, damp walls and fogged windows. They’re

more than annoying. They could indicate developing

problems like mold and mildew, ruined insulation, and

wood rot. Spot ventilation solutions from NuTone clear

the air quickly and efficiently removing potential problems

before they invite themselves into your home.

What’s in stays in today’s airtight homes.

Today’s homes are built airtight for

efficiency. But that means moisture

Leadership

and airborne pollutants stay where

they are unless they are vented

away. Eliminating excess moisture

keeps your home dry and

comfortable and can help avoid

mold and mildew. Volatile organic

compounds (VOCs) “outgas” from

construction materials such as

plywood, carpet, fabric, paint,

adhesive, insulation and other

common items. Allergens, dust, cooking vapor and what

the kids bring home from school are more reasons why

good ventilation is critical.

Which product is best suited to my application?

Take a moment to consider what you’re looking for in a

spot ventilation product. Do you want quiet operation, a

powerful blower, decorative designs or something that’s

virtually invisible? Could you use more light, or ventilation

in a walk-in closet? NuTone has what you need.

More than 70 years ago NuTone

invented the spot ventilation industry.

Today, NuTone is engineering and

testing the next generation of

ventilation solutions to keep your

home and family comfortable.

Sones measure the “sound level” of your fan.

A sone is a measurement of sound in terms of

comfortable hearing level for an average listener.

The lower the sone value, the more comfortable the

environment. Sones are not decibels or volume, but

rather how sound is “sensed.” One sone is half as loud

as two sones, and is equivalent to a quiet refrigerator.

What “HVI certified” means to you.

The Home Ventilating Institute (HVI)

is an independent organization that

certifies the airflow and sound

performance claimed by manufacturers

of ventilation products. NuTone

certifies every product through HVI

to ensure the product you purchase will

perform as claimed.

For more information

visit www.hvi.org.

Energy Star: Conserve energy and energy expenditures.

If you’re concerned about saving money and energy,

choose NuTone bath fans that feature the Energy Star

logo. These products use high efficiency motors and

lighting that can reduce energy consumption by as

much as 65%—all without sacrificing

performance. Learn more about

Energy Star at www.energystar.gov.

NuTone Ventilation Fans—Installation Guide

Proper installation makes all the difference.

Tape or caulk around the seam where the fan housing meets the sheetrock on the ceiling.

If possible, use smooth, rigid ductwork as large as the exit opening on the body of the fan housing.

Whether rigid or flexduct, the turning radius for the duct should be as large as possible.

Whenever possible, ductwork should slope down and away from the fan housing to direct any condensation toward the vent.

Keyhole slots and alignment tabs facilitate installation, taking the guesswork out of proper mounting.

Elbows, turns, long ducts and ductwork smaller than the fan’s exit outlet will reduce performance.

Use wide aluminum foil or duct tape to join smooth metal ductwork seams.

Do not let flexible ductwork sag as this impedes airflow.

During installation, orient the bath fan outlet in the direction of the home’s exit point to minimize duct turns.

Before adding an elbow or bend, allow 24" to 36" of straight run from the fan outlet point.

Duct-wrap insulation (R-5 or above) will help minimize condensation in cold climates, especially on long duct runs.

Exit vents should have backdraft flaps to help keep cold air from entering the duct.

Quick guideline: For bathrooms up to 100 square feet, the HVI recommends ventilation of about 1 CFM per square foot (about eight air changes per hour). For bathrooms over 100 square feet, add up the needs of each fixture to determine the total ventilation rate:

• Toilet 50 CFM

• Shower 50 CFM

• Bathtub 50 CFM

• Jetted tub 100 CFM

NuTone Ventilation Fans—Sizing Guide

Easy steps for choosing and sizing

the right ventilation fan for your home.

Determine which rooms could use ventilation, and how much is needed. Spot ventilation is used in localized

areas to remove moisture, odor and airborne pollutants quickly. Most commonly used in the bath or powder room, spot ventilation can also be used in a laundry room, exercise area, closet, or bedroom, wherever air should be changed frequently. Decorative and recessed models can be ideal solutions for these situations. According to the Home Ventilating Institute, Air Changes per Hour (ACH) for comfortable and healthy living should be as follows: Bathrooms: 8 changes, Kitchens: 15 changes, Living/bedrooms: 6 changes. NuTone bath fans, utility fans and high capacity fans meet these needs.

Calculate the air movement necessary for proper ventilation.

Air movement is measured in Cubic Feet per Minute (CFM). To determine CFM requirements, first determine the size of your room. Measure and multiply the length, width and ceiling height of your

room to determine cubic footage. Then use the multiplication factor of .13 and round up to the next “ten.” See the three examples that follow.

Performance

A good ventilation fan is the product

of research, testing and listening to the

needs of consumers. At NuTone we build

these desires into ventilation products

that provide the best mix of power,

sound and quality for every budget.

Example 1: Bathroom with 8' ceiling: 7' wide x 9' long x 8' high x .13 = 66. Select a bath fan with at least 70 CFM.

Example 2: Bathroom with 9' ceiling: 10' wide x 9' long x 9' high x .13 =

105. Select a bath fan with at least 110 CFM.

Example 3: For a bathroom with a vaulted ceiling, use the average ceiling height at the wall and the peak: 8' wide x 12' long x ((8' at wall + 12' at peak) / 2 = 10') average height x .13 = 125. Select a fan(s) with at least 130 CFM.

Account for long duct runs and ductwork that turns before it reaches the exterior vent.

When airflow is restricted in any way it slows down. Just as a car must slow down for a sharp corner, air decelerates when going through a turn in a duct run. Whenever possible, create a straight duct run with large radius turns, if they’re necessary at all. Rigid ductwork is optimal because airflow restriction is minimized. Flexible tubing may be convenient to install, but resistance is created as air is moved over the spiral metal frame of the tubing. With long duct runs or ducts with multiple turns the fan works harder, noise increases and fan performance (CFM) is compromised. Select a fan model with an even greater CFM ratio to compensate.

6" ducting overcomes most

performance-related installation issues.

NuTone’s QTX Series fans deliver high performance in virtually any real-world installation. They are engineered with a 6" duct connector for peak air movement and extremely quiet operation, even when the duct run is not short and straight.

NuTone Ventilation Fans—Questions & Facts

Everything you need to know about home ventilation.

What is a sone, and how is it measured?

A sone is a measurement of sound in terms of comfortable hearing level for an average listener. The lower the sone value, the more comfortable the listening environment. Sones are not decibels or volume, but rather how sound is “sensed.” One sone is the equivalent of a quiet refrigerator.

What does CFM mean?

CFM is the acronym for Cubic Feet per Minute—the measure of air volume moved by the fan blower. Choose a fan with a CFM rating appropriate for your room size to ensure adequate ventilation.

What is continuous ventilation?

Continuous ventilation provides today’s airtight homes with a relatively constant and controlled lower level of ventilation. NuTone’s extremely quiet

and efficient Ultra Silent

ideally suited for these applications.

Can I mount NuTone fans above my tub and shower?

Most NuTone fans are rated for use over a shower or bathtub with a GFCI (Ground Fault Circuit Interrupter).

Can my ceiling fan be surrounded by insulation?

Yes. NuTone bath fans are designed to provide adequate cooling for motors and lighting, as well as products with integral heaters.

Will NuTone Fans work in wall-mount applications?

Some NuTone bath and utility fans may be wall mounted. See the spec matrix for specific models. Improper installation may affect fan life, safety and your warranty.

™

Series is

Will a ceiling fan or wall-mount utility fan serve as a range hood?

No. Range hoods are specifically designed to handle grease and high temperature environments. NuTone bath fans supplement odor and moisture removal in the kitchen, but are not intended for use as a range hood.

What does “static pressure” mean?

Static pressure is the measurement of airflow resistance as it is pushed through ductwork which reduces the effectiveness of the fan. Learn more on the Home Ventilating Institute web site www.hvi.org.

Air Quality

NuTone has long been a leader in

indoor air quality solutions. Our spot

ventilation products for bathrooms

and kitchens control problems at the

source. For whole-house filtration and

ventilation, our fresh air systems set

the standard.

How long should a bath fan run after a shower is used?

The Home Ventilating Institute recommends that a fan should be left on for 20 minutes more to clear humidity adequately and to ensure moisture and condensation in the fan body or ducting is minimized.

What should I do if I can’t wait for moisture to clear, but I don’t want a fan to run all day long?

NuTone has sensing fans that detect the humidity rise caused by a shower and turn on automatically—when moisture has cleared it turns off. Some wall controls also give you the

option of humidity sensing, or timer control. Just set it and forget it.

What are the timer features?

Delay-off timers automatically shut your fan off after a specified time interval. It’s a nice feature in high traffic bathrooms where you may wish to let the fan run to clear moisture adequately. A timer counts down the minutes of fan operation selected by the user.

Where should the exhaust fan be located?

Exhaust fans should be located in or near the shower or tub, and in an enclosed water closet. Keep exhaust points opposite the supply air source to ensure that the fresh air is drawn through the room. Bathroom doors should not be sealed too tightly at the bottom in order to allow “makeup air” to enter the room when the door is closed.

How do I size a fan properly for my room size and the duct run?

See the sizing guidelines on page 7 for details on proper sizing. This section provides an explanation and examples to help you make the right decision.

Where is the exhaust outlet on the ventilation fan?

The exhaust outlet is the point where air is discharged through the body of the fan housing into the ductwork. During installation, orient your fan with the exhaust outlet pointing toward the exit vent on your roof or wall to minimize turns in ductwork that impede airflow.

NuTone Ventilation Fans—Questions & Facts

Why do the windows and mirrors fog even when the fan is running?

If windows and mirrors are very cold, condensation can still form on these surfaces. And if your bathroom is sealed tightly, replacement air may not be entering the room fast enough to displace the moist air. Be sure to undercut your door sufficiently to draw fresh air into the room. Fan placement can also be a factor. Your fan should be located far from the replacement air source to ensure the moist air is drawn out first. Finally, too many twists and turns in the ducting will significantly reduce the ability of the blower to remove moist air. Make sure your ductwork is as short and straight as it can be, with gradual turns rather than tight corners where necessary.

Why is water dripping from the grille of the fan?

Dripping water is either condensation (usually due to cold ductwork or improper duct installation), or a problem with the seal on a wall or roof vent. Insulated ductwork can help solve condensation problems, and running the fan longer will ensure moisture is completely removed from the duct. Ductwork should slope down toward a wall vent to direct condensation out of the exterior vent opening rather than back into the fan housing.

Can I install a heater over the bathtub or in a shower?

No. Heaters are not UL Listed (Underwriter’s Laboratory) for

installation over a bathtub or in a shower.

Can I use an inline or multi-port fan in one large bathroom?

Yes, this works the best for large rooms because you can install the ports over the areas where the ventilation is needed the most (source control). The size of the multi-port would be determined by the size of the room.

Does a duct-free bath fan expel air?

No. A duct-free fan is not a ventilating device. It does not remove air from the room.

Style

Style is a curious thing. To each

individual it is something different.

So NuTone makes a range of unique

products—some that stand out,

others that blend in. But all suit

every sense of style beautifully.

Can I use a smaller diameter duct than what the fan is designed for?

This is not recommended. It will cause the fan to run harder, greatly reducing the CFM performance of the fan and create excess noise.

Can larger diameter ducting be used with my bath fan?

Yes, larger diameters will result in improved performance.

What type of duct is recommended, rigid or flexible?

It is recommended, where possible, to use rigid duct. It has less resistance to air flow and allows the fan to operate much more efficiently. If flexible duct is used, be sure the duct is as straight as possible.

Can I exhaust my fan into my attic instead of out the roof or wall?

Never exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. The humidity may damage the structure and insulation.

What type of exhaust fan is best for a sauna or hot tub area?

High CFM-rated devices are normally recommended for this type of application.

Can I use a fan in a steam shower?

No. Since these are normally sealed chambers, a vacuum will be created.

Can I vent more than one bath fan out of a roof or wall cap?

No. Always follow the manufacturer’s recommended ventilation requirements.

NuTone Ventilation Fans—Ultra Silent

™

Model QTXEN Humidity

Sensing Fan, page 12

Sensing Fan/Light, page 20

Model QTXEN Fans, page 13Model QTXEN Humidity

Model QTXEN Fan/Lights, page 21

NuTone Ventilation Fans—Ultra Silent™

Quiet is good. Virtual silence is better.

The NuTone Ultra Silent™ Series.

There’s a time for noise and

excitement, and there’s a time for

more simple pleasures. The peaceful

moment needn’t be lost simply

because your bath ventilation fan is

uncomfortably loud. The ultra-quiet

NuTone Ultra Silent

™

Series

solves everything.

Lower sones and more power.

The NuTone Ultra Silent

™

Series

started with a clean slate. We

redesigned everything from the

motor to the wheel to the housing,

all to reduce operating noise. An

exciting new selection of high-style

grilles will discretely complement

your bathroom or make a bold

Silence

Minimizing sound is best achieved

by engineering the product correctly

for real-world installations.

NuTone’s QTX Series is designed

with efficient blowers and 6" ducting

that will not restrict airflow.

design statement. Whether you

choose a bath fan, a fan/light or

a combination heater/fan/light,

NuTone has an ultra quiet solution

for every concern.

How quiet is Ultra Quiet?

A newer refrigerator generates about 1

sone, while a normal conversation is

about 2 sones. NuTone’s Ultra Silent

™

Series products are as quiet as <0.3

sones. They’re the quietest fans

available and deliver the power

you expect for any room size.

Models QTREN and QTRN Fans, page 13 Model QTREN Fan/Lights, page 21 Model QTRN Fan/Lights, page 21

Model QTXN Heater/Fan/Light, page 26

NuTone Ventilation Fans—Ultra Silent™ Series

Ultra Silent™ Humidity Sensing Fan with Sensaire® technology. Sensaire®

technology detects rapid increases in moisture levels at the ceiling, where steam and humidity naturally rise. A humidity sensing fan is ideal for anyone who leaves the house before humidity is properly vented. With a fan this quiet, we included automatic shutoff to save worry, and money.

QTXEN110S Model

You have simple needs.

NuTone has simply everything.

Hands-free solutions to fighting excess humidity and mold.

NuTone’s Ultra Silent

sensing fan turns the fan on and off automatically to help prevent cosmetic and possible mold problems associated with excess moisture.

Detects the rapid rise in humidity• Humidity sensed at the ceiling level• Easily accessible sensitivity adjustment• Easy-to-set shut-off timer: 5–60 min.•

0.7 sones, 110 CFM• 6" ducting for superior performance•

UL Listed for use over tub or shower •

when installed in a GFCI protected branch circuit Includes hanger bar system for fast • and ﬂexible installation for all types of construction. Energy Star qualiﬁed• HVI Certiﬁed• Fits 2" x 8" ceiling construction•

™

humidity

NuTone Ventilation Fans—Ultra Silent™ Series

NuTone Ultra Silent™ Series Bath Fans. A bath fan needn’t call attention to itself, especially when you don’t want

it to overpower the design of your bath or powder room. More important, it shouldn’t call attention to itself when

it’s working. So we developed the Ultra Silent

option, it simply does its job quietly, in every sense of the word.

™

Series to provide our quietest bath fans yet. With an energy efficient

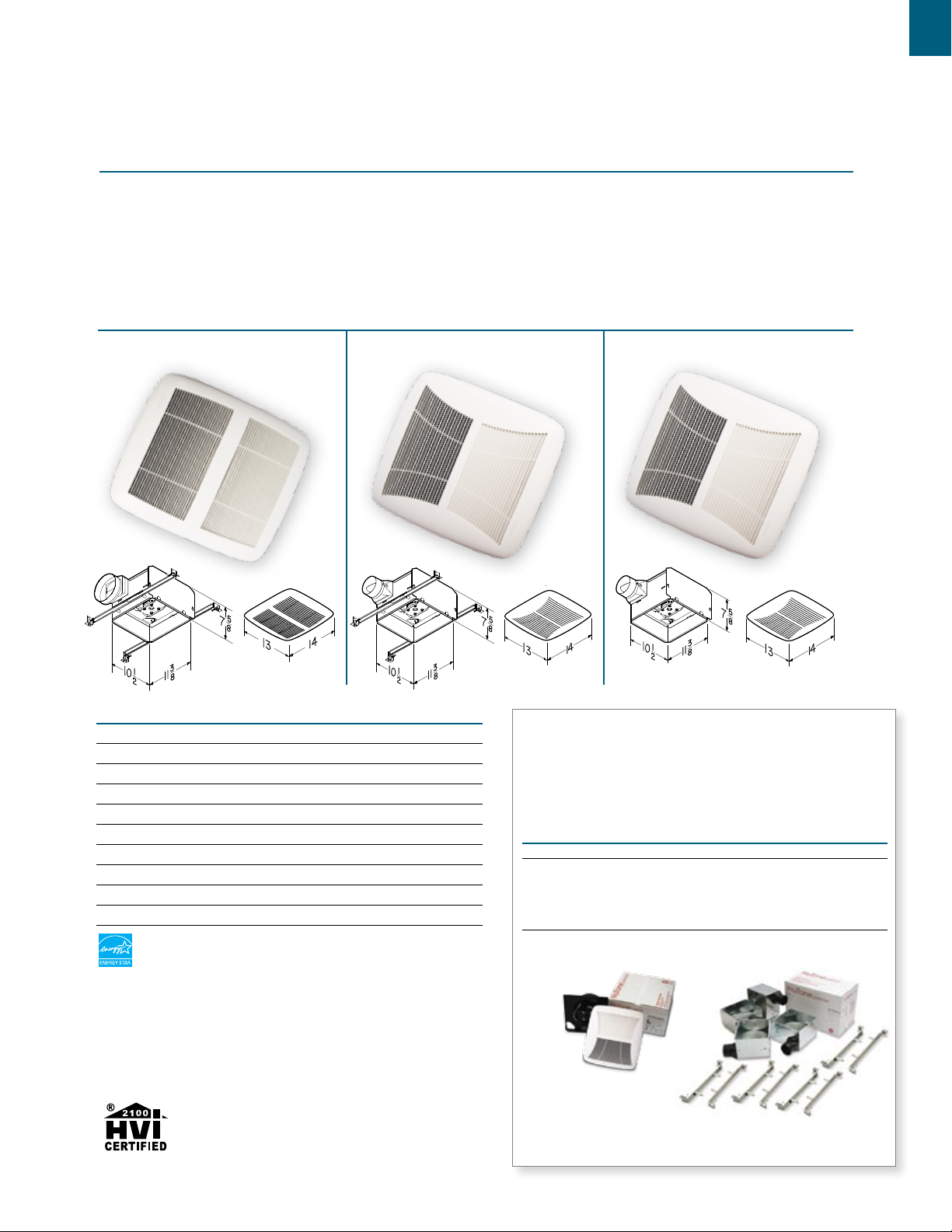

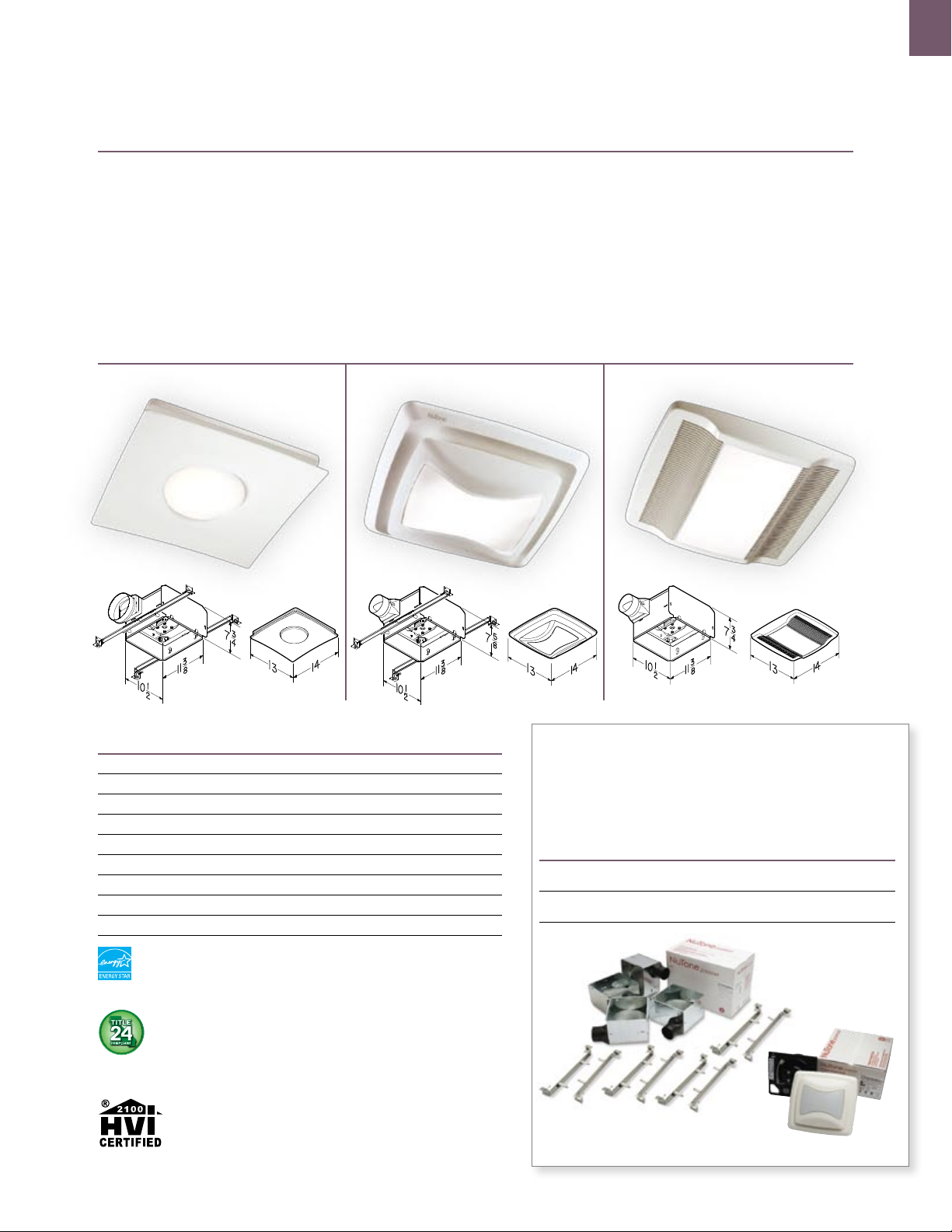

QTXEN, QTREN and QTRN Fan Features

• Nearly silent operation <0.3 to 1.4 sones

• 50 CFM to 150 CFM

• QTXEN features 6" ducting for superior performance

• QTREN and QTRN models feature 4" ducting

• QTXEN and QTREN models are Energy Star qualified

• UL Listed for use over tub or shower when installed

in a GFCI protected branch circuit

• QTXEN, QTREN and Housing Packs include hanger bar system for fast and flexible installation for all types of construction

• HVI Certified

• Fits 2" x 8" ceiling construction

QTRN ModelsQTREN ModelsQTXEN Models

Fan Model CFM Sones Energy Star Bath Sq. Ft. Ducting

QTXEN050 50 <0.3 Yes 45 6" QTXEN080 80 0.3 Yes 75 6" QTXEN110 110 0.7 Yes 100 6" QTXEN110S* 110 0.7 Yes 100 6" QTXEN150 150 1.4 Yes 140 6"

▲

QTREN080 80 0.8 Yes 75 4" QTREN110 110 1.3 Yes 100 4" QTRN050

50 0.4 — 45 4" QTRN080 80 1.0 — 75 4" QTRN110 110 1.5 — 100 4"

Energy Star fans use 65% less energy, on average, than standard models and may qualify for local utility rebates.

▲

See page 41 for 6" ducting (DT6W) product specifications. Humidity Sensing

+ Only available in Project Packs

Project Packs Available for QTREN and QTRN models

To simplify installation, Project Packs are available with either four

fan or fan/light housings only. When drywall work and painting is complete, the fan components needed to finish the job are available in single packs under separate model numbers. These finish kits include the motor plate, motor, wheel and grille. See the matrix

below for Project Pack order information.

Project Pack Kit number: For model:

Four-pack of FAN housings only: QTXRN000HF One-pack finish kits for FAN models: QTREN080F QTREN080

QTREN110F QTREN110 QTRN050F QTRN080F QTRN080 QTRN110F QTRN110

Only available in Project Packs

QTRN050F QTRN080F QTRN110F QTREN080F QTREN110F

QTRN050

QTXRN000HF

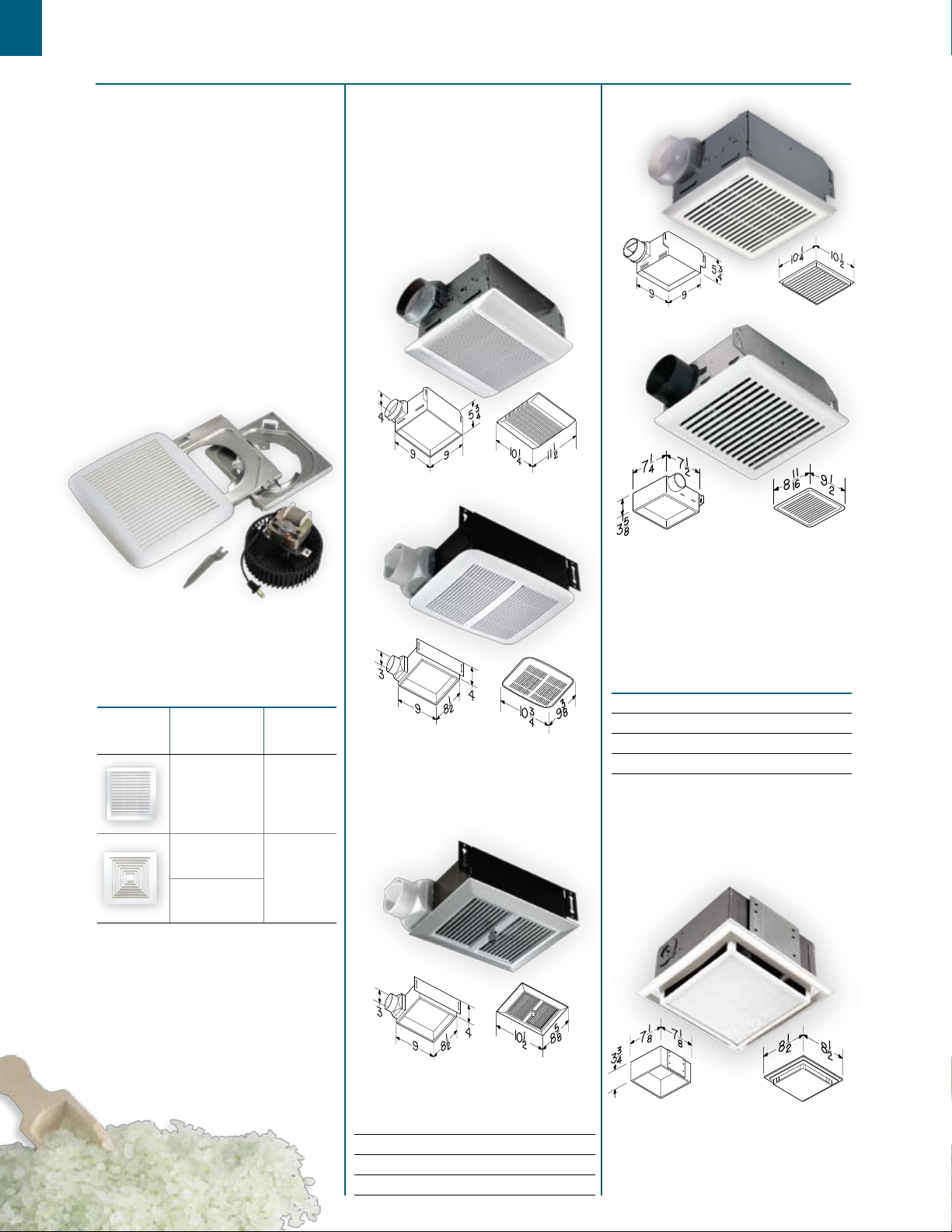

NuTone Ventilation Fans—Fan Upgrade Kit/Bath Fans/Duct-free

690NT Bath Fan Upgrade Kit

The NuTone bath fan upgrade kit lets you convert your old bath fan to a brand new unit in just 10 minutes. Improve performance, reduce the sound level, and upgrade the appearance of your economy fan in minutes.

Cut sound levels up to 50%• Boost air movement up to 20%• 10 minute installation• 60 CFM, 3.0 Sones• Modern white grille• No special tools needed•

Two motor plates,

depending on your fan model.

80 to 110 CFM• Centrifugal blower wheel and 4-pole • motor deliver high exhaust capacity at low sound levels Mounting flanges with keyhole slots for • fast installation

• White polymeric grille with torsion

spring mounting

Model 8814R

Model 8832WH

Model 671R & 672R

Model 695 & 696N

New grille

Wrench

Quieter plug-in

fan motor

NuTone 690NT Upgrade Kit replaces the models below:

If your

grille looks

like this:

The fan is very

likely one of

these models:

NuTone

693, 695,

696N

Broan 670, 671,

688, 689

Nautilus

N671, N688

Housing

dimensions:

7½" x 7¼"

8" x 7¼"

7½" x 7¼"

Not compatible

with 8"x81⁄4"

• White polymeric grille with torsion

spring mounting

• Fits 2"x4" construction

Model 8832SA

50 to 110 CFM centrifugal blower wheel • Double-strength steel mounting flanges with • keyhole slots for fast installation Metal grille kits for 695 & 696N S97011308•

UL Listed for use over tub or shower when •

installed in a GFCI protected branch circuit

*All models available in Project Packs

Model CFM Sones Notes

671R 90 3.0 Wall/Ceiling mount 672R 110 4.0 Wall/Ceiling mount 695 70 6.0 Wall/Ceiling mount 696N 50 4.0 Wall/Ceiling mount

Duct-free

This easy-to-install solution is ideal where ventilation is needed but ducting is not

possible. Use in half baths or rooms where

humidity isn’t a concern.

Model 682NT

• Silver anodized aluminum grille

• Fits 2"x4" construction

Model CFM Sones Notes

8832WH 80 2.5 Not UL tub & shower 8832SA 80 2.5 Not UL tub & shower 8814R 110 4.0

• Patented, fast snap-in metal housing installation

• Fan circulates air past replaceable activated charcoal filter model 97009563

• Fits 2"x4" ceiling or wall construction

NuTone Ventilation Fans—Heavy Duty/Radiation Dampers

For heavy-duty ventilation,

NuTone has powerful solutions. Heavy-duty ventilation fans are ideal for high-traffic bathrooms including light commercial installations and offices where operation continues throughout the day. These hard-working, quiet fans feature sealed, long-life bearings that never require lubrication. Durable, enameled metal grilles are easy to clean and resist breakage.

HD80NT and HD50NT Features

• Durable, quiet, centrifugal blower wheel

• Totally enclosed motor design

for continuous operation

• Lasts up to three times longer than

residential units

• UL Listed for use over tub or shower

when installed in a GFCI protected branch circuit

Model HD80NT & HD50NT

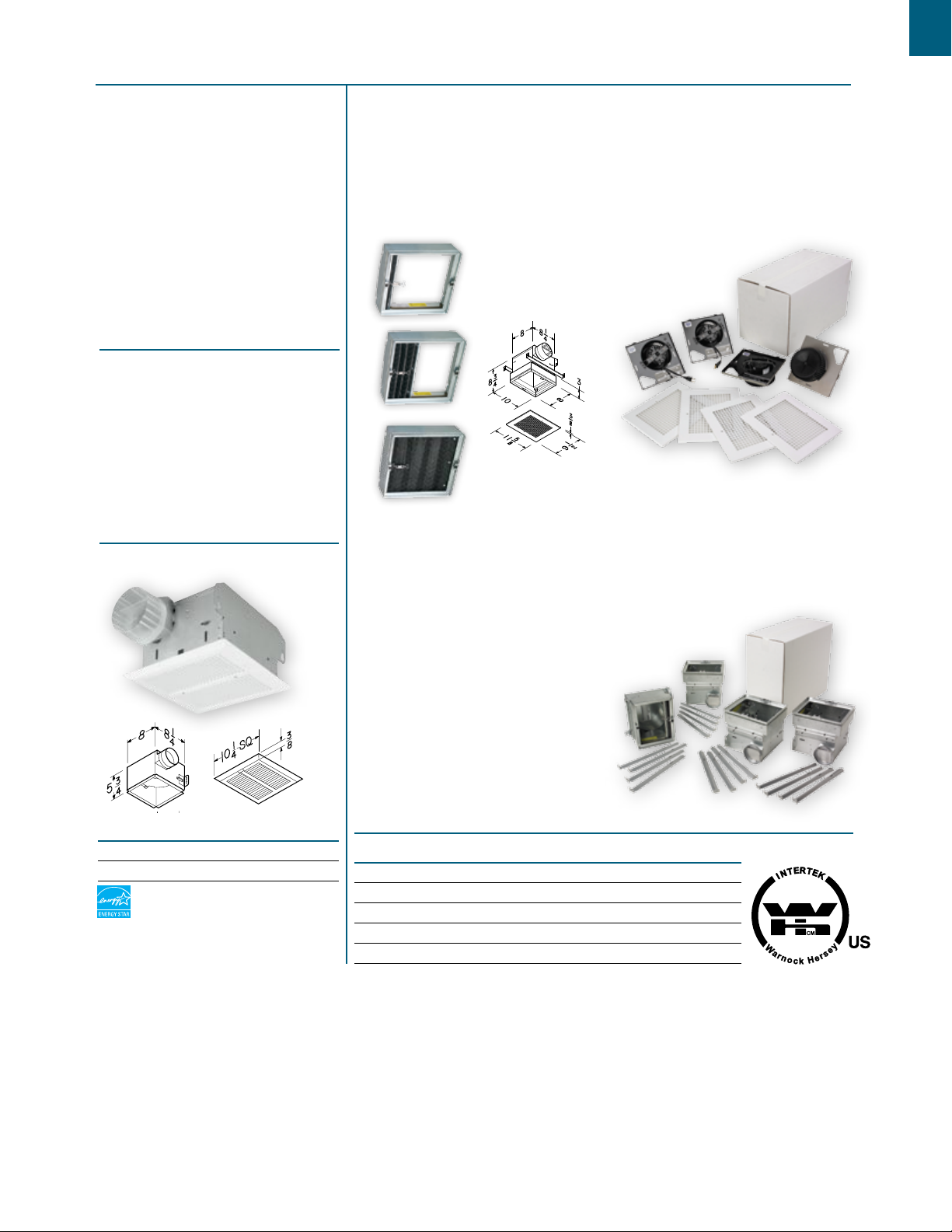

Radiation/Fire Damper Fan Project Packs

A fire resistant screen automatically

closes when excessive heat is detected. The breakaway fusible link triggers the closing of the radiation damper’s fire resistant screen to prevent smoke and fire from traveling through the ductwork.

Project Finish Packs include:

• Assembled motor plate, wheel and

• Rugged metal grille for added durability

Models 80RDB, 110RDB HD50RDB and HD80RDB

Project Housing Pack includes:

• UL Classified (UL Standard 555C) for use in 1-, 2-, 3-hour fire-rated floor-ceiling or roof-ceiling designs

• 165° fusible link

• Galvanized Steel Frame

• Stainless steel negator-type closure spring

• Available as Project Packs

Model

plug-in motor

Rough-in housing with attached • radiation/fire damper Adjustable hanger bars that span • up to 24" 4" metal duct connector with damper•

RDA

Model CFM Sones Notes

HD50NT* 50 1.5 Heavy-duty motor HD80NT 80 2.5 Heavy-duty motor

*Energy Star qualified.

Model CFM Sones Notes

RDA – – Housing four-pack 80RDB 80 2.5 Finishing four-pack 110RDB 110 4.0 Finishing four-pack HD50RDB 50 1.5 Finishing four-pack HD80RDB 80 2.5 Finishing four-pack

NuTone Ventilation Fans—Utility

Powerful solutions for problem rooms.

NuTone Ventilation Fans—Utility

Eliminate humidity or tobacco smoke from recreation rooms, workshops, or cooking odors with these powerful utility ventilators. All feature powerful, permanently lubricated motors and rugged steel housings.

Ceiling Mount – Vertical Discharge

Model 686

686 7" vertical discharge• White polymeric grille•

Model 8210

Wall/Ceiling Mount – Vertical/Side Discharge

Model QT200 & QT300

Sturdy brown-enamel steel housing is lined with sound-deadening • foam for quiet operation

Low RPM motor plugs into prewired junction box•

Motor and twin blowers dynamically balanced for smooth, • quiet operation Vents horizontally or vertically with 3¼" x 10" duct• Duct collar with quiet backdraft damper included• Installs easily between 16" O.C. joist with slotted mounting • bracket. Slots on housing sides provide alternative mounting Wiring knockouts located on top and back of housing• Not for use in kitchens•

8" vertical discharge• Fan installs in the ceiling and ventilates directly through the • roof with round ducting

Paintable engineered resin grille installs with a single screw•

Adjustable hanger bars for 16" or 24" O.C. joists• Motor mounting bracket has two slots that slide over two • mounting screws on sleeve for faster installation Specially designed transition-type housing reduces diameter of • discharge opening to fit 7" round duct; no reducer is needed

Wall/Ceiling CFM Sones Duct Notes

686 80 6.0 7" Vertical 8210 210 6.5 7" Vertical 8310 160 5.0 3-1/4" x 10" Rectangular Duct QT200

200 2.0 3-1/4" x 10" Rectangular Duct

QT300

300 4.5 3-1/4" x 10" Rectangular Duct

Model 8310

8" side discharge• Paintable engineered resin grille •

installs easily Motor assembly offers fast easy • “twist-lock” installation Specially designed fan blade stays in balance – will not distort• Installs easily in walls or ceiling• Built-in backdraft damper• Fits 3¼" x 10" duct• Adjustable mounting brackets span from 14" to 24" O.C. joist•

NuTone Ventilation Fans—In-Line

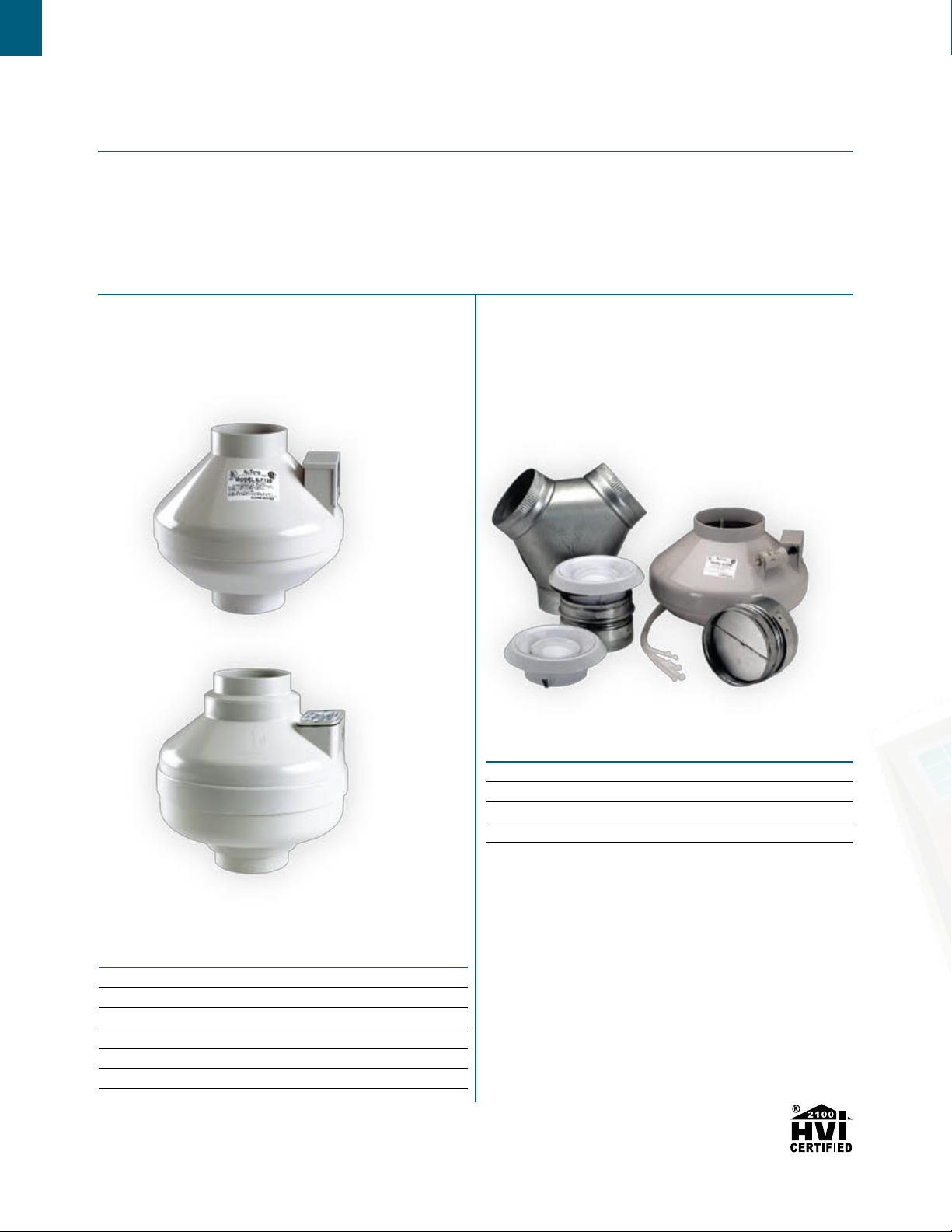

Remote Mounted In-Line Ventilation Fans are quiet and efficient residential solutions. The concept is simple: mount

a high-performance ventilator in an out-of-the-way spot and you get the power with virtually no sound. Install the housing in the attic or the basement, wherever it’s most convenient and discrete.

In-Line Ventilators Features

• Energy-efficient, permanently lubricated motors

• High pressure centrifugal blowers easily accommodate

long duct runs

• Designed for quick, easy installation

• HVI certified and AMCA licensed

• Suitable for intermittent or continuous ventilation

applications

• Removable panel offers easy access to the electrical

connections

In-Line Fans / Radon Mitigation

• Great solution for large, open spaces

• Install in virtually any orientation

Model ILF120

Model ILRF

In-Line Fan Kits

• Kits include all components to install a single dual point exhaust

system (except wall control, wire and ducting)

• Each kit includes fan, grille, damper and duct clamps

• Model ILFK 250-2 contains 2 grilles (CVG6) and

3-way 6" Y adapter (model FY6)

Model ILFK-250-2

In-Line Fan Kits

Model CFM Duct Size

ILFK-120 110 4" ILFK-130 130 5" ILFK-250 250 6" ILFK-250-2 250 6"

• Radon Mitigation

• UL Listed for commercial applications

Model CFM Duct Size

ILF-120 110 4" ILF-130 130 5" ILF-250 250 6" ILF-360 360 8" ILF-530 530 10" ILRF* 150 4" or 5"

*ILRF rated 150 CFM at 0.2" WG, 50 CFM at 1.5" WG.

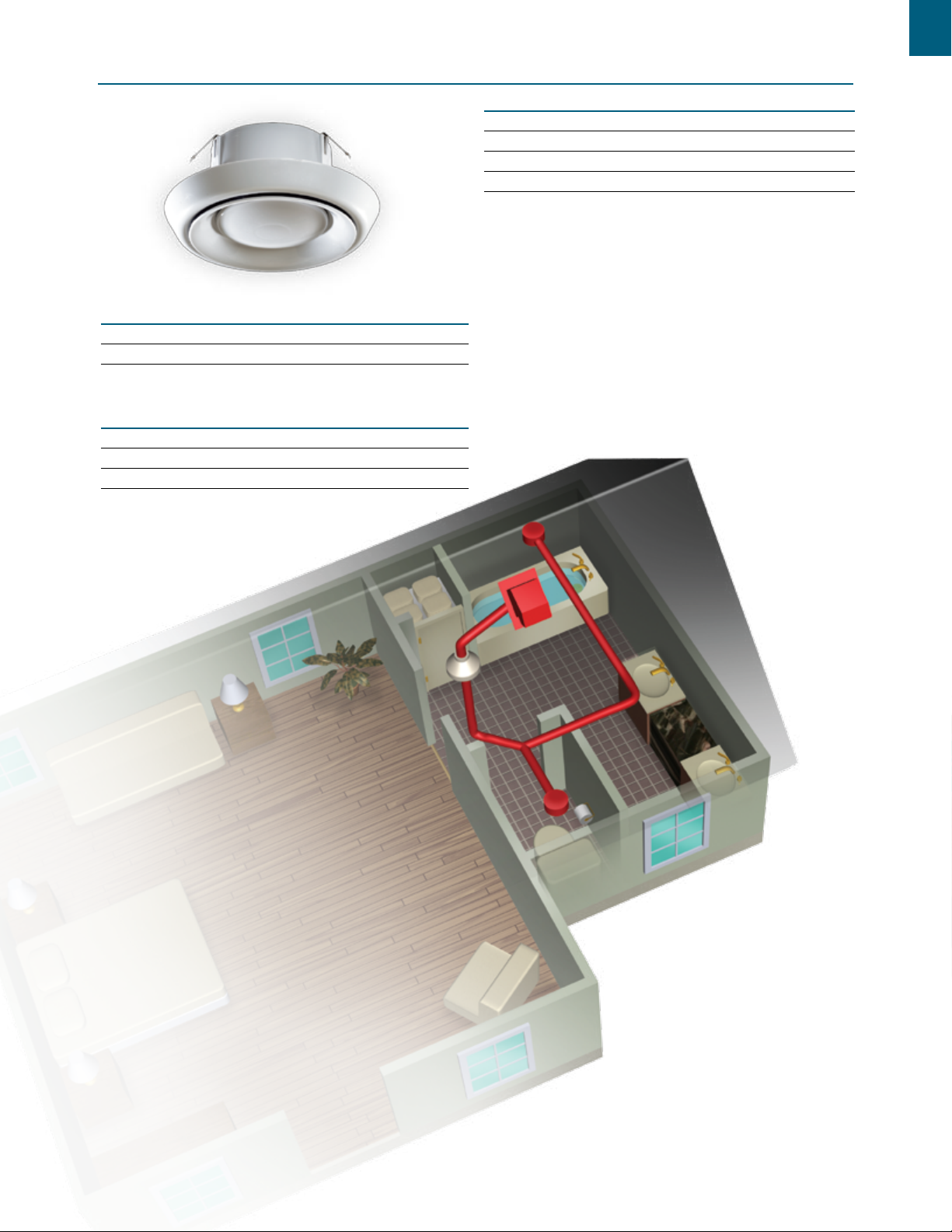

NuTone Ventilation Fans—In-Line

Accessories

Y Adapters Only

Model Size

FY6 6" x 6" x 6" FY86 8" x 6" x 6"

Dampers Only

Model Size

CVLD4 4" CVLD5* 5" CVLD6 6"

*Use with CVG4.

Grilles/Intakes Duct Size Notes

CVG4 4" Round Grille CVG6 6" Round Grille CVL4 4" Sleeve CVL6 6" Sleeve

With an In-line ventilation solution, the blower is mounted away from the living area for virtually silent operation. These fans are ideal for ventilating larger rooms with multiple inlet ports (see illustration).

NuTone Ventilation Fan/Lights—Ultra Silent™ Series

Ultra Silent™ Humidity Sensing Fan/Light with Sensaire

technology.

Sensaire® technology detects rapid increases in moisture levels at the ceiling, where steam and humidity naturally rise, and automatically turns the fan on. With a fan this quiet, automatic shutoff saves worry, and money. Sensaire

technology is a perfect solution for high traffic bathrooms, the kids’ bathroom or for anyone who leaves the house before humidity is properly vented.

QTXN110SL & QTXEN110SFLT Models

If you listen very closely, you’ll

discover it’s also a ventilation fan.

Hands-free solutions to fighting excess humidity and mold.

NuTone’s Ultra Silent

™

humidity sensing fan/lights turn the fan on and off automatically to help prevent cosmetic and possible mold problems associated with excess moisture.

Detects the rapid rise in humidity• Humidity is sensed at the ceiling level• Easy-to-set shut-off timer: 5–60 minutes• QTXEN110SFLT: 42-watt ﬂuorescent • bulb (bulb included) QTXN110SL: 100-watt incandescent • lighting (bulb not included) 4-watt nightlight (bulb not included)• 6" ducting for superior performance•

UL Listed for use over tub or shower •

when installed in a GFCI protected branch circuit Includes hanger bars for fast, ﬂexible • installation in all types of construction HVI Certiﬁed• Type IC•

NuTone Ventilation Fan/Lights—Ultra Silent™ Series

NuTo n e Ultra Silent™ Series Fan Lights. The Ultra Silent™ line represents the ultimate in bath fan solutions for today’s homes.

Select an Ultra Silent

™

fan/light to bring elegance to any bath or powder room. Whether by sight or by sound, you’ll barely

notice the Ultra Silent™ line. Except, of course, when you need the right amount of ventilation and light at the touch of a switch.

QTXEN, QTREN and QTRN Fan/Light Features

• Nearly silent operation 0.3 to 1.4 sones

• 80 CFM to 150 CFM

• QTXEN models feature 6" ducting for superior performance

• QTREN and QTRN models feature 4" ducting

• QTXEN and QTREN models are Energy Star qualified

• Bright, energy efficient 42-watt fluorescent bulb included

with QTXEN and QTREN models

• 100-watt lighting from an incandescent bulb on QTRN models

• 4-watt nightlight on all models

QTXEN Models QTRN ModelsQTREN Models

• QTXEN, QTREN and Housing Packs include hanger bar

system for fast and flexible installation for all types of construction

• UL Listed for use over tub or shower when installed in a GFCI protected branch circuit

• HVI Certified

• Motor engineered for continuous operation

• Type IC

• Fits 2" x 8" ceiling construction

Light/ Energy Title 24 Model CFM Sones Nightlight Star Compliant Duct

QTXEN080FLT 80 0.3 42W

◆

/ 4W Yes Yes 6"

QTXEN110FLT 110 0.7 42W◆ / 4W Yes Yes 6"

▲

QTXEN110SFLT* 110 0.7 42W◆ / 4W Yes Yes 6" QTXEN150FLT 150 1.4 42W◆ / 4W Yes Yes 6" QTXN110SL* 110 0.9 100W■ / 4W — — 6"

▲

QTREN080FLT 80 0.8 42W◆ / 4W Yes Yes 4" QTREN110FLT 110 1.3 42W QTRN080L 80 1.0 100W QTRN110L 110 1.5 100W

Energy Star fans use 65% less energy, on average, than standard models and may qualify for local utility rebates.

▲

See page 41 for 6" ducting (DT6W) product specifications. Humidity Sensing

■

Incandescent bulb.

Fluorescent lighting is Title 24 compliant.

◆

Fluorescent bulb.

◆

/ 4W Yes Yes 4"

■

/ 4W — — 4"

■

/ 4W — — 4"

Project Packs Available for QTREN Models

To simplify installation, Project Packs are available with either four

fan or fan/light housings only. When drywall work and painting is complete, the fan components needed to finish the job are available

▲

in single packs under separate model numbers. These finish kits include the motor plate, motor, wheel and grille. See the matrix

below for Project Pack order information.

Project Pack Kit number: For model:

Four-pack of FAN/LIGHT housings only:

QTXRN000HL

One-pack finish kits for QTREN080FLFT QTREN080FLT FAN/LIGHT models: QTREN110FLFT QTREN110FLT

QTXRN000HL

QTREN080FLFT QTREN110FLFT

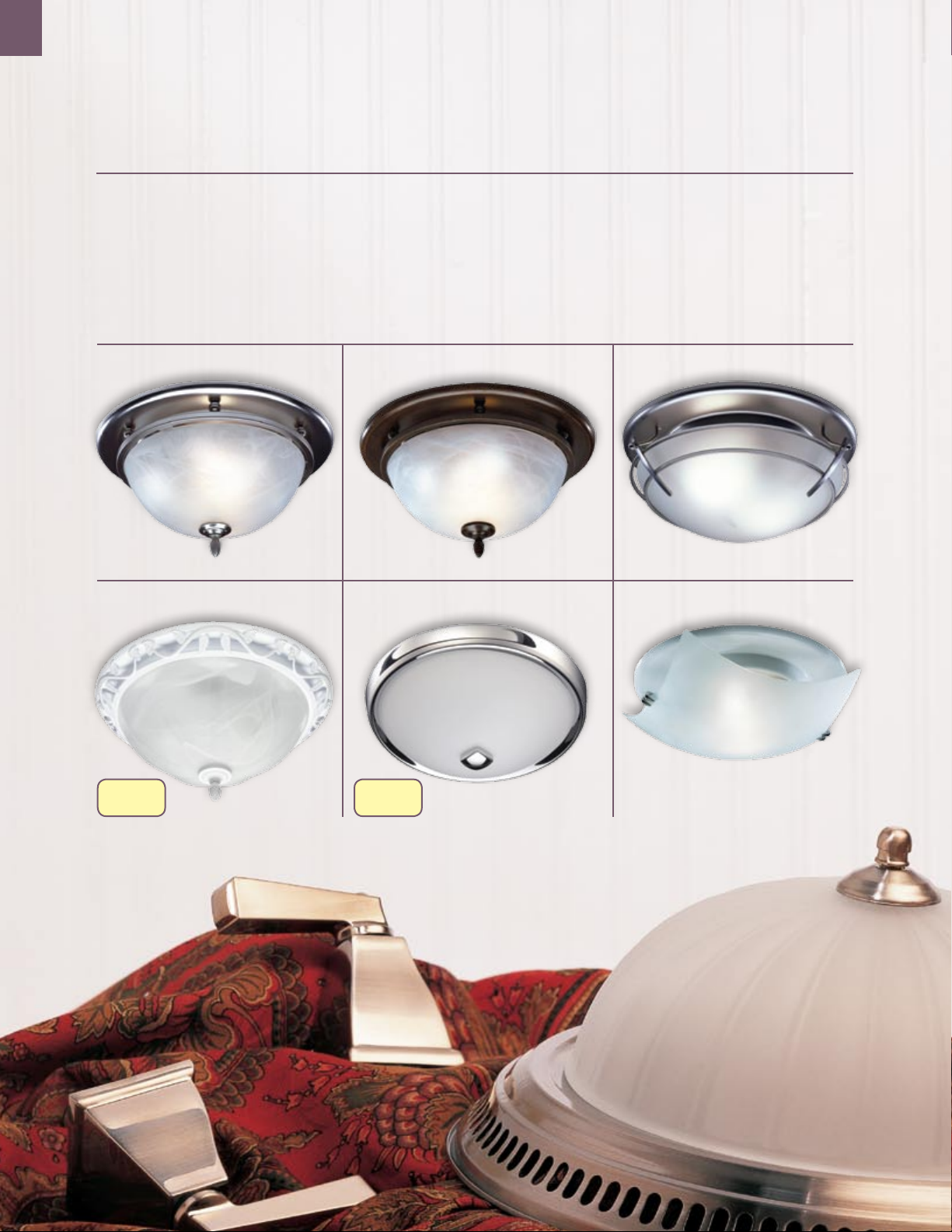

NuTone Ventilation Fan/Lights—Decorative

A beautiful balance of elegance and performance. Now you can ventilate while adding quiet elegance and exceptional

design to your bathroom or any other room in your home. The NuTone series of decorative fan/lights delivers quality ventilation performance and complements your room with beautifully styled glass globe lighting. These fan/lights are available in five, corrosion-resistant decorator finishes: oil-rubbed bronze, antique crackle nutmeg, satin nickel, white, and polished brass.

Decorative Glass Light Fixture/Fans Features

• 70, 80 and 100 CFM models

• 3.5 sones or quieter 2.5 sone models

• Corrosion-resistant finishes

• Beautifully styled glass globe

• Plug-in lighting fixture and permanently lubricated motor

• Two 60-watt max incandescent bulbs (not included)

• 741WHFLNT uses two 13-watt fluorescent bulbs

• Polymeric blower wheel

• Rugged steel housing finished with electrically bonded epoxy paint

• Sturdy, keyholed mounting brackets for quick, accurate installation

• Fits in 2" x 6" ceiling construction

• Tapered, polymeric 4" round duct fitting for easy, positive duct

connection and no metallic clatter

• Type IC

Model 754SNNT

Model 761WHNT

Model 754RBNT

Model 768CHNT

NEW NEW

Models 757SNNT

Model 758NT

NuTone Ventilation Fan/Lights—Decorative

Model 741SNNTModel 741BRNT

Model 741WHNT & 741WHFLNT

Model CFM Sones Lighting Bulb Type Finish

741BRNT 70 3.5 2-60W Incandescent Standard Polished Brass 741WHNT 70 3.5 2-60W Incandescent Standard Gloss White 741WHFLNT 70 3.5 2-13W Fluorescent Tube Gloss White 741SNNT 70 3.5 2-60W Incandescent Standard Satin Nickel 742RBNT 70 2.0 2-60W Incandescent Standard Oil-rubbed Bronze 754SNNT 70 3.5 2-60W Incandescent Candelabra Satin Nickel 754RBNT 70 3.5 2-60W Incandescent Candelabra Oil-rubbed Bronze 757SNNT 80 2.5 2-60W Incandescent Candelabra Satin Nickel 758NT 70 3.5 2-60W Incandescent Candelabra White 761WHNT 100 3.5 2-60W Incandescent Candelabra White 768CHNT 80 2.5 2-60W Incandescent Candelabra Polished Chrome

Model 742RBNT

741 & 742 754 757SNNT 758NT 761WHNT 768CHNT

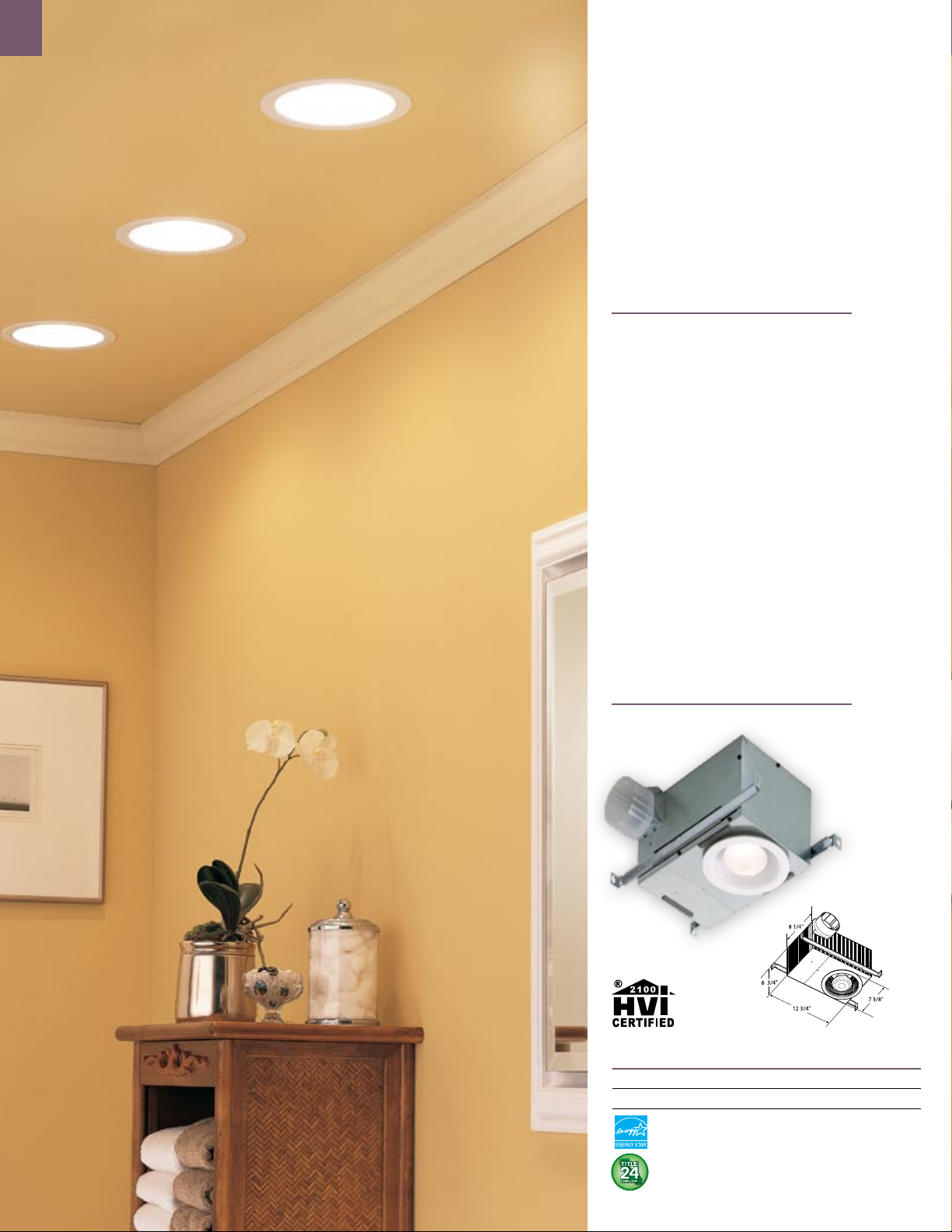

NuTone Ventilation Fan/Lights—Decorative

You’d never know it’s a fan,

and that’s the point.

Recessed lights are popular lighting solutions. But NuTone took it a

step further by incorporating powerful ventilation in the same design. Our new fan lights disappear into the ceiling with other recessed lights, so they are practical decorating solutions for any room in the house. In the bath they control humidity, and in a utility room, kitchen or high-traffic family room they keep the air fresh and comfortable.

Recessed Fan Light

High efficiency centrifugal fan delivers • 70 CFM at 1.5 sones Trim matched to designs of major • recessed light manufacturers Multiple units can be used in larger rooms• Model 744NT uses a 75-watt bulb, either • R30 or BR30 for standard applications Model 744FLNT uses a 14-watt R30 • shaped fluorescent bulb (bulb included)

UL Listed for use over tub or shower •

when installed in a GFCI protected branch circuit. Model 744NT also requires a PAR30L or PAR30LN type bulb 6-3/4" high housing appropriate for new • construction and 2" x 8" ceiling joists 4" round duct connector• Not for use over cooking surfaces• Optional wall control switches available• Type IC, sealed housing•

Model 744NT & 744FLNT

Energy Title 24 Model CFM Sones Lighting Star Compliant

744NT 70 1.5 75W — — 744FLNT 70 1.5 14W Fluor. Yes Yes

Energy Star fans use 65% less energy, on average, than standard

models and may qualify for local u tility rebates.

Fluorescent lighting is Title 24 compliant.

NuTone Ventilation Fan/Lights

A touch of style. Surround the soft glow of a frosted glass lens with an

attractive grille. All units feature NuTone’s quality touches throughout to make attractive complements to any décor.

Designer Fan/Light Combination Unit Features

• Durable centrifugal blower wheel quietly delivers superior ventilation

• Plug-in, permanently lubricated motor

surrounded by rugged steel housing for outstanding reliability

• UL Listed for use over tub or shower

when installed in a GFCI protected branch circuit

• Classic white grilles complement virtually

any décor

• Mounting ears offer quick, sturdy

installation

Models 8663RP, 8664RP & 8663RFT

• Polymeric duct connectors with tapered

sleeves for easier, positive ducting

• Bright 100-watt light capacity with a 7-watt nightlight for added security and safety (bulbs not included)

• Three-function control recommended for

models with nightlights

• 4" round duct connector

• Type IC

Models 769RL, 763RLN, and 769RFT

For heavy-duty applications,

where extra light is needed, NuTone has powerful, brilliant solutions. These fans are ideal for high traffic bathrooms including light commercial installations and offices where operation occurs all day. Hard-working and quiet, these fans also feature sealed, long-life bearings that never require lubrication. Rugged, white polymeric grilles and lenses simply rinse clean.

HD80LNT and HD50LNT Features

• Durable, quiet, centrifugal blower wheel

• Totally enclosed motor design for

continuous operation

• Lasts up to three times longer than

residential units

• 100W incandescent lighting (bulb not included)

• UL Listed for use over tub or shower

when installed in a GFCI protected branch circuit

Round design eliminates squaring • with bathroom walls Fits 2" x 6" ceiling construction• 8663RFT features a 42W fluorescent • bulb (not included)

8663RP features bright 100W •

incandescent lighting with 7W nightlight for security and safety (bulbs not included)

8664RP features bright 100W •

incandescent lighting (bulb not included) 24" adjustable hanger bars•

Model CFM Sones Lighting Finish

8663RFT 100 3.5 42W fluor. White 8663RP 100 3.5 100/7W White 8664RP 100 3.5 100W White 763RLN* 50 2.5 100W White 668RP 70 4.0 100W White 769RFT* 70 3.0 13W fluor. White 769RL* 70 3.0 100W White

* Available in single packs or project packs.

Fluorescent lighting is Title 24 compliant.

White polymeric grille• Fits in 2" x 6" ceiling construction• 769RFT uses 13W fluorescent bulb • (not included)

All models available in Project Packs•

Model 668RP

White polymeric grille• Rectangular fan light• Fits in 2" x 6" ceiling construction• 24" adjustable hanger bars• Mounting brackets that adjust for • ceiling thickness up to 3/4"

Model HD80LNT & HD50LNT

Model CFM Sones Notes

HD50LNT 50 1.5 Heavy-duty motor HD80LNT 80 2.5 Heavy-duty motor

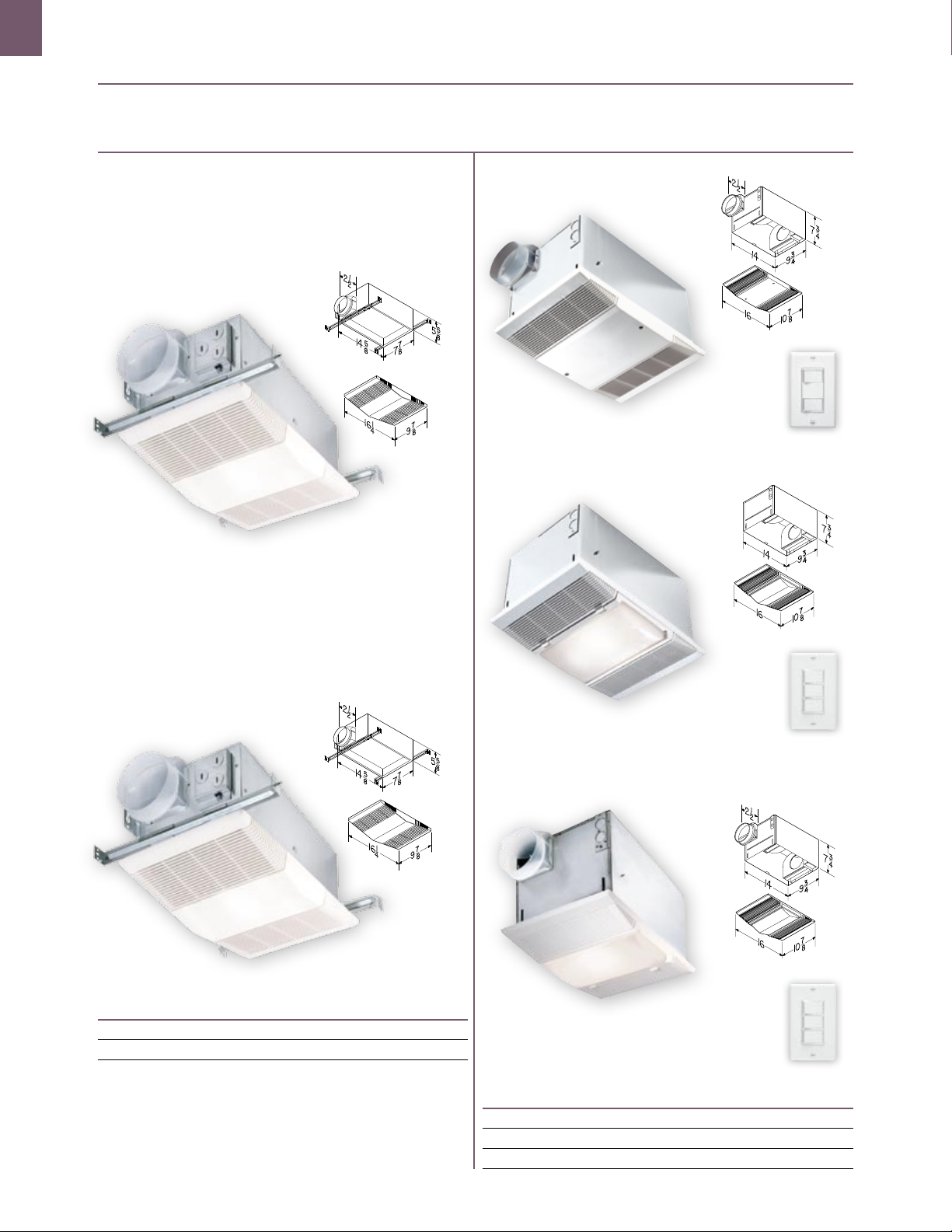

NuTone Ventilation Heater/Fan/Lights—Ultra Silent™ Series

NuTone Ultra Silent™ Series Heater/Fan/Lights. You could wait 15 minutes

for your central heating system to take the chill from your bathroom, all while it heats every other room in the house. Or, you could select instant heat when

it’s needed with the QTXN line. Powerful heating, light and ventilation are available at the touch of a switch. And with our PowerHeat

assured that the energy converted to heat is efficiently delivered back to you.

QTXN Heater/Fan/Light Features

™

design, you’re

Comfort and

convenience

combined.

• Heater/Fan/Light brings convenient,

comforting warmth to your bathroom

• Nearly silent operation – 0.9 sone, 110 CFM fan

• Quiet, high-output 1500-watt heater with exclusive PowerHeat

• 6" ducting for superior performance

• Bright 120-watt lighting (two 60W

incandescent bulbs)

QTXN Heater/Fan/Light

™

(see below)

• 7-watt nightlight capacity

• Fan motor is engineered for

continuous operation

• HVI Certified

• Type IC

• Requires a dedicated 20 amp circuit

• Four-function wall switch sold

separately*

• Fits in 2" x 8" ceiling construction

PowerHeat™ is a NuTone design which maximizes heat output per watt. By placing the heater element very close to the forced air exit grille, the internal components are not heated. Heat is delivered into the bathroom and does not escape into the ceiling or attic space.

Bath Lighting/ Heater Model CFM Sones Sq. Ft. Nightlight Watts Ducting

QTXN110HL* 110 0.9 100 2-60W / 7W 1500 6"

*Switch not included. Use 77DW or 77DV (see page 31).

NuTone Ventilation Heater/Fan/Lights

NuTone Directionally-Adjustable Heater/Fan/Lights. You don’t need to heat the entire house to have a comfortable

bathroom first thing in the morning. And it simply doesn’t make sense to wait for your central heating system to do what NuTone can do instantly. Our new Heater/Fan/Light provides powerful heating, light and ventilation at the touch of a switch.

And with our 360° directionally-adjustable heat outlet, you’re assured the heat will end up exactly where you need it.

Heater/Fan/Light Features

• Heater/Fan/Light brings convenient, comforting warmth to your bathroom

• Quiet operation – 2.0 sone, 100 CFM ventilation fan

• Quiet, high-output 1500-watt heater with exclusive

directionally adjustable design (see below)

• 4" ducting for new construction or retrofit

• Multi-function wall switches sold separately

765HL & 765HFL Heater/Fan/Light

• Choice of bright 100-watt incandescent or energy-efficient 27-watt fluorescent lighting

• Fan motor is engineered for continuous operation

• HVI Certified

• Type IC

• Requires a dedicated 20 amp circuit

• Fits in 2" x 6" ceiling construction

Bath Heater Model CFM Sones Sq. Ft. Lighting Watts Ducting

765HL 100 2.0 90 100W Incandescent 1500 4" 765HFL 100 2.0 90 27W Fluorescent 1500 4"

Fluorescent lighting is Title 24 compliant.

NuTone Ventilation Heater/Fan/Lights—Combination

Heater/Fan and Heater/Fan/Light Features

• Designer white polymeric grilles complement virtually any décor • Fan, light and heater function independently or together

Heater/Fan/Light

• Fits in 2" x 6" ceiling construction

• 1300W heating element provides optimum

performance in smaller spaces

• Bright 100W incandescent light capacity

Model 665RP

• Fits in 2" x 6" ceiling construction

• 1300W heating element provides optimum performance in

smaller space

• Improved hanger bar locks position after securing unit to rafters

• White polymeric grilles

Combination Heater Fans

Model 9905

• Fan-forced heat and exhaust fan only

• Includes two-function switch

• 1500 watts

Model 9960

Model 605RP (switch not included)

Model CFM Sones Lighting Heat Finish

665RP 70 4.0 100 1300W White Polymeric 605RP 70 4.0 n/ a 1300W White Polymeric

• Fan-forced heat, ceiling & nightlight

• Includes three-function switch

• 1500 watts

Model 9965

• Fan-forced heat, exhaust fan, ceiling & nightlight

• Includes four-function switch

• 1500 watts

Model CFM Sones Lighting Heat Wall Switch

9905 70 4.0 n/a 1500W 2-function 9960 – – 100/ 7 1500W 3-function 9965 70 4.0 100/ 7 1500W 4-function

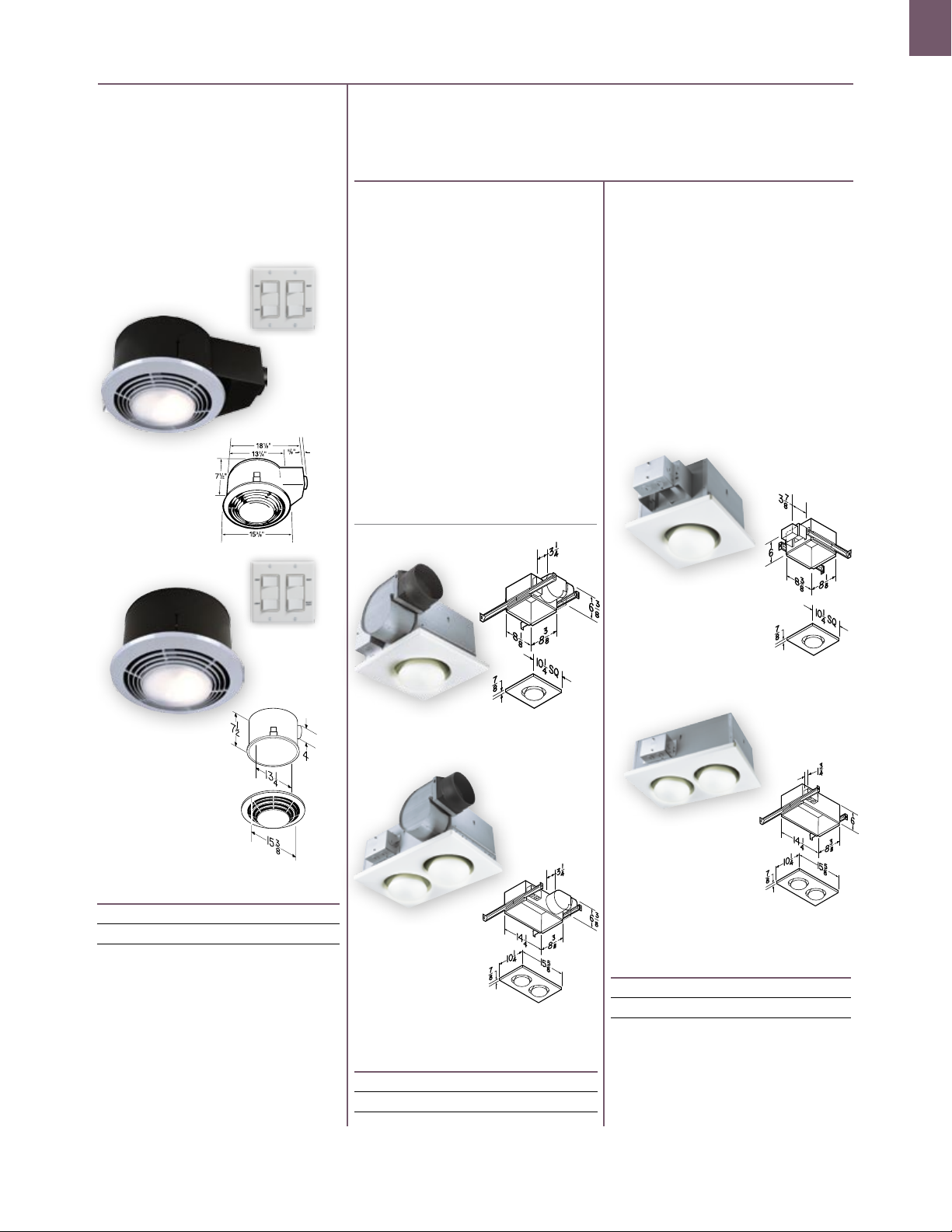

NuTone Ventilation Heater/Fan/Lights—Combination

9093 Series Features

Powerful ventilation •

Extra-quiet operation• Bright ceiling light• Convenient nightlight• White enamel grille• 1500 watts of powerful heat • Includes a four-function wall switch• Fits 2" x 8" ceiling construction•

Model QT9093WH

Model 9093WH

Bulb Heater Fans. Silent warmth and superior ventilation. Trust NuTone

Bulb Heater/Fans and Bulb Heaters for energy-saving warmth and instant comfort without ever having to touch your central thermostat. These units deliver superior performance and excellent ventilation in a compact package.

Bulb Heater/Fan Features

• Quiet, highly efficient polymeric blower wheels

• Polymeric dampers prevent backdrafts and eliminate mechanical noise

• Polymeric 4" round duct connectors with tapered sleeves simplify ducting

• Operate fan and heater independently or together

• Attractive white polymeric grilles

• Compact steel housings with adjustable

mounting brackets with keyhole slots that span up to 24"

• 250-watt R40 or BR40 size infrared

bulbs (not included)

• Type IC, UL Listed for 60°C wiring

(retrofits)

Model 9417DN

Bulb Heaters Only

• Infrared bulbs deliver energy-saving

warmth

• Get instant comfort in the bathroom

without turning up the central thermostat

• 250-watt R40/BR40 size infrared bulbs

(not included)

• Attractive, white polymeric grilles

• Compact steel housings

• Adjustable mounting brackets with

keyhole slots span up to 24"

Model 9412D

• One-Bulb Heater

Model CFM Sones Lighting Heat

QT9093WH 110 3.0 100/7 1500W 9093WH 70 3.5 100/ 7 1500W

• One-Bulb Heater/Fan

Model 9427P

• Two-Bulb Heater/Fan

• Two-function control (available separately)

Model CFM Sones Heat

9417DN 70 3.5 250W* 9427P 70 3.5 500W*

*Infrared bulbs not included

Model 9422P

• Two-Bulb Heater

• IC rated

Model Watts Volts Amps

9412D* 250 120 2.1 9422P 500 120 4.6

*9412D is not IC rated

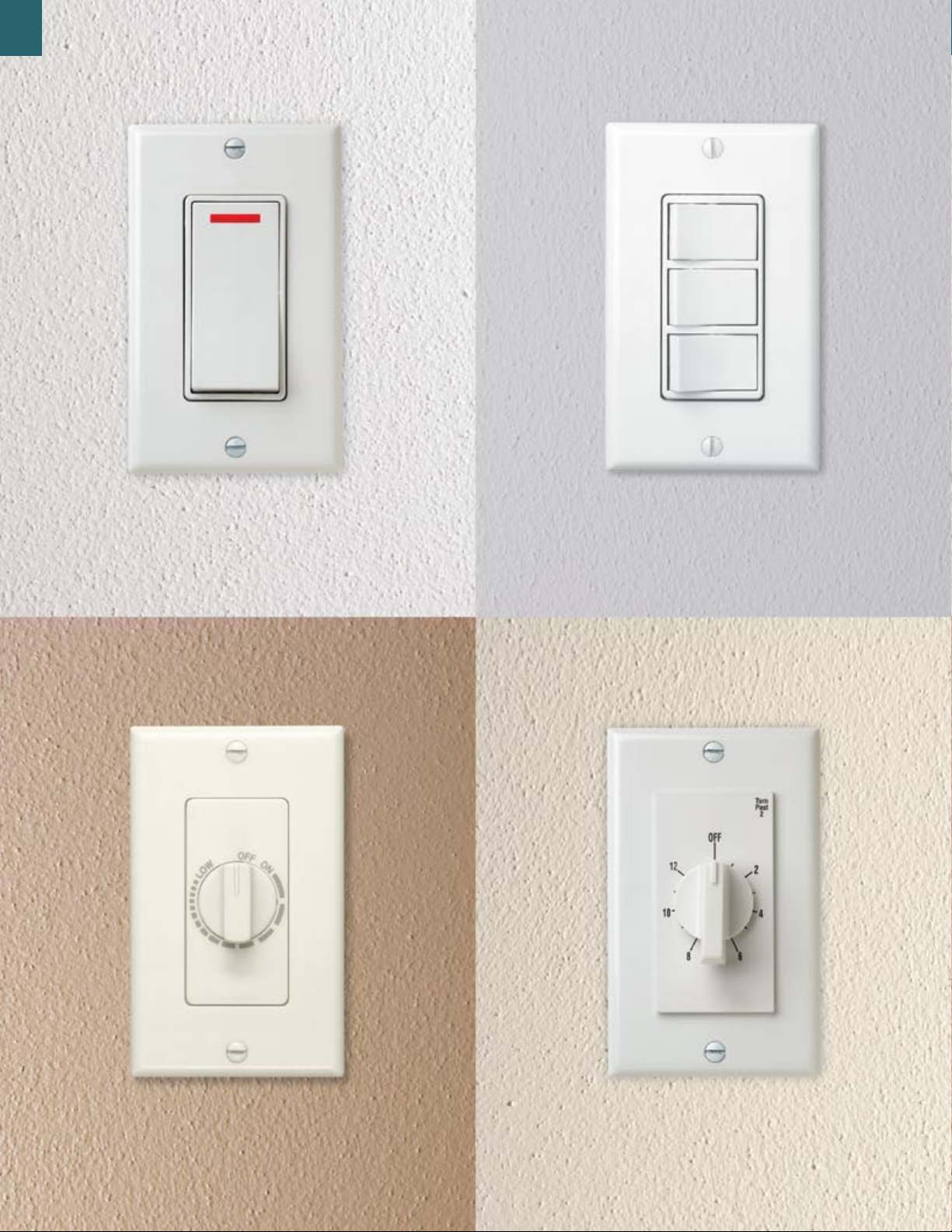

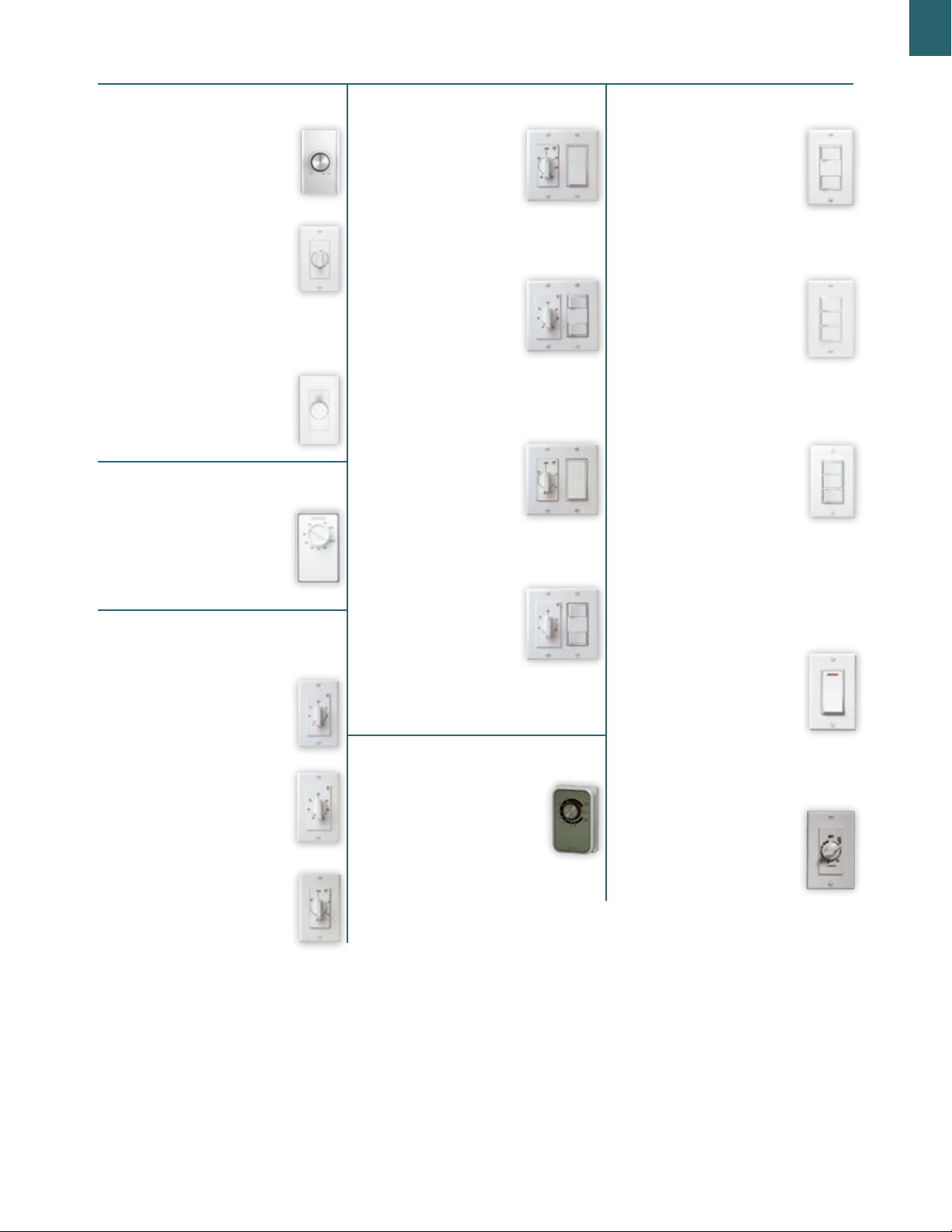

NuTone Ventilation Fans—Wall Control

Indicator Light Control

for Ultra Silent™ Models

Multi-Function Control

Speed Control for quieter

operation or full power

Timer and Off-delay Controls

for unattended moisture removal

NuTone Ventilation Fans—Wall Control

Variable-Speed Wall Controls

Model CFVS-1N

• Variable speed control

• 10.1 amps

• Unlimited fan motor speeds

Model 57W, 57V (3-Amp)*

• 120V, 3 amps

• Fits single-gang box

• Positive on/off action—dial

for variable selection of air speeds and sound levels

• Built-in radio noise suppressor

• Controls available in White (W) or Ivory (V)

Model 72W, 72V

• 120V, 6 amps

• Other features

same as 57W / 57V

Single-Function Wall Controls

Model DH100W

• Dehumidistat with variable setting from 20–80% relative humidity

• Dual voltage 24V/120V

Timed Wall Controls

Model CFT-12WH

• 12-hour time switch

• Rotary dial

• 20 amps

Model VS-62WH

• 60-minute time switch

• For all NuTone heaters and fans except Pull-Chain type

• 20 amps

Model VS-63WH

• 15-minute time

• For all NuTone heaters and fans except Pull-Chain type

• 20 amps

Timed Wall Controls

Model VS-66WH

• 60-minute timer

• Separate on/off control

• For two-gang outlet box

• Timer controls any NuTone

heater or Ventilator

• On/Off section can be used for a separate light, vent or heater

Model VS-67WH

• 60-minute timer

• Separate on/off controls

• For two-gang outlet box

• Timer section may control

any NuTone heater or Ventilator

• On/Off section can be used for a separate light, vent or heater

Model VS-68WH

• 15-minute timer

• Separate on/off control

• For two-gang outlet box

• Timer controls any NuTone

heater or Ventilator

• On/Off section can be used for a separate light, vent or heater.

Model VS-69WH

• 15-minute timer

• Separate on/off controls

• For two-gang outlet box

• Timer controls any heater

or Ventilator

• On/Off section can be used for a separate light, vent or heater

Attic Humidity Control

Model HU100

• For use with attic ventilator

models 350, 355, 356, 358 and RF-49BR

• For single-gang outlet box

• 120V / 6.0 amps

Multi-Function / Lighted Controls

Model 68W, 68V, P68W

• Two-Function Controls

• Two independent, 120V, 15

amp rocker switches (20 amps total)

• Fits single-gang box

• Controls available in White (W) or Ivory (V)

• Blister pack available, P68W

Model 66W, 66V, P66W

• Three-Function Controls

• Three independent, 120V,

15 amp rocker switches (20 amps total)

• Fits single-gang opening

• Controls available in

White (W) or Ivory (V)

• Blister pack available, P66W

Model 77DW, 77DV, P77DW

• Four-Function Controls

• Single switch provides three

settings for fan sensor (On-Auto-Off) on Sensing models

• Remaining switches for light/nightlight

• Works with QTX110HL heater/fan/light/

nightlight

• Controls available in White (W) or Ivory (V)

• Fits single-gang opening

• Blister pack available, P77DW

Model 69WL, 69VL

• Single-Function Controls

• For use with Ultra Silent

Series fan units, or Remote In-Line Ventilators

• 120V, 20 amps

• Red light lets you know power is on

• Controls available in White (W) or Ivory (V)

™

Model P59W

• 60-minute timer with “continuous on” feature

• Fits single gang box

• 120V / 20 amp or

240V / 10 amp

NuTone Ventilation Fans—Wall Control Selection Guide

66W, 66V,

68W, 68V,

671R

672R

682NT

695

696N

8814R

8832SA

8832WH

HD50NT

HD80NT

QTREN080

QTREN110

Ventilation Fans

QTRN080

QTRN110

QTXEN050

QTXEN080

QTXEN110

QTXEN110S

QTXEN150

668RP

741BRNT

741SNNT

741WHNT

741WHFLNT

742RBNT

744NT

744FLNT

754RBNT

754SNNT

755NT

757SNNT

758NT

761WHNT

763RLN

768CHNT

769RFT

769RL

8663RFT

8663RP

Ventilation Fan/Lights

8664RP

8673RP

HD50LNT

HD80LNT

QTREN080FLT

QTREN110FLT

QTRN080L

QTRN110L

QTXEN080FLT

QTXEN110FLT

QTXEN110SFLT

QTXEN150FLT

QTXN110SL

605RP

665RP

9093WH

9412D

9417DN

9422P

9427P

9905

9960

9965

Heater/Fan/Lights

QT9093WH

765HL

765HFL

QTXN110HL

686

8210

8310

QT200

Utility Fans

QT300

57W, 57V P59W 61W, 61V

P66W

P68W

69WL

69VL 72W, 72V

• • • •

• • •

• • • •

• • • • • •

• • • • • • • •

•

• • • • • • • •

• • • • • • • • •

• • • • •

• • • •

• • • • •

• • • •

• • • • • •

• • • • • • •

• •

• • • • • • •

• •

• • • • •

• • • • • •

• • • • • • •

• • • • • • • •

• • • • •

• • • • • •

• • • • •

• • • •

• • • • • • •

• • • • • •

77DW,

77DV CFVS-1N DH100W HU100 VS-62WH VS-63WH VS-66WH VS-67WH VS-68WH VS-69WH

•

• •

• • • •

•

NuTone Ventilation Fans—Ducting Accessories

Roof Caps

Model 634 Roof Cap

• For 3-1⁄4" x 10" or up to 8" round duct

• Built-in backdraft damper and bird screen

• Steel baked black enamel finish

Model 636 Roof Cap

• For 3" or 4" round duct

• Built-in backdraft

damper and bird screen

• Steel baked black enamel finish

Model 636AL Roof Cap

• Same as Model 636, except aluminum natural finish

Wall Caps

Model 639 Wall Cap

• Spring-loaded backdraft damper

• For 3-1⁄4" x 10" duct

• Built-in bird screen

• Steel baked black

enamel finish

Model 649 Wall Cap

• Same as Model 639, except aluminum natural finish

Model 641 Wall Cap

• For 6" round duct

• Aluminum natural finish

• Built-in backdraft damper & bird screen

Model 843-BL Wall Cap

• For 6" round duct

• Built-in backdraft

damper and bird screen

• Steel baked black enamel finish

Model 643 Wall Cap

• For 8" round duct

• Aluminum natural finish

Model 885-BL Wall Cap

• For 3" or 4" round duct

• 3" to 4" round transition included

• Steel baked black enamel finish

• Spring operated built-in backdraft

damper and bird screen

Model 885-AL Wall Cap

• Aluminum finish

• All other features same

as 885-BL

Model WC650 Wall Cap

• 4" round duct

• Includes rigid through-wall

duct collar

• White plastic finish

Transitions

Model 886 Transition

• Converts 7" round to 3-1⁄4" x 10" duct

Model 475 Transition

• Converts 6" round duct to 4" round duct reducer

• Available in 6 Pack (475B)

Model 413 Transition

• Converts 3-1⁄4" x 10" duct to 8" round duct

Ducting, Elbows, Dampers

Model 839 Elbow

• 90° turn

• For use with 3-1/4" x

10" duct

Model 97 Damper

• 7" spring-loaded, In-Line damper.

Model BP87 Damper

• 7" vertical discharge damper.

Model 407 Round Duct

• 7" round duct

• 2' galvanized section

Model 410 Round Duct

• 10" round duct

• 2' galvanized section

Insulated Flexible Duct

Models 804DU, DT6W

• 4" (804DU) or 6" (DT6W) round

• 25' standard length

Adapter Kits

Model RVK1A

• Complete kit designed

to vent kitchen or bath exhaust fan through a slanted roof

• Works with 3" and 4" ducts

• 8' in length

Model WVK2A

Flexible Wall Ducting Kit

• Includes white polymeric wall cap

• 4" diameter metal duct connector

• 2 duct clamps

• 4" to 3" reducer

• 5' of 4" flexible aluminum ducting

Adapters

Model FY6

• 6" x 6" x 6" Y adapter

Model FY86

• 8" x 6" x 6" Y adapter

Sleeves

Model CVLD4

• 4" sleeve with damper

Model CVLD5

• 5" sleeve with damper

Model CVLD6

• 6" sleeve with damper

Grilles

Model S97011308

• Metal Grille kit

• Steel baked white enamel finish

• Fits fan models 695, 696N,

690RMTLA and 696MTL

Model CVG4

• 4" round grille

• Backdraft damper

sold separately

Model CVG6

• 6" round grille

• Backdraft damper

sold separately

Replacement Filters

Model 834 Filter

• For 8" fans and VG-54 Damper

Model 854 Filter

• Aluminum-mesh grease filter

• For 10" fans

NuTone Ventilation Fans—Product Specifications

Sones HVI up to Energy Duct Housing Dimensions Grille Dimensions

Bath Fans

Page CFM certified ( ) Sq Ft Star Size" L" W" H" L" W" Grille finish Amps

671R 14 90 3.0 85 no 4 9 81⁄2

672R 14 110 4.0 105 no 4 9 9 5

682NT 14 n/a n/a n/a no n/a 7

695 14 70 6.0 65 no 3 7

696N 14 50 4.0 45 no 3 7

⁄8

71⁄8

⁄2

71⁄4

⁄2

71⁄4

8814R 14 110 4.0 105 no 4 9 9 5

8832SA 14 80 2.5 75 no 3 8

8832WH 14 80 2.5 75 no 3 8

QTREN080 13 80 0.8 75 yes 4 11

QTREN110 13 110 1.3 105 yes 4 11

QTRN050 13 50 0.4 45 no 4 11

QTRN080 13 80 1.0 75 no 4 11

QTRN110 13 110 1.5 105 no 4 11

QTXEN050 13 50 <0.3 45 yes 6 11

QTXEN080 13 80 0.3 75 yes 6 11

QTXEN110 13 110 0.7 105 yes 6 11

QTXEN110S 12 110 0.7 100 yes 6 11

QTXEN150 13 150 1.4 140 yes 6 11

HD50NT 15 50 1.5 45 no 4 8 8

HD50RDB* 15 50 1.5 45 no 4 8 8

HD80NT 15 80 2.5 75 no 4 8 8

80RDB* 15 80 2.5 75 no 4 8 8

HD80RDB* 15 80 2.5 75 no 4 8 8

110RDB* 15 110 4.0 105 no 4 8 8

*Model RDA fan housing only sold separately for radiation dampers/fans.

⁄2

9 4 101⁄2

⁄2

9 4 103⁄4

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄4

101⁄2

⁄8

101⁄2

53⁄4

⁄4

33⁄4

35⁄8

⁄4

75⁄8

73⁄4

75⁄8

⁄4

53⁄4

⁄4

53⁄4

⁄4

53⁄4

⁄4

53⁄4

⁄4

53⁄4

⁄4

v 101⁄4

101⁄2

81⁄2

91⁄2

111⁄2

101⁄4

811⁄16

101⁄4

White Polymeric 0.5

White Polymeric 0.7

81⁄2

White Polymeric 1.0

White Polymeric 1.2

White Polymeric 0.75

White Polymeric 0.85

85⁄8

Silver Annod. Alum 0.75

93⁄8

White Polymeric 0.7

13 14 White Polymeric 0.7

13 14 White Polymeric 0.9

13 14 White Polymeric 0.4

13 14 White Polymeric 0.3

127⁄8

13 133⁄4

127⁄8

101⁄4

135⁄8

White Polymeric 0.3

White Polymeric 0.4

White Polymeric 0.3

135⁄8

101⁄4

White Polymeric 0.5

White Acrylic Metal 0.4

White Acrylic Metal 0.6

Baths

Fan/Lights

Page CFM

Sones HVI

certified

up to

( ) Sq Ft

Other rooms

up to

( ) Sq Ft

668RP 25 70 4.0 65 85 100W no 4 143⁄4

741BRNT 23 70 3.5 65 85 2-60W no 4 8

741SNNT 23 70 3.5 65 85 2-60W no 4 8

741WHNT 23 70 3.5 65 85 2-60W no 4 8

741WHFLNT 23 70 3.5 65 85 2-13W ﬂuor. yes 4 8

742RBNT 23 70 3.5 65 85 2-60W no 4 8

744NT 24 70 1.5 65 85 75W no 4 8

744FLNT 24 70 1.5 65 85 14W ﬂuor. yes yes 4 8

754RBNT 22 70 3.5 65 85 2-60W no 4 8

754SNNT 22 70 3.5 65 85 2-60W no 4 8

757SNNT 22 80 2.5 75 100 2-60W no 4 8

758NT 22 70 3.5 65 85 2-60W no 4 8

761WHNT 22 100 3.5 90 90 2-60W no 4 8

Lighting

Watts Main/

Nightlight

Energy

Star

Title 24

Compliant

Housing Dimensions Grille Dimensions

Duct Size"

77⁄8

⁄4

8 53⁄4

⁄4

8 53⁄4

⁄4

8 53⁄4

⁄4

8 53⁄4

⁄4

8 53⁄4

⁄4

123⁄4

⁄4

123⁄4

⁄4

8 53⁄4

⁄4

8 53⁄4

⁄4

8 53⁄4

⁄4

8 53⁄4

⁄4

8 53⁄4

763RLN 25 50 2.5 45 60 100W no 4 9 9 5

768CHNT 22 80 2.5 75 75 2-60W no 4 81⁄4

8 53⁄4

769RFT 25 70 3.0 65 85 13W ﬂuor. no yes 4 9 9 5

769RL 25 70 3.0 65 85 100W no 4 9 9 5

8663RFT 25 100 3.5 95 125 42W ﬂuor. no yes 4 9 9 5

8663RP 25 100 3.5 95 125 100W/7W no 4 9 9 5

8664RP 25 100 3.5 95 125 100W no 4 9 9 5

HD50LNT 25 50 1.5 45 n/a 100W no 4 8 8

HD80LNT 25 80 2.5 75 n/a 100W no 4 8 8

QTREN080FLT 21 80 0.8 75 n/a 42W/4W yes yes 4 11

QTREN110FLT 21 110 1.3 100 n/a 42W/4W yes yes 4 11

QTRN080L 21 80 1.0 75 n/a 100W/4W no 4 11

QTRN110L 21 110 1.5 100 n/a 100W/4W no 4 11

QTXEN080FLT 21 80 0.3 75 n/a 42W/4W yes yes 6 11

QTXEN110FLT 21 110 0.7 100 n/a 42W/4W yes yes 6 11

QTXEN110SFLT 20 110 0.7 100 n/a 42W/4W yes yes 6 11

QTXEN150FLT 21 150 1.4 140 n/a 42W/4W yes yes 6 11

QTXN110SL 20 110 0.9 100 n/a 100W/4W no no 6 11

⁄4

⁄8

101⁄2

75⁄8

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

⁄8

101⁄2

75⁄8

⁄8

101⁄2

⁄8

101⁄2

55⁄8

161⁄4

63⁄4

97⁄8

133⁄8

Dia 57⁄8

133⁄8

Dia 57⁄8

133⁄8

Dia 57⁄8

133⁄8

Dia 57⁄8

133⁄8

Dia 57⁄8

73⁄8

Dia White Polymeric 1.2

73⁄8

Dia White Polymeric 1.2

White Polymeric 2.0

Polished Brass 2.2

Satin Nickel 2.2

Painted White 2.2

Oil-rubbed Bronze 2.2

13 Dia Antique Crackle 2.2

13 Dia Satin Nickel 1.6

13 Dia Antique Crackle 2.2

135⁄8 Dia White 2.2

Grille finish AmpsL" W" H" L" W" D"

⁄4

121⁄4

103⁄4

White Polymeric 1.2

131⁄8 Dia Polished Chrome 1.6

⁄4

121⁄4

103⁄4

⁄4

121⁄4

⁄4

5 105⁄8

103⁄4

15 Dia White Polymeric 1.7

111⁄8

White Polymeric 1.2

White Polymeric 2.0

2 White Polymeric 1.3

2 White Polymeric 1.7

13 14 White Polymeric 1.0

75⁄8

13 14 White Polymeric 1.0

75⁄8

13 14 White Polymeric 1.6

75⁄8

13 14 White Polymeric 1.8

75⁄8

13 14 White Polymeric 1.0

75⁄8

13 14 White Polymeric 1.0

13 133⁄4

75⁄8

13 14 White Polymeric 1.2

73⁄4

13 133⁄4

White Polymeric 1.0

NuTone Ventilation Fans—Product Specifications

Utility Fans

Page CFM Sones L" W" H" L" W" Amps* Duct"

686 17 80 6.0 61⁄2

8210 17 210 6.5 9 Dia. X 5

8310 17 160 5.0 13

QT200 17 200 2.0 14

QT300 17 300 4.5 14

In-Line Ventilators

Page CFM Sones Height Duct Collar Diameter Fan Duct Amps

ILF-120 18 110 n/a 95⁄16

ILF-130 18 130 n/a 91⁄8

ILF-250 18 250 n/a 9 57⁄8

ILF-360 18 360 n/a 61⁄4

ILF-530 18 530 n/a 7 10 131⁄4

ILRF 18 150 n/a 101⁄8

ILFK-120 18 110 n/a 95⁄16

ILFK-130 18 130 n/a 91⁄8

ILFK-250 18 250 n/a 9 57⁄8

ILFK-250-2 18 250 n/a 9 57⁄8

0.2" Ps Housing Dimensions

Housing Dimensions Grille Dimensions

x 615⁄16

⁄16

⁄4

37⁄8

47⁄8

8 131⁄4

4/5 91⁄2

37⁄8

47⁄8

Dia 91⁄2

⁄4

115⁄8

10 9 161⁄2

33⁄16

97⁄8

133⁄8

97⁄8

133⁄8

4 0.37

5 0.37

6 0.8

8 0.87

10 2

4 or 5 0.8

4 0.37

5 0.37

6 0.8

811⁄16

11 Diameter 0.82 7

11 Diameter 1.0 31⁄4

123⁄32

1.5 7

1.0 31⁄4

2.5 31⁄4

x 10

Sones, Lighting

Heater/Fan/Lights

HVI- Watts Main/ Dimensions Dimensions Grille Duct Load In Element Motor Motor Page CFM certified Nightlight L" W" H" L" W" finish Size" Amps Watts Watts Watts Watts BTU

605RP 28 70 4.0 n/a 145⁄8

665RP 28 70 4.0 100W 145⁄8

9093WH 29 70 3.5 100W/7W 131⁄4

9905 28 70 4.0 n/a 14 93⁄4

9960 28 n/a n/a 100W/7W 14 93⁄4

9965 28 70 4.0 100W/7W 14 93⁄4

9417DN 29 70 3.5 250W 81⁄8

9427P 29 70 3.5 2-250W 141⁄4

QT9093WH 29 110 3.0 100W/7W 181⁄8

765HL 27 100 2.0 100W 16 101⁄4 57⁄8 171⁄2 111⁄2 White Polymeric 4 14.5 1830 1500 55 55 5120

765HFL 27 100 2.0 27W Fluor. (Incl.) 16 101⁄4 57⁄8 171⁄2 111⁄2 White Polymeric 4 14 1760 1500 55 55 5120

QTXN110HL 26 110 0.9 2-60W/7W 175⁄8

Heater Only

Heating Page Watts Volts Amps BTU/hr W" H" D" W" H" Grille finish

9412D 29 250 120 2.1 853 83⁄8

9422P 29 500 120 4.6 1706 141⁄4

Housing Grille Total Connected Exhaust Heating

77⁄8

55⁄8

161⁄4

97⁄8

White Polymeric 4 13.5 1620 1500 60 60 5118

77⁄8

55⁄8

161⁄4

97⁄8

White Polymeric 4 14.2 1720 1500 60 60 5118

Dia x 71⁄2 153⁄8

73⁄4

83⁄8

63⁄8

83⁄8

63⁄8

131⁄4

71⁄2

113⁄8

75⁄8

Motor Housing Dimensions Grille Dimensions

Dia White Enamel 4 14.2 1717 1500 55 55 5118

16 107⁄8

101⁄4

153⁄8

20 15 White Polymeric 6 14.6 1710 1500 55 55 5120

White Polymeric 4 13.5 1620 1500 60 60 5118

White Polymeric – 13.9 1667 1500 n/a 60 5118

White Polymeric 4 14.2 1727 1500 60 60 5118

101⁄4

White Polymeric 4 2.6 310 n/a 60 n/a 853

155⁄8

White Polymeric 4 5.0 560 n/a 60 n/a 1706

Dia White Enamel 4 14.2 1717 1500 55 55 5118

81⁄8

83⁄8

6 101⁄4

6 155⁄8

101⁄4

White Polymeric

Speakers Ironing Centers Chimes Heaters Fresh Air Systems

Trash Compactors Ceiling Fans Bath Cabinets

Range Hoods Intercoms Sensing Fans Central Vacuums

NuTone® is America’s leading brand of residential built-in convenience products including door chimes, central vacuum systems,

stereo intercom systems, ceiling fans, home theater speakers, bath cabinets, ironing centers and ventilation fans.

Broan® is America’s leading brand of residential ventilation products including range hoods, ventilation fans, heater/fan/light

combination units, Indoor Air Quality (IAQ) Fresh Air Systems, built-in heaters, whole-house fans, attic ventilators and trash compactors.

Broan and NuTone are proud to be ENERGY STAR® partners

America’s Choice For Green Builders

www.NuTone.com

Broan-NuTone LLC, 926 W. State Street, Hartford, WI 53027 • 888-336-3948

In Canada call 877-896-1119

NuTone QTREN, QTXN, QTRN, QTXEN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
