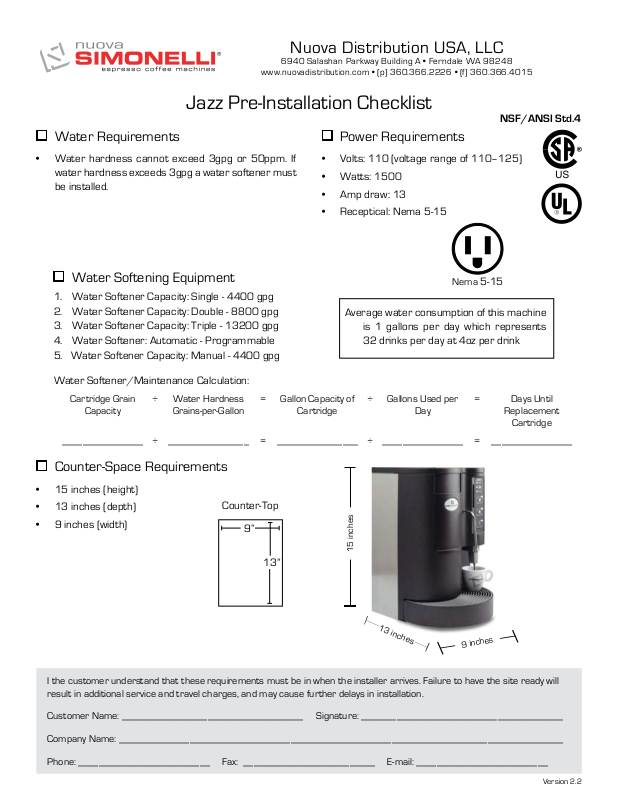

Jazz Pre-Installation Checklist

NSF/ANSI Std.4

Water Requirements

• Water hardness cannot exceed 3gpg or 50ppm. If
water hardness exceeds 3gpg a water softener must
be installed.

Water Softening Equipment

1. Water Softener Capacity: Single - 4400 gpg

2. Water Softener Capacity: Double - 8800 gpg

3. Water Softener Capacity: Triple - 13200 gpg

4. Water Softener: Automatic - Programmable

5. Water Softener Capacity: Manual - 4400 gpg

Water Softener/Maintenance Calculation:

Cartridge Grain

Capacity

÷ Water Hardness

Grains-per-Gallon

= Gallon Capacity of

Power Requirements

• Volts: 110 (voltage range of 110–125)

• Watts: 1500

• Amp draw: 13

• Receptical: Nema 5-15

Nema 5-15

Average water consumption of this machine

is 1 gallons per day which represents
32 drinks per day at 4oz per drink

÷ Gallons Used per

Cartridge

Day

= Days Until

Replacement

Cartridge

________________ ÷ ________________ = ________________ ÷ ________________ = ________________

Counter-Space Requirements

• 15 inches (height)

• 13 inches (depth)

• 9 inches (width)
