Numark Industries DM1295 User Manual

Professional Disc Jockey Products

DM1295

DM1295DM1295

PROFESSIONAL DJ SAMPLING MIXER

PROFESSIONAL DJ SAMPLING MIXERPROFESSIONAL DJ SAMPLING MIXER

Owner’s Manual

DM1295

Safety Information

SAFETY INSTRUCTIONS

a) Read Instructions - All the safety and operating

instructions should be read before this product is connected and used.

b) Retain Instructions - The safety and operating instructions

should be kept for future reference.

c) Heed Warnings - All warnings on this product and in

these operating instructions should be followed.

d) Follow Instructions - All operating and other instructions

should be followed.

e) Water and Moisture -

This product should be kept away from direct contact with liquids.

f) Heat - Avoid placing this

product to close to any high heat sources such as radiators.

g) Ventilation - The appliance should be situated so that it’s

location or position does not interfere with it’s proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation opening; or, placed in a builtinstallation, such as bookcase or cabinet that may impede the flow of air through the ventilation openings.

h) Power Sources - This product should be connected to a

power supply only of the type described in these operating instructions, or as marked on the unit.

i) Power Cord Protection - Power supply cords should be

routed so that they are not likely to be walked upon or pinched by items placed on or against them. When removing the cord from a power outlet be sure to remove it by holding the plug attachment and not by pulling on the cord.

j) Object and Liquid Entry - Take care that objects do not

fall into and that liquids are not spilled into the inside of the mixer.

k) Cleaning – The appliance should be cleaned only as

recommended by the manufacturer.

Non-use Periods – The power cord of the appliance should be unplugged from the outlet when left unused for long periods of time.

m) Damage Requiring Service - Never attempt to make any

adjustments or repairs other than those described in this manual. personnel should service this product. If you have any questions about service please contact Numark at the number(s) shown on the back cover of this manual.

n) Grounding or Polarization - Precautions should be taken

so that the grounding or polarization means built into the CD player is not defeated.

o) Internal/External Voltage Selectors - Internal or external

voltage selector switches, if any, should only be reset and re-equipped with a proper plug for alternative voltage by a qualified service technician. Do not attempt to alter this yourself.

WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture. Electrical equipment should NEVER be kept or stored in damp environments.

Only qualified

- The Leader in DJ Technology

DM1295

DM1295DM1295

with onboard sampler

with onboard samplerwith onboard sampler

CONGRATULATIONS!

You have purchased the DM1295 stereo preamp mixer with onboard sampler. Numark’s engineers have designed this mixer to accommodate both the mobile DJ market and the professional installation market. The DM1295 provides the end user with high-end audio circuitry combined with maximum versatility to meet the demands of every intended situation. This mixer features 8 line, 3 phono, and 2 microphone inputs, balanced XLR outputs, and a built in sampler with 110 seconds of memory storage and polyphonic playback.

Thank you for purchasing NUMARK products!

PROFESSIONAL DJ MIXER

Mixer Features:

• 8 Line, 3 phono, 2 mic inputs

• Completely assignable and replaceable cross-fader

• Dual 6-band graphic equalizer with on/off switch

• Master and zone level controls

• Mic inputs have EQ and talk-over control

• Front panel mic with Neutrik

• Booth output

• Individual channel sends

• Split cue headphone monitoring

• Master balanced XLR outputs

• 12V BNC light connector

connectors (XLR or 1/4”)

Safety Measures 2

Introduction 3

Registration 3

Description of the Features 4

SAMPLER Features:

• 110 seconds of memory storage

• Retainable memory

• Polyphonic playback

• Pitch adjustment of +35% to -100%

•

Looping and single play capability with stuttering

Specifications 10

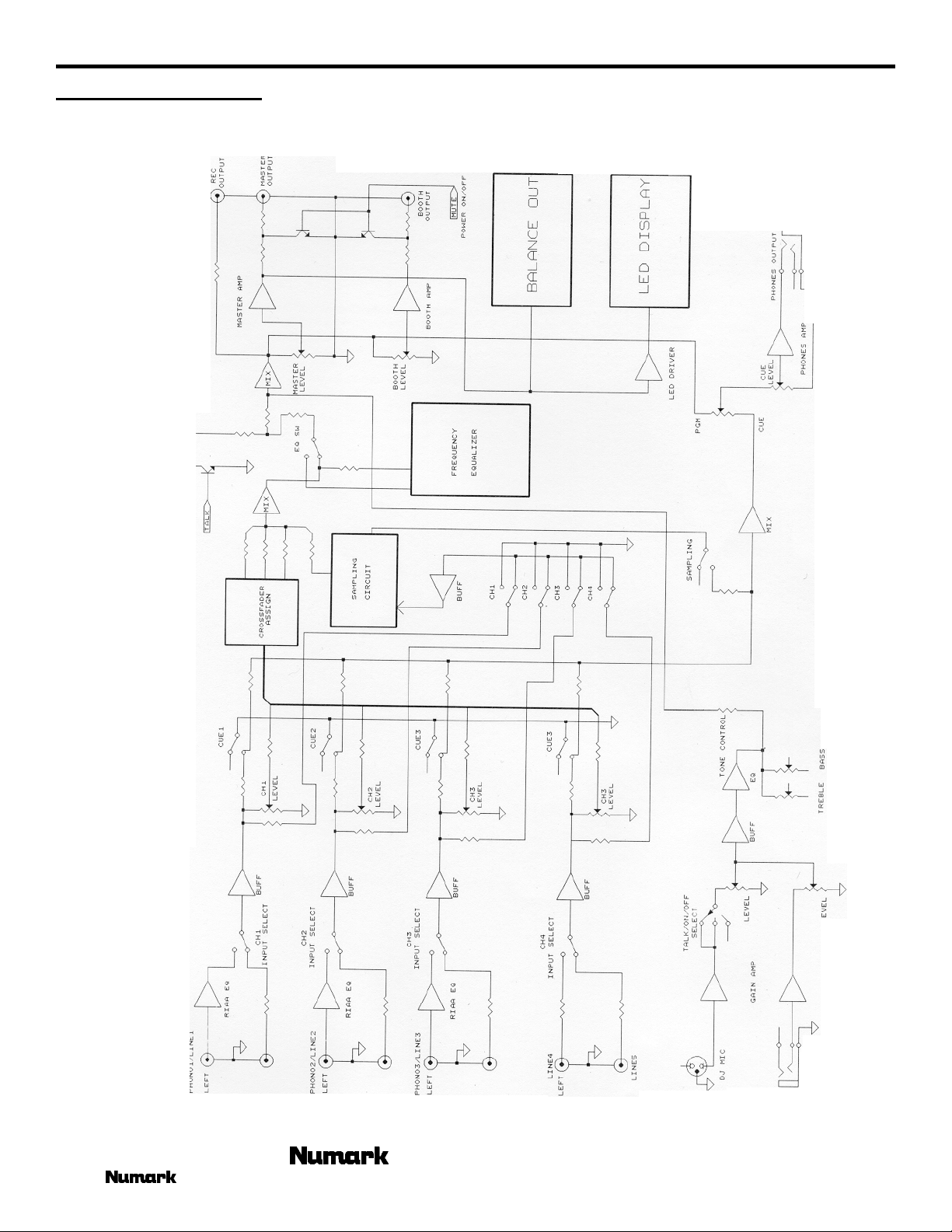

Bock Diagram 11

Warranty 12

Quick Setup Diagram 7

Product Registration

Please record the serial number of your unit as shown on the back of the chassis as well as the name of the dealer from whom you purchased the unit. Retain this information and your original purchase receipt for your records. Please return the enclosed warranty card to register your unit with us.

MODEL: __________________________ PURCHASED FROM:_________________________ SERIAL NUMBER:__________________ DATE OF PURCHASE:________________________

- The Leader in DJ Technology

DM1295

MIXER FEATURES

INPUTS

1. Input Toggle Switches - select which source will be live to that

channel based on what you have connected to the rear panel input section.

2. Input faders - control individual source levels in the mix.

Note: Never use spray cleaners on the slide controls. Residues cause excessive dirt build-up and this will void your warranty. In normal use slide controls can last for many years. If they malfunction (usually because of a dirty or dusty environment) consult a professional technician.

3. Channel Cue Assign - are used to route Pre Fader Level (PFL)

channel audio to the Headphone Section. The channel faders do not control the Cue volume.

4. Effect Send (Channels 1-4). Depress these buttons when you

want the signal from any input channel to be routed to the sampler on the Send Out Jacks.

CROSSFADER

5. Crossfader Assign Knob - determines which input channel will

be heard when the crossfader is moved towards the knob. With the crossfader centered, both assigned channels are live. Use the crossfader for fast and seamless segues from one selected channel to the other.

6. Replaceable Crossfader - achieves clean segues between the

two input channels selected by the Crossfader Assign.

Note: The crossfader is a user replaceable item and subject to wear. Excessive force can wear out the fader quickly. This is not a warranted item. In case of failure. Simply unscrew the two large screws that hold it in place, lift it out and disconnect its cable. Re-attach the new crossfader and screw the mounting plate back onto the unit - you’re back in business!

MICROPHONE

7. Neutrik™ “Combo” connector - allows connection of either a

1/4” jack or an XLR jack. This is ideal for connecting an XLR gooseneck directly into the mixer.

19 20

8. Treble and Bass Controls – for fine-tuning the tone of your

voice through the sound system. The controls are detented for setting tone "flat".

9. DJ Mic Gain Control – for volume adjustment of the

Neutrik™ “Combo” connector on the faceplate.

10. Mic 2 Gain Control – for volume adjustment of the ¼”

input on the rear panel.

11. Mic Off/On/Talkover Switch. Off/On turns Mic 1off

and on. Mic 2 is controlled only through the Mic 2 Fader. Talkover turns down the input level of your music sources from Channels 1-4. Talkover is very useful for making announcements without adjusting any levels.

Try using this feature for audience participation when you want the music to temporarily cease and the audience to be heard - “YEAH!”

OUTPUTS

12. Master Fader – controls the overall output level.

13. Stereo/Mono toggle - adjusts the Master output for stereo or

mono operation.

14. Booth/Zone Fader - controls speaker volume for a remote zone

or booth monitors. NOTE: This can also be used to supply line

level audio to a lighting controller or to lights that are sound activated.

15. Stereo Auto Peak Hold Level Indicator- quickly and

accurately tracks level of audio output. The red LEDs for +3dB, +5dB and +8dB hold program peaks for a second or two. With peak metering, it's OK to be "in the red" as long as +5dB or +8dB aren't constantly lit. When using as a master output meter, set the crossover, equalizer and power amp inputs to avoid distortion at each step in the audio chain. Proper attention to the peak meter results in the punchiest possible sound without audible distortion.

- The Leader in DJ Technology
