CDN22 - PROFESSIONAL DUAL CD PLAYER

OPERATING MANUAL

NUMARK INDUSTRIES 11 Helmsman Avenue, North Kingstown, RI 02852 http://www.numark.com

CDN-22

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE ANY COVER. NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL ONLY.

The lightning flash with arrowhead symbol within the

equilateral triangle is intended to alert the user to the presence

of un-insulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within the equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying this appliance.

CAUTION

FOR USA & CANADIAN MODELS ONLY

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS

(POLARIZED) PLUG WITH AN EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN

BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

SAFETY INSTRUCTIONS

6. Heat - Avoid placing this product to close to any high heat sources such as radiators.

7. Power Sources - This product should be connected to a power supply only of the type described in these operating instructions, or as marked on the unit.

8. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked upon or pinched by items placed on or against them. When removing the cord from a power outlet be sure to remove it by holding the plug attachment and not by pulling on the cord.

9. Object and Liquid Entry - Take care that objects do not fall into and that liquids are not spilled into the inside of the mixer.

1. Read Instructions - All the safety and operating instructions should be read before this product is connected and used.

2. Retain Instructions - The safety and operating instructions should be kept for future reference.

3. Heed Warnings - All warnings on this product and in these operating instructions should be followed.

4. Follow Instructions - All operating and other instructions should be followed.

5. Water and Moisture - This product should be kept away from direct contact with liquids.

Numark - The Proven Leader in DJ Technology

10. Damage Requiring Service - This product should be serviced only by qualified personnel. If you have any questions about service please contact Numark at the number(s) shown on the back cover of this manual.

11. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means built into the CD player is not defeated.

CDN-22

12. Internal/External Voltage Selectors - Internal or external voltage selector switches, if any, should only be reset and re-equipped with a proper plug for alternative voltage by a qualified service technician. Do not attempt to alter this yourself.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Electrical equipment should NEVER be kept or stored in damp environments.

DANGER INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCK FAILED OR DEFEATED. AVOID DIRECT EXPOSURE TO BEAM.

CAUTION: This product utilizes a laser. Use of controls or adjustments other than those specified herein may result in hazardous radiation exposure.

SERVICE INSTRUCTIONS

1. Disconnect power cord before servicing

2. Replace critical components only with factory parts or recommended equivalents

3. For AC line powered units - Before returing repaired unit to user, use an ohmmeter to measure from both AC plug blades to all exposed metallic parts. Theresistance should be no more than 100,000ohms.

NOTICE CONCERNING FCC REGULATIONS

This equipment generates and uses radio frequency energy and may cause interference to radio and television reception if you do not operate it in strict accordance with the procedures detailed in this OPERATING MANUAL. This unit complies with Class B computing device rules in accordance with the specifications in Sub-part J or Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. There is no guarantee, however, that interference will not occur in a particular installation. If the unit does cause interference to any radio or television reception, try to reduce it by one or more of the following means:

a) Turn the other unit and/or its antennae b) Move this unit c) Move this unit and the other unit(s) further apart d) Plug this unit into a different AC outlet so that it is on a different circuit from the other equipment.

This note is in accordance with Section 15.838 of the FCC Rules.

This unit does not exceed the Class B limits for radio noise emission from digital apparatus set out in the radio interference regulations of the Canadian

Department of Communications.

DOUBLE INSULATED - When servicing use only identical replacement parts

For 220 volt use in USA, use NEMA style 220 volt plug. For other countries use proper plug for local outlet.

LINE VOLTAGE SELECTION

1. The desired voltage may be set with the VOLTAGE SELECTOR switch on the rear panel of the main unit, using a screw driver.

2. Do not twist the VOLTAGE SELECTOR switch with excessive force as this may cause damage.

3. If the VOLTAGE SELECTOR switch does not move smoothly contact a qualified serviceman.

115V

230V

Please record the serial number of your unit as shown on the back of the chassis as well as the name of the dealer from whom you purchased the unit. Retain this information for your records. Please return the warranty card enclosed to register your CD player with us.

MODEL: CDN-22 PURCHASED FROM:_________________________ SERIAL NUMBER:__________________ DATE OF PURCHASE:________________________

Numark - The Proven Leader in DJ Technology

CDN-22

PROFESSIONAL DUAL-TRANSPORT

CD PLAYER WITH REMOTE CONTROLLER

CONGRATULATIONS...

You have just purchased a dual CD player designed specifically for the professional DJ. This unit has been designed to provide CD mixing with the same ease and creativity that you have enjoyed with records. Please take a few moments to familiarize yourself with the CDN-22 by reading the following information before attempting to operate the unit.

Once again, congratulations and thank you for making the CDN-22 your choice in professional CD players.

FEATURES:

• 8 times oversampling

• 8cm single CD compatible

• Interactive pitch wheel adjustment

• Digital Output

• 3 speed scanning

• Frame search

• Auto cue

• +10 tracks skip search

• 30 tracks program play

• Pitch display

• Realtime Cue

Numark - The Proven Leader in DJ Technology

TABLE OF CONTENTS

Safety and Registration 2

Introduction 4

Set-up Instructions & Connections 7

Description of the Features

Features of the Remote Control Unit 8 Features of the Display 9

CDN-22

Basic Operation

Play, Pause and Cue Operations 10 Matching the Beats Per Minute 11

Beat Matching Using Pitch Bend 12

Example of Mixing with the CDN-22 13

Before Switching off the Power 14

Troubleshooting Guide 14

Information and Specifications 15

Warranty 16

Numark - The Proven Leader in DJ Technology

CDN-22

CHECK TO BE SURE THE FOLLOWING ITEMS ARE IN THIS BOX:

1) DUAL-TRANSPORT PLAYER UNIT

1) REMOTE CONTROL UNIT

1) OWNERS MANUAL (THIS BOOKLET)

2) RCA CONNECTING CABLES

2) CONTROL CABLES

1) IEC POWER CORD

Numark - The Proven Leader in DJ Technology

CONNECTIONS

inputs of your mixer.

connector on the main unit to the Unit 1 connector on the remote control unit. Repeat for Unit 2.

cables are supplied with the main unit. Be sure to use the remote control connection cables which have been supplied. Use of another cable type might cause damage.

DIGITAL OUTPUT

IEC CONNECTOR

VOLTAGE SELECTOR

Typical connection with a mixer is illustrated right. Please use it for reference.

CDN-22

POWER ATTACHMENT: Your CD player is equipped an IEC style power connector. Please first select the proper voltage for your location. Next, plug in you supplied power cable into the rear of the unit then plug into the appropriate power outlet

DIGITAL OUTPUTS: This CD player is specially equipped with digital outputs. The format is type 2, form 1, also known as S/PDIF (Sony/Phillips Digital Interface Format). In order to use the digital output you must be sure not to vary the pitch in any way. To ensure this, press the pitch button to deactivate the variable pitch slider and don’t use the pitch bend buttons or pitch wheel. If you adjust the pitch, other devices will not read the digital output properly.

MOUNTING YOUR CD PLAYER

•Mount the units in your console or rack with 19” EIA rails

•The transport should be mounted not to exceed an angle of 15 degrees.

•Your CD player can be affected by excess vibration so mount the units in a secure environment if possible.

Numark - The Proven Leader in DJ Technology

CDN-22

DESCRIPTION CDN-22 REMOTE FEATURES

1. PROGRAM - Depress this button and the unit will stop and

the program indicator will light. Select each track to be programmed and press the PROGRAM button between selections. You can program up to 30 tracks. Press PLAY to start the program. To exit and erase program hold the program button down for more than 2 seconds while the unit is stopped, open the disc tray, or turn off the power.

2. CONT/SING - Will cause just a single track to play or all tracks in order by pressing once or twice.

3. LCD DISPLAY - Indicates all the functions, as they are occurring, with the CD. These functions are explained in the next section.

4. TIME (Time Button) - The TIME button switches the time display between elapsed playing time and remaining time on the track.

5. OPEN/CLOSE (Disc Tray Open/Close) - Press to load or eject the disc. Each press will open or close the disc tray on the transport. NOTE: Tray will not open unless the disc has been paused.

6. TRACK (Track Buttons) - These buttons are used to select the track to be played.

7. Track 10 Button - This button is for quickly advancing to higher tracks on a CD.

8. PITCH (Pitch Button) - This button activates the Pitch Slider (14).

9. PITCH BEND (Pitch Bend Button) - When each of the two CD players is playing a CD, the pitch bend function allows the positioning of the bass beats to be matched after the pitch of each disc is matched. Either player can “catch up” or “fall back” to match the other player. The pitch will automatically rise while the + button is pressed (allowing “catch up”) and return to the original pitch when the button is released. The pitch will automatically drop while the - button is pressed (allowing “fall back”) and return to the original pitch when the button is

released. By changing the pitch of one disc with respect to the other in this way the beats can be matched.

10. SEARCH WHEEL (OUTER RING) - This wheel has 3 forward and 3 reverse speed positions for searching through songs. The more you turn the wheel in either direction the faster you search through the music.

11. JOG WHEEL (INNER RING) - This jog wheel serves 2 functions depending on the mode you are working in.

a. The jog wheel will act as a slow frame search control when the CD is not playing but either paused or set to a cue point. To set a new frame cue point, spin the wheel then press play when you have determined the proper position. Press CUE to return to the “CUE POINT”.

b. The jog wheel will temporarily bend the pitch of the music if the song is already playing by rotating the wheel clockwise to speed up or counterclockwise to slow down.

12.CUE - Pressing the CUE button during play provides a return to the position at which play was started. If PAUSE is used before CUE, that will become the cue point. Alternately pressing the PLAY button and the CUE button allows the CD to be played from the same position any number of times. The CUE LED will light up from the time the CUE button is pressed until the CD has reset to the position at which play was started. Steady lighting of this LED indicates the ready condition.

13.START/PAUSE (Play/Pause Button) - Each press of the Play/Pause Button causes the operation to change from play to pause or from pause to play.

14.PITCH SLIDER - The pitch can be changed up to +/-12% by pressing the PITCH button so the PITCH LED is lit, then moving the sliding fader. The pitch will not be changed if the PITCH LED is off.

Numark - The Proven Leader in DJ Technology

LCD DISPLAY FEATURES

CDN-22

1. PLAY - Active while the unit is actually playing a CD.

2. PAUSE - Active when the unit is paused.

3. CUE - Flashing when the unit is setting a cue point. Lit

continuously when the unit is paused at a cue point.

4. PROGRAM - used for preprograming the track order to automatically be played by the unit. This is a great function if you need leave the CD player alone.

5. TIME MODE (Elapsed) is for showing time as it is taking place. (Remain) shows how much time is left on a particular track. This function is controlled by the TIME BUTTON (4).

6. SINGLE - Shows when the unit is set to play just one track at

a time. When this is not lit the CD will play continuously through all tracks.This function is controlled by the SING/CONT

BUTTON (2).

7. PITCH - is lit when the PITCH BUTTON is active.

8. TIME BAR - shows either time remaining or elapsed depending on the setting of the TIME BUTTON (4).

9. PITCH - Shows the percentage change in pitch.

10. TRACK - shows the track that the unit is playing with.

11. MINUTES - shows the minutes elapsed or remaining

depending on mode setting.

12. SECONDS - shows the seconds elapsed or remaining depending on mode setting.

13. FRAMES - The CD Player breaks down a second into 75 frames for accurate cueing. This shows the frames elapsed or remaining depending on mode setting.

Numark - The Proven Leader in DJ Technology

CDN-22

DESCRIPTION OF THE PLAY/PAUSE AND CUE OPERATIONS

PLAY and CUE

Pressing the “PLAY/PAUSE” button starts the disc. Pressing the “CUE” button will reset the disc to the last place where the disc was started. This is called the cue point. By alternately pressing the “PLAY/PAUSE” button and the “CUE” button, the disc may be returned and played from the cue point any number of times. This function is called back cue.

PLAY, PAUSE and CUE

EDITING CUE POINT

When the inner search dial is turned while a cue point is set, a new cue point can be located. The CD player will repeatedly play small parts of the CD as you move it to the desired position. By pressing “PLAY/PAUSE” then “CUE” you can confirm this new cue point is desirable.

Numark - The Proven Leader in DJ Technology

CDN-22

MATCHING THE BEATS PER MINUTE (BPM)

Match the tempo by monitoring the music of both PLAYER 1 and PLAYER 2 by ear and adjusting the pitch. When the tempo of the music of the selected CD player is slow compared to the tempo of the other player, move the slider to the ( + ) side and match the tempo. When faster, move the pitch slider to the ( - ) side. The following description is for the case of matching the pitch of PLAYER 2 to the pitch of the music being played on PLAYER 1.

Press PLAY/PAUSE to start PLAYER 1

PLAYER 1 is playing

When PLAYER 2 is slow compared to

PLAYER 1

speed up PLAYER 2

Press PLAY/PAUSE to start PLAYER 2

Both CD players are playing discs.

Listen to PLAYER 2 in your headphones and look at the BPM display information

When PLAYER 2 is fast

compared to PLAYER 1

slow down PLAYER 2

Numark - The Proven Leader in DJ Technology

CDN-22

BEAT MATCHING USING PITCH BEND

BPM’s (Beats Per Minute) are the same, however, the drum beats are not matched

A description of the procedure for matching the beat of PLAYER 1 and PLAYER 2 using the PITCH BEND button. This description is for the case of matching the beat of PLAYER 2 to the beat of the music being played on PLAYER 1. (This procedure can be done on either PLAYER).

After Matching the BPM’s adjust the pitch temporarily as follows:

When PLAYER 2 is ahead press the --

or rotate the jog wheel counter clockwise

The pitch changes automatically while the + or -- button is being pressed or the jog wheel is rotated. The faster you rotate the wheel the more you change. Releasing the button or wheel results in a return to the original pitch. (So the

BPM’s are once again the same.)

When PLAYER 2 is behind press the +

or rotate the jog wheel clockwise

Numark - The Proven Leader in DJ Technology

CDN-22

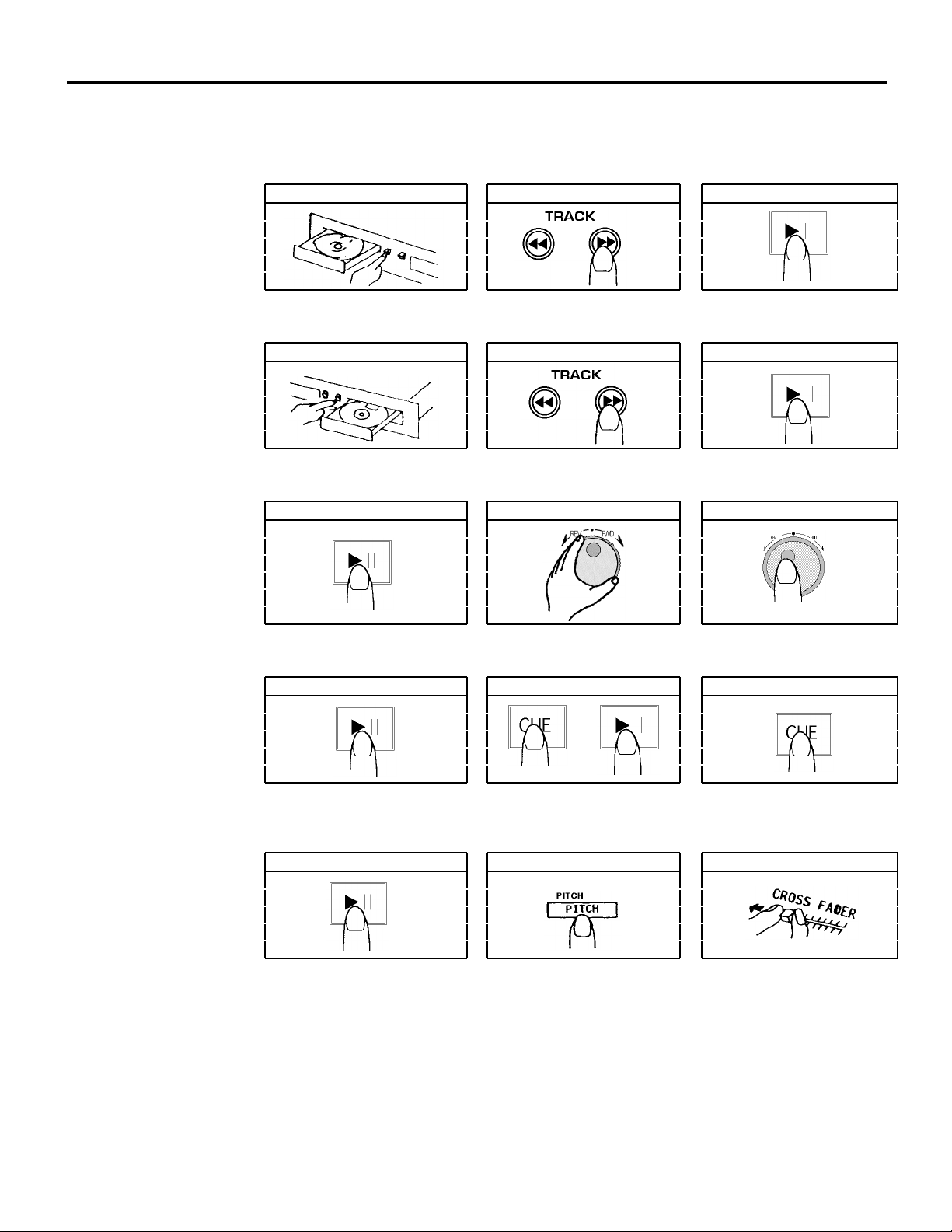

EXAMPLE OF MIXING USING BOTH PLAYERS OF THE CDN22

While playing a disc on PLAYER 1 load a disc into PLAYER 2 and select your next track, match its pitch to the track playing on PLAYER1 and when you are ready use the crossfader on your mixer to fade from PLAYER 1 to PLAYER 2.

Load a disc in PLAYER 1 and select the track and press PLAY.

Load a disc in PLAYER 2 and select the track then play.

Set and edit a start cue point on PLAYER 2

PLAYER 1

Load a disc and press the OPEN/CLOSE button.

PLAYER 2

Load a disc and press the OPEN/CLOSE button.

PLAYER 2

Press the Pause button of PLAYER 2.

PLAYER 1

Select the track to be played.

PLAYER 2

Select the track to be played.

PLAYER 2

Rapidly search for a cue point using the outer wheel

PLAYER 1

Press the PLAY button

PLAYER 2

Press the PLAY button

PLAYER 2

Slowly set the right point using

the inner wheel

Check you new cue point

Do a MIX!

PLAYER 2

Listen with the monitor and press the play button.

PLAYER 2

With a matching downbeat from Player 1 press the play button.

PLAYER 2

Press the cue button then play to be sure of the set cue point.

PLAYER 2

If you are beat mixing turn on your Pitch adjust and follow the directions for beat matching.

PLAYER 2

Set the player to the Cue point

by pressing Cue

MIXER

When you are happy with you

mix adjust you mixer accordingly.

Numark - The Proven Leader in DJ Technology

CDN-22

BEFORE SWITCHING OFF THE POWER:

When you have finished using the CD player, be sure that the disc tray is closed with the “OPEN/CLOSE” button before switching off the power .

DO NOT switch off the power when

the disc holder is open.

Troubleshooting Guide

Symptom Possible Cause Corrective Action

The power fails to switch on when the

POWER switch is set to on

Disc play does not start The disc is loaded upside down

No sound Improper output cable connections

Poor power plug connection at the AC outlet or IEC Power cord loose from rear of unit

The disc is too dirty

Improper amplifier operation

Switch off the power after the

disc holder has been closed

with the “OPEN/CLOSE” button

Insert the power plug firmly into the AC outlet and make sure connection is good in unit rear

Reload the disc with the label side up

Clean the disc

Connect the output cables correctly

Check amplifier setup

Sound skips The CD player is subject to vibrations

or physical shock

The disc is too dirty

Programmed disc play will not function The CD player is in normal disk play

mode

Hum Loose cable connections Firmly connect all audio plugs

Change the installation location

Clean the disc

Hold down the Program button for 3 seconds then program the tracks

Numark - The Proven Leader in DJ Technology

SPECIFICATIONS GENERAL

Dimensions: Main Unit: 482 (W) x 88.8 (H) x 264 (D) mm (without feet)

19 (W) x 3.5 (H) x 10 3/8 (D) inches (without feet)

Control Unit: 482 (W) x 88.8 (H) x 74 (D) mm (without feet)

19 (W) x 3 1/2 (H) x 2 7/8 (D) inches (without feet)

Weight: Player Unit: 5 Kgs, 11 lbs

Control Unit: 2 Kgs, 4.4 lbs

Power Supply: 115/230V AC, 50/60Hz Power Consumption: 25W

CDN-22

Numark - The Proven Leader in DJ Technology

Professional Disc Jockey Products

Warranty and Service Information

Numark Industries, LLC and Numark International, Inc. (hereafter “Numark”) warrants each new product manufactured and/or supplied by it to be free from defects in material or workmanship under conditions of normal use and service for 360 days, beginning on the date of purchase from an authorized Numark Dealer, but not to exceed 2 years from date of shipment by Numark.

The Numark obligation under this warranty is limited to repairing or replacing, at its option, the product or part(s) therein; which upon examination by Numark shall appear to be defective or not up to factory specifications; providing the Numark product is returned (transportation prepaid) to Numark.

Numark shall not be liable for any damages, consequential or otherwise, resulting from the use and operation of this product and makes no other warranty(s) either express or implied on this product, including any warranty of merchantability.

This warranty does not extend to any of our products which have been subjected to misuse, neglect, accident, incorrect wiring not our own, improper installation, or use in violation of instructions furnished by us, nor extended to units which have been repaired or altered outside of our factory, nor to cases where the serial number thereof has been removed, defaced, or changed, nor to accessories used therewith not of our own manufacture. Numark reserves the right to make changes or improvements in its products, during subsequent production, without incurring the obligation to install such changes or improvements on previously manufactured equipment.

To place this warranty into effect, the enclosed WARRANTY REGISTRATION CARD must be returned to Numark Industries, LLC within thirty (30) days after date of purchase.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.

EQUIPMENT TRANSPORT

A Return Authorization number should be obtained from Numark through the addresses or phone numbers below.

It is the customer’s obligation, when returning faulty equipment, to properly pack the Numark equipment in its original packaging. Failure to do so may inadequately protect the equipment in transit and, therefore, jeopardize the customer’s warranty. The defective Numark equipment should be sent, FREIGHT PREPAID with Return Authorization number to:

NUMARK INDUSTRIES 11 Helmsman Road North Kingstown, RI 02852 U.S.A. Attention: Service Department

Telephone: +1 (401) 295-9000 Fax: +1 (401) 295-5200 E-mail: numark@numark.com

Numark Industries CDN22 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
