NUMARK TTUSB User Manual

USB Turntable

(TTUSB)

Quick Start Owner’s Manual

Manual de inicio rápido para el usuario (ESPAÑOL)

Gebrauchsanweisung zur schnellen Inbetriebnahme

(DEUTSCH)

Guide d’utilisation rapide (FRANÇAIS)

Manuale Rapido di Utilizzazione (ITALIANO)

Box Contents

(ENGLISH) QUICK START GUIDE

o Make sure all items listed on the front of this guide are

included in the box.

o READ SAFETY INSTRUCTION BOOKLET BEFORE USING

THE PRODUCT

o Go to http://www.ion-audio.com for product registration.

GENERAL CONTROLS

1. Power Cable: This power cable should be plugged into a wall
receptacle AFTER all audio connections are made.

2. RCA Audio Output Cables: These cables should be plugged
into a CD or Auxiliary input on your computer. IMPORTANT:
There is a switch on the bottom panel, next to the RCA cables
that selects between PHONO/LINE. Use PHONO level for
plugging into a turntable input on a home stereo. Use the LINE
level for plugging into CD/AUX/TAPE inputs. WARNING: You

may damage your receiver if you plug in a LINE level
into a PHONO input.

2

3. USB Audio Output: Use the included USB Cable to connect
your turntable to your computer. Refer to the software
instruction guide before plugging in your turntable.

4. Power Button: This ring around the power button illuminates
red when the turntable is switched on.

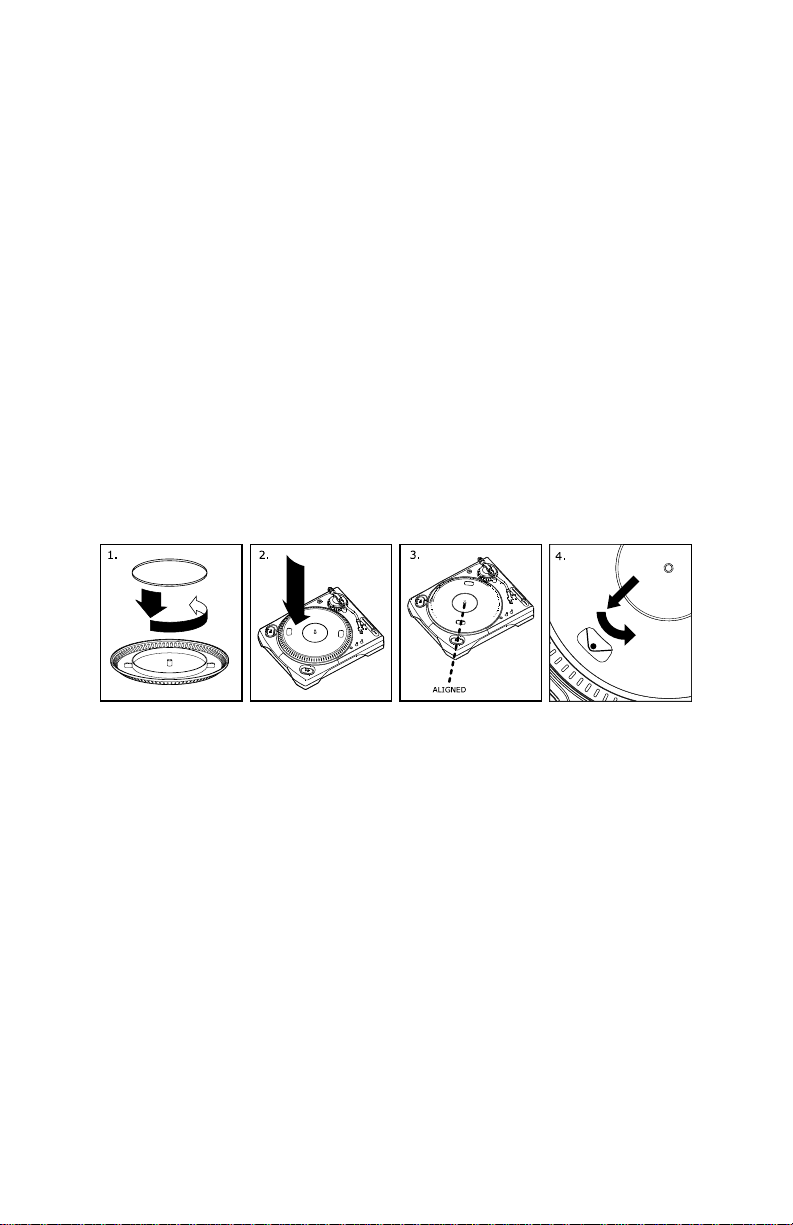

5. Platter: This platter must be securely fastened to the
turntable prior to operation. The Motor Drive Belt can be found
on the drive ring underneath the platter. See SETUP
INSTRUCTIONS for detailed information on installing the Motor
Drive Belt.

6. Start/Stop Buttons: These buttons start and stop the
turntable motor. Both buttons have the same function. If they
seem to not be functioning, check to make sure that the Motor
Drive Belt is properly installed in the SETUP INSTRUCTIONS.

7. 1/8” Stereo Line Input: Connect Tape Players, Reel to Reel,
or any other audio source here. This signal is sent to the
computer through the USB. Make sure that your phono

cartridge is installed while using this input for maximum
sound quality. Also make sure that your RCA jacks are either

plugged into an input device or not in contact with metal.
Note: The 1/8" audio input is not routed to the turntable's RCA
output jacks, only to your computer via USB.

8. 33 and 45 RPM Buttons: These buttons control the RPM of
the turntable platter. A red LED indicates which RPM mode has
been selected.

NOTE: If the turntable is powered down while in the 45 RPM
setting, it will return to 33 RPM when it is powered up.
Note: You can record your 78RPM records by recording them
at 33 or 45rpm, then changing them to 78 in the Audacity
software.

9. Pitch LED: This LED illuminates green when the pitch slider is
set at 0%. When the pitch slider is moved away from zero, the
LED illuminates red.

10. Pitch Slider: This slide control allows the pitch to be increased
or decreased by 10%. In the center position the pitch is at 0%.
When moved away from the center and towards the tone arm
decreases the pitch (slows down the platter) and moving the
pitch slider away from the tone arm increase the pitch (speeds
up the platter.)

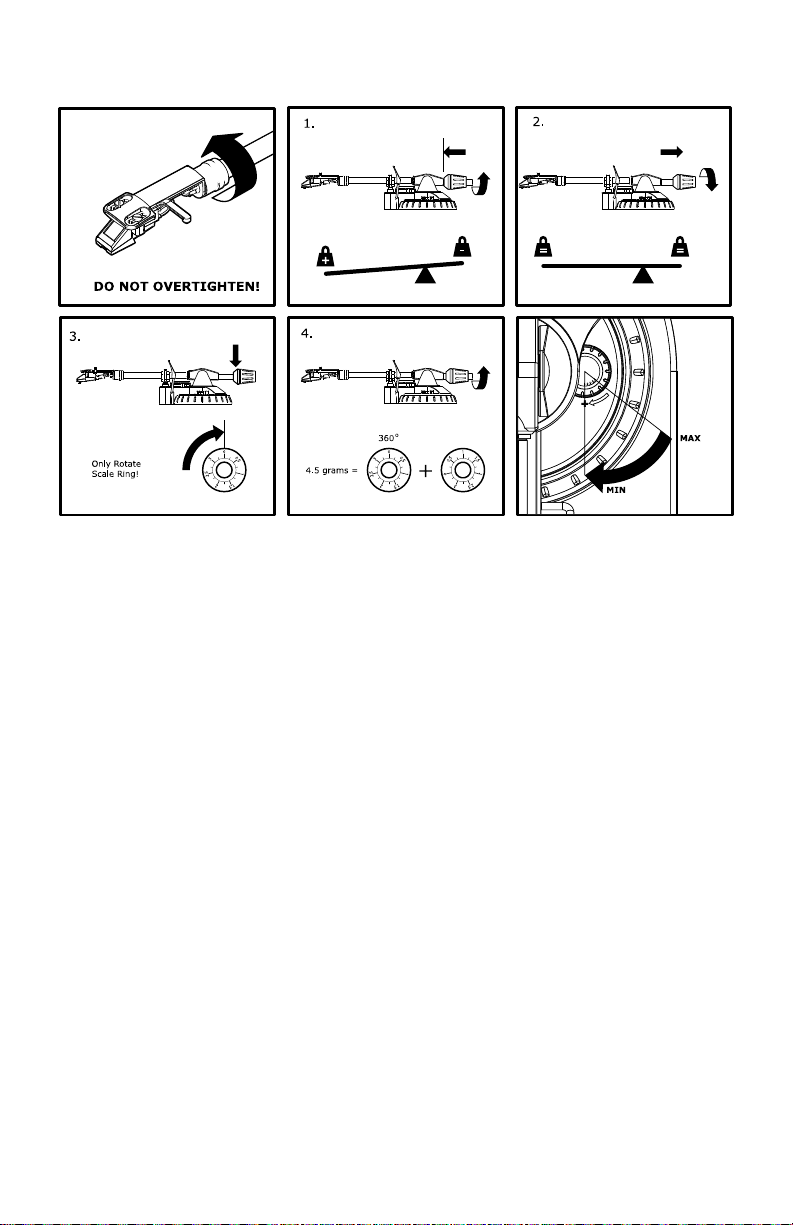

TONE ARM: Items 11 – 15 are all parts of the tonearm. Refer
to the TONEARM SETUP section for additional details on these
controls. Your model will be equipped with straight arm or S­arm style depending upon model purchased.

3
