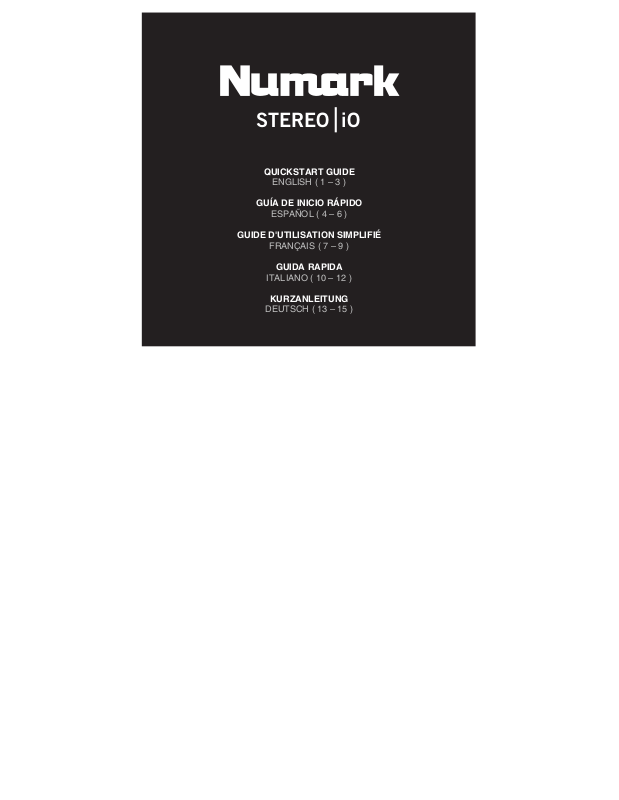

STEREO iO
QUICKSTART GUIDE
ENGLISH ( 1 – 3 )
GUÍA DE INICIO RÁPIDO
ESPAÑOL ( 4 – 6 )
GUIDE D'UTILISATION SIMPLIFIÉ
FRANÇAIS ( 7 – 9 )
GUIDA RAPIDA
ITALIANO ( 10 – 12 )
KURZANLEITUNG
DEUTSCH ( 13 – 15 )
|
BOX CONTENTS
• STEREO|iO
• USB Cable
• Software CD
• Quickstart Guide
• Safety Instructions & Warranty Information booklet
FEATURES
1. PHONO INPUTS (RCA) – Connect phono-level devices,
such as turntables, to these inputs.
2. GROUNDING TERMINAL – If using phono-level
turntables with a grounding wire, connect the grounding
wire to these terminals. If you experience a low "hum" or
"buzz", this could mean that your turntables are not
grounded.
Note: Some turntables have a grounding wire built into
the RCA connection and, therefore, nothing needs to be
connected to the grounding terminal.
3. LINE INPUTS (RCA) – Connect line-level devices, such
as CD players, samplers or audio interfaces, to these
inputs.
4. LINE | PHONO SWITCH – Flip this switch to the
appropriate position, depending on the device connected
to the LINE and PHONO INPUTS. If you are using
phono-level turntables, set this switch to "PHONO" to
provide the additional amplification needed for phonolevel signals. If using a line-level device, such as a CD
player or sampler, set this switch to "LINE."
5. LINE OUTPUTS (RCA) – Use standard RCA cables to
connect this output to a speaker or amplifier system.
The level of this output is controlled by the VOLUME dial.
6. USB – Please use the supplied USB cable to connect
this port to an available USB port on your computer.
When plugged into your computer, the unit will draw
power from the USB connection.
7. USB LED – Illuminates when connected to your computer.
8. VOLUME – Adjusts the audio level of the LINE OUTPUTS.
1
2
4
6
3
1
5
7
8
CONNECTION DIAGRAM
COMPUTER
MIXER
or
SPEAKERS
Be sure your audio software
program is set up to receive audio
via the STEREO|iO. This can
usually be done in your software's
"Preferences" or "Device Setup."
Please consult your software
manual for more information.
CD PLAYER
or
TURNTABLE
INCLUDED SOFTWARE
We have included two software applications to aid you in converting your recordings to digital music:
EZ Vinyl/Tape Converter (PC only) is the quickest and easiest way to turn your recordings into digital media. EZ
Vinyl/Tape Converter conveniently saves your recordings in your iTunes* library. Novice users may find this
application preferable. On the CD, we have included a handy Quickstart Guide with step-by-step instructions on
software installation and operation.
EZ Audio Converter (Mac only) is a basic converter application for Mac OS X and is ideal for novice users.
Please refer to the included Software Quickstart Guide for step-by-step instructions on software installation and
operation.
* iTunes and iPod are trademarks of Apple, Inc., registered in the U.S.A. and other countries.
2
|iO
AUDIO SETUP
WINDOWS 7:
1. Use the included cable to connect the STEREO|iO to
your computer.
2. Go to Start Menu f Control Panel f Hardware and
Sound f Sound.
3. Click the Playback tab and select USB Audio Codec* as
the default device.
4. Click the Recording tab and select USB Audio Codec*
as the default device.
5. Click Properties in the lower right-hand corner.
6. In the new window, click the Advanced tab and select 2-
channel, 16-bit, 44100 Hz (CD Quality) as the default
format.
7. Uncheck both boxes under Exclusive Mode.
8. Click the Levels tab and set the slider to "4."
9. Click OK to close the Properties window.
10. Click OK to close the Sound control panel.
WINDOWS VISTA:
1. Use the included cable to connect the STEREO|iO to your computer.
2. Go to Start Menu f Control Panel f Sound. (If you don't see Sound, select Switch to Classic View, and the
3. Click the Playback tab and select USB Audio Codec* as the default device.
4. Click the Recording tab and select USB Audio Codec* as the default device.
5. Click Properties in the lower right-hand corner.
6. In the new window, click the Advanced tab and select 2-channel, 16-bit, 44100 Hz (CD Quality) as the default
7. Uncheck both boxes under Exclusive Mode.
8. Click OK to close the Properties window.
9. Click OK to close the Sound control panel.
WINDOWS XP:
1. Use the included cable to connect the STEREO|iO to your computer.
2. Go to Start Menu f Control Panel f Sounds and Audio Devices.
3. Click the Audio tab.
4. Under Sound Playback and Sound Recording, select USB Audio Codec* as the default device.
5. Click OK.
MAC:
1. Use the included cable to connect the STEREO|iO to your computer.
2. Go to Applications f Utilities f Audio MIDI Setup.
3. In the Audio Devices tab under System Settings, select USB Audio Codec* as your Default Input and Default
4. Close the window.
Sound Control Panel should become available.)
format.
Output.
* If you have other USB audio devices connected
to your computer, which may have identical
names, you may need to try selecting each one
until the STEREO
If you experience too much latency after adjusting
your software latency settings, we recommend the
free ASIO4ALL (Audio Stream Input/Output) driver
for PC at www.asio4all.com. ASIO drivers
generally perform better and with lower latency
since they create a more efficient communication
between audio devices and software.
3
is recognized.
CONTENIDO DE LA CAJA
• STEREO|iO
• Cable USB
• CD software
• Guía de inicio rápido
• Folleto de información sobre la seguridad y la garantía
CARACTERÍSTICAS
1. ENTRADAS FONOGRÁFICAS (RCA) – Estas entradas se
usan para conectar dispositivos de nivel fonográfico, como
giradiscos.
2. TERMINAL DE TIERRA – Si usa giradiscos de nivel
fonográfico con cable de conexión a tierra, asegúrese de
conectar dicho cable a estos terminales. Si se experimenta
un zumbido grave, puede significar que sus giradiscos no
están conectados a tierra.
Nota: Algunos giradiscos tienen el cable de conexión a
tierra incorporado a la conexión RCA y, por lo tanto, no es
necesario conectar nada al terminal de tierra.
3. ENTRADAS DE LÍNEA (RCA) – Estas entradas se usan
para conectar dispositivos de nivel de línea, tales como
reproductores de CD, muestreadores o interfaces de audio.
4. INTERRUPTOR DE ENTRADA DE LÍNEA |
FONOGRÁFICA – Coloque este conmutador en la posición
apropiada, en función del dispositivo conectado a las
entradas Line o Phono. Si usa giradiscos de nivel
fonográfico, coloque este conmutador en “Phono” para
proporcionar la amplificación adicional necesaria para las
señales de este nivel. Si usa un dispositivo de nivel de
línea, tal como un reproductor de CD o muestreador,
coloque este conmutador en “Line”.
5. SALIDAS DE LÍNEA (RCA) – Use cables RCA estándar
para conectar esta salida maestra a un sistema de
altavoces o amplificador. El nivel de esta salida se controla con el cuadrante VOLUME.
6. USB – Use el cable USB2.0 provisto para conectar este puerto a un puerto USB2.0 disponible de su
computadora. Cuando esté enchufada a su computadora, la unidad extrae energía por la conexión USB.
7. USB LED – Se ilumina cuando el STEREO|iO está conectado al computadora.
8. VOLUMEN – Ajusta el nivel de audio de las SALIDAS DE LÍNEA.
4
2
4
6
3
1
5
7
8
