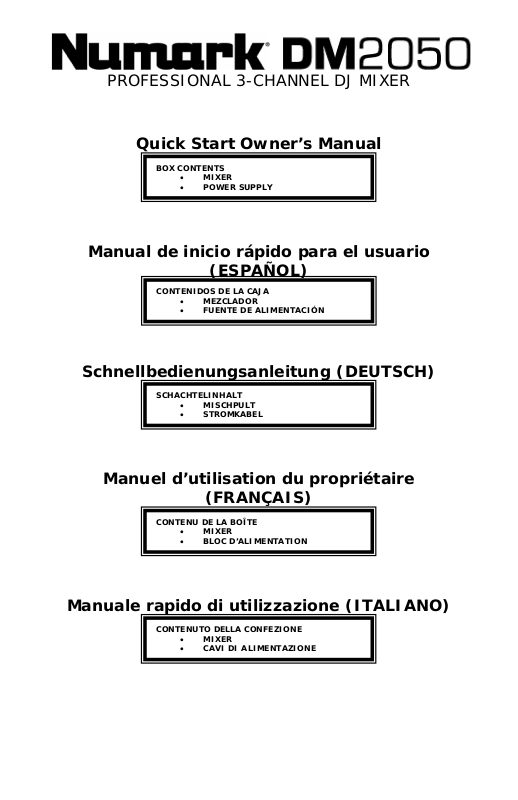

Numark DM2050 Quick Start Manual

PROFESSIONAL 3-CHANNEL DJ MIXER

Quick Start Owner’s Manual

BOX CONTENTS

• MIXER

• POWER SUPPLY

Manual de inicio rápido para el usuario

(ESPAÑOL)

CONTENIDOS DE LA CAJA

• MEZCLADOR

• FUENTE DE ALIMENTACIÓN

Schnellbedienungsanleitung (DEUTSCH)

SCHACHTELINHALT

• MISCHPULT

• STROMKABEL

Manuel d’utilisation du propriétaire

(FRANÇAIS)

CONTENU DE LA BOÎTE

• MIXER

• BLOC D’ALIMENTATION

Manuale rapido di utilizzazione (ITALIANO)

CONTENUTO DELLA CONFEZIONE

• MIXER

• CAVI DI ALIMENTAZIONE

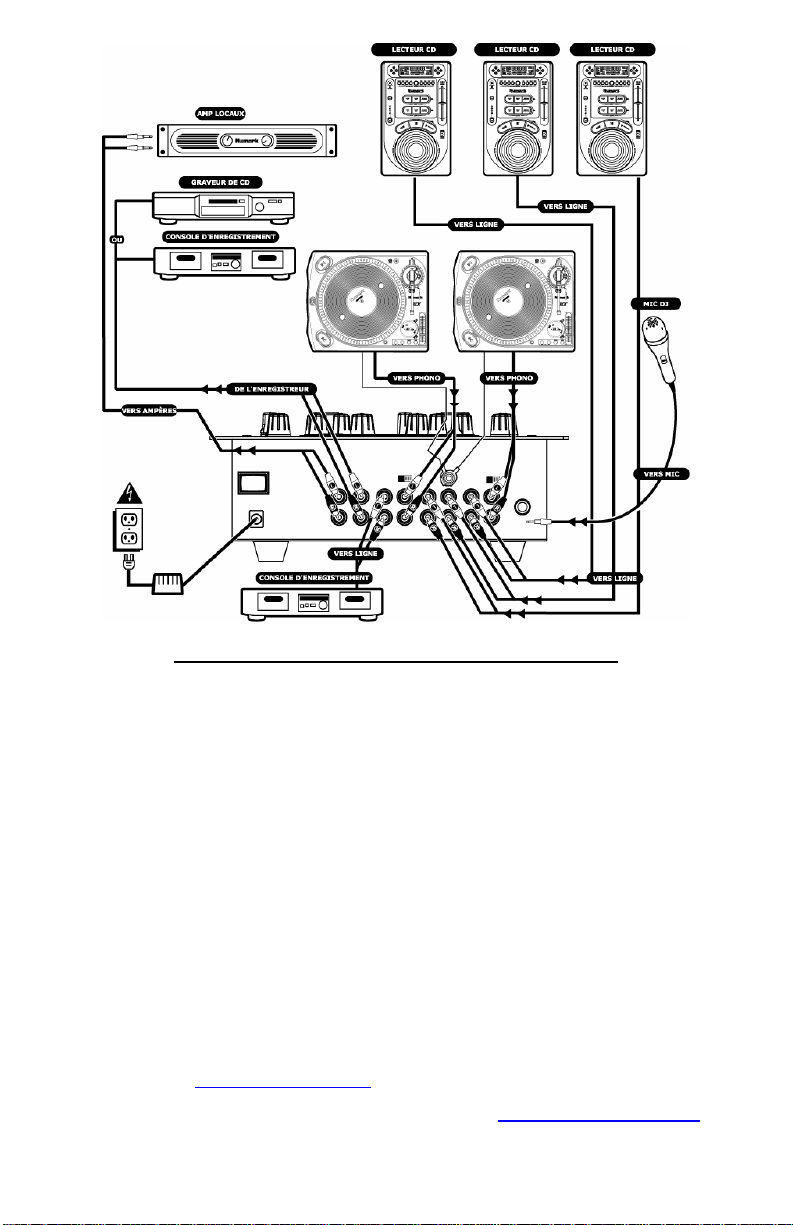

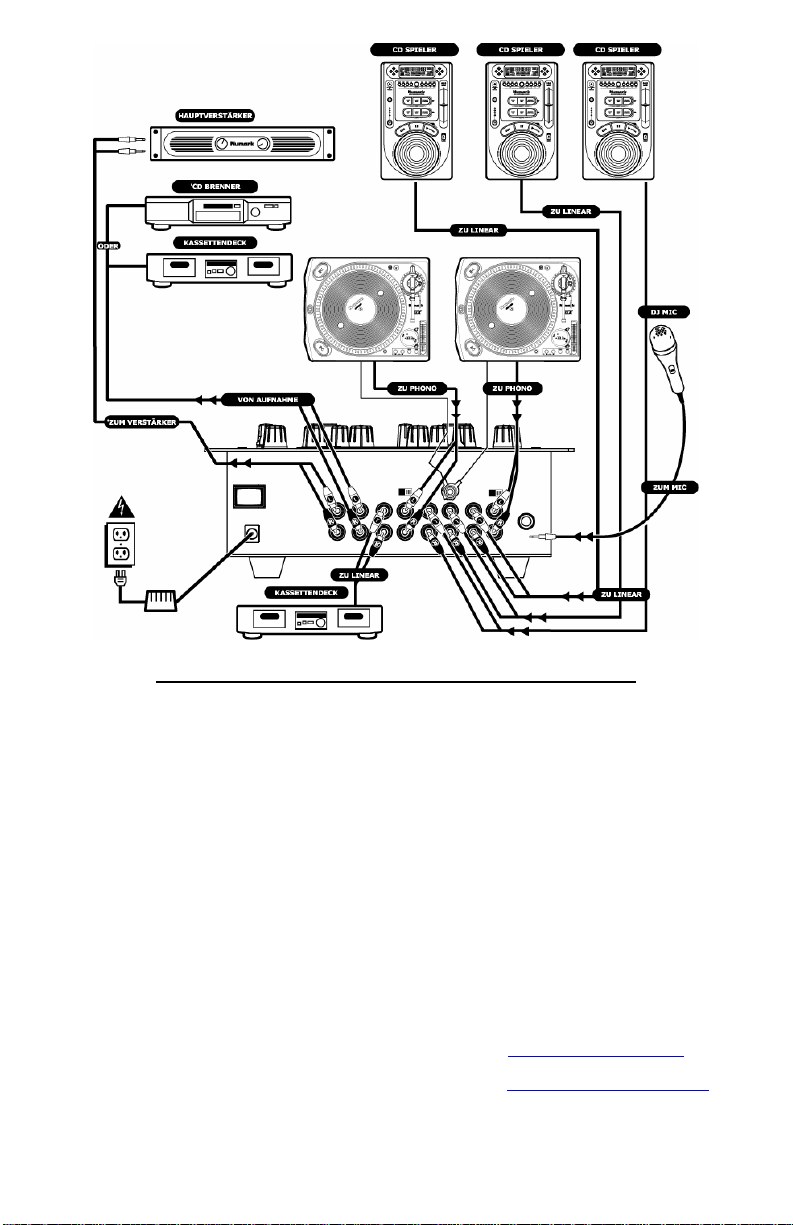

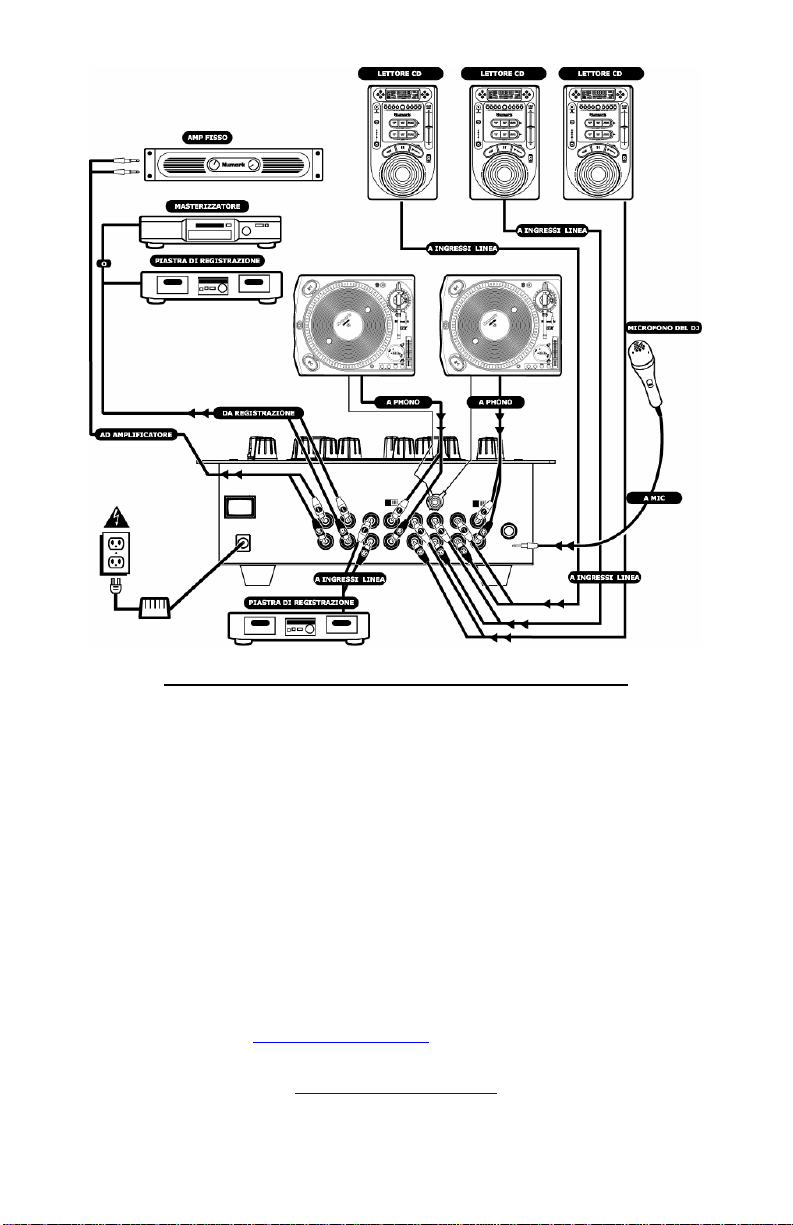

MIXER QUICK SETUP GUIDE (ENGLISH)

1. Make sure all items listed on the front of this guide are incl uded in the box.

2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE
PRODUCT

3. Study this setup diagram.

4. Place mixer in an appropriate position for operation.

5. Make sure all devices are turned off and all faders are at “zero”

6. Connect all stereo input sources as ind icated in the diagram.

7. Connect the stereo outputs to the power amplifier(s), tap e decks, and/or
audio sources.

8. Plug your mixer and other devices into AC power.

9. Switch everything on in the following o rder.

• audio sources (i.e. turntables or CD players)

• your mixer

• last, any amplifiers

10. When turning off, always reverse this operation by,

• turning off amplifiers

• your mixer

• last, any input devices

11. Go to http://www.numark.com

for product registration.

2

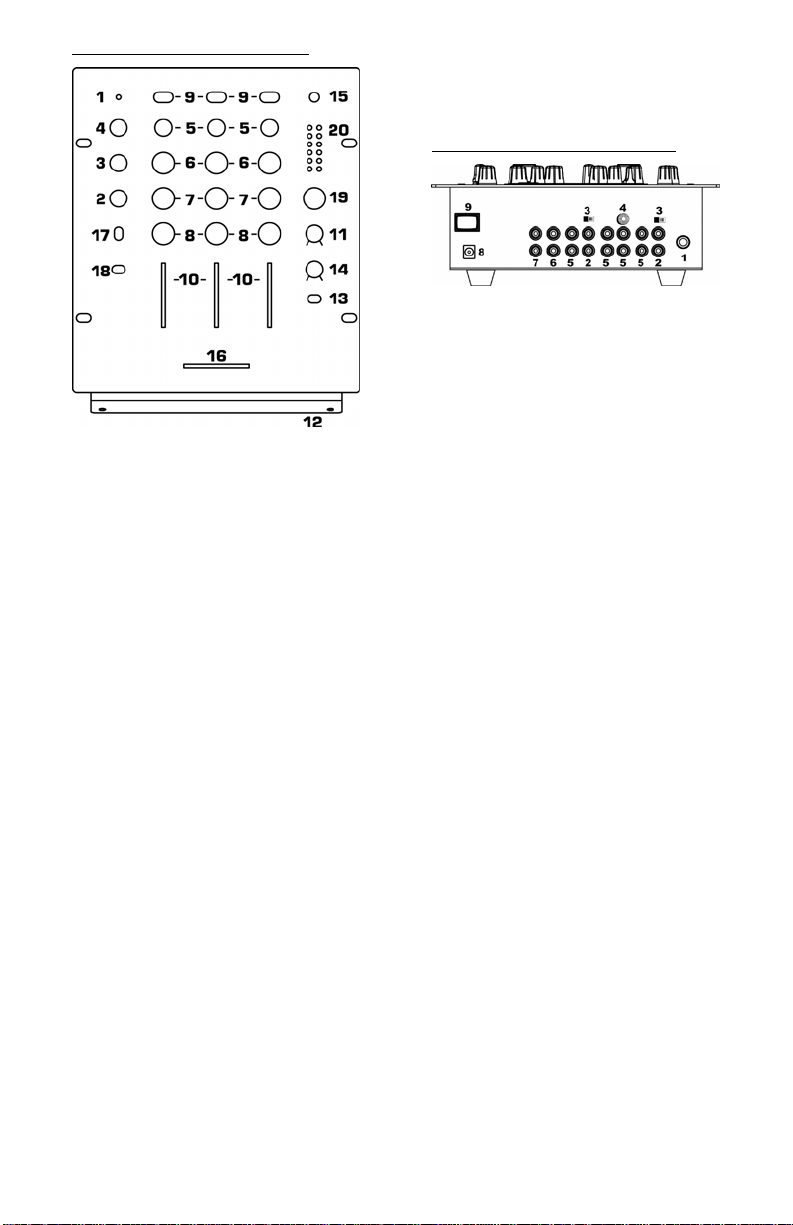

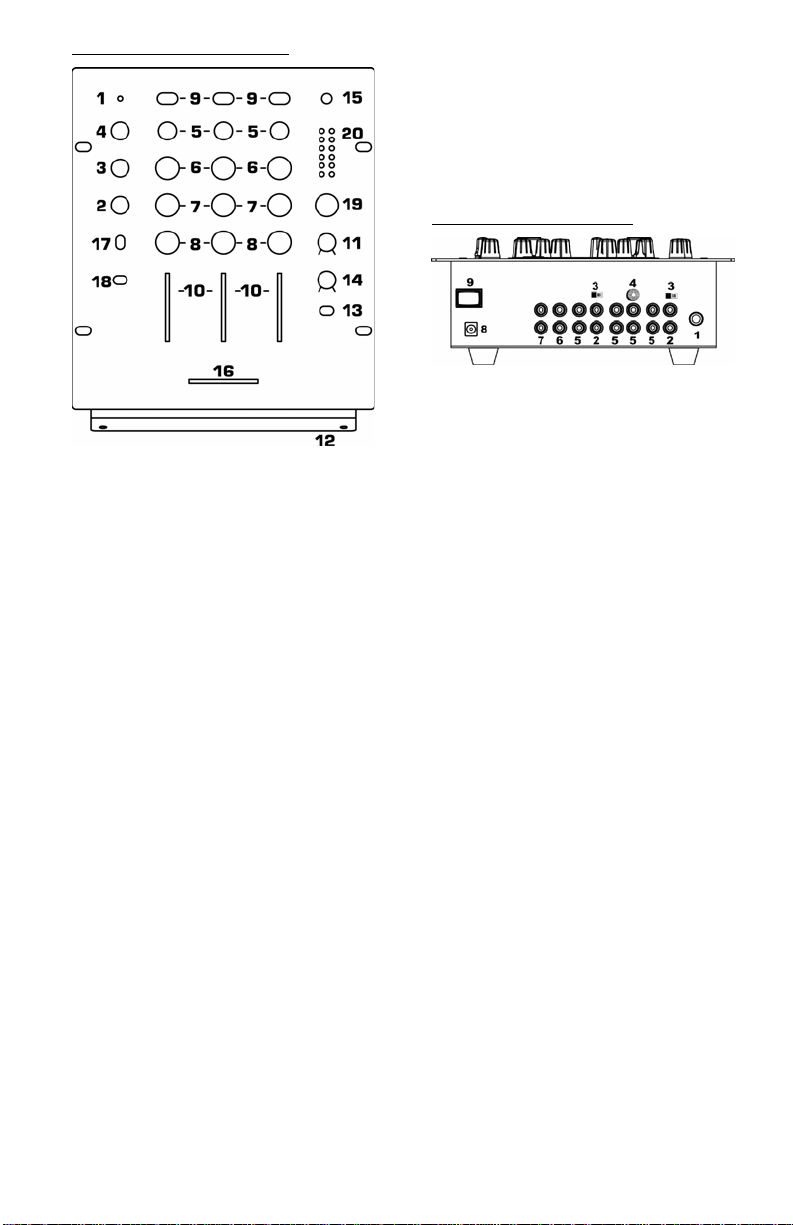

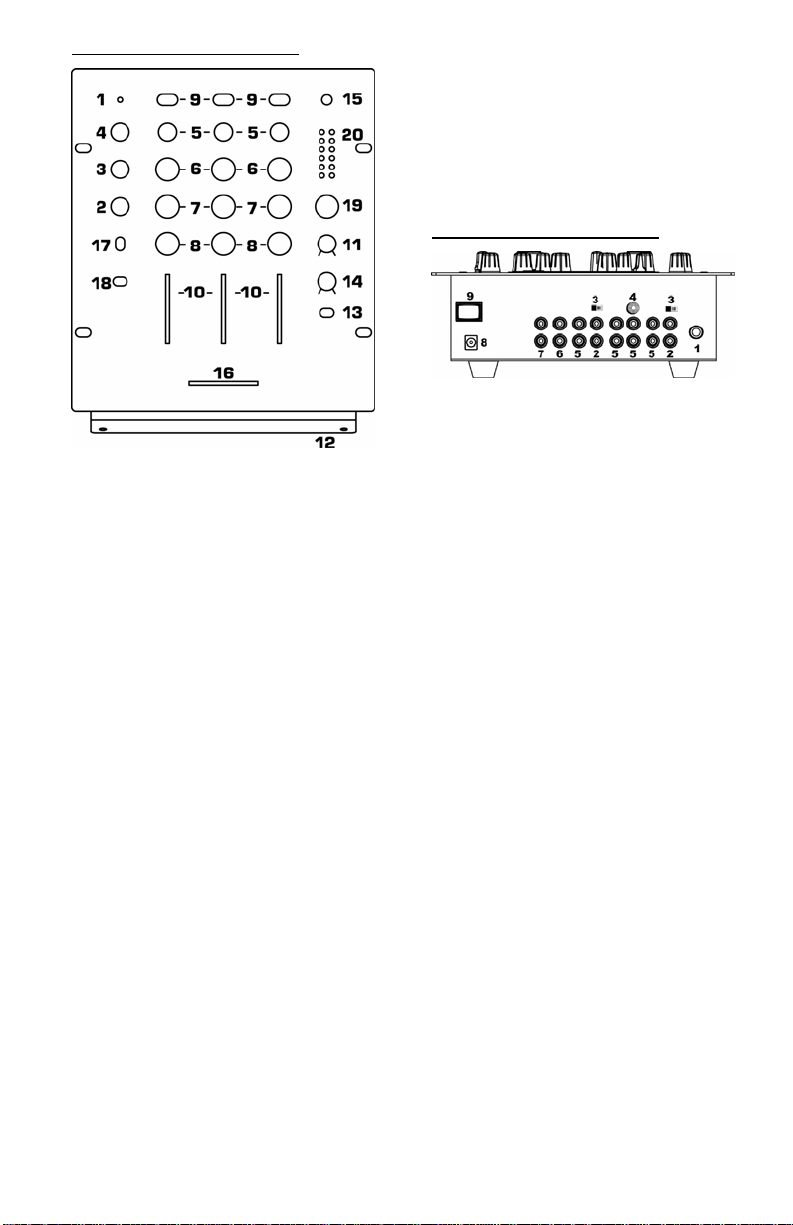

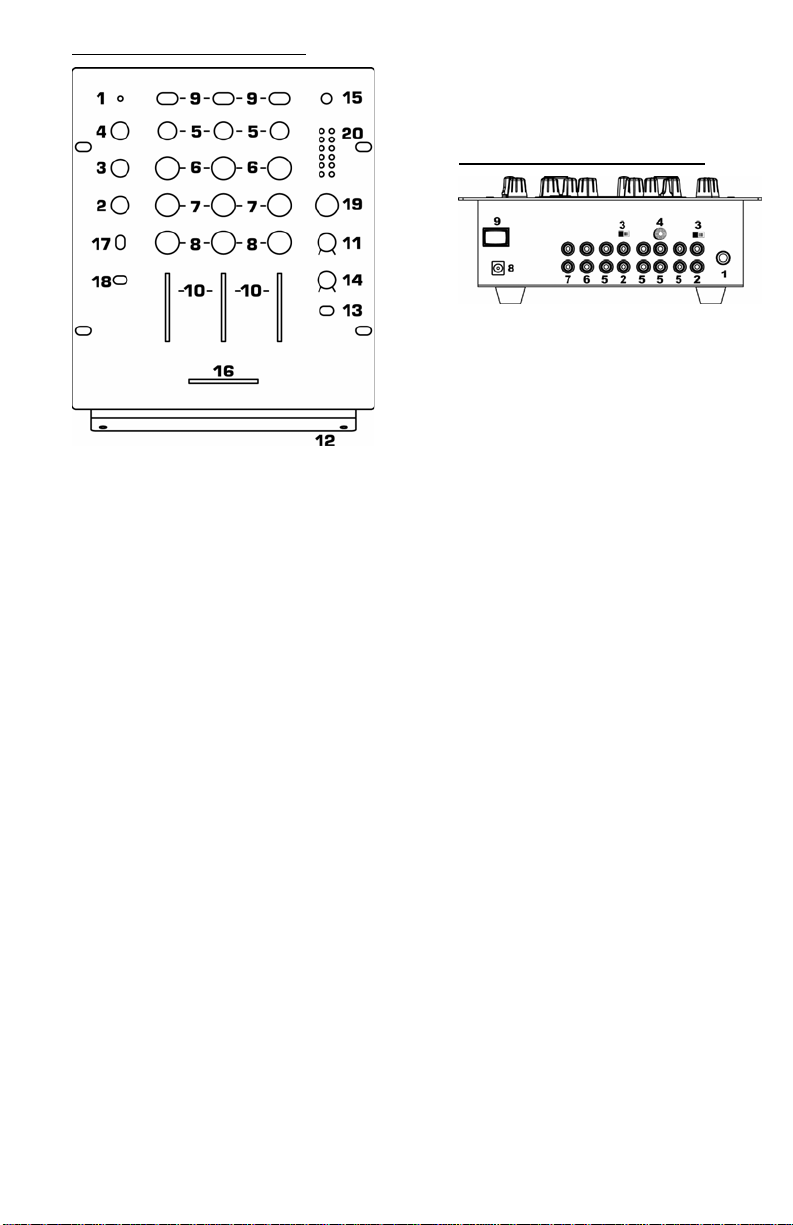

FRONT PANEL FEATURES

a quality authorized replacement from your
local Numark retailer.

17. Crossfader Direction: Activation of this
switch reverses the assignment of CH-1 and
CH-2 on the crossfader.

18. Crossfader Conto ur Control: The position
of this control determines how quickly or
intensely the crossfader will blend.

19. Master Output Knob: This rotary control
adjusts the main output volume.

20. Stereo Level Indicator: quickly and
accurately tracks level of audio.

REAR PANEL FEATURES

1. Power LED: Illuminates when the mixer is
on.

2. Mic Gain: This knob adjusts the volume of
the microphone input.

3. Mic Treble: This knob adjusts the high-tone
of the microphone.

4. Mic Bass: This knob adjusts the low-tone of
the microphone.

5. Channel Gain: This rotary control adjusts
the pre-fader input level.

6. Channel Treble: This rotary control adjusts
the high-tone level.

7. Channel Middle: This rotary control adjusts
the middle-tone level.

8. Channel Bass: This rotary control adjusts
the low-tone level.

9. Input Selector: This toggles select what
input source is routed to the channel from
the rear panel connected units.

10. Channel Fader: This slide fader is used to
adjust the level sent to program mix.

11. Headphone Volume: This rotary control
adjusts the volume level of the headphone
output.

12. Headphone Jack: Your headphones can be
connected to this ¼” terminal. The volume
should always be set at its lowest setting
while connecting and disconnecting
headphones to prevent damage to
headphones and/or your hearing.

13. Cue Source Selector: Used to route
channel audio to your headphones.

14. Headphone Mix: Program level and PFL
(CUE) signal levels can be mixed by this
slider. When all the way left, audio heard
will be determined by Cue Button selections.
When all the way right final only (PGM)
program mix audio will be heard.

15. Meter Assign: determines whether PFL or
post master level audio is sent to the stereo
LED meter.

16. Replaceable Crossfader: This slide fader
blends audio between the channels assigned
to the left and right assign switches.

Note: This fader is user replaceable if it
should ever wear out. Simply remove the
facepanel and then remove the screws
holding it in position. Replace the fader with

Note: It is recommended that the mixer be
turned off before connecting and
disconnecting any sources to the inputs of the
mixer.

1. M icrophone Input: Microphones with a ¼”
connector can be connected to this input
terminal.

2. Phono Inputs: This input is used for
connecting your turntables through the sensitive
RIAA phono preamplifiers. Only turntables with
phono level output should be attached. Line
level turntables and other devices may be
attached if the Phono/Line rear panel switch is
set to the line position.

3. Phono/Line Source Switch: This switch
activates and deactivates the sensitive RIAA
phono preamplifiers. Only turntables with

phono level output should be assigned
when the switch is in the phono position.

Some turntables offer line level output. To use
these turntables and other line devices like CD
players, switch the input to Line.

4. GND: This screw connector should be used to
secure any turntables or other devices
connected to the mixer that need to be
grounded.

5. Li ne Inputs: CD players, Tape Decks, Samplers
or other line level input devices should be
connected to these inputs.

6. Record Ou tput: This RCA output is for
connecting a recording device such as a tape
deck or CD recorder. The level of the record
output is based upon pre-master levels.

7. Master Output (RCA): This output is for
connecting an external monitoring device such
as a PA system, powered monitors or a home
stereo. The level of the master stereo output
signal is controlled by the master fader.

8. AC In: This mixer is designed to work with the
power supply assembly that comes with the
unit. While the power is switched off, plug the
power supply into the mixer first, then plug it
into the outlet.

9. Power Switch: Use thi s swit ch to turn on the
mixer after all input devices are already
connected to prevent damage to your
equipment. Turn the mixer on before you turn
on amplifiers and turn of amplifiers before you
turn off the mixer.

3

MANUAL DE INICIO RÁPIDO PARA EL MEZCLADOR (ESPAÑOL)

1. Asegúrese de que todos los artículos incluidos al inicio de este manual están
incluidos en la caja.

2. LEA LAS INSTRUCCIONES DEL FOLLETO DE SEGURIDAD ANTES DE
UTILIZAR EL PRODUCTO.

3. Estudie este diagrama de instalación.

4. Coloque el mezclador en una posición adecuada para su funcionamiento.

5. Asegúrese de que todos los dispositivos están apagados y de que todos los
faders están en “cero”.

6. Conecte todas las fuentes de entrada al estéreo como se indica en el diagrama.

7. Conecte las salidas del estéreo a el/los amplificador/es de alimentación, unidades
de cinta magnética y/o fuentes de audio.

8. Enchufe su mezclador y otros dispositivos a la toma de corriente alterna.

9. Prenda todo en el siguiente orden:

• fuentes de entrada de audio (por ej. giradiscos o reproductores de CD)

• su mezclador

• por último, cualquier amplificador

10. Al apagar, realice siempre esta operación al contrario,

• apague los amplificadores

• su mezclador

• por último, cualquier dispositivo de entrada

11. Visite http://www.numark.com

Para más información sobre este producto visítenos en http://www.numark.com

para registrar el producto.
