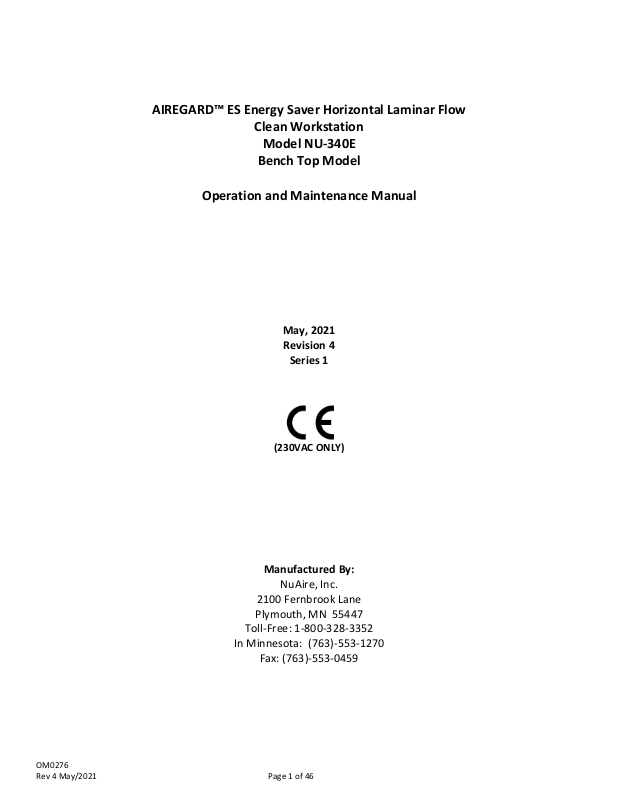

Nuaire NU-340E User guide

OM0276
Rev 4 May/2021 Page 1 of 46

AIREGARD™ ES Energy Saver Horizontal Laminar Flow

Clean Workstation

Model NU-340E

Bench Top Model

Operation and Maintenance Manual

May, 2021

Revision 4

Series 1

(230VAC ONLY)

Manufactured By:

NuAire, Inc.

2100 Fernbrook Lane

Plymouth, MN 55447

Toll-Free: 1-800-328-3352

In Minnesota: (763)-553-1270

Fax: [phone]

OM0276 Page 2 of 46
Rev 4 May/2021

AIREGARD™ ES Energy Saver Horizontal Laminar Flow

Clean Workstation

Model NU-340E

Bench Top Model

Operation and Maintenance Manual

Table of Contents

Section No. 1 .............................................................................. General Description

Section No. 2 .............................................................................. Models & Features

Section No. 3 .............................................................................. Shipments

Section No. 4 .............................................................................. Installation Instructions

4.1 ...................................................................................... Location

4.2 ...................................................................................... Set-up Instructions

4.3 ...................................................................................... Certification Testing Methods and Equipment

Section No. 5 .............................................................................. Operating the Laminar Flow Clean Workstation

5.1 ...................................................................................... Operator Controls & Indicators

5.2 ...................................................................................... Operating Guidelines

5.3 ...................................................................................... Ergonomics

5.4 ...................................................................................... Cleaning Procedures

Section No. 6 .............................................................................. General Maintenance

6.1 ...................................................................................... Fluorescent Lamp Bulb Replacement

6.2 ...................................................................................... HEPA Filter Replacement

6.3 ...................................................................................... Prefilter Replacement

Section No. 7 .............................................................................. Error Indicators and Troubleshooting

Section No. 8 .............................................................................. Polycarbonate Material Compatibility

Section No. 9 .............................................................................. Remote Contacts

Section No. 10 ............................................................................ Electrical/Environmental Requirements

Section No. 11 ............................................................................ Disposal and Recycle

Insert .......................................................................................... Replacement Parts List, Warranty

Manual Drawings

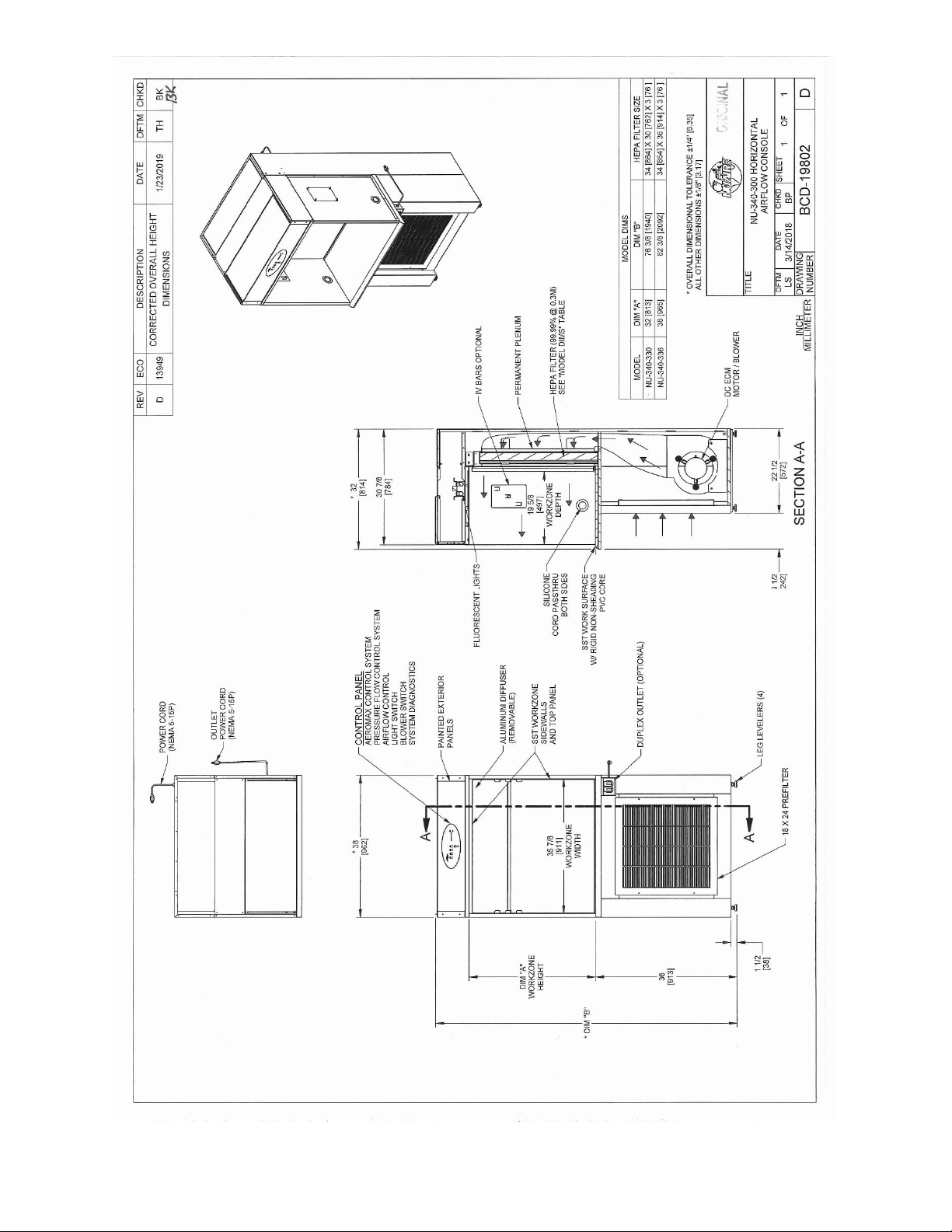

BCD-19802..........................................................Specification Drawing NU-340-300

BCD-19803..........................................................Specification Drawing NU-340-400

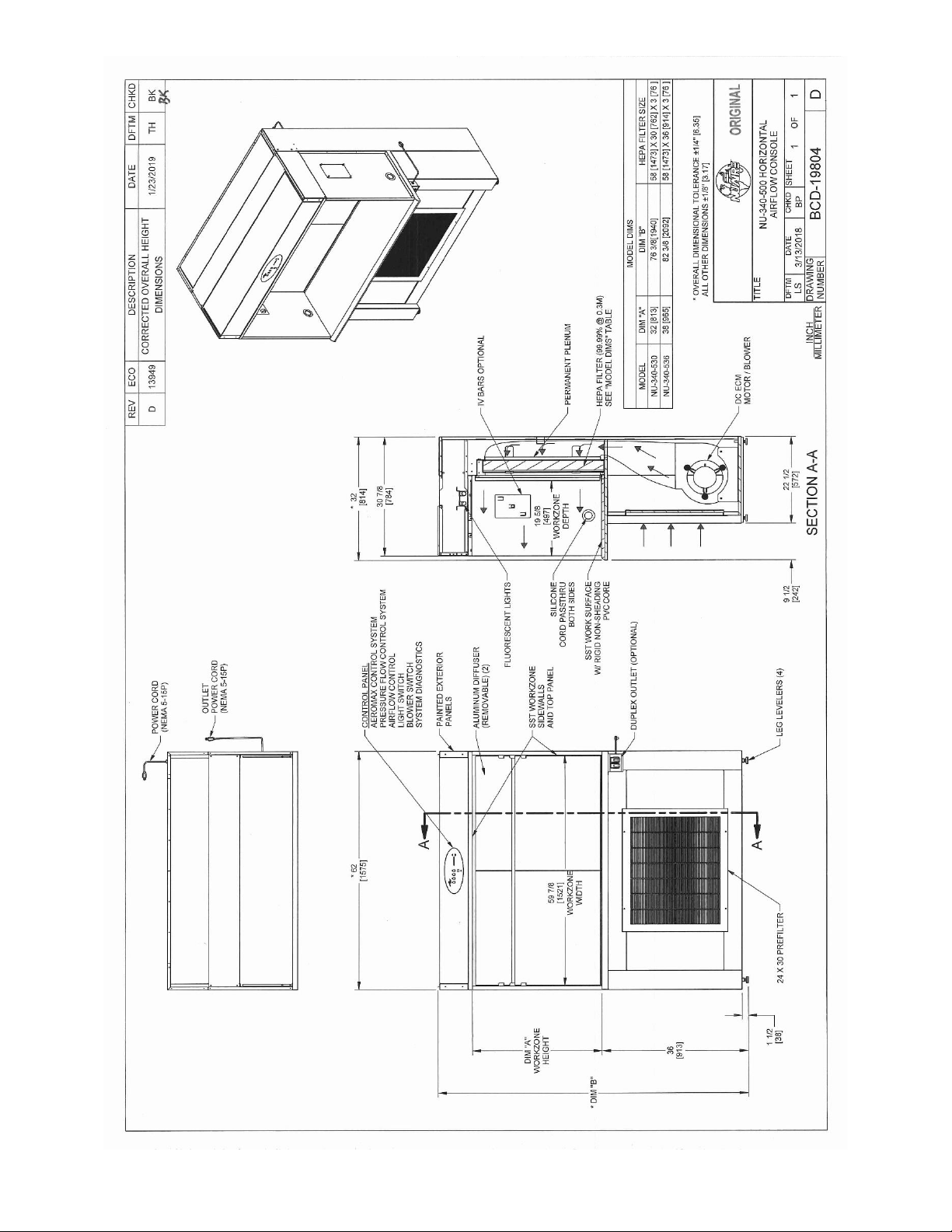

BCD-19804..........................................................Specification Drawing NU-340-500

BCD-19667..........................................................Specification Drawing NU-340-600

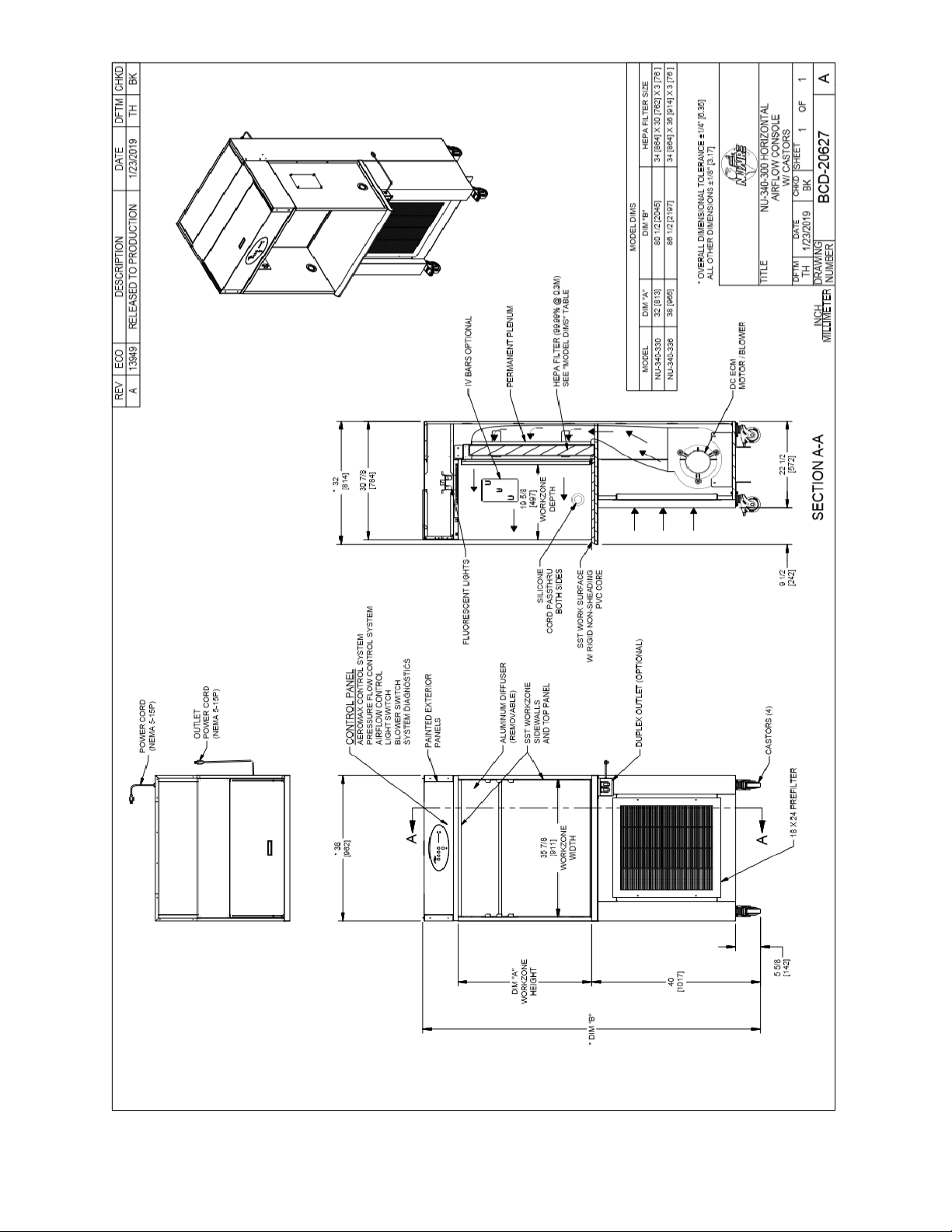

BCD-20627..........................................................Specification Drawing NU-340-300 w/Castors

BCD-20628..........................................................Specification Drawing NU-340-400 w/Castors

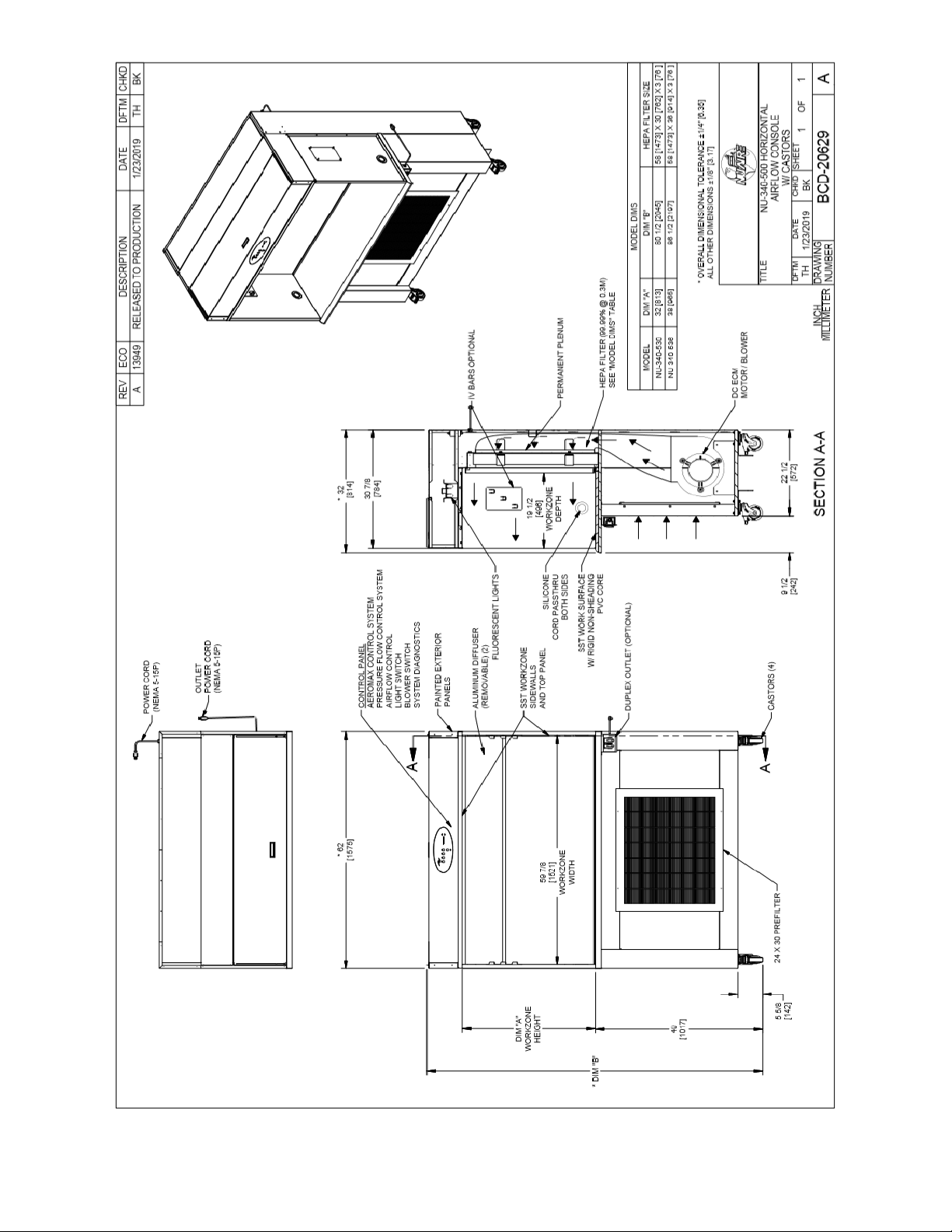

BCD-20629..........................................................Specification Drawing NU-340-500 w/Castors

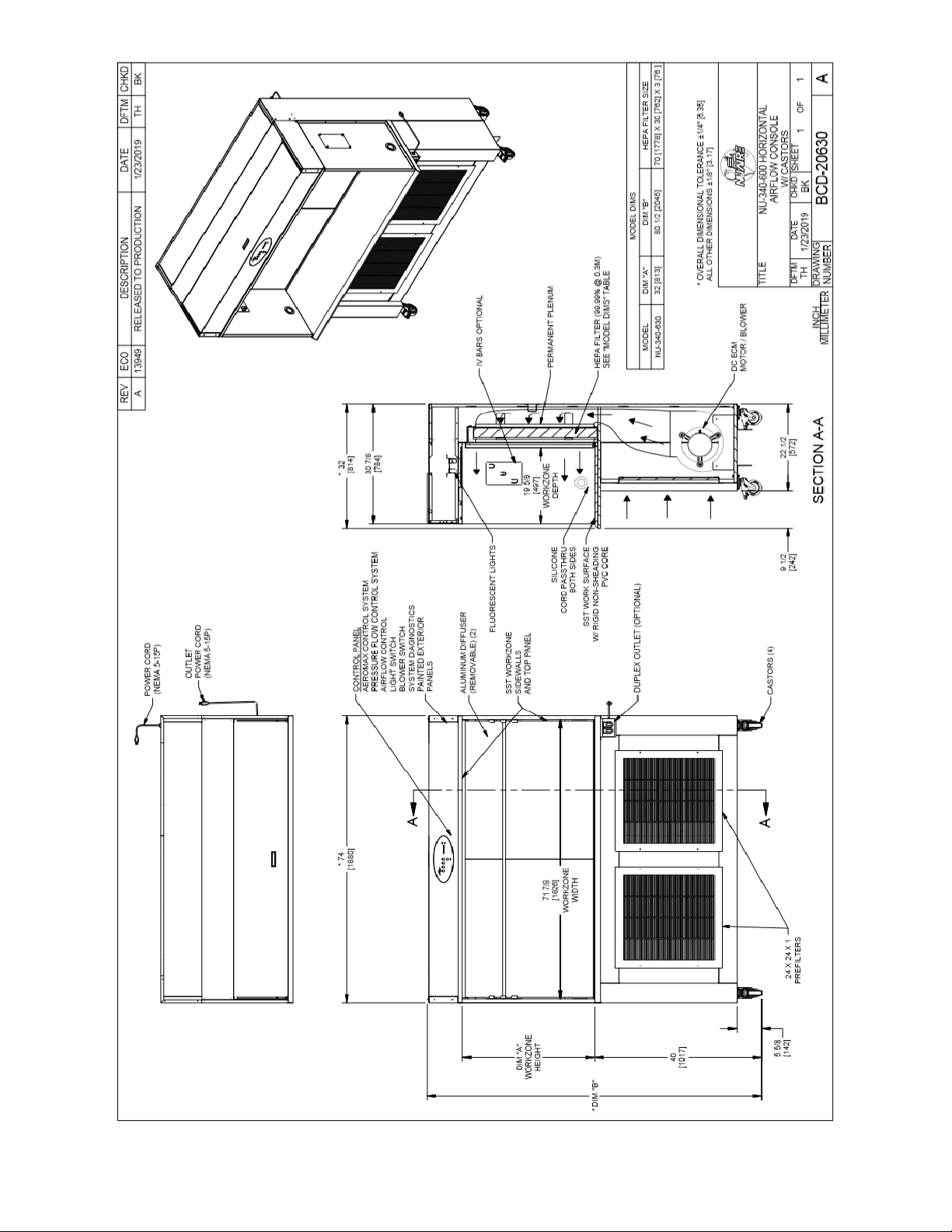

BCD-20630..........................................................Specification Drawing NU-340-600 w/Castors

Assembly Drawings

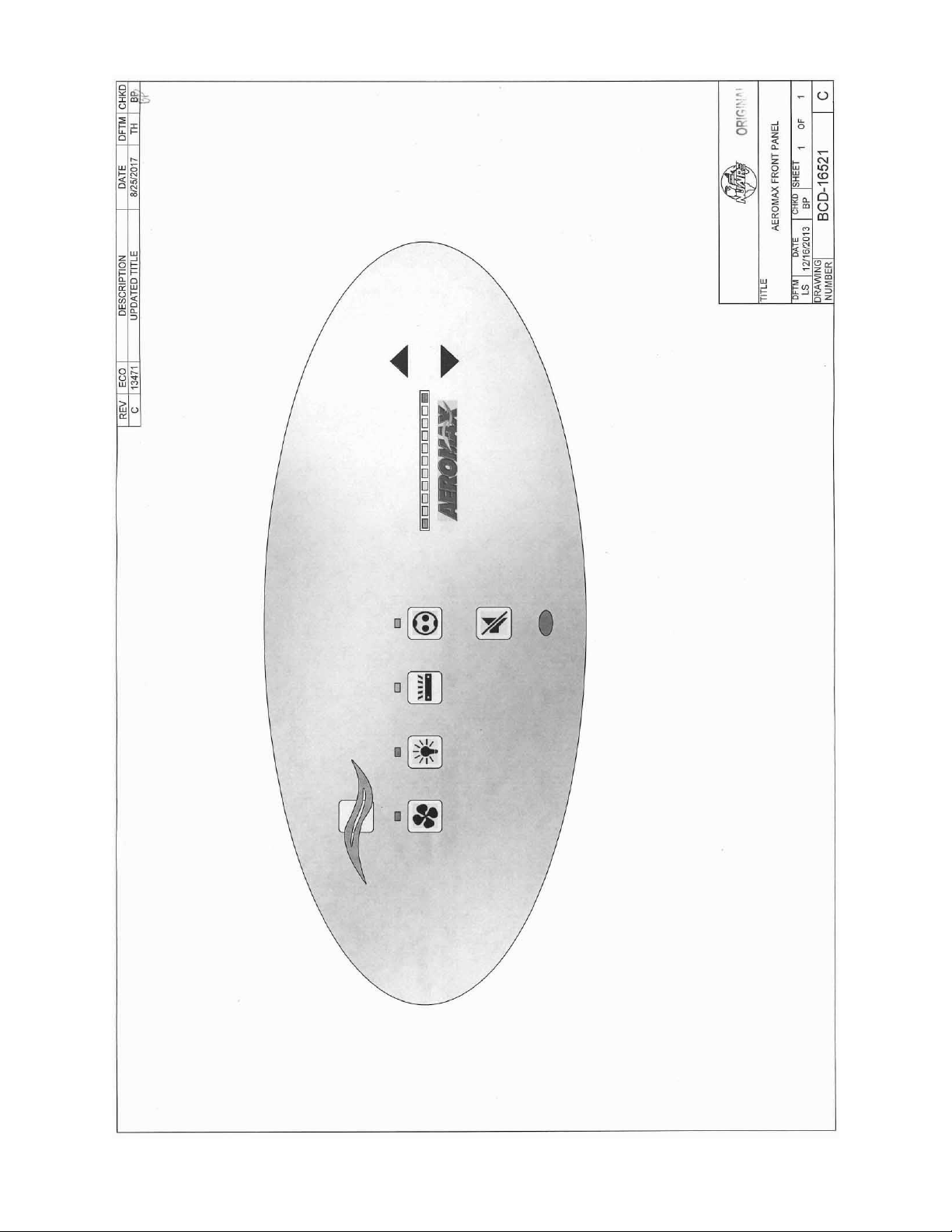

BCD-16521..........................................................AEROMAX™ Front Panel

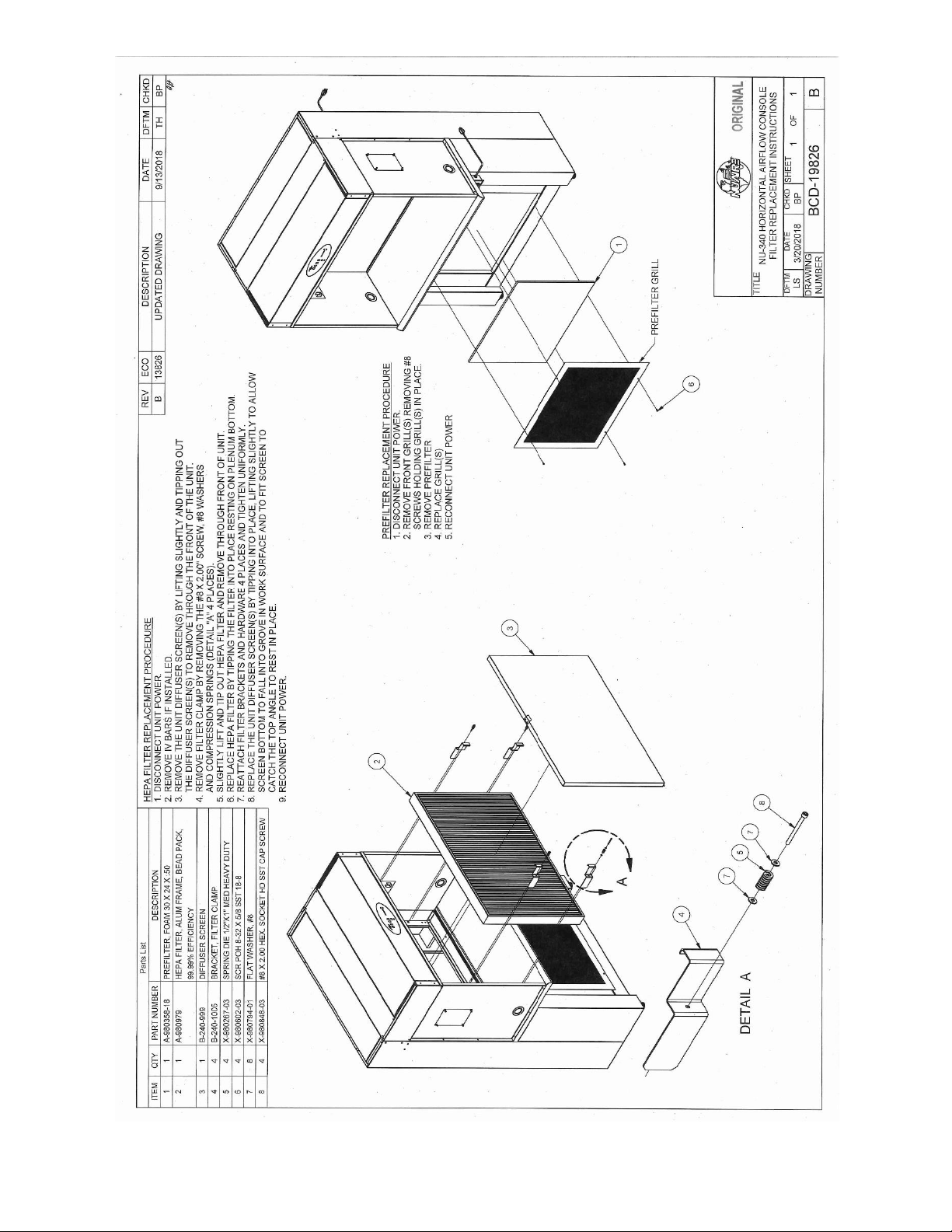

BCD-19826..........................................................HEPA Filter Replacement

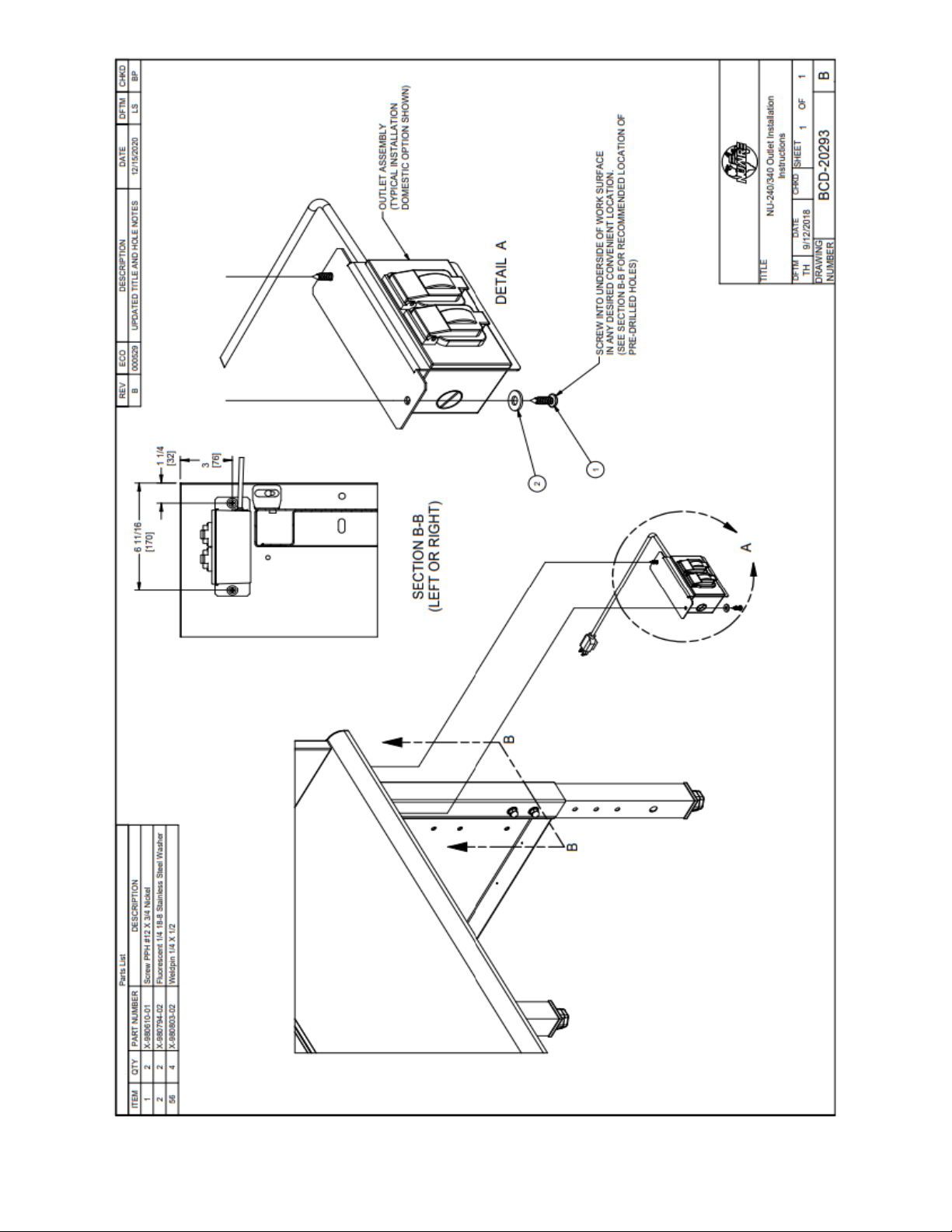

BCD-20293..........................................................OutLet Option Installation

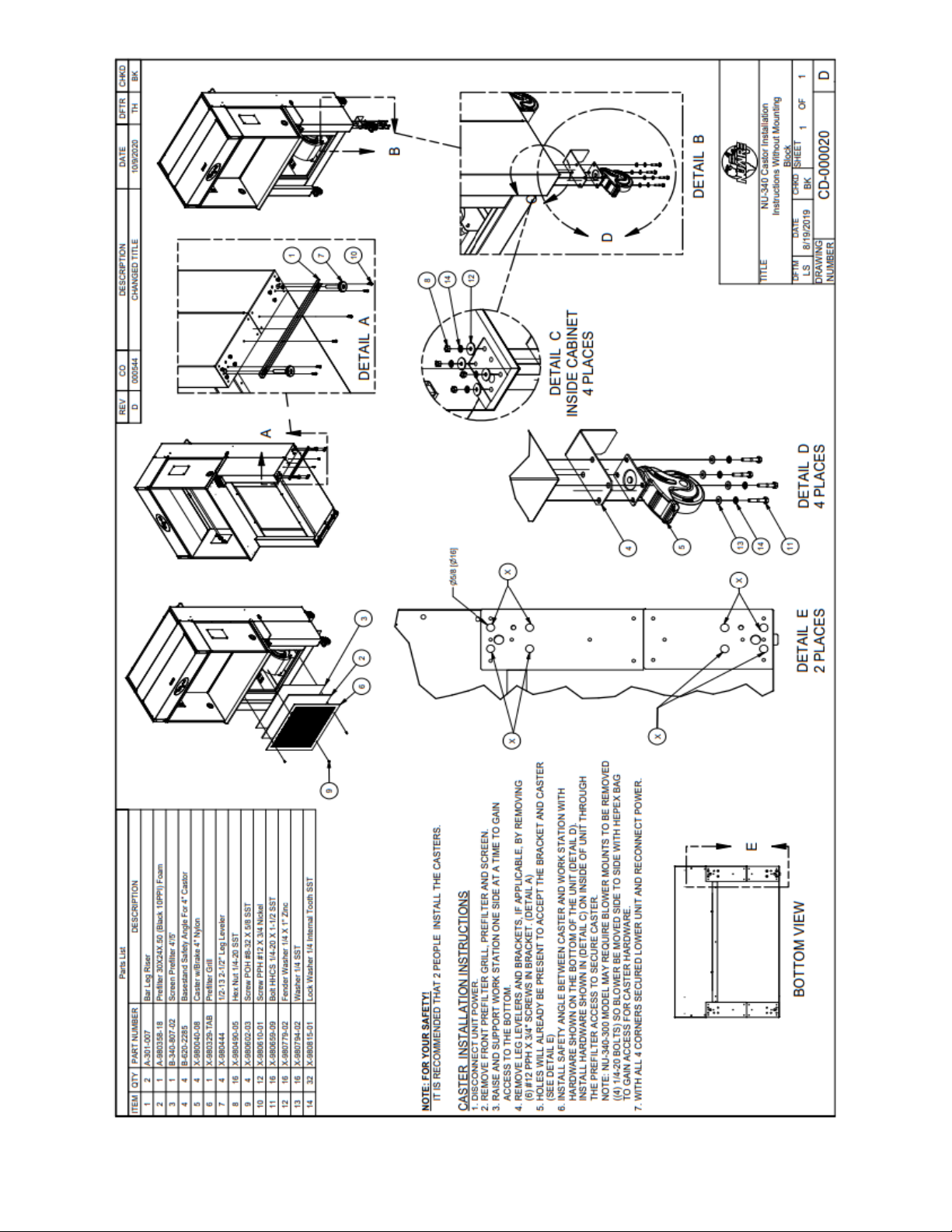

CD-000020..........................................................Castor Installation Instructions

Electrical Schematics

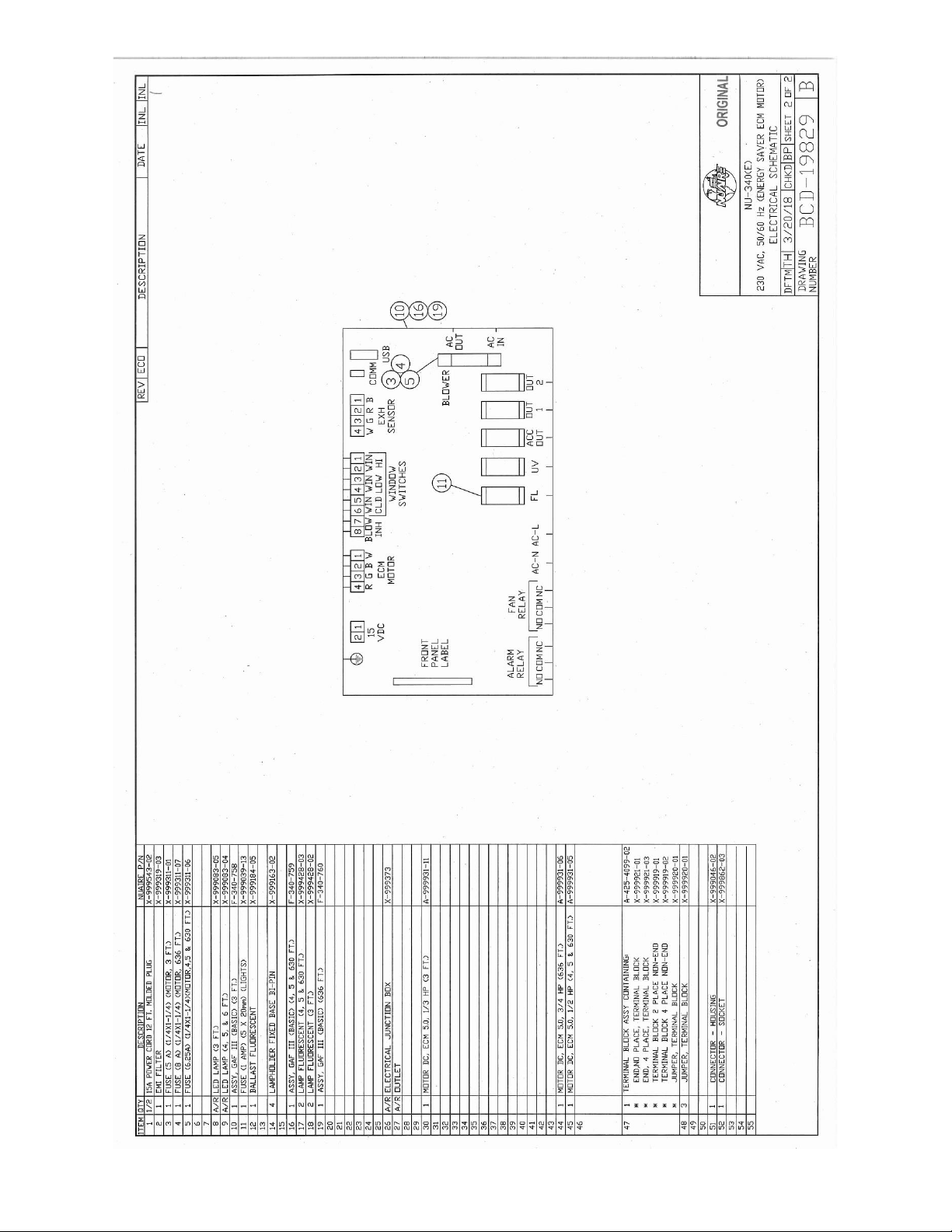

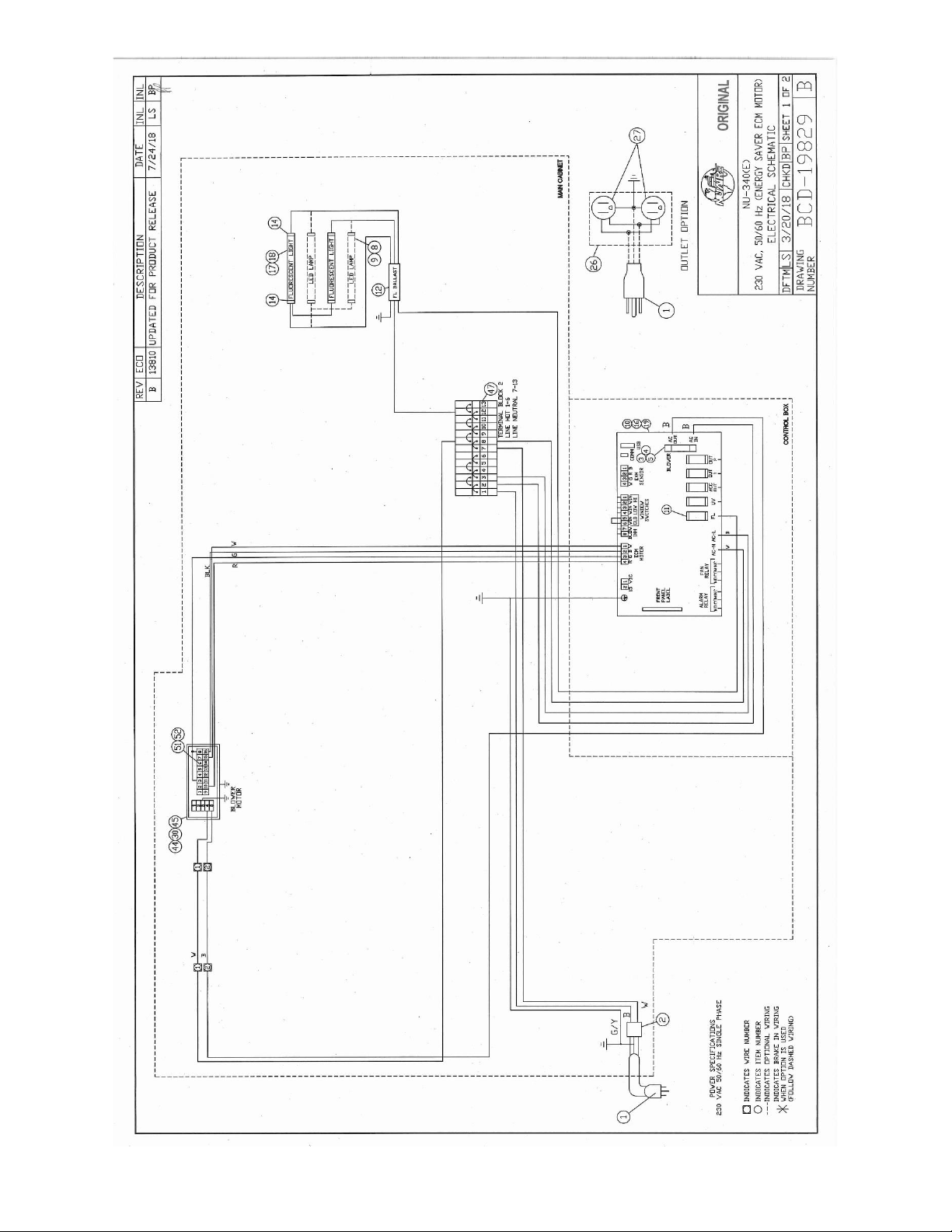

BCD-19829..........................................................Electrical Schematic 230V

OM0276 Page 3 of 46
Rev 4 May/2021

AIREGARD™ ES Energy Saver Horizontal Laminar Flow

Clean Workstation

Model NU-340E

Manufactured By:

NuAire, Inc.,

Plymouth, Minnesota

1.0 General Description

NuAire AIREGARD™ Horizontal Laminar Flow Clean Workstations utilize the newest technologies in laminar airflow design,
materials and manufacturing processes. The clean workstation can be used where clean airflow per ISO 14644-1 is
required for the preparation of injectable drugs, IV solutions, tissue culture, optics, microelectronics, etc. The clean bench
should not be used for any work that involves biological agents assigned a level of Risk 1 through 4 as classified by the
Centers for Disease Control (CDC), Atlanta, Georgia, since the horizontal flow offers no personnel protection against these
agents. A significant number of design innovations give the NuAire Laminar flow equipment superior performance qualities
in airflow, lighting, noise levels and vibration.

OM0276 Page 4 of 46
Rev 4 May/2021

1.1 Safety Instructions

These safety instructions describe the safety features of the AIREGARD™ Horizontal Laminar Flow Clean Workstation model
NU-340E. The workstation has been manufactured using the latest technological developments and has been thoroughly
tested before delivery. It may, however, present potential hazards if it is not used according to the intended purpose or
outside of operating parameters. Therefore, the following procedures must always be observed:

• The workstation must be operated only by trained and authorized personnel.

• For any operation of this unit, the operator must prepare clear and concise written instructions for operating and

cleaning, utilizing applicable safety data sheets, plant hygiene guidelines, and technical regulations, in particular.

o which decontamination measures are to be applied for the workstation and accessories,
o which measures are to be taken in the case of an accident.

• Repairs to the device must be carried out only by trained and authorized expert personnel.

• Keep these operating instructions close to the unit so that safety instructions and important information are

always accessible.

• Should you encounter problems that are not detailed adequately in the operating instructions, please contact your

NuAire Representative of NuAire technical Services.

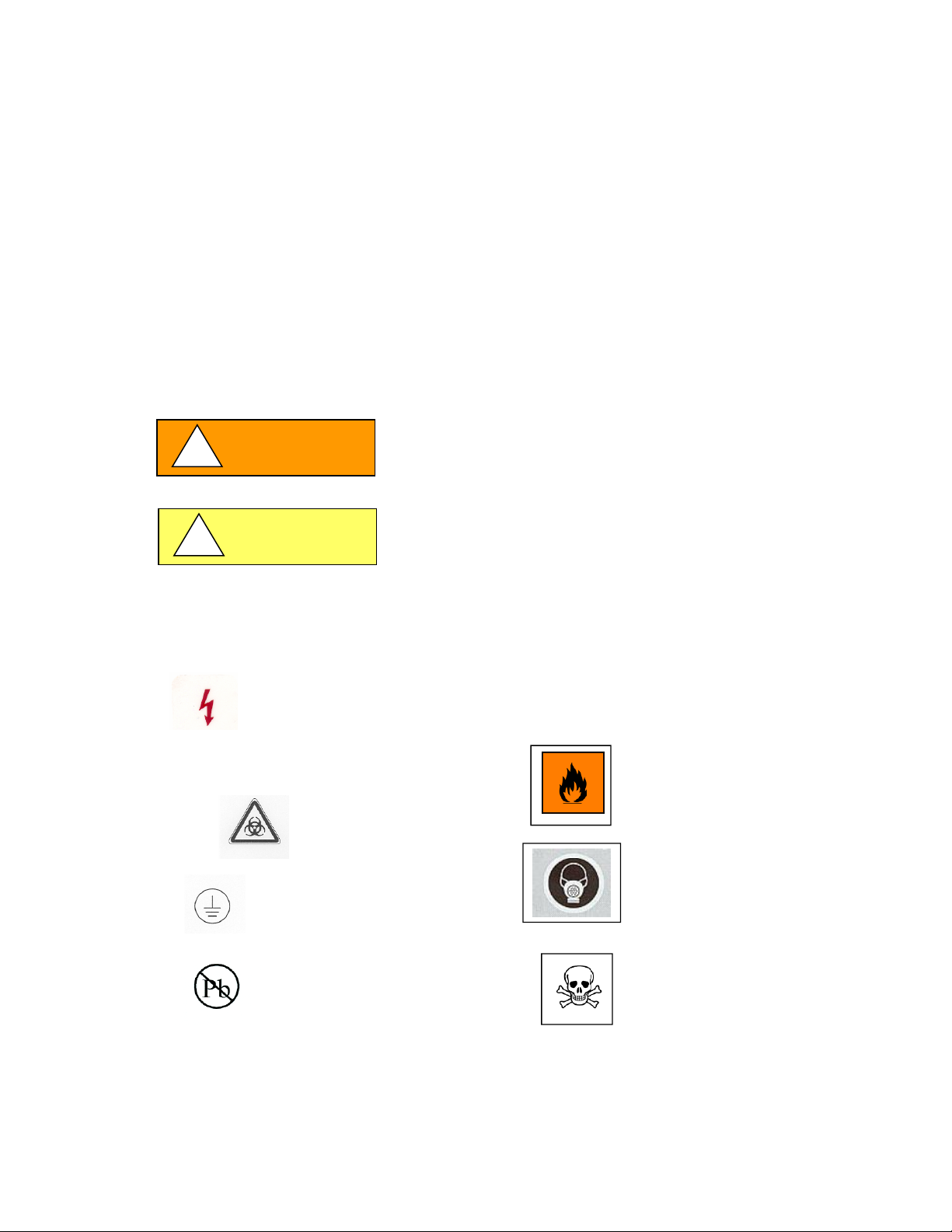

1.2 Explanation of Symbols

NOTE:

CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.

Potential electrical hazard, only qualified person
to access.

Used for important information.

Biohazard

Ground, Earth

CAUTION:



Lead Free

Chemical Hazard

Flammable Hazard

Hazardous Gases! Personal
Protection Equipment Required.

Safety alert symbol indicates a potentially hazardous
situation which, if not avoided, could result in death
of serious injury.

Safety alert symbol indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate injury.

WARNING

!

CAUTION

!

OM0276 Page 5 of 46
Rev 4 May/2021

2.0 Models and Features

NuAire's Model Number NU-340E designates the basic design series of AIREGARD™ Horizontal Laminar Flow Clean
Workstation with the blower/motor located above the work surface (i.e. bench series). Model numbers are shown below.

Model Number

NU-340-330E

NU-340-430E

NU-340-530E

NU-340-630E

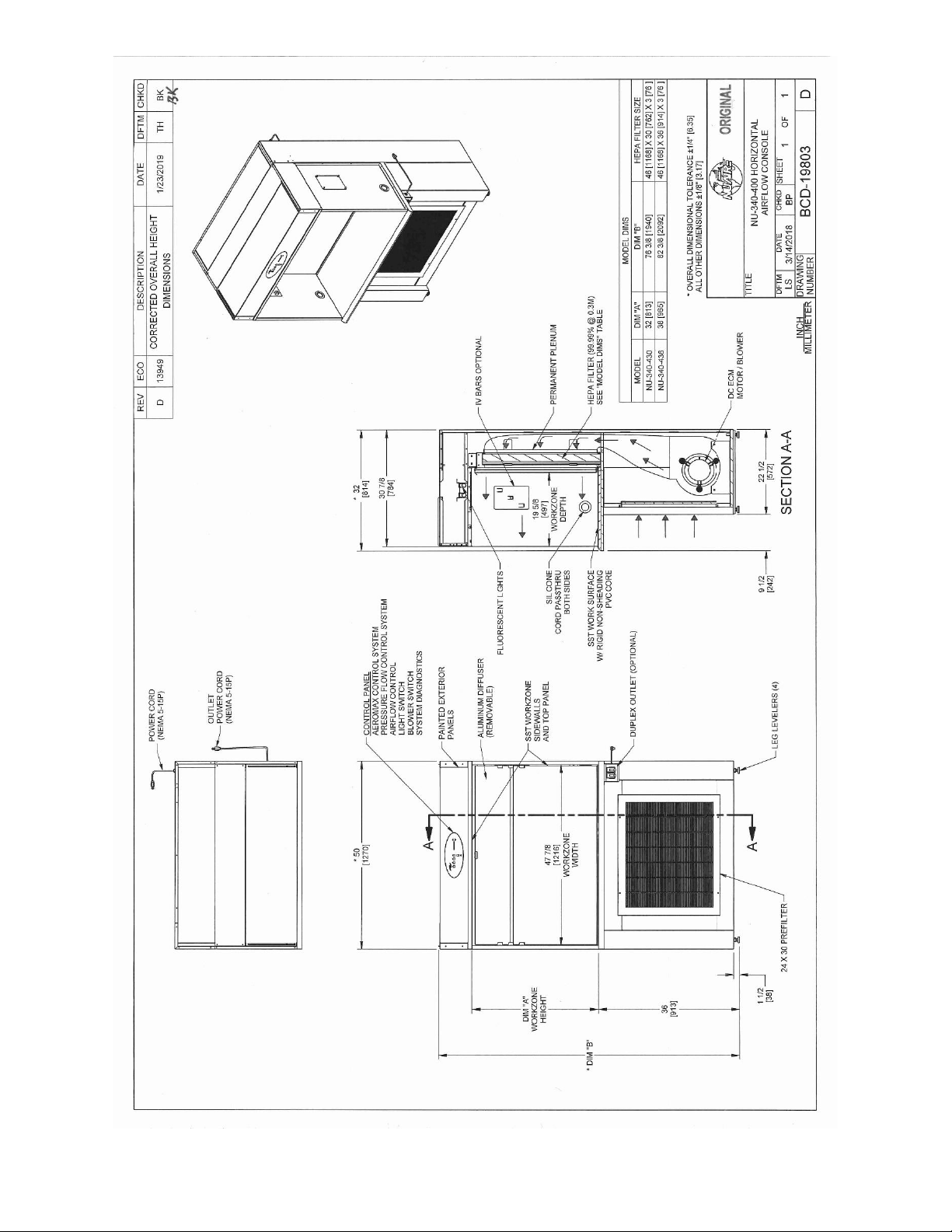

OM0276 Page 6 of 46
Rev 4 May/2021

OM0276 Page 7 of 46
Rev 4 May/2021

OM0276 Page 8 of 46
Rev 4 May/2021

OM0276 Page 9 of 46
Rev 4 May/2021

OM0276
Rev 4 May/2021 Page 10 of 46

OM0276 Page 11 of 46
Rev 4 May/2021

OM0276
Rev 4 May/2021 Page 12 of 46

OM0276
Rev 4 May/2021 Page 13 of 46

OM0276 Page 14 of 46
Rev 4 May/2021

3.0 Shipments

NuAire takes every reasonable precaution to insure that your AIREGARD™ Clean Workstation arrives without damage.
Motor carriers are carefully selected and shipping cartons have been specially designed to insure your purchase. However,
damage can occur in any shipment and the following outlines the steps you should take on receipt of a NuAire AIREGARD™
Clean Workstation to be sure that if damage has occurred, the proper claims and actions are taken immediately.

3.1 Damaged Shipments

3.1.1 Terms are factory, unless stated otherwise. Therefore, it is important to check each shipment before acceptance.

3.1.2 If there is visible damage, the material can be accepted after the driver makes a notation on the consignee's copy

of the freight bill. Then an inspection must be made to verify the claim against the carrier. This inspection is the

basis of your filing the claim against the carrier.

3.1.3 If concealed damage is found, it is absolutely necessary to NOTIFY THE FREIGHT AGENT AT ONCE and request an

inspection. Without this inspection, the transportation company may not accept a claim for loss or damage. If the

carrier will not perform the inspection, an affidavit must be prepared stating that he was contacted on a certain

date and that he failed to comply with the request. This, along with other papers in the customer's possession will

support the claim.

OM0276 Page 15 of 46
Rev 4 May/2021

4.0 Installation Instructions

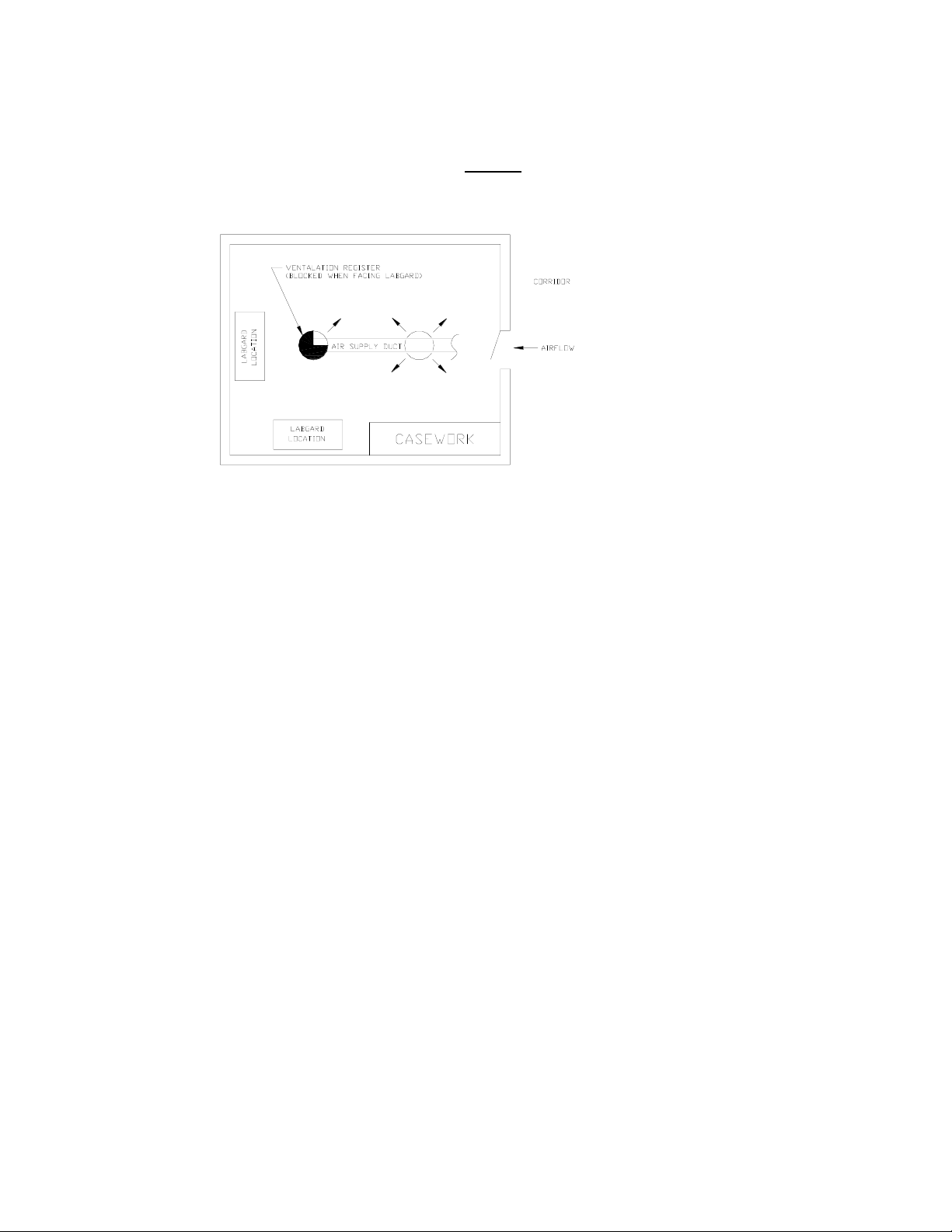

4.1 Location

Within the laboratory, pharmacy, production area, etc., the ideal location for the clean workstation is away from personnel
traffic lanes, air vents (in or out), doors and/or other source of disruptive air currents. If drafts or other disruptive air
currents exceed the face velocity of the HEPA filter, the potential exists for contaminated air to enter the work area of the
workstation. Please note, however, that the work area has been constructed to minimize the effect of air currents by
providing sidewalls that are an extension of the HEPA filter flow area.

Where space permits, a clean six (6) inch (152mm) area should be permitted on each side of the workstation for
maintenance purposes. The electrical outlet into which the workstation is connected should be readily accessible.

The workstation shall be positioned as not to obstruct the power supply outlet or the circuit breaker distribution panel.

4.2 Set-Up Instructions

Remove outer shipping protection (carton or crating). If the workstation is fastened to a base skid, it is usually the best
procedure to leave the skid in place until the workstation is located in its approximate position to facilitate ease in handling.
It can then be removed from the skid by removing the four bolts holding the workstation to the skid.

OM0276 Page 16 of 46
Rev 4 May/2021

4.2.1 Gas Service

NuAire doesn't recommend the use of natural gas within the clean bench, but if gas service is determined to be

necessary for the application by the appropriate safety personnel, appropriate safety measures must take place.

Once the determination has been made by the appropriate safety personnel, the application of natural gas must

be performed in accordance to national, state and local codes.

IT IS ALSO STRONGLY RECOMMENDED THAT AN
EMERGENCY GAS SHUTOFF VALVE BE PLACED JUST
OUTSIDE THE CLEAN BENCH ON THE GAS SUPPLY LINE.

All NuAire clean benches meet the safety requirements of UL and CSA for Laboratory Equipment. To comply with

these safety requirements, NuAire uses only certified gas valves. In addition, if external piping is required, only

black pipe is used for this application.

As previously stated NuAire doesn't recommend the use of natural gas within the clean bench and ASSUMES NO

RESPONSIBILITY FOR ITS USE. USE AT YOUR OWN RISK. The Bunsen burner flame within the clean bench disrupts

the laminar air stream, which must be maintained for maximum efficiency.

IF THE PROCEDURE DEMANDS USE OF A FLAME, A BUNSEN BURNER
WITH ON DEMAND IGNITION IS STRONGLY RECOMMENDED.
DO NOT USE CONSTANT FLAME GAS BURNERS.

During use, the Bunsen burner should be placed to the rear of the workspace where resulting air turbulence will

have a minimal effect.

4.2.2 Plumbing Services

Ground key cocks with the type of service specified by the snap-in button on the handle, are located in the work

zone. The ground key cocks are not recommended for pressures over 30 p.s.i. Reducing valves should be installed

external to the workstation if necessary. Ground key cocks should never be used for oxygen service. A special

needle valve for oxygen service is required and available upon request.

External connection is to 3/8 inch (10mm) FPT coupling through the sidewalls. Connection to plant utilities should

be made with proper materials for the individual service and according to national and/or local codes. Observe all

labels pertaining to the type of service and operating pressure.

CAUTION

!

CAUTION

!

OM0276 Page 17 of 46
Rev 4 May/2021

4.2.3 Electrical Services

The Horizontal Laminar Flow Clean Workstation may be "hardwired" (optional) or connected via an electrical

power cord, which is standard. The unit requires 230 VAC, 50/60 Hz, single phase. (Current rating varies per

workstation size, reference Electrical/Environmental Requirements).

It is recommended that power to each work station (power is defined by

each work station’s power cord), whether individual or joined work

stations, be on its own branch circuit, protected with a circuit breaker at
the distribution panel.

THIS UNIT CONTAINS ELECTRONIC BALLASTS FOR THE FLUORESCENT LIGHTING. ELECTRONIC BALLASTS
OPERATE WITH HIGH INRUSH CURRENT. IT IS NOT RECOMMENDED TO USE THIS PRODUCT WITH
GROUND FAULT CIRCUIT INTERRUPTERS (GFCI'S) BECAUSE THE BALLASTS MAY CAUSE THE GFCI TO TRIP.

If a "hardwired" (conduit) connection is desired, an electrical junction box is provided on the top of the

workstation with a removable cover. All wiring connections to the junction box should be done according to the

National Electrical Code and/or local codes by a qualified electrician.

4.2.4 Final Assembly

The exterior surfaces and viewing glass are easily cleaned with any mild household detergent cleaner using a soft

cloth. Harsh chemicals, solvent-type cleaners and abrasive cleaners should not be used. See section 5.4 for

cleaning procedures. Turn the workstation on and let it operate for 5 minutes before using it as a clean bench.

4.3 Certification Testing Methods and Equipment

After installation and prior to use, NuAire recommends that the workstation be recertified to factory standards.
At a minimum, the following tests should be performed.

1. HEPA filter media

2. Filter frame leak test

3. Airflow velocities

The testing methods and equipment required are specified on the factory inspection report included with this manual.

IT IS RECOMMENDED THAT THESE TESTS BE PERFORMED BY A QUALIFIED TECHNICIAN WHO IS FAMILIAR WITH

THE METHODS AND PROCEDURES FOR CERTIFYING CLEAN BENCHES.

AFTER THE INITIAL CERTIFICATION, NUAIRE RECOMMENDS THAT THE WORKSTATION BE RECERTIFIED AT A

MINIMUM ON AN ANNUAL BASIS AND AFTER EVERY FILTER CHANGE OR MAINTENANCE ACTION OR ANY TIME

THE OPERATOR FEELS IT IS NECESSARY.

SCANNING THE HEPA FILTER SEAL CANNOT BE DONE BY ONLY REMOVING THE DIFFUSER SCREEN. HEPA

FILTERED AIR MUST BE DIRECTED INTO THE DEAD-AIR SPACE TO FLUSH THE AREA WITH PARTICLE FREE AIR

WHILE SCANNING FOR LEAKS. THE FRAME ITSELF IS UNDER NEGATIVE PRESSURE AND SCAVENGER SLOTS, IF

PRESENT, HELP FLUSH OUT THE AREA WHEN THE DIFFUSER IS INSTALLED.

Note that the NuAire Clean Workstations, filters and seals provide premium performance; Quality control in both design
and manufacturing insure superior reliability. However, protection to the product is so important, that certification to the
performance requirements should be accomplished as stated to insure conformance to factory standards.

NOTE:



NOTE:



NOTE:



CAUTION

!

NOTE:



OM0276
Rev 4 May/2021 Page 18 of 46

AIREGARD™ ES Energy Saver Horizontal Laminar Flow Work station

Models NU-340-330E/430E/530E/630E

Catalog Number

Catalog Number

NU-340-330E

Nominal 3 foot (0.9m)

NU-340-430E

Nominal 4 foot (1.2m)

NU-340-530E

Nominal 5 foot (1.5m)

NU-340-630E

Nominal 6 foot (1.8m)

Performance Specifications

1. Product Protection

IEST-RP-CC002.4
ISO 14644-1

IEST-RP-CC002.4
ISO 14644-1

IEST-RP-CC002.4
ISO 14644-1

IEST-RP-CC002.4
ISO 14644-1

ISO 14644-1

ISO 5

ISO 5

ISO 5

ISO 5

Style of Work station

Console

Console

Console

Console

Work Station Construction

16/18 GA, powder
coated steel exterior;
16/18 GA type 304 SST
work zone

16/18 GA, powder
coated steel exterior;
16/18 GA type 304 SST
work zone

16/18 GA, powder
coated steel exterior;
16/18 GA type 304 SST
work zone

16/18 GA, powder
coated steel exterior;
16/18 GA type 304 SST
work zone

Diffuser for Air Supply (Metal)

Non-flammable

Non-flammable

Non-flammable

Non-flammable

HEPA Filter Seal Type:
Supply Filter-99.99%
Eff. on 0.3 microns

HEPEX Seal- Neoprene,
Spring-loaded

HEPEX Seal- Neoprene,
Spring-loaded

HEPEX Seal- Neoprene,
Spring-loaded

HEPEX Seal- Neoprene,
Spring-loaded

Optional Services, (Total) Position:
Service Coupling
(3/8 inch NPT)
Gas Valve/Service Coupling
(3/8 inch NPT)
Outlet

(3) Right/left sidewalls

(3) Right/left sidewalls

(1) Right/left area under
worksurface

(3) Right/left sidewalls

(3) Right/left sidewalls

(1) Right/left area under
worksurface

(3) Right/left sidewalls

(3) Right/left sidewalls

(1) Right/left area under
worksurface

(3) Right/left sidewalls

(3) Right/left sidewalls

(1) Right/left area under
worksurface

Work Station Size Inches (mm):

Height
Width
Depth

76 3/8 (1940)
38 (965)
32 (813)

76 3/8 (1940)
50 (1270)
32 (813)

76 3/8 (1940)
62 (1575)
32 (813)

76 3/8 (1940)
74 (1880)
32 (813)

Work Zone Inches (mm):

Height
Width
Depth

32 (813)
35 7/8 (911)
19 5/8 (498)

32 (813)
47 7/8 (1216)
19 5/8 (498)

32 (813)
59 7/8 (1521)
19 5/8 (498)

32 (813)
71 7/8 (1826)
19 5/8 (498)

Airflow Volume at 90 fpm (.46 mps)

CFM (CMH)

718 (1220)

958 (1628)

1198 (2036)

1438 (2443)

Heat Rejected, BTU, Per Hour

863

1256

1648

1962

Electrical:

Volts, AC 50/60 Hz
+Amps: Blower/Lights
Rated Amps:
12 ft. Power Cord (one)

CE
230

2.2
5
14 GA - 3 Wire, 15A

CE
230

3.2
6
14 GA-3 Wire, 15A

CE
230

4.2
8
14 GA-3 Wire, 15A

CE
230

5.0
8
14 GA-3 Wire, 15A

Work Station Weights:***
Crated Shipping Weight
Net Weight

370 lbs. /168 kg.
330 lbs. /150 kg.

440 lbs. /200 kg.
390 lbs. /177 kg.

510 lbs. /231 kg.
460 lbs. /209 kg.

610 lbs. /277kg.
540 lbs. /245 kg.

***Crated shipping weight does not include weight for accessories or options
+ Based on Work station with new filters running at 230VAC.

OM0276 Page 19 of 46
Rev 4 May/2021

5.0 Operating the NU-340E

5.1 Aeromax™ Control System

5.1.1 Overview

The Aeromax™ control system is designed to service the control requirements of the AireGard™ ES NU-340E. The

Aeromax™ control system consists of an electronic module that will perform the following functions:

• Easy user interface via LED’s and function keys

• Control blower via solid state switch.

• Control lights via solid state switch.

• Disable audible alarm switch with ring back function.

• Control blower DC ECM motor/blower with solid-state DC Motor Controller that provides automatic

compensation for line voltage variances.

• Monitor and display airflow system performance via PresurFlow™ monitor.

The AireGard™ ES NU-340E offers the latest digital microprocessor design technology for improved performance

and safety. The Aeromax™ control system integrates a digital pressure sensor (PresurFlow™) to monitor the

airflow performance. The Aeromax™ control system also integrates a DC ECM motor/blower controller that

provides automatic compensation for both filter loading and line voltage variances. There is additional on/off

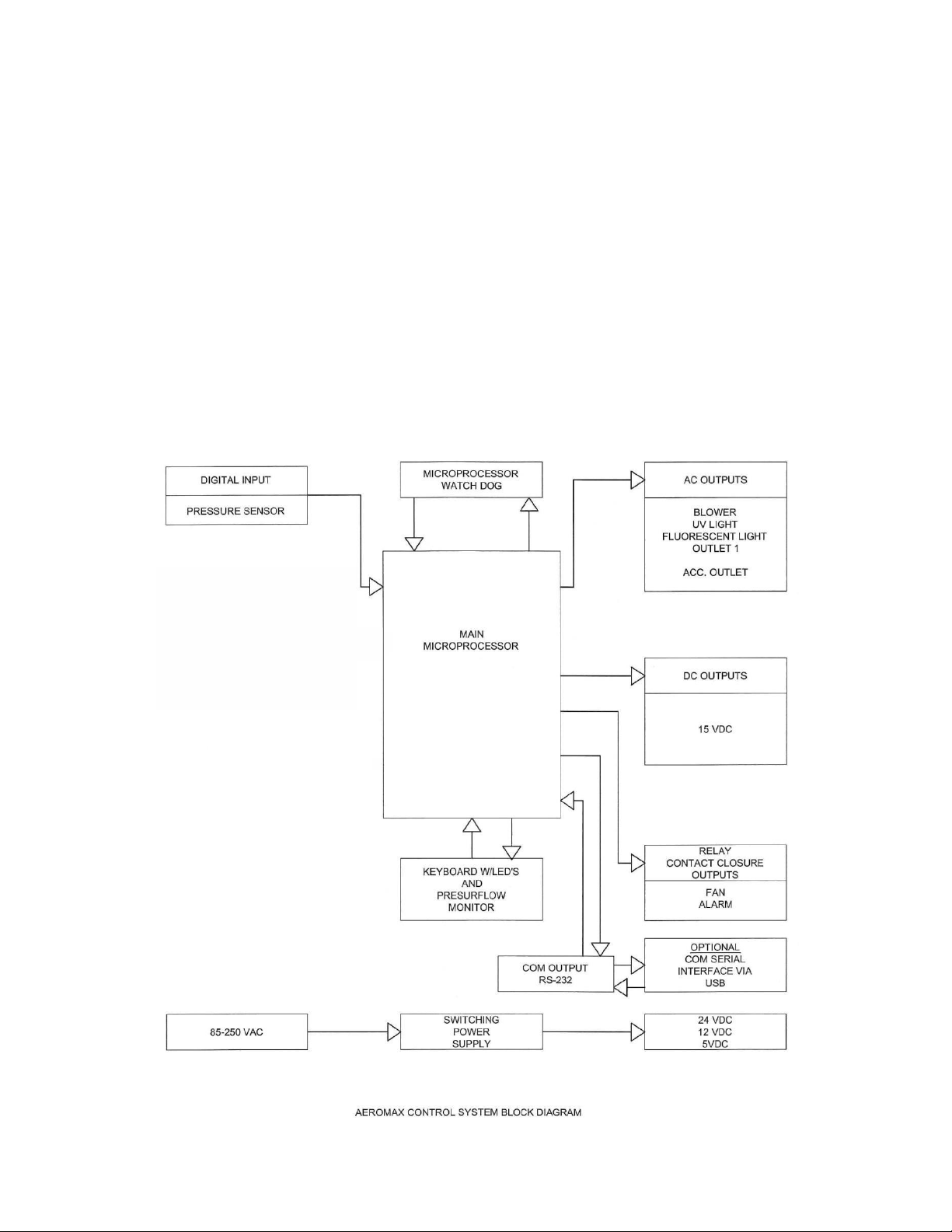

control of blower and light. All the above functions are shown in a system block diagram (see figure 1).

Figure 1

OM0276 Page 20 of 46
Rev 4 May/2021

OM0276 Page 21 of 46
Rev 4 May/2021

5.1.2 Front Panel

The control system front panel contains the following functions described in detail (see Drawing BCD-16521).

5.1.2.1 Blower Keys

The blower key controls the ON/OFF power to the blower.
LED above key indicates: full green for blower on,
blinking green for blower pending and
full red for blower alarm.

5.1.2.2 Hidden Key
The hidden key is located just above the blower LED indicator centered in the airflow symbol. The hidden key

is used for various functions including the blower password 3 key sequence if the option is activated.

5.1.2.3 Fluorescent Light Key
The fluorescent light key controls the on/off power to the fluorescent light.

LED above the key indicates full blue for fluorescent light on.

5.1.2.4 Ultraviolet (UV) Light Key (Diagnostic Key Use ONLY)
The UV light key controls the on/off power to the UV light (Diagnostic Key Use ONLY).

LED above indicates full yellow for UV light on.

5.1.2.5 Outlet Keys (Special Option Feature ONLY)

The outlet key controls the ON/OFF power to the outlets (Special Option Feature ONLY).
LED above indicates full blue for outlets on.

5.1.2.6 Red Alarm LED

The red alarm LED will indicate any alarm condition and remain indicating until the alarm condition is cleared.

5.1.2.7 Audible Alarm Silence

The audible alarm silence key allows user interaction to silence an audible alarm for a period of 15 minutes.

After 15 minutes if the alarm condition still exists, the audible alarm will again sound.

The audible alarm silence key also is used to exit all Aeromax™ user interaction menus.

5.1.2.8 Arrow Adjustment Keys

The arrow adjustment keys allow user interaction for various functions.

5.1.3 Aeromax™ Control System Power

After the AireGard™ ES NU-340E is plugged into the appropriate facility line power the control system will power

up. The control panel will also indicate the power up status by blinking the red alarm LED. Pressing any key will

acknowledge the power up status and turn off the blinking red alarm LED.

If a power interruption occurs, all control system functions, calibrations and parameters will be maintained and
continue upon restoration of power. Just as the initial power up, the red alarm LED will blink to indicate power up
status.

5.1.4 Standby Mode

When the NU-340E is not in use any of the function keys except the blower that initiates run mode may be turned

on and off in standby mode.

OM0276 Page 22 of 46
Rev 4 May/2021

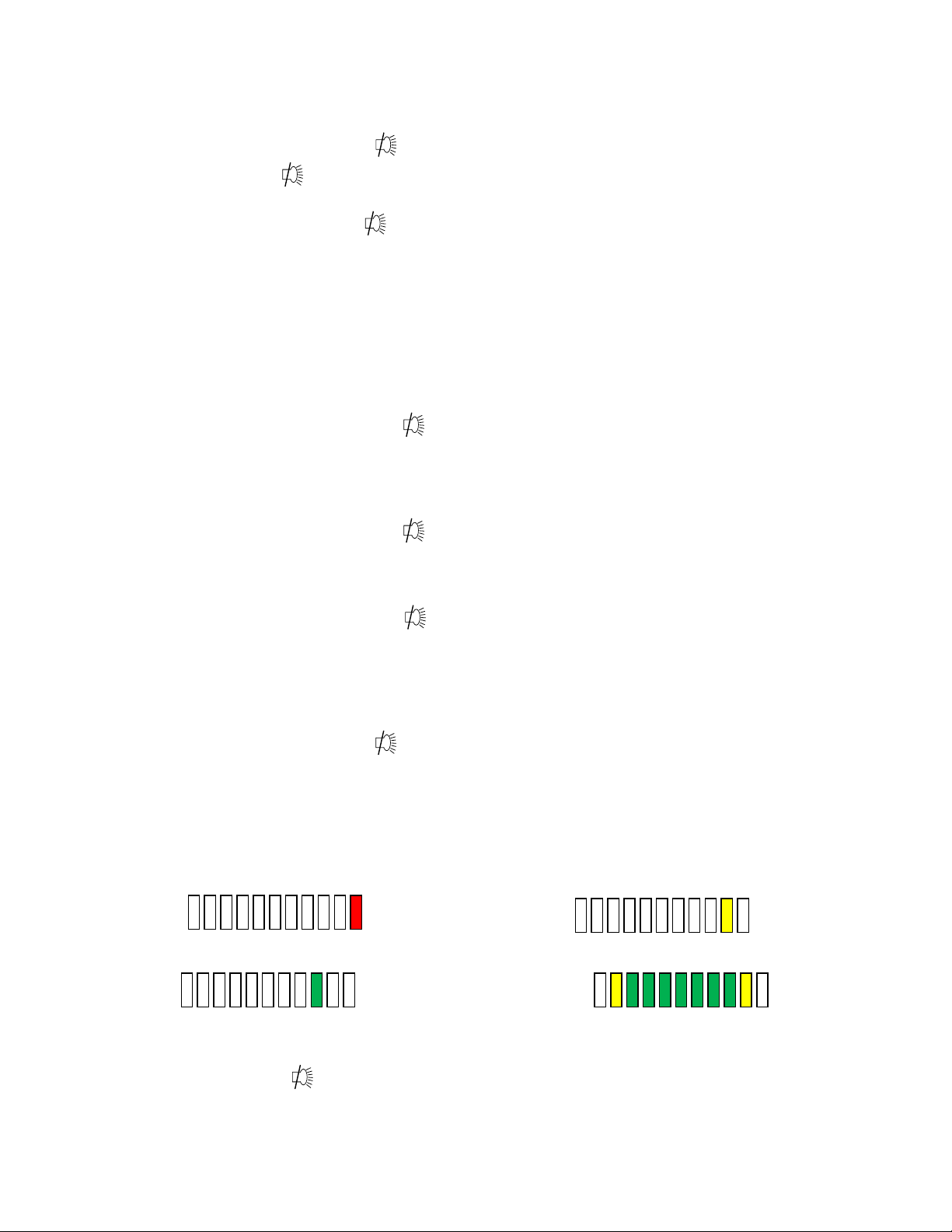

5.1.5 Run Mode

Any time the blower run key is pressed with the hinged window at its correct operational height, the RUN MODE

screen will be initiated. The Run Mode will start with the PresurFlow™ entering and approximate 3 minute warm

up period. The PresurFlow™ LED indicators will blink and indicate the following sequence:

• 1st minute – Left and right Red LED’s will blink

• 2nd minute – Left and right Green LED’s will blink

• 3rd minute – Center 3 Green LED’s will blink

Once the warm up period is complete, only one LED will indicate cabinet airflow status.

During the warm up period the cleaning process may begin.

5.1.6 Standby/Run Mode Alarms

If present, standby/run mode alarms will be both visual and audible, the red alarm LED oval will turn on. Audible

alarms will produce an alarm tone for 30 seconds, then ring back for 2 seconds of every 5 seconds. Pressing the

alarm silence key will silence the audible alarm for 15 minutes initially then will start the ring back function again.

The list below represents alarm types and their respective priority from the highest to lowest priority.

1) New Firmware Loaded

2) Internal Board Failure

3) Power on Reset

4) Airflow Pressure Alarm

5) Blower RPM Failure

Note: The above messages are described in greater detail in section 7.



OM0276 Page 23 of 46
Rev 4 May/2021

5.1.7 Operator Accessible Functions

5.1.7.1 Access and Navigation
To access the operator accessible functions,

• Press and hold the key, then enter the 3 key sequence for the desired function, then release

The key and follow each instruction set.

Note: Pressing the key at any time will abort and exit the process without saving any changes
made. Pressing the hidden key will accept all changes and exit.

5.1.7.2 Auto Timer Duration

Auto timer duration timers are countdown timers for the functions displayed once time is entered into a
function. The timer will begin to countdown upon the start of that function (i.e. press light key to start timing
the light). The LED indicator above the function key will start to blink indicating the timer function. If the LED
indicator was full on, no timer function is present. As the timer expires the function will turn off.

• Select auto timer duration function
o Outlets (Special option feature only)

Press and hold key, then press hidden – outlet – outlet keys sequentially.

LED indicator above outlet will blink fast. Adjust desired time as described below.

o Lights

Press and hold key, then press hidden – light – light keys sequentially.
LED indicator above light will blink fast. Adjust desired time as described below.

o UV Light (Diagnostic key use only)

Press and Hold key, then press hidden – UV light – UV light keys sequentially.
LED indicator above UV light will blink fast.
Adjust desired time as described below.

• Low Flow Blower (Diagnostic key use only)

Press and hold key, then press hidden-blower-blower keys sequentially.
LED indicator above Blower key will blink fast. Adjust desired time as described below.

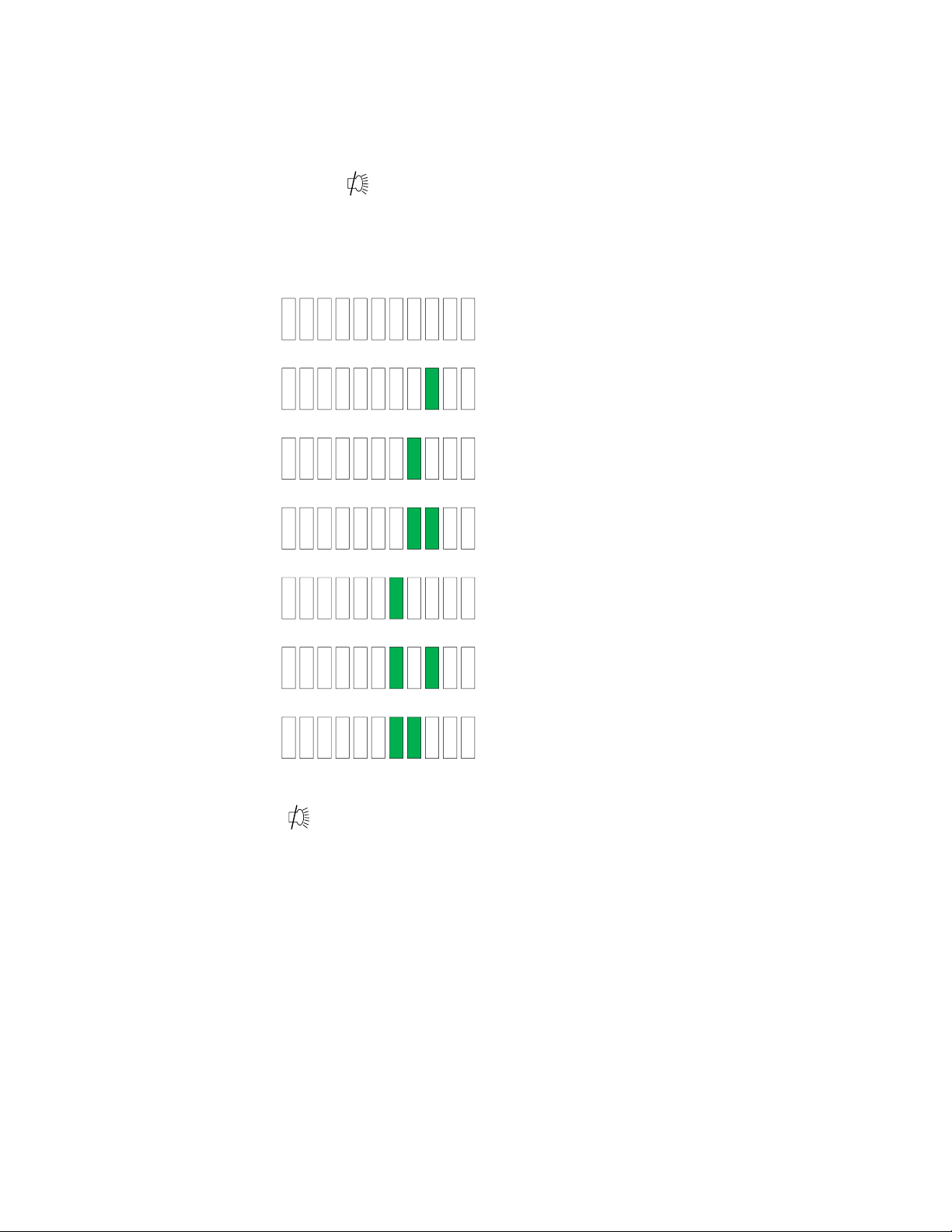

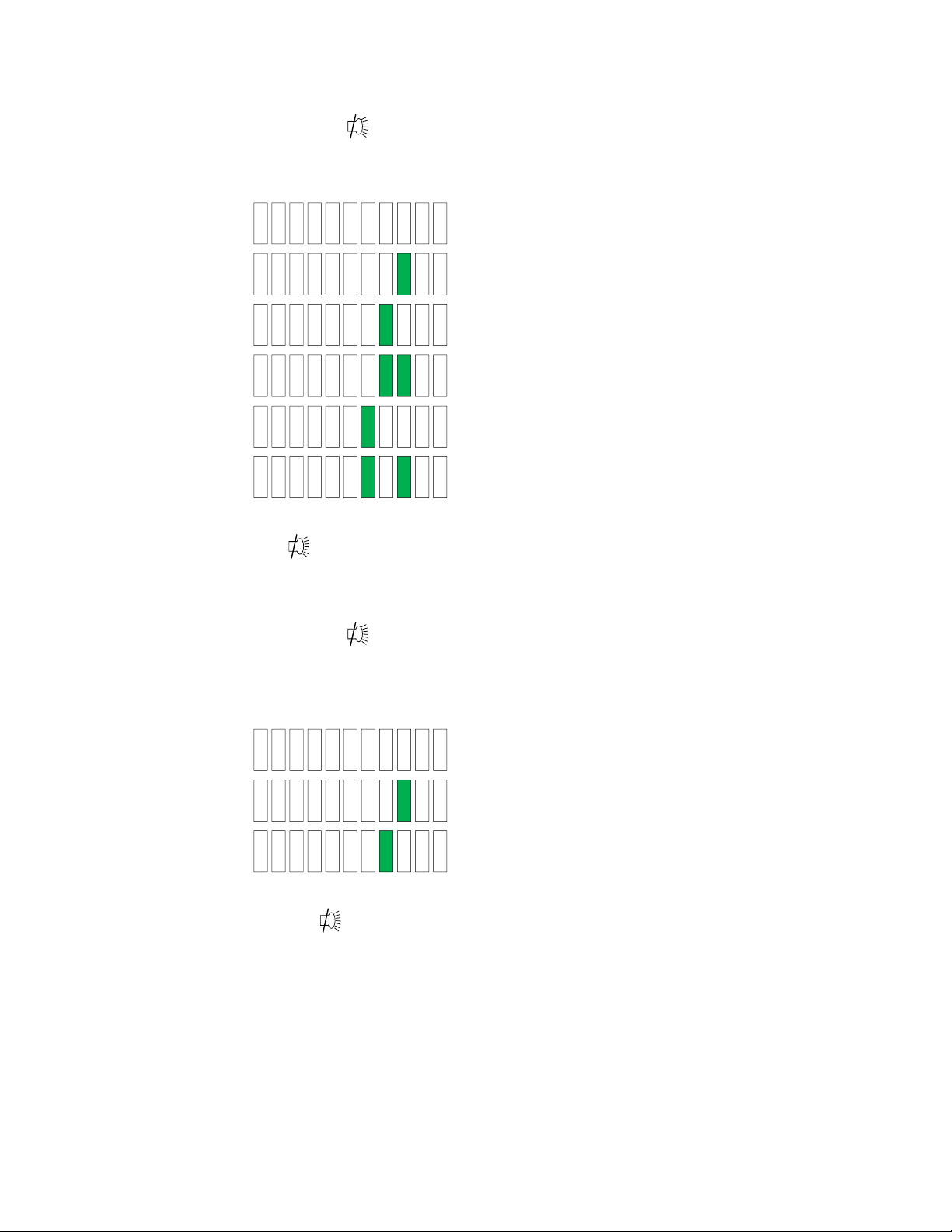

o Adjust countdown time

Press ↑ or ↓ keys to adjust time.

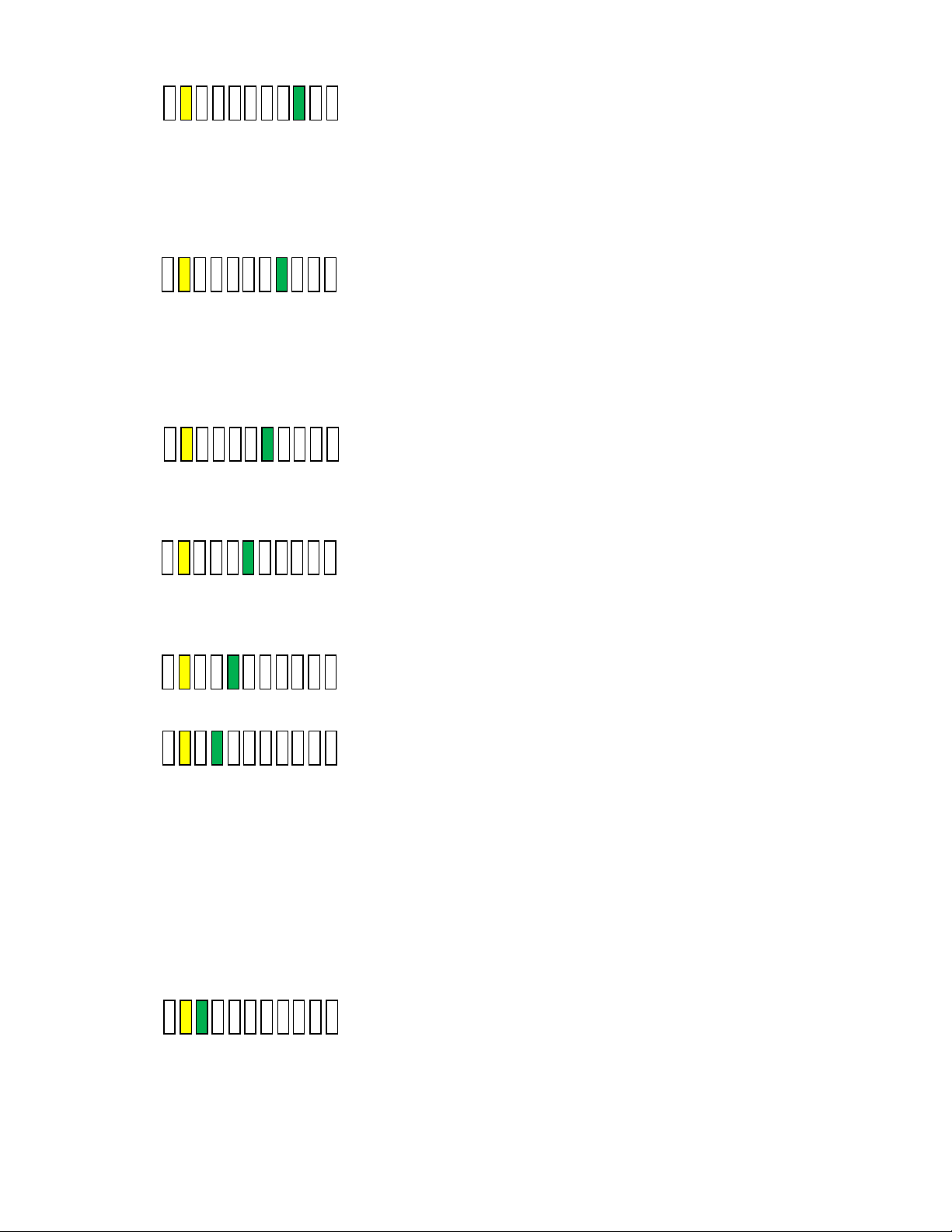

Time will change in 15 minute increments as shown on the PresurFlow™ LED segments

below.

15 minutes for Red LED 30 Minutes for Yellow LED

1 hour for green LED Represents 8 hours (maximum time)

• Press hidden key to accept time and exit.

• Press key at any time to abort and exit.



OM0276 Page 24 of 46
Rev 4 May/2021

5.1.7.3 Blower Password

The blower on/off password allows the cabinet user to place a 3 key sequence requirement to turn the blower
on or off.

The 3 key sequence for the blower password will be a combination of the hidden and blower keys.

• Select blower password

Press and hold key, then press hidden – blower – hidden keys sequentially.
Red LED indicator above blower will blink fast.

• Select password

Press ↑ or ↓ key to scroll through the code choices below,

No Password

B-B-H password

B-H-B password (default)

B-H-H password only

H-B-B password

H-B-H password

H-H-B password

• Press hidden key to accept time and exit.

• Press key at any time to abort and exit.

Note: If the required blower password option is selected in the blower airflow option menu (see section 7.2.2).
Then the “No password” choice above is not available and the default remains B-H-B.



OM0276 Page 25 of 46
Rev 4 May/2021

5.2 Operating Guidelines

Operate the laminar flow workstation continuously. The unit will then remain in its initially clean condition. If, for any
reason, the unit is turned off, turn the unit on and permit to operate for 5 minutes before resuming operations.

Allow only essential items in the work station. Objects should not be placed between the HEPA filter and any point where
the clean environment must be maintained. New items introduced into the work area should be placed downstream of
items already in the work zone for several minutes to allow contaminants to flush off. Note that plastic parts may carry a
static charge which may require special handling in order to remove contaminants.

Particular care must be exercised in placing equipment within the work space. Where possible, equipment should be
placed on perforated platforms to allow air movement under as well as around the object.

All work should be performed with the operator's hand or head downstream of the critical process points. Unnecessary
movement with the work station should be kept to a minimum.

If the workstation is used in a manner not specified by NuAire, the protection provided by the equipment may be impaired.

5.2.1 Operating Sequence

A. Start Up

Turn on workstation blower and lights, check air intake ports of the workstation to make sure they are
unobstructed. The workstations are provided with gauges which indicate pressure differentials across the
filters. They indicate when to replace the filters, dependent upon the blower fan capacity. Blower speed must
only be readjusted by qualified maintenance technicians.

B. Good procedure includes the decontamination or wipe down of workstation surfaces with chemical

disinfectant before work commences.

C. Allow blowers to operate for a minimum of 5 minutes before aseptic manipulations are begun in the

workstation. An additional advantage is obtained from purification (filtration) of the room air circulated
through the equipment. Because of the characteristic contributed to the quality of the laboratory
environment, some owners leave them in operation beyond the time of actual use.

D. Minimize Room Activity - Activity in the room itself should be held to a minimum. Unnecessary activity may

create disruptive air currents, as well as interfere with the work of the operator. A person walking past the
front of the workstation can cause draft velocities up to 175 FPM, which are sufficient to disrupt the air
balance of the Laminar Flow Unit.

E. Utilize Unidirectional Airflow - The operator must keep two important facts in mind:

1) The air, as supplied to the work area through the HEPA filter is contaminant-free.

2) Airborne contamination generated in the work area is controlled by the unidirectional flow of parallel air
streams.
A solid object placed in a laminar air stream will disrupt the parallel flow and consequently, the capability of

controlling lateral movement of airborne particulates. A cone of turbulence extends behind the object and
laminarity of the air stream is not regained until a point is reached downstream, approximately equal to three
to six times the diameter of the object. Within the parameters of this cone, particles may be carried laterally
by multidirectional eddy currents.

5.3 Ergonomics

Ergonomics, the study or accommodation of work practices is extremely important for proper workstation usage and user
health and safety. An evaluation of normal work practices should be performed with each user when working in a

workstation. Evaluation criteria should be at a minimum:
a. Proper user posture
b. Effective workzone layout for work practice
c. Vision or sightlines

For each of the above evaluation criterion, several aids may be supplied to accommodate the user.

OM0276 Page 26 of 46
Rev 4 May/2021

• Ergonomic chair - A six-way articulating seat and back control for personalized adjustment to assure proper user

posture. Be sure feet are resting on the floor, chair foot support or foot rest. Also be sure back is fully supported with
proper chair adjustments.

• Forearm/elbow support - The workstation is provided with a forearm support on the work access opening. Periodic

mini-breaks during work practice should be taken resting forearm to avoid stress and fatigue. Elbow rests are optional
that can provide support for particular work practices, such as pipetting.

• Effective workzone layout - Always prepare your work procedure to minimize reach to avoid neck and shoulder stress

and fatigue. Rotating tables are optional to maximum workzone and minimize reach.

• Vision and sightline - Always prepare your work procedure to eliminate glare and bright reflections on the window.

Keep your window clean and sightlines clear to your effect workzone.

5.4 Cleaning Procedures

5.4.1 General

Cleaning laboratory equipment is important in terms of both functionality and general good housekeeping. The

information provided below is intended to aid the development of facility Standard Operating Procedures (SOP’s) for

cleaning the equipment. It is strongly recommended that all cleaning materials used be tested and verified in terms of
both effectiveness and material compatibility before they are written into the cleaning SOP documentation.

a. The airflow blower should be operating during the cleaning process to maintain sterility and/or containment during the
cleaning process.

b. Avoid directly spraying the diffuser screen while installed as this may damage the HEPA filter. Remove the diffuser
screen and clean separately outside the unit

c. Apply appropriate cleaning material or surface disinfectant to surfaces. Most surface disinfectants require a specific
contact time depending the materials used within the work zone. CONSULT APPROPRIATE DISINFECTANT
DOCUMENTATION FOR PROPER APPLICATION AND SAFETY PRECAUTIONS.

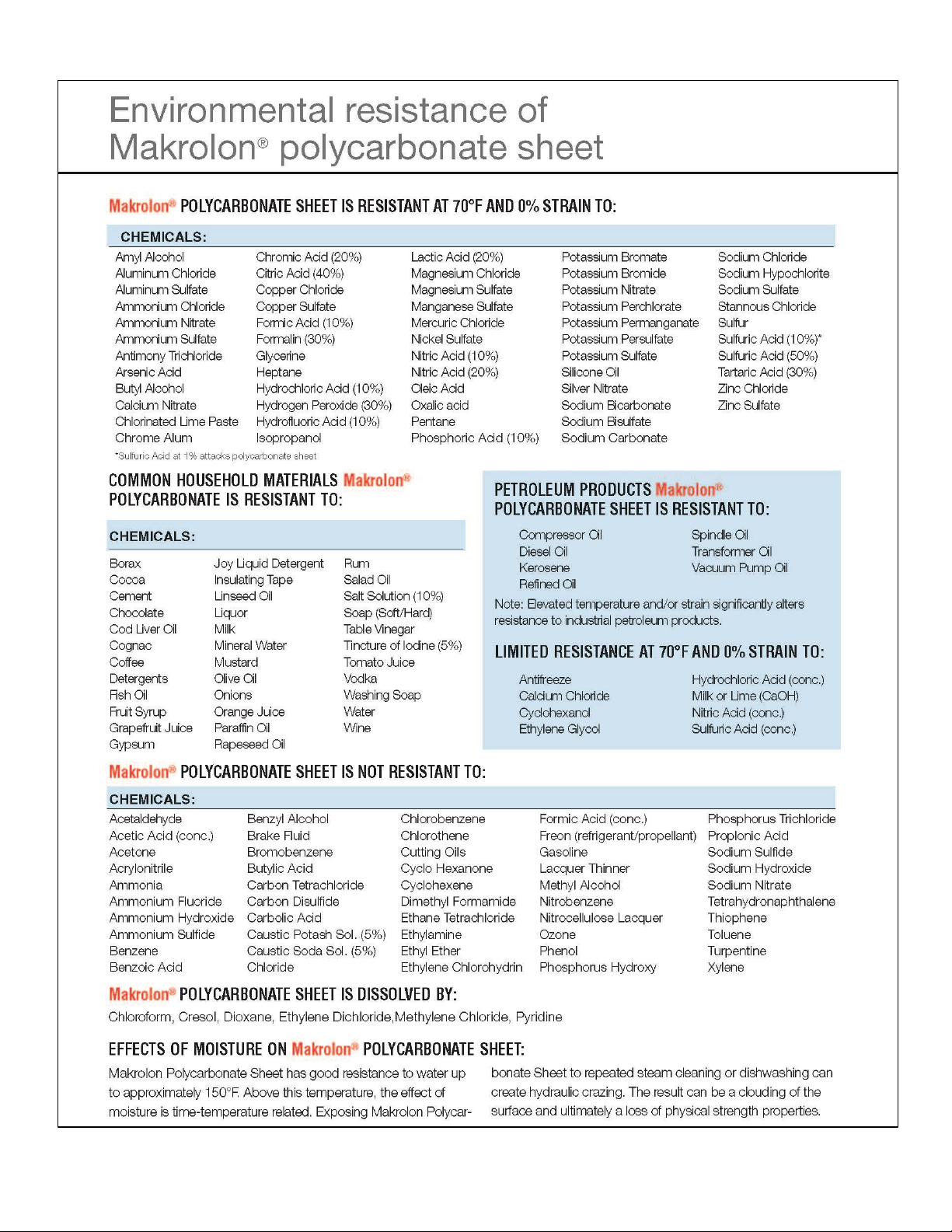

c-1. Polycarbonate (Covestro® Makrolon®AR) has noted material compatibility concerns (see polycarbonate compatibility
section). They recommend the use of Hydrogen Peroxide based materials such as the following:

- Steriplex SD

- Safetec surface wipes

- Peridox RTU
It is recommended to AVOID the use of cleaning materials that contain Chlorine, Quaternary Ammoniums and Phenol’s.
If the polycarbonate is lightly scratched, it may be able to be polished out with Mirror Glaze Plastic Polish or similar.
Further information may be available from www.covestro.com
c-2. Stainless steel (type 304) has noted material compatibility concerns with Acids, Chlorides and Halogens. IF THESE

MATERIALS ARE USED AND ALLOWED TO BE LEFT ON THE STAINLESS STEEL SURFACE, OXIDATION AND DEGRADATION
WILL OCCUR. Only by re-wiping surfaces with either sterile water or 70% IPA will remove harmful materials from the

stainless steel surface.
Further information is available at the following: http://www.parrinst.com/wp-

content/uploads/downloads/2011/07/Parr_Stainless-Steels-Corrosion-Info.pdf

NOTE: NuAire does not offer any product warranty with respect to cleaning material compatibility. USE AT YOUR OWN
RISK! The information provided above is from raw material suppliers and known general source documents for use to
develop application cleaning SOP’s.

NOTE: When cleaning the work area for the first several times, the new metal surfaces may produce some dark
discoloration on the white cleaning wipes. Repeated cleaning will continuously reduce the amount of the discoloration
material on the cleaning wipes over time.



OM0276 Page 27 of 46
Rev 4 May/2021

6.0 General Maintenance

All maintenance actions on this equipment must be performed by a qualified
technician who is familiar with the proper maintenance procedures required for this
equipment. This includes both certification as well as repair.

6.1 Fluorescent Lamp Replacement

The fluorescent lamps are T8, cool white and electronic start. The life rating of a lamp is 9000 hours based on three hour
burning cycles.

To replace a lamp:

1. Make sure the workstation light is off.

2. Remove (1) rear-screw at each top side of the top panel and pull out panel to access lamps.

3. Lamps are removed by rotating until the pins can be pulled down.

4. Reverse the procedure to reinstall lamps and reassemble unit.

6.2 HEPA Filter Replacement

The HEPA filter, under normal usage and barring an accident (puncture), does not need replacement until the efflux velocity
cannot be maintained at 90 LFPM (.457 m/s) + 10%. This may permit the HEPA filter efflux average to be as low as 81 LFPM
(.411 m/s), as long as no point falls below 70 LFPM (.355 m/s). Use only replacement filters of the same rated flow and size
as originally installed to insure proper airflow and HEPA filter lifetime can be achieved.

The HEPA Filter replacement procedure is performed by the following steps: Drawing BCD-18926):

Disconnect electrical power from the cabinet before attempting any maintenance
action.

1. Remove IV bars if installed.

2. Remove the unit diffuser screen(s) by lifting slightly and tipping out the diffuser screen(s) to remove through the

front of the unit.

3. Remove filter clamp by removing the #8 x 2.00” screw, #8 washers and compression springs (Detail “A” 4 places).

4. Slightly lift and tip out filter and remove through front of the unit.

NOTE: This step usually requires 2 people for the removal and replacement of the HEPA filter.

5. Replace HEPA filter by tipping the filter into place resting on plenum bottom.

6. Reattach filter brackets and hardware 4 places and tighten uniformly.

7. Replace the unit diffuser screen(s) by tipping into place, lifting slightly to all screen bottom to fall into groove in

work surface and to fit screen to catch the top angle to rest in place.

6.3 Pre-Filter Replacement

The replacement interval depends on the contaminant (large particles or lint) in the room -- a typical period is every 6
months. The prefilters are located underneath the worksurface.

6.4 Airflow Control System Setup and Calibration

6.4.1 General

The operation of the NU-340E requires that the setup and calibration procedures be performed in order to certify
or commission for usage. The setup and calibration procedures performed ONLY BY THE CERTIFIER ensure that
setpoints are verified and that the airflow monitor sensor is calibrated to the correct values.



CAUTION

!

CAUTION

!

OM0276 Page 28 of 46
Rev 4 May/2021

6.4.2 Configuration Parameters

Configuration parameters identify NU-340E motor type and size for proper performance characteristics.

• Select/Verify model and size (Bold items represent default parameters)
o Press and hold key, then press blower – blower – blower keys sequentially.

LED indicates above both blower (red) and UV light keys will blink fast.

Review model type/size and change if desired as described below
o Press ↑ or↓ keys to scroll through the LED segment choices associated with model type/size.

Class II, 3 foot

Class II, 4 foot

Class II, 5 foot

Class II, 6 foot

Laminar, 3/4 foot

Laminar, 5/6 foot

o Press hidden key to accept model/size and exit
o Press key at any time to abort and exit

• Select motor control function/type

o Press and hold key, then press light – light – light keys sequentially.

LED indicators above both blower (red) and light keys will blink fast.

Review motor control function/type and change it desired as described below.
o Press ↑ or ↓ keys to scroll through the LED segment choices associated with motor control

function/type.

Auto DC ECM motor

Fixed duty DC ECM motor

Fixed duty EC Impeller motor

o Press hidden key to accept motor control function/type and exit
o Press key at any time to abort and exit.

OM0276 Page 29 of 46
Rev 4 May/2021

6.4.3 Airflow Calibration

Failure to calibrate airflow to the specified requirements may result
in unsafe conditions of performance (i.e. product protection, noise and
vibration)

The NU-340E Airflow Calibration consists of adjusting the airflow.

THIS WORK SHOULD BE DONE ONLY BY A QUALIFIED TECHNICIAN WHO CAN MEASURE THE AIRFLOW WITH A
SUITABLE VELOMETER. NuAire provides one adjustment to set the airflow within the cabinet.

This is: PWM signal adjust via calibration parameter menu.

The PWM signal or blower speed adjustment establishes the NU-340E total volume of airflow as well as makes up
for filter resistance tolerances.

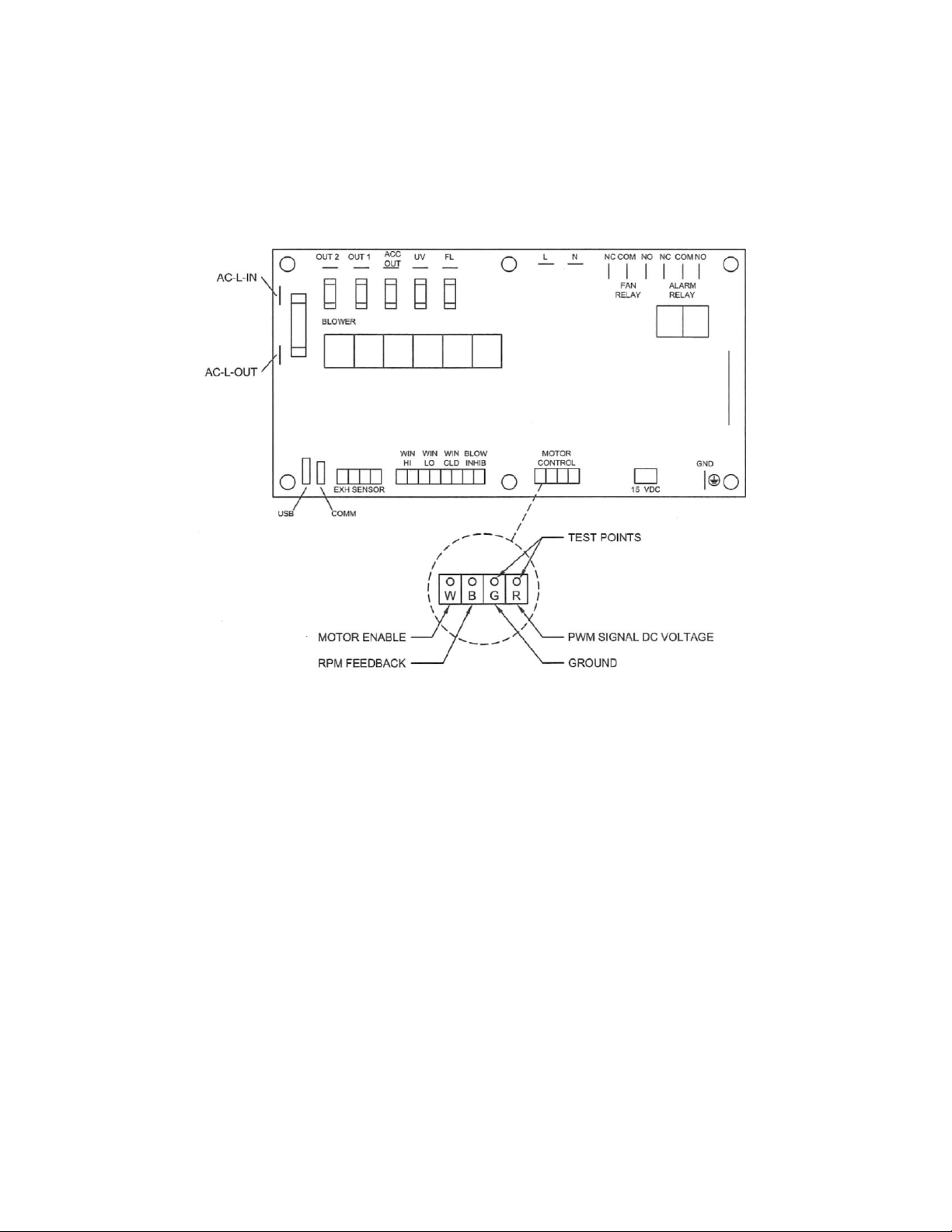

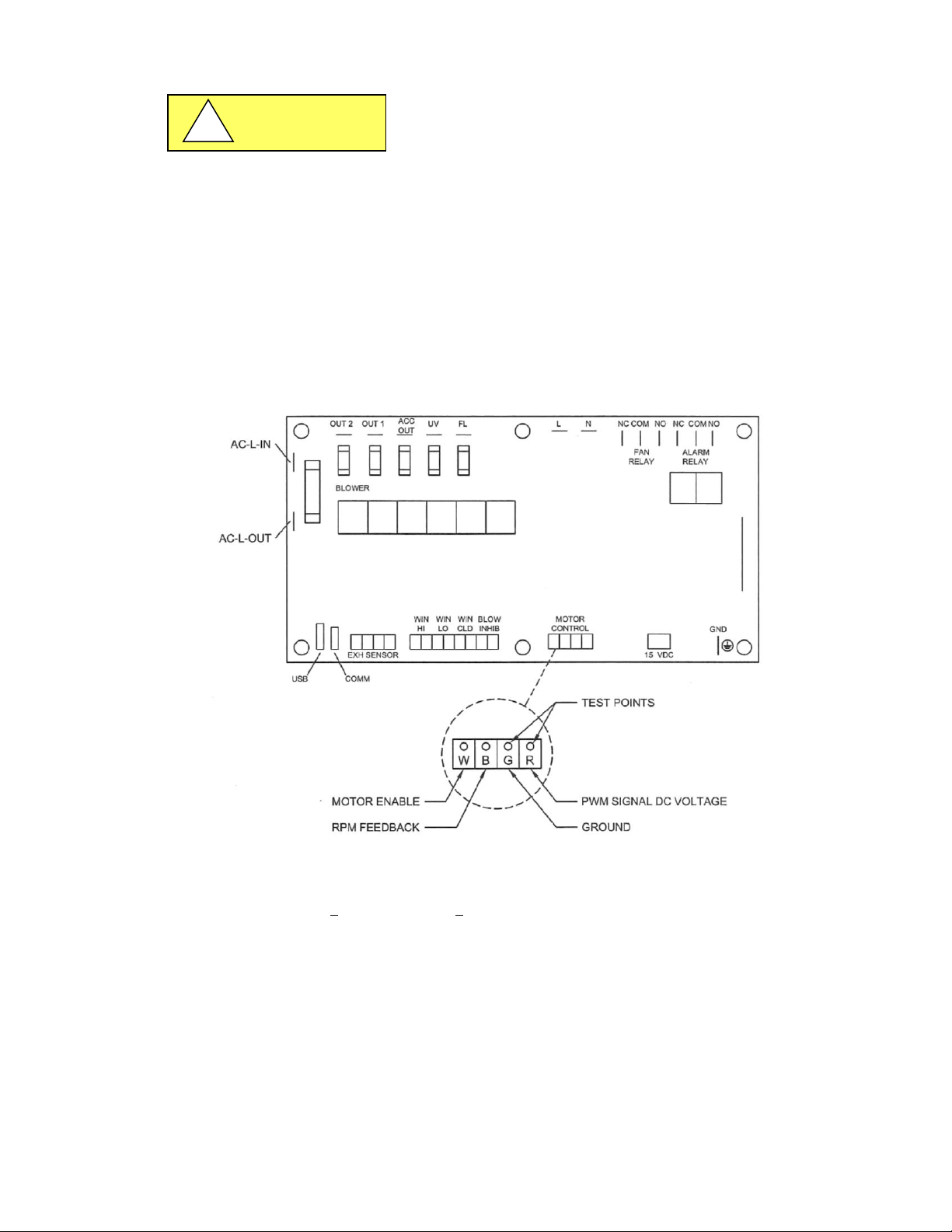

DC ECM motor PWM signal DC voltage should also be monitored and recorded upon final calibration. The DC
voltage may be measured using a digital voltmeter. The two test points to measure DC ECM motor voltage are
located on the DC motor connector on the main control board.

The NU-340E is considered to be certifiable if the following airflow measurements are present:
Inflow average: 90 LFPM + 10 LFPM (.46 m/s + 0.05 m/s) using the direct inflow measurement method or related
value using the calculated inflow velocity measurement method.

BEFORE STARTING AIRFLOW CALIBRATION PROCEDURE, LET THE NU-340E RUN FOR AT LEAST 5 MINUTES.

CAUTION

!

OM0276 Page 30 of 46
Rev 4 May/2021

6.4.3.1 Airflow Calibration

Step 1: Measure the inflow velocity using the recommended procedure found in Table 6.0. If necessary, adjust to

achieve the correct average miniflow velocity within the stated range of 90 + 10 LFPM (.46 + 0.05 m/s).

Step 2: If necessary, enter active blower speed adjustment.

• Press and hold key, then press hidden – blower - ↑ keys sequentially.

LED indicator above blower (green) key will blink fast.

Step 3: Press ↑ or ↓ keys to adjust blower speed.

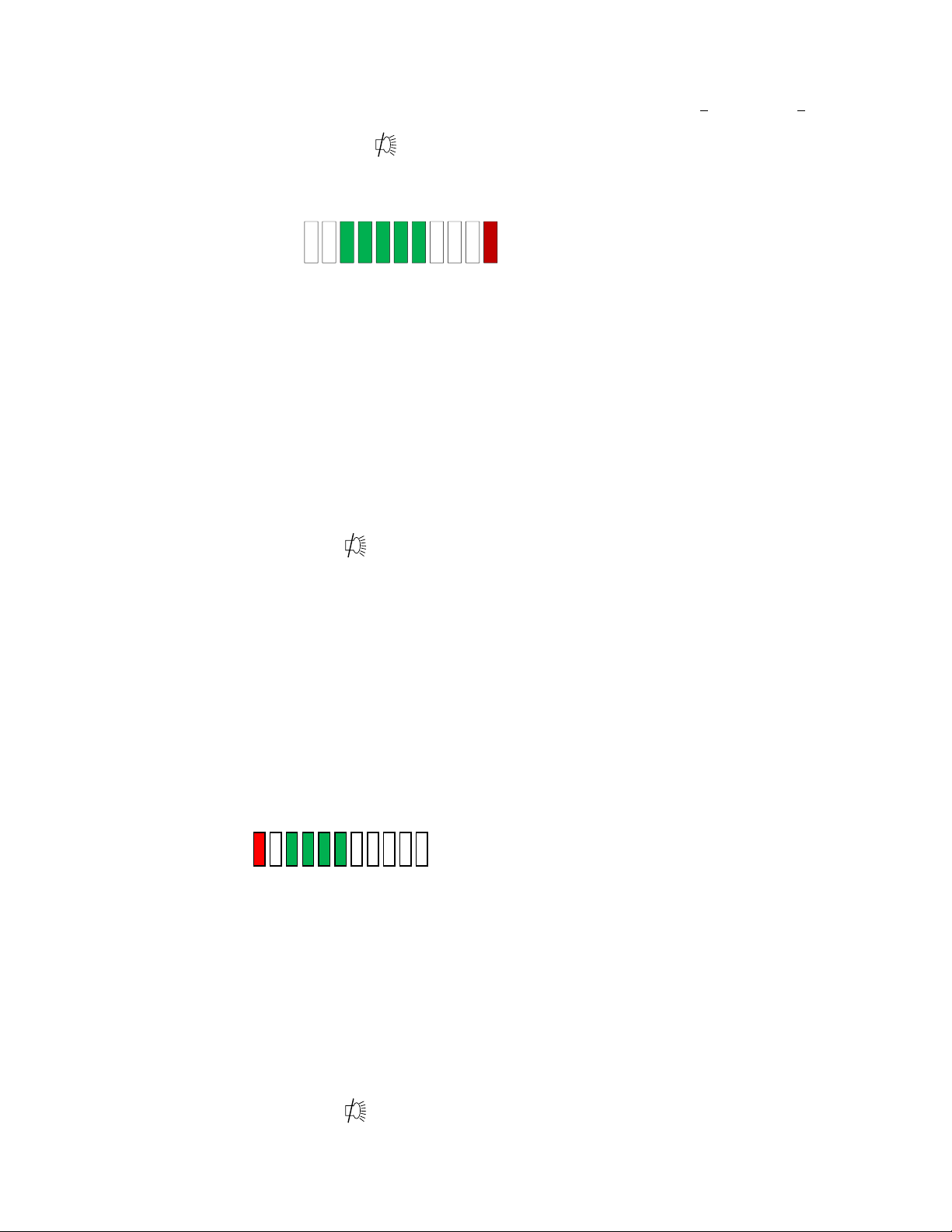

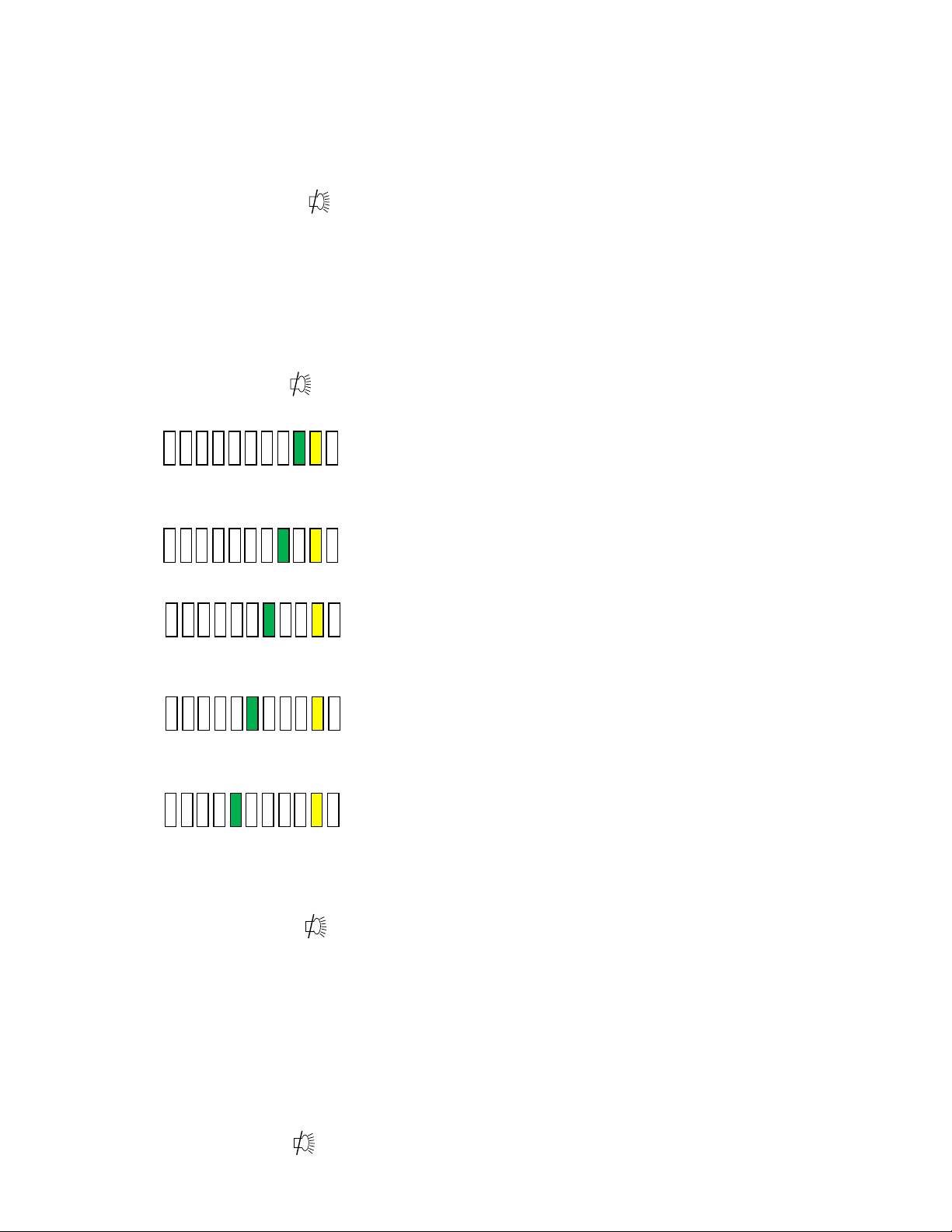

• LED segments will indicate blower speed percentage and active blower speed adjustment

o Right end red LED indicates active blower speed adjust

The red LED will blink as soon as any adjustments are made and will continue to blink as the
motor rpm settles. Once the red LED stops blinking, the motor will run steady state at the
new percentage.

Note: The red LED must be non-blinking to save or exit

o Green LED’s indicate percentage on of scale (0-100%)
o Yellow LED’s indicate minimum (left/maximum (right) blower speed has been achieved

Note: At any time during the process

• Press hidden key to accept and enter the blower speed calibration point

(If the blower speed calibration point was not successfully entered; a half second audible
alarm will occur. The calibration process must then be repeated for successful entry of
blower speed calibration point.)

• Press key to abort and exit

6.4.3.2 PresurFlow™ Alarm Set Points

The PresurFlow™ alarm setpoints are based on the calibration setpoint. Once the calibration setpoint is

entered, based on a nominal inflow velocity of 90fpm (.46mls) the associated pressure sensor value is entered
as the nominal pressure value. The high and low alarm setpoints are factory verified and set if needed at
90LFPM (.46 m/s).

However, if specific use alarm setpoints are desired, the alarm setpoints may be adjusted by performing the
following:
Low Alarm Setpoint

• Press and hold the Hidden and ↓ key for 3 seconds.

(The left red LED will blink and the green LED’s indicate blower speed)

• Press ↑ or ↓ keys to adjust blower speed to the desired airflow velocity low alarm setpoint value.

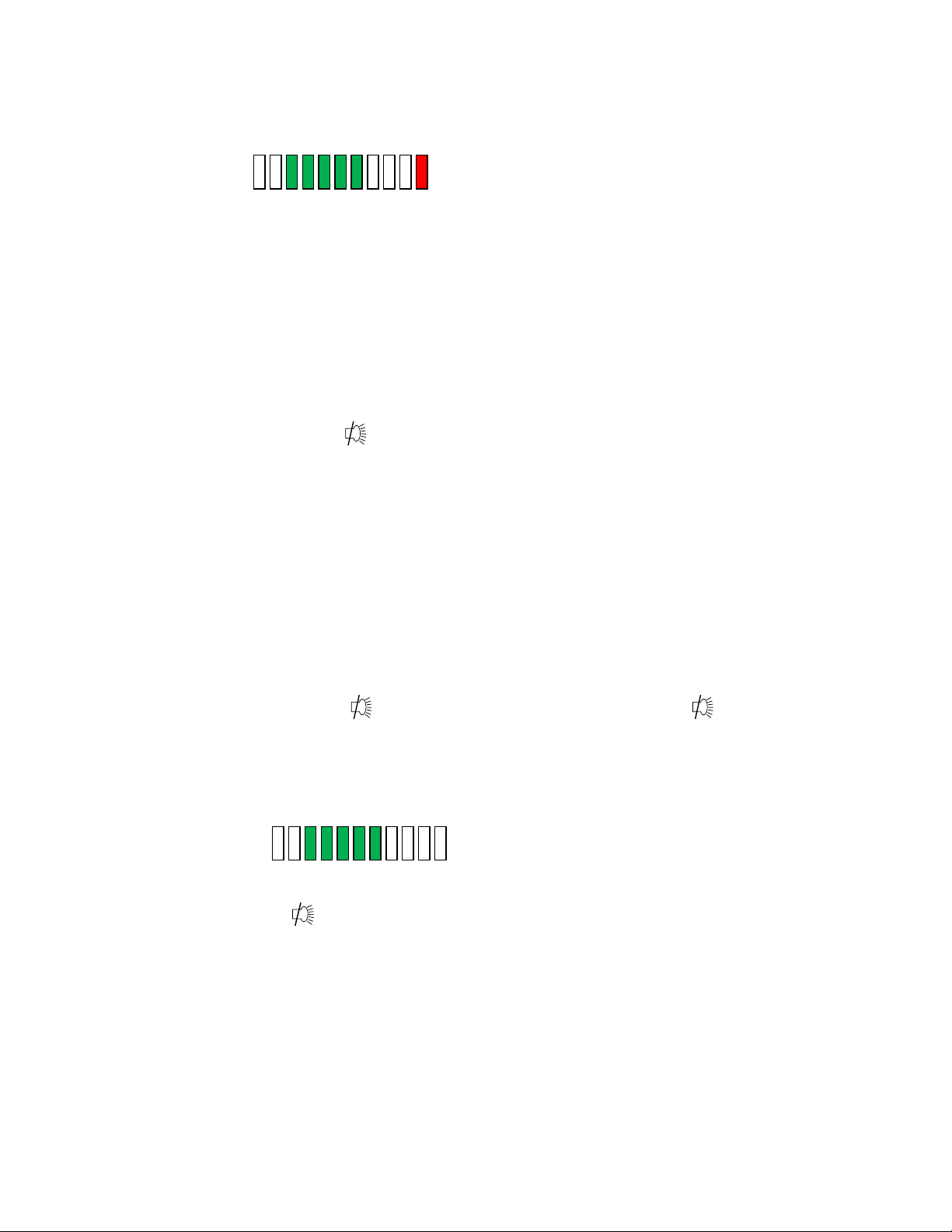

• Left end red LED indicates active low limit blower speed adjust

The red LED will blink as soon as any adjustments are made and will continue to blink as the motor

rpm settles. Once the red LED stops blinking, the motor will run steady state ate the new percentage.
If the low alarm setpoint value is not within an acceptable range, the left end red LED will blink at a
very fast rate.

Note: The red LED must be non-blinking to save or exit.

Note: At any time during the process

• Press hidden key to accept low alarm setpoint value

• Press and hold outlet key for three seconds to remove any previous offsets

• Press key to abort and exit

• Upon exiting, the blower will go back to actual airflows.





OM0276 Page 31 of 46
Rev 4 May/2021

High Alarm Setpoint

• Press and hold the Hidden and ↑ key for 3 seconds.

(The right red LED will blink and the green LED’s indicate blower speed)

• Press ↑ or ↓ keys to adjust blower speed to the desired airflow velocity high alarm setpoint value.

• Red end Red LED indicates active high limit blower speed adjust.

The red LED will blink as soon as any adjustments are made and will continue to blink as the motor

rpm settles. Once the red LED stops blinking, the motor will run steady state at the new percentage.

If the high alarm setpoint value is not within an acceptable range, the right end red LED will blink at a

very fast rate.

Note: The red LED must be non-blinking to save or exit.

Note: At any time during the process

• Press hidden key to accept low alarm setpoint value

• Press and hold outlet key for three seconds to remove any previous offsets

• Press key to abort and exit

• Upon exiting, the blower will go back to actual airflows.

Note: Specific use alarm setpoints or the offset pressure value from the nominal calibration point will

be maintained with a new nominal calibration value.

It is not necessary to re-enter the alarm setpoints after a nominal calibration.

6.4.3.3 PresurFlow Alarm Verification

The PresurFlow Alarm setpoints are based on the calibration setpoint. Once the calibration setpoint is

entered, the Alarm setpoint offset pressure values will align from the calibration pressure value. The high
or low alarm setpoint can be verified by measuring inflow volume/velocity while adjusting blower up or
down within the Alarm Verification menu.

• Press and hold key, then press ↑ ↓ ↑ sequentially releasing the key after the 3 key

sequence.

• Note: If blower was off while entering into the Alarm Verification Menu, the low alarm limit will

immediately activate. Turn on blower; once airflow is above the low alarm limit, the alarm will turn

off.

• LED segments will indicate blower speed percentage.

• Press ↑ or ↓ key to raise or lower blower speed. Alarm is active so yellow and red LED’s will activate

if pressure reaches the low or high alarm limit.

• Press to exit (blower should turn off and not go through normal start up procedure).





OM0276 Page 32 of 46
Rev 4 May/2021

Table 6.0

Airflow Velocity Profile

A. Instruments: TSI 8355 Thermo anemometer
B. Procedure:
Air velocity readings are taken on a 12 inch (305mm) grid, in a plane parallel to and 6 inches (152mm) from the filter
surface. No reading should be taken closer than 6 inches (152mm) from the inner edge of the filter frame.

C. Test Data:

Number of Readings:

Average Velocity: ft./min. m/s

D. Acceptance Criteria:

1. Average Velocity = 80 to 100 fpm (.41 to .51 m/s)

2. Individual Readings must be within 20 percent of the average velocity

__________ to __________ fpm (__________ to __________ m/s).

OM0276 Page 33 of 46
Rev 4 May/2021

6.5 HEPA Filter Leak Test

In order to check filter and filter seal integrity, the HEPA filter media and seals must be directly accessible, by the
measuring instrument. The challenge material (i.e. PAO) should be supplied in the top panel of the workstation. An
upstream challenge may be taken by using the minihelic gauge pressure supply tube if desired.

The diffuser is secured by thumb screws on the sides.
Once removed the diffuser can be lifted up slightly using the small handles and removed from the cabinet.

Model Size

Filter Area (ft2)(m2)

330

7.5 (.213)

430

10 (.283)

530

12.5 (.354)

630

15 (.425)

Laskin Nozzle Concentration Formula

# Nozzles x 135 CFM x 100 ug/L Challenge
CFM Concentration (ug/L)

# Nozzles x 229 CMH x 100 ug/L Challenge
CMH Concentration (ug/L)

6.6 Cleanliness Classification Test for Pharmacy Application

If this cabinet is going to be used within pharmacy, per USP7971, the cabinet must be tested to assure compliance to
ISO 14644-1:2015, Cleanrooms and Associated Controlled Environments, Part 1: Classification of Air Cleanliness2. The
cleanliness classification test is performed using a particle counter to measure particle counts within the cabinet workzone.
Turn on cabinet and let warm up for several minutes. Turn on particle counter and flush out sample tubing line to remove
latent particles. Set the particle counter to measure 0.5 micron or larger particles at the appropriate measuring rate.

“Operational Particle Count Test3”

Position the particle counter isokinetic probe at a point 6 inches (152mm) upstream of the aseptic manipulation area (hand

convergence point) and mounted so as not to interfere with the operator’s hand movement. The pharmacy operator will

simulate IV manipulation during the particle count test using non-hazardous materials. A minimum of three (3) 1-minute
particle counts shall be sampled and recorded while the user simulates aseptic compounding manipulations.

“At Rest Particle Count Test”

Take 5 test points in 1-minute intervals on a grid, in a horizontal plane as measured approximately 6-inches (152mm)
parallel to the diffuser. The grid location is designed as the diffuser center point and each corner measured 6-inches
(152mm) from the inside perimeter.

Record the 5 particle count values for each of the test points over the 1-minute sample time. All final count particle
concentrations and calculated 95% upper confidence limit shall not exceed 3520 particles per cubic meter (ppcm) or (100
particles per cubic feet (ppcf).

1

USP28-NF23: United Stated Pharmacopeial Convention, Inc., 12601 Twinbrook Parkway, Rockville, MD

20852, USA, www.usp.org.

2

ISO 14644-1:2015 Cleanrooms and Associated Controlled Environments-Classification of Air Cleanliness, International

Organization for Standardization, Case Postale 56, CH-1211 Geneve 20, Switzerland

3

CAG-002-2006: CETA Compounding Isolator Testing Guide, Controlled Environment Testing Association, 1500 Sunday

Drive, Suite 102, Raleigh, NC 27607, USA, www.cetainternational.org

=

=

OM0276 Page 34 of 46
Rev 4 May/2021

6.7 Main Control Board Description and Replacement

To access the main control board for fuse or board replacement, remove (1) rear screw at each top side of the top panel

and pull out panel to access. Now the main control board is exposed for service.

6.7.1 Main Control Board Replacement

The main control board consists of one Printed Circuit Board (PCB) assembly.
The PCB contains the power supply, configuration switch, sensor inputs/outputs and control inputs/outputs
components and display.

6.7.2 Main Control Board Fuse Replacement

Disconnect electrical power before fuse replacement.

All AC circuits are fuse protected and when replacement is necessary, USE ONLY FUSES OF SAME TYPE AND RATING
FOR PROTECTION AGAINST RISK OF FIRE.

DESCRIPTION:

BLOWER FUSE

OUTLET FUSE
(Option Only)

ACCESSORY OUTPUT FUSE

(Option Only)

LIGHT FUSES

FUSE TYPE:

TIME-LAG

TIME-LAG

TIME-LAG

TIME-LAG

FUSE SIZE:

1/4 X 1-1/4 INCH

5 X 20MM

5 X 20MM

5 X 20MM

NU-340-330E

5 AMPS

3 AMPS

2 AMPS

1 AMP (2)

NU-340-430E

6.25 AMPS

3 AMPS

2 AMPS

1 AMP (2)

NU-340-530E

6.25 AMPS

3 AMPS

2 AMPS

1 AMP (2)

NU-340-630E

6.25 AMPS

3 AMPS

2 AMPS

1 AMP (2)

6.7.3 Main Control Board Replacement

Note: All setup and calibration data will be lost, the memory reinitialized to the default values and all control

functions reset to an initial cabinet power condition.

If possible, before the main control board replacement, it would be preferred to know the operational

parameters of the cabinet, (i.e. blower speed/PWM signal DC voltage setpoints if modified and airflow data
from previous certification).

The main control board is fastened to the control center with (6) 6-32 studs/nuts. All electrical connections are
made with removable terminals and/or Faston connectors except for the motor/blower connector which uses a
screw terminal. Remove all electrical connections and fasteners and then remove the main control board from the
control center.

Install new main control board by reattaching all electrical connections and fasteners. Once installed, rotate
control center to normal position and fasten in place. Reconnect power to cabinet.

CAUTION

!

CAUTION

!

OM0276 Page 35 of 46
Rev 4 May/2021

7.0 Error Messages, Troubleshooting, Option-Diagnostics and Airflow Sensor Performance Verification

Audible alarms and error messages occur for a variety of reasons. Whenever an alarm condition has been present for a
period of at least 10 seconds, the audible alarm/error message will be presented and stay on until the error is cleared. The
audible alarm will be on for 30 seconds upon initial alarm condition, then once every ten seconds. When presented with an
error message, please perform the following:

Step 1: NOTE ALL ERROR MESSAGES.
Error message will appear on the control panel with red LED’s.
Step 2: VERIFY ERROR MESSAGES.
Error messages can be verified by clearing the error function by either turning the blower or the cabinet on

and off.
Step 3: MONITOR RE-OCCURRENCE OF ERROR MESSAGES.
If re-occurrence of the error message is immediate or daily, use the following guide to correct the situation.

7.1 Error Message Troubleshooting Guide

Issue

Error Description

Correction

Cabinet fluorescent
lights won’t Turn on

Blue LED above light key indicates the
lamp should be on.

Check light fuse on main control board.
Check fluorescent lamps.
Check voltage coming out of main control
board to light ballasts.
Check light starters, if present.
Check ballast.

Cabinet blower won't
turn on.

Green LED above blower key indicates
the blower should be on.
Airflow Alarm.

Check blower fuse on main control board.
Check AC voltage coming out of main
control board.
Check wiring to blower.
Check blower motor.
Check DC motor PWM signal on main
control board.

Red alarm LED blinks

Indicates a power interruption has
occurred.

Press any key to clear.

Blower or light fuse
continues to blow after
replacement.

N/A

Check for short on output of fuse.
Isolate output of fuse by disconnecting
control center connectors, light circuit,
AC or DC blower circuit, etc. to isolate the
short.

PresurFlow™
left red LED indicator on
and red LED alarm

PresurFlow™ reading low flow

(pressure)

Check airflow values.
Check blower function.

Recalibrate PresurFlow™ system.

PresurFlow™

right red LED indicator
on
and red LED alarm

PresurFlow™ reading high flow

(pressure)

Check airflow values.

Recalibrate PresurFlow™ system.

All PresurFlow™
LED’s blink

Message acknowledges new
firmware was loaded into
microprocessor

N/A

Blower red LED blinks
and red LED alarm

Indicates that the motor rpm signal
has been interrupted

Check connectors and wires from main
control board to the motor
Replace motor if required

OM0276 Page 36 of 46
Rev 4 May/2021

7.2 Option Parameters
The option parameter menu allows A QUALIFIED TECHNICIAN to configure several different optional parameters per the

menu as described below.

7.2.1 Sync Function with Active Blower
To access the option parameter menu, perform the following:

• Press and hold key, then press hidden - Blower - Fluorescent keys sequentially.

Red LED indicator above the blower key will blink fast

The PresurFlow™ blinking green LED segments will indicate seven optional parameters as shown and described
below. The UV Light key (move lefts) and outlet key (move right) allows selection of the option parameter desired.

Once the desired option parameter is indicated, press ↑ or ↓ key to turn on or off. A slow blinking green LED

indicator means off and a fast blinking green LED indicator means on. Multiple option changes can be selected.

• Pressing the hidden key will accept all changes and exit

• Pressing the key will abort the process and exit

Sync Fan Relay with Active Blower -
Normally the fan relay will activate when the blower switch is pressed. Blower can
either be actively running or pending. If the fan relay sync is active the blower must
be actively running for the relay to change state.

Sync Accessary Outlet with Active Blower - (only usable if accessory outlet is installed)
Normally the accessary outlet is on all the time. If the accessary outlet sync is active,
the blower must be actively running for the accessary outlet to turn on.

Sync Outlet Power with Active Blower - (only usable if outlet is hardwired to control
board) Normally the outlet power is turned on via the outlet key. If the outlet power
sync is active, the outlet power will turn on and off with the blower or may be turned
on and off independently if the blower is active.

Sync Fluorescent Light with Active Blower -
Normally the fluorescent light is turned on via the fluorescent light key. If the
fluorescent light sync is active, the fluorescent light will turn on and off with the
blower or may be turned on and off independently if the blower is active.

Sync 15 Volt DC output with active blower normally the 15 Volt DC output located on
the control board is on when power is applied to the system. If the 15 Volt DC output
sync is active, the blower must be actively running for the 15 Volt DC output to turn
on.

7.2.2 Blower/Airflow Options

To access the option parameter menu, perform the following:

• Press and hold key, then press hidden - ↑ and ↓keys sequentially.

Red LED indicator above the blower key will blink fast

The PresurFlow™ blinking green LED segments will indicate seven optional parameters as shown and described
below.
The UV Light key (moves left) and outlet key (moves right) allows selection of the option parameter desired.

Once the desired option parameter is indicated, press ↑ or ↓ key to turn on or off. A slow blinking green LED
indicator means off and a fast blinking green LED indicator means on. Multiple option changes can be selected.

• Pressing the hidden key will accept all changes and exit

• Pressing the key will abort the process and exit

OM0276 Page 37 of 46
Rev 4 May/2021

Require Password –

Normally it is not required to use a password (i.e. 3 key press sequence of the blower
and hidden key). If the option is turned on, it would be required to use the correct
password to turn on the blower. The default password once turned on is blower­hidden-blower keys in sequence. The password can be changed in the blower
password option menu.
Note: If turning off the password option, you must also select the no password menu
item (see section 5.1.8.3)

Allow UV light anytime – (not available on product)

Normally the UV light is interlocked with the window being in the closed position.
For service purposes only, if the function is active, the UV light may be turned on at
any window height.

Note: In addition to the Allow UV light anytime system function, there is a double redundant UV light
window interlock relay. To override the UV light window interlock relay, the relay itself must
also be shorted. (See electrical schematic for reference).

Manual Blower Restart –

Normally when the blower is actively running and a power interruption occurs.

The blower will automatically come back on when power is restored. If this function
is turned off, the blower will not automatically come back after a power interruption,
but would require the user to press the blower key to restart the blower.

Low Flow –

Normally the function is turned off. If selected and turned on, once the blower is
actively running. Upon closure, the blower will continue to run at a calibrated lower
speed level to maintain a negative airflow. The PresurFlow™ will indicate(s) blinking
green LEDs along with green LED above blower key.

Disable PresurFlow™ -
If this function is active, the digital pressure sensor and alarm function are turned off.

Temporary Low Flow -
When this option parameter is turned on and the other requirements below are met,
the blower key (when held for 5 seconds) will toggle blower between normal and Low
Flow blower speed. The Low Flow blower will time out, based on the Auto Timer
duration for Low Flow without a blower key press and the blower speed will revert
back to normal.

In addition to turning this option on the following requirements must also be met

• Temporary Low Flow Option must be selected

• Password Option must be selected

• Window is at normal height and blower is running

• Low Flow Option must be selected

• Low Flow blower auto timer must be set for a minimum of 15 minutes.

Disable audible alarms / audible key feedback
Normally audible alarms from the PresurFlow™ monitor and audible key feedback are
present to provide an audible sound to the user. If this function is active, all audible
sound will be silenced when the control system is in normal run mode. Audible sound
will still occur in any service/calibration menu function.



OM0276 Page 38 of 46
Rev 4 May/2021

8.0

OM0276 Page 39 of 46
Rev 4 May/2021

9.0 Remote Contacts

The NU-340E has several contact closures for remote sensing of various functions.

9.1 Fan Relay

The fan relay contacts are normally open and closed contact closure outputs that are activated whenever the blower key
is pressed and the blower key LED indicator is on or blinking. Contact ratings are 250 VAC maximum at 2 Amps.

9.2 Alarm Relay

The alarm relay contacts are normally open and closed contact closure outputs which are activated whenever an airflow
alarm condition occurs. Contact ratings are 250 VAC maximum at 2 Amps.

9.3 15VDC Output
The 15VDC (100mA) output is generated if the blower is actively running.

OM0276 Page 40 of 46
Rev 4 May/2021

10.0 Electrical/Environmental Requirements

10.1 Electrical (Supply voltage fluctuations not to exceed +/- 10%)

Electrical

Voltage

Phase

Frequency

Current
(Amps)

Independent Outlet Current for

Each Outlet (Optional)

NU-340-330E

230 Volts

1

50/60 Hz

5

10

NU-340-430E

230 Volts

1

50/60 Hz

6

10

NU-340-530E

230 Volts

1

50/60 Hz

6

10

NU-340-630E

230 Volts

1

50/60 Hz

6

10

10.2 Operational Performance (for indoor use only)

Environment Temperature Range: 60F - 90F (15.6C - 32.2C)
Environment Humidity: Maximum relative humidity 80% for temperatures up to
31°C decreasing linearly to 50% relative humidity at 40°C
Environment Altitude: 6562 Feet (2000 Meters) maximum

10.3 Light Exposure

Standard Fluorescent Lighting @ 150 ft. candles (1614 LUX) maximum intensity.

10.4 Installation Category: 2.0

Installation category (overvoltage category) defines the level of transient overvoltage which the instrument is designed to
withstand safely. It depends on the nature of the electricity supply and its overvoltage protection means. For example,
in CAT II, which is the category used for instruments in installations supplied from a supply comparable to public mains
such as hospital and research laboratories and most industrial laboratories, the expected transient overvoltage is 2500V
for a 230V supply and 1500V for a 120V supply. Main supply fluctuations are not to exceed +10% of nominal voltage.

10.5 Pollution Degree: 2.0

Pollution degree describes the amount of conductive pollution present in the operating environment. Pollution degree 2
assumes that normally only non-conductive pollution such as dust occurs with the exception of occasional conductivity
caused by condensation.

10.6 Chemical Exposure

Chemical exposure should be limited to antibacterial materials used for cleaning and disinfecting. Chlorinated and
Halogen materials are not recommended for use on stainless steel surfaces.

10.7 EMC Performance (classified for light industrial)

Emissions: EN61326
Immunity: EN61326

The EMC performance requirements are generated within the product
enclosure. The enclosure will be all metal grounded to earth.
In addition, the membrane front panel will also include a ground plane for
maximum protection and an electrostatic shield.

WARNING

!

OM0276 Page 41 of 46
Rev 4 May/2021

11.0 Disposal and Recycle

Workstations that are no longer in use and are ready for disposal contain reusable materials. ALL components may be
disposed and/or recycled after they are known to be properly disinfected.

Follow all local, state and federal guidelines for disposal of HEPA filter solid waste.

Component

Material

Main Workstation

Painted Steel

Worksurface

PVC / Stainless Steel

Side Panels

Polycarbonate / Stainless Steel

HEPA Filter Frame

Aluminum

Control Center

Painted Steel

Diffuser

Aluminum

HEPA Filter

Aluminum

Hepex Bag

PVC

Blower Wheel & Housing

Steel

Motor

Various Steel/Copper

Printed Wiring Assembly

Lead Free Electronic

Wire

PVC Coated Copper

Ballasts

Various Steel, Electronic

Connectors

Nylon

Hardware

Stainless Steel and Steel

Note: Material type can be verified with use of a magnet with stainless and aluminum being non-magnetic.

NOTE:



RECYCLE



LEAD FREE

OM0276 Page 42 of 46
Rev 4 May/2021

OM0276
Rev 4 May/2021 Page 43 of 46

OM0276
Rev 4 May/2021 Page 44 of 46

OM0276 Page 45 of 46
Rev 4 May/2021

OM0276 Page 46 of 46
Rev 4 May/2021
