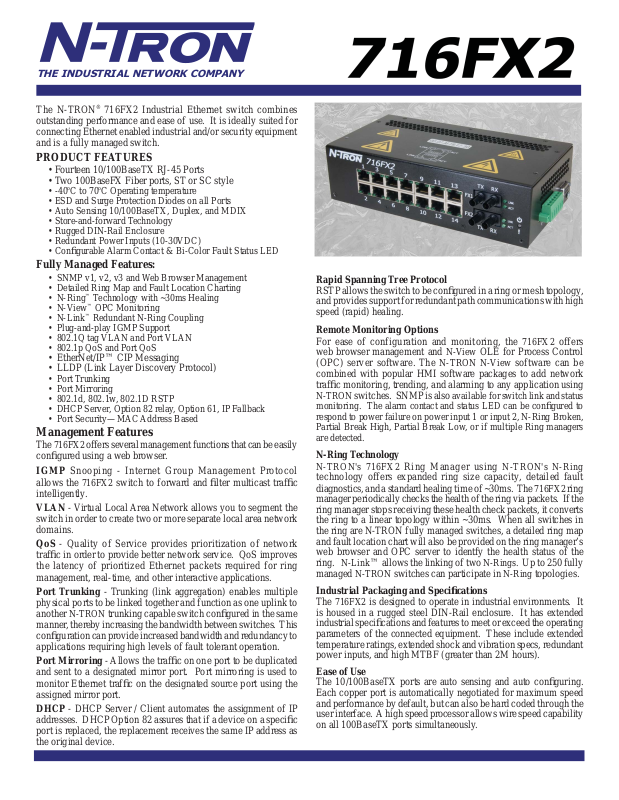

N-TRON 716FX2 Data Sheet

THE INDUSTRIAL NETWORK COMPANY

The N-TRON® 716FX2 Industrial Ethernet switch combines
outstanding performance and ease of use. It is ideally suited for
connecting Ethernet enabled industrial and/or security equipment
and is a fully managed switch.

PRODUCT FEATURES

• Fourteen 10/100BaseTX RJ-45 Ports

• Two 100BaseFX Fiber ports, ST or SC style

• -40oC to 70oC Operating temperature

• ESD and Surge Protection Diodes on all Ports

• Auto Sensing 10/100BaseTX, Duplex, and MDIX

• Store-and-forward Technology

• Rugged DIN-Rail Enclosure

• Redundant Power Inputs (10-30VDC)

• Confi gurable Alarm Contact & Bi-Color Fault Status LED

Fully Managed Features:

• SNMP v1, v2, v3 and Web Browser Management

• Detailed Ring Map and Fault Location Charting

• N-Ring

• N-View

• N-Link

• Plug-and-play IGMP Support

• 802.1Q tag VLAN and Port VLAN

• 802.1p QoS and Port QoS

™

Technology with ~30ms Healing

™

OPC Monitoring

™

Redundant N-Ring Coupling

• EtherNet/IP™ CIP Messaging

• LLDP (Link Layer Discovery Protocol)

• Port Trunking

• Port Mirroring

• 802.1d, 802.1w, 802.1D RSTP

• DHCP Server, Option 82 relay, Option 61, IP Fallback

• Port Security—MAC Address Based

Management Features

The 716FX2 of fers several management functions that can be easily
confi gured using a web browser.

IGMP Snooping - Internet Group Management Protocol
allows the 716FX2 switch to forward and fi lter multicast traffi c
intelligently.

VLAN - Virtual Local Area Network allows you to segment the
switch in order to create two or more separate local area network
domains.

QoS - Quality of Service provides prioritization of network
traffi c in order to provide better network service. QoS improves
the latency of prioritized Ethernet packets required for ring
management, real-time, and other interactive applications.

Port Trunking - Trunking (link aggregation) enables multiple
physical ports to be linked together and function as one uplink to
another N-TRON trunking capable switch confi gured in the same
manner, thereby increasing the bandwidth between switches. This
confi guration can provide increased bandwidth and redundancy to
applications requiring high levels of fault tolerant operation.

Port Mirroring - Allows the traffi c on one port to be duplicated
and sent to a designated mirror port. Port mirroring is used to
monitor Ethernet traffi c on the designated source port using the
assigned mirror port.

DHCP - DHCP Server / Client automates the assignment of IP
addresses. DHCP Option 82 assures that if a device on a specifi c
port is replaced, the replacement receives the same IP address as
the original device.

Rapid Spanning Tree Protocol

RSTP allows the switch to be confi gured in a ring or mesh topology,
and provides support for redundant path communications with high
speed (rapid) healing.

Remote Monitoring Options

For ease of configuration and monitoring, the 716FX2 offers
web browser management and N-View OLE for Process Control
(OPC) server software. The N-TRON N-View software can be
combined with popular HMI software packages to add network
traffi c monitoring, trending, and alarming to any application using

N-TRON switches. SNMP is also available for switch link and status
monitoring. The alarm contact and status LED can be confi gured to
respond to power failure on power input 1 or input 2, N-Ring Broken,
Partial Break High, Partial Break Low, or if multiple Ring managers
are detected.

N-Ring Technology

N-TRON's 716FX2 Ring Manager using N-TRON's N-Ring

technology offers expanded ring size capacity, detailed fault
diagnostics, and a standard healing time of ~30ms. The 716FX2 ring
manager periodically checks the health of the ring via packets. If the
ring manager stops receiving these health check packets, it converts
the ring to a linear topology within ~30ms. When all switches in
the ring are N-TRON fully managed switches, a detailed ring map
and fault location chart will also be provided on the ring manager’s
web browser and OPC server to identfy the health status of the
ring. N-Link™ allows the linking of two N-Rings. Up to 250 fully
managed N-TRON switches can participate in N-Ring topologies.

Industrial Packaging and Specifi cations

The 716FX2 is designed to operate in industrial environments. It
is housed in a rugged steel DIN-Rail enclosure. It has extended
industrial specifi cations and features to meet or exceed the operating
parameters of the connected equipment. These include extended
temperature ratings, extended shock and vibration specs, redundant
power inputs, and high MTBF (greater than 2M hours).

Ease of Use

The 10/100BaseTX ports are auto sensing and auto confi guring.
Each copper port is automatically negotiated for maximum speed
and performance by default, but can also be hard coded through the
user interface. A high speed processor allows wire speed capability
on all 100BaseTX ports simultaneously.

THE INDUSTRIAL NETWORK COMPANY

716FX2 Specifi cations

Switch Properties

Number of MAC Addresses: 8000
Aging Time: Programmable
Latency Typical: 2.6 s
Switching Method: Store-and-Forward

Case Dimensions

Height: 2.3" (5.8 cm)
Width: 8.3" (21.0 cm)
Depth: 4,8" (12.1 cm)
Weight (max) 3.3 lbs (1.5 kg)
DIN-Rail Mount: 35mm

Electrical

Redundant Input Voltage: 10-30 VDC (Regulated)
Input Current (max): 620mA max. @ 24VDC
BTU/hr: 50.8@24VDC
N-TRON Power Supply: NTPS-24-1.3 (1.3A@24V)

Environmental

Operating Temperature: -40oC to 70oC
Storage Temperature: -40oC to 85oC
Operating Humidity: 5% to 95%

(Non Condensing)
Operating Altitude: 0 to 10,000 ft.

Shock and Vibration (bulkhead mounted)

Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial

Reliability

MTBF: >2 Million Hours

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable
100BaseFX Multimode: 50-62.5/125m
100BaseFXE Singlemode: 7-10/125m

Fiber Transceiver Characteristics

Fiber Length 2km* 15km** 40km** 80km**
TX Power Min -19dBm -15dBm -5dBm -5dBm
RX Sensitivity Max -31dBm -31dBm -34dBm -34dBm
Wavelength 1310nm 1310nm 1310nm 1550nm

* Multimode Fiber Optic Cable
** Singlemode Fiber Optic Cable

Connectors

10/100BaseTX: Fourteen (14) RJ-45 Copper Ports
100BaseFX: Two (2) SC or ST Fiber Duplex Ports

Recommended Wiring Clearance

Front: 4" (10.16 cm)
Side: 1" (2.54 cm)

Regulatory Approvals

FCC Title 47, Part 15, Subpart B - Class A; ICES-003 - Class A
UL Listed (US and Canada) 1604; ANSI/ISA-12.12.01-2007

Class I, Div 2, Groups A, B, C, D, and T4A
CE: EN61000-6-2:2001: EN61000-4-2, 3, 4, 5, 6

EN5501 1:1998+A1:1999+A2:2002-Class A
EN50155 for Railway applications
GOST-R Certifi ed, RoHS Compliant

Designed to comply with:

IEEE 1613 for Electric Utility Substations
NEMA TS1/ TS2 for Traffi c control
