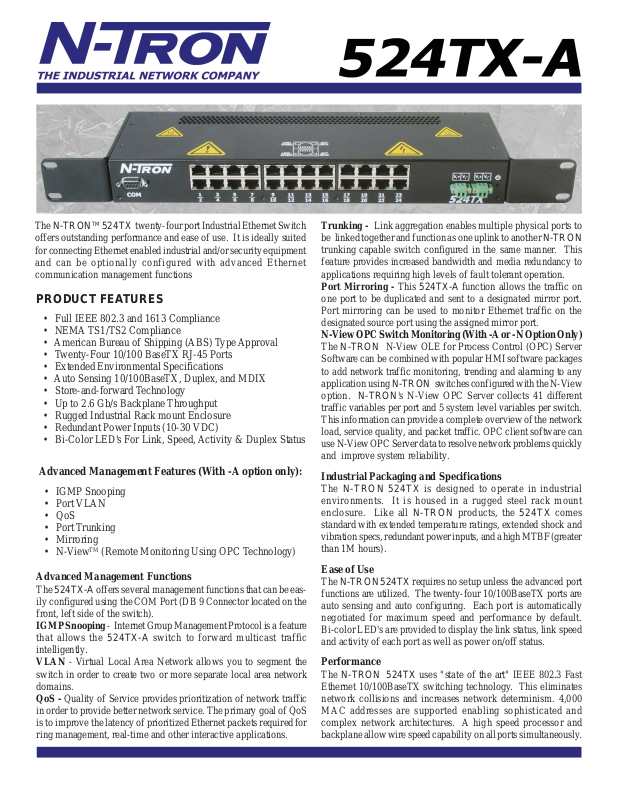

N-Tron 524TX-A User Manual

The N-TRONTM 524TX twenty-four port Industrial Ethernet Switch
offers outstanding performance and ease of use. It is ideally suited
for connecting Ethernet enabled industrial and/or security equipment
and can be optionally configured with advanced Ethernet
communication management functions

PRODUCT FEATURES

• Full IEEE 802.3 and 1613 Compliance

• NEMA TS1/TS2 Compliance

• American Bureau of Shipping (ABS) Type Approval

• Twenty-Four 10/100 BaseTX RJ-45 Ports

• Extended Environmental Specifications

• Auto Sensing 10/100BaseTX, Duplex, and MDIX

• Store-and-forward Technology

• Up to 2.6 Gb/s Backplane Throughput

• Rugged Industrial Rack mount Enclosure

• Redundant Power Inputs (10-30 VDC)

• Bi-Color LED's For Link, Speed, Activity & Duplex Status

Advanced Management Features (With -A option only):

• IGMP Snooping

• Port VLAN

• QoS

• Port Trunking

• Mirroring

• N-View

TM

(Remote Monitoring Using OPC Technology)

Trunking - Link aggregation enables multiple physical ports to
be linked together and function as one uplink to another N-TRON
trunking capable switch configured in the same manner. This
feature provides increased bandwidth and media redundancy to
applications requiring high levels of fault tolerant operation.
Port Mirroring - This 524TX-A function allows the traffic on
one port to be duplicated and sent to a designated mirror port.
Port mirroring can be used to monitor Ethernet traffic on the
designated source port using the assigned mirror port.

N-View OPC Switch Monitoring (W ith -A or -N Option Only)

The N-TRON N-View OLE for Process Control (OPC) Server
Software can be combined with popular HMI software packages
to add network traffic monitoring, trending and alarming to any
application using N-TRON switches configured with the N-View
option. N-TRON's N-View OPC Server collects 41 different
traffic variables per port and 5 system level variables per switch.
This information can provide a complete overview of the network
load, service quality, and packet traffic. OPC client software can
use N-View OPC Server data to resolve network problems quickly
and improve system reliability.

Industrial Packaging and Specifications

The N-TRON 524TX is designed to operate in industrial
environments. It is housed in a rugged steel rack mount
enclosure. Like all N-TRON products, the 524TX comes
standard with extended temperature ratings, extended shock and
vibration specs, redundant power inputs, and a high MTBF (greater
than 1M hours).

Advanced Management Functions

The 524TX-A of fers several management functions that can be eas­ily configured using the COM Port (DB 9 Connector located on the
front, left side of the switch).
IGMP Snooping - Internet Group Management Protocol is a feature
that allows the 524TX-A switch to forward multicast traffic
intelligently.
VLAN - Virtual Local Area Network allows you to segment the
switch in order to create two or more separate local area network
domains.
QoS - Quality of Service provides prioritization of network traffic
in order to provide better network service. The primary goal of QoS
is to improve the latency of prioritized Ethernet packets required for
ring management, real-time and other interactive applications.

Ease of Use

The N-TRON 524TX requires no setup unless the advanced port
functions are utilized. The twenty-four 10/100BaseTX ports are
auto sensing and auto configuring. Each port is automatically
negotiated for maximum speed and performance by default.
Bi-color LED's are provided to display the link status, link speed
and activity of each port as well as power on/off status.

Performance

The N-TRON 524TX uses "state of the art" IEEE 802.3 Fast
Ethernet 10/100BaseTX switching technology. This eliminates
network collisions and increases network determinism. 4,000
MAC addresses are supported enabling sophisticated and
complex network architectures. A high speed processor and
backplane allow wire speed capability on all ports simultaneously.

524TX Industrial Ethernet Switch Ordering Information

524TX Twenty-Four 10/100BaseTX Ports
524TX-N 524TX with N-View
524TX-A 524TX with N-View and Advanced Management Features

Specifications

Switch Properties

Number of MAC Addresses: 4,000
Aging Time: 300s (programmable -A)
Latency Typ.: 2.1 µs
Backplane Speed: 2.6Gb/s
Switching Method: Store & Forward

Physical

Height: 1.75" (1 U)
Width: 19"
Depth: 4.34"
Weight: 3.7 lbs

Electrical

Redundant Input Voltage: 10-30 VDC
Input Current: 800 mA@24V
Inrush: 9.5Amp/0.75ms@24V

Environmental

o

Operating Temp: -40

C to 85oC

Reliability

MTBF: >1 Million Hours

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable

Serial Configuration Port

Com Parameters: 9600,n,8,1

Recommended Wiring Clearance

Front: 2" (5.08 cm)

Regulatory Approvals

FCC Part 15 Class A,
UL Listed 1604 (US & Canada)
CLASS I, DIV 2, GROUPS A,B,C,D,T4A,
ATEX Zone 2, Category 3G, II 3G Ex nA IIC
(0316686U) CE: EN61000-6-2,4, EN55011,
EN61000-4-2,3,4,5,6, GOST-R Certified,

RoHS Compliant

Operating Humidity: 10% to 95%

Contact Information

(Non Condensing)

N-TRON Corp.

Operating Altitude: 0 to 10,000 ft.

Shock and Vibration

Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial

® 2008 N-TRON,Corp. N-TRON and the N-TRON logo are trademarks of N-TRON, Corp. Product names mentioned herein are for identification purposes only and
may be trademarks and/or registered trademarks of their respective company. Specifications subject to change without notice. Printed in USA.

820 S. University Blvd.,
Suite 4E
Mobile, AL 36609 USA
TEL: [phone]

FAX: [phone]
Website: www.n-tron.com
Email: [e-mail]

N-TRON Europe GmbH
Alte Steinhauserstr 19
6330 Cham / Zg
Switzerland
TEL: [phone]

FAX: [phone]

REV 080916
