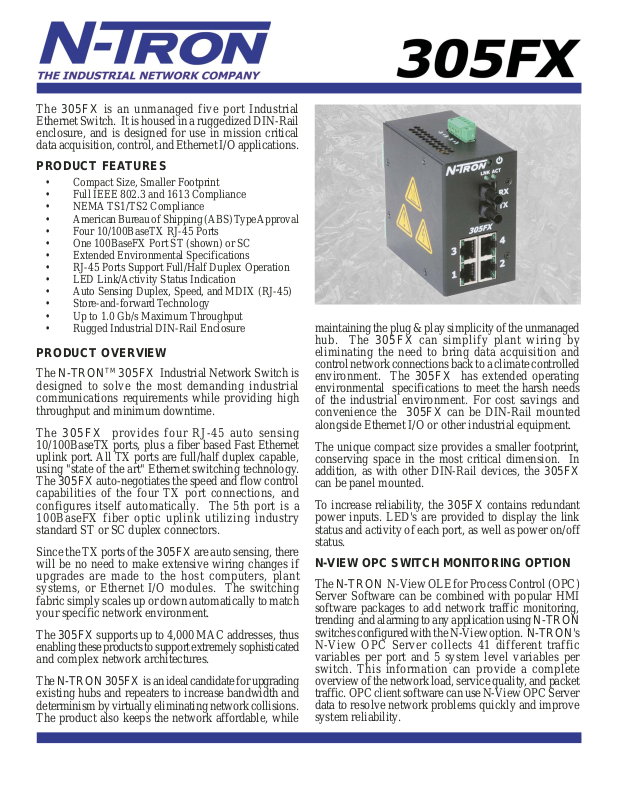

N-TRON 305FX User Manual
The 305FX is an unmanaged five port Industrial
Ethernet Switch. It is housed in a ruggedized DIN-Rail
enclosure, and is designed for use in mission critical
data acquisition, control, and Ethernet I/O applications.
PRODUCT FEATURES
• Compact Size, Smaller Footprint
• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• American Bureau of Shipping (ABS) T ype Approval
• Four 10/100BaseTX RJ-45 Ports
• One 100BaseFX Port ST (shown) or SC
• Extended Environmental Specifications
• RJ-45 Ports Support Full/Half Duplex Operation
• LED Link/Activity Status Indication
• Auto Sensing Duplex, Speed, and MDIX (RJ-45)
• Store-and-forward Technology
• Up to 1.0 Gb/s Maximum Throughput
• Rugged Industrial DIN-Rail Enclosure
PRODUCT OVERVIEW
The N-TRONTM 305FX Industrial Network Switch is
designed to solve the most demanding industrial
communications requirements while providing high
throughput and minimum downtime.
The 305FX provides four RJ-45 auto sensing
10/100BaseTX ports, plus a fiber based Fast Ethernet
uplink port. All TX ports are full/half duplex capable,
using "state of the art" Ethernet switching technology.
The 305FX auto-negotiates the speed and flow control
capabilities of the four TX port connections, and
configures itself automatically. The 5th port is a
100BaseFX fiber optic uplink utilizing industry
standard ST or SC duplex connectors.
Since the TX ports of the 305FX are auto sensing, there
will be no need to make extensive wiring changes if
upgrades are made to the host computers, plant
systems, or Ethernet I/O modules. The switching
fabric simply scales up or down automatically to match
your specific network environment.
The 305FX supports up to 4,000 MAC addresses, thus
enabling these products to support extremely sophisticated
and complex network architectures.
The N-TRON 305FX is an ideal candidate for upgrading
existing hubs and repeaters to increase bandwidth and
determinism by virtually eliminating network collisions.
The product also keeps the network affordable, while
maintaining the plug & play simplicity of the unmanaged
hub. The 305FX can simplify plant wiring by
eliminating the need to bring data acquisition and
control network connections back to a climate controlled
environment. The 305FX has extended operating
environmental specifications to meet the harsh needs
of the industrial environment. For cost savings and
convenience the 305FX can be DIN-Rail mounted
alongside Ethernet I/O or other industrial equipment.
The unique compact size provides a smaller footprint,
conserving space in the most critical dimension. In
addition, as with other DIN-Rail devices, the 305FX
can be panel mounted.
To increase reliability, the 305FX contains redundant
power inputs. LED's are provided to display the link
status and activity of each port, as well as power on/off
status.
N-VIEW OPC SWITCH MONITORING OPTION
The N-TRON N-V iew OLE for Process Control (OPC)
Server Software can be combined with popular HMI
software packages to add network traffic monitoring,
trending and alarming to any application using N-TRON
switches configured with the N-V iew option. N-TRON's
N-View OPC Server collects 41 different traffic
variables per port and 5 system level variables per
switch. This information can provide a complete
overview of the network load, service quality , and packet
traffic. OPC client software can use N-V iew OPC Server
data to resolve network problems quickly and improve
system reliability.
BENEFITS SPECIFICATIONS
Industrial Network Switch
• Compact Size, Smaller Footprint
• High Reliability/Availability
• Extended Environmental Specifications
• Ruggedized DIN-Rail Enclosure
• High Performance
• High MTBF >2M Hours (measured)
Ease of Use
• Plug & Play Operation
• Four Auto Sensing 10/100BaseTX
RJ-45 Ports
• Auto Sensing Duplex, Speed and
Cable T ype
• Unmanaged Operation
• Compact DIN-Rail Package
Physical
Height: 3.46" (8.80 cm)
Width: 2.01" (5.10 cm)
Depth: 3.38" (8.59 cm)
Weight: 0.75 lbs (0.34 kg)
Electrical
Input Voltage: 10-30 VDC
Input Current: 250 mA@24V
Inrush: 10Amp/0.9ms@24V
Environmental
Operating Temperature: -20oC to 70oC
Storage Temperature: -40
Operating Humidity: 10% to 95%
Operating Altitude: 0 to 10,000 ft.
o
C to 85oC
(Non Condensing)
Increased Performance
• Full Wire Speed Capable
• 100BaseFX Fiber Uplink
• Full Duplex Capable
• Eliminates Network Collisions
• Increases Network Determinism
• N-View Switch Viewing Option
Contact Information
N-TRON Corp.
820 S. University Blvd., Suite 4E
Mobile, AL 36609
TEL: (251) 342-2164
FAX: (251) 342-6353
Website: www.n-tron.com
Email: info@n-tron.com
Ordering Information
305FX-XX 100BaseFX multimode fiber
305FX-N-XX with N-View Firmware Option
305FXE-XX-YY 100BaseFX singlemode fiber
305FXE-N-XX-YY with N-View Firmware Option
Where "XX" is: ST for ST style fiber connector
SC for SC style fiber connector
Where "YY" is: 15 for 15km max. fiber segment length
40 for 40km max. fiber segment length
80 for 80km max. fiber segment length
Shock and Vibration (bulkhead mounting)
Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial
Network Media
10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable
100BaseFX
Multimode: 50-62.5/125µm
Singlemode: 7-10/125µm
Fiber T ransceiver Characteristics
Fiber Length 2km* 15km** 40km** 80km**
TX Power Min -19dBm -15dBm -5dBm -5dBm
RX Sensitivity Max -32dBm -29dBm -34dBm -34dBm
Wavelength 1310nm 1310nm 1310nm 1550nm
* Multimode Fiber Optic Cable
** Singlemode Fiber Optic Cable
Connectors
10/100BaseTX: Four (4) RJ-45 TX Ports
100BaseFX: One (1) SC or ST Duplex Port
Recommended Wiring Clearance
Front: 4" (10.16 cm)
Top: 1" (2.54 cm)
Regulatory Approvals
FCC Part 15 Class A
UL 1604 (US and Canada)
CLASS I, DIV 2, GROUPS A,B,C,D,T4A
CE: EN61000-6-2,4, EN55011, EN61000-4-2,3,4,5,6
REV 070914
