ST-C5KVM-600 PS/2 KVM Extender

ST-C5KVM-600M PS/2 KVM Extender

VMCTINT-3-MM (sold separately)

600 FOOT EXTENDERS

Installation and Operation Manual

Man014 Rev. 10/27/17

Page 2

Crimp-on

Solder terminal

TRADEMARK

XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries.

COPYRIGHT

Copyright © 2003, 2017 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.

Note: Shielded CAT 5,5e, or 6 cable must be used to connect to LOCAL and REMOTE units in order to meet CE emission and immunity requirements.

Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.

WARNING: Outdoor or underground runs of CATX cable could be dangerous and will void the warranty.

WARNING: The CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will damage the extender and void your warranty.

CE Statement

We, Network Technologies Inc, declare under our sole responsibility that the ST-C5KVM-600(M), STC5KVMRS-600(M), STC5KVMA-600(M), ST-C5V-600(M), STC5VRS-600(M), ST-C5VA-600(M), ST-C5SV-600, and ST-C5SVA-600 is in conformity with European Standard EN55022.

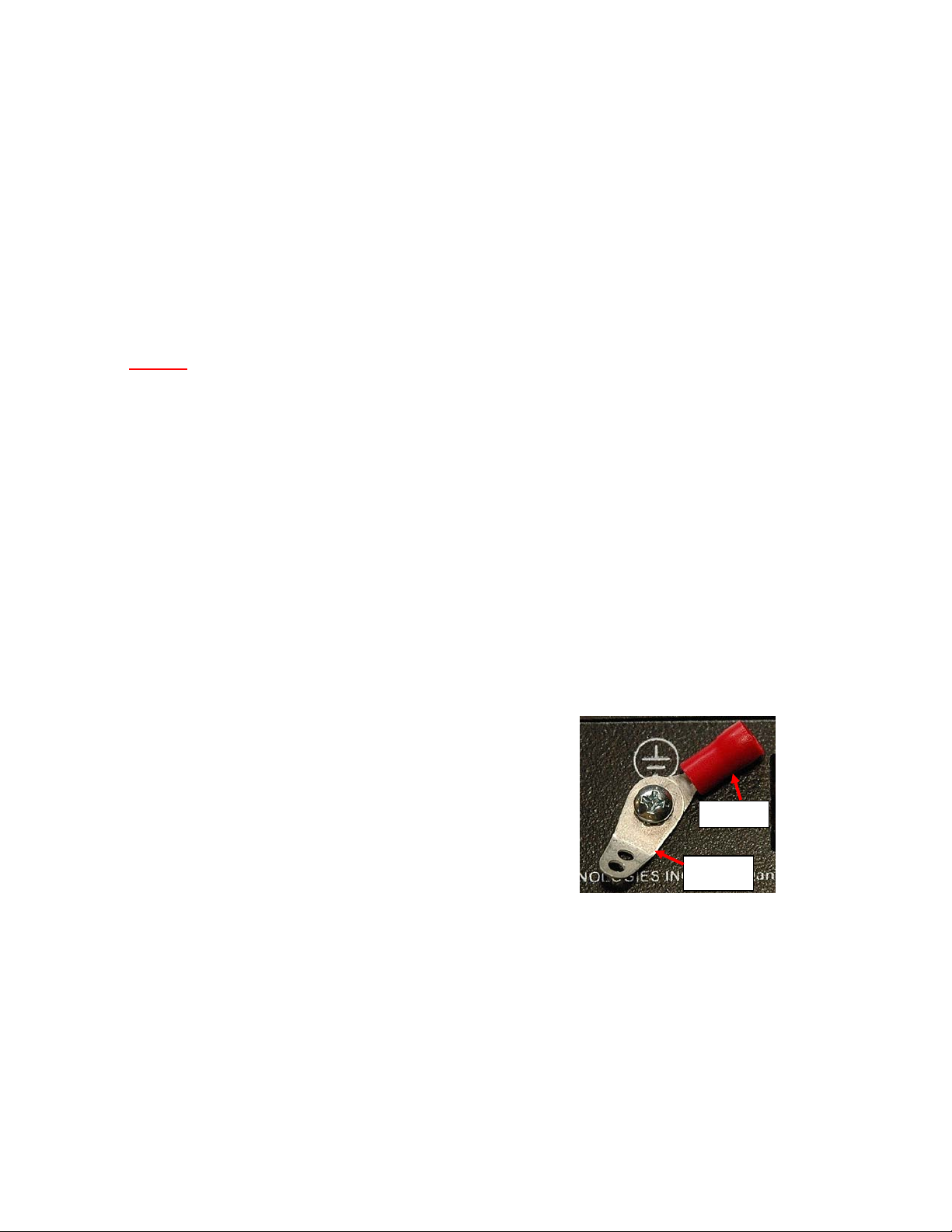

External Ground

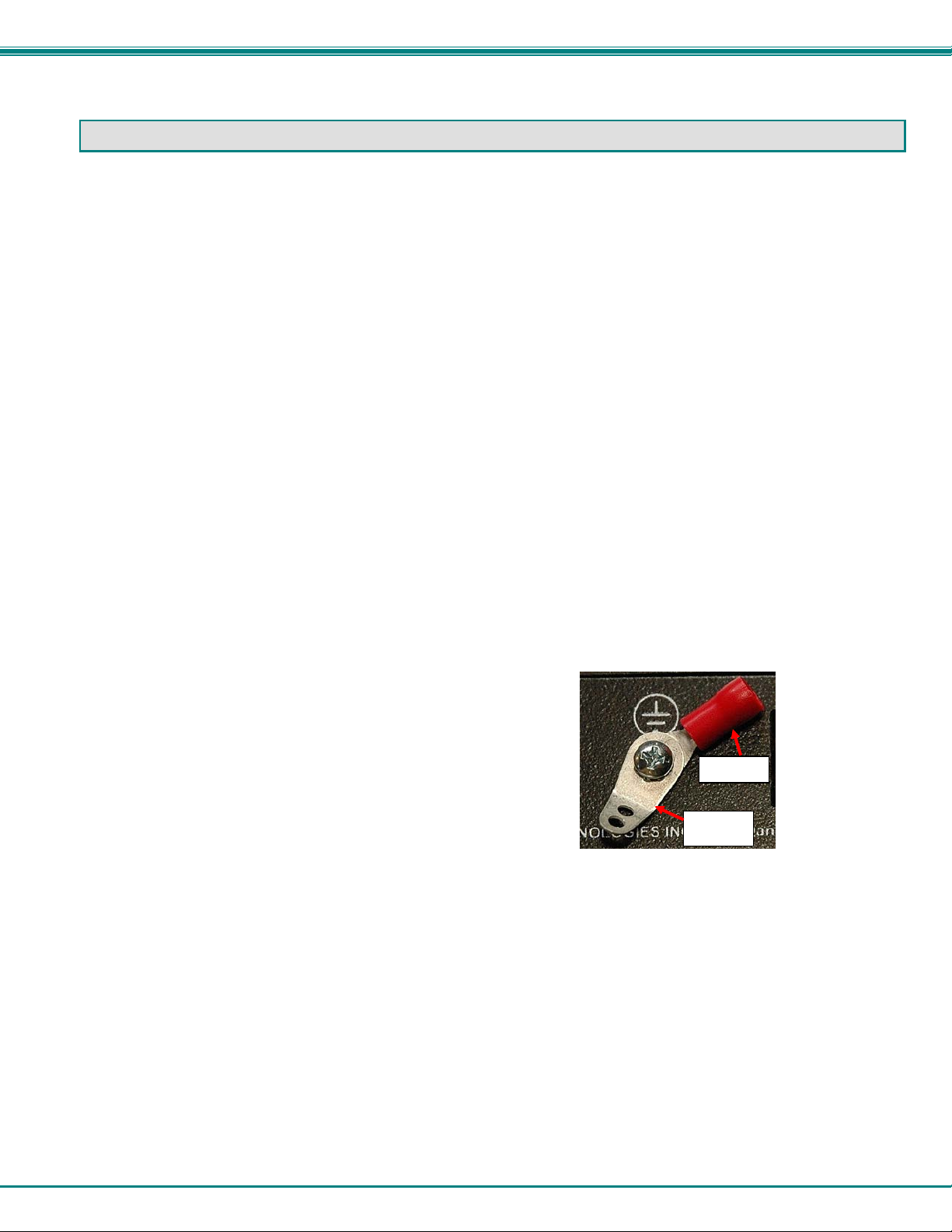

This product is equipped with grounding hardware to prevent interference from sources of electrical noise that could inter fer e with t he norma l operation of the XTENDEX or damage it. Use either the crimp-on lug or solder terminal to secure a properly grounded wire (connected to earth groun d) to the XTENDEX.

Failure to make this connection may result in poor video quality at the connected monitor(s).

Page 3

TABLE OF CONTENTS

Introduction.................................................................................................................................................................... 1

Materials ......................................................................................................................................................................... 2

Features and Functions ................................................................................................................................................ 4

Limitations ..................................................................................................................................................................... 7

Preparation for Installation........................................................................................................................................... 8

Installation...................................................................................................................................................................... 9

Installing The Local Unit (models with VGA video connectors) .................................................................................. 9

Installing The Local Unit (models with S-Video connectors) .................................................................................... 11

Installing the Local Unit (models with only KM connectors) ...................................................................................... 12

Connect The CATx Cable .......................................................................................................................................... 13

Installing The Remote Unit (models with VGA video connectors) ............................................................................. 13

Installing The Remote Unit (models with S-Video connectors) ................................................................................. 15

Installing The Remote Unit (models with only KM connectors) ................................................................................. 16

Connect the CATx cable ............................................................................................................................................ 16

Models With One Remote ....................................................................................................................................... 16

Models With Two Remotes ..................................................................................................................................... 17

Plug-in and Boot Up ................................................................................................................................................... 18

Rackmount Modules (optional) ................................................................................................................................. 19

Mount the ST-C6RCK-12 A Rack mount Extender Module Tray ............................................................................. 19

Connect the CPU .................................................................................................................................................... 21

Connect the Devices ............................................................................................................................................... 22

Connect the CATx cable ......................................................................................................................................... 23

Plug-in and Boot Up ................................................................................................................................................... 24

Video Quality ............................................................................................................................................................... 25

Command Mode ........................................................................................................................................................ 26

Enter Command Mode ............................................................................................................................................ 26

General Video Quality Adjustment ...................................................................................................................... 26

Update DDC at Remote ....................................................................................................................................... 26

Update DDC at Local ........................................................................................................................................... 26

Mix DDC .............................................................................................................................................................. 27

Reset Defaults ..................................................................................................................................................... 27

Exit Command Mode .............................................................................................................................................. 27

Other DDC Support ................................................................................................................................................... 27

Automatic EDID Updates ........................................................................................................................................ 27

Manual EDID Capture ............................................................................................................................................. 28

More About DDC ................................................................................................................................................. 29

Technical Specifications ............................................................................................................................................ 30

Interconnection Cable Wiring Method ...................................................................................................................... 31

Troubleshooting .......................................................................................................................................................... 32

Index ............................................................................................................................................................................. 33

Warranty Information .................................................................................................................................................. 33

TABLE OF FIGURES

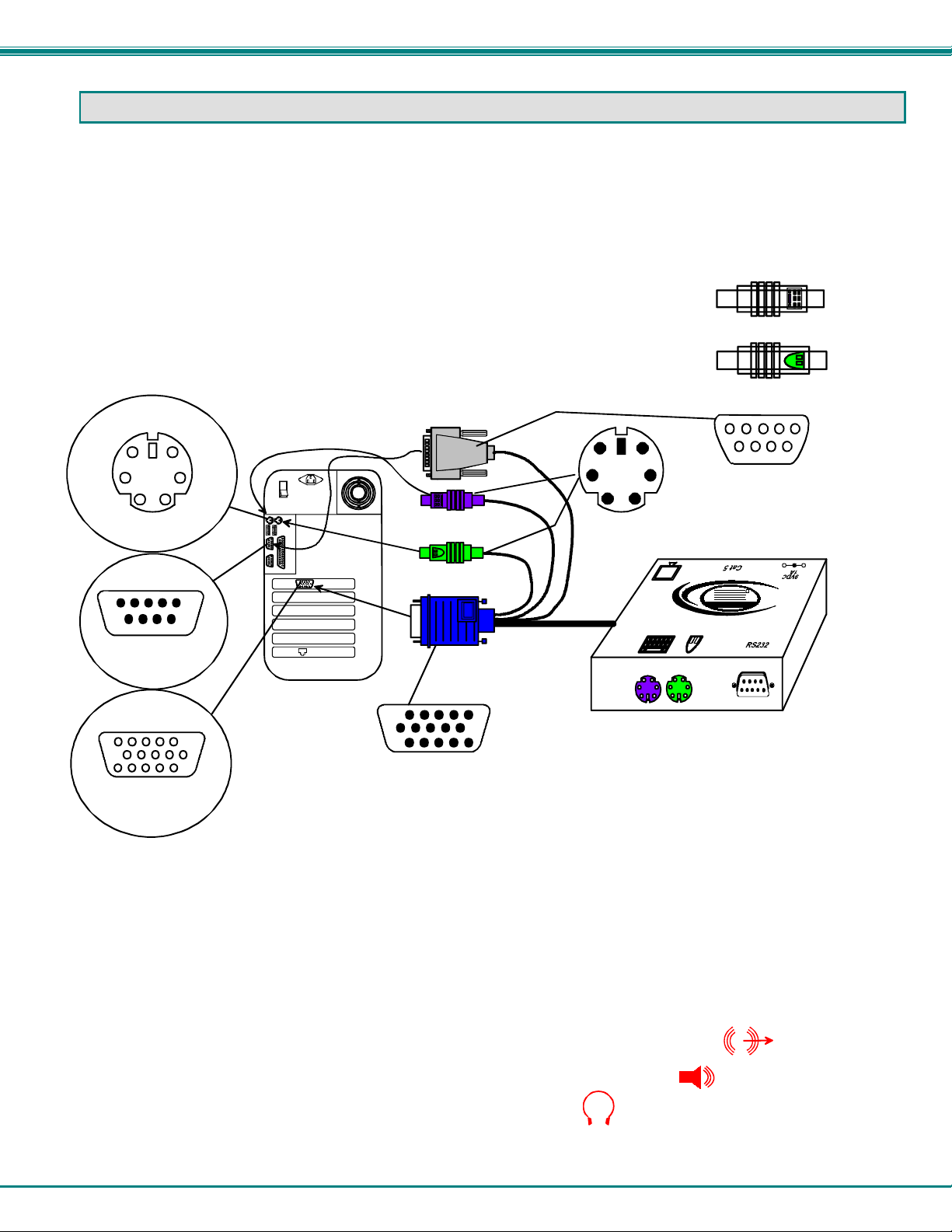

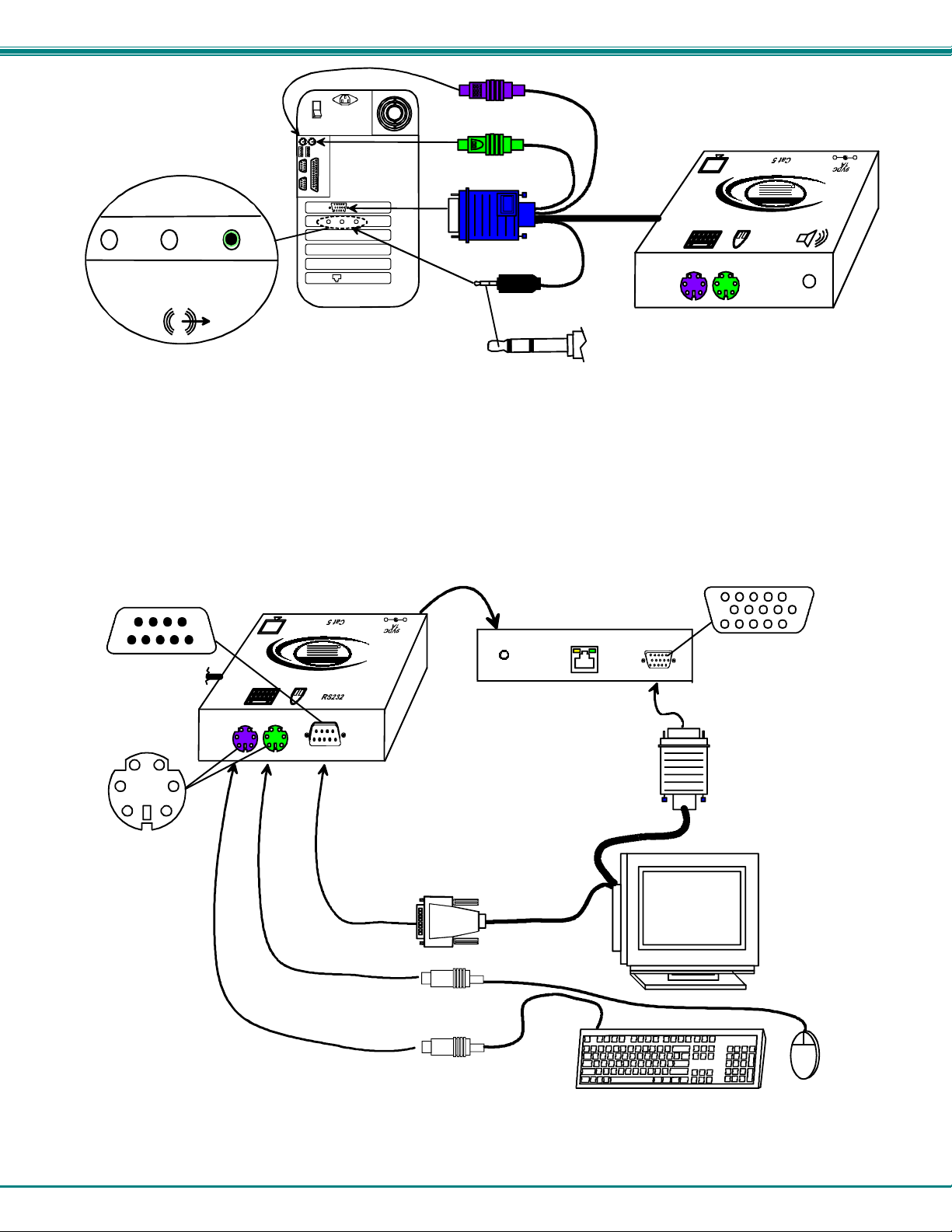

Figure 1- Connect the Local Unit with VGA video and RS232 support to the CPU ............................................................................ 9

Figure 2- Connect the Local Unit with Audio support to the CPU .................................................................................................... 10

Figure 3- Connect the local user to the XTENDEX Local Unit ......................................................................................................... 10

Figure 4- Connect stereo speakers to XTENDEX Local Unit with audio support ............................................................................. 11

Figure 5- Connect the S-Video Local Unit to the s-video/audio source ............................................................................................ 11

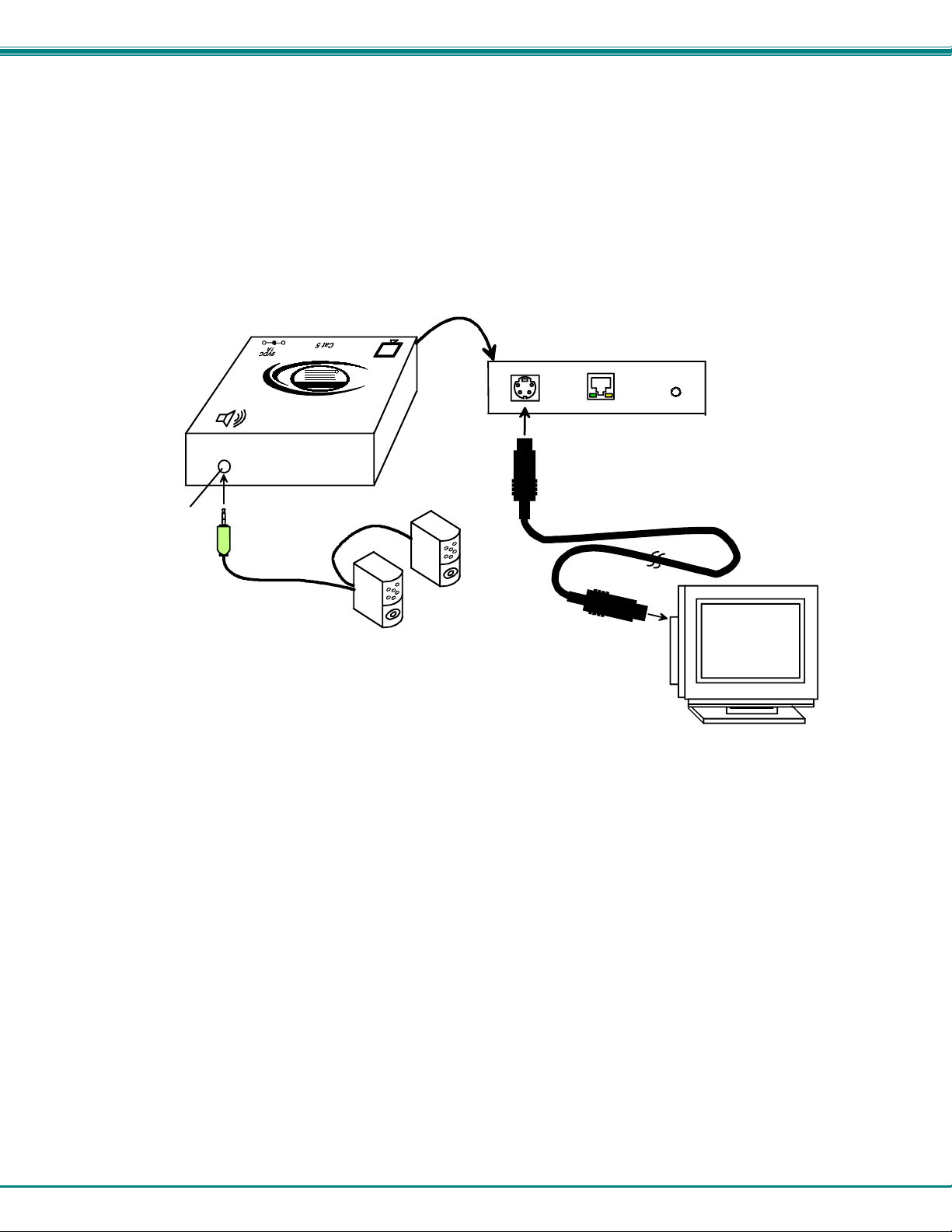

Figure 6- Connect S-Video display and speakers to Local Unit with s-video support ...................................................................... 12

Figure 7- Connect Local Unit with only keyboard and mouse support ............................................................................................. 12

Figure 8- Connect CATx cable to Local Unit .................................................................................................................................... 13

Figure 9- Connect the Extended Components to the Remote Unit .................................................................................................. 14

Figure 10- Connect speakers to the Remote Unit ............................................................................................................................ 14

Page 4

Figure 11- Connect componen ts to an S-Video Remote Unit .......................................................................................................... 15

Figure 12- Connect keyboard and mou se to Remot e Unit ............................................................................................................... 16

Figure 13- Connect the CATx cable to the Remote Unit .................................................................................................................. 16

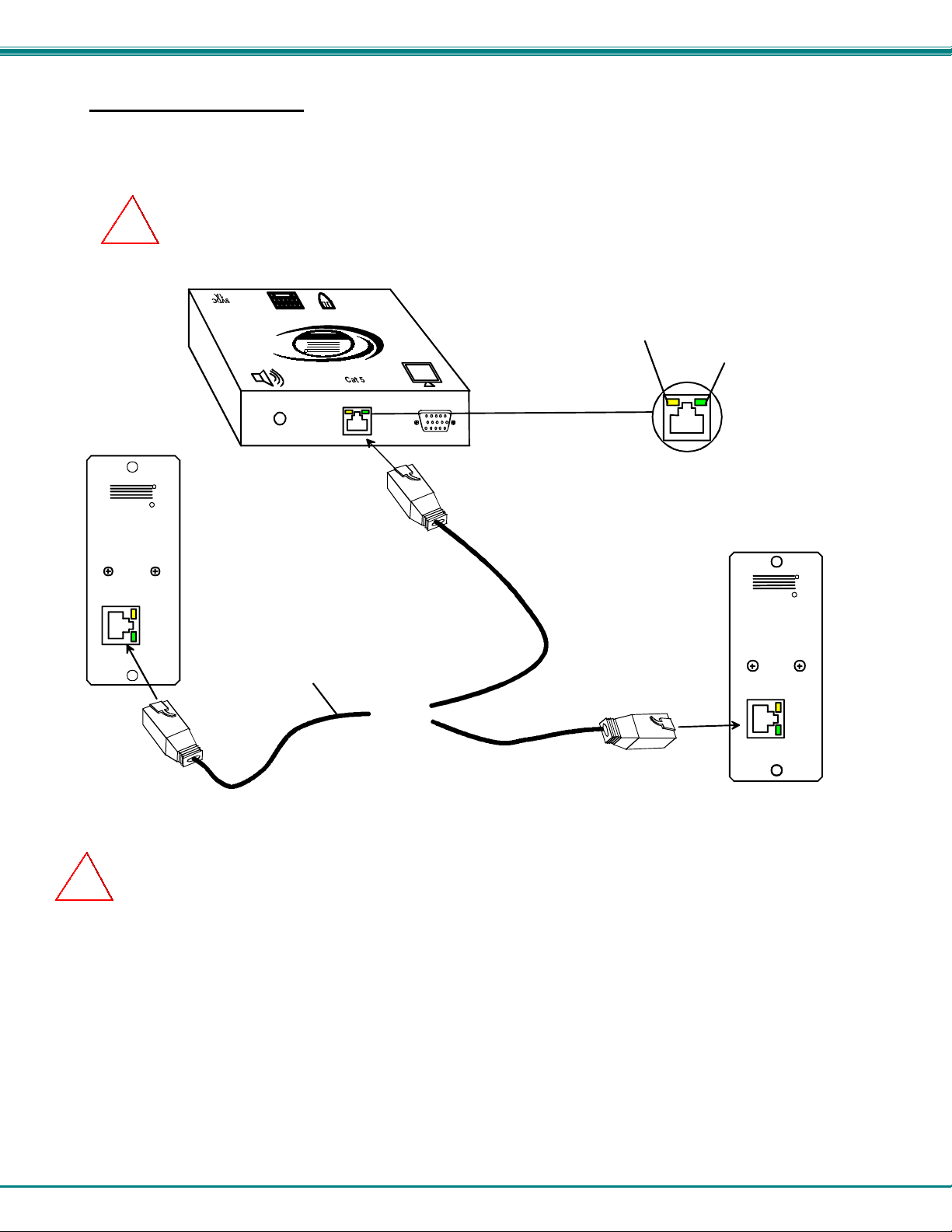

Figure 14- Connect CATx cables between Local and Remote Units ............................................................................................... 17

Figure 15- Connect the AC adapter to the Remote Unit .................................................................................................................. 18

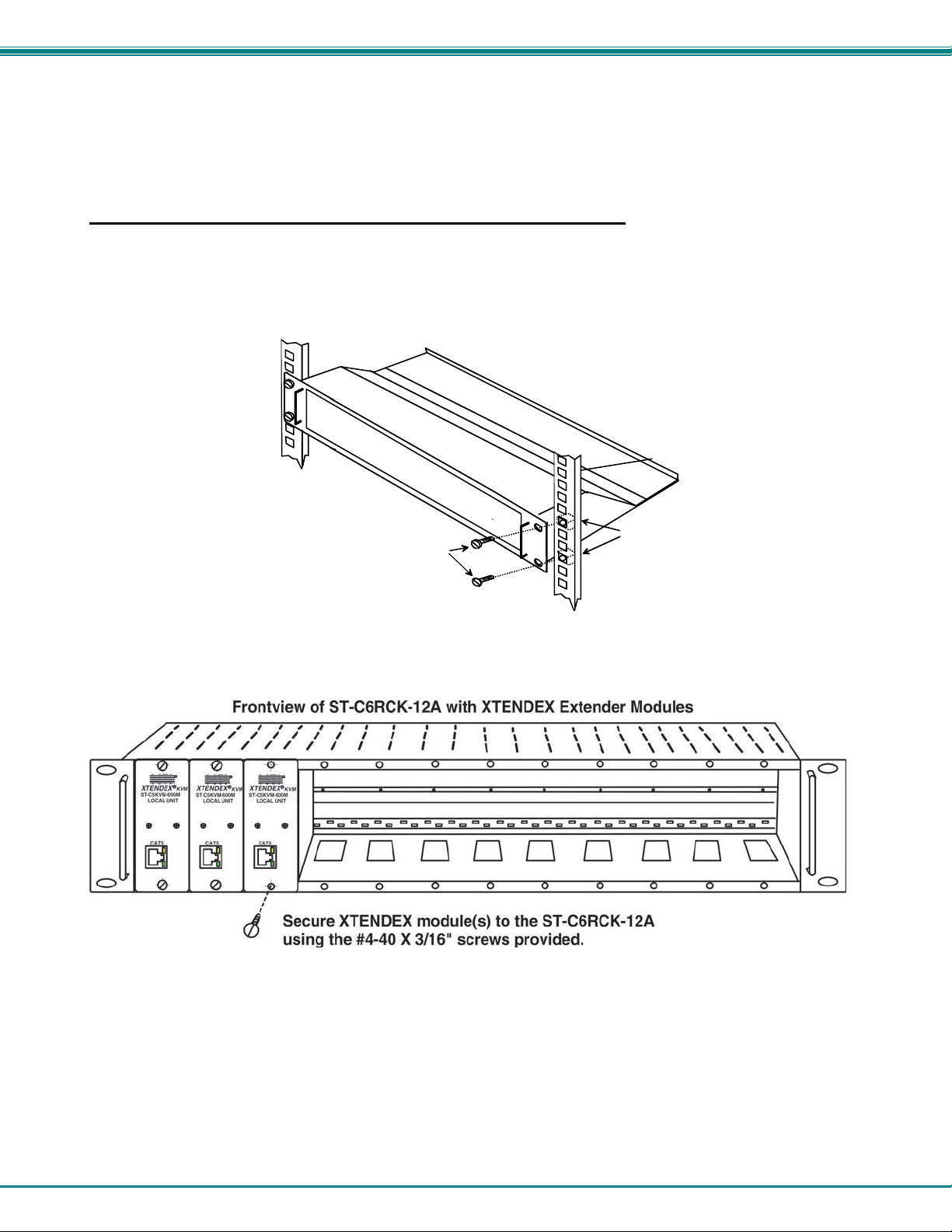

Figure 16- Mount ST-C6RCK-12A Extender Module Tray in a rack ................................................................................................ 19

Figure 17- Secure each module to the tray ...................................................................................................................................... 19

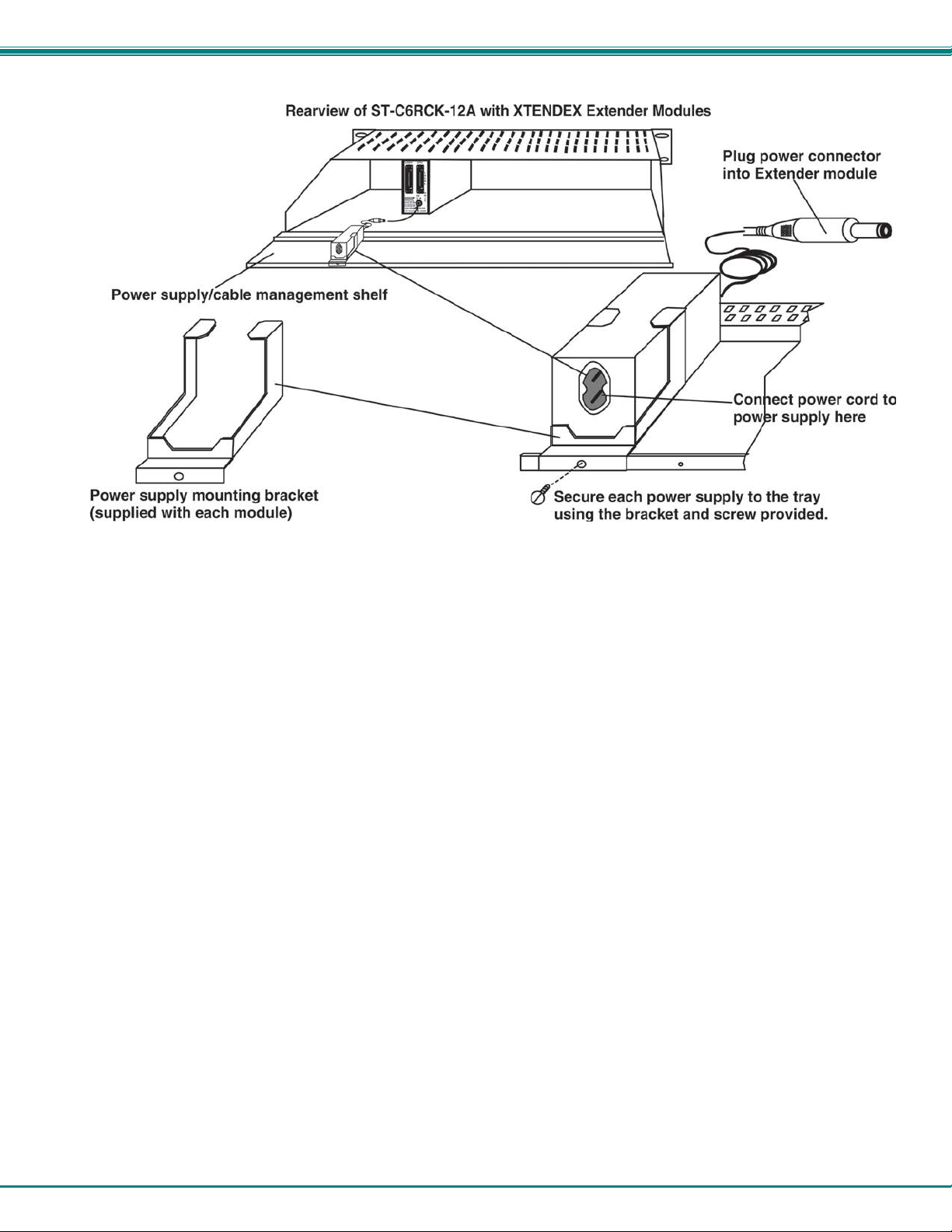

Figure 18- Secure each power supply to the tray ............................................................................................................................ 20

Figure 19- Connect cable between CPU and module ...................................................................................................................... 21

Figure 20- Connect cable betw een user and mod ule ...................................................................................................................... 22

Figure 21- Connect the CATx cable between the Local and Remote Units ..................................................................................... 23

Figure 22- Connect AC adapters ..................................................................................................................................................... 24

Figure 23- Buttons for video quality adjustment ............................................................................................................................... 25

Figure 24- DDC Update Button on Local with Dual Remote Support ............................................................................................... 28

Figure 25- Connect remote monitor for EDID capture...................................................................................................................... 28

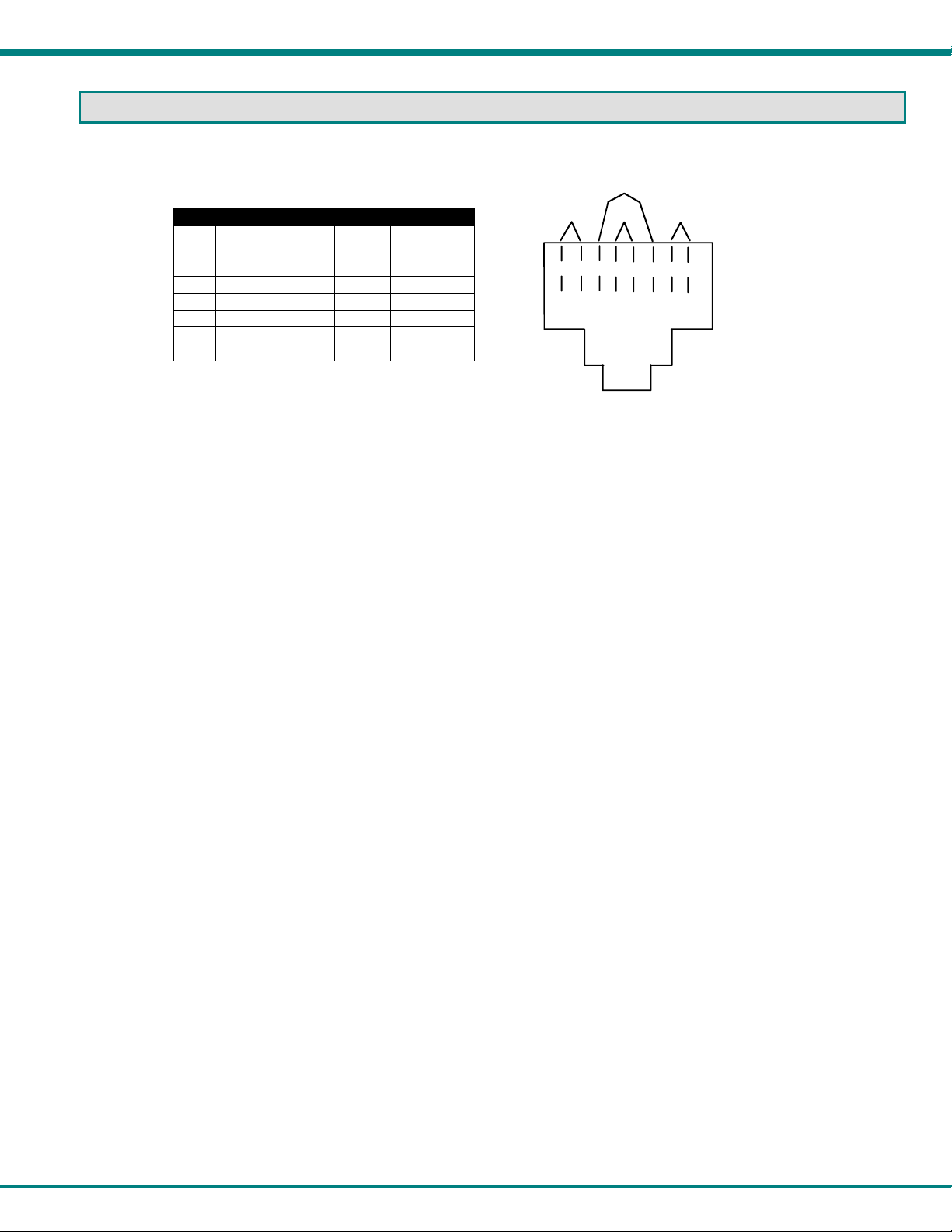

Figure 26- View looking into RJ45 female........................................................................................................................................ 31

iii

Page 5

NTI XTENDEX 600 Foot Extenders

Model

Video

Kybd/ Mse Support

Audio Support

# of Remotes Supported

RS232 Support

Video Quality Adjustment

ST-C5KVM-600

VGA

Yes

No 1 No

Automatic

ST-C5KVMA-600

VGA

Yes

Yes 1 No

Automatic

ST-C5KVMRS-600

VGA

Yes

No 1 Yes

Automatic

ST-C5V-600

VGA

No 1 No

Manual

ST-C5VA-600

VGA

Yes 1 No

Automatic

ST-C5VRS-600

VGA

No 1 Yes

Automatic

ST-2C5V-L-600

VGA

No 2 No

Manual

ST-2C5VA-L-600

VGA

Yes 2 No

Automatic

ST-C5SV-600

S-Video

No 1 No

Manual

ST-C5SVA-600

S-Video

Yes (RCA)

Automatic

ST-C5KVMRS-600-SCI

VGA

Yes

No 1 Yes

Manual

ST-C5KM-600

On Remote only

No 1 No

Not Applicable

INTRODUCTION

The XTENDEX Series CAT5 Extender (XTENDEX) is designed to enable one CPU to be controlled by two users, one local and one remote. The remote user can be located as much as 600 feet away from a PS/2 CPU via Category 5/5e/6 (CATx) unshielded twisted-pair cable. The local user will be located near the CPU.

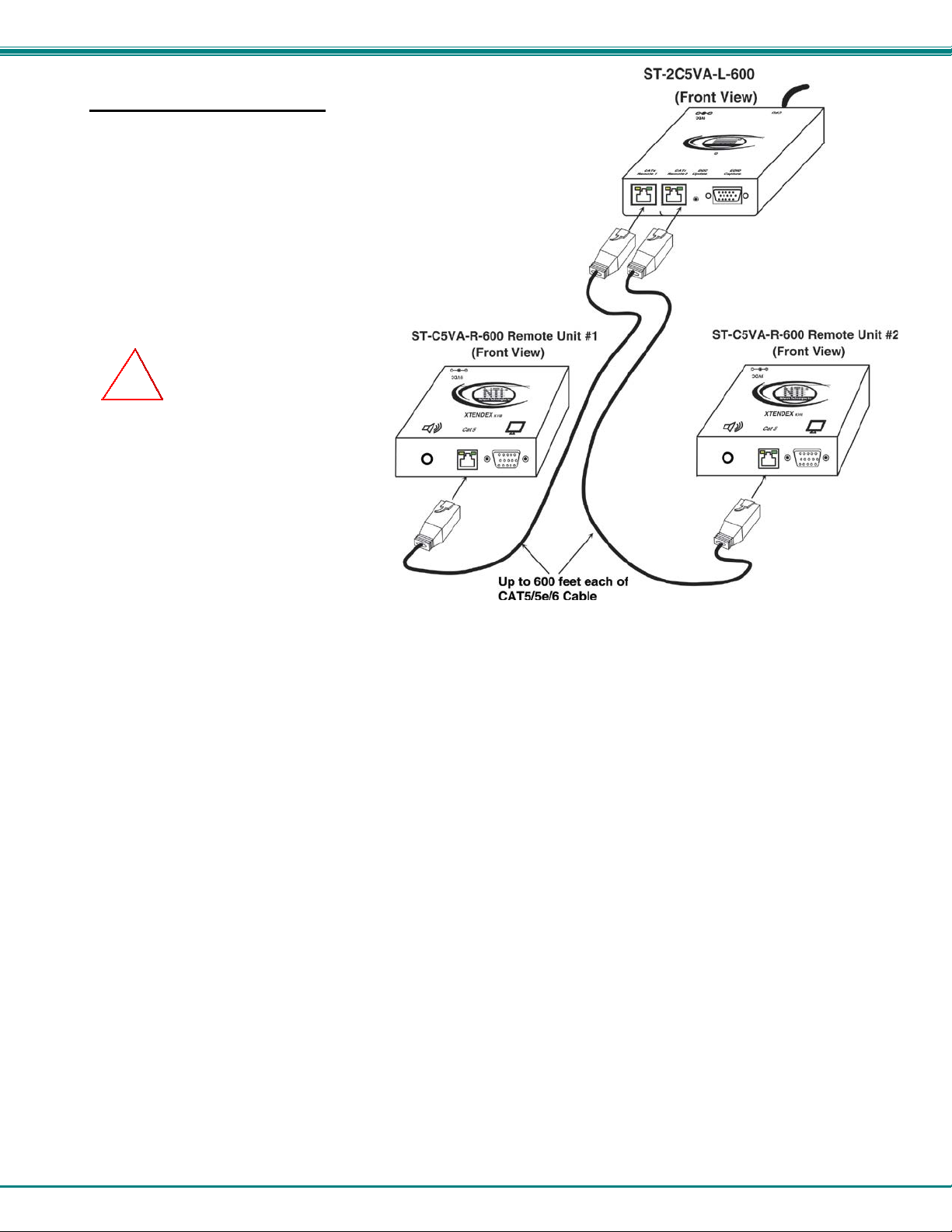

Options: Local Supporting Two Remotes- The XTENDEX series 600 foot PS/2 extender is available supporting two Remote Units from a

single Local Unit if needed. See chart below for available models and features. When ordering the XTENDEX with dual Remote support, Remote Units are ordered separately.

Rackmount Modules- The XTENDEX Series CAT5 Extenders can be ordered as rackmount modules (Remote and/or Local Units)- add “M” to the model number (i.e. ST-C5KVM-600M). When ordering rackmount modules, also order the ST-C6RCK-12A Rackmount Extender Module Tray (see page 19).

The XTENDEX Series Extender is extremely simple to install and has been thoroughly tested to insure reliable performance. Through the use of Category 5\5e\6 cable it is possible to economically increase the flexibility of a computer system. Here are some of the features and ways this can benefit any workplace:

• Allows the placement of computer peripherals (monitor, keyboard, and mouse) in a location where

only these parts are needed without having the CPU there too, taking up valuable space

• Allows a PS/2 CPU to be accessed by both a local and remote user (up to 600 feet away)(most models-see chart below)

• Compatible with XGA, VGA, and SVGA systems

• Provides crisp and clear resolution up to 1024 x 768 @ 600 feet (see page 21 for more details)

• Compatible with all NTI switches and splitters, enabling the joining of products to create a system that

satisfies all networking needs

• Video quality adjustment, for varying lengths of cable, is automatic (most models, see below and

page 20) providing optimum image quality

• Audio frequency response is 20Hz to 20Khz, + 1dB (models with audio support only )

• Digital transmission of audio signals reduces any loss in quality (models with audio support only)

This manual covers each of the XTENDEX Series CAT5-600 Extender models offered. Some features described in this manual are available in some models and not in others. The chart below shows the features supported in each:

Note: Rackmount modules are not available with S-Video support, however they do have automatic DDC updates. Note: Models shaded in blue (ST-2C5V(A)-L-600) provide Remote Unit-only support for devices, no Local Unit support.

Page 6

NTI XTENDEX 600 Foot Extenders

Model

Cable(s) needed

ST-C5KVM-600

VKMEXT-xx (xx= 3/6/10/15/25/35/50/75/100 feet)

ST-C5KVMRS-600

VKMEXT-xx and DINT-xx

ST-C5KVMA-600

VKMEXT-xx and SA-xx-MF

ST-C5V-600

VEXT-xx

ST-C5VRS-600

VEXT-xx and DINT-xx

ST-C5VA-600

VEXT-xx and SA-xx-MF

ST-C5SV-600

SVEXT-xx

ST-C5SVA-600

SVEXT-xx and SA-xx-MF

ST-C5KM-600

VVKINT-xx or VVKEXT-xx

Cable

xx= Length in feet

VKMEXT-xx

3/6/10/15/25/35/50/75/100

VEXT-xx

3/6/10/15/25/35/50/75/100

DINT-xx

6/10/15

SA-xx-MF

6/12/25/50

SVEXT-xx

1/3/6/10/15/25/35/50/75/100

VVKINT-xx

3/6/10/15/25

VVKEXT-xx

35/50/75/100

Model

Cables needed

ST-C5KVM-600M

VMCTINT-xx-MM and VMCTINT-xx

ST-C5KVMRS-600M

VMRSTINT-xx-MM and VMRSTINT-xx

ST-C5KVMA-600M

VMATINT-xx-MM and VMATINT-xx

ST-C5V-600M

VTINT-xx-MM and VTINT-xx

ST-C5VRS-600M

VRSTINT-xx-MM and VRSTINT-xx

ST-C5VA-600M

VATINT-xx-MM and VATINT-xx

MATERIALS

Materials supplied with ST-C5xxxx-600(M):

 NTI XTENDEX Local Unit  NTI XTENDEX Remote Unit  2- 120VAC or 240VAC at 50 or 60Hz-9VDC/1.0A AC Adapters (only 1 ST-C5KM-600)

Materials supplied with ST-2C5xxxx-L-600:

 NTI XTENDEX Local Unit  1- 120VAC or 240VAC at 50 or 60Hz-9VDC/1.0A AC Adapter

Additional materials may need to be ordered, depending upon the configuration:

 CAT5/5e/6 unshielded twisted-pair cable(s) termina ted w ith RJ45 conn ect or s wired straight thru- pin 1 to pin 1, etc. (see pg.

8 for proper EIA/TIA 568 B wiring method)

Note: Shielded CAT5, 5e, or 6 cable must be used to connect to LOCAL and REMOTE units in order to meet CE emission requirements.

 Cable(s) needed if Local Unit will be located further than 15" from the CPU

The chart above also applies to Local Unit models with support for two remotes.

Cables Lengths Available

For Rackmount Modules the following materials are required- not supplied:

Legend:

xx= 3, 6, 10, 15 or 25 foot length

MM= cables have male connectors on both ends (except for the DB9) and are only used with Local Units

Note: If two users will be connected (one local and one remote), two of the cables without the “MM”

(i.e. VMCTINT-xx) will be needed.

Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-RGB-TECH (800-742-8324) in US & Canada or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com and we will be happy to be of assistance.

Page 7

NTI XTENDEX 600 Foot Extenders

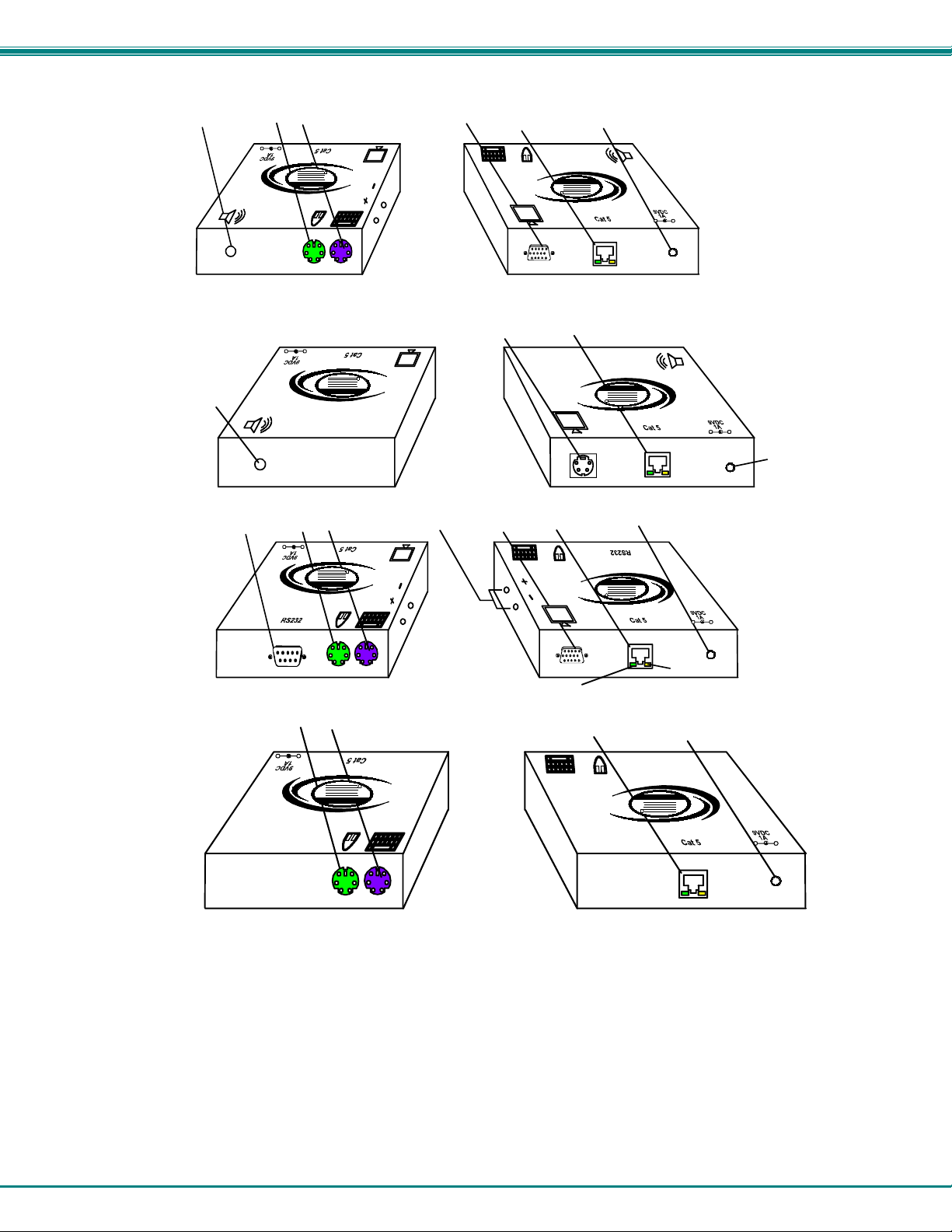

FEATURES AND FUNCTIO NS

8b 11c

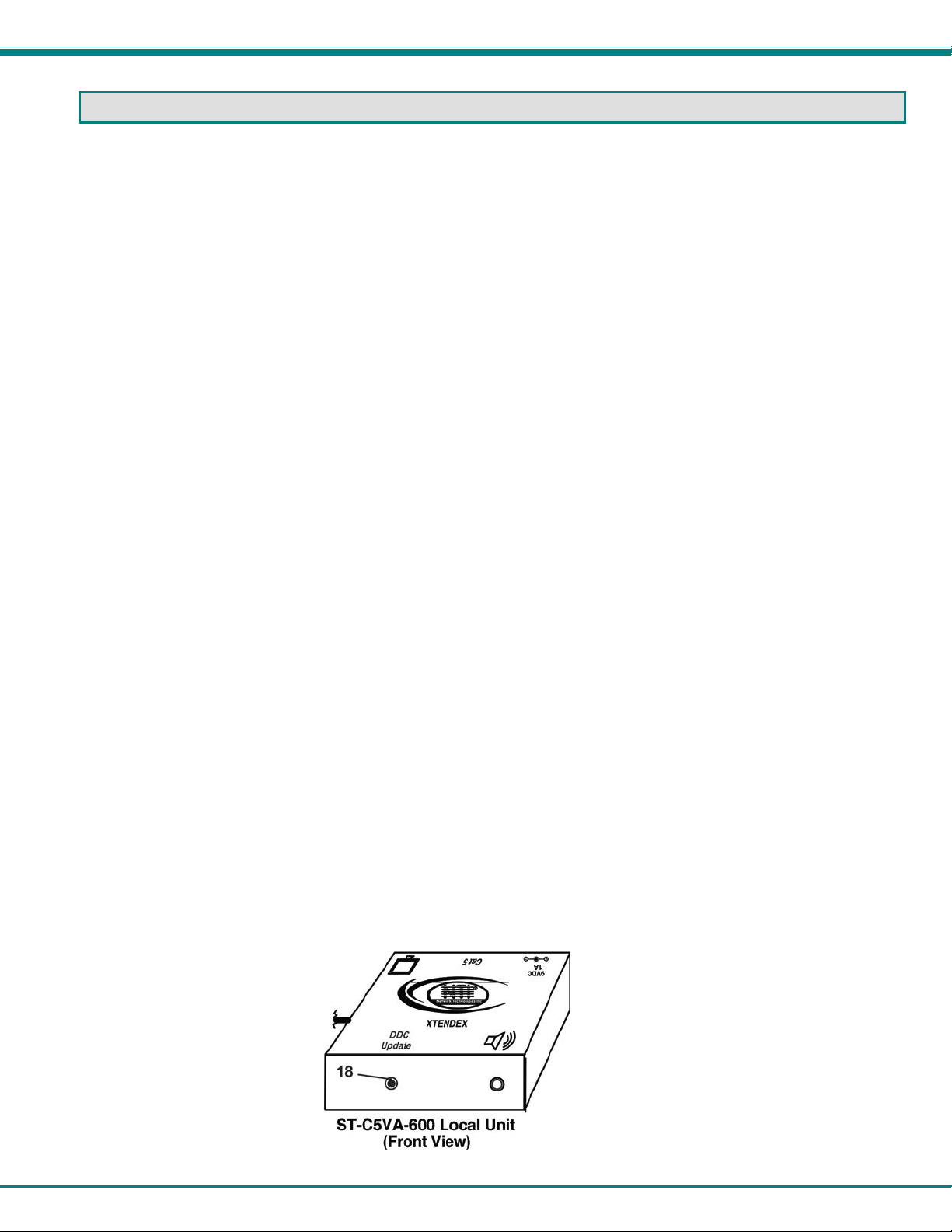

ST-C5SVA-600 Local Unit

XTENDEX

NTI

Network Technologies Inc

(Front Vi e w) (Rear View)

11d

NTI

Network Technologies Inc

XTENDEX

8a 9 10

ST-C5KVMRS-600 Local Unit

11a

XTENDEX

NTI

Network Technologies Inc

(Front Vi e w) (Rear View)

NTI

Network Technologies Inc

XTENDEX

8a 9 10

ST-C5KVMA-600 Local Unit

11b

XTENDEX

NTI

Network Technologies Inc

(Front Vi e w) (Rear View)

NTI

Network Technologies Inc

XTENDEX

910

ST-C5KM-600 Local Unit

XTENDEX

NTI

Network Technologies Inc

(Front Vi e w) (Rear View)

NTI

Network Technologies Inc

XTENDEX

Page 8

NTI XTENDEX 600 Foot Extenders

FEATURES AND FUNCTIONS

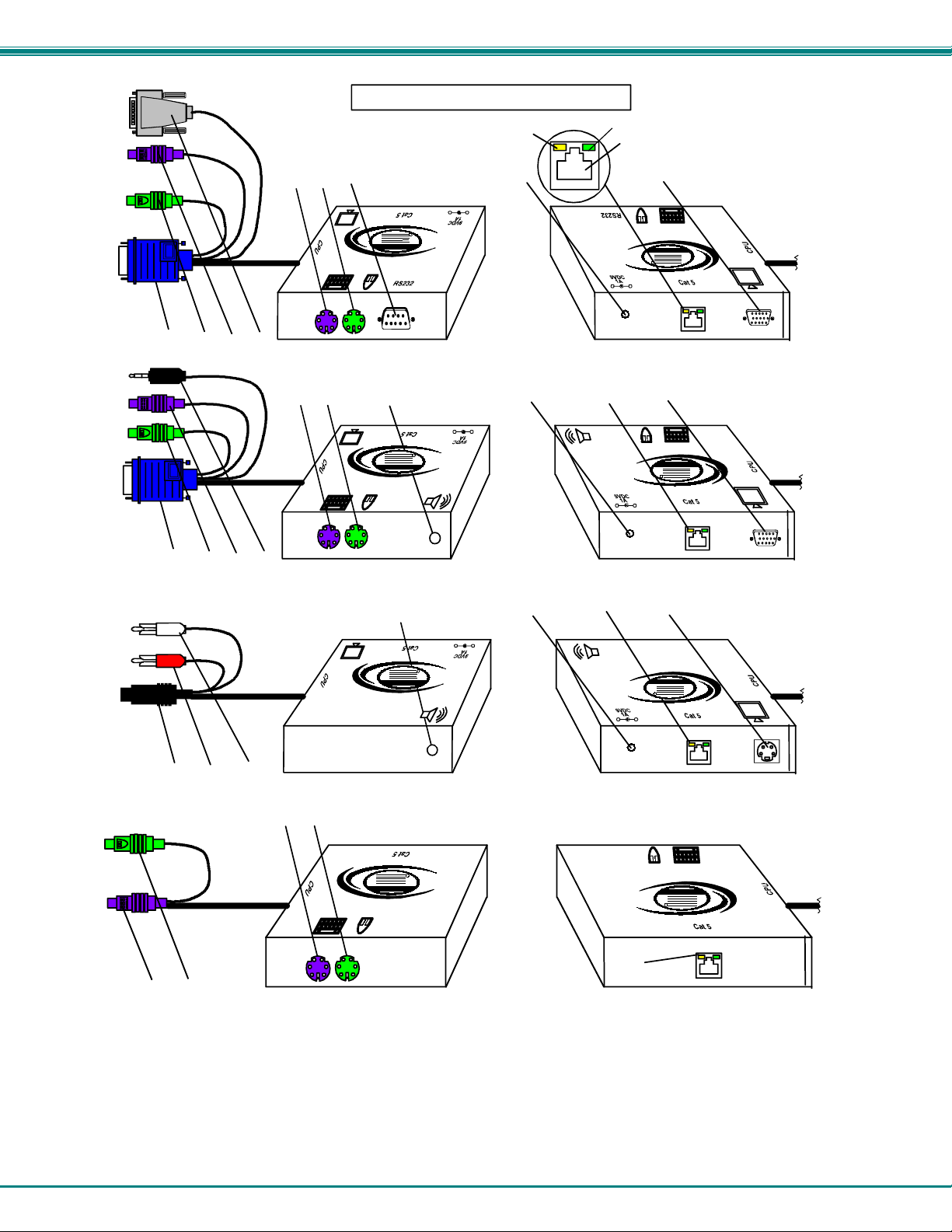

1. Green LED- power indicator- illuminates when power has been supplied to the unit

2. Yellow LED- traffic indicator- illuminates when there is communication between the local and remote units.

3. Cat 5- RJ45 female- for connecting the CAT 5 cable

4a. Video Connector- 15HD female- for connecting the local user's VGA monitor 4b. S-Video Connector- 4 pin miniDIN female- for connecting the local user's S-video display (S-Video models

5a. RS232 Connector- 9D male- for connecting the local user's touchscreen monitor (models with RS232 support only)

5b. Audio Jack- 3.5mm stereo audio jack- for connecting to local speakers (models with audio support only)

6. Mouse Connector- green female 6 miniDIN- for connecting the local user's mouse

7. Keyboard Connector- purple female 6 miniDIN- for connecting the local user's keyboard

8a. Video Connector- blue 15HD male- for connecting to the video port on the CPU or KVM switch 8b. S-Video Connector- black 4 pin miniDIN male- for con ne ctin g to the s-video port on the video source

(S-Video models only)

9. Mouse Connector- green male 6 miniDIN- for connecting to the mouse port on the CPU or KVM switch

10. Keyboard Connector- purple male 6 miniDIN- for connecting to the keyboard port on the CPU or KVM switch 11a. RS232 Connector- light gray 9D female- for connecting to the RS232 port on the CPU or KVM switch

(m ode l s w ith RS232 sup port only ) 11b. Audio Plug- 3.5mm stereo audio plug- for connecting to CPU audio line out (models with audio support

only) 11c. Audio Plug- red RCA plug- for connecting to the right channel audio (model ST-C5SVA-600 only) 11d. Audio Plug- white RCA plug- for connecting to the left channel audio (model ST -C5SVA-600 only)

12. Keyboard Connector- purple female 6 miniDIN- for connecting the rem ote user's keyboard

13. Mouse Connector- green female 6 miniDIN- for connecting the remote user's mouse 14a. RS232 Connector- 9D m ale- for connecting the remote user's touchscreen monitor (models with RS232

support only) 14b. Audio Jack- 3.5mm stereo audio jack- for connecting to remote speakers (models with audio support only)

15. 9VDC- 1.0A- connection jack for the AC adapter 16a. Video Connector- 15HD fema le- for connecting the remote user's monitor 16b. S-Video Connector- 4 pin miniDIN female- for connecting the remote user's S-video display (S-Video

models only)

17. Buttons- for manually adjusting video quality (models ST-C5V-600, ST-C5SV-600, and ST-C5KVMRS-600-SCI only)

18. DDC Upda te- Button used to send updated EDID to the graphics card in the CPU (supported models only)

only)

Page 9

NTI XTENDEX 600 Foot Extenders

ST-C5KVMA-600 Remote Unit

16a

1213

14b

(Front View) (Rear View)

NTI

Network Technologies Inc

XTENDEX

NTI

Network Technologies Inc

XTENDEX

ST-C5SVA-600 Remote Unit

14b

16b

(Front Vi e w) (Rear View)

NTI

Network Technologies Inc

XTENDEX

NTI

Network Technologies Inc

XTENDEX

16a

ST-C5KVMRS-600-SCI Remote Unit

14a

(Front View) (Rear View)

NTI

Network Technologies Inc

XTENDEX

NTI

Network Technologies Inc

XTENDEX

ST-C5KM-600 Remote Unit

1213

(Front View) (Rear View)

NTI

Network Technologies Inc

XTENDEX

NTI

Network Technologies Inc

XTENDEX

Page 10

NTI XTENDEX 600 Foot Extenders

CAT5

REMOTE UNIT

NTI

ST-C5KVM-600M

XTENDEX

KVM

CAT5

LOCAL UNIT

NTI

ST-C5KVM-600M

XTENDEX

KVM

1.0 A

USER

CPU

L 0 C A L

U N I T

ST-C5KVM-600M

NTI

www.networktechin c.com

USER

1.0 A

R E M O T E

U N

ST-C5KVM-600M

NTI

www.networktechin c.com

19 18

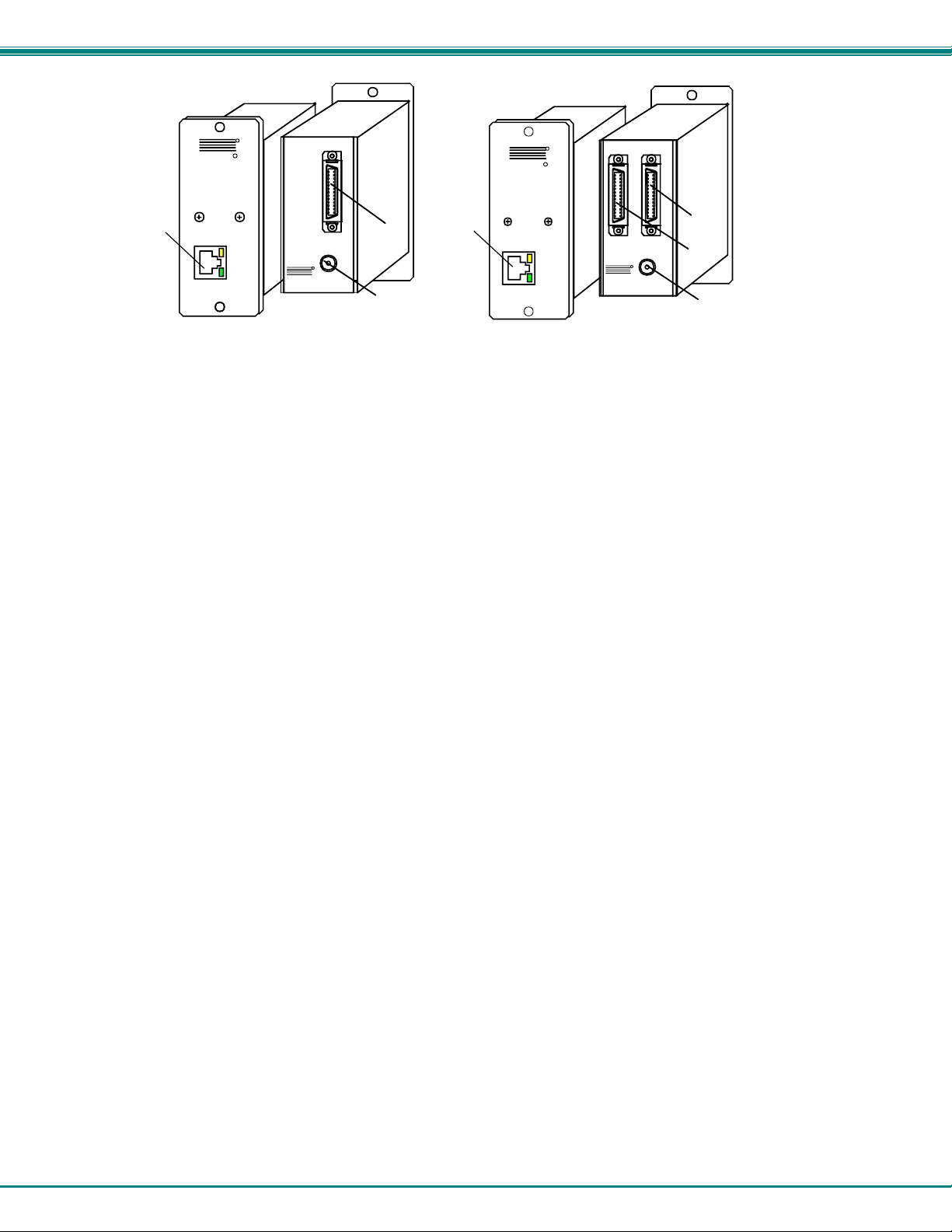

ST-C5KVM-600M Local Module Front and Rear Views

ST-C5KVM-600M Remote Module Front and Rear Views

(All XTENDEX 600 foot extender modules have the same connections)

18. USER- .05 SCSI II Female- for connecting cable between module and the user devices

19. CPU- .05 SCSI II Female- for connecting cable between the module and the CPU

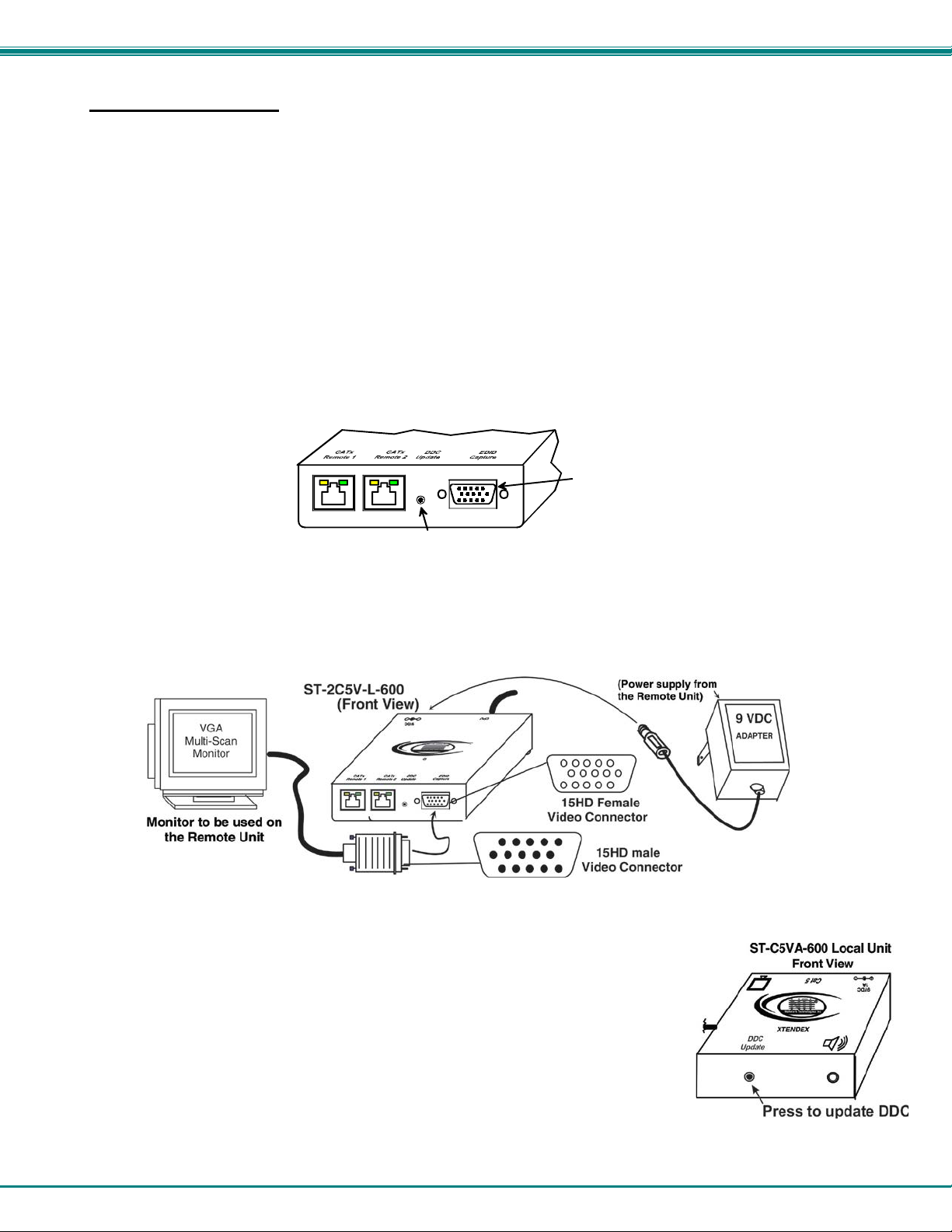

Note: The 15HD female port on the ST-2C5V(A)-L-600 is used for EDID capture only (see page 27).

Page 11

NTI XTENDEX 600 Foot Extenders

LIMITATIONS

• Hot-plugging of devices is supported provided devices were originally connected at power-up.

• In order for two users to share a PS/2 CPU, the user in control must pause for at least 3 seconds before another user can

take control. After the 3 second pause, either user can take control of the CPU.

For models with RS232 support:

• The RS232 ports on the Local and Remote Units will support serial devices other than touchscreen monitors as follows:

• 2 simple devices (i.e. mice) connected to each unit, or

• 1 complex device (i.e. serial modem, RS232 command port on an NTI switch) connected to

either the Remote or Local Unit.

• In order for two users to share a PS/2 CPU, the user in control must pause for at least 3 seconds before another user can take control. After the 3 second pause, either user can take control of the CPU.

• The RS232 port supports all baud rates up to 56K bits per second and the attached CPU must be configured accordingly.

For models with audio support:

• The audio input of the XTENDEX with audio support is compatible with the following standard CPU audio outputs:

• Line out - typically lime green in color

• Speaker out- typically orange in color

• Headphone out- typically located on the CD-ROM

• To connect the ST-C5SVA-600 to a CPU, it may be necessary to use an RCA phono-to-3.5mm stereo jack adapter

• The audio output of the XTENDEX with audio support is compatible with self-powered stereo speakers.

Page 12

NTI XTENDEX 600 Foot Extenders

Crimp-on

Solder terminal

PREPARATION FOR INSTALLATION

• Locations should be chosen for the monitors, mice, and keyboards that also have space to connect the Remote and Local Units within the distance provided by the cables. If extension cables are needed, contact NTI for the cables required.

• The CATX cables must be run to the locations where the Remote and Local Units will be connected. Be careful to route the cables away from any sources of magnetic fields or electrical interference that might reduce the quality of the video signal (i.e. AC motors, welding equipment, etc.).

• All cables should be installed in such a way that they do not cause stress on their connections to the equipment. Extended lengths of cable hanging from a connection may interfere with the quality of that connection. Secure cables as needed to minimize this.

• Properly shut down and disconnect the power from the CPU and monitors to be separated. If other equipment is involved whose connections are being interrupted, be sure to refer to the instruction manuals for that equipment for proper disconnection and re-connection procedures before proceeding.

• Local and Remote Units should be grounded through either a display or source that uses a 3-prong power cord. If only one unit is grounded, shielded CAT5 cable should be used.

Note: CATX connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.

WARNING: Outdoor or underground runs of CATX cable could be dangerous and will void the warranty.

External Ground

Failure to make this connection may result in poor video quality at the connected monitor(s).

Page 13

(Mouse)

(Keyboard)

ST-C5KVMRS-600 Local Unit (Front View)

15HD Female Video Connector

6 pin miniDIN

Male Connector

(GREEN-MOUSE)

(PURPLE-KEYBOARD)

(BLUE- VIDEO)

PS/2 CPU

6 pin miniDIN

Female

Connector

DEVICE

CONNECTORS

VIDEO

CONNECTOR

15HD Male Video Connector

(LIGHT GRAY- RS232)

9D Female Connector

9D Male RS232 Connector

SERIAL

CONNECTOR

NTI

Network Technologies Inc

XTENDEX

NTI XTENDEX 600 Foot Extenders

INSTALLATION

Installing The Local Unit (models with VGA video connectors)

1. Plug the cables of the Local Unit into the back of the CPU. (See Figure 1.)

a) Connect the blue 15HD cable end to the VGA port on the back of the CPU. b) Connect the purple 6 pin miniDIN cable end with the keyboard symbol

on it to the keyboard port on the back of the CPU. (KVM models only)

c) Connect the green 6 pin miniDIN cable end with the mouse symbol

on it to the mouse port on the back of the CPU. (KVM models only)

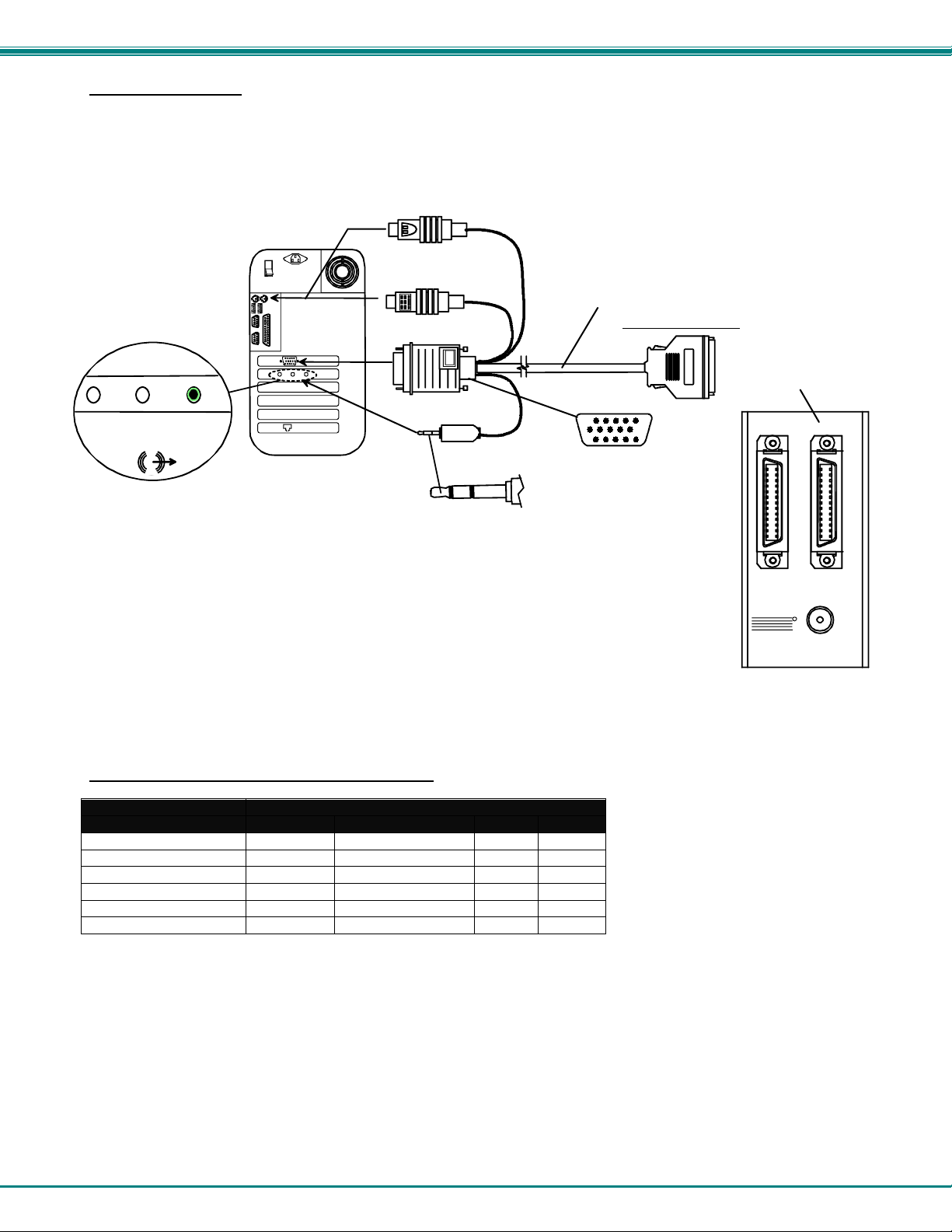

Figure 1- Connect the Local Unit with VGA video and RS232 support to the CPU

d) If the Local Unit has RS232 support, connect the light gray 9D cable end to the RS232 port on

the back of the CPU.

e) If the Local Unit has Audio support, connect the black 3.5mm stereo plug into the "line out",

"spkr", or "headphones" jack on the back of the CPU. (See Figure 2)

Notes: If all 3 jacks are available, use the jack marked "line out".

The "line out" jack is typically lime green and may be marked with this symbol The "spkr" jack is typically orange, and may be marked with this symbol The "headphones" jack may be marked with this symbol

Page 14

NTI XTENDEX 600 Foot Extenders

VGA

Multi-Scan

Touch-screen

Monitor

PS/2 KEYBOARD PS/2 MOUSE

15HD Female Video Connector

Front View of Local Unit

ST-C5KVMRS-600 Local Unit (Front and Rear View)

9D Male RS232 Connector

Rear View of Local Unit

Local User's Keyboard, Monitor, and Mouse

6 pin miniDIN

Female Connector

NTI

Network Technologies Inc

XTENDEX

ST-C5KVMA-600 Local Unit (Front View)

(GREEN-MOUSE)

(PURPLE-KEYBOARD)

(BLUE- VIDEO)

PS/2 CPU

NTI

Network Technologies Inc

XTENDEX

(BLACK- AUDIO)

3.5mm Stereo Plug

AUDIO CONNECTOR

line out

ONE WILL BE MARKED "line

out" ,"spkr", "headphones"

OR WITH THIS SYMBOL

Figure 2- Connect the Local Unit with Audio support to the CPU

Figure 3- Connect the local user to the XTENDEX Local Unit

2. Make connections for a local user (see Figure 3) a) Connect the cable from the local user's VGA monitor to the female 15HD port on the Local Unit. b) Connect the local user's keyboard to the purple 6 pin miniDIN female port on the Local Unit. c) Connect the local user's mouse to the green 6 pin miniDIN female port on the Local Unit.

Page 15

NTI XTENDEX 600 Foot Extenders

ST-C5SVA-600 Local Unit (Front View)

DVD Player

4 pin miniDIN Male S-Video Connector

Red RCA Plug Right Channel

White RCA Plug Left Channel

NTI

Network Technologies Inc

XTENDEX

Front View

ST-C5KVMA-600 Local Unit

NTI

Network Technologies Inc

XTENDEX

3.5mm Stereo Audio Jack

Stereo

Speakers

d) If the Local Unit has RS232 support, connect the local user's RS232 cable from a touch screen

monitor to the 9D male port on the Local Unit.

e) If the Local Unit has audio support, connect the cable from the local speakers to the 3.5mm

stereo audio jack on the Local Unit. (See Figure 4)

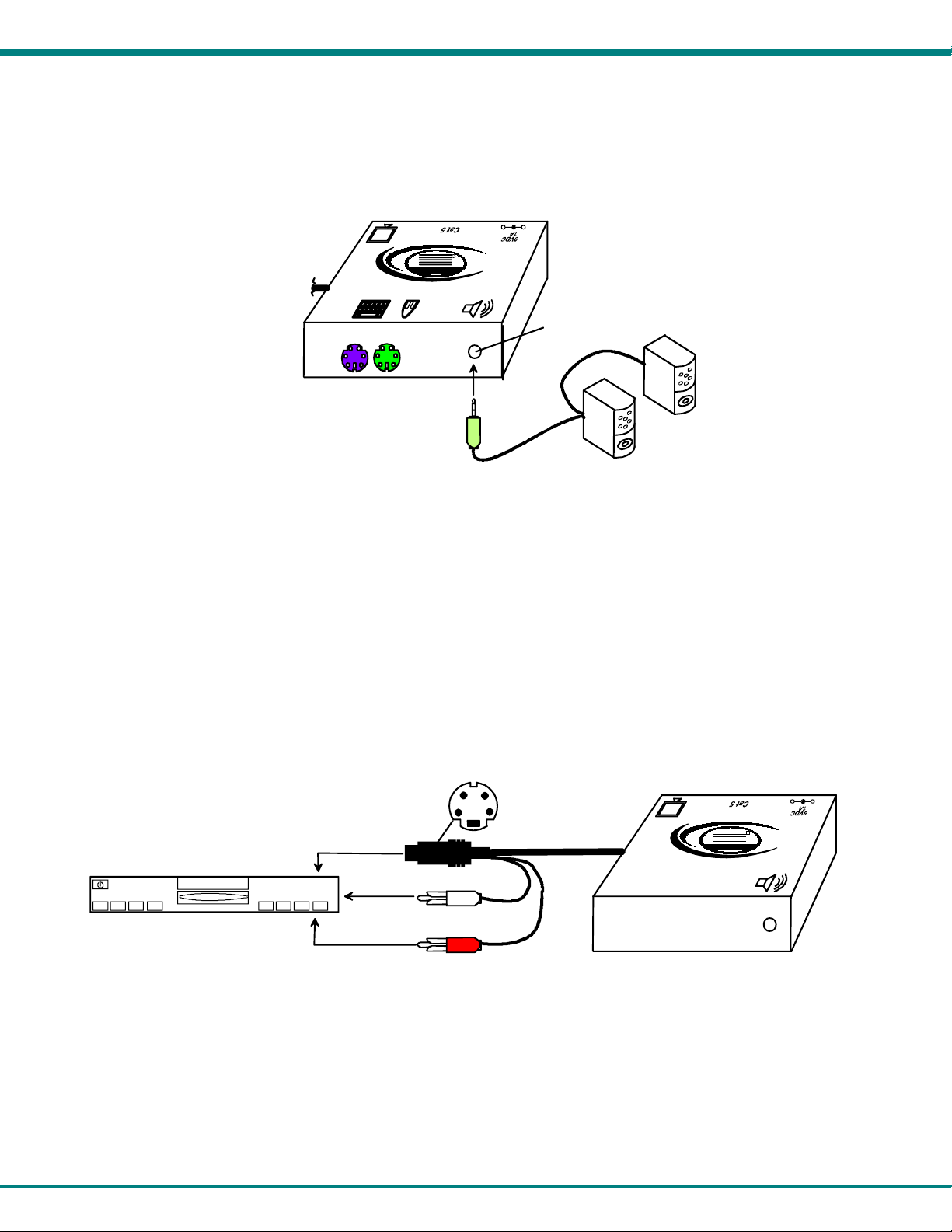

Figure 4- Connect stereo speakers to XTENDEX Local Unit with audio support

Installing The Local Unit (models with S-Video connectors)

1. Plug the cables of the Local Unit into the back of the s-video source. (See Figure 5.) a) Connect the 4 pin miniDIN male cable end to the s-video port on the video source. b) If the Local Unit has audio support, connect the red RCA plug to the "right" speaker jack on the

audio source and connect the white RCA plug to the "left" speaker jack on the audio source.

Note: Refer to the owner's manual of the s-video/audio source to determine how the left and right audio channels are labeled.

Figure 5- Connect the S-Video Local Unit to the s-video/audio source

Page 16

NTI XTENDEX 600 Foot Extenders

Front View

ST-CSVA-600 Local Unit

NTI

Network Technologies Inc

XTENDEX

3.5mm Stereo Audio Jack

Stereo

Speakers

Rear View

Local User's Display

S-Video

Display

SVEXT-xx-MM

ST-C5KM-600 Local Unit (Front View)

(GREEN-MOUSE)

(PURPLE-KEYBOARD)

PS/2 CPU

NTI

Network Technologies Inc

XTENDEX

6 pin miniDIN

Female Connector

DEVICE

CONNECTORS

6 pin miniDIN

Male Connector

2. Make connections for a Local User (see Figure 6) a) Connect one end of an SVEXT-xx-MM cable to the s-video port on the display. b) Connect the other end of the same SVEXT-xx-MM cable to the s-video port on the Local Unit. c) If the Local Unit has audi o sup por t, conn ect the cable from the local speakers into the 3.5mm

jack on the local unit.

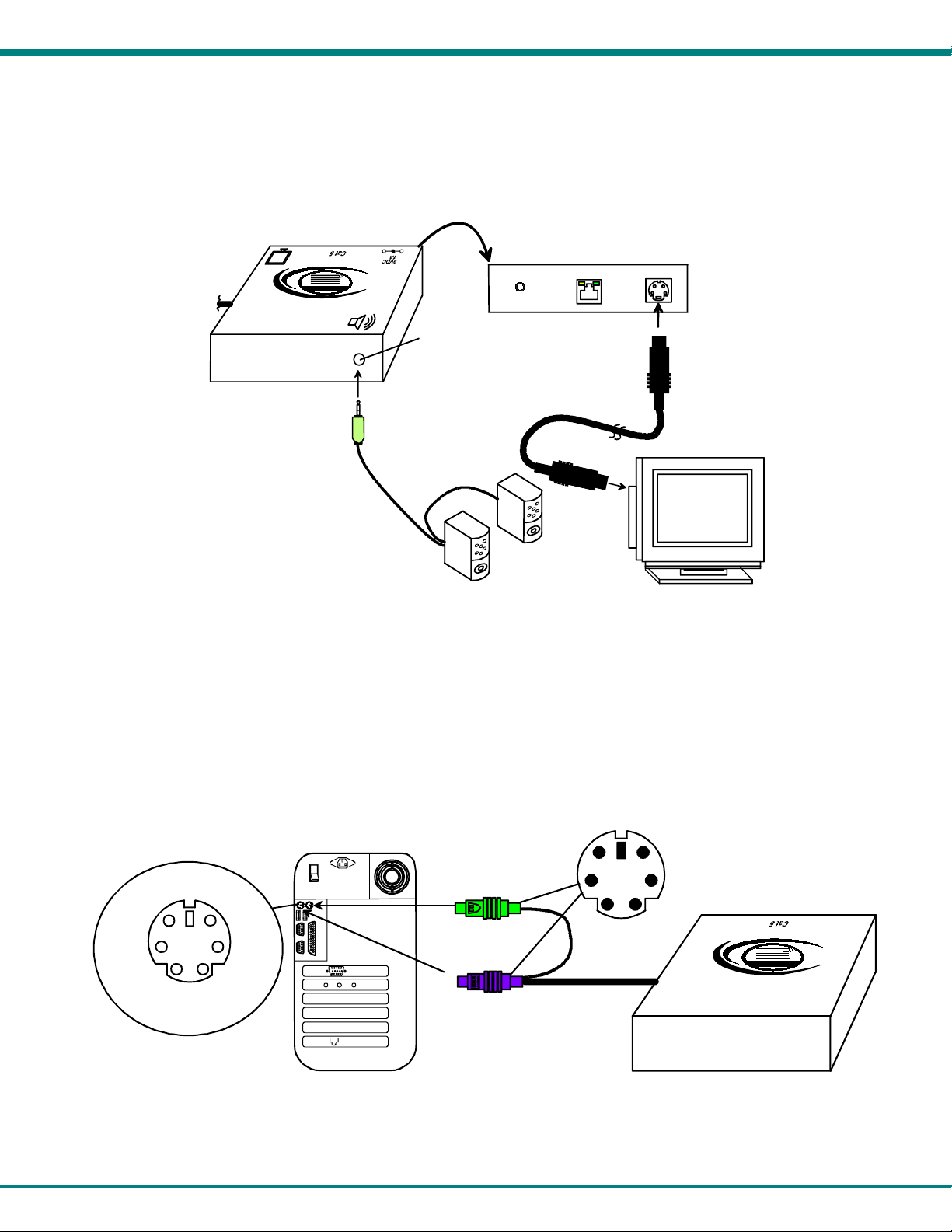

Figure 6- Connect S-Video display and speakers to Local Unit with s-video support

Installing the Local Uni t (m odel s w ith only KM connectors)

1. Plug the cables of the Local Unit into the back of the CPU. (See Figure 7) a) Connect the green 6 pin miniDIN cable end with the mouse symbol on it to the mouse port on the back of the CPU. b) Connect the purple 6 pin miniDIN cable end with the keyboard symbol on it to the keyboard port on the back of the

CPU.

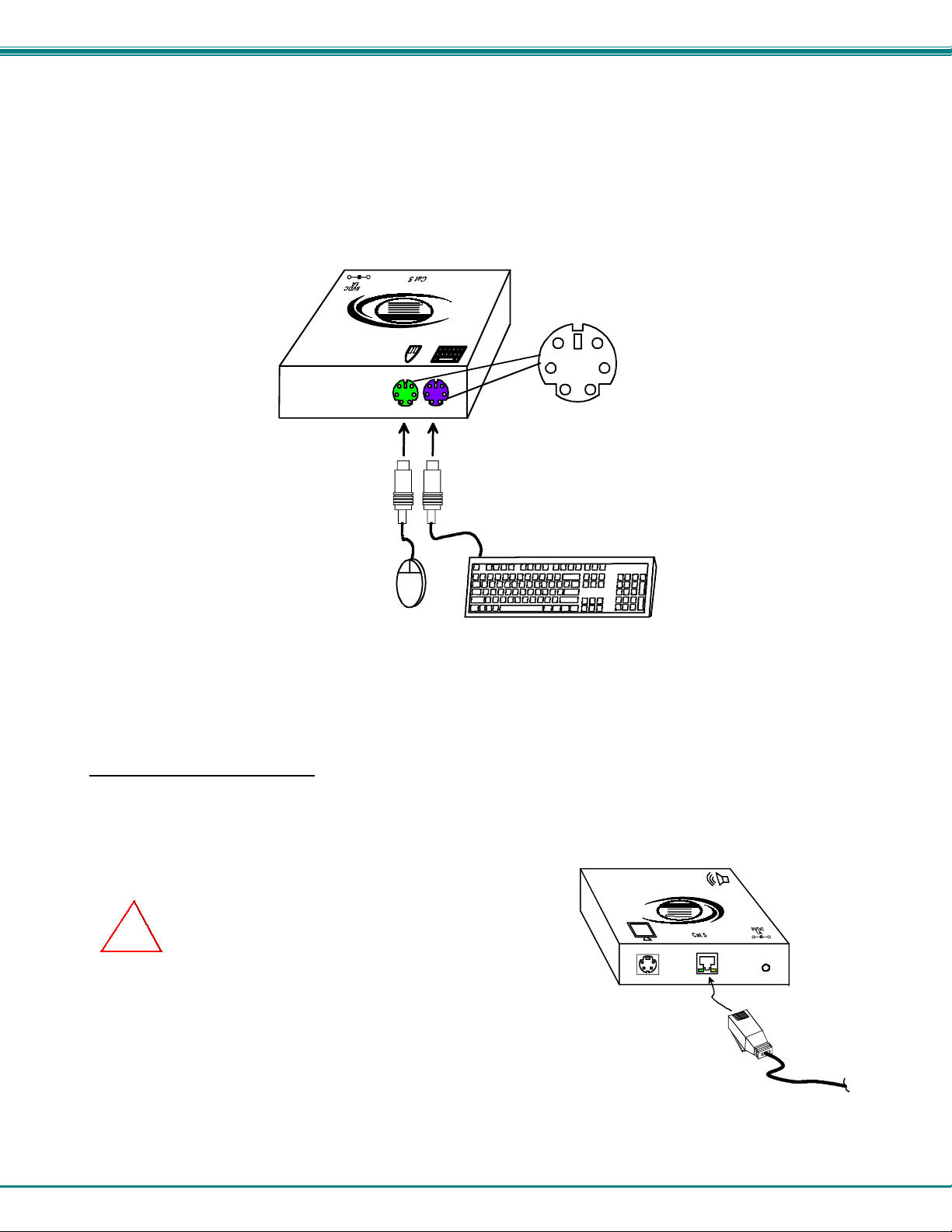

Figure 7- Connect Local Unit with only keyboard and mouse support

Page 17

NTI XTENDEX 600 Foot Extenders

Rear View of Local Unit

Green Power LED

Yellow Traffic LED

XTENDEX

NTI

Network Technologies Inc

CATx Cable to Remote Unit

Connect The CATx Cable

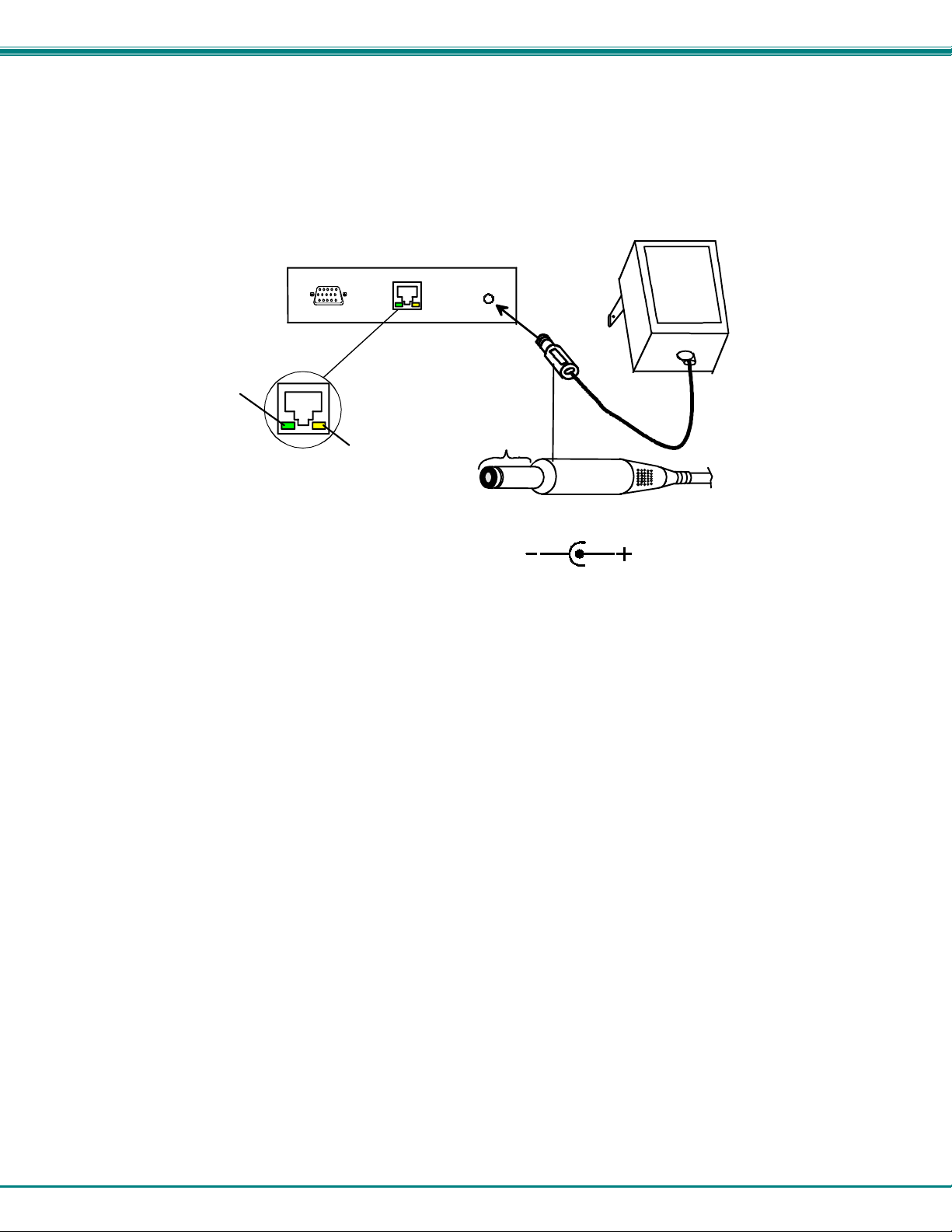

Connect the CATx cable to the “Cat 5” port on the Local Unit. (See Figure 8.) When properly inserted the cable end should snap into place.

Note: If an RJ45 wall outlet is being used, connect the other

end of the extension cable to the RJ45 wall outlet.

WARNING: Never connect the XTENDEX to an Ethernet

card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.

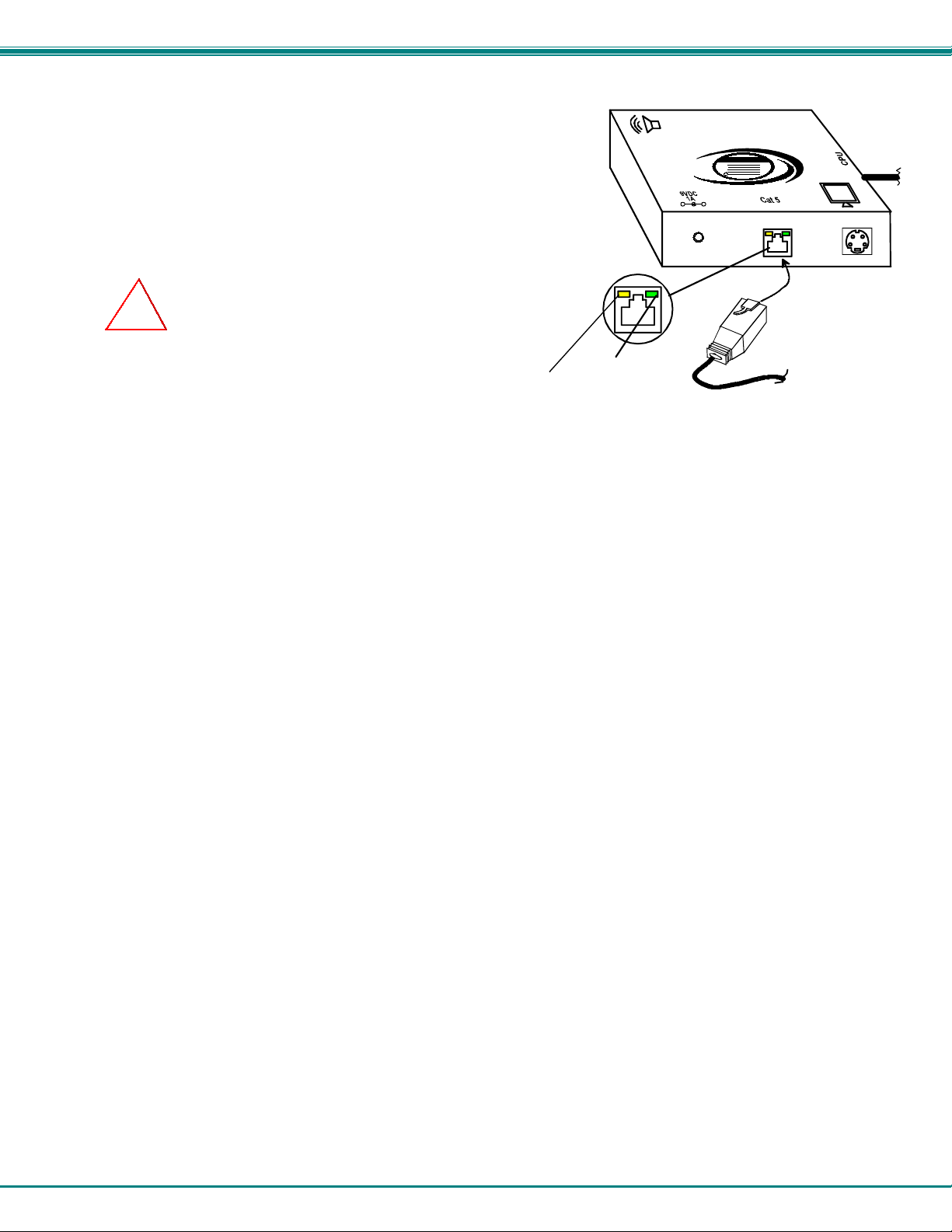

Figure 8- Connect CATx cable to Local Unit

Installing The Remote Unit (models with VGA video connectors)

stereo audio jack on the Remote Unit. (See Figure 9)

1. Position the Remote Unit such that the CATx cable, the moni tor cabl e, dev ice cables, and the AC

adapter power connector can each reach the Remote Unit without putting strain on the cables.

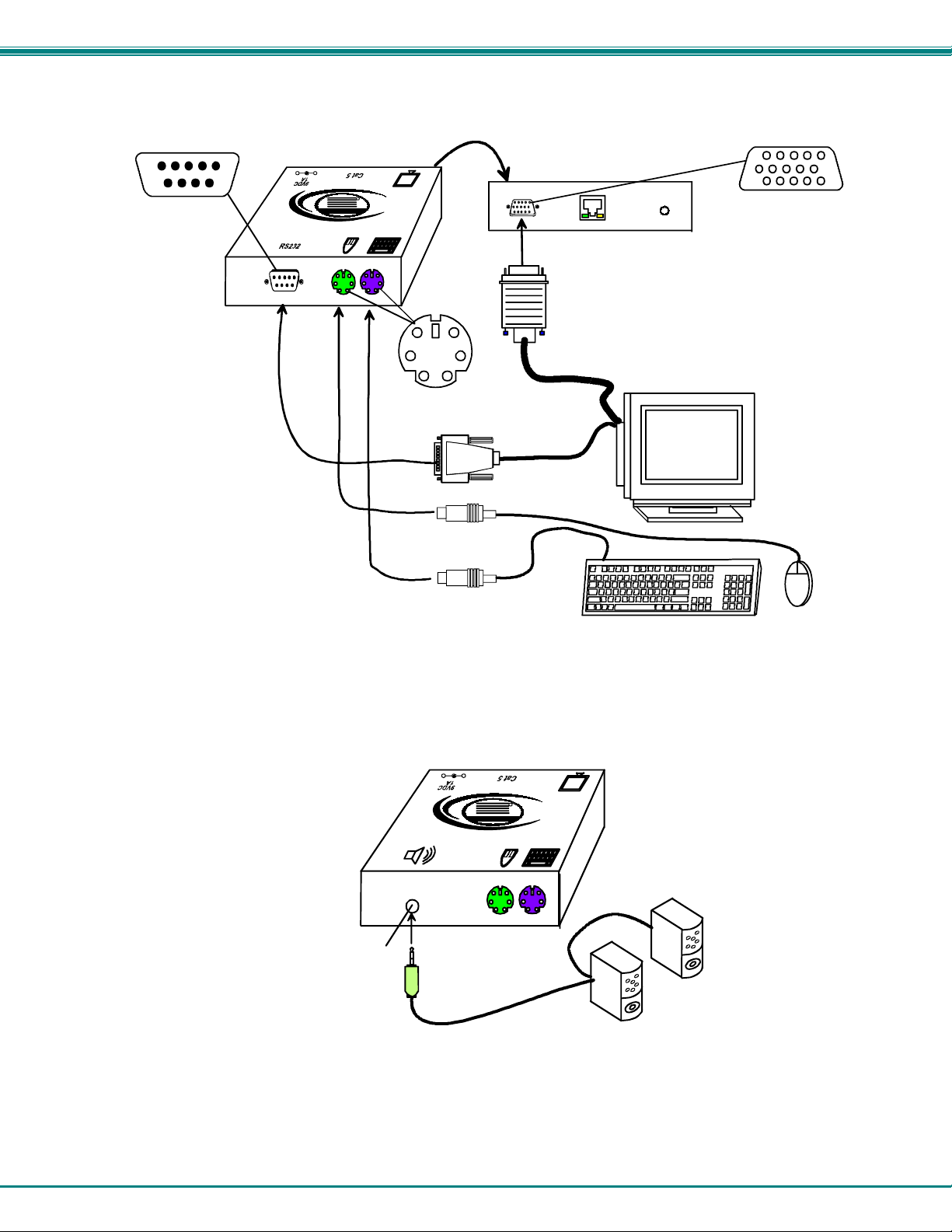

2. Connect the monitor cable to the female 15HD video connector on the Remote Unit.

3. Connect the device(s) to the Remote Unit (see Figure 9)(KVM models only). a) Connect the keyboard to the purple female 6 pin miniDIN connector on the Remote Unit. b) Connect the mouse to the green female 6 pin miniDIN connector on the Remote Unit.

4. If the Remote Unit has RS232 support, connect the remote user's RS232 cable from a touch

screen monitor to the 9D male port on the Remote Unit.

5. If the Remote Unit has audio support, connect the cable from the remote speakers to the 3.5mm

Page 18

NTI XTENDEX 600 Foot Extenders

9D Male RS232 Connector

Front View of Remote Unit

Rear Vi ew of Remote Unit

VGA

Multi-Scan

Monitor

PS/2 KEYBOARD PS/2 MOUSE

15HD Female Video Connector

Remote User's Keyboard, Monitor, and Mouse

6 pin miniDIN

Female Connector

NTI

Network Technologies Inc

XTENDEX

ST-C5KVMRS-600 Remote Unit (Front and Rear View)

Front View

ST-C5KVMA-600 Remote Unit

NTI

Network Technologies Inc

XTENDEX

3.5mm Stereo Audio Jack

Stereo

Speakers

Figure 9- Connect the Extended Components to the Remote Unit

Figure 10- Connect speakers to the Remote Unit

Page 19

NTI XTENDEX 600 Foot Extenders

Rear View

Remote User's Display

S-Video

Display

SVEXT-xx-MM

Front View

ST-C5SVA-600 Remote Unit

NTI

Network Technologies Inc

XTENDEX

3.5mm Stereo Audio Jack

Stereo

Speakers

Installing The Remote Unit (models with S-Video connectors)

1. Position the Remote Unit such that the CATx cable, the s-video cable, speaker cable, and the AC

adapter power connector can each reach the Remote Unit without putting strain on the cables.

2. Connect one 4 pin miniDIN end of another SVEXT-xx-MM cable to the Remote Unit.

3. Connect the other 4 pin miniDIN end of the SVEXT-xx-MM cable to the s-video port on the display.

4. If the Remote Unit has audio support, connect the speakers to the 3.5mm jack on the Remote Unit

(see Figure 11).

Figure 11- Connect components to an S-Video Remote Unit

Page 20

NTI XTENDEX 600 Foot Extenders

Rear View of Remote Unit

XTENDEX

NTI

Network Technologies Inc

CAT5 Cable to Local Unit

Front View

PS/2 KEYBOARDPS/2 MOUSE

Remote User's Keyboard and Mouse

6 pin miniDIN

Female Connector

NTI

Network Technologies Inc

XTENDEX

ST-C5KM-600 Remote Unit

Installing The Remote Unit (models with only KM connectors)

1. Position the Remote Unit such that the CATx cable, the keyboard cable, mouse cable and power supply cable can each reach the Remote Unit without putting strain on the cables.

2. Connect the keyboard to the purple female 6 pin miniDIN connector on the Remote Unit.

3. Connect the mouse to the green female 6 pin miniDIN connector on the Remote Unit.

Figure 12- Connect keyboard and mouse to Remote Unit

Connect the CATx cable

Models With One Remote

Make sure the CATx cable has been installed in accordance with the “Preparation for Installation” instructions on page 3. Connect the CATx cable to the “Cat 5” port on the Remote Unit. (See Figure 13.) When properly inserted the CATx cable end should snap into place.

Note: If an RJ45 wall outlet is being used, connect the other end of

the extension cable to the RJ45 wall outlet.

WARNING: The CATx connection cable used between NTI XTENDEX Series Local and

Remote or any XTENDEX Series products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will damage the extender and void your warranty.

WARNING: Never connect the XTENDEX to an Ethernet card,

Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.

Figure 13- Connect the CATx cable to the Remote Unit

Page 21

NTI XTENDEX 600 Foot Extenders

Models With Two Remotes

Connect the CATx cable from each Remote Unit being used to the “CAT5 Remote 1” and “CAT5 Remote 2” ports on the rear of the Local Unit (see Figure 14). When properly inserted the cable end should snap into place.

Make the remaining connections to the Remote Units as described beginning on page 13.

WARNING: Never connect the

XTENDEX to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.

Figure 14- Connect CATx cables between Local and Remote Units

Page 22

NTI XTENDEX 600 Foot Extenders

Green Power LED

9 VDC

Adapter

ADAPTER

Barrel

(Inside barrel)

(Outside barrel)

Power Connector

2.1 mm x 5. 5 m m Female

9VDC @ 1.0A OUTPUT

Yellow Traffic LED

Rear View of Remote Uni t

ST-C5KVM-R-600

Plug-in and Boot Up

1. Plug the power cord from the monitor into the power outlet. Connect each AC adapter power connector to the 9VDC ports on the Remote and Local Units Plug each AC adapter into a

power outlet. The green LED on the RJ45 connector of both the Remote and Local Units should illuminate, indicating that a proper power connection has been made to them. (See Figure 15.)

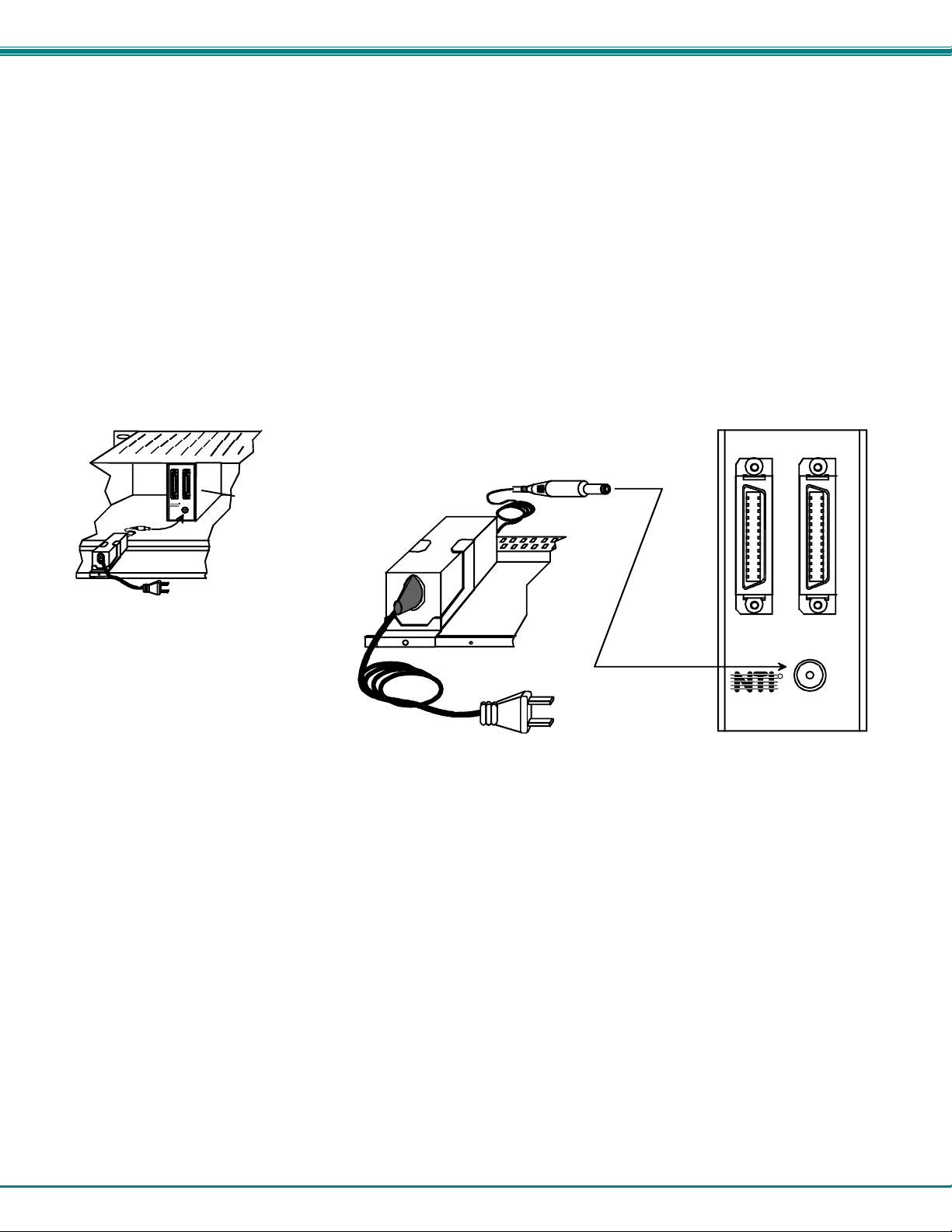

Figure 15- Connect the AC adapter to the Remote Unit

3. Turn ON the CPU and Monitor. They should each react as if they were directly connected to each other.

Note: The Traffic LED on each RJ45 connector will illuminate anytime data traffic is passing between the Local and Remote Units, indicating proper CAT5 cable connection and communication. (See Figure 15)

Page 23

NTI XTENDEX 600 Foot Extenders

Cage Nuts

Rack Screws

Rack

#10-32 x 3/4"

(supplied)

Rackmount Modules (optional)

If ST-C5-600M Series XTENDEX rackmount modules (Local and/or Remote modules) are being installed, then an ST-C6RCK12A Rackmount Extender Module Tray must be used (sold separately) to mount the modules to a RACK. The ST-C6RCK-12A provides a convenient mounting method for up to 12 Local and /or Remote XTENDEX modules.

Note: Rackmount Local modules are compatible with rackmount Remote modules or desktop Remote units.

Mount the ST-C6RCK-12A Rackmount Extender Module Tray

1. The ST-C6RCK-12A Rackmount Extender Module Tray was designed to be directly mounted in a rack. It includes a mounting

flange to make attachment easy.

2. Install 4 cage nuts (supplied) to the rack in locations that line up with the holes in the mounting flange on the tray.

Then secure the tray to the rack using four #10-32 x 3/4” screws (supplied). Be sure to tighten all mounting screws securely.

Figure 16- Mount ST-C6RCK-12A Extender Module Tray in a rack

3. Slide each module into the tray and line up the holes in the mounting plate on the module with corresponding holes in the tray.

Secure the module(s) using the two screws provided. Blank plates and screws are provided to cover empty module spaces.

Figure 17- Secure each module to the tray

4. Secure the power supply for each module to the power supply/cable management shelf at the rear of the tray using the bracket

and screw supplied.

Page 24

NTI XTENDEX 600 Foot Extenders

Figure 18- Secure each power supply to the tray

Page 25

NTI XTENDEX 600 Foot Extenders

Features Supported:

Cable To Use

Video

Keyboard/Mouse

Audio

RS232

VMCTINT-xx-MM

Y Y N

VMATINT-xx-MM

Y Y Y N VMRSTINT-xx-MM

Y Y N Y VTINT-xx-MM

Y N N N VATINT-xx-MM

Y N Y

VRSTINT-xx-MM

Y N N

PS/2 CPU

3.5mm Stereo Plug

AUDIO CONNECTOR

line out

ONE WILL BE MARKED "li ne

out" ,"speaker", "head pho ne s"

OR WITH THIS SYMBOL

15HD male Video Connector

Connect to ST-C5KVMA-L-600M Local Unit at "CPU"

0.05 SCSI II series

VMATINT-3/6/10/15/25-MM

1.0 A

USER

CPU

L 0 C A L

U N

ST-C5KVMA-600M

NTI

www.networktechinc.com

REAR VIEW

ST-C5KVMA-L-600M

(Local Unit)

6mD-Male Keyboard Connector (Purple)

6mD-Male Mouse Connector (Green)

Connect the CPU

Connect a cable between the Local Unit and the CPU. Use the appropriate cable for the application (see chart below). Figure 19 shows the proper connections for the ST-C5KVMA-L-600M using a VMATINT-xx-MM cable (xx= 3, 6, 10, 15 or 25 foot length). Make sure all connec tion s are fir mly seated.

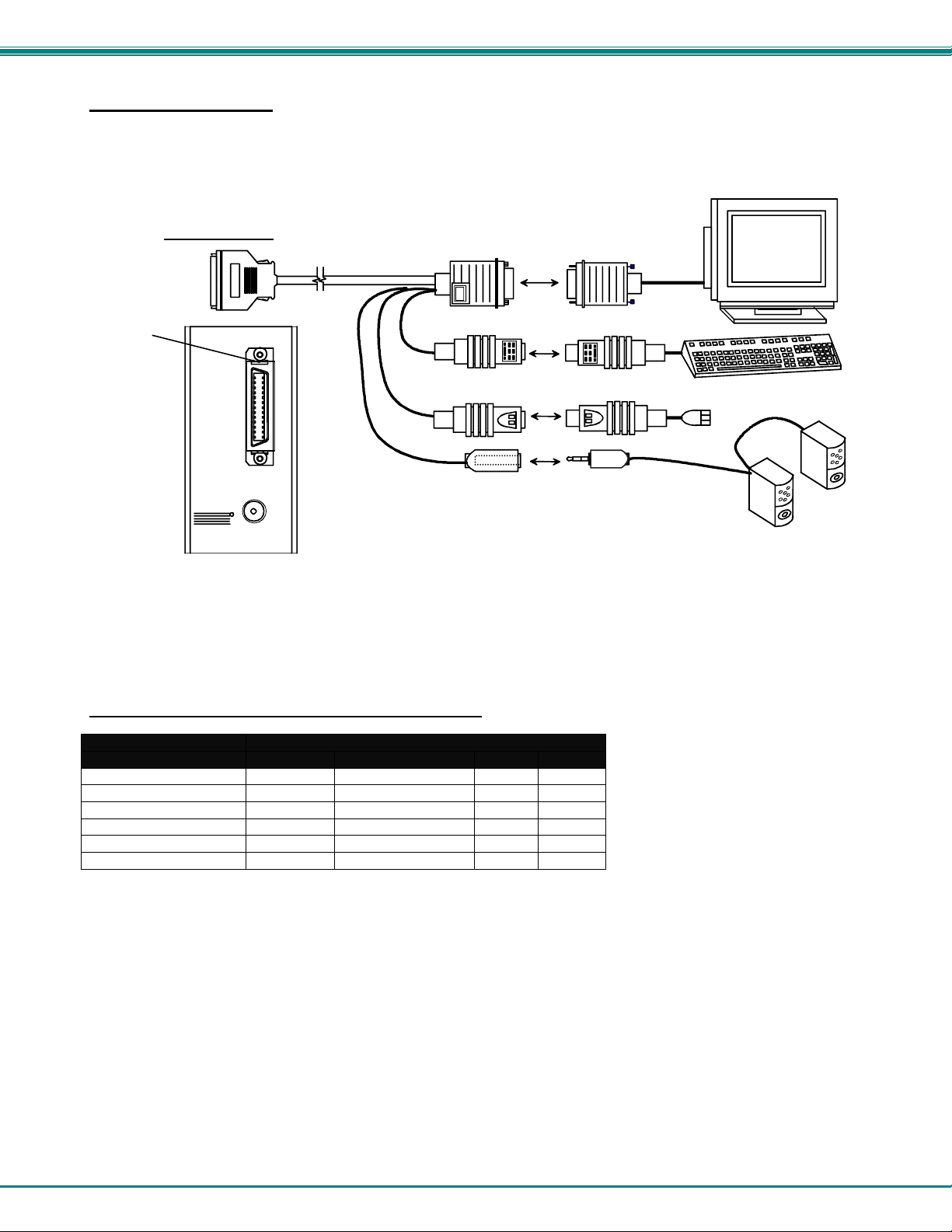

Figure 19- Connect cable between CPU and module

Cables for connecting 600M modules to a CPU

xx= 3, 6, 10, 15 or 25 foot length

Page 26

NTI XTENDEX 600 Foot Extenders

Features Supported:

Cable To Use

Video

Keyboard/Mouse

Audio

RS232

VMCTINT-xx

Y Y N

VMATINT-xx

Y Y Y

VMRSTINT-xx

Y Y N

VTINT-xx

Y N N

VATINT-xx

Y N Y

VRSTINT-xx

Y N N

Stereo

Speakers

PS/2 Keyboard

PS/2

Mouse

15HD-Female

Video Connector

0.05 SCSI II series

VMATINT-3/6/10/15/25

3.5MM-Stereo Jack

VGA

Multi-Scan

Monitor

Connect t o ST-C5KVMA-R-600M Local Unit or Remote Unit at "USER"

USER

1.0 A

E M O

ST-C5KVMA-600M

NTI

www.networktechinc.com

REAR VIEW

ST-C5KVMA-R-600M

(Remote Unit)

6mD-Female Keyboard Connector (Purple)

6mD-Female Mouse Connector (Green)

Connect the Devices

Connect a cable to the monitor, keyboard, mouse, speakers (if supported), and touch screen RS232 cable (if supported) and then to the Local or Remote Unit at the connector marked “USER”. Figure 20 shows the proper conn ect ion s for the ST-C5KVMA-R600M (remote unit) using a VMATINT-xx cable (xx=3,6,10,15 or 25 foot length). Use the appropriate cable for the application (see chart below). Make sure all connections are firmly seated.

Figure 20- Connect cable between user and module

Cables for connecting 600M modules to user devices

xx= 3, 6, 10, 15 or 25 foot length

Page 27

NTI XTENDEX 600 Foot Extenders

CAT5

REMOTE UNIT

NTI

ST-C5KVM-600M

XTENDEX

KVM

CAT5

LOCAL UNIT

NTI

ST-C5KVM-600M

XTENDEX

KVM

Green Power LED

Yellow Traffic LED

(Front View)

ST-C5KV MA-R-600 Remote Unit

-OR-

CAT5 Cable- up to 300 feet Connect L ocal unit to either rackmount Remote Unit m odule (ST-C5KVMA-R-600M) or desktop Remote Unit (ST-C5KVMA-R-600)

ST-C5KVMA-R-600M Remote Unit

(Front View)

NTI

Network Technologies Inc

XTENDEX

Connect the CATx cable

Connect the CATx cable to the “CAT5” port on the front of the Local Unit (see Figure 21). When properly inserted the cable end should snap into place. Connect the other end of the cable to the “CAT5” port on the Remote Unit.

WARNING: Never connect the XTENDEX to an Ethernet card, Ethernet router hub or switch

or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.

Figure 21- Connect the CATx cable between the Local and Remote Units

WARNING: The CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products must be straight through cable, pin 1 to pin 1, pin 2 to pin 2, etc. NO CROSSOVER CABLE can be used.

Page 28

NTI XTENDEX 600 Foot Extenders

1.5 A

USER

CPU

L 0 C A L

U N I T

ST-C5USBVA-30 0M

NTI

Tel:330-562-7070 Fax:330-562-1999

1275 Danner Dr Aurora, OH 44202

www.networktechinc.com

ST-C5KVMA-600M (Local Unit-Rearview)

1.0 A

USER

CPU

0 C A L

U N

ST-C5KVMA-600M

NTI

www.networktechinc.com

REAR VIEW

ST-C5KVMA-L-600M

(Local Unit)

Plug-in and Boot Up

1. Plug the power cord(s) from the monitor(s) into power outlet(s).

2. Connect the AC adapter power connectors to the 9VDC ports on the Remote and Local Units. (AC adapter shown in Figure 22)

3. Plug the AC adapters into power outlets. The “Power” LED (green) on the CAT5 connector of each unit should illuminate, indicating that a proper power connection has been made.

4. Turn ON the CPU and monitor(s). The CPU and monitor(s) should each react as if they were directly connected to each other. The yellow “Traffic” LEDs on the Remote and Local Units (see Figure 21) should blink indicating there is proper communication between them.

Note: A loss of signal (blank screen) may be experienced for an instant during the automatic video quality adjustment process after powering-up. This may also occur if the XTENDEX senses a loss of or weak signal connection in the CAT5 cable.

Figure 22- Connect AC adapters

Page 29

NTI XTENDEX 600 Foot Extenders

Press using pen or other pointe d object to imp r ov e screen image

Side view of ST-C5V-600 Remote Unit

CAT5

NTI

ST-C5V-600M

XTENDEX

REMOTE UNIT

Front Vie w ST-C5V-600M Remote Unit

VIDEO QUALITY Automatic Video Quality Adjustment (see chart on page 1)

Video quality adjustment is done automatically to assure the image is as clear as possible.

Note: When the cable is longer than 300 feet some colored lines can be seen at the black-to-white transitions. This is a normal behavior and is caused by the different twisting rates of each pair of wires in the CATx cable.

Manual Video Quality Adjustment (see chart on page 1)

It is possible that on initial startup the image on the monitor will not be as crisp as the image normally is. This is due to the

frequency characteristics of the CATx cable. It may be necessary to press the "+" or "-" buttons (see Figure 23) until the image is crisp and clear. Press the "+" button if the image is not crisp and clear enough. Press the "-" button if the image has been over-corrected (such that horizontal lines appear to trail or shadow at the edge of an open window). A momentary press of either button will make a minor change in the image. If either button is pressed and held, the changes made will be gradual and continuous. Ultimately, the image quality should improve to a satisfactory level. Once the adjustment is made, it should not be necessary to change it again, as the new settings are stored in memory and become the default settings with each startup.

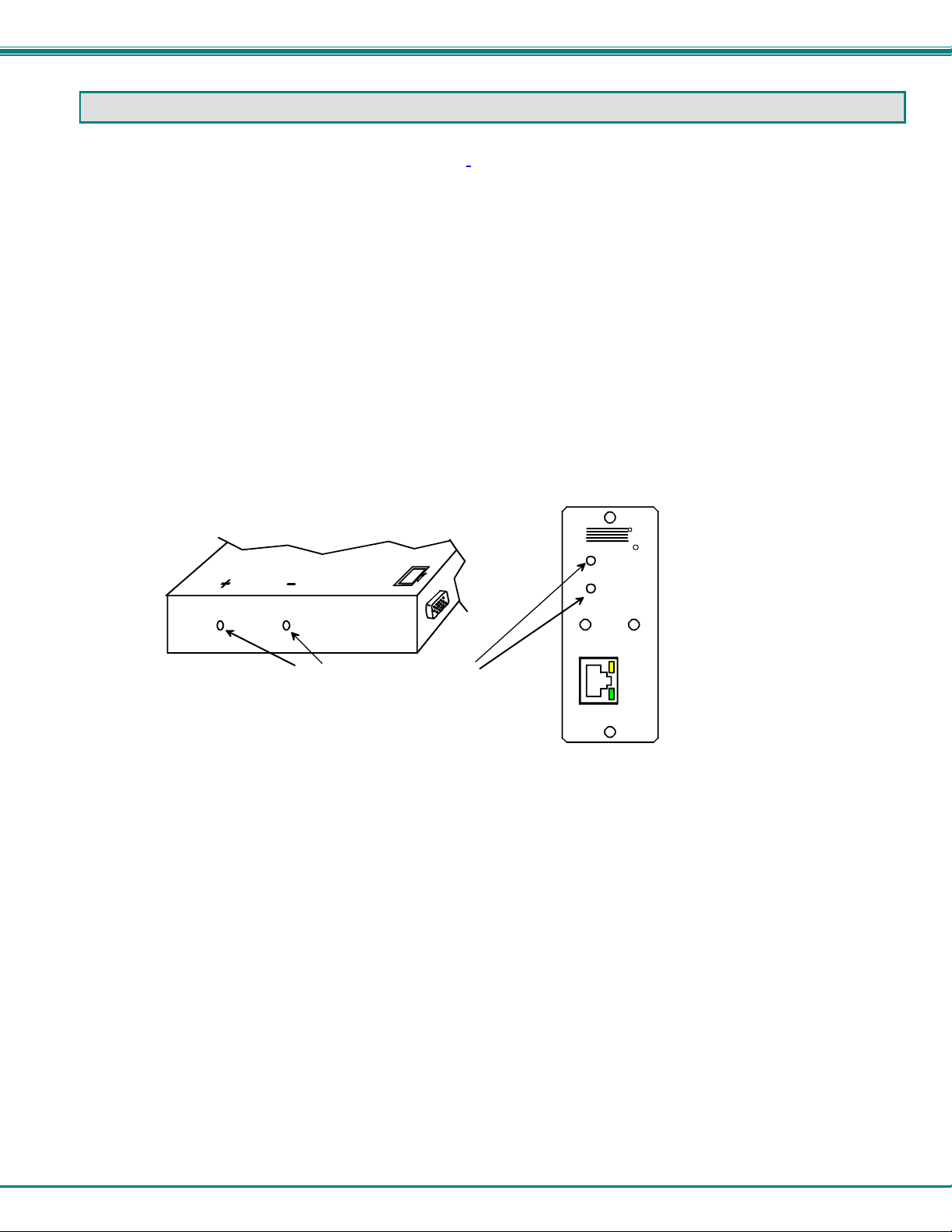

Figure 23- Buttons for video quality adjustment

If the image still lacks definition, configuration adjustments may need to be made to the attached video display equipment. This is a problem most often seen in LCD displays. Check the manual for the equipment having the poor display and look for an "autoadjust" or "auto-configure" feature. Once this is done, you may need to repeat the Video Quality Adjustment procedure described above to achieve the best image.

Page 30

NTI XTENDEX 600 Foot Extenders

Command Mode

Depending upon your unit’s date of manufacture, models ST-C5KVM-600, ST-C5KVMA-600 and ST-C5KVMRS-600 may be enabled with a Command Mode feature to perform the following:

Most of the video quality adjustment is automatic at power ON, but if some adjustment is necessary, this can be done using the keyboard attached to the Remote Unit.

DDC information allows the CPU to detect the video capability of your monitor by transferring EDID data from your monitor to the CPU. DDC information can be updated from either the keyboard at the Local Unit, or at the Remote Unit.

To determine if your extender has this feature, try entering Command Mode (below) from the keyboard attached to the Remote or Local Unit. If Command Mode is present, the three keyboard LEDs (NumLock, CapsLock, and ScrollLock) will blink at the same time to indicate entrance into Command Mode. If the feature is not present, then the section “Automatic EDID Updates” under “Other DDC Support” applies to your KVM extender.

Enter Command Mode

The user can enter Command Mode using any of three different methods; Method 1 (Effective from the Remote or Local Unit)

1. Press and hold the left <Shift> key

2. Press the right <Shift> key

3. Release both keys

Method 2 (Effective from the Remote Unit only) Press and release the <Scroll Lock> key twice fast (press twice within 1 second)

Method 3 (Effective from the Remote Unit only) Press and release the left <Shift> key twice fast, then press and release the <Esc> key once , all within 2 seconds

The three keyboard LEDs (NumLock, CapsLock, and ScrollLock) will blink at the same time to indicate entrance into Command Mode.

 fine adjustment of the general video quali ty  update DDC information between the monitor(s) and CPU

General Video Quality Adjustment

Command Mode opens into General Video Quality Adjustment mode. To fine tune the general video quality, press the <Left Arrow> or <Right Arrow> keys until the desired improvement in the display has been achieved.

Note: General Video Quality Adjustment mode is provided to improve video quality at the remote monitor. Executing this mode from Command Mode when using the keyboard attached to the local unit will have no effect.

Update DDC at Remote

To update DDC information based on the monitor connected to the Remote Unit, press <D> to enter Remote DDC information. The CapsLock LED will illuminate solid, the NumLock and ScrollLock LEDs will be OFF . Press the < Left Arrow> or <Right Arrow> key to cause DDC information to be updated. When the update is complete (less than one second), the unit will return to General Video Quality Adjustment mode (the three keyboard LEDs will blink at the same time).

Update DDC at Local

To update DDC information based on the monitor connected to the Local Unit, press <C> to enter Local DDC information. The CapsLock LED will illuminate solid, the NumLock and ScrollLock LEDs will be OFF . Press the < Left Arrow> or <Right Arrow> key to cause DDC information to be updated. When the update is complete (approximately seven seconds), the unit will return to General Video Quality Adjustment mode (the three keyboard LEDs will blink at the same time).

Note: It is recommended that the monitors connected to the Remote and Local units be of the same make and model.

Page 31

NTI XTENDEX 600 Foot Extenders

Adjustment Mode

NUM LOCK

CAPS LOCK

SCROLL LOCK

General Video Quality

Blink

DDC

OFF

Solid

OFF

Mix DDC

To update DDC information based on resolution characteristics common to the monitors connected to the Local and Remote units, press <N> to enter DDC information from both. The CapsLock LED will illuminate solid, the NumLock and ScrollLock LEDs will be OFF . Press the < Left Arrow> or <Right Arrow> key to cause DDC information to be updated. When the update is

complete (approximately seven seconds), the unit will retur n to General Video Quality Adjustment mode (the three keyboard LEDs will blink at the same time).

Keyboard LED Indications

Reset Defaults

Press the<A> key (while in Command Mode) to reset the fine tuning to default settings. Once settings have been reset, the user will automatically return to General Video Quality Adjustment mode.

Exit Command Mode

Press the <Esc> key to exit Command Mode and return to normal operation. All keyboard LEDs will return to current keyboard LED state.

Note: Command Mode will time out and return to normal operation on its own after 7 seconds when operated from the Local keyboard.

FYI: Video quality will be limited by several factors. Some factors include the quality and type of CAT5 cable being used, the length of cable run, the quality of the monitor, the resolution setting of the monitor, and the quality of the video card used in the video source. If the desired level of image clarity cannot be achieved by making the adjustments described in this section, consider the following possible adjustments that can be made:

• Improve the quality of cable used -CAT5,5e,or 6 (CAT5e unshielded (UTP) cable will provide the best

performance)

• Use unshielded cable (UTP) instead of shielded cable (STP)

• Shorten the length of the cable between the remote and local

• Reduce the resolution setting on the monitor used

• Use a higher quality video card in the video source

Other DDC Support

Automatic EDID Updates

Applicable to models without keyboard and mouse support and rackmount models (ST-C5xxxx-600M).

The 15HD connector on m any mode ls provides local video as well as DDC support. The ED ID data is updated auto mat ica l ly at initial power-ON or whenever a different monitor is connected to the Local Unit. DDC is only updated from the monitor connected to the Local Unit. For that reason, it is recommended that the monitor connected to the Remote and Local Units be the same model. The Local Unit and the monitor must both be powered-ON prior to the CPU in order to update the EDID data.

Note: The ST-C5xxx-L-600M Local Unit will not store the EDID data. A monitor must be connected to the Local Unit each time the CPU is power cycled in order for EDID data to remain current.

Note: When an ST-C5KVM(xx)-R-600 Remote Unit is used with an ST-C5KVM(xx)-L-600M (Rackmount Local Unit), Automatic EDID Update will work as described above. DDC Update via Command Mode (as described on the previous page) will not be supported at the Remote Unit.

Page 32

NTI XTENDEX 600 Foot Extenders

DDC Update Button

ST-2C5KVM-L-600

(Front View)

EDID Capture Port

Manual EDID Capture

Applicable to ST-2C5xxxx-L-600 models only.

The 15HD connector on the ST-2C5V(A)-L-600 provides only support for DDC, no video. The ST-2C5V(A)-L-600 Local U nit includes a button labeled “DDC Update” to be pressed in order to record and save EDID data.

To capture EDID data;

1. Connect a monitor to the 15HD connector on the Local Unit labeled “EDID Capture”.

2. Power ON both the monitor and Local Units.

3. Press the button labeled “DDC Update” with a sharp object.

The capture will start right away and the green LED of the “CAT5 Remote 1” connector will turn OFF while the EDID data is transferred. The green LED will illuminate again once the transfer is complete and the unit is ready for normal use. The ST-2C5V(A)-L-600 Local Unit will save the EDID data and present that information to the CPU any time the CPU is power-cycled.

Note: The 15HD connector on the ST-2C5V(A)-L-600 is only used for capturing EDID data. It is not a video port for viewing local video.

Figure 24- DDC Update Button on Local with Dual Remote Support

When used, the monitors connected to both Remote Units should be the same model. If necessary, the Local Unit can be connected to the monitor at the site of the remote and powered by the power supply at the remote location. Following the process described above, EDID data can be recorded and the Local Unit relocated to the site of the CPU.

Figure 25- Connect remote monitor for EDID capture

Applicable to ST-C5xxxx-L-600 models only.

The 15HD connector on the ST-C5V, -C5VA and –C5VRS-L-600 supports DDC and video. If your unit includes a “DDC Update” button, it can be pressed in order to retrieve EDID from the Remote and Local monitor and forward it to the CPU. Additionally, the ST-C5Vxx-L-600 Local Unit will save the EDID data and present that information to the CPU any time the CPU is power-cycled. The EDID capture method is the same as described above.

Page 33

NTI XTENDEX 600 Foot Extenders

More About DDC

The recording and DDC transfer of EDID data from the monitor(s) enables the CPU to know what resolution settings are compatible with the monitor(s) connected. Once this data is provided to the CPU, your graphics card will either automatically update to the best resolution available (some models of graphic cards, not all), or you will need to choose from the available settings. Bear in mind, the choices of settings compatible with the monitors are not necessarily all going to be usable. If the length of CATx cable in your installation is too long for the selected resolution, the image at the Remote Unit monitor may not be viewable. Be sure to select a resolution setting that your installation will support. For supported combinations, see the chart on page 30.

Page 34

NTI XTENDEX 600 Foot Extenders

Models with VGA Video

Video Compatibility

SVGA, XGA, VGA

Video Coupling

Video Connectors

HD15 male to CPU HD15 female to monitor

Input / Output Impedance

75 Ohms

Input Horizontal Frequency Range

15kHz to 130 Hz

Input Vertical Frequency Range

30 Hz to 150 Hz

Sync Types Supported

Separate and composite TTL Level and sync on green

Video Maximum I/O Levels

1.45Vp-p

Models with S-Video

Video Compatibility

All s-video displays and sources

Video Coupling

Video Connectors

4 pin miniDIN male to video source 4 pin miniDIN female to display

Video Maximum I/O Levels

1.45Vp-p

Input / Output Impedance

75 Ohms

Models with Keyboard/Mouse support

Keyboard/Mouse Connectors

Female 6 pin miniDIN to Keyboard and Mouse Male 6 pin miniDIN to CPU device ports

Mouse and Keyboard Compatibility

All PS/2 mice and keyboards

Keyboard and Mouse Current Rating

500mA maximum

Models with Audio Support

Audio Connectors

3.5mm stereo jack to speakers RCA phono plug to audio source (S-Video Models)

Signal Type

Line Level, stereo, unbalanced

Audio Frequency Response

20Hz to 20Khz, + 1dB

Signal-to-noise ratio

76 dBA

Total Harmonic Distortion and Noise

0.017%

Stereo Crosstalk

-70 dB

Audio Maximum I/O Levels

3.1Vp-p

Output Impedance

Max 2K Ohms, unbalanced

THD+N

0.017%,F=20-20KHz, RL=2K Ohm, Vout=1 Vrms

Models with RS232 Support

RS232 Connectors

9D male to device 9D female to CPU

RS232 Baud Rate

56K bps maximum (no adjustment for baud rate is needed)

RS232 Compatibility

RXD, TXD, RTS, DTR, CTS, DSR

General

Interconnect Cable

CAT5/5e/6 Solid UTP EIA/TIA 568 B wiring w/ male RJ45 connectors

Remote and Local Unit Power

120V or 240V at 50 or 60Hz-9VDC/1.0A via AC Adapters (2)

Dimensions WxDxH (In.) (Local or Remote)

3.1x3.4x1 (Desktop models)

Dimensions WxDxH (In.) (Local or Remote)

1.4x6.8x3.5 (Rackmount modu les)

UTP CABLE

DISTANCE (feet)

RESOLUTION

CAT5/CAT5e

600

1024x768 at 60Hz

CAT5/CAT5e

400

1280x1024 at 60Hz

CAT5/CAT5e

300

1600x1200 at 60Hz

CAT5/CAT5e

100

1920x1440 at 60Hz

CAT6

300

1024x768 at 60Hz

CAT6

200

1280x1024 at 60Hz

CAT6

100

1920x1440 at 60Hz

TECHNICAL SPECIFICATIONS

3.5mm stereo plug to CPU (VGA Video Models)

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables Unshielded Twisted Pair (UTP) Resolutions

Page 35

NTI XTENDEX 600 Foot Extenders

Wire Color

Pair

Function

1 White/Orange

2 Orange 2 R

3 White/Green

3 T 4 Blue 1 R

5 White/Blue

6 Green 3 R

7 White/Brown

8 Brown 4 R

T 1

R 2

T 3

R 4

T 5

R 6

T 7

R 8

Pair 2

Pair 1

Pair 4

Pair 3

INTERCONNECTION CABLE WIRING METHOD

The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is as per the table and drawing below.

Figure 26- View looking into RJ45 female

Page 36

NTI XTENDEX 600 Foot Extenders

Problem

Cause

Solution

Remote or Local Unit

• Power supply is not connected or

• Make sure outlet is live and AC adapter is plugged-in.

Local power LED does CPU is powered

• The keyboard connector is not

• Check keyboard connection

No Video on monitor

• One or more video cables is loose

• Check all video cable connections

cord.

Video Picture is not sharp

• CATx cable is too long.

• Verify length is within specified limits-600'.

adjustment instruction.

The picture on the monitor than color

The video cable was not attached to

With the cables all properly connected, reboot the CPU.

A constant vertical wobble appears down the screen

CATx cable is too close to a strong power source.

Reroute CATx cable if possible.

Monitor sometimes loses

• Electrical power system is very

connected.

• Make sure the interconnection cable is not near any

in properly and completely.

Wrong or missing typed

The keyboard may be in the wrong

• Disconnect keyboard at Remote Unit end and reconnect.

CPU doesn't detect the

• Keyboard cable or mouse cable

• Check cable connections

IBM Scroll Point mouse is

Only one IBM Scroll Point mouse is

• In order for an IBM Scroll Point mouse to be recognized,

be recognized and work only as a Microsoft Intellimouse.

Image is not displayed

Signal is being skewed by the CATx

• Check the user's manual for the monitor, projector, or

monitors.

TROUBLESHOOTING

Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. If the answer is not found in the chart, a solution may be found in the knowledgebase on our website at

http://information.networktechinc.com/jive/kbindex.jspa or contact us directly for help at 1-800-742-8324 (800-RGB-TECH) in US

& Canada or 1-330-562-7070 worldwide. We will be happy to assist in any way we can.

yellow power LED does not illuminate

not illuminate when the

or is smeared

is black and white, rather

sync, causing it to go blank for a second or two

plugged-in.

properly plugged in

or disconnected.

• No power to Remote or Local Units.

• Video Cable was not attached when CPU was booted.

• CATx cable is not connected.

• Local and/or Remote Unit has no

earth ground

• Video not adjusted

the CPU when it was booted.

noisy, particularly the ground.

• The CATx cable is not properly

(one for the Remote and one for the Local)

• Make sure 9VDC jack is fully connected

• Make sure yellow LEDs are illuminated for local and

remote. If not, see solutions for first two problems above.

• With all the cables properly connected, reboot the CPU.

• Check cable connections. Make sure they are snapped-

in properly and completely and reboot.

• Ensure Local and Remote Units are grounded either through display or a source that uses a 3-prong pow er

• Check cable connections and power cycle. If model has manual quality adjustment buttons see page 24 for

power lines.

• Check cable connections. Make sure they are snapped-

characters from those

keyboard and the mouse

not recognized by CPU

properly, lacks definition

mode.

are loose or reversed

• CATx cable is too long

connected at either the Local or Remote unit

cable and not being received correctly by the monitor .

• Reboot the system.

• CATx cable can be no more than 600 feet in length

an IBM Scroll Point mouse must be connected at both the Local and Remote extender units. Otherwise it will

display equipment for an "automatic adjustment" or "auto-configure". This is most common to LCD type

Page 37

NTI XTENDEX 600 Foot Extenders

Problem

Cause

Solution

Models with RS232 Support

No RS232 communication

• One or more RS232 cables is loose or disconnected

• Check all RS232 cable connections

Models with Audio Support

No audio

• Audio cable is not properly

connected

• Check all cable connections

plugged in

• Speakers are not plugged in

• CATx cable is not properly

• Verify speakers are connected and powered

• Check CATx cable connections

INDEX

cables to CPU, 21 cables to user, 22

cat5 cable pinout, 31 Command mode, 26 DDC, 26 DDC support, 26 installation-desktop, 9 installation-rackmount, 19 limitations, 7

mount to a rack, 19 preparation to install, 8 Rackmount modules, 19 reset defaults, 27 resolution chart, 30 ST-C5RCK-12, 19 technical specification, 30

video quality adjustment, 25

WARRANTY INFORMATI O N

The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.

Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.

WARNING: Outdoor or underground runs of CATx cable could be dangerous and will void the warranty.

Manual 014 Rev. 10/27/17

http://www.networktechinc.com
