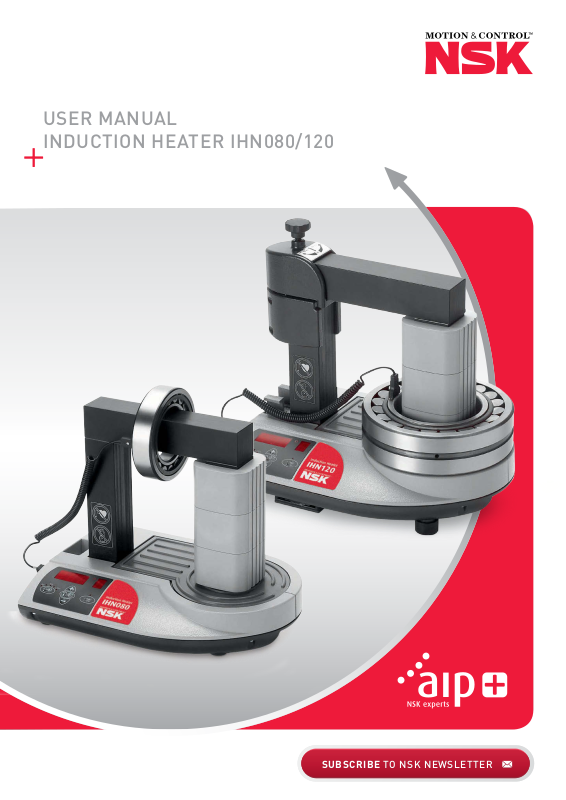

INDUCTION HEATER IHN080/120
Table of Contents
Chapter ����������������������������������������������������������������������������������������������������������������������������������������������� Page
1 Introduction ��������������������������������������������������������������������������������������������������������������������������������������3 1�1 Intended Use ������������������������������������������������������������������������������������������������������������������������������������3 1�2 Principle of Operation ����������������������������������������������������������������������������������������������������������������������4 1�3 Distinguishing Feature ���������������������������������������������������������������������������������������������������������������������4
2 Description ���������������������������������������������������������������������������������������������������������������������������������������4 2�1 Components �������������������������������������������������������������������������������������������������������������������������������������4 2�2 Technical Data ����������������������������������������������������������������������������������������������������������������������������������5
3 Installation of Mains Plug ���������������������������������������������������������������������������������������������������������������5
4 Preparation for Use ��������������������������������������������������������������������������������������������������������������������������6
5 Operation ������������������������������������������������������������������������������������������������������������������������������������������7 5�1 Function of Displays ������������������������������������������������������������������������������������������������������������������������7 5�2 Function of Buttons �������������������������������������������������������������������������������������������������������������������������8 5�3 Temp Mode ��������������������������������������������������������������������������������������������������������������������������������������8 5�4 Time Mode ���������������������������������������������������������������������������������������������������������������������������������������9 5�5 Temperature Measurement ������������������������������������������������������������������������������������������������������������9 5�6 Change of Temperature Unit �����������������������������������������������������������������������������������������������������������9 5�7 Demagnetisation �����������������������������������������������������������������������������������������������������������������������������9 5�8 Power Level Selection ������������������������������������������������������������������������������������������������������������������ 10
6 Safety Features ����������������������������������������������������������������������������������������������������������������������������� 10
7 Troubleshooting ���������������������������������������������������������������������������������������������������������������������������� 11
8 Spare Parts ������������������������������������������������������������������������������������������������������������������������������������ 11
2

Safety Recommendations

Because the IHN080/120 generates a magnetic field,
people wearing a pacemaker must not be within 5 m (16 ft) of the IHN080/120 during operation� Electronic equipment, such as wrist watches, may also be affected�
Follow the operating instructions at all times� Be certain that the voltage supply is correct� Electrical arcing may occur when a potential difference
exists between the IHN080/120 and the workpiece� This is not dangerous to human beings and will not cause damage to the IHN080/120 or the workpiece� However, the IHN080/120 must never be used in areas where there is a risk of explosion�
Do not expose the heater to high humidity� Never operate the IHN080/120 without a yoke in
position�
Do not modify the IHN080/120� Use proper handling equipment when lifting heavy
workpieces�
Avoid contact with hot workpieces� Wear the supplied
heat-resistant gloves to handle hot workpieces�
1 Introduction
The IHN080/120 induction heater is designed to heat bearings that are mounted with an interference fit onto a shaft� The heat causes the bearing to expand, which eliminates the need to use force during installation� A 90°C (194°F) temperature difference between the bearing and shaft is generally sufficient to enable installation� At an ambient temperature of 20°C (68°F), the bearing must therefore be heated to 110°C (230°F)�
1.1 Intended Use
The IHN080/120 has been designed to heat rolling bearings� However, other metal workpieces that form a closed circuit can also be heated� Examples of acceptable workpieces include bushings, shrink rings, pulleys, and gears� All bearings that fit over the inductive coil and between the vertical supports with the top yoke in place can be heated using the IHN080/120� In addition, smaller bearings can be placed over either of the three standard yokes�
3
1.2 Principle of Operation
The IHN080/120 generates heat by means of a large electrical current that is magnetically induced in the workpiece by a coil within the heater� The high voltage, low current electricity flowing through the large number of windings in the inductive coil induces low voltage, high current electricity in the workpiece� Because the workpiece has the electrical characteristics of a coil with a single, short-circuited winding, the high current generates heat within the workpiece� Because the heat is generated within the workpiece, all of the heater components remain cool�
1.3 Distinguishing Feature
The distinguishing feature of the IHN080/120 induction heater is the location of the workpiece at the same position on the core as the inductive coil� This design improves efficiency, resulting in less power consumption and faster heating, which reduces the cost to heat each bearing�
2 Description
The operation of the heater is controlled by the internal electronics in either of two modes� The operator can either select the desired temperature of the bearing in TEMP MODE or set the length of time that the bearing will be heated in TIME MODE� The power level can be adjusted in steps of 20% for slower heating of sensitive workpieces (for example, bearings with C1 or C2 clearance)�
2.1 Components
The IHN080/120 induction heater contains a U-shaped iron core with an inductive coil surrounding one of the vertical sup­ports� Internal electronics control the operation of the heater� A removable yoke on the top of the vertical supports allows the workpiece to be placed onto the heater� The top yoke of the IHN120 is mounted on a swivel� To accommodate smaller workpieces, two smaller yokes are also provided� A temperature probe is included with the heater� Heat-resistant gloves are also included�
4
