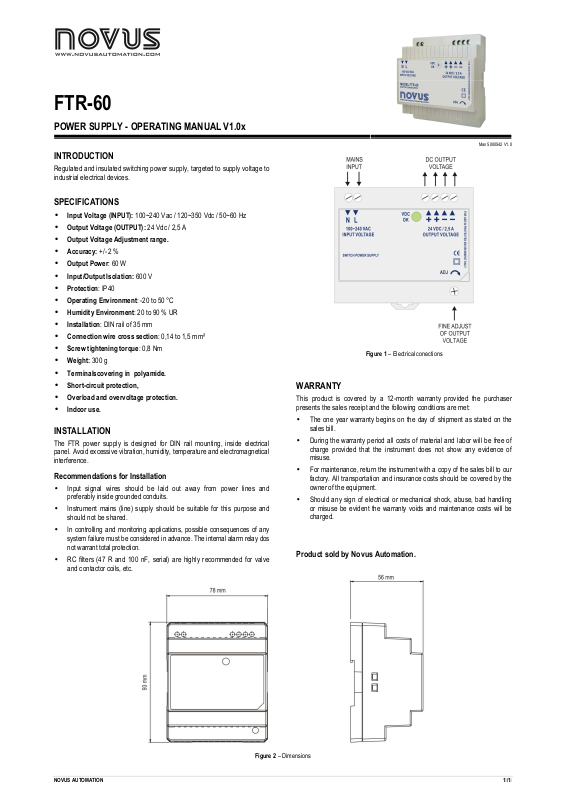

NOVUS FTR-60 User Manual

FTR-60

POWER SUPPLY - OPERATING MANUAL V1.0x

INTRODUCTION

Regulated and insulated switching power supply, targeted to supply voltage to
industrial electrical devices.

SPECIFICATIONS

•

Input Voltage (INPUT): 100~240 Vac / 120~350 Vdc / 50~60 Hz

•

Output Voltage (OUTPUT): 24 Vdc / 2,5 A

•

Output Voltage Adjustment range.

•

Accuracy: +/- 2 %

•

Output Power: 60 W

•

Input/Output Isolation: 600 V

•

Protection: IP40

•

Operating Environment: -20 to 50 °C

•

Humidity Environment: 20 to 90 % UR

•

Installation: DIN rail of 35 mm

•

Connection wire cross section: 0,14 to 1,5 mm²

•

Screw tightening torque: 0,8 Nm

•

Weight: 300 g

•

Terminalscovering in polyamide.

•

Short-circuit protection,

•

Overload and overvoltage protection.

•

Indoor use.

INSTALLATION

The FTR power supply is designed for DIN rail mounting, inside electrical
panel. Avoid excessive vibration, humidity, temperature and electromagnetical
interference.

Recommendations for Installation

• Input signal wires should be laid out away from power lines and

preferably inside grounded conduits.

• Instrument mains (line) supply should be suitable for this purpose and

should not be shared.

• In controlling and monitoring applications, possible consequences of any

system failure must be considered in advance. The internal alarm relay dos
not warrant total protection.

• RC filters (47 R and 100 nF, serial) are highly recommended for valve

and contactor coils, etc.

Man 5000542 V1.0

Figure 1 – Electrical conections

WARRANTY

This product is covered by a 12-month warranty provided the purchaser
presents the sales receipt and the following conditions are met:

• The one year warranty begins on the day of shipment as stated on the

sales bill.

• During the warranty period all costs of material and labor will be free of

charge provided that the instrument does not show any evidence of
misuse.

• For maintenance, return the instrument with a copy of the sales bill to our

factory. All transportation and insurance costs should be covered by the
owner of the equipment.

• Should any sign of electrical or mechanical shock, abuse, bad handling

or misuse be evident the warranty voids and maintenance costs will be
charged.

Product sold by Novus Automation.

Figure 2 – Dimensions

NOVUS AUTOMATION 1/1
