TM
Autofil
Stand Cleaning Procedure
Rev 01
S
TEP
1
S
TEP
2
1. Introduction:
The AutofilTM filtration system has been designed for use in laboratory
environments. The materials of construction are compatible with common
disinfectants and sanitizing agents. The smooth contoured design is readily
cleaned by spraying or applying a disinfectant and wiping as required.
Under normal operating conditions, fluids should not come in contact with the
internal plumbing of the Autofil
do come in contact with the internal plumbing, the following procedure can be
followed to decontaminate the system.
2. Preparing the Sanitizing Agent:
a) The following sanitizing agents can be used:
• Iodophors (follow manufacturers recommended dilution)
• Alcohols (effective dilution is 70-85%)
• Commercially available disinfectants
NOTE:
Use of hypochlorite (bleach) is not recommended. Prolonged exposure
to hypochlorite may cause corrosion to internal stainless steel
components. Adequate water rinsing is necessary if hypochlorite
solution is used.
b) Prepare 500mL of sanitizing agent in a proper flask or container following
manufacturer’s recommendation.
3. Prepare the pedestal or cradle ring stand for sanitation (refer to illustration below)
a) 1) Inserting a blunt point into the hole and gently remove rubber gasket
from the pedestal or cradle ring stand. 2) Insert vacuum tube adaptor into
main vacuum port.
TM
pedestal or cradle ring stand. In the event fluids
REMOVE RUBBER
MAIN VACUUM PORT
INSERT VACUUM
ON/OFF

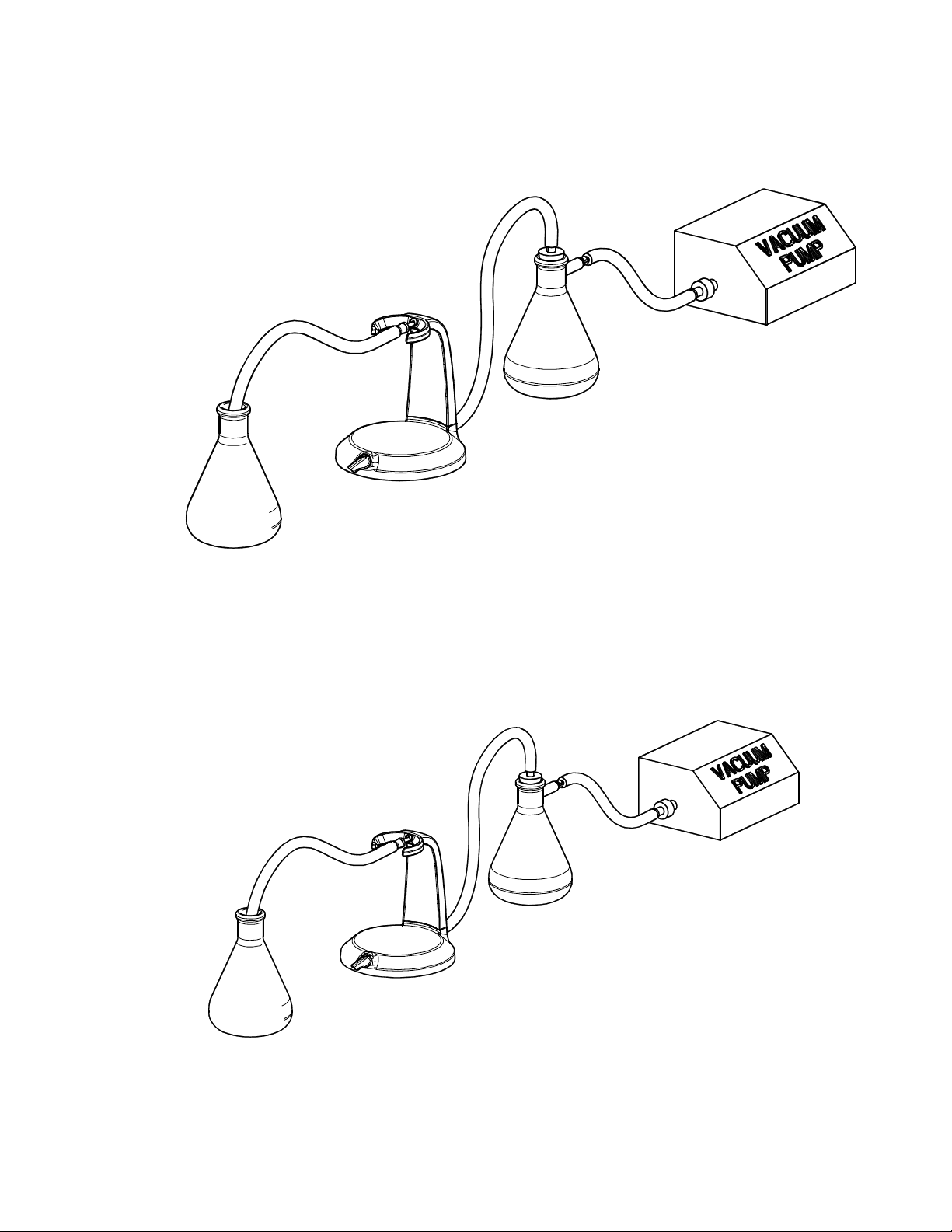

b) Assembly vacuum trap for accepting waste solution between vacuum
pump and pedestal or cradle ring stand.
c) Attach feed tube to adaptor and place open end into vessel containing
sanitizing agent.
SANITIZING AGENT
VACUUM TRAP
CLEAN WATER
4. Sanitize pedestal or cradle ring stand
a) Turn on the vacuum system
b) Draw the 500mL of solution through the pedestal or cradle ring stand
and into the vacuum trap.
c) Allow stand to set for 30 minutes prior to rinsing.
SANITIZING AGENT
d) Remove feed tubing from stand and place into clean water container.
e) Draw approximately 500mL’s of distilled water through the pedestal or
cradle ring stand and into vacuum trap to rinse the system
VACUUM TRAP
VACUUM TRAP
CLEAN WATER
