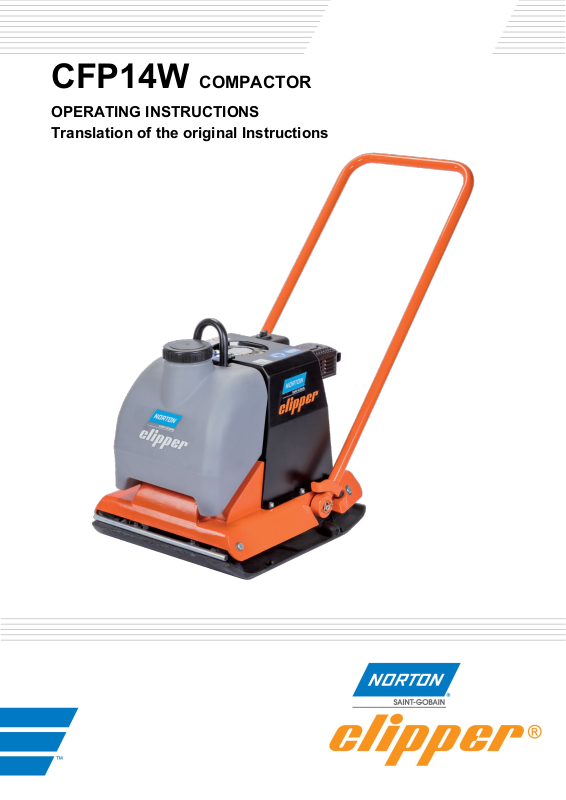

Norton Clipper CFP 14W User guide

CFP14W

Translation of the original Instructions

COMPACTOR

OPERATING INSTRUCTIONS

VERS. 01.09.2019 CFP14 W _MAN_EN

Declaration of conformity

The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A.

190, BD. J. F. KENNEDY

L-4930 BASCHARAGE

Declares that this product: Norton Clipper Compactors CFP14 W

Code: 70184608009 HATZ 1B20

Code: 70184608010 HONDA GX160

Is in conformity with the following Directives:

"MACHINES" 2006/42/CE
"NOISE" 2000/14/CE

And European standard :

• EN 500-1 Mobile road construction machinery. Safety - Part 1: Common requirements

• En 500-4 Mobile road construction machinery - Safety - Part 4: Specific requirements for

compaction machines

Valid for machines as of serial number : 450xxxxxxx

Storage site for the technical documents :
Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG

This declaration of conformity loses its validity when the product is converted or modified without agreement.

Bascharage, Luxembourg, le 01.09.2019 :

François Chianese, executive officer.

2

VERS. 01.09.2019 CFP14W _MAN_EN

Norton Clipper CFP14W

OPERATING INSTRUCTIONS

TABLE OF CONTENTS

1 BASIC SAFETY INSTRUCTIONS

1.1 Symbols

1.2 Machine plate

1.3 Safety instructions for particular operating phases

2 MACHINE DESCRIPTION

2.1 Short description

2.2 Purpose of use

2.3 Layout

2.4 Technical Data

2.5 Statement regarding the vibration emission

2.6 Statement regarding noise emission

3 ASSEMBLY AND COMMISSIONING

3.1 Starting the machine Honda

3.2 Starting the machine Hatz

4 TRANSPORT AND STORING

4.1 Securing for transport

4.2 Transport procedure

4.3 Long period of inactivity

5 OPERATING THE MACHINE

5.1 Site of work

5.2 Preparing the site

5.3 Floating and finishing operation

6 MAINTENANCE AND SERVICING

6.1 Maintenance of the machine

7 FAULTS: CAUSES AND CURES

7.1 Fault-finding procedures

7.2 Trouble-shooting guide

7.3 Spare parts

3

VERS. 01.09.2019 CFP14 W _MAN_EN

Read operator's instructions

Ear protection must be worn

Hand protection must be worn

Eye protection shall be worn

1-BASIC SAFETY INSTRUCTIONS

The Norton Clipper CFP14W is exclusively designed for compaction mainly on construction sites.
Uses other than the manufacturer's instructions shall be considered as contravening the regulations.
The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne
entirely by the user. Observing the operating instructions and compliance with inspection and
servicing requirements shall also be considered as included under use in accordance with the
regulations.

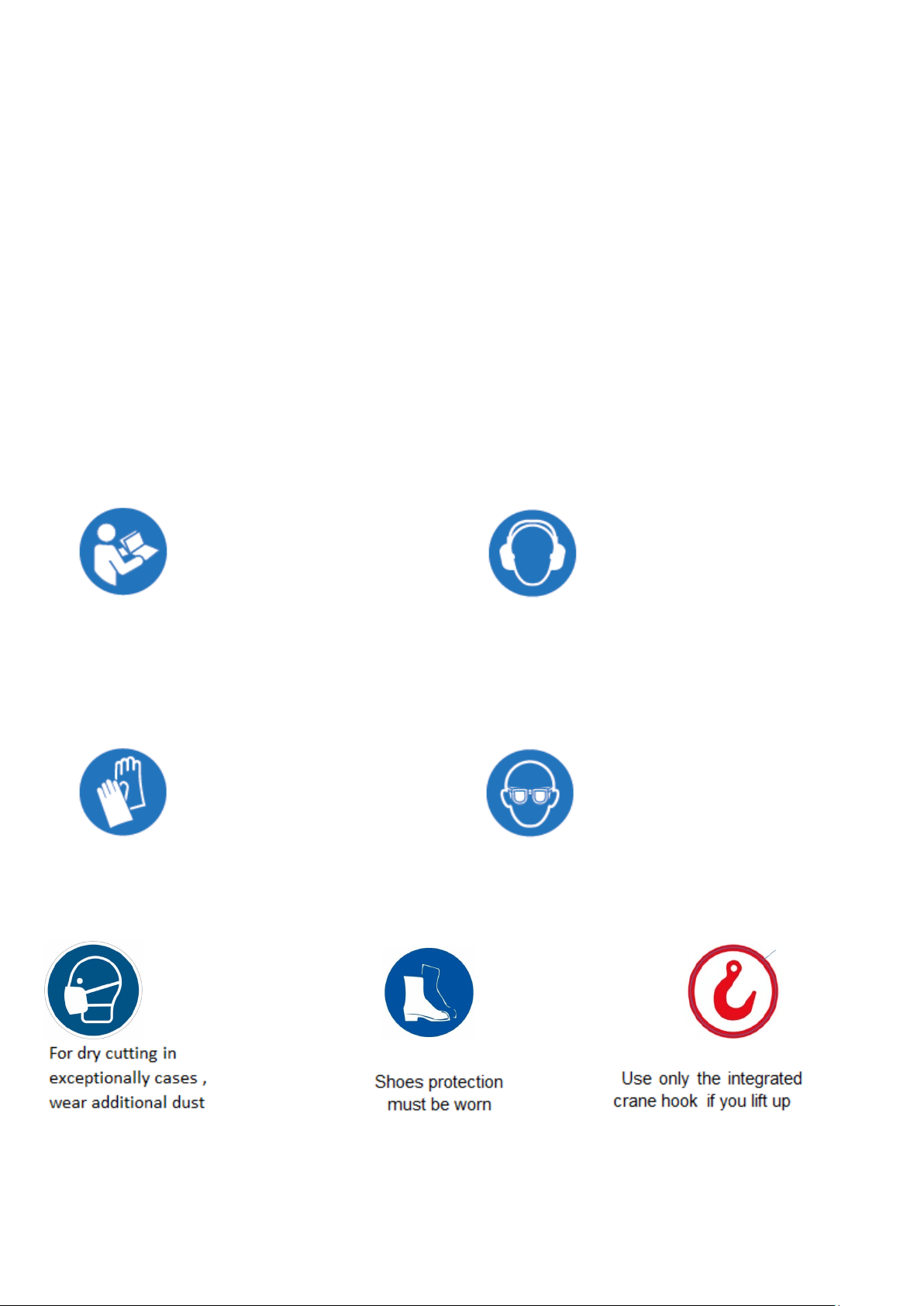

1.1 Symbols

Important warnings and pieces of advice are indicated on the machine using symbols. The following
symbols are used on the machine:

4

VERS. 01.09.2019 CFP14W _MAN_EN

Machine model

Machine code
Machine Weight

Year of production

Serial number

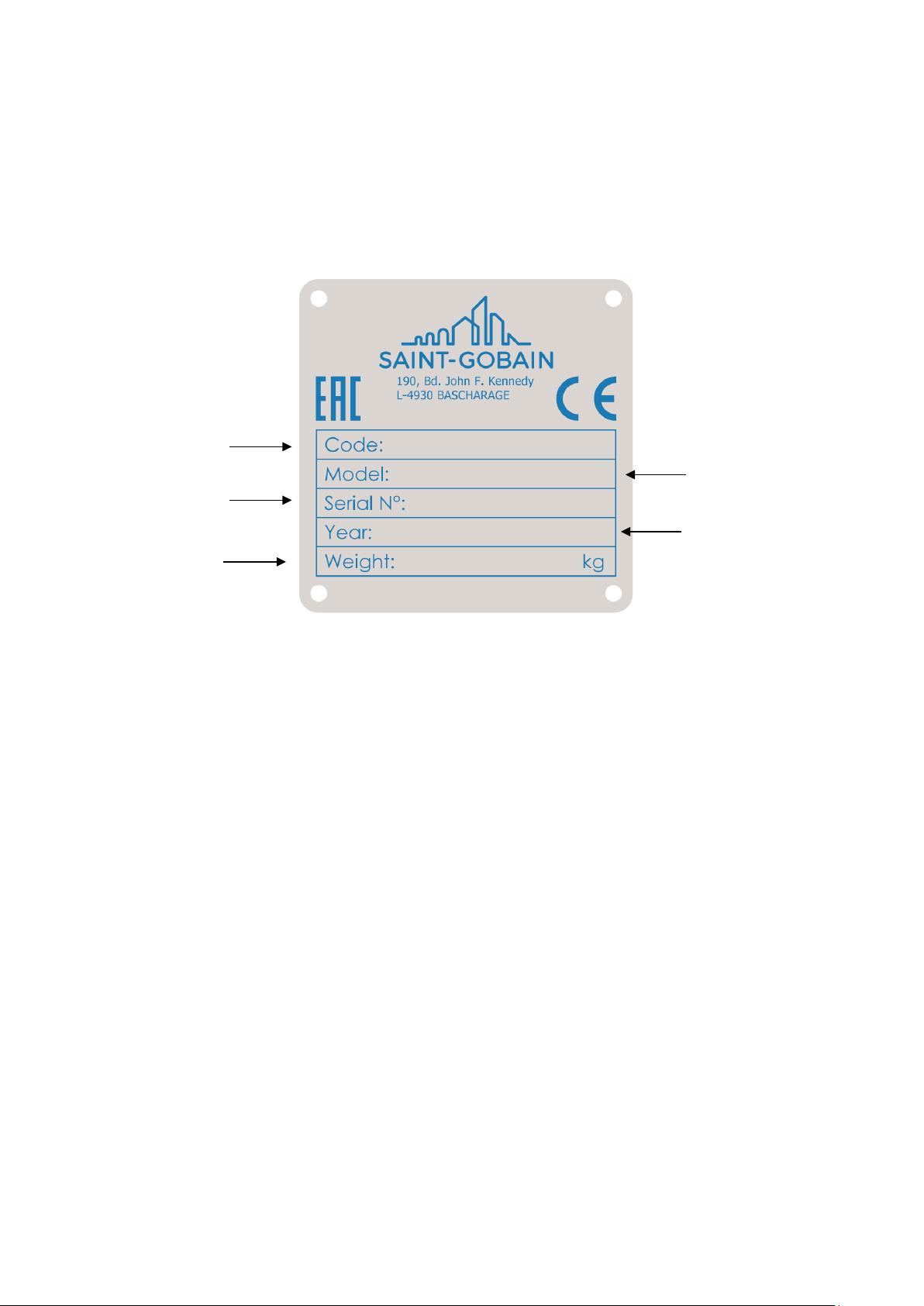

1.2 Machine plate

Important data can be found on the following plate located on the machine:

1.3 Safety instructions for particular operating phases

Before starting the work

• Before commencing work, make yourself familiar with the working environment at the place

• Plate compactors must only be used for compaction jobs observing safety and operating

• People who work with plate compactors must know everything regarding safety instructions.

• Do not take drugs or drink alcohol before using plate compactors.

• Always wear appropriate protective clothes (ear protections, gloves, protecting shoes and

• Do not alterate the operation devices of the plate compactor.

• Do not leave control elements during compaction.

• Store the compactor with engine off in a safe place.

• Always refill fuel tank when the engine is off. Do not allow fuel to come into contact with the

• Do not smoke when using compactor. Keep the compactor out of open flames.

• Always check fuel tank cap. If there is a fuel cock, shut it off when the engine is not working.

• Do not use the compactor in places where there are gaseous exhalations.

• Do not use the machine indoors or in an enclosed area unless inadequate ventilation.

of use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents..

instructions.

helmet).

hot parts of compactor and engine.

5

VERS. 01.09.2019 CFP14 W _MAN_EN

• Always wear appropriate protective clothes.

• When the work area is near slopes, the compactor could turn over.

• When you use compactor in reverse and in a narrow place, the operator must be sideways

from the handle in order to avoid stumbling.

• Always operate in safe conditions in order to avoid accidents.

• Always operate in maximum stability conditions.

• Use transport wheels only for movements in yard. In all the other situations they must be

removed.

• Always make sure of the proper functioning of the safety and control devices.

• If there are any problems, stop immediately the machine and inform the person responsible

of the yard.

• Attention is drawn to the use of BS2092 safety goggles in conformity with specified
Processes No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1. and
additional dusk mask for dry cutting (only in exceptionally cases).

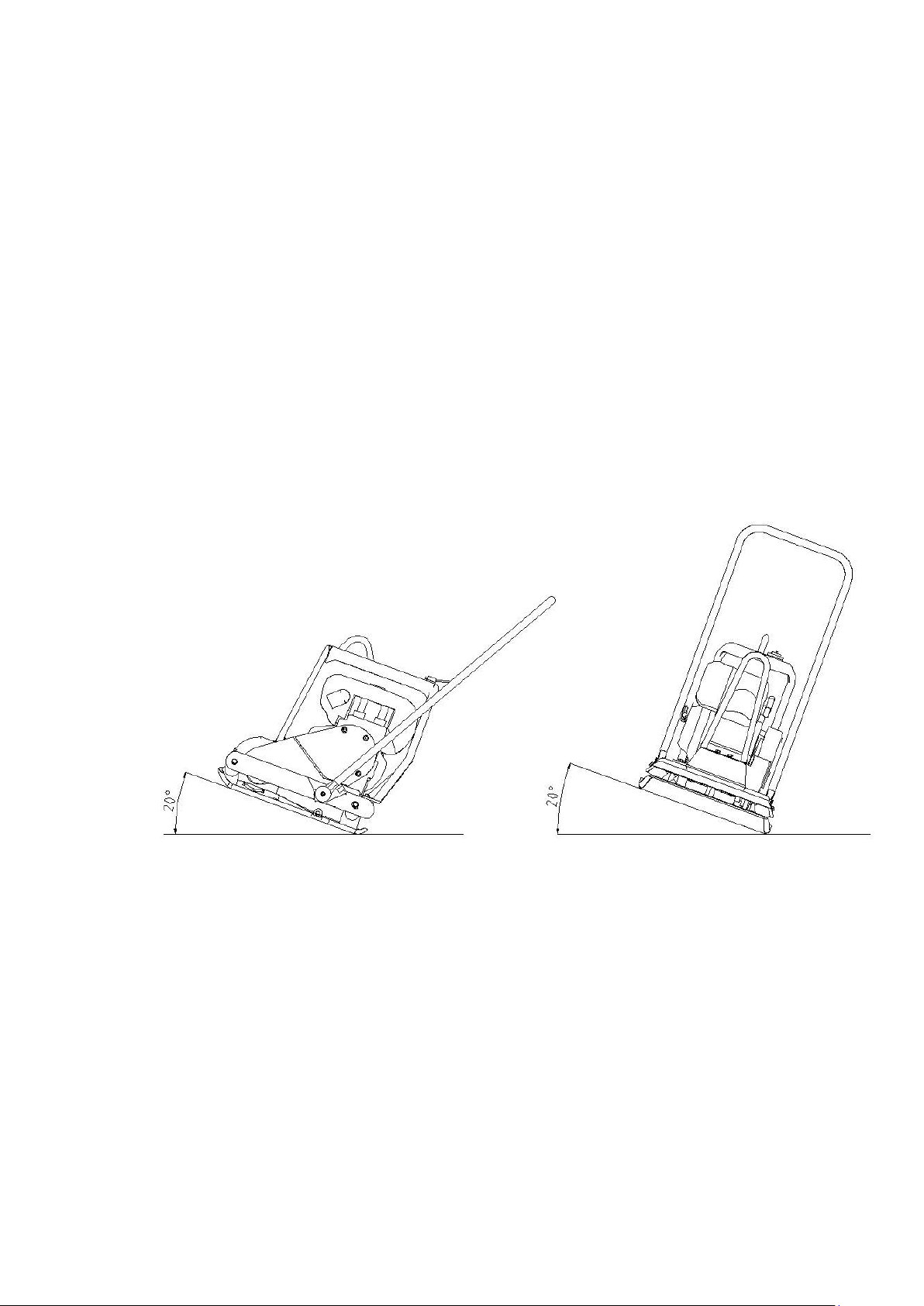

CLIMBING ABILITY

2-MACHINE DESCRIPTION

Any modification, which could lead to a change in the original characteristics of the machine, may
be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with
the safety regulations.

6

VERS. 01.09.2019 CFP14W _MAN_EN

6 2 3

8 5 1 7 4

2.1 Short description

The compactor CPF14W is suitable for repairing asphalted surfaces, for small compacting jobs and
for preparing green areas
As with all other NORTON products, the operator will immediately appreciate the attention given to
detail and quality of materials used in construction. The machine and its component parts are
assembled to high standards assuring long life and minimum maintenance.

2.2 Purpose of use

The vibration required for tamping is produced by the exciter which is on the compacting plate.
The engine starts the exciter and the torque is transmitted by the centrifugal clutch and by the belt.
In order to allow the idling of the drive engine, the centrifugal clutch, at low engine speeds, interrupts
the flow of power to exciter. The compactor must always be used with the gas handle in the
“OPERATIVE” position.
The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.
Only use the machine for the purpose for which it is intended.

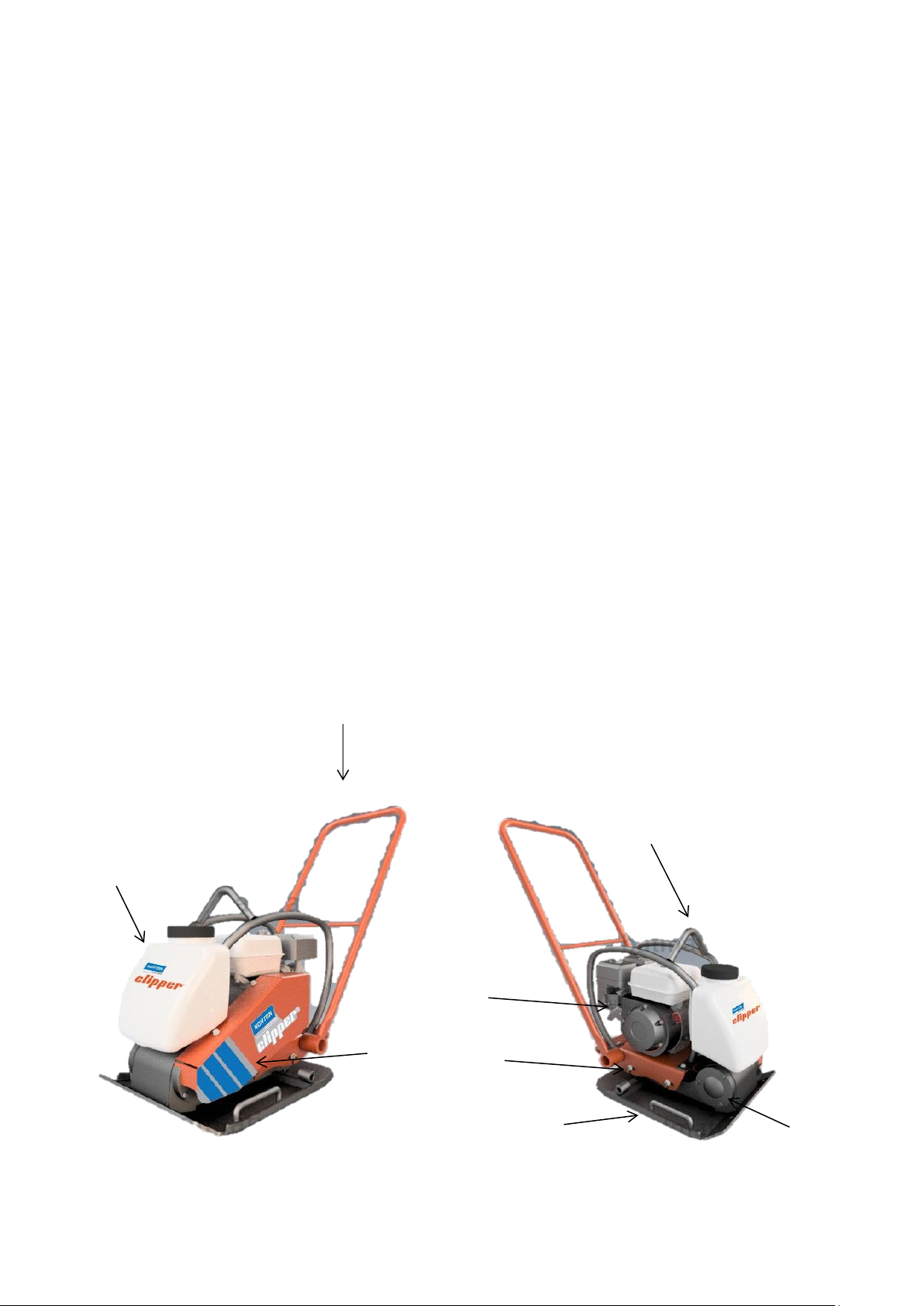

2.3 Layout

7

VERS. 01.09.2019 CFP14 W _MAN_EN

Handle (1)

Jig welded steel construction is connected by 4 shockmount on the frame of the machine to reduce
the vibrations reach the operator

Belt drive and belt cover (2)

A centrifugal clutch inside the engine pulley drives the gear shaft through V-Belts. It allows to
gradually engaging the vibration of the machine. The drive assembly is enclosed in a metal guard.

Water tank (3)

Resistant plastic water tank

Thermal Engine (4)

The machine has a GX160 Honda engine with 4,8HP (3.6kw) or Hatz 1B20 with 5 HP (3.7kw)

Lifting eye (5)

To lift the machine easily and safely, a lifting eye is located over the engine. This allows a balanced
lifting of the machine.

Eccentric element (6)

In the our compactors the system of eccentric elements has been optimized by moving the weight to
the right side of the axle, so that less weight counteracts the movement at start-up.
Less power is required to initiate the vibratory action, reducing energy consumption at start-up by
50% and thus using less fuel.

.

Plate (7)
The plates have rounded edges and raised to avoid marking the surface

Shock absorbers (8)

The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.

8

VERS. 01.09.2019 CFP14W _MAN_EN

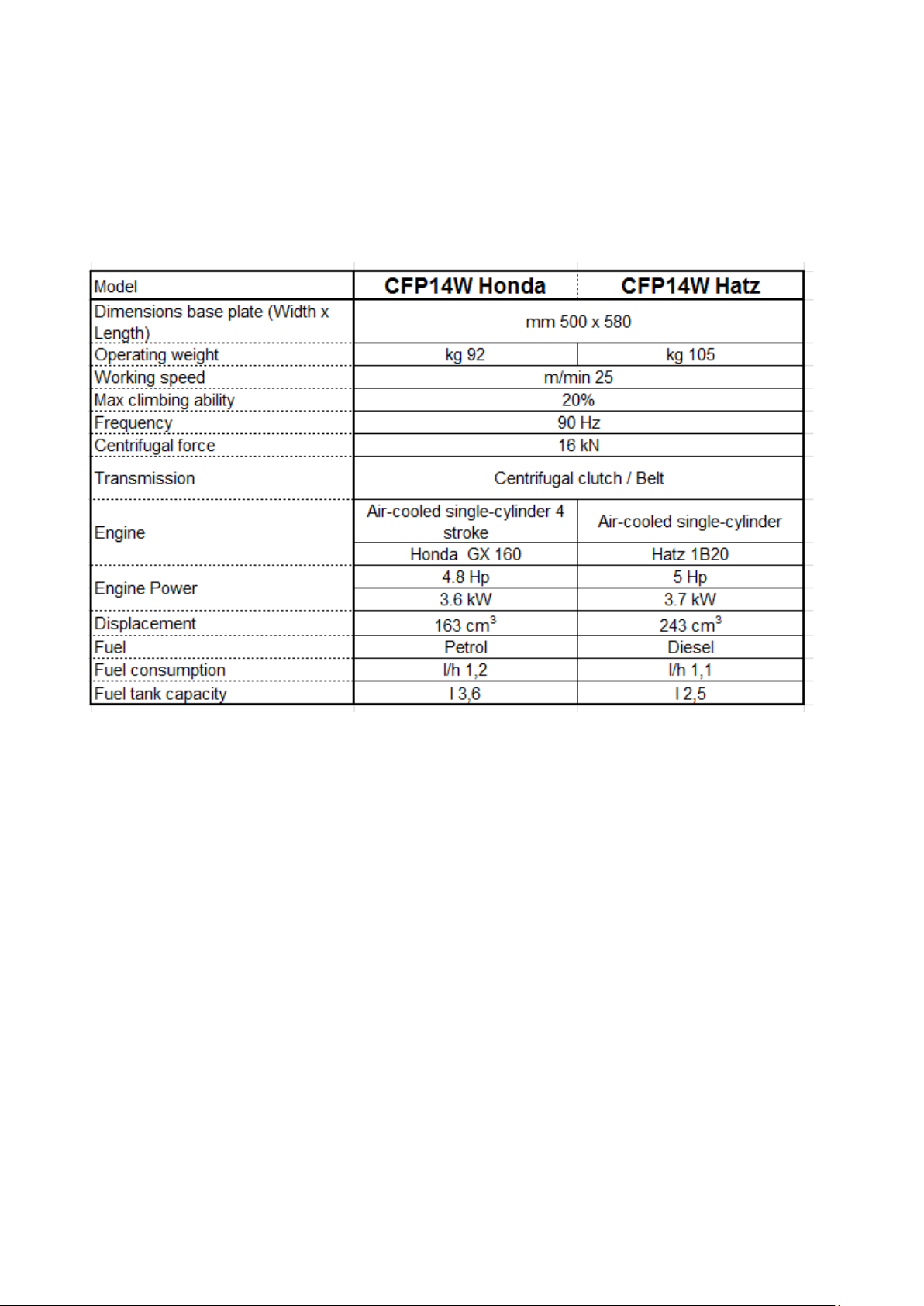

2.4 Technical DATA

2.4 VIBRATION MEASUREMENTS

The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.
Products are tested for hand/arm vibration level in accordance with annex D prEN500-4:2001

2

The hand/harm vibration level is 8.9 m/s
The plate compactor has been tested on a “macadam” surface, produced with not cleaned stone
crusher grit, with 16 mm medium diameter (with components which have diameter that goes from 10
to 20 mm).

2.5 SOUND MEASUREMENTS

The product has been produced in accordance with the standard 2000/14/CE, procedure I annex VI.
Measured sound power level 104.2 [dB(A)] and guaranteed sound power level 108 [dB(A)] on a
significant equipment.

9

VERS. 01.09.2019 CFP14 W _MAN_EN

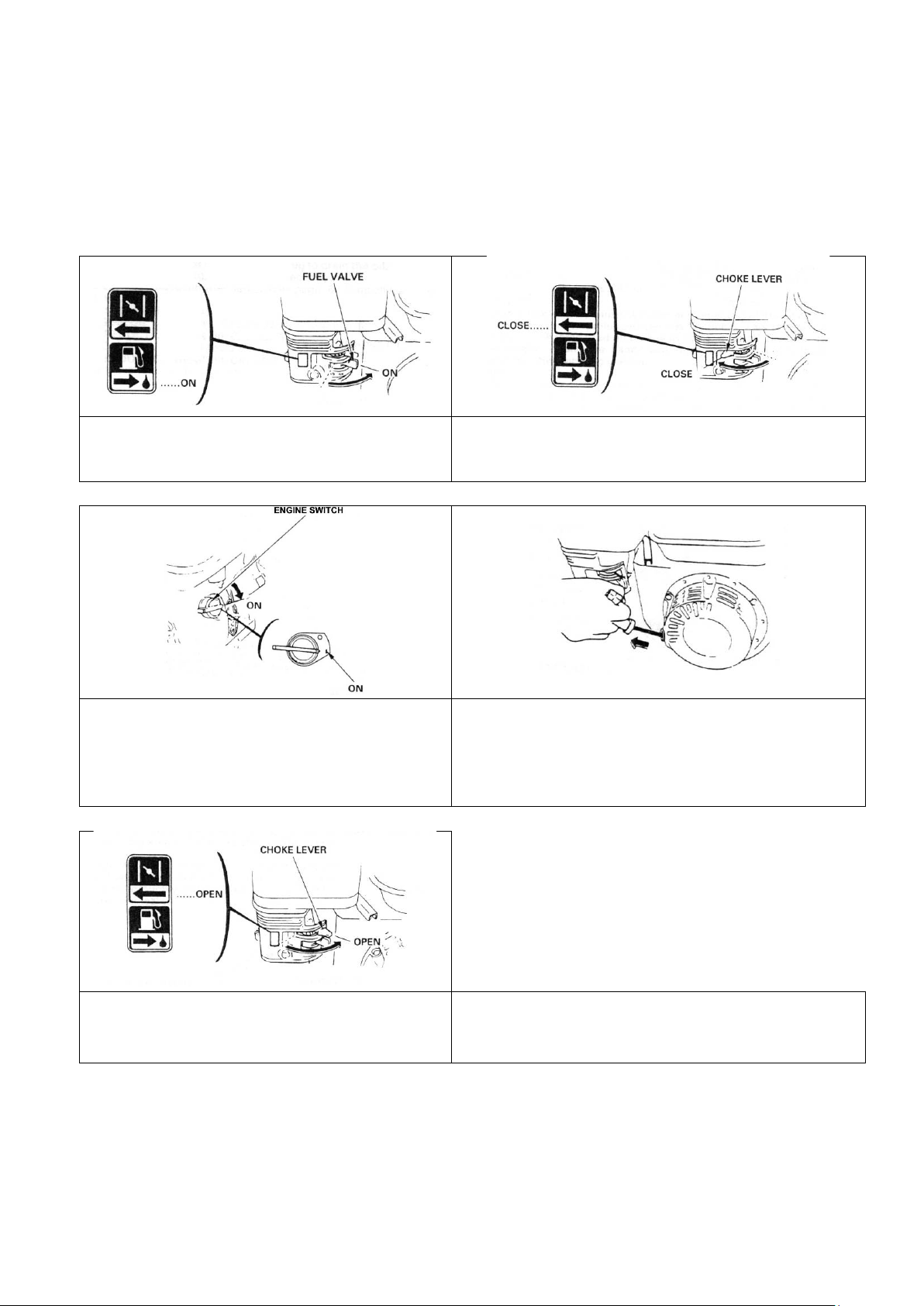

Turn the fuel valve to the ON position. Fully press

Move the choke lever to the CLOSED position.

Move the throttle control lever slightly to the left.

Pull the starter grip lightly until you feel resistance, then

CAUTION: Do not allow the starter grip to snap back

As the engine warms up, gradually move the

Maximum engine speed.

3-ASSEMBLY AND COMMISSIONING

3.1 Starting the machine with Honda GX 160 engine

the dead-man handle against the main handle.

Put the engine switch on ON.

NOTE: do not use the choke if the engine is warm or the
air temperature is high.

briskly.

against the engine. Return it gently to prevent damage to
the starter.

choke lever to the OPEN position.
Position the throttle control lever for the

To stop the engine, release the dead-man handle, move the throttle control lever fully to the right,
then turn the engine switch to the OFF position. Turn the fuel valve to the OFF position.
CAUTION: when the machine is switched off, the tools will continue turning slowly to complete stop.

10

VERS. 01.09.2019 CFP14W _MAN_EN

Be therefore very careful to avoid injuries.

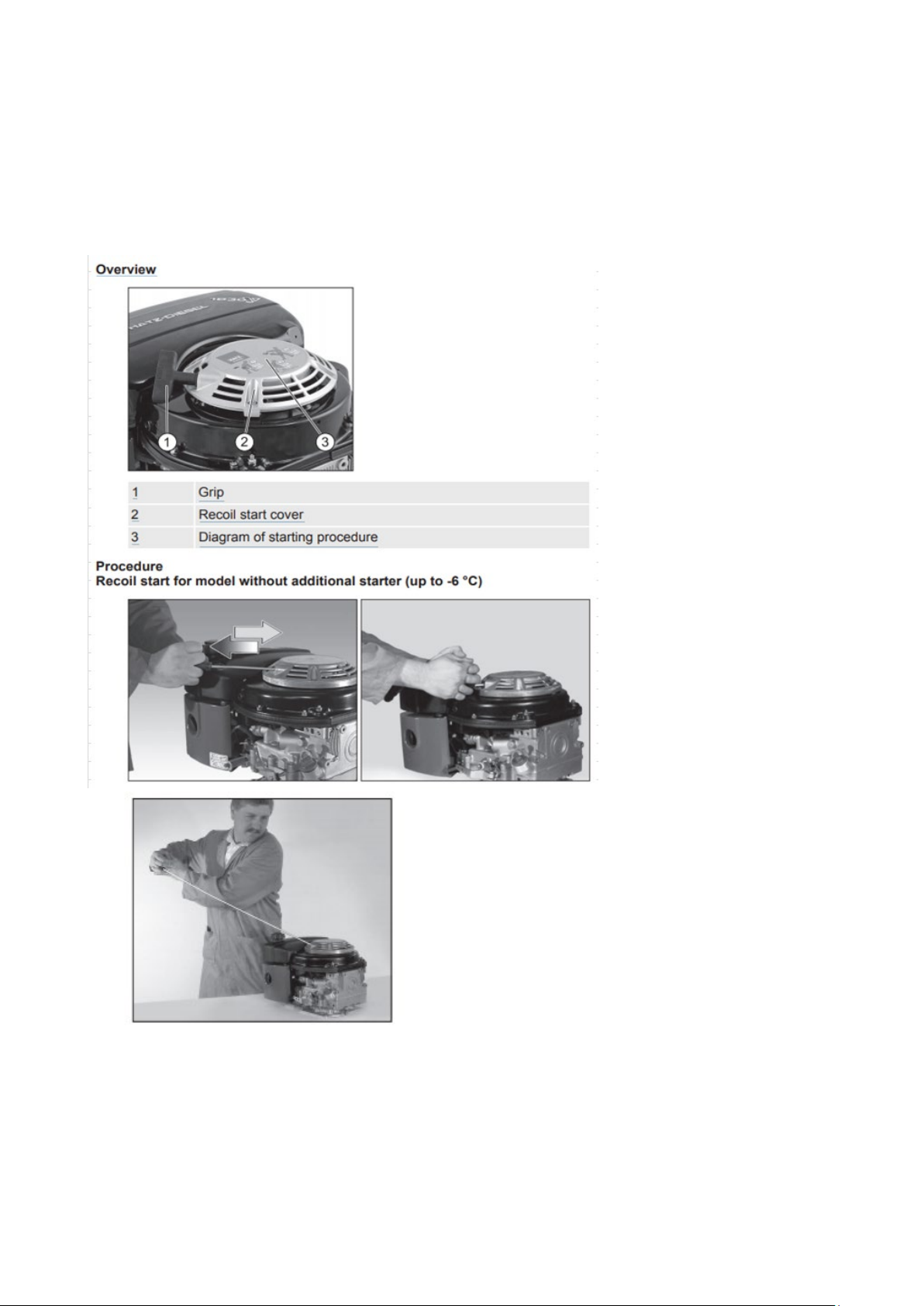

3.2 Starting the machine with Hatz 1B20 engine

4-Transport and storing

4.1 Securing for transport

Conform yourself to work regulations, in order to transport the machine safely. To help you transport
the machine, you can remove the transport tube from under the handle and located in the front hole

11

VERS. 01.09.2019 CFP14 W _MAN_EN

of the machine.

4.2 Transport procedure

Conform yourself to work regulations, in order to transport the machine safely. To help you transport
the machine, you can remove the transport tube from under the handle and located in the front hole
of the machine.

4.3 Long period of inactivity

If the machine is not going to be used for a long period, completely clean the machine and
disassemble the tools. The storage site must be clean, dry and at a constant temperature.

5- OPERATING THE MACHINE

5.1 Site of work

• Remove from the site anything, which might hinder the working procedure!

• Make sure the site is sufficiently well lit!

• Make sure you have a continual adequate view of the working area so you can intervene in the

working process at any time!

• Keep other staff out of the area, so you can work securely.

5.2 Preparing the site

Ad equation to compaction, it will be necessary to identify the characteristics of soils and material, to
study their ability

6- MAINTENANCE AND SERVICE

6.1 Maintenance of the machine

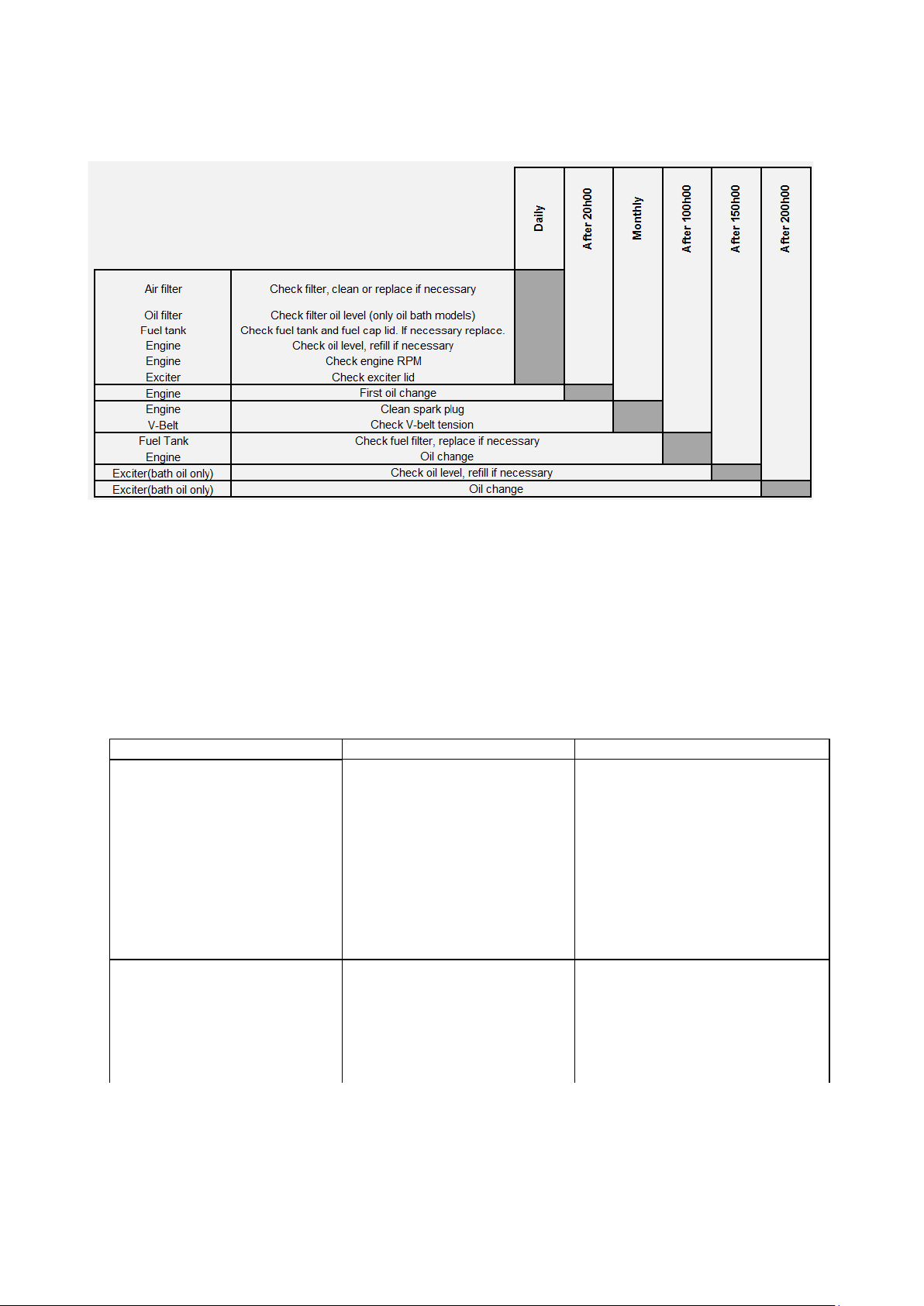

To ensure a long-term quality from the use of the Clipper compactors CPF/CRP13, please follow the
maintenance plan below:

12

VERS. 01.09.2019 CFP14W _MAN_EN

TROUBLE

POSSIBLE CAUSE

SOLUTION

The wear and tear has caused the belt to

7-FAULT : CAUSES AND CURES

7.1 Fault –finding procedures

Should any fault occur during the use of the machine, turn it off. Any works dealing with the engine
of the machine can only be carried out by a qualified technician.

7.2 Troubles-shooting guide

The engine works properly but the

machine does not vibrate

Reduced or irregular speed The engine rpm is not correct

The transmission belt is broken

Replace the belt

loosen up

The centrifugal clutch has broken Replace the centrifugal clutch

Verify that during compaction gas lever is in

“OPERATIVE” position

Reset the number of engine rpm

13

VERS. 01.09.2019 CFP14 W _MAN_EN

seal has been damaged; if necessary replace

Mechanical block of the exciter (bearings,

Remove the element causing the failure or, if

Dirty air filter

Clean air filter, if necessary replace it

Engine damaged

Contact an engine service center

The engine rpm are low but the exciter

does not stop

The exciter heats up to over 90° (bath oil

only)

The engine works with difficulty and the
exciter is too noisy and it stops or slows

down

The engine turns off or does not work

properly

The transmission belt has loosened up

Centrifugal clutch malfunction

There is too much of oil in the exciter

shaft)

Fuel tank empty Add fuel

Oil lack Add oil

Tension the transmission belt and, if

necessary, replace it

Repair the centrifugal clutch and, if

necessary, replace it

Top up the oil level. Check whether the oil

it

necessary, replace the exciter

14

VERS. 01.09.2019 CFP14W _MAN_EN

7.3 Spare parts

In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton
Clipper by using the following address:

https://spareparts.nortonabrasives.com

For a quick access, you can also use the QR Code shown below using your mobile phone:

This electronic catalogue provides exploded views and spare parts lists for different machines
designed by Norton Clipper so you can find references you need.
When ordering spare parts, please mention:

• The serial number.

• The code of the part.

• The exact denomination.

• The number of parts required.

• The delivery address.

• Please indicate clearly the means of transportation required such as "express" or "by air".

Without specific instructions, we will forward the parts through the means which seem
appropriate to us --- but which is not always the quickest way.

Clear instructions will avoid problems and faulty deliveries.
If not sure, please send us the defective part. In the case of a warranty claim, the part must always
be returned for evaluation. Spare parts for the motor can be ordered with the manufacturer of the
motor or with their dealer, which is often quicker and cheaper.
This machine has been manufactured by

Saint-Gobain Abrasives S.A.

190, Bd. J.F. Kennedy
L- 4930 BASCHARAGE
Grand-Duché de Luxembourg.
Tel.: [phone]

http://www.construction.norton.eu

e-mail: [e-mail]

15

VERS. 01.09.2019 CFP14 W _MAN_EN

SAINT-GOBAIN ABRASIVES

TEL: [phone]

SAINT-GOBAIN ABRASIVI S.P.A

SAINT-GOBAIN GLASS

I SOK. NO:21

Guarantee can be claimed and technical support obtained from your local distributor where
machines, spare parts and consumables can be ordered as well:

INDUSTRIEWEG 21
9420 ERPE-MERE
BELGIUM
TEL:

[phone]

SAINT-GOBAIN ABRASIVES, S.R.O.
POČERNICKÁ 272/96, MALEŠICE
108 00 PRAHA 10
CZECH REPUBLIC
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN ABRASIVES A/S
DYBENDALSVÆNGET 2,
DK-2630 TAASTRUP
DENMARK

TEL:

[phone]

PO BOX 643706
FORTUNE TOWER OFFICE 2106
JLT BLOCK C
(NEXT TO METRO STATION)
JUMEIRA LAKE TOWER, DUBAI
UNITED ARAB EMIRATES
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN ABRASIFS
RUE DE L’AMBASSADEUR - B.P.8
78 702 CONFLANS CEDEX
FRANCE
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN ABRASIVES GMBH
BIRKENSTRASSE 45-49
D-50389 WESSELING
GERMANY
TEL: [phone]

[phone]
[phone]

FAX: [phone]

[phone]
[phone]

FÜR DEN FACHHANDEL
ÖSTERREICH
TEL: [phone]

SAINT-GOBAIN ABRASIVES KFT.
1225 BUDAPEST
BÁNYALÉG U. 60/B.
HUNGARY

VIA PER CESANO BOSCONE 4
I-20094 CORSICO MILANO
ITALY
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN ABRASIVES S.A.
190 RUE J.F. KENNEDY
L-4930 BASCHARAGE
GRAND DUCHE DE LUXEMBOURG
TEL: [phone]
FAX: [phone]
NO. VERT (FRANCE): 0800 906 903

SAINT-GOBAIN ABRASIFS, S.A.
2 ALLÉE DES FIGUIERS
AIN SEBAÂ - CASABLANCA
MOROCCO
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN ABRASIVES BV
GROENLOSEWEG 28
7151 HW EIBERGEN
P.O. BOX 10
7150 AA EIBERGEN
THE NETHERLANDS
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN ABRASIVES AS
POSTBOKS 11, ALNABRU,
0614 OSLO
BROBEKKVEIEN 84,
0582 OSLO
NORWAY
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN HPM POLSKA SP. Z O.O.
UL. NORTON 1, 62-600 KOŁO
62-600 KOŁO
POLAND
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN ABRASIVOS, L. DA
ZONA INDUSTRIAL DA MAIA
I-SECTOR VIII, NO. 122
APARTADO 6050
4476 - 908 MAIA
PORTUGAL
TEL: [phone]

BUSINESS UNIT ABRASIVI
PUNCT DE LUCRU: LOC.VETIS,JUD.
SATU MARE 447355
STR. CAREIULUI 11
PARC INDUSTRIAL RENOVATIO
ROMANIA
TEL: [phone]
FAX: [phone]

SG HPM RUS
58, F. ENGELS STR.
STROENIE 2
105082 MOSCOW
RUSSIA
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN
ABRASIVES (PTY) LTD
2 MONTEER ROAD
ISANDO 1600
P.O. BOX 67
SOUTH AFRICA
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN ABRASIVOS, S.A.
CTRA. DE GUIPÚZCOA, KM. 7,5
E-31195 BERRIOPLANO (NAVARRA)
SPAIN
TEL: [phone]
FAX: [phone]

SAINT GOBAIN ABRASIVES AB
GÅRDSFOGDEVÄGEN 18A
168 66 BROMMA • SVERIGE
SWEDEN
TEL: [phone]
FAX: [phone]

SAINT-GOBAIN INOVATIF MALZEMELER
VE ASINDIRICI SAN. TIC. AS.
ALTAYÇEŞME MAH. ÇAML
ESAS OFISPARK KAT:9 34843
MALTEPE, İSTANBUL • TURKEY
TEL:

0090-216-217 12 50

FAX: [phone]

SAINT-GOBAIN ABRASIVES LTD.
DOXEY RD

16

VERS. 01.09.2019 CFP14W _MAN_EN

FAX: [phone]

FAX: [phone]

STAFFORD

ST16 1EA
UNITED KINGDOM
TEL: [phone]
FAX: [phone]

17
