Nortel Networks V100 User Manual

Download

Page 1

NN10364-301

Multimedia Communication Portfolio

Multimedia Communication Server

2-server Sun Fire V100 Solaris Installation and Commissioning Guide

MCS 5100 3.5 Standard 6.0 December 2006

Page 2

Page 3

Contents

Finding the latest updates on the Nortel Web site . . . . . . . . . . . . . . . . . . . . 7

How to get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Restrictions and limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

MCS 5100 documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Before you start the installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Key stroke symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Text conventions used in this document . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Server configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Loading disks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Minimum and recommended requirements for customer-provided PC .23

Setting up the baseline hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Baseline hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Setting up rack to mount hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Connecting the Sun Fire V100 server to the layer-2 switch . . . . . . . . . . . . .28

Connecting the Sun Fire V100 server to the MRV LX terminal server . . . . .29

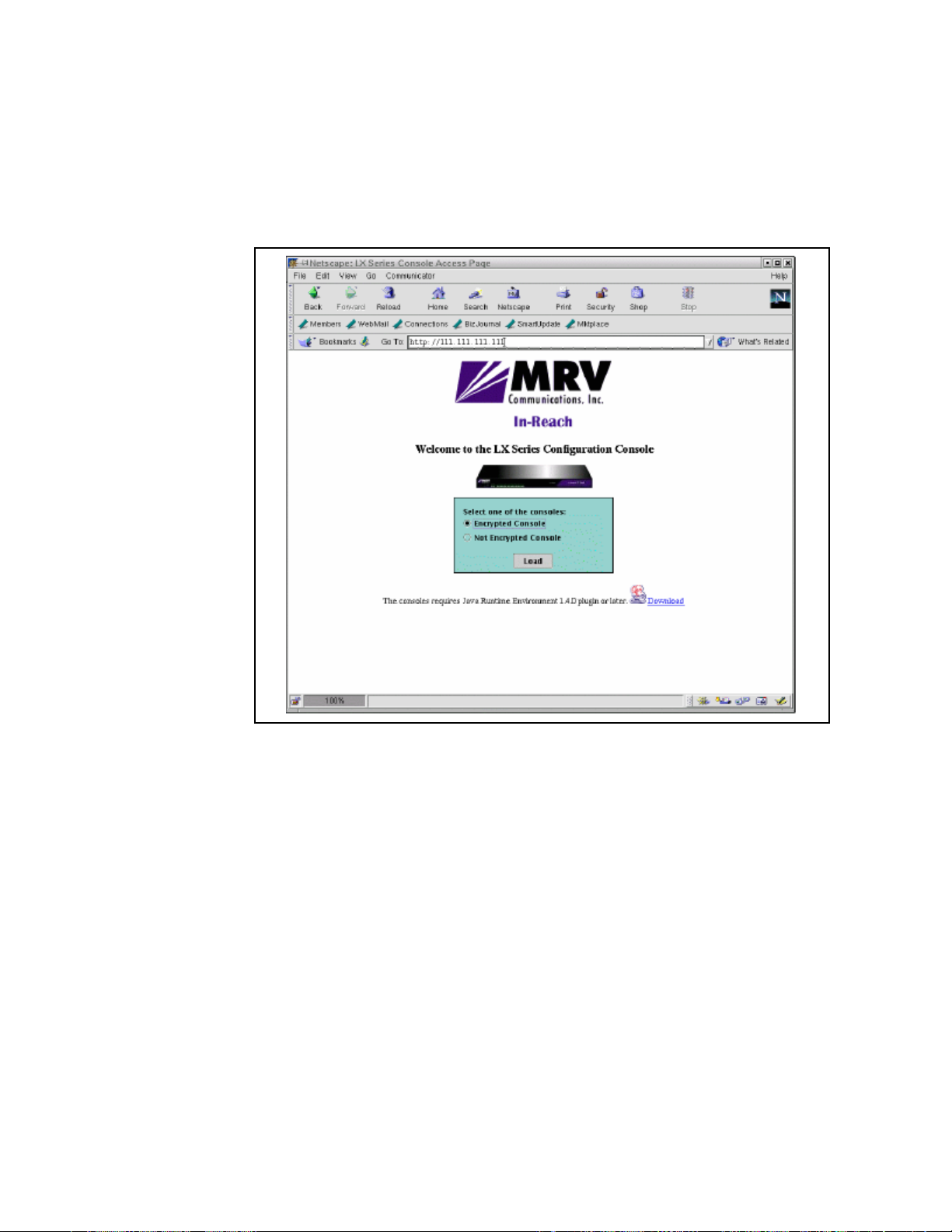

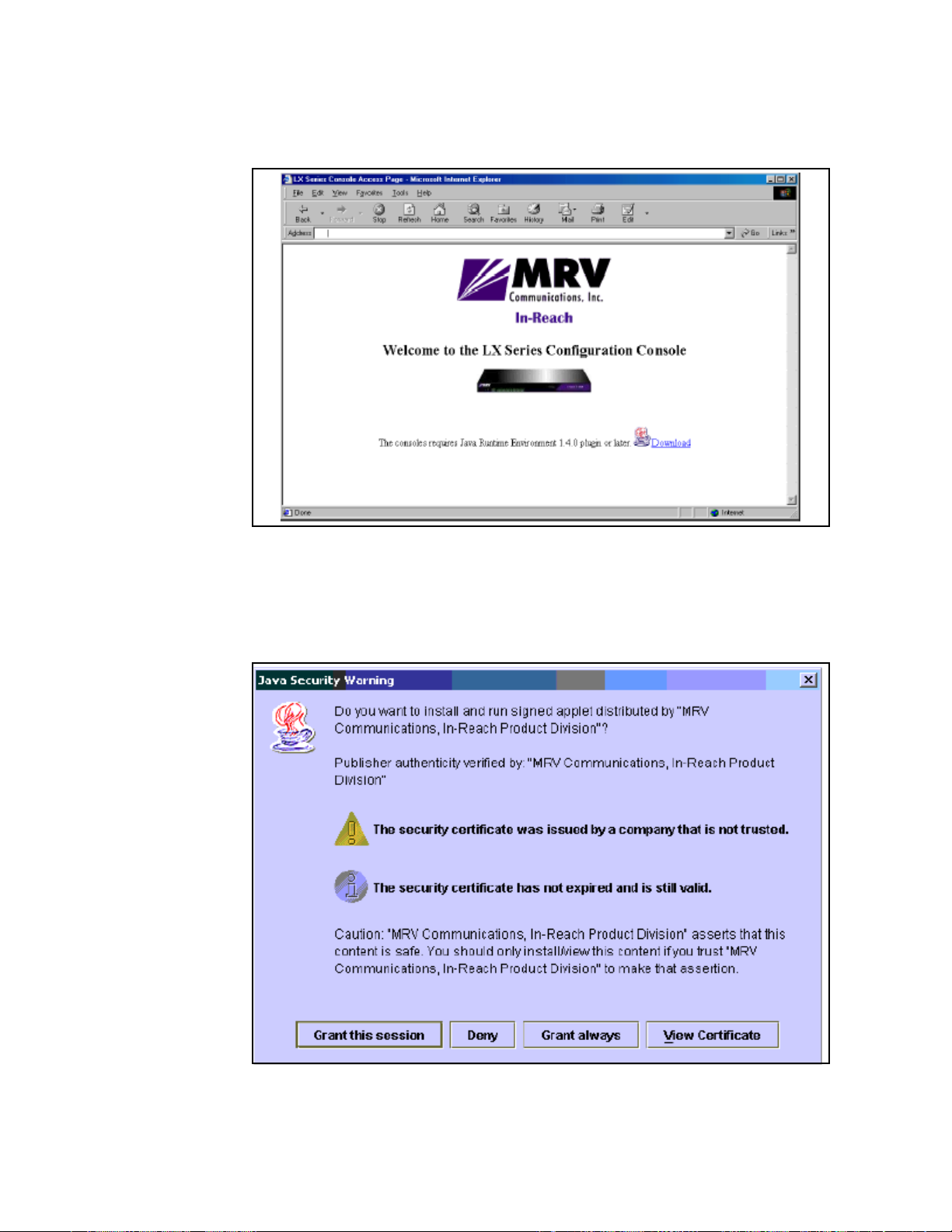

Installing and accessing the MRV LX-4000 series terminal server . . . . .33

Powering on the servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Installing Disks 1 to 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Installing CD1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Installing CD2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Installing CD3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Installing Disk 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Database/Accounting/Management server (DBSvr, AcctMgr, MgmtSvr) . . .55 Application servers (SIP Application Module, IPCM, Web Client Manager,

Provisioning Module) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Installing Disk 5 (all servers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Enabling or disabling the automatic mount . . . . . . . . . . . . . . . . . . . . . . . . 65

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 4

Installing Disk 6 (MgmtSvr/AcctMgr only) . . . . . . . . . . . . . . . . . . . . . . . . .67

Installing Oracle 9.2.0.4 on the database server . . . . . . . . . . . . . . . . . . . .69

Installing Oracle 9.2.0.4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Deploying the initial database load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Deploying the MCS database load (imssipdb) . . . . . . . . . . . . . . . . . . . . . . . 73

Deploying and starting the Sysmgr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Deploying and starting the Sysmgr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Sysmgr deployment verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

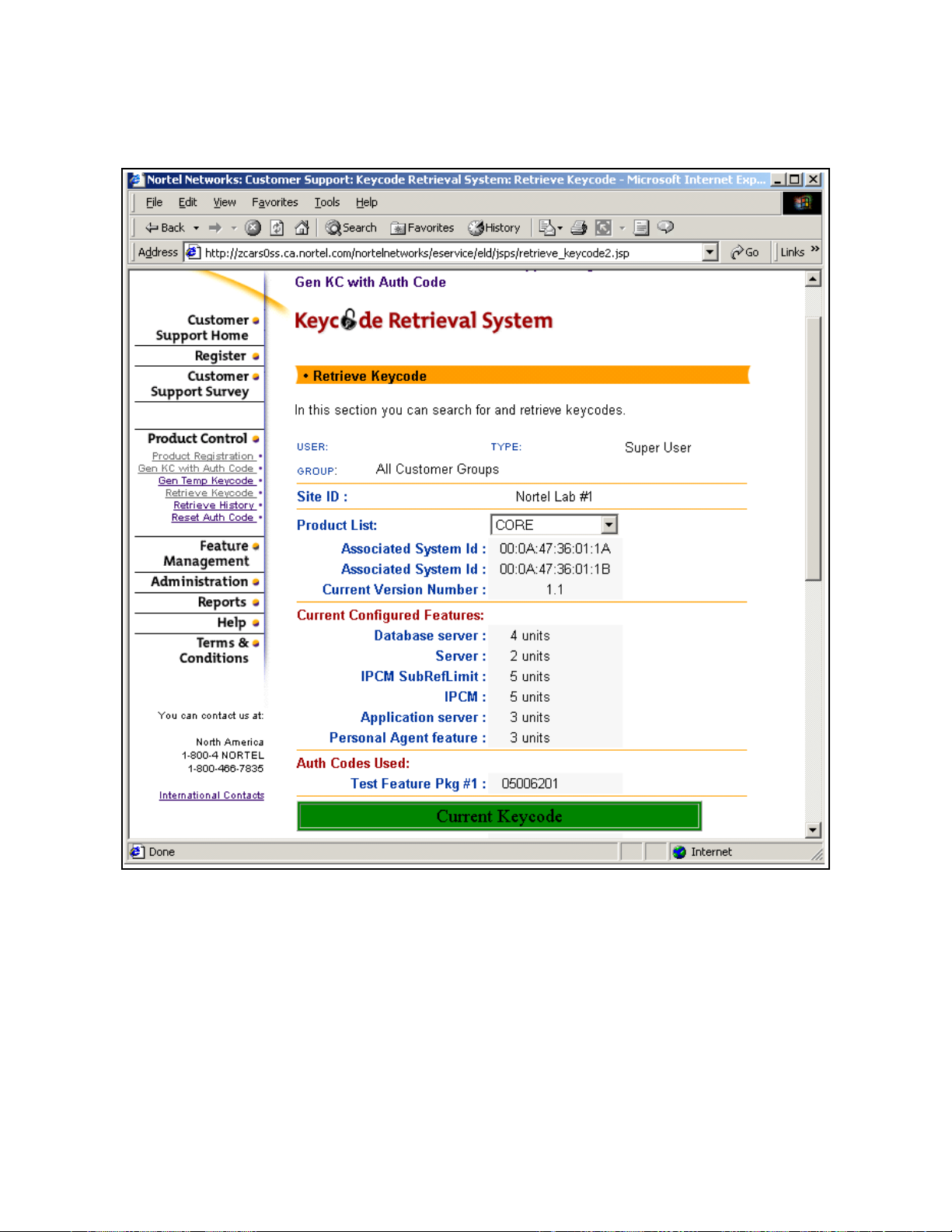

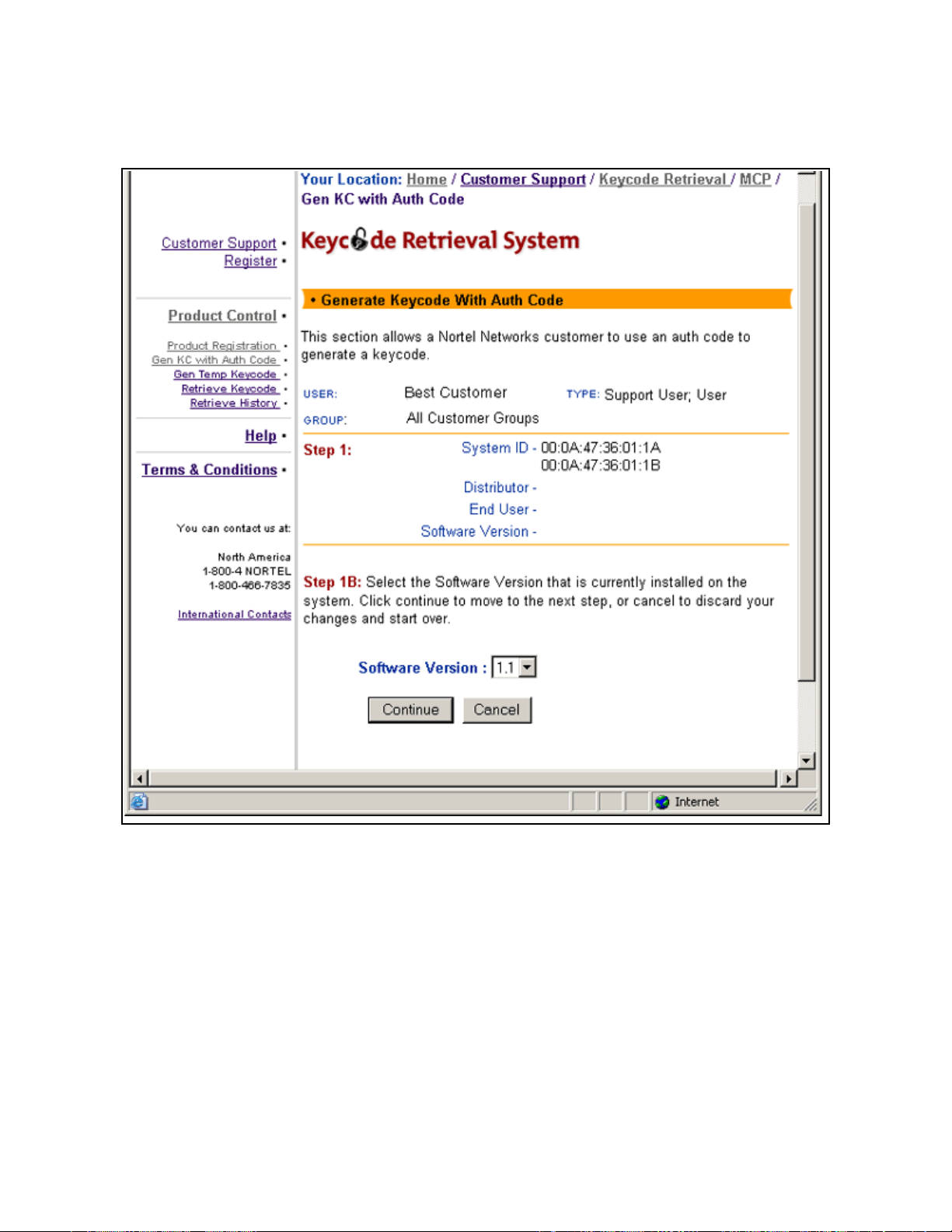

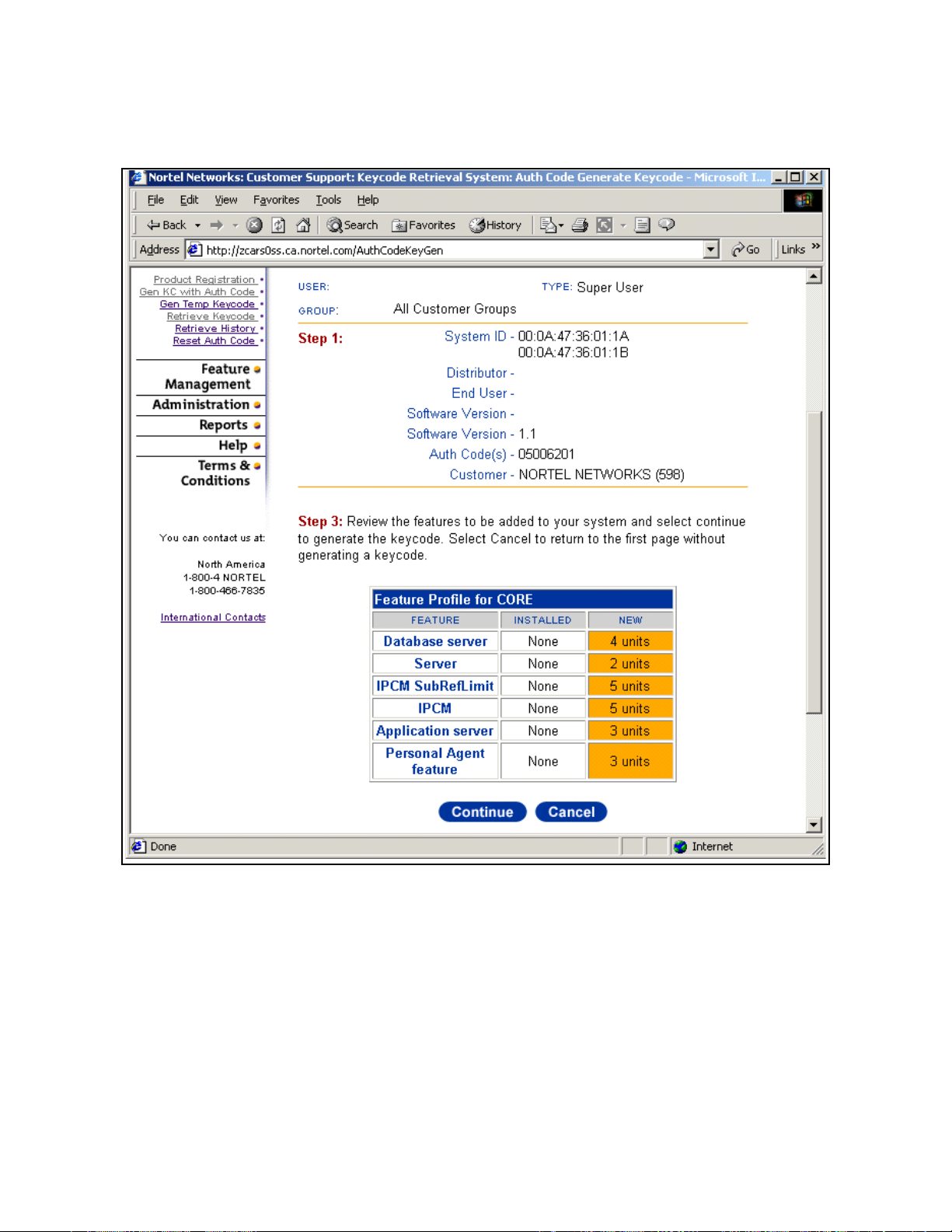

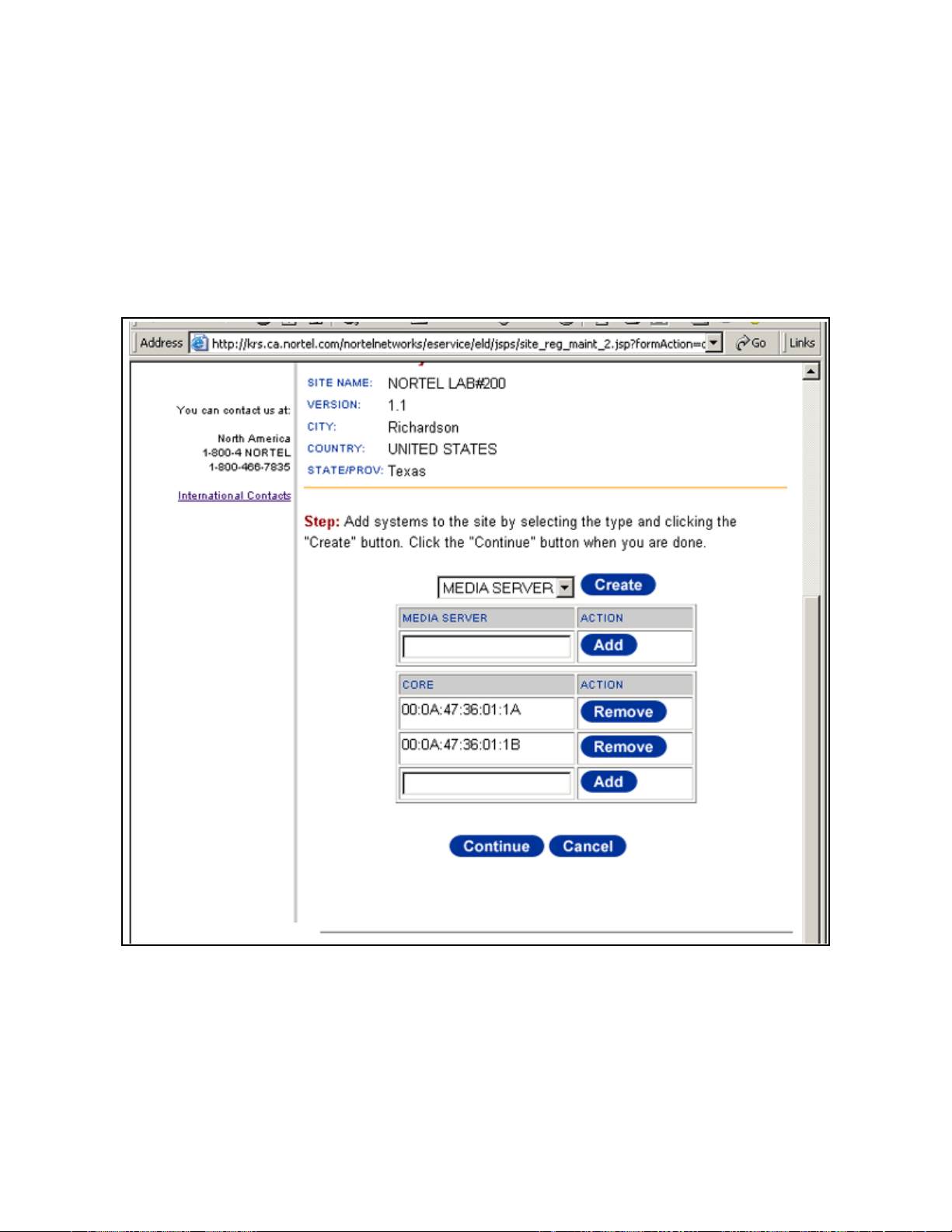

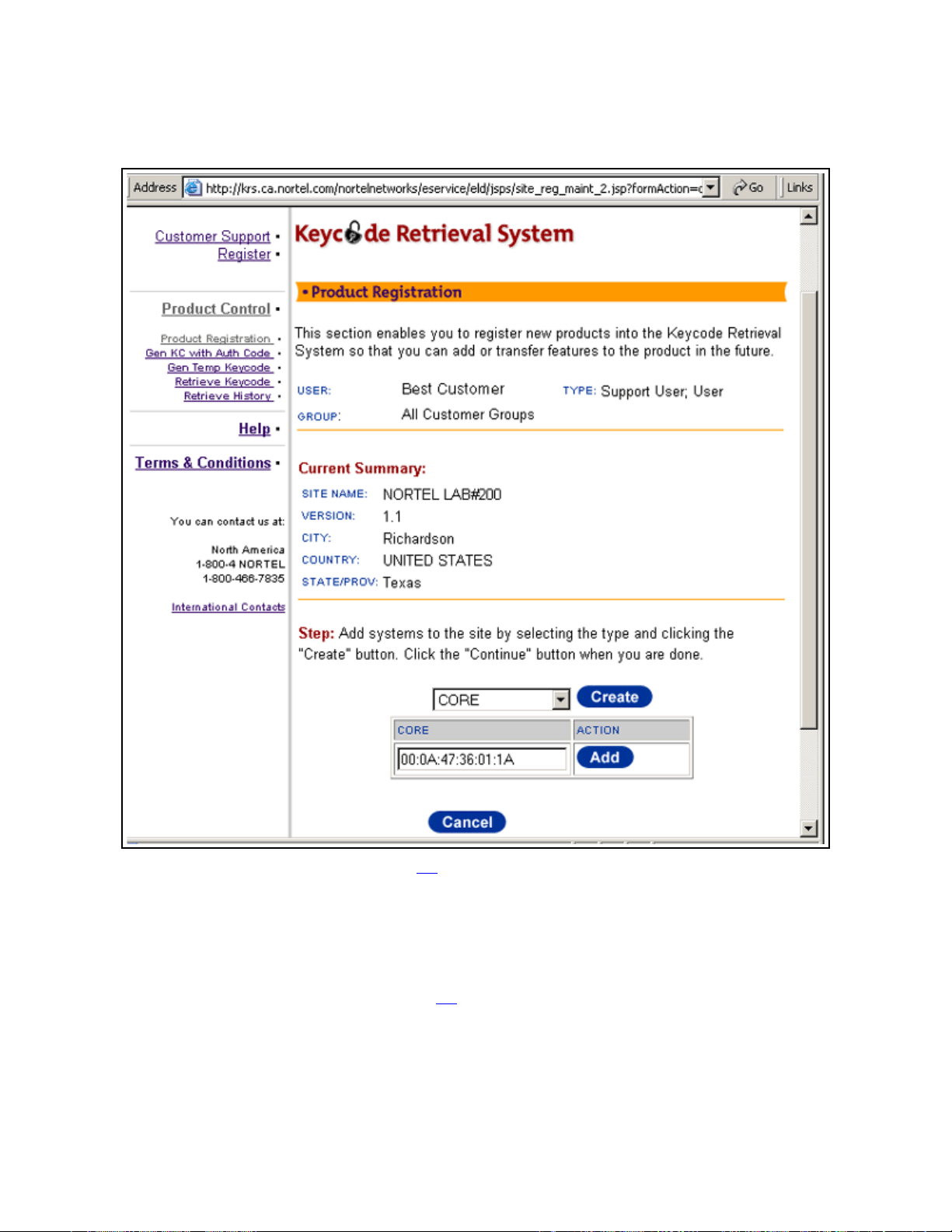

Registering your license key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Installing and launching the System Management Console . . . . . . . . . . .95

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Installing the System Management Console . . . . . . . . . . . . . . . . . . . . . . . . . 95

Launching the System Management Console . . . . . . . . . . . . . . . . . . . . . . .96

Adding a server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Adding a server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Adding and configuring the Accounting Module . . . . . . . . . . . . . . . . . . . 103

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Adding and configuring the SIP Application Module . . . . . . . . . . . . . . .107

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Adding and configuring the IP Client Manager . . . . . . . . . . . . . . . . . . . .119

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Installing the UFTP BaseSoftware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Add the UFTP to the System Management Console . . . . . . . . . . . . . . . . .125

Configuring the Provisioning Module . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 5

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Adding and configuring the Web Client Manager . . . . . . . . . . . . . . . . . .133

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Installing and configuring the Oracle Monitor . . . . . . . . . . . . . . . . . . . . .139

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Installing the iPlanet Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Verification procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Verifying Server1 (DBSvr/MgmtSvr/AcctMgr) . . . . . . . . . . . . . . . . . . . . . . .161

Verifying Server2 (application server) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Verifying the database load (imssipdb) deployment . . . . . . . . . . . . . . . . . .165

Deploying the PC Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167

Reloading IP addresses after system installation . . . . . . . . . . . . . . . . . .169

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 6

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 7

Finding the latest updates on the Nortel Web site

The content of this documentation was current at the time the product was released. To check for updates to the latest documentation and software for MCS 5100, click one of the following links:

Link to Takes you directly to the

Latest Software Nortel page for MCS 5100 software located at

www130.nortelnetworks.com/cgi-bin/eserv/cs/main.js p?cscat=SOFTWARE&resetFilter=1&tranProduct=12 482

Latest Documentation

Nortel page for MCS 5100 documentation located at www130.nortelnetworks.com/cgi-bin/eserv/cs/main.js p?cscat=DOCUMENTATION&resetFilter=1&tranPro duct=12482

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 8

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 9

How to get help

This section explains how to get help for Nortel products and services.

Getting help from the Nortel web site

The best way to get technical support for Nortel products is from the Nortel Technical Support web site:

www.nortel.com/support

This site provides quick access to software, documentation, bulletins, and tools to address issues with Nortel products. From this site, you can:

• download software, documentation, and product bulletins

• search the Technical Support Web site and the Nortel Knowledge Base for answers to technical issues

• sign up for automatic notification of new software and documentation for Nortel equipment

• open and manage technical support cases

Getting help over the phone from a Nortel Solutions Center

If you do not find the information you require on the Nortel Technical Support web site, and you have a Nortel support contract, you can also get help over the phone from a Nortel Solutions Center.

In North America, call 1-800-4NORTEL (1-800-466-7835).

Outside North America, go to the following web site to obtain the phone number for your region:

www.nortel.com/callus

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 10

Getting help from a specialist by using an Express Routing Code

To access some Nortel Technical Solutions Centers, you can use an Express Routing Code (ERC) to quickly route your call to a specialist in your Nortel product or service. To locate the ERC for your product or service, go to:

www.nortel.com/erc

Getting help through a Nortel distributor or reseller

If you purchased a service contract for your Nortel product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 11

Overview

The MCS 2-server Sun Fire* V100 Solaris system is a small-scale version of the Multimedia Communication Portfolio (MCP) system, geared towards an environment with a maximum of 250 subscribers. This system allows more effective cost management for smaller-sized enterprises.

This document describes the installation of the 2-server Sun Fire V100 Solaris system.

The 2-server Sun Fire V100 Solaris system must be connected to a 100-MB full-duplex Ethernet switch. The IP configuration consists of one public IP address. The following figures show the possible network configurations.

Figure 1 2-server network with redundant Ethernet switches

E the rn et s witc h

Sun Fire V100

cable

Crossover/cascade

E the rn et s witc h

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Sun Fire V100

100 BT Power c able

Protected power

source

Page 12

Figure 2 2-server network with single Ethernet switch

100 BT Power c able

Ethernet switc h

Sun F ire V100

Sun Fire V100

Protected power

source

Figure 3 2-server network MAS Ad hoc audio conferencing with single Ethernet switch

Eth ernet S witc h

Ethernet S witc h

IBM X305

IBM X336

100 BT Power c able

The rest of this document will refer to the example data in the figure that follows. Print and refer to this example while executing this installation. Print and complete the CSI datasheet with your own configuration to assist in executing this installation. Configure the pc you are using for management services with an IP address that is in the same subnet of the IP address range used for the Sun Fire V100.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

ProtectedPower

Source

Page 13

Figure 4 Example of 2-server Sun Fire V100 Solaris system configuration

Restrictions and limitations

The 2-server V100 Solaris system is non-redundant. Since redundancy is not built into the system, a server failure will result in the loss of services. The 2-server V100 Solaris system has a mirrored disk. In the event of a disk failure, the failed disk should be replaced as soon as possible. The 2-server V100 Solaris system has the following limitations:

• The system supports a maximum of 250 subscribers.

• Supported conference ports consist of 30 G.711 or 10 G.729.

• The system does not support live upgrades.

• System maintenance, starting, or stopping of components is not supported while the system is live. Doing any maintenance while the system is live may have adverse effects on call processing.

• Two-server-to-four-server migration is not supported.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 14

MCS 5100 documentation

Refer to the MCS 5100 Network Deployment and Engineering Guide, NN10313-191, that accompanies the MCS 5100 product and to your

customer-specific information (CSI) datasheet for your system requirements.

For more information on component installation and commissioning tasks, refer to the specific component documentation:

• MCS 5100 Accounting Module Basics, NN10279-111

• MCS 5100 SIP Application Module Basics, NN10259-111

• MCS 5100 Database Module Basics, NN10267-111

• MCS 5100 Management Module Basics, NN10268-111

• MCS 5100 Provisioning Module Basics, NN10274-111

• MCS 5100 Provisioning Client User Guide, NN42020-105

• MCS 5100 H.323 Gatekeeper Basics, NN10280-111

• Media Application Server Network Engineering and Deployment

Guide, NN10377-191

• MCS 5100 Ad Hoc Audio Conferencing Service Guide, NN10297-111

• Media Application Server Meet Me Audio Conferencing Service Guide, NN10303-111

• Media Application Server - Music on Hold Service Guide, NN10378-113

• Media Application Server Announcements Service Guide, NN10379-113

• Media Application Server IM Chat Service Guide, NN10380-113

• Media Application Server - Meet Me Audio Conferencing Quick

Reference, NN10283-001

• MCS 5100 IP Client Manager Basics, NN10256-111

• MCS 5100 Web Client Manager Basics, NN10278-111

• MCS 5100 Interworking Guide, NN10372-111

• MCS Backup and Recovery Guide, NN42020-502

• MCS Accounting Common Call Scenarios Reference Guide,

NN10374-800

• Provisioning Enhanced 911 User Guide, NN42020-132

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 15

• MCS 5100 Fault Management: Alarm and Log reference,

NN10385-900

• MCS 5100 Performance Management: OM reference , NN10386-700

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 16

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 17

Before you start the installation

ATTENTION

Make sure you install the latest software loads. Check with your support team for the correct latest load.

Prerequisites

Have available your completed Customer-Specific Information (CSI) datasheet. Refer to the MCS 5100 Network Deployment and Engineering Guide, NN10313-191, that accompanies the MCS product for CSI and system requirements. Make a copy of the CSI datasheet from Appendix E of the MCS 5100 Network Deployment and Engineering Guide (NN10313-191). Fill out the datasheet with relevant information from your system administrator.

You must have read and understood all the Release Notes before the installation begins.

Nortel Networks strongly recommends the use of high-speed data network connectivity for optimum remote service capability. Without broadband connectivity, remote service options are limited. Nortel Networks recommends the Contivity Remote Access Solutions for this function.

Nortel Networks also recommends following standard data center conventions for having a Universal Power Supply (UPS) as the power backup for the servers. For more information, refer to the MCS 5100 Network Deployment and Engineering Guide, NN10313-191, which shows how to connect servers to two different UPS systems for maximum uptime.

For power over Ethernet in the closet switches, Nortel Networks recommends use of the Ethernet Switch 460 Power Over LAN layer 2 Ethernet switches.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 18

The procedures in this Guide assume that you are using the PuTTY VT100 terminal emulator tool.

To set up sessions, download from the web the PuTTY VT100 Emulator, a shareware configurator tool.

Download PuTTY from

www.chiark.greenend.org.uk/~sgtatham/putty/

Provide the following hardware:

• Business Policy Switch 2000 (BPS 2000) or Layer-2 switch

• One (1) cat-5 Ethernet cable that is used to connect the MRV LX terminal server to the layer-2 switch.

• PC (for management administration). Refer to Minimum and

recommended requirements for customer-provided PC on page 23.

You must have access to the MCS network.

ATTENTION

Acronyms

Make sure

• There are no other maintenance or provisioning activities pending, and no such activities are planned for the duration of the installation procedures and follow-up soak period.

• You have a detailed knowledge of your network’s configuration.

• You have proficiency using UNIX operating system commands.

• You have access and privileges to the network.

• You have authority or immediate access to people with authority to make decisions on any issues that may arise.

The following acronyms are referenced in this document:

• lights out management (LOM)

• Network Time Protocol (NTP)

• customer-specific information (CSI)

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 19

Key stroke symbols

The following key stroke symbols are used in this document.

When you are asked to You must...

Press Esc+2 Press Escape then press 2. Navigate Use the arrow keys to move up or down. Select Use the spacebar to select an item.

<Value in brackets> Enter value indicated in brackets.

[Enter] Press key indicated in brackets.

Text conventions used in this document

This document uses the following text conventions:

• Bolded type is used to signify commands or buttons that you must press to perform an action, for example, Apply.

• Courier type is used to signify what appears on screen, for example,

Enter your password.

• Italic type is used for emphasis, for special words, or for reference information; for example, "Log in as root."

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 20

Server configuration

The following table shows the basic configuration of the 2-server V100 Solaris system.

Table 1 2-server configuration

Configuration Server type Components

2-server V100 Solaris

Loading disks

MCS 5100 Release 3.0 Base Platform System SoftWare Kit NTVW01AJ contains multiple copies of the same CDs to allow simultaneous installation across servers. See Ta bl e 2 , Mapping of Kit

NTVW01BD disks to servers (with times), on page 21 for details. Nortel

Networks recommends that you install the same CDs on both servers at the same time to reduce installation time.

Server1 Active System Manager

Active Accounting Manager

Primary database

Oracle Monitor

Server2 IPCM (S1)

Active Provisioning Module

Active SIP Application Module

Active WebClient Manager

iPlanetMonitor

UFTP Base Software

As shown in Ta bl e 2 ,

Mapping of Kit NTVW01BD disks to servers (with times), Disks 1-5 have four copies each. Disk 6 only needs to go on

Server 1 (the server on which the Management and Accounting Modules reside). There are six Oracle disks, with one copy, going on Server 1(the server on which the Database Module resides).

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 21

MCS Base Platform System Software disks are loaded on the following servers as indicated in Ta bl e 2 , Mapping of Kit NTVW01BD disks to

servers (with times)

Table 2 Mapping of Kit NTVW01BD disks to servers (with times)

MCS Base Platform System Software: Order code NTVW01BD

CD1 Disk Partitioning & Solaris OS

Approximate time to install

Server 1

45 minutes X X

Server 2

Kernel

CD2 Solaris OS Packages 15 minutes X X

CD3 Solaris Packages and Patches 90 minutes X X

CD4 MCP Installation & Commissioning

20 minutes + disk mirroring, 10

minutes

CD5 MCP Base Platform & 3rd Party

30 minutes X X

Software

CD6 MCP Application keycoded S/W 20 minutes X

CD7 MCP Element Manager Console 15 minutes X

Oracle disks 1-6 90 minutes X

Total (approximate) time for each server.

3.6 hours for each server, plus 90 minutes Oracle installation on Database server

Management PC

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 22

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 23

Minimum and recommended requirements for customer-provided PC

Configure your management pc to have an IP address that is in the same subnet of the IP address range used for your servers. Check your pc vendor’s documentation to learn how to configure the PC’s IP address.

Minimum and recommended requirements for the customer-provided management PC include (assuming you are not running anything else on the pc):

• processor:

— minimum: 600 MHz Pentium-class or equivalent processor.

— recommended: 1.0 GHz (or higher) Pentium-class or equivalent

processor.

• free RAM:

— minimum: 64MB of RAM. (This requirement is in addition to the

memory requirements of the operating system and other concurrent applications.)

— recommended: 64MB of RAM. (This requirement is in addition to

the memory requirements of the operating system and other concurrent applications.)

• free hard disk space:

— minimum: 50MB (If the System Management Console is

installed on a drive other than drive C, then 50MB of free space is required on that drive as well. In this case, the free 50MB on drive C will not be used, but is required for the installation to complete successfully.)

— recommended: 50MB (If the System Management Console is

• CD-ROM drive: required

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 24

• mouse: required

• Video Graphics Card:

— minimum: 640x480 @8bpp [256 colors] VGA

— recommended: 800x600 @16bpp [65,536 colors] VGA or better

• sound card: not applicable

• operating systems:

— minimum: Microsoft Windows 98(SE)/ME/2000/XP, or Microsoft

Windows NT 4.x with Service Pack 5 (SP5)

— recommended: Microsoft Windows 98(SE)/ME/2000/XP, or

Microsoft Windows NT 4.x with Service Pack 5 (SP5)

— network connectivity: Ethernet network card

— web browser with Microsoft Internet Explorer 6.0, or later version

— web browser with Netscape Communicator 7.0, or later version

— cookies: enabled

— Javascript: enabled

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 25

Setting up the baseline hardware

Baseline hardware

See the following figure for an overview of the hardware connectivity.

Figure 3 Hardware connections overview

ATTENTION

You need an uninterrupted power source (UPS).

If a power outage occurs, bring the server for the Database Module into service before bringing the other servers into service. If other servers do not come up, restart the server for the Management Module.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 26

Hardware required for the 2-server system consists of the following:

• terminal server: 1 MRV LX-4008-101AC including

— Linux-based secure console standalone unit with 8 RS232 RJ45

ports

— internal V.90 modem and AC power

— software and documentation on CD-ROM

• core servers: 2 Sun Fire V100 servers including

— 1 550-MHz UltraSPARC IIi Processor with 512-KB On-Chip L2

Cache

— 1-GB Memory

— 2 40-GB 7200 RPM IDE Disk (second disk for mirroring)

—CD-ROM

— 2 10/100-Mbit Ethernet and USB Ports

— System configuration card

— Solaris* 8 and LOMlite2 pre-installed

— two (2), cat-5 Ethernet cables for each V100 server (for a total of

four (4) ethernet cables)

Note: Each V100 server uses two (2) ethernet cables to connect the V100 servers to the layer-2 switch.

— two (2) serial (RS232) cables for each V100 server (or a total of

eight (8) serial cables.)

Note: Serial cables are ordered with the MRV LX terminal server.

– one (1) cable for Serial Port A (LOM)

– one (1) cable for Serial Port B

— Sun Fire V100 server documentation

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 27

• Media Application Server: 1 IBM x336 (2 3.6 GHz Xeon, 1-GB RAM,

1 73-GB SCSI drive, Windows 2000)

• Multimedia PC Clients

Make sure you have

• Business Policy Switch 2000 (BPS 2000) or Layer-2 switch

• vendor documentation for configuring your Layer-2 switch

• one (1) additional cat-5 ethernet cable to connect the MRV LX terminal server to the layer-2 switch

• a pc for the System Management Console, and access to the network

ATTENTION

WARNING

Static electricity could be harmful to the servers.

Setting up rack to mount hardware

Procedure 1 Setting up rack to mount hardware

At the rack,

1 Mount all equipment. Refer to the following diagram that displays

the mounting for the rack.

• Mount Layer-2 switch.

• Mount the MRV LX terminal server.

• Mount Sun Fire V100s.

— Database/Management/Accounting server

— Application server

• (optional equipment) Mount conference server. Refer to the Media Application Server documentation for more information.

• (optional equipment) Mount gateway. Refer to customer-specific gateway installation documentation.

Note: All MCS equipment is 19-inch rack mountable.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 28

Figure 4 MCS 5100 19-inch rack

Connecting the Sun Fire V100 server to the layer-2 switch

Procedure 2 Connecting the V100 server to the layer-2 switch

At the back of the Sun Fire V100 server,

1 Connect the Sun Fire V100 server Net 0 and Net 1 ports to the

layer-2 switch using Ethernet, cat-5 cables.

Figure 5 Back view of Sun Fire V100 server

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 29

Figure 6 Sun Fire V100 server cabling to layer-2 switch

Note 1: Net 0 and Net 1 are for redundancy. It is preferable that each Ethernet port get cabled to a different layer-2 switch, if available, for maximum redundancy.

Note 2: The two Ethernet switches are physically linked together through either cascade modules or Ethernet links.

2 Plug in the power cords at the back of the V100 server.

Do not power up the server at this time.

ATTENTION

Connecting the Sun Fire V100 server to the MRV LX terminal server

The MCS 5100 platform uses the Sun Fire V100 server medium configuration.

Note: This server is only available in an AC power configuration.

Procedure 3 Connecting the serial port on the V100 to the MRV LX terminal server

At the back of the Sun Fire V100 server,

1 Connect the Sun Fire V100 server A/LOM serial port and B-

serial port to the MRV LX terminal server:

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 30

Figure 7 Sun Fire V100 server network callouts

If the network is down, or the server needs to be configured or restarted, use the console port A.

By default from manufacturing, serial port A is the only active serial port.

ATTENTION

Note 1: The cables with part numbers A0500465 or NTVW01IM are serial cables.

Note 2: The P1 end goes to the V100 server and the P2 end goes to the MRV LX terminal server.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 31

Figure 8 P1 and P2 custom cable connections to terminal server

See note

Note: This cable is only connected to configure the terminal server.

Following configuration, remove the cable.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 32

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 33

Installing and accessing the MRV LX-4000 series terminal server

The MRV LX terminal server allows the installer to access all the servers simultaneously.

ATTENTION

For complete information on how to install, configure, and access the MRV LX terminal server, refer to the MRV Communications, Inc., LX Series Software Kit CD, particularly the "Getting Started with the LX-4000 Series" and LX-4000 Quick Start Instructions that come in the terminal server box, or go to www.mrv.com.

Procedure 4 Connecting the MRV LX terminal server cable to the servers and management PC

At the terminal server,

1 Connect port 8 to the management PC using the console cable

and db9 connector that comes with the MRV LX terminal server.

Note: After the terminal server has been configured, the connection between the management PC and the terminal server is not needed, and the cable can be removed.

2 Connect the MRV terminal server 10 Base-T port to the layer-2

switch.

Refer to the Getting Started with the LX-4000 Series document in the CD that comes with your terminal server for specific information about the pinouts on your terminal server model.

Procedure 5 Accessing the MRV LX terminal server

At the browser address field,

1 Type in the IP address of your MRV LX terminal server. The LX

Series Configuration Console page appears, as shown.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 34

Figure 9 MRV Configuration Console window

2 Make sure you have the Java Plug-in installed.

3 When your browser connects to the terminal server, the Java

Security Warning window appears.

Figure 10 Java Security Warning pop-up window

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 35

4 Click on Grant this session. The Java Security Warning window

closes. The LX Series Configuration Console page reappears, now with the green console selection visible.

Figure 11 LX Series Configuration Console page

Choosing Encrypted Console means the Graphical User Interface (GUI) will run slower, but with security. Encrypted and Not Encrypted Console also require Java Runtime Environment 1.4 or later. Choosing Not Encrypted Console means the GUI will run faster, but without security.

Note: The Java cache in JRE 1.4 is set to ON by default. There is a known problem within JRE 1.4.0 and 1.4.1 regarding cache functionality, which requires you to disable the cache. On your management pc, select Start-> Programs-> Settings-> Control Panel, open the Java Plugin

1.4.0 icon, and click the Cache tab. At the Cache window, click theClear Cache button and uncheck the Enable Caching checkbox. Click OK. This issue is fixed in JRE 1.4.2.

5 Select Encrypted or Not Encrypted and then select Load. A

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 36

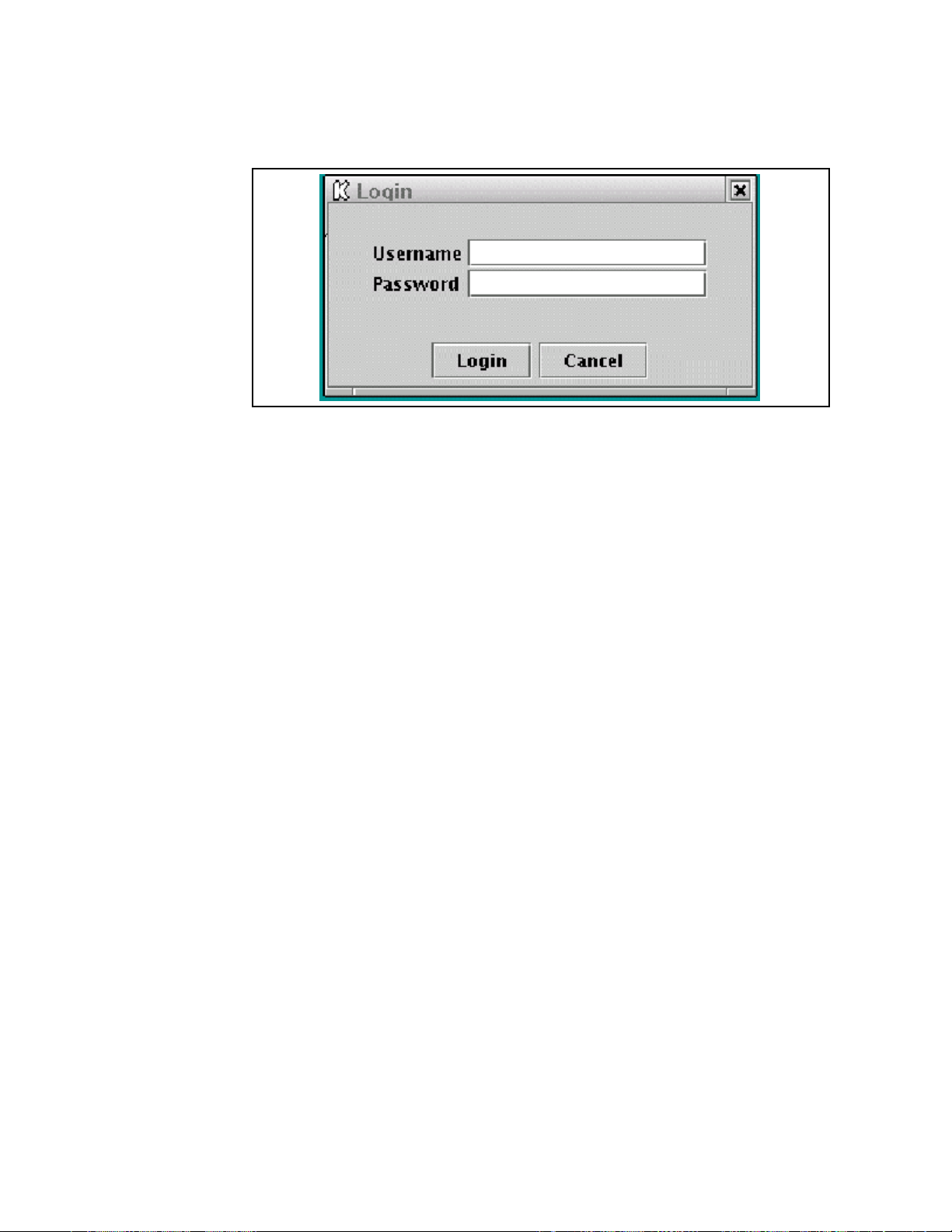

Figure 12 Login window

6 Enter your Username and Password, and click Login.

Note: By default, authentication is done against the local user database. To start, use the known username InReach and password access.

7 If you log in as a user, the following window appears.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 37

Figure 13 User login window

8 To log in as a superuser, click the Admin button on the tool bar

and log in with the default Superuser password system. You can now configure the unit at the GUI.

9 Click on the menus on the left side of the window. For example,

selecting Ports: Async opens the Async ports window.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 38

Figure 14 Example: selecting Ports: Async

a When you click on a port, the following dialog box appears for

you to enter your information.

Note: In the TCP window (see Figure 15 both the Telnet CR Filtering radio button, and the Telnet Negotiations radio button are Enabled.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

), ensure that

Page 39

Figure 15 Port 19 dialog box

For details on using the IP Configuration Menu, refer to “Using the IP Configuration Menu” in the LX-Series Configuration Guide.

For information on how to boot your unit from defaults, refer to “Booting from Defaults” in the LX-Series Configuration Guide.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 40

Procedure 6 Connecting through the server to the MRV LX terminal server

At the management pc,

MRV Communications recommends that you change the default password for the user’s MRV LX terminal server before you put the unit on a network. For more information, refer to Changing the

password defaults on page 40.

Use the following procedure to access the command line interface port from a dumb terminal attached to an LX Series serial port, which is set for access local or dynamic:

a Hit the return key several times to autobaud (if autobaud is

enabled) the port and get the login prompt.

b Enter your login name. The default is InReach.

ATTENTION

c Enter your password. The default is access.

Procedure 7 Changing the password defaults

At the management pc,

1 The default password for the MRV LX terminal server user is

access. If an unauthorized user knew this username/password combination, that user could log on to your unit. For this reason, you should change the user’s password to something other than access.

The default Superuser password is system. To reduce the risk of an unauthorized user gaining access to the Superuser Command Mode, MRV recommends that you change this password to something other than system.

To change the user-level password, access the Configuration Command Mode.

2 Access the Subscriber Command Mode for the subscriber by

entering the subscriber command with InReach as the command argument; for example: Config:0 >>subscriber

InReach

3 Enter the password command at the Subs_InReach >>

prompt.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 41

4 Enter a new user password at the Enter your NEW

password: prompt. The password will be displayed as

asterisks.

5 Re-enter the new user password at the Re-Enter your NEW

password: prompt. The password will be displayed as

asterisks.

6 To change the superuser password for the unit, do the following:

a Access the Configuration Command Mode.

b Enter the password command at the Config:0 >> prompt.

c Enter a new superuser password at the Enter your NEW

password: prompt. The password will be displayed as asterisks.

d Re-enter the new superuser password at the Re-Enter

your NEW password: prompt. The password will be

displayed as asterisks.

Procedure 8 Accessing the MRV LX terminal server

At the management pc,

1 Select Start -> Programs -> Accessories -> Communications

-> HyperTerminal.exe

2 Name the HyperTerminal Session: termserv [Enter]

3 Ensure that the appropriate COM port is set and that the

terminal emulation is set to VT100.

Note 1: You may be asked for the following parameters:

• 9600 baud rate

• 8 data bits / second

• parity - None

• stop bit - 1

• Flow control - None

Note 2: Press Enter until you receive a log-in prompt. You may need to press Enter several times before the prompt appears.

4 Log in to the HyperTerminal: access [Enter]

Note: The letters do not appear when you type them. You are typing them in blind.

5 Enter your username: admin [Enter]

6 To change security at the prompt, type set priv [Enter]

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 42

7 Enter your password: system [Enter]

8 Define server ip address <IP address of the terminal server>

[Enter]

9 Define server ip subnet mask <ip-address of the subnet

mask> [Enter]

10 Define server ip primary gateway address <ip address of the

primary gateway> [Enter]

11 Define port:<select port from range 1-18> telnet newline

filtering cr [Enter]

Note: Type a range [1-18] for every port the Sun Fire V100 server is connected to.

12 Define port for use with SMDI: Define port 19 telnet newline

filtering none

Note: You can verify the ports with the command:show ports 1-19 telnet chara [Enter]

13 Save your changes.

14 Log out.

Note: Using the command define saves the configuration.

15 To kill a session on a port, type: logout port 12 [Enter]

Procedure 9 Connecting a server to the MRV LX terminal server

ATTENTION

The procedures in this document assume that you are using PuTTY. It is suggested that you download from the web, PuTTY VT 100 Emulator, a freeware configurator tool to set up sessions.

Download PuTTY from

www.chiark.greenend.org.uk/~sgtatham/putty/

At the management pc,

1 Connect a cat-5 Ethernet cable from the management PC to the

layer-2 switch.

2 Launch PuTTY.

Note: Refer to the customer-specific information datasheet to enter the MRV LX terminal server IP address and the port number.

3 In the hostname field, enter <IP address of the MRV LX

terminal server>

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 43

4 For port, enter <the port number which corresponds to A/LOM

(Serial A) on the V100 and the MRV LX terminal server>.

Note 1: For LOM ports, use terminal server ports 2100-2400 (physical ports 1-4). For Serial ports, use terminal server ports 3100-3400 (physical ports 11-14).

The port number identifies the location of the target host. This value is based on the following formula: 2000 + (Port number physically connected on the MRV LX terminal server x 100). For example, if the target host is connected to port 9 of the MRV LX terminal server, then the port number would be 2900.

Port 12 is the port on the back of the MRV LX terminal server that translates to 3200.

Note 2: Once the connection is established to the target host, the communication between the user and the component is treated exactly like a console connection.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 44

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 45

Powering on the servers

Procedure 10 Powering on the servers

At the server,

ATTENTION

Do not have any bootp servers on the same subnet of the system. If there is such a server, disconnect the LAN interface cable from the system subnet.

Turn power on to the server.

2 If the system boots up, log into the server as root.

3 Type init 0 [Enter].

This will bring you to the boot (>ok) prompt. If the system does not have Solaris installed, it will power up to the >ok prompt. You may have to send a break to get the >ok prompt. The servers will more than likely boot up to a Solaris System Identification screen. Do not answer those questions. Send a break to get to the >ok prompt so you can then boot from the CD-ROM.

Procedure 11 Power on to get the >ok prompt

At the management pc,

1 If you are using PuTTY, click the program icon in the upper left

PuTTY title bar to access PuTTY’s pull-down menu.

2 Mouse over the telnet command menu item to access additional

drop-down menu options.

3 Select Break to send the break command from the PuTTY

session.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 46

4 The >ok prompt appears.

If you do not use PuTTY, use the appropriate key sequence to send a break to the server to get an >ok prompt.

ATTENTION

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 47

Installing Disks 1 to 3

ATTENTION

Refer to the customer-specific information datasheet for host name, IP addresses, subnet masks, and so on.

ATTENTION

For installation on a brand-new machine, connect through the terminal server to the A/LOM port until after you have installed CD5. Then log out.

Log back in through the terminal server to B/Serial port for the rest of the installation.

For installations on machines that have already had a system installed, just remain on the B/Serial port.

ATTENTION

The first time you connect to a server, it generates a PuTTY Security Alert. Select Ye s from the dialog box that appears. You will then be asked to log in. Use your nortel account and enter the password you have set. The passwords are time sensitive and will expire after the set number of days.

Installing CD1

Approximate time estimate = 45 minutes

Procedure 12 Installing CD1

At the management pc,

1 Place CD1 in the CD-ROM drive.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 48

Make sure you put spaces before and after the hyphen: boot [space] cdrom [space] - [space] install.

At the >ok prompt, boot the system: boot cdrom - install

[Enter]

Note 1: For instructions on how to get to the >ok prompt, see

Powering on the servers on page 45.

Note 2: You must wait several minutes before information begins to appear.

Select a Language

3 To select zero [0] for English,

0 [Enter]

ATTENTION

Select a locale

4 To select zero [0] for English,

0 [Enter]

What type of terminal are you using?

5 Select three [3] for DEC VT100,

3 [Enter]

Note: The following message is displayed: The system is coming up. Please wait.

ATTENTION

Ignore any time zone and syntax errors you receive. You will set the time zone and additional information in the next procedure.

Solaris Installation Program Page

1 Press Esc, then press the number 2 [Esc+2] to continue.

Note: If you are using a direct console connection to the SUN terminal, use the F2 key.

2 Press Esc+2 to continue.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 49

Network Connectivity/Networked

3 Accept the default Yes by pressing Esc+2 to continue.

DHCP/Use DHCP

4 Accept the default No by pressing Esc+2 to continue.

Primary Network Interface /Primary Network Interface

5 Accept the default dmfe0 interface by pressing Esc+2 to

continue.

Host name/Host name

6 Enter the host name of the server, for example: micromgmt

Note 1: Host name cannot start with a number. Host names must be at least two characters and can contain alphanumeric characters and minus signs (-).

Note 2: Host names must be unique within your domain. Creating a duplicate host name will cause problems on the network after you install Solaris.

Press Esc+2 to continue.

IP Address

ATTENTION

Make sure you enter the machine logical IP address for this system. It must be unique and follow your site’s address conventions.

Enter the machine logical IP address.

Example: 120.120.13.25

Press Esc+2 to continue.

Subnets/System part of a subnet

8 Accept the default Yes by pressing Esc+2 to continue.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 50

Netmask/Netmask

Do not accept the default unless you are sure it is correct for your subnet.

Enter the subnet mask, for example: 255.255.255.0.

Press Esc+2 to continue.

IPv6/Enables IPv6

IPv6 is not supported.

ATTENTION

Accept the default No.

Press Esc+2 to continue.

There is a slight delay between screens. Please wait.

Confirm information

11 Ensure all fields are filled correctly. Press Esc+2 to continue.

Press Esc+4 if you need to change anything.

Configure Security Policy

12 Confirm the Kerberos information by accepting the default No.

Press Esc+2 to continue.

Confirm information

13 Ensure all fields are filled correctly. Press Esc+2 to continue.

You will see the message Starting remote procedure

call (RPC) services: sysidnsName Service.

Name Service/Name Service

14 Confirm the name service information by using the down arrow

key to navigate to None. Press the Return key. Press Esc+2 to continue.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 51

Continuing the process

15 Confirm your information. Ensure all fields are filled correctly.

Press Esc+2 to continue.

Press Esc+4 if you need to change anything.

16 At the Regions prompt, select the country where the system is

going to be deployed. Use the arrow keys to navigate to the required country and press the spacebar to mark your choice. Ignore time zone syntax errors.

Press Esc+2 to continue.

17 At the Time zones prompt, select the time zone (for example,

Central for the Richardson, Texas, area) where the system is

going to be deployed. Use the arrow keys to navigate to the required time zone and press the spacebar to mark your choice.

Press Esc+2 to continue. Please wait for the next prompt.

18 At the Date and time prompt, set up the date and time.

Press Esc+2 to continue.

19 Confirm information. Ensure all fields are filled correctly.

Press Esc+2 to continue and wait for the message: System identification is completed.

ATTENTION

Make the following selection very carefully. If you make a mistake at this point, you will need to start over, beginning with Powering

on the servers on page 45. The selection of the number depends

on the configuration type.

You will see the following message. Select the 2-server Micro Configuration (1) option, then press Enter:

*********************************************

1) 2-server Micro Configuration

2) 4 or 4+ Standard Configuration

**********************************************

You will see the message Creating disk profile for

standard <number of servers> server system.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 52

Make the following selection very carefully. If you make a mistake at this point, you will need to start over, beginning with Powering

on the servers on page 45. The selection of the number depends

on the server type.

You will see the following message:

********************************************* Choose Application configuration:

1) AppSvr/IPCM/Websvr/WCM

2) Management/Accounting/Oracle/DB

**********************************************

Select your required server type, then press Enter.

Note: Select option 1 for the IPCM, SIP Application Module, Web Client Manager, Provisioning Module, Web Client Manager, and H.323 Gatekeeper.

ATTENTION

22 The install script will begin executing. The system will reboot

23 You will be prompted to type in the root password twice. The

Installing CD2

Approximate time estimate = 15 minutes

You will see the message Creating disk profile for

<selected server>.

upon completion of the install script. Wait until you receive the login prompt.

password will not appear on the screen when you type. If you do not want a root password, press Enter twice. Press Enter to continue.

Note: The CD will eject from the CD-ROM. The system then

requests that you insert CD2.

ATTENTION

If you are not prompted for CD2, contact support.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 53

Procedure 13 Installing CD2

At the management pc,

1 Place CD2 in the CD-ROM drive and press Enter. You will see a

number of messages requiring no specific answer. Press Enter following each one.

2 You will then see the following message: What type of

installation are you performing? 1=Typical; 2=CustomTy pe 1 and press Enter.

3 You will then see the following message: Ready to Install:

Install Now, Start Over, Exit Installation

Type 1 for Install Now and press Enter.

4 Press Enter several more times to complete the License

Agreement. Enter Y to accept the license.

Note: You will now see a progress bar showing percent of installation completed.

5 You will then be asked to choose 1 for Live Install or 2 for Done.

Accept the default 2-Done by pressing Enter.

Installing CD3

Approximate time estimate = 90 minutes

Note 1: CD2 will eject from the CD-ROM drive when installed.

Note 2: The system will reboot and come up requesting that you insert MCS Base Platform System Software CD3.

ATTENTION

If you are not prompted for CD3, contact support.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 54

Procedure 14 Installing CD3

At the management pc,

Wait for the login prompt to appear. The script will execute after you press Enter.

Place CD3 in the CD-ROM drive and press Enter at the prompt. The installation will continue. Please wait. The system will prompt you for the next step.

2 Log in as root. [Enter]

3 Enter your <customer-specific password> [Enter]

Note 1: CD 3 will eject from the CD-ROM when installed.

Note 2: You will be prompted to insert CD4.

ATTENTION

If you are not prompted for CD4, contact support.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 55

Installing Disk 4

ATTENTION

The following sections describe installing CD4 according to the specific server type. Please note that there are some small, but very important, differences in the installation of the two types of servers (database/accounting/management or application server).

Database/Accounting/Management server (DBSvr, AcctMgr, MgmtSvr)

Approximate time estimate = 30 minutes

Procedure 15 Installing CD4

At the management pc,

1 Place CD4 in the CD-ROM drive and press Enter to continue.

Wait until you see the following statement appear:

”You are now configuring the NTP time source for this server. The servers which run the Management and Accounting service will be the source. You will need to provide the Machine Logical IP Address of each server. If running simplex mode, provide the same address twice.”

2 Press Enter to continue.

3 You will see the following message:

The Management server requires an external clock. Select External Clock for time source external to the Management server. Select Internal Clock for the Managment server

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 56

to use the local system clock as the time source.

Note: Select Time Source

• X - External Clock Device

• E - External Clock Source {IP Address(es)}

• I - Internal Clock (Unreliable)

Select option from list above [E, I, X]

Refer to the CSI for NTP time source IP information.

Select one of the options, then press Enter.

If you select X - External Clock Source, you will see a list of clock types. Select the type you have or none (99).

ATTENTION

If you enter I - Internal Clock, then enter the MACHINE Logical IP Address of the Management/Accounting server:

If you select E for External time source, you will be prompted as follows: How many external clock sources would you like to reference [1]? Enter 1.

You will then see the following message:

External Clock Source IP Address #1: Enter your clock source IP address, for example: 120.120.12.220

5 You will see the following message: "Enter the MACHINE

logical IP address of the other Accounting Server."

Enter the <primary machine logical IP address of the other accounting server> [Enter]

Example: 120.120.13.22

6 You will see the following message:

You have chosen to configure NTP as follows: Type of server: Management Using external Time Source(s): 120.120.12.220 NTP SOURCE (Accounting IP address): <ex:

120.120.13.22>

Is the above configuration correct (y/n):

Select Y to continue or N to change.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 57

7 Press Enter to continue.

8 You will see the following statement:

”You are now configuring IPMP (Multipathing)"

”Please have the Database Server Physical IP addresses and the Machine Logical IP address ready. Have 6 IP addresses that can be used as ping buddies." Recommendations for ping buddies are provided.

9 Press the Enter key to continue.

10 When you see the IP multipathing configuration for Sun Solaris

information appear, press Enter to accept it or type in a preferred setting. The default failover timeout is set to 1000mSec.

11 Enter the primary machine physical IP address for the dmfe0

interface: <Physical IP address of the dmfe0

interface> [Enter]

Example: 120.120.13.20

12 Enter the secondary machine physical IP address for the dmfe1

interface: <Physical IP address of the dmfe1 interface>

[Enter]

Example: 120.120.13.21

13 Enter the <machine logical IP addresses of the

servers> that are the ping targets.

Note: Do not enter the IP address of the server you are working on.

IP Multipathing needs a set of reliable hosts to ping against. Select a set of three IP addresses in this subnet that belong to reliable nodes (such as fault tolerant servers). Select the three nodes from the following list, in order of preference:

For IPMP GROUPS:

• Machine Logical IP address of the database server

• Machine Logical IP address of the Management server

• Machine Logical IP address of the CAM server

• BPS stack IP address

• Other optional devices (PRI Gateway host)

Provide between two and six ping targets or each IPMP group for proper IPMP failover reliability. Enter the address "0.0.0.0" to indicate list is complete, if entering less than six targets.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 58

Enter ping target #1: 120.120.13.25

Enter ping target #2: 120.120.13.1

Enter ping target #3: 0.0.0.0

Note: Do NOT use this server's own IP address as a ping target.

Press Enter after each IP address.

14 The configuration information will come up as shown in the

following figure:

Figure 16 Database/Management/Accounting server IPMP configuration summary

Is this IPMP group configuration acceptable? (Y/N)

Select Y and press Enter.

15 The default route IP address should appear. If correct, press

Enter. Otherwise, type it in, then press Enter. Example:

120.120.13.1

Note: If your configuration does not include a router, then enter the machine logical IP address of your server.

16 You are now configuring Management Server or

Accounting Server Service Failover. Please have the Management Server System Manager and Accounting Server Accounting Manager Service Logical IP addresses and the Machine Logical IP addresses ready.

Press Enter to continue.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 59

You will see the following message:

Obtaining IP Addresses for SysMgr/AcctMgr Failover Operation

Note: If you don't have plan to configure the failover service, type in the same primary service logical IP address and primary machine logical IP address or type 0.0.0.0 instead.

17 Enter the <Machine Logical IP Address of the other

MgmtSvr> (in dot-notation format).

Example: 120.120.13.22

18 Enter the <service logical IP address of the

SysMgr> (in dot-notation format).

Example: 120.120.13.22

19 Enter the <service logical IP of the AcctMgr> (in

dot-notation format).

Example: 120.120.13.22

”You have entered the following IP addresses: Machine Logical IP Address of the other MgmtSvr:

120.120.13.22

Service Logical IP Address of SysMgr:

120.120.13.22

Service Logical IP Address of AcctMgr:

120.120.13.22

20 Is this information correct? (y/n)

If the information is correct, press Y and Enter.

21 You are now configuring the Syslog daemon. Press

Enter to continue.

22 Is this the Redundant Configuration Accounting

Server Machine [Y/N]? Select N.

The system will now reboot and come up requesting that you insert CD5.

CD4 will eject from the CD-ROM drive when installed.

ATTENTION

If you are not prompted for CD5, contact support.

Application servers (SIP Application Module, IPCM, Web Client Manager, Provisioning Module)

Approximate time estimate = 15 minutes

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 60

Procedure 16 Installing CD4

At the management pc,

1 Place CD4 in the CD-ROM drive and press Enter to continue.

WAIT until you see the following statement appear:

2 Press Enter to continue.

3 You will see the following message: "NTP Source 1: Enter

the MACHINE Logical IP Address of the Management Server:

Enter the IP address, for example: 120.120.13.22

4 You will see the following message: "NTP Source 2: Enter

the MACHINE Logical IP Address of the Accounting Server:

Enter the IP address, for example: 120.120.13.22

5 You will see the following message:

You have chosen to configure NTP as follows: Type of server: Application NTP SOURCE (Management IP address):

120.120.13.22

NTP SOURCE (Accounting IP address):

120.120.13.22

Is the above configuration correct (y/n):

Select Y to continue or N to change.

6 Wait until you see the following message:

You are now configuring IPMP (Multipathing) Please have the Application Servers (Appsvr, IPCM, WebSvr, WebClientMgr) Physical IP addresses and the Machine Logical IP address ready. Have 6 IP addresses that can be used as ping buddies. Recommendations for ping buddies are provided.

7 Press Enter to continue.

8 When you see the IP multipathing configuration for Sun Solaris

information appear, press Enter to accept it or type in a preferred setting. The default failover timeout is set to 1000mSec.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 61

9 Enter the primary machine physical IP address for the dmfe0

interface: <Physical IP address of the dmfe0

interface>

Example: 120.120.13.23

10 Enter the secondary machine physical IP address for the dmfe1

interface: <Physical IP address of the dmfe1 interface>.

Example: 120.120.13.24

11 Enter the <machine logical IP addresses of the

servers> that are the ping targets.

Note: Do not enter the IP address of the server you are working on.

For IPMP GROUPS:

• Machine Logical IP address of the database server

• Machine Logical IP address of the Management server

• Machine Logical IP address of the CAM server

• BPS stack IP address

• Other optional devices (PRI Gateway host)

Provide between two and six ping targets or each IPMP group for proper IPMP failover reliability. Enter the address "0.0.0.0" to indicate list is complete, if entering less than six targets.

Note: Do NOT use this server's own IP address as a ping target.

12 Press Enter after each IP address, for example: 0.0.0.0

[Enter] (This is the third ping target machine logical IP

address.).

Example

Enter ping target #1: 120.120.13.22[Enter]

Enter ping target #2: 120.120.13.1[Enter]

Enter ping target #3: 0.0.0.0 [Enter]

Note: 0.0.0.0 ends the ping target list.

13 You will see the configuration summary appear as shown in the

following figure:

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 62

Figure 17 Application server IPMP configuration summary

Is this IPMP group configuration acceptable? (Y/N)

Select Y to accept or N to change.

14 The default route IP address should appear. If correct, press

Enter. Otherwise, type it in, then press Enter.

Note: If your configuration does not include a router, then enter the machine logical IP address of your server.

15 Do you intend to deploy the Web Server to this

machine (y,n)? Enter Y.

16 You are now configuring the Syslog Daemon. Press

Enter to continue.

17 Does the Management Server have a SysMgr Service

Logical IP Address [Y/N]? Select N.

The system will now reboot.

ATTENTION

If you are not prompted for CD5, contact support.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 63

Installing Disk 5 (all servers)

Approximate time estimate is 30 minutes.

Procedure 17 Installing CD5

At the management pc,

1 Place CD5 in the CD-ROM drive, on the server, and press Enter

at the prompt.

Note 1: CD5 will eject from the CD-ROM when installed.

Note 2: For Management/Accounting servers, you will be

prompted for CD6. Refer to Installing Disk 6

(MgmtSvr/AcctMgr only) on page 67 for instructions.

Application/IPCM servers (AppSvr/IPCM) will reboot.

ATTENTION

On a brand-new machine, only the A/LOM port is available until after CD5 completes. Once CD5 has completed, log out of the A/LOM port.

Log back in through the terminal server to the B/Serial port for the rest of the installation.

For installations on machines that have already had a system installed, just remain on the B/Serial port.

After the AppSvr/IPCM reboot, log into these servers (using the B/Serial port) and change the passwords for the sysadmin, root, and nortel users.

Change the passwords on the MgmtSvr/AcctMgr server after CD6 (not CD5).

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 64

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 65

Enabling or disabling the automatic mount

Use the following procedure if you need to use the CD-ROM auto-mount after installation of CD5. Execute this procedure on the MgmtSvr (Server1).

ATTENTION

Keep this procedure for future use.

Procedure 18 Enabling or disabling the CD-ROM auto-mount

At the management pc,

1 The system disables volmgt by default after CD5 is installed. To

toggle it back on to install additional CDs, follow this step.

/etc/init.d/volmgt start

2 When you finish mounting the additional disk(s), remember to

disable the volume manager for better security. To disable it, use the following command: /etc/init.d/volmgt stop

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 66

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 67

Installing Disk 6 (MgmtSvr/AcctMgr only)

ATTENTION

CD6 must be installed on the MgmtSvr and on the AcctMgr machines only. If you do not install CD6, you will not be able to deploy or start the secondary MgmtSvr or AcctMgr.

Approximate time estimate = 30 minutes

Procedure 19 Installing CD 6

At the management pc,

1 Place CD6 in the CD-ROM drive, on the server, and press Enter

at the prompt.

Note: CD6 will eject from the CD-ROM when installed.

2 After the reboot, log in (using the B/Serial port) and change the

passwords for the sysadmin, root, and nortel users.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 68

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 69

Installing Oracle 9.2.0.4 on the database server

The procedures to install Oracle 9 on the DBSvr include storing Oracle 9 CDs 1-6 to your local hard drive. Refer to the section that follows.

Approximate time for loading Oracle 9 = 90 minutes

ATTENTION

Refer to the CSI datasheet for such items as the hostname, IP addresses, and subnet masks.

ATTENTION

Perform these steps on all servers in parallel if multiple CDs are available.

Installing Oracle 9.2.0.4

Procedure 20 Installing Oracle 9.2.0.4 on the database server (DBSvr)

At the management pc,

1 Use PuTTY to connect to the database server using Serial port

B, which connects to the LX terminal server.

2 Enter your <customer-specific password>.

3 Insert Oracle 9.2.0.4 CD 1 into the CD-ROM drive on the server.

4 cd [ space] /cdrom/cdrom0 [Enter]

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 70

Make sure you put a space before the ending slash (/) in step 5.

cp [ space] Install_CD_to_Disk [ space] / [Enter]

6 cd [ space] / [Enter]

7 ./Install_CD_to_Disk [Enter]

8 Storing data from CDs to the /IMS/ora_cds

directory [Y]?: Select Y [Enter]

9 Please insert Oracle Disks [2-6] into the CD-ROM drive [Enter]

Note: You will receive the following prompts for each CD entered:

Copying files from CDROM to /IMS/ora_cds/Disk [1-6]

Performing check sum on /IMS/ora_cds/Disk [1-6]

ATTENTION

Contact support if you do not receive the following response:

Check sum Oracle Disk [1-6] passed for each Oracle CD inserted into the CDROM.

ATTENTION

In step 10

you will enter the hostname twice. The sec_db_hostname is the same as the pri_db_hostname for a 42-server non-redundant configuration.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 71

Refer to this table when entering the following command:

Prompt Definition Enter

pri_db_hostname There is only one

hostname for a 24-server configuration.

sec_db_hostname Since there is no

secondary server,

Hostname of the database server, for example, micromgmtDBSvr.

Re-enter hostname of

the database server. enter again the pri_db_hostname (Hostname of the database server).

cd [space] /IMS/ora_cds/Disk1 [Enter]

./Oracle_Install PRIMARY <primarydb-hostname> [space] <secondarydb-hostname>[space] | [space] tee [space] /tmp/oracleinstall.log

11 Enter the password oracle at the Oracle prompt. [Enter]

12 Retype the password: oracle [Enter]

13 Select the database configuration:

1) Enterprise

2) Carrier

Accept the default [1]

[Enter]

14 Is the database replicated [N]? Accept the default [N]

[Enter]

15 You will then see a confirmation screen. If the information on the

screen is correct, type Y. Otherwise, type N and make the changes.

Note: At this point, the program runs a check sum and untars the files to the local directory. Approximate time: 30 - 45 minutes.

16 Accept the default of the local bin directory: [/usr/local/bin]:

[Enter]

17 Removing Disk1,Disk2,Disk3,Disk4,Disk5,Disk6

from /IMS/ora_cds [Y]?:

Y [Enter]

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 72

Failing to answer Y will cause the system to raise a disk space alarm on the SysMgr screen for the DBSvr.

You will see the message: Removing Disk 1, Disk2,

Disk3, Disk4, Disk5, Disk6 from /IMS/ora_cds....

Oracle_Install Complete.

18 At the completion of the script, you will see the message:

Oracle_Install complete

Press Ctrl-C to exit.

19 To check for errors, at the prompt, type cd [space] /tmp

[Enter]

20 View the /tmp/oracleinstall.log to see if there are any errors:

grep[space]-I[space]error[space]oracleinstall.log

Note: To check for errors, look for the word “error” in this log file.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 73

Deploying the initial database load

Prerequisites

Ensure that the MCS Base Platform Software and Oracle 9i have been installed on database servers.

ATTENTION

Refer to your CSI datasheet to enter the IP addresses that you are prompted for in this section.

Deploying the MCS database load (imssipdb)

After performing the steps for installing MCS Base Platform software and Oracle software, an empty imsdb1 database is all that exists. A database load must be deployed on the database machine (Server1) to define all of the MCS schemas and configurations.

Commands are executed on each server using PuTTY SSH into the machine logical IP address (ex.: 120.120.13.25). The procedure to install the database load for the first time is command-line driven and executed from the MgmtSvr.

Example: Open a PuTTY SSH session to Server1 120.120.13.22

Procedure 21 Deploying the initial database load (imssipdb)

At the management pc,

1 Log into the MgmtSvr:

User name: <nortel>

Password: <your new password>

2 Execute the following command: dbdeploy.pl [Enter]

3 Select the correct database load and press Enter.

4 Is this a Replicated Database? Enter N for a

non-redundant system.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 74

5 You will see the following message:

Select the Type of Deployment: [1] Initial Deployment [2] Upgrade of Database [3] Rollback of Database [4] Install Files only to

Select 1 for initial deployment, then press Enter.

6 Enter Machine Logical IP Address - Primary DB

[No default]:

Enter the <machine logical IP address of the MgmtSvr>

Example: 120.120.13.22

7 Enter the Machine Logical IP address -

Management Server:

Enter the <machine logical IP address of the MgmtSvr>.

Example: 120.120.13.22

8 Enter the Service Logical IP address of the

SysMgr:

Example: 120.120.13.22

Note: Information obtained for database deployment appears on the screen.

9 Is the above data correct? [Y]

Press Y to select the default or N to change.

Note: The imssipdb deployment begins. The installer will notice the PuTTY window scrolling installation information. This is the Management/Accounting server sending the imssipdb data to the database server. Make sure that you receive the "Successful Install" box at the end of the script execution.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 75

Deploying and starting the Sysmgr

Prerequisites

The dbdeploy.pl script is successfully deployed on the database.

ATTENTION

Refer to the customer-specific information for hostname, IP addresses, subnet masks, and so on.

Deploy the Sysmgr for a non-redundant configuration. The operator logs into the machine logical IP address of the management server. At the UNIX prompt, the operator the uses the script mgmtdeploy.pl to deploy and start the Sysmgr. This process is described in the following section.

Deploying and starting the Sysmgr

Procedure 22 Deploying and starting the Sysmgr

At the management pc,

1 Log into the management / accounting server:

User name: nortel

Password:

2 At the prompt, type mgmtdeploy.pl

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 76

When selecting the management server load, always select the load that contains the word "micro" in it. If the non-micro load is selected, the installer will receive an Out Of Memory error.

The server load names are:

• mgmtsvr_all-mico-ims — for a 2-server installation.

• mgmtsvr_all-small-ims — for a 4-server or an 8-server V100 installation.

• mgmtsvr_all_ims — for an 8-server N240 installation.

Please enter the correct number of the load to deploy:

Example

[@micromgmt]/export/home/nortel:=> mgmtdeploy.pl

ATTENTION

Obtaining input required to deploy and configure the mgmtsvr bundle

Please enter all IP addresses in dot-notation format

==========================================

Querying DSM for available loads

Select a mgmtsvr load from the following list

[1] mgmtsvr_all-micro_ims_3.0_buildxxxx [2] mgmtsvr_all-small_ims_3.0_buildxxxx [3] mgmtsvr_all_ims_3.0_buildxxxx

Please enter the number [1] of the load to deploy: 1

4 Is the database replicated? N [Enter]

5 Enter Machine Logical IP Address - Primary DB:

Example: 120.120.13.22

6 Enter the Machine Logical IP Address - Mgmtsvr:

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 77

Example: 120.120.13.22

7 Will a Motorola SAM16 server (SIP PriGwy or SIP

Audio Svr) be deployed? [Y/N]

Always answer N [Enter] even if you have a third-party gateway.

Note: Information obtained for deploying the Sysmgr appears.

8 Is the above data correct? [Y]

Answer Y [Enter]

9 Start up the SysMgr and TSS processes? [Y]

Answer Y [Enter]

Note: You must wait until the system returns to prompt since the system does a sleep message as it starts each service. There may be a delay.

Sysmgr deployment verification

After completing step 9 above, the screen will display deployment information. Notice that the script waits 30 seconds between process executions. The script is starting three processes that must be running in order to continue MCS load deployment.

The three processes can be verified by opening a PuTTY SSH session to the management / accounting server.

Example: Open a PuTTY SSH session to 120.120.13.22

Procedure 23 Verifying the Sysmgr deployment

At the management pc,

1 Log into management / accounting server as nortel / <your new

password>.

2 Execute the following command to verify processes:

[@micromgmt] /export/home/nortel:=> meinit -p

Rel3 NTme_pids mgmtsvr mgmtsvr.3 xxxx

Rel3 NTme_pids tsscma tsscma.5 xxxx

Rel3 NTme_pids tssfpma tssfpma.6 xxxx

Note: The numerical value of the PIDs is shown as "xxxx" because it may vary on each system.

The results of the meinit command should display three processes along with their process ids.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 78

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 79

Registering your license key

Before installing the license key as described in Procedure 25,

Installing the System Management Console, follow the procedure

below to generate and register your license key.

Procedure 24 Registering the license key

At the management pc,

1 Before you can begin generating keycodes, first “Register” (or

create) your site on the KRS (Keycode Retrieval System) webpage. The site will normally consist of one or two Management and Accounting servers (this set is called the CORE) and one or more Media Application Servers (MAS).

Each server has two (2) MAC addresses. First identify those MAC addresses since you will need to identify them to the KRS during the site registration process. The following screen shots show a simple configuration and generation of one keycode for the Management and Accounting servers (CORE).

2 Open your browser and go to www.nortel.com (Internet access

is required to carry out this procedure.).

3 From the main page, under Support, click on Keycode Retrieval.

This will take you to the secure login page.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 80

Figure 18 KRS login screen

4 In step 1 (Location) select a login server that matches your

region, for example, European Login or North American Login.

5 In step 2 (Product Family) select the product you wish to

generate keycodes for; in this case, select Multimedia Communication Portfolio.

6 Next you will be asked to enter your User ID and Password. The

following screen then appears.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 81

Figure 19 Keycode Retrieval System, Creating your site

7 Select Create to register a new system. The following screen

appears.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 82

Figure 20 Keycode Retrieval System, Entering your site information

8 Fill in the requested information and press the Continue button.

Ensure you choose the correct software version from the dropdown box. Your screen should look like the one in the following figure.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 83

Figure 21 Keycode Retrieval System, Current Summary

9 Select the server you want to enter MAC addresses for first, then

click on Create.

10 Enter the MAC addresses of the CORE servers and click on

Add.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 84

Figure 22 Keycode Retrieval System, Adding MAC address

11 Repeat Step 10 for the second MAC address (required). If you

make an error, you can remove one or both and begin again. If you have a second Core that is going to be installed as a redundant server enter all four MAC addresses at this time.

12 When finished you will need to select Create again to enter the

Media Application Server's MAC addresses, enter those just as you did in Step 10.

13 Enter both MAC addresses of the Media Application Server, if

you are installing one, and click Continue. For more information on the Media Application Server, refer to the Media Application

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 85

Server Service Guide applicable to your system (see the Overview chapter for a listing of the service guides).

Note: If you have a second Media Application Server for your system, you must select Create a second time as only two MAC addresses can be associated with any one Media Application Server.

Figure 23 Keycode Retrieval System, Adding a Media Application Server

14 You will see a summary page of your entries. If the information

displayed is correct, click on Save. You will have completed registering your system. If the information is not correct, click on Cancel and begin again.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 86

Figure 24 Keycode Retrieval System, Current Summary

15 To generate keycodes for this site, click on Gen KC with Auth

Code from the side bar, as shown in the following figure.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 87

Figure 25 Keycode Retrieval System, Gen KC with Auth Code

16 To generate your keycodes, enter one of the MAC addresses of

the server you want your Auth code applied to. In this case, the example shows one of the CORE MAC addresses. Select Add.

17 The KRS automatically searches for and pulls up both MAC

addresses associated with the CORE. Click on Continue.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 88

Figure 26 Keycode Retrieval System, Finding the keycode

18 Select the proper Software Version for your system. Then click

on Continue.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 89

Figure 27 Keycode Retrieval System, Adding a MAC address

19 Enter the authcode number for the feature you wish to enable

into the Auth Code box. Use the system Authorization codes to build your license key file.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 90

Figure 28 Keycode Retrieval System, Entering the authcode

05006201

20 Select Add to have the KRS accept the authcode.

21 The KRS will validate the authcode and ensure the features

represented are valid for your server type (CORE or MAS). If validated successfully you will be allowed to enter more authcodes until you've entered all for your server. When this process is complete, click on Continue.

22 The following example shows a summary of the features

represented by all the sample authcodes entered. This screen shows the current features enabled and the new features to be added to your server. In a new installation there are no features displayed. If the list is correct, click on Continue.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 91

Figure 29 Keycode Retrieval System, Summary of features

Best Customer

23 The KRS will indicate it is generating your keycodes and saving

the results in its database.

After generating the keycodes and saving results in the KRS database, the system shows the Retrieve Keycode page where you can view the features enabled for the server. From this page you will be able to download the keycode (see the figures below).

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 92

Figure 30 Keycode Retrieval System, Retrieving the keycode

Best Customer

The screens show the features of your keycode and the option to download the keycode to your local PC. To download the keycode click on Download Keycode. From there you will see the screens to download the file and save it where you choose to on your local machine. Note that the file will be provided with a product-specified naming convention.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 93

Figure 31 Keycode Retrieval System, Retrieving your keycode, part 2

24 Download the new license key file to the MgmtSvr hard drive.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 94

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 95

Installing and launching the System Management Console

Prerequisites

Make sure that

• The dbdeploy.pl script has been successfully executed.

• The mgmtdeploy.pl script has been successfully executed.

• The Sysmgr is started.

• The license key is registered.

Installing the System Management Console

Procedure 25 Installing the System Management Console

At the management pc,

1 Put the MCS Base Platform System Software CD (MCS

Management Console PC software) into the PC’s CD-ROM.

2 Navigate to the CD-ROM drive and double click on the

executable mcpmc_setup.exe.

3 To install the System Management Console, click Next.

4 To select default program folder, click Next.

5 Enter the <SysMgr service logical IP address>.

Example: 120.120.13.22

6 Click Next.

7 Enter the System Management server port. Keep the default

11111.

8 Click Next.

9 Keep default destination folder.

10 Click Next.

11 Review settings before copying files.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 96

12 Click Next to begin installation.

13 At the pop-up window that says, Installation

successfully completed, click OK.

Launching the System Management Console

Make sure that the System Management Console application has been successfully installed on the PC.

Procedure 26 Launching the System Management Console

At the management pc,

1 Click Start ->Programs ->MCP->System Management

Console.

2 Enter the user name and password in the fields provided (case

sensitive). Contact support to obtain this information.

IP addresses and port numbers will default to the machine logical IP address for the MgmtSvr and the MgmtSvr default port 11111 that you entered the procedure, Installing the System

Management Console on page 95.

3 Click OK to log in.

The system manager will initialize the whole network view; it will take up to a minute for the system manager screen to appear.

The default base directory where the System Management Console is installed on the management pc is

C:\Program Files\Nortel Networks\MCP System Management Console

4 You should have received and stored a license key that you can

navigate to. You can save the license key in the file:

C:\Program Files\Nortel Networks\MCP System Management Console\<file name>

5 Install the license key.

In MCP 3.0, the initial License Key for Core Applications resides on the MgmtSvr local disk. The initial License Key allows the System Manager to start so that a registered License Key can be installed at the window. The System Manager only permits deployment of software components after you have entered a registered License Key into the system. Once the License Key has been registered in the system, that Key restricts the deployment of software components.

To update the License Key from the System Management Console, go to the Administration button and select Update from

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 97

the License Key->Update dropdown menu (You can also select the System=>License Key=>Update menu option from the System tree.) as shown in Figure 32, Management Console

Update License Key. The System item on the file tree must be

highlighted.

Figure 32 Management Console Update License Key

6 After you have selected the Update menu-item, an Update

License key/Select License key File dialog box appears, as shown in Figure 33, Select License key File Window

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 98

Figure 33 Select License key File Window

7 Once you have entered the new License Key, you will see a

dialog box notifying you whether the update is successful or fails. If the system does not find a license key in the database or on the Managements server local disk, a dialog box (Figure 33) will appear, prompting for a license key file.

If you do not immediately see your license key, locate it by browsing the file system.

8 Select the license key file by highlighting the file and pressing

Apply.

Once the file is selected, the license key appears in the text area. If a wrong file is selected, the Open File button can be used to select a different file.

Once you have selected the Apply button, a request is sent to the System Manager and the license key is saved into the database. Upon successful entry into the database, the Sysmgr sends back an appropriate response to the System Management Console and you will be notified that the license key has been saved.

9 By default, the only components available at this point are the

Sysmgr; that is, the Mgmtsvr, and a database instance. Expand each element in the tree to verify that the MgmtSvr component is loaded and running.

NN10364-301 MCS 5100 3.5 Standard 6.0 December 2006

Page 99

The console screen has the basic look and feel of a Windows Explorer window with a tree structure on the left, and a general information area on the right. Each folder on the management console tree is represented as a Network Element and each has a different functionality.

MCS 2-server Sun Fire V100 Solaris Installation and Commissioning Guide

Page 100

100
