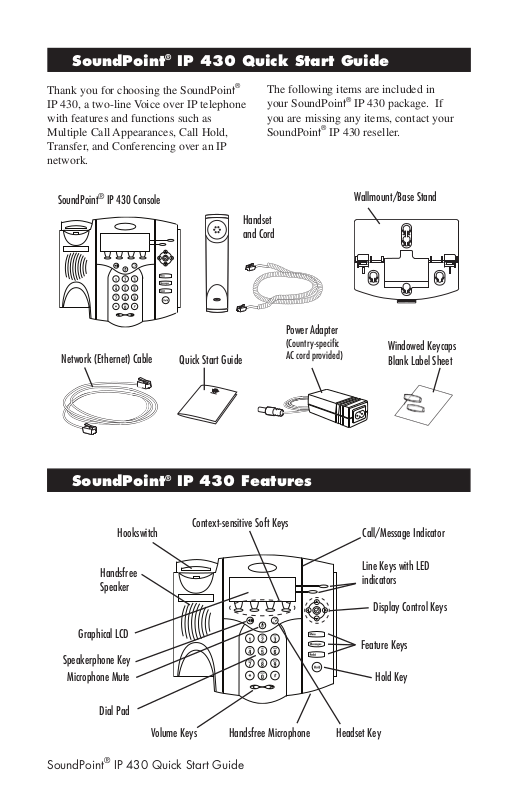

SoundPoint® IP 430 Quick Start Guide

®

Thank you for choosing the SoundPoint
IP 430, a two-line Voice over IP telephone
with features and functions such as
Multiple Call Appearances, Call Hold,
Transfer, and Conferencing over an IP
network.

The following items are included in
your SoundPoint® IP 430 package. If
you are missing any items, contact your
SoundPoint® IP 430 reseller.

SoundPoint® IP 430 Console

Handset
and Cord

Network (Ethernet) Cable

Quick Start Guide

SoundPoint® IP 430 Features

Hookswitch

Handsfree
Speaker

Context-sensitive Soft Keys

Power Adapter

(Country-specific
AC cord provided)

Wallmount/Base Stand

Windowed Keycaps
Blank Label Sheet

Call/Message Indicator

Line Keys with LED
indicators

Display Control Keys

Graphical LCD

Speakerphone Key

Microphone Mute

Dial Pad

Volume Keys

Handsfree Microphone

SoundPoint® IP 430 Quick Start Guide

Feature Keys

Hold Key

Headset Key

SoundPoint® IP 430 Installation

1

Connecting Handset and Headset

Headset
(Optional
accessory)

2

Connecting Network and Power

AC Power Option:

Network Port

Handset

Power Adapter*
(24V DC)

*NOTE: Use only the
power adapter shipped
with the unit to ensure
correct functionality.

Power over Ethernet Option:

IEEE 802.3af
compliant
Power over
Ethernet
Hub/Switch
(Terminal or
Midspan)

SoundPoint® IP 430 Quick Start Guide

Optional PC
Connection

Optional PC
Connection
