Nortel Networks i2022 User Manual

i2022 ISDN Teleset
8-20-04
i2022 Series
ISDN Teleset
User’s Guide
i2022 Comcodes
004-LUC-I0005-B
i2022 ISDN Teleset
Mandatory Customer Information
Federal Communications Commission (FCC) Requirements
This equipment complies with Part 68 of the FCC Rules. The FCC registration information is located on a label affixed to the bottom of the Teleset. If requested, you must provide the telephone company with the following information: Facilities interface Code (FIC) 02IS5, Service Order Code 6.0Y, and Registered Jack RJ-49C
When the i2022 Teleset is equipped with an S Interface Module, FCC regulations require an FCC Registered NT1 device be used when
connecting this Teleset to the network.
If your telephone equipment causes harm to the network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice is not practical, you will be informed of your right to file a complaint with the FCC.
Your telephone company may change its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.
If you experience trouble with this telephone equipment, please contact your telephone equipment distributor for repairs. The telephone company may ask that you disconnect this equipment from the network until the problem has been corrected.
*.
Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device as specified in Part 15 of the FCC rules. These rules are designed to provide against radio-frequency interference in a residential installation. However, there is no guarantee that harmful interference will not occur in a particular installation.
* The RJ-49C refers to the network jack provided by the telephone company. This is the jack that interfaces to the FCC registered NT1
device when the i2022 is equipped with the S Module, not the Line In jack on the S Interface Module.
Trademark Acknowledgment
5ESS is a registered trademark of Lucent Technologies. DMS-100 is a registered trademark of NORTEL, Inc. EWSD and Siemens are registered trademarks of Siemens Information and Communication Networks GTD-5 is a registered trademark of AG Communications Systems
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should be followed to reduce the risk of fire, electric shock, and personal injury.
Read and follow all instructions. Follow all warnings and instructions marked on the product. Disconnect the telephone from the telephone line before cleaning. Do not use aerosol or liquid cleaners. Use a damp cloth only. Do not use this equipment near water, for example, a bathtub, a pool, sink or laundry tub. Do not use this equipment in a wet basement. If this equipment accidentally falls into water, do not retrieve it until you have disconnected it from the telephone line.
Disconnect it at the wall jack only.
This product should not be placed near or over a radiator or heat register. Do not place this product in such a way as to cause the cord to be a tripping hazard. To avoid the risk of electrical shock, never push objects of any kind through slots or openings in the product. Do not disassemble this product. Opening the product can expose hazardous voltage, which may cause an electrical shock. Unplug this equipment and refer to a qualified technician if:
1. The cord is damaged or frayed.
2. Liquid has been spilled on this equipment.
3. This equipment has been exposed to water or rain.
4. If this equipment does not operate properly.
5. If this equipment has been dropped or appears damaged.
Avoid using this equipment during an electrical storm. Do not use this equipment to report a gas leak if it is in the vicinity of the leak. This product should not be placed on an unstable table, stand or cart. The product may fall, causing serious damage to it. Do not overload wall outlets and extension cords as this can result in risk of fire and electrical shock. This product should only be operated from the type of power source indicated on the label. If you are not sure of the type of
power supplied to your home, consult your dealer or local power company.
SAVE THESE INSTRUCTIONS
ii
i2022 ISDN Teleset
INTRODUCTION ................................................................................................................................................................. 2
ISDN i2022 S/T Teleset ...........................................................................................................................................................2
About This Manual ...................................................................................................................................................................2
Features............................................................................................................................................................................... 3
Voice Operation Features ........................................................................................................................................................3
Accessories ..............................................................................................................................................................................4
INSTALLATION ................................................................................................................................................................... 4
Parts List ...................................................................................................................................................................................4
ISDN Interfaces ........................................................................................................................................................................5
Line and Power Connections – i2022 Teleset.........................................................................................................................5
PS1/PS2 Switch Settings .........................................................................................................................................................6
Terminating Resistors ..............................................................................................................................................................8
Point-to-Point Circuits...............................................................................................................................................................8
Passive-Bus or Multipoint.........................................................................................................................................................8
i2022 equipped with a U Interface Module ..............................................................................................................................9
Terminating Resistors ..............................................................................................................................................................9
Line Configuration .................................................................................................................................................................10
Installing the Logo Plate .........................................................................................................................................................11
Assembling the i2022.............................................................................................................................................................11
Softkeys ..................................................................................................................................................................................12
CONNECTING THE i2022- AUTO-INSTALL........................................................................................................................13
Connecting the i2022- Manual-install ....................................................................................................................................16
Setting Up the Teleset............................................................................................................................................................21
Password Selection................................................................................................................................................................31
Language Options ..................................................................................................................................................................32
OPERATIONS ................................................................................................................................................................... 32
Voice Operation......................................................................................................................................................................32
Terms and Nomenclature .....................................................................................................................................................32
Call Appearance LED’s ..........................................................................................................................................................32
Non-Programmable Hardkeys and Indicators .......................................................................................................................33
The Display Window and Menus ...........................................................................................................................................33
Placing Calls ..........................................................................................................................................................................34
Answering Incoming Calls......................................................................................................................................................34
Hold Key .................................................................................................................................................................................35
Transfer, Conference and Drop .............................................................................................................................................35
Teleset Features................................................................................................................................................................ 37
Redial......................................................................................................................................................................................37
Directory .................................................................................................................................................................................37
Dialing Options .......................................................................................................................................................................40
Call Records ...........................................................................................................................................................................43
Advanced Features ........................................................................................................................................................... 45
Analog Port .............................................................................................................................................................................45
Call Blocking Tone .................................................................................................................................................................48
Icons .......................................................................................................................................................................................48
DSS/BLF (Direct Station Select, Busy Lamp Field) ..............................................................................................................49
Programming a DSS/BLF (Direct Station Select / Busy Lamp Field) Feature .....................................................................50
Disabling softkeys ..................................................................................................................................................................50
Key Mapping...........................................................................................................................................................................51
View ........................................................................................................................................................................................52
Protecting Keys from being overwritten.................................................................................................................................53
Key Clicks ...............................................................................................................................................................................54
Disable logging .......................................................................................................................................................................54
Testing ....................................................................................................................................................................................54
MAINTAINING THE TELESET.......................................................................................................................................... 55
Checking the FW version .......................................................................................................................................................55
Loading FW ............................................................................................................................................................................55
Troubleshooting Problems .....................................................................................................................................................55
GLOSSARY....................................................................................................................................................................... 56
INDEX...................................................................................................................................................................................ii
1
i2022 ISDN Teleset
TABLE OF FIGURES
FIGURE 1: LINE AND POWER JACKS............................................................................................................................................ 5
FIGURE 2: NT1 LEADS .............................................................................................................................................................. 6
FIGURE 3: S INTERFACE MODULE .............................................................................................................................................. 6
FIGURE 4: USING LUCENT 1215B POWER SUPPLY ..................................................................................................................... 7
FIGURE 5: POWERING A TELESET (S/T) WITH AN EXTERNAL POWER SUPPLY ............................................................................... 7
FIGURE 6: TERMINATING RESISTOR RANGE................................................................................................................................ 8
FIGURE 7: FARTHEST TELESET .................................................................................................................................................. 8
FIGURE 8: EQUAL DISTANCE TELESETS ...................................................................................................................................... 9
FIGURE 9: LINE AND POWER JACKS............................................................................................................................................ 9
FIGURE 10: U INTERFACE MODULE .......................................................................................................................................... 10
FIGURE 11: ASSEMBLING THE TELESET ....................................................................................................................................34
FIGURE 12: ASSEMBLING THE TELESET ....................................................................................................................................35
FIGURE 13: ANALOG PORT ...................................................................................................................................................... 45

INTRODUCTION

ISDN i2022 S/T TELESET

Thank you for purchasing the i2022 voice/data Integrated Services Digital Network (ISDN) Teleset. This Teleset meets the highest standards of quality to give you years of excellent service. The i2022 works with your local service provider to give
you advanced, easy-to-use features. It is compliant with National ISDN 1, 2 and 3 standards.

ABOUT THIS MANUAL

This manual contains the following information about your new ISDN Teleset:
Features Installation Setup Voice User Operations Troubleshooting

i2022 Teleset

This Teleset connects to an ISDN Basic Rate S/T Interface. The i2022 Teleset includes an S Interface Module as
Standard Equipment. If required, an optional U Interface Module is available.
When equipped with the standard S Interface Module, an external NT1 (Network Terminator) is required. Your local
telephone equipment provider may furnish this device.
The optional U Interface Module contains a built-in NT1.
2
i2022 ISDN Teleset

FEATURES

The i2022 Teleset offers an extensive list of features. They include the following:
Cross-Compatibility
The Telesets work with several different switches: the Lucent Technologies 5ESS Nortel DMS-100
Programmable Features and Options
®
(National ISDN), the Siemens EWSD® (National ISDN), and the AG Communication Systems GTD-5®.
An extensive array of options/features may be provisioned via menus.
Programmable Hardkeys
These keys are used for Call Appearances, access to Speed Dialing lists, and Dial Access Codes. The i2022 has 32
Programmable hardkeys.
Firmware Upgrades
Your Teleset can always have the latest software features. The i2022 Teleset uses flash memory to download the
current firmware. This is done through the Data Module, via a local server.
Tilting Display (Backlit)

Your Teleset has a Liquid Crystal Display (LCD) with 11 settings for the optimum-viewing angle. It displays Caller ID information, CalLog entries, and is used to set up and manage Teleset operation.

Clock and Alarm
The display includes a time-of-day clock, and a timer that shows how long you are on a call. A separate timer is kept for each Call Appearance. You can also program the clock to operate as an alarm clock, with up to ten different alarm times.
Password Protection
A password can be used to safeguard your programmed options and features.
Non-Volatile Memory
Any options you program into the Teleset are protected from accidental loss by power failures. This allows you to move the Teleset to another location without worry.
Display Icons
13 Icons display the status of certain features.
Optional Add-On (EM-32) Call Appearance Module
Expands the i2022 to 64 or 96 keys.
Optional Data Modules
Provides data access to the ISDN line.
Optional U Interface Module
Allows the i2022 Teleset to be connected directly to the ISDN telephone line without the need for an external NT1.
Analog Port
Allows connecting a modem or G3 fax machine to the ISDN line.

VOICE OPERATION FEATURES

®
(Custom and National ISDN), the
Feature Keys
Such features as Hold, Transfer, Drop, and Conference, are supported on the Teleset.
Call Status Lamps
Each hardkey contains a two-state (red/green) lamp to show the status of Call Appearance or Feature Keys.
Local Features
These keys include: MUTE, MENU, REDIAL, SPEAKER, VOLUME (Down) / VOLUME (Up).
Message Waiting Lamps
These indicators flash (red) to alert you to a message (held) at your message center. Contact your service provider for this service.
Automatic Hold
During a call, you can answer an incoming call or initiate another call by pressing a Call Appearance (CA) key. Your first call can be automatically placed on hold.
Speakerphone
A base-mounted speaker and microphone allow hands-free operation. The speaker is automatically turned off when the far-end party terminates the call.
Volume Control
This key controls the loudness of the handset, headset, speakerphone, and the ringer intensity.
Ringer Controls
Up to ten different ringing patterns, plus no ring, may be chosen for each call appearance
Call Record
Your Teleset stores the information from the last 40 unanswered, 30 answered and 30 outgoing calls you dialed or received.
3
i2022 ISDN Teleset
Call Timer
On each new call, the timer displays the elapsed time of the call. Placing a new call resets the timer for the new call.
Headset Jack
Inserting the headset plug into this jack enables
the headset, and disables the speakerphone. The i2022 Teleset
contains an amplifier controlled by the volume key.
Network Features
Your Teleset can provide advanced network features. Such features as Call Forwarding, Auto-Callback and Call Pickup, may be available through your service provider.
Multi-Language
Replaceable keycaps, along with display options, allow the Teleset to support English, French and Spanish.
Touchtone Keypad
A standard telephone keypad is used to enter alpha-numeric characters as well as the “Feature” (Star * and Pound #) keys. These keys are used to dial telephone numbers, and to enter names and numbers into the directory. Certain other features or options may include the use of the two feature keys.
Fig. 1: Touchtone Keypad

ACCESSORIES

Earset, Model 2030B Comcode 300294790 Headset, Model 2030A Comcode 300130432 Designation Card, Black Comcode 300294832 Designation Card, MC Comcode 300294840 Headset Holder Piece Part Headset Adapter Comcode 300316668 EM-32 CA Module, Black Comcode 300130416 EM-32 CA Module, MC Comcode 300131745 U Interface Module, Black Comcode 300130440 U Interface Module, MC Comcode 300131752 Data Module, Black Comcode 300130457 Data Module, MC Comcode 300131760 TIS-1215B Power Supply Comcode 300294485

INSTALLATION

Before installing your phone, review the Safety Instructions located at the front of this manual. Make sure you have the correct model Teleset and associated parts for your application. Choose a flat work surface with good lighting and easy access to cords and jacks. Avoid placing the Teleset where it is exposed to direct sunlight or heat sources.

PARTS LIST

Check the box for the following:
Teleset Handset Holder Handset and Handset Cord S Interface Module Mounting Cord (8-pin, round) Logo Plate Designation Card and Faceplate U Interface Module (Optional) Wall-Mount / Desk Stand Base Data Module (Optional)
As you unpack the box, inspect each component carefully for damage. Report any damage to your dealer or shipping company. Keep the box and packing material should a return be necessary.
4
i2022 ISDN Teleset

ISDN INTERFACES

A little background information sometimes helps. Your ISDN service comes to you over ordinary telephone line wiring. That makes it less expensive and simple to install.
There are a number of interfaces defined in Basic Rate ISDN. The most common of these interfaces are designated U, S, and T. The letters U, S and T do not mean anything, they are reference points.
Your service provider (telephone company) will normally provide a 2-wire connection, called a U Interface.
Most ISDN Telephone Equipment (TE) uses an S or T Interface. The S/T Interface is a 4-wire Interface. A Network Termination device (NT1) is used to convert the U Interface from the service provider to an S/T Interface.
The i2022 is an S/T Interface Teleset and is available, optionally, as a U Interface Teleset.
NOTE: The i2022, when equipped with an S Interface Module, requires an external NT1. When the i2022 is
equipped with a U Interface Module, an external NT1 is not required.
Figure 1: Line and Power Jacks

LINE AND POWER CONNECTIONS – i2022 TELESET

i2022 Equipped with an S Interface Module

The i2022 Teleset, when equipped with an S Interface Module, must be connected to the line through an NT1 device.
The Teleset is powered over the phone line. This method conforms to a standard using one of two different powering
methods: PS1or PS2. The i2022 requires PS2 power.

Switch Settings:

Power Switch
There is a PS1/PS2 power switch is located on the top of the S Interface Module. The PS1/PS2 power switch must remain in the PS2 position.
NOTE: The S Interface Module must be removed from the Teleset to gain access to the switch. See “Assembling
the Teleset.”
TR Switch
When the i2022 Teleset is connected to the NT1 it acts as Terminal Equipment (TE). Terminal Equipment is any
(ISDN) device that terminates directly on the ISDN line without an adaptor.
If your Teleset is the last, or only, piece of TE on the ISDN line, set the TR to ON determined by the local equipment provider’s policy. It is suggested that you check with the ISDN provider or your system administrator. Most companies allow up to eight TE units in the loop.
, otherwise it is set to OFF. This is
5
i2022 ISDN Teleset
Figure 2: NT1 Leads

PS1/PS2 SWITCH SETTINGS

The i2022 requires PS2 power. Always leave the PS1/PS2 switch in the PS2 position.
Figure 3: S Interface Module
Power Switch
PS 2 PS 1
NOTE: PS 2 is the mandatory Power Switch setting.
TERMINATING RESISTOR SETTINGS
Options 1 2 3 4 5
Open OFF OFF - - ­100Ω ON ON - - -
The default setting is 100Ω (ohm) termination
Table 2

Powering the i2022 Locally

The i2022 can use a significant amount of power, especially when equipped with EM-32 Add-On Call Appearance modules. Back light, speakerphone, and DSS/BLF settings can significantly add to the power draw of the i2022. In these high power consumption modes, it is desirable to power the i2022 locally. Figure 4 shows a method of powering the i2022
using a Lucent 1215B Power Supply.
6
i2022 ISDN Teleset
A
A
Pin 4-5: S/T Interface Pin 3-6: S/T Interface
OUT IN
TIS-1215B
Pin 4-5: S/T Interface Pin 3-6: S/T Interface Pin 7-8: Power
Power Adapter
C 120V
UX
Lucent
i2022
EM-32
EM-32
Figure 4: Using Lucent 1215B Power Supply
NOTE: Because of the high power requirements of the 2022, it is recommended powering telesets equipped with
EM-32 modules locally.
U Interface
Pin 4-5
OUT
IN
TIS-1215B
U Interface
Pin 4-5
U
Interface
Pin 7-8
Pin 4-5 Pin 3-6
OUT
IN
TIS-1215B
Pin 4-5: S/T Interface Pin 3-6: S/T Interface Pin 7-8: Power
Power Adapter
AC
120V
Power Adapter
AC
120V
NOTE: Because of the high power requirements of the 2022, it is not recommended powering extended S/T devices
from a common power supply.
Figure 5: Powering a Teleset (S/T) with an External Power Supply
Fig. 5 shows an i2022 connected to an S/T Interface. The U Interface is connected to the NT1. The output of the NT1 is
an S/T Interface with power for the Teleset. The S/T Interface with power cable is connected to the “Line-In” jack located
on the S Interface Module in the rear of the Teleset. The i2022 S Teleset must be connected through a network interface
device (NT1). This device presents the 2-wire U Interface to the line, and the 4-wire S/T Interface to the Teleset. The Teleset is usually powered from the NT1 or a separate transformer.
7
i2022 ISDN Teleset

TERMINATING RESISTORS

The i2022Teleset S Interface module has built-in Terminating Resistors. The Terminating Resistor switches are located on the top of the Interface Module. When the switches are in the ON position, the Terminating Resistors are installed. The
value of the resistors is 100 Ohms.
NOTE: The S Interface Module must be removed from the Teleset to gain access to the option switches.

POINT-TO-POINT CIRCUITS

A point-to-point application typically has the Terminating Resistors “On” at both ends of the interface.
Figure 6: Terminating Resistor Range

PASSIVE-BUS OR MULTIPOINT

These may be new terms to you, so we will define them so you can better understand their meaning. Passive Bus means that you can connect several devices to the same Basic Rate Interface (ISDN line). Improperly set Terminating Resistors account for many of the problems with ISDN service. The “short version” of this explanation is that both ends of a bus or circuit must be terminated.
Your choices of terminating resistance are two: none or 100 Ohms. The idea is to terminate both ends of the bus. Set the resistors to ON at both ends of the bus.
The best advice is to follow the instructions given by the NT1 manufacturer and those of your terminating devices.
In the following configuration, the Terminating Resistors are “On” at both ends of the interface. The resistors are on at the
NT1 and “On” at the farthest i2022 from the NT1.
Figure 7: Farthest Teleset
8
i2022 ISDN Teleset
In the following application, the NT1 is equal in distance to both i2022 phones. The Terminating Resistors are set to “On”
at one of the phones and at the NT1.
Figure 8: Equal Distance Telesets

i2022 EQUIPPED WITH A U INTERFACE MODULE

The i2022 is available with an optional U Interface Module. Actually, the U Interface Module is an NT1 device, therefore, the Teleset does not require an external NT1 device. Fig. 9 shows the i2022 equipped with a U Interface Module. The U
Interface is connected to the power adapter. The U Interface and power connection cable is connected to the “Line-In” jack located on the U Interface Module in the rear of the Teleset.
Figure 9: Line and Power Jacks

TERMINATING RESISTORS

The i2022Teleset U Interface module has built-in Terminating Resistors. The Terminating Resistor switches are located
on the top of the Interface Module.
NOTE: The Interface Module must be removed from the Teleset
to gain access to the switches.
Options 1 2 3 4 5
Open OFF OFF OFF OFF ­100Ω ON ON OFF OFF -
50Ω ON ON ON ON -
Fixed - - - - ON
Adaptive - - - - OFF
The default setting is 50Ω (ohm) termination & adaptive timing mode
Table 3
The U Interface Module is an NT1. The Terminating Resistor switches must be set if adding a second device to the S Interface. The following are guidelines for setting the Termination Resistor and Timing switches:
When the switches are in the On position, the
Terminating Resistors are installed. The value of the resistors is 100 Ohms.
9
i2022 ISDN Teleset
1. If the S Interface Jack is not used and the i2022 is the only device, set the Terminating Resistor switches to 50Ω.
2. If there is a device connected to the S Interface, set the Terminating Resistor switches to 100Ω.
3. If the S Interface Jack is not used and the i2022 is the only device, set the Timing Switch to Adaptive.
4. If there is a device connected to the S Interface, and if the distance between the U Interface Module and the point at which the device is connected is minimum, set the U Interface Module for FIXED Timing.
5. If there is a device connected to the S Interface, and if the distance between the U Interface Module and the point at which the device is connected is great, set the U Interface Module for Adaptive Timing.
NOTE: Always terminate both ends of the bus. In other words, the terminating resistors should be set to on in the U
Interface Module and at the furthest device from the U Interface Module. All other terminating resistors should be set to off.
NOTE: The timing option controls the ability of the U Interface Module to determine the echo from the far end. Since
the passive bus can take on many forms the user may find one timing option works better than the other.
Figure 10: U Interface Module

LINE CONFIGURATION

To ensure the proper operation of your Teleset, several operating parameters must be met. This information can be provided by your system administrator or service provider.
Service Profile Identifier (SPID)
A service profile for your Teleset that is recognized by the switch. The i2022 uses either one or two SPIDs, depending
on the application. Check with your service provider or system administrator for the correct information. The default setting is Auto-Switch detect and Auto-SPID.(5ESS Custom Point to Point Installations need no SPID)
Directory Number
The telephone numbers appearing on your line.
Call Appearance keys
These are configured at the switch and at your phone. You may have more than one Call Appearance of a Directory Number. Check with the system administrator or service provider for information and multiple Directory Numbers. With National 2 and 3 ISDN, many of the required settings can be automatically downloaded from the switch – see your system administrator or service provider for details.
Features
Conference, Drop, Transfer, Call Forwarding, and others may need to be programmed in the Teleset
Switch Type
The type of switch used by the service provider. The i2022 will operate with the Lucent Technologies 5ESS
or Custom ISDN), Nortel DMS-100
®
the Siemens EWSD
®,
and the AG Communications System GTD-5
®.
®
(National
10
i2022 ISDN Teleset

INSTALLING THE LOGO PLATE

ASSEMBLING THE i2022

Inserting and removing the modules

The i2022 Teleset requires either an S Interface module or a U Interface Module. There are also optional Data Modules available. There are two slots on the bottom of the i2022. The S and U modules fit in the left slot (as viewed from the rear with the i2022 upside down) and the Data Modules fit in the right slot. Different size connectors prevent the modules from
being inserted into the wrong slot. Each module is locked into place by means of a slide lock.
To remove the modules:
1. Disconnect any cords that are attached to the Teleset.
2. Disconnect and remove the handset and headset.
3. Remove the Wall-Mount/Desk Stand Base if attached.
4. Return the display to the flush (down) position.
5. Place the i2022 upside down with the rear of the Teleset facing you.
6. Unlock the module by sliding the lock away from the module, towards the side of the Teleset.
7. Slide the module to the rear of the Teleset using the finger pad on the module and remove the module.
To insert the modules:
1. Disconnect any cords that are attached to the Teleset.
2. Disconnect and remove the handset and headset.
3. Remove the Wall-Mount/Desk Stand Base if attached.
4. Return the display to the flush (down) position.
5. Place the i2022 upside down with the rear of the Teleset facing you.
6. Make sure the connector on the module matches the connector on the bottom of the Teleset.
7. Insert the module, finger pad up, into the guide slots on the bottom of the Teleset.
8. Push the module forward until it is properly seated into the connector.
9. Lock the module by sliding the lock towards the module. The slide lock will not engage unless the module is firmly seated.
10. Re-assemble the Teleset.
11
i2022 ISDN Teleset

SOFTKEYS

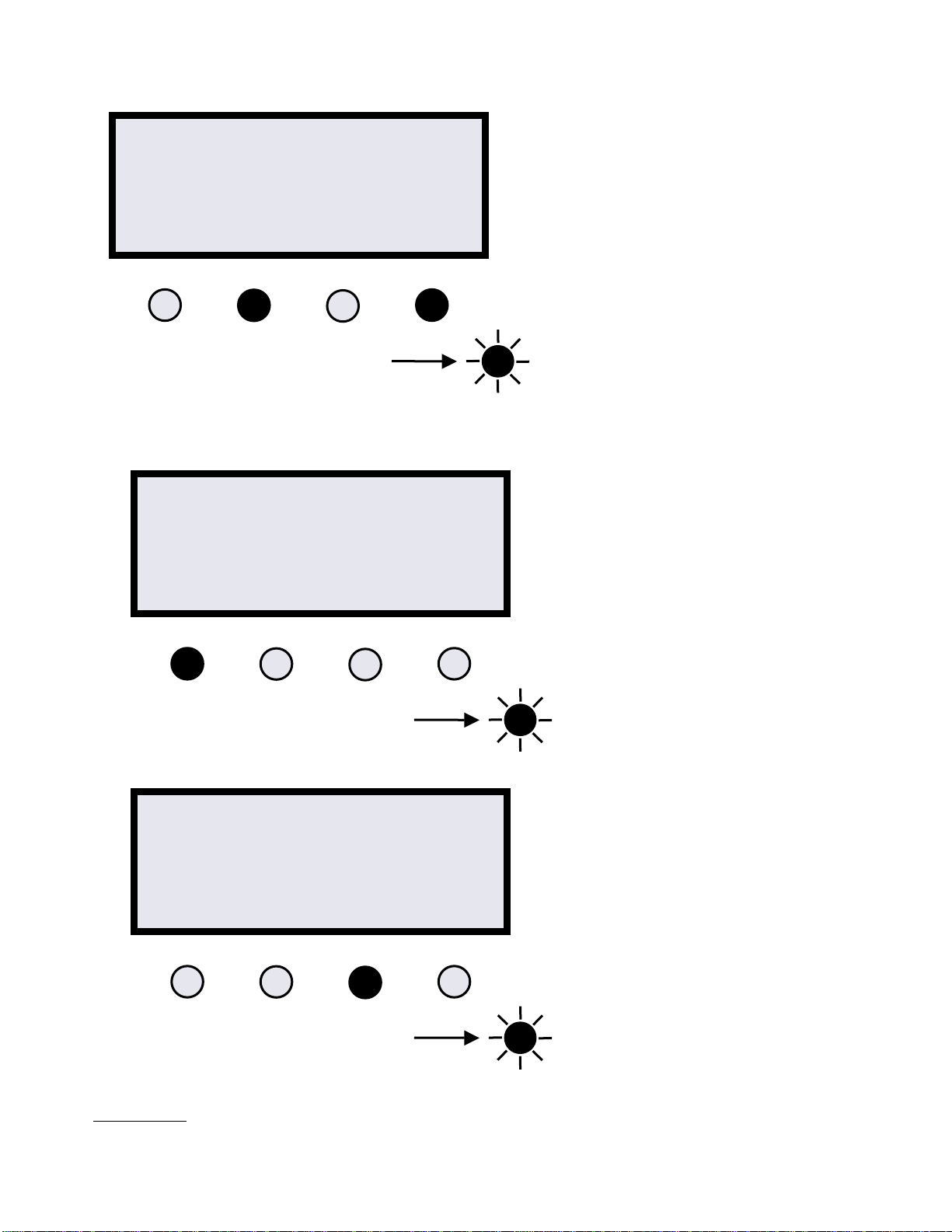

Directly below the display are four softkeys, vertically-oriented to the display. The location of these keys corresponds to menu choices that appear directly above them in the LCD window. For example, pressing the softkey below the “clock” menu reveals the options for setting the time of day and date. They are called softkeys because their function changes according to the menu. In one menu a key may set the time, while in another menu the same key is used to choose a feature. This will become clearer as you begin using the softkeys. See the following example.
12
i2022 ISDN Teleset
Example:
Press the softkey under Directory - shown below by highlighting (bold type) the word “DIR” and highlighting the softkey
below that menu item.
Pressing the Directory softkey brings up the second menu with additional choices. In our example we chose Search next ­shown in bold type. The selected menu items are shown in bold type for emphasis. The softkey under Search is
highlighted to indicate the chosen softkey.
Choosing Search returns the next screen, assuming the Directory is empty.
Setup
To return to the main menu at any time, press the MENU hardkey.

CONNECTING THE i2022- AUTO-INSTALL

1. Assemble the i2022
NOTE: Make sure the logo plate is installed
2. Verify the PS1/PS2 switch located on the Interface Module is in the PS2 position. See page 6 for further information on setting the PS1/PS2 switch.
3. Verify the Terminating Resistor (TR) switch is set correctly. See page 8 for further information on setting the TR switch.
4. Connect one end of the eight-pin mounting cord to the ISDN Line-In Module. Connect the other end of the cord to the S/T jack on your NT1 or ISDN telephone wall jack.
5. Remove the protective film on the display.
6. Label and install the designation card

AUTO-Install

The i2022 is equipped with an Auto-Install feature. The purpose of Auto-INSTALL is to ensure a complete and painless installation. In this mode, the i2022 will first detect the type of switch the i2022 is connected to, and then will attempt to Auto-SPID. The switch will automatically download the features. The i2022 will then step through each of its programming
choices and give you the opportunity to make a selection. After you have made the selection press the “MORE” key to continue.
13
jack on the rear of the Teleset’s Interface
i2022 ISDN Teleset
NOTE: You may abort the Auto-Install by pressing the Menu key at any time
The Auto-Install programming choices are:
Adjust Contrast – Select Yes or No. The i2022 may display a wait message and start a countdown. This is the T-
Wait timer.
NOTE You can abort the T-Wait countdown timer at any time by pressing the Speaker key or any touchtone
keypad digit.
SPID – If the switch supports Auto-SPID you will be prompted to choose a SPID. If your switch does not support
Auto-SPID, press the “Change” softkey and enter the SPID. After entering the SPID press “Save”.
The Teleset will attempt to initialize. If there is a problem the Teleset will prompt you to correct the SPID and/or
switch type.
The Teleset will download its configuration from the switch. If Parameter Downloading is not available, you will be
prompted to program the Teleset manually.
Backlight – Select On, Off, or Dynamic. Enter the Date and Time. Adjust the Ring Pattern – Select Yes or No. Set the 2Set the Analog Call Appearance. Set Primary Call Appearances. Set an Intercom Key. Set Speed Dial Keys. Set the Alarm Clock. Set a Password. Set Line Preference.
nd
ring Option – Select Continuous, Partial, or No Ring.
NOTE: Auto-Install will only run when the i2022 is in the default mode.
NOTE: To default the i2022 press MENU and enter 91 from the dial keypad. Press the “YES” softkey to complete
the default.
WARNING: DEFAULTING THE i2022 WILL ERASE ALL OF THE MEMORY.

AUTO-Switch

With Auto-Switch detection, the i2022 determines the type of switch to which you are connected. Should you decide to
manually program the switch type, Auto-Switch detect will tell you if a different type of switch is found. You will then be given the opportunity to correct the switch type.

AUTO-SPID

Auto-SPID is a National 2 and National 3 ISDN feature. Not all switch types and not all service providers support the Auto­SPID feature. If Auto-SPID is supported, follow the procedure shown below.

Auto-SPID Procedures

When the countdown timer stops, or is aborted, the Teleset automatically sends the Auto-SPID code to the switch. Upon receipt of the Auto-SPID code, the switch will download all of the SPID’s that are supported on that line.
NOTE: If the SPID is not accepted for any reason - including the SPID being used at another location - the phone
displays: “Invalid SPID,” and allows correction of the SPID.
14
i2022 ISDN Teleset
If the switch supports Auto-SPID, the i2022 will display all of the SPIDs available on the line in the following format:
If the SPID displayed is not the correct SPID for your application, press the Next key.
Pressing the Detail softkey will display the SPID, the Primary Directory Number, and the Bearer Services assigned to the SPID. The detail information is as follows:
When the correct SPID is displayed, press the Select softkey to choose it.

Auto-Download

After the SPID has been accepted by the switch, the i2022 will download the Call Appearance and Feature information
from the switch. On completion of the download, the display will momentarily show the following and then continue with the Auto-Install.
1 : SPID=84755547360101 DN=8475554736 Bearer: Speech
Next Prev Select Prompt
MORE is not lit
NOTE: The last 2 digits of the SPID are known as the TID (Terminal IDentifier). The i2022 automatically
inserts the TID at the end of the SPID. The TID is displayed as part of the SPID.
15
i2022 ISDN Teleset
g
Connecting the I2022- Manual-install
1. Assemble the i2022
NOTE: Make sure the logo plate is installed
2. Verify the PS1/PS2 switch located on the Interface Module is in the PS2 position. See page 6 for further information on setting the PS1/PS2 switch.
3. Verify the Terminating Resistor (TR) switch is set correctly. See page 8 for further information on setting the TR switch.
4. Connect one end of the eight-pin mounting cord to the ISDN Line-In the other end of the cord to the S/T jack on your NT1 or ISDN telephone wall jack.
5. Remove the protective film on the display.
6. Label and install the designation card

Manually Choose the Switch Type

NOTE: Your Teleset has a factory default setting of “AUTO” which adjusts to the switch type. An incorrect switch

Manually Entering the SPID

The i2022 supports up to two SPIDs. The two SPIDs are designated
SPID 1 and SPID 2. Both SPIDs can be configured to meet a variety of applications. See Table 4.
type results in a warning message from the Teleset. The correct switch type, as detected by the Teleset, is displayed as a prompt to change your switch selection.
jack on the bottom of the Teleset. Connect
APPLICATION SPID 1 SPID 2
Voice Only Voice & <option> NULL Voice with alternate Analog Port on Call Appearance 1 Voice & POTS NULL Voice with alternate Data on Call Appearance 1 Voice & Data NULL Voice with alternate Analog Port and Data on Call Appearance 1 Voice & (P+D) NULL Voice with simultaneous Data Voice & <option> Data Voice with simultaneous Analog Port Voice & <option> POTS Voice with simultaneous, alternate Data and Analog Port Voice & <option> Data & POTS Voice with alternate analog port and simultaneous Data Voice & POTS Data Voice with alternate Data and simultaneous analog port Voice & Data POTS
NOTE: POTS is the Analog Port.
Table 4
To change either or both SPIDS:
1. Press MENU, MORE, MORE, Config, MORE, MORE, SPID.
2. Select the SPID you wish to change.
3. Press Change if you want to edit the SPID. Pressing Change will not erase the displayed SPID until the new SPID is entered from the keypad. Press Clear if you want to erase the existing SPID.
[Enter the Phone SPID] SPID1 = 84755547360101
Auto Bkspc Save
MORE is flashin
16
i2022 ISDN Teleset
g
4. Up to twenty digits can be entered as the SPID. After entering the digits, press Save to enter into non-volatile memory. If an error is made use the Bkspc (backspace) key to edit. Enter the corrected digits and press Save.
5. Choose the Service you require. (Voice is the default) See Table 4.
Serviced as Voice SPID1 = 84755547360101 [(P+D)=POTS+Data] POTS
Press MENU to exit.
When the SPID entry is complete, the Teleset must be programmed.
The i2022Teleset can download the switch parameters, and/or can be manually programmed.

Manual Switch Downloading

Switch parameters may be downloaded from the switch to the Teleset over the ISDN line. A download can be requested up to three times in a five-minute period. To download proceed as follows:
1. Press MENU, MORE, MORE, Config, MORE, MORE, and ReqParam/RunSPM (depending on the switch) in order. A
message indicates a successful or failed download. If the switch is in the Auto-SPID/Auto-Switch mode, the download is automatic upon initialization. If successful, the remainder of the setup parameters need not be entered. These setup characteristics include conference, drop, transfer and Call Appearances. You must enter these parameters manually if
the download fails. Press MENU to return to the idle (power-up) screen.
NOTE: If the Teleset detects a DMS-100® or the switch is programmed as a DMS-100®, the ReqParam softkey will
NOTE: If the Teleset has not linked with the switch, the display will show “Layer 3 Not Initialized”, “Data Link Down”
NOTE: Parameter Downloading applies to SPID 1 only.
(P+D) Data
MORE is flashin
be displayed as RunSPM.
or “Line Not Ready”.
17
Loading...
+ 42 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
