Part No. NN47250-503 (323847-C)
October 2007
4655 Great America Parkway
Santa Clara, CA 95054
*323847-C*
Nortel WLAN 2300 Series Outdoor
Solution Guide
2
NN47250-503 (323847-C Version 02.01)
Copyright © 2007 Nortel Networks. All rights reserved.
The information in this document is subject to change without notice. The statements, configurations, technical data, and
recommendations in this document are believed to be accurate and reliable, but are presented without express or implied
warranty. Users must take full responsibility for their applications of any products specified in this document. The
information in this document is proprietary to Nortel Networks.
Trademarks
Nortel, Nortel Networks, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
All other products or services may be trademarks, registered trademarks, service marks, or registered service marks of
their respective owners.
The asterisk after a name denotes a trademarked item.
Restricted rights legend
Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph
(c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.
Notwithstanding any other license agreement that may pertain to, or accompany the delivery of, this computer software,
the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in the
Commercial Computer Software-Restricted Rights clause at FAR 52.227-19.
Statement of conditions
In the interest of improving internal design, operational function, and/or reliability, Nortel reserves the right to make
changes to the products described in this document without notice.
Nortel does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s)
described herein.
Portions of the code in this software product may be Copyright © 1988, Regents of the University of California. All
rights reserved. Redistribution and use in source and binary forms of such portions are permitted, provided that the above
copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials,
and other materials related to such distribution and use acknowledge that such portions of the software were developed
by the University of California, Berkeley. The name of the University may not be used to endorse or promote products
derived from such portions of the software without specific prior written permission.
SUCH PORTIONS OF THE SOFTWARE ARE PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
3
Nortel WLAN 2300 Series Outdoor Solution Guide
In addition, the program and information contained herein are licensed only pursuant to a license agreement that contains
restrictions on use and disclosure (that may incorporate by reference certain limitations and notices imposed by third
parties).
4
NN47250-503 (323847-C Version 02.01)
5
Nortel WLAN 2300 Series Outdoor Solution Guide
Contents
Basics of Nortel WLAN 2300 Series Outdoor Solution..................................9
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
What is the Nortel WLAN 2300 Series Outdoor Solution . . . . . . . . . . . . . . . . . . . . . 9
How to get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Regulatory compliance statements for WLAN Access Point 2330A/2330B . . . . . 11
Federal Communications Commission (FCC) compliance notices . . . . . . . . . 11
Class B interference statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FCC caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
RF radiation exposure and hazard statement . . . . . . . . . . . . . . . . . . . . . . 12
Non-modification statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Deployment statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Canadian IC statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
European Union and European Free Trade Association (EFTA) regulatory
compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
European Community declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . 14
Countries of operation and restrictions of use in the European Community . . 16
Operation using the 2.400 to 2.4835 GHz channels in the European
Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operation using the 5.15 to 5.25 GHz, 5.25 to 5.35 GHz,
and 5.470 to 5.725 GHz channels in the European Community . . . . . . . . 16
Dynamic Frequency Selection (DFS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Transmit Power Control (TPC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Korea MIC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

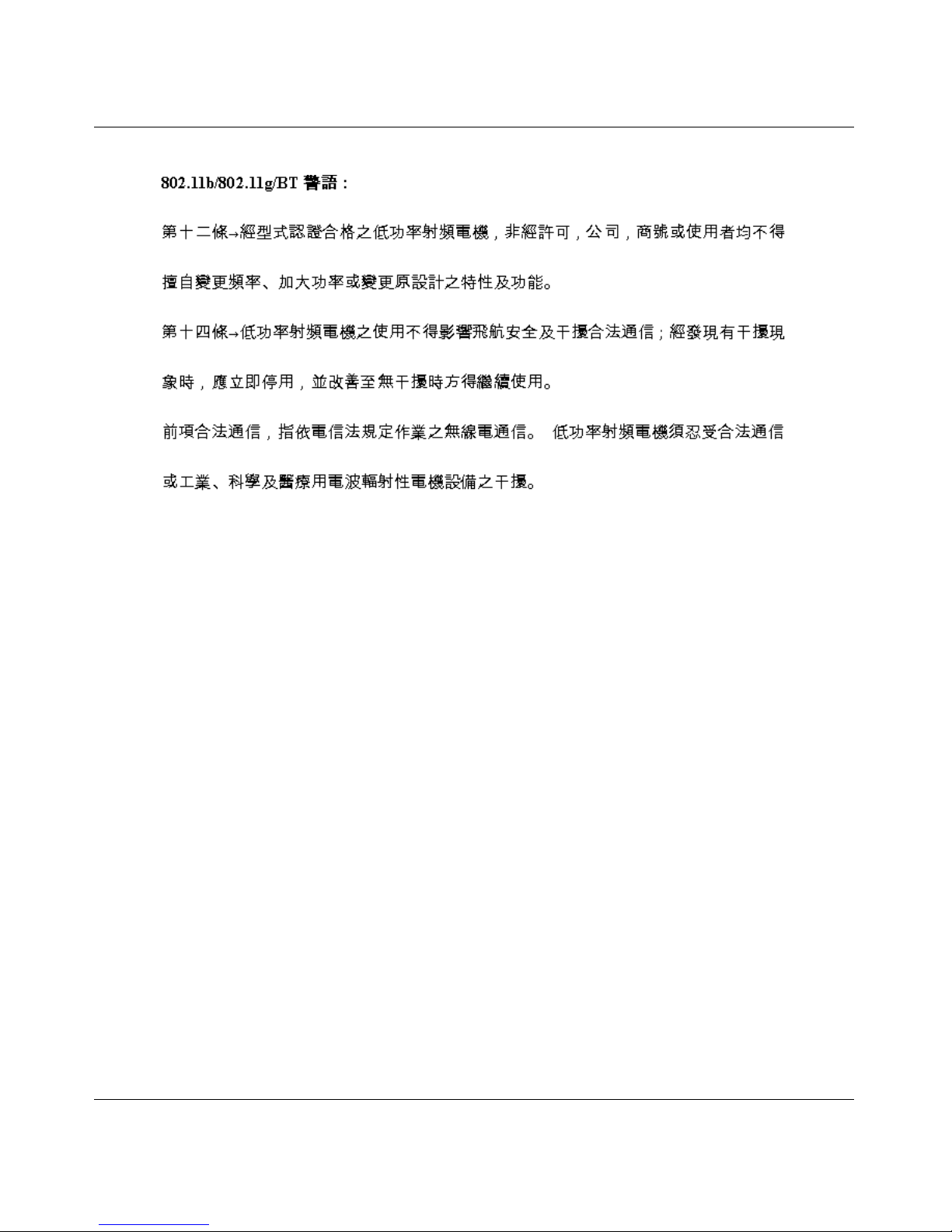

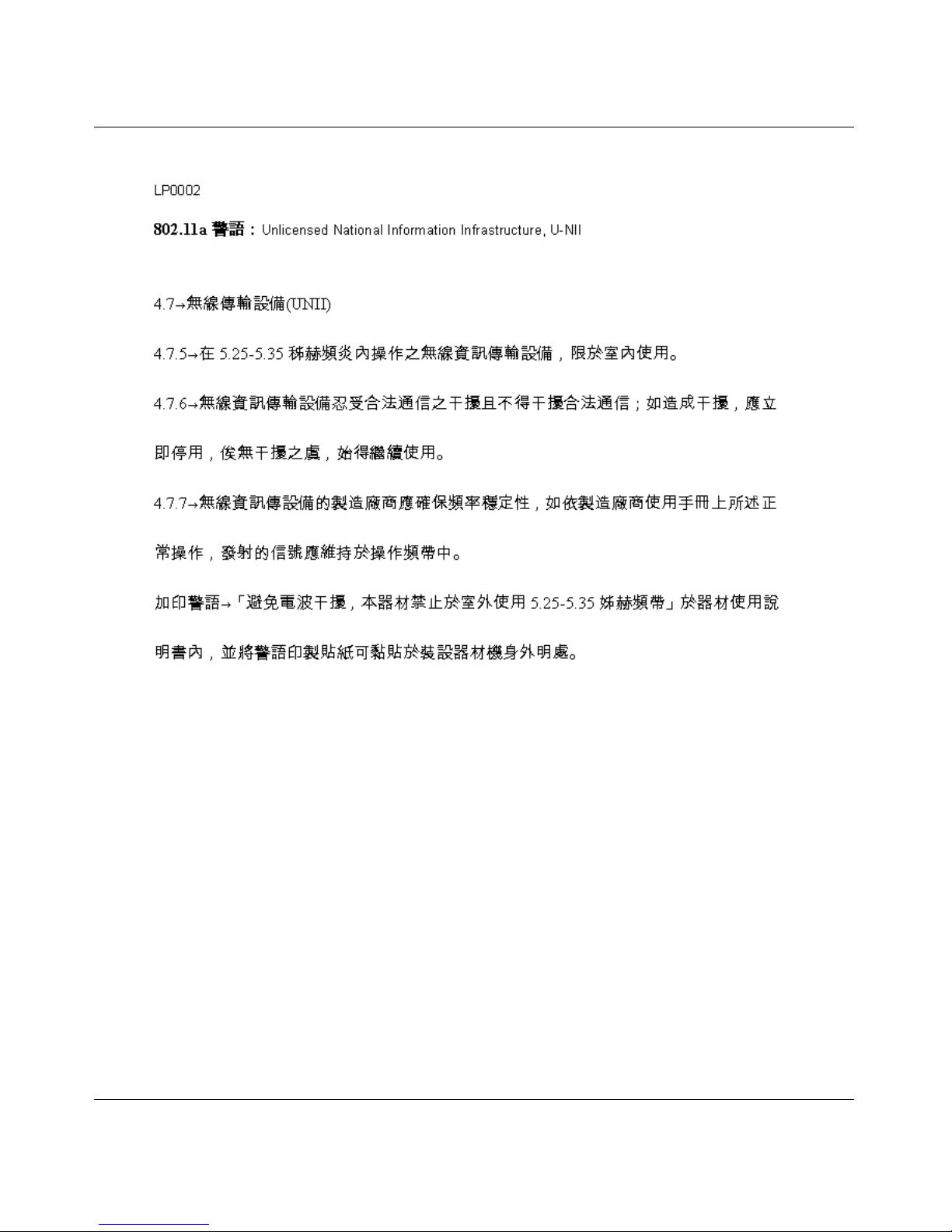

Taiwan Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Outdoor Operating Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
United States and Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.4 GHz Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.0 GHz Bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
European Union (EU) and European Fair Trade Association (EFTA) . . . . 20
2.4 GHz Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.0 GHz Bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Contents
NN47250-503 (323847-C Version 02.01)
Country Specific Outdoor Operation Restrictions . . . . . . . . . . . . . . . . . . . . . . 22
External Antenna Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Country Specific External Antenna Restrictions . . . . . . . . . . . . . . . . . . . . . . . 24
Translated caution statements, warning conventions and warning messages . . . 26
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP..................41
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Basic outdoor installation information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Signal path distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Signal attenuation and loss in outdoor installations . . . . . . . . . . . . . . . . . 43
Antenna polarization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Signal path clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Physical site survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Hardware installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Required components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

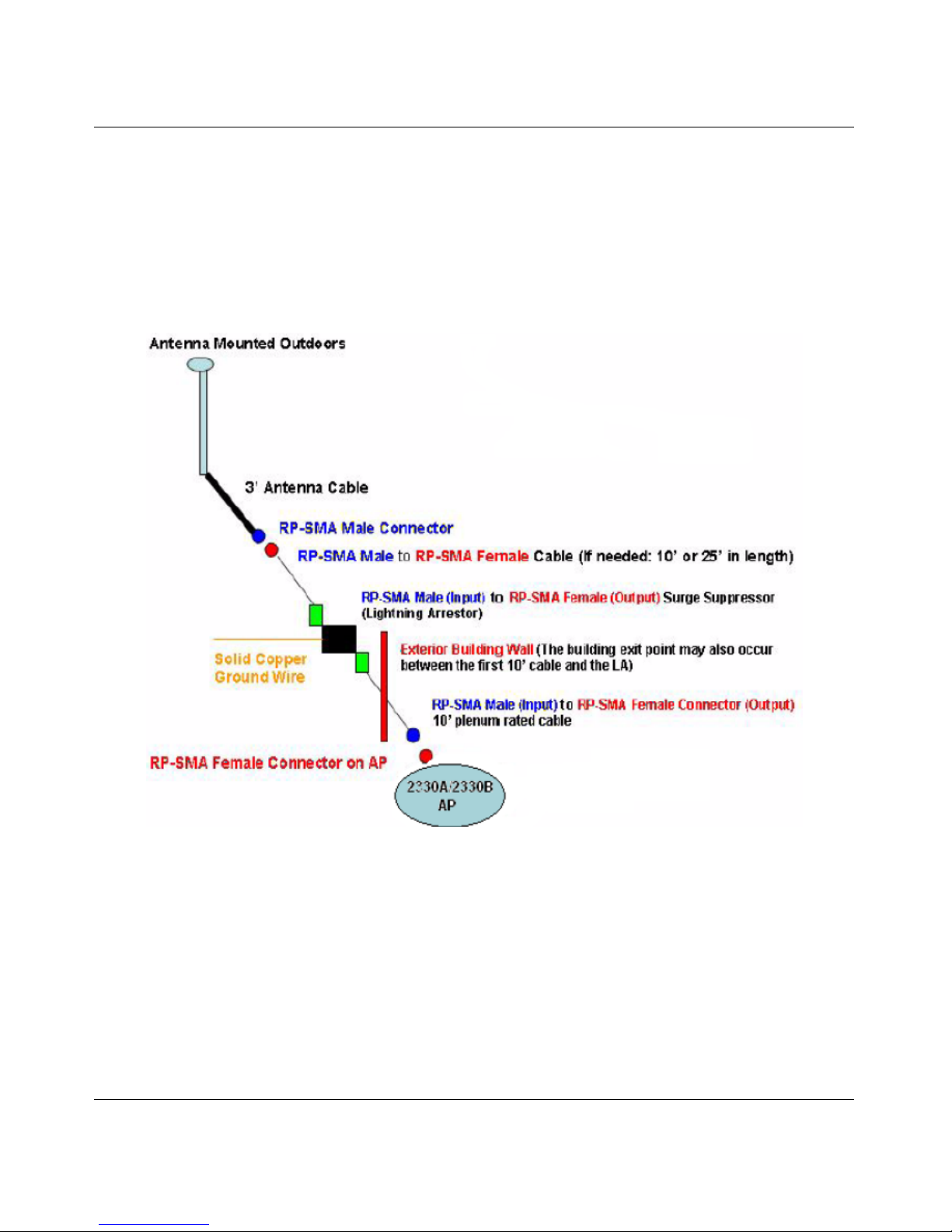

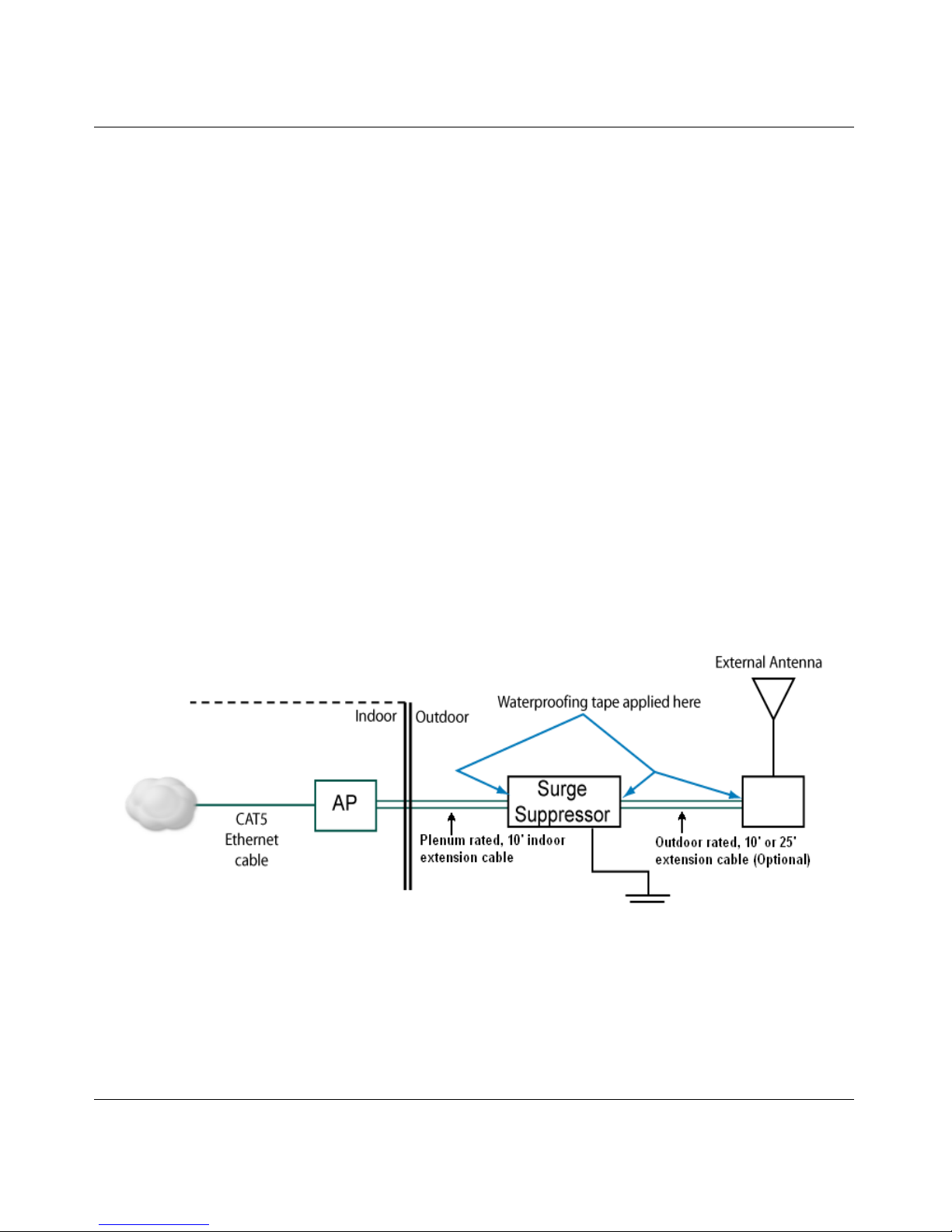

Outdoor external antenna connection scenarios . . . . . . . . . . . . . . . . . . . . . . . 45
Surge suppressor (lightning arrestor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Grounding principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Outdoor external antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

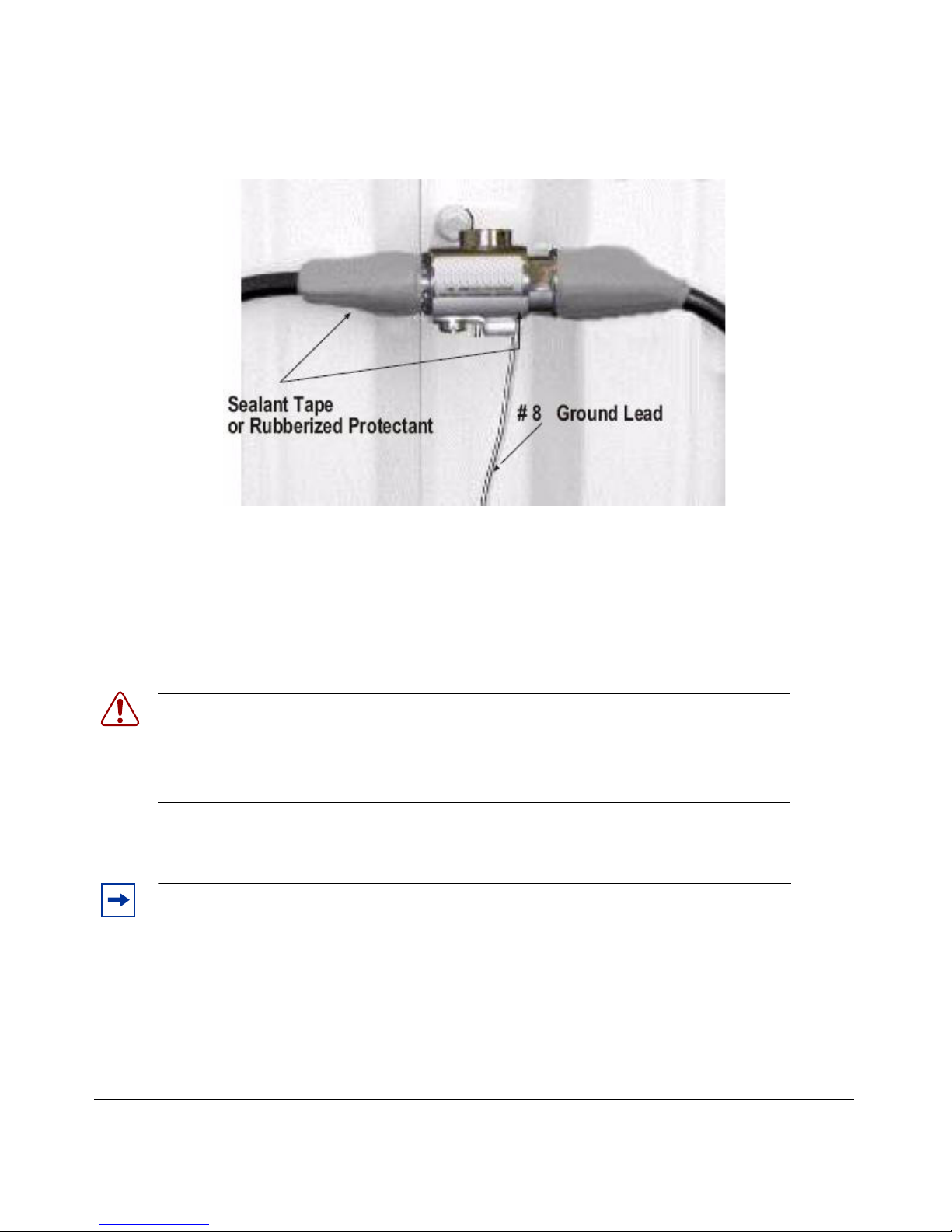

Coax cable seal installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Physical site survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Country of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

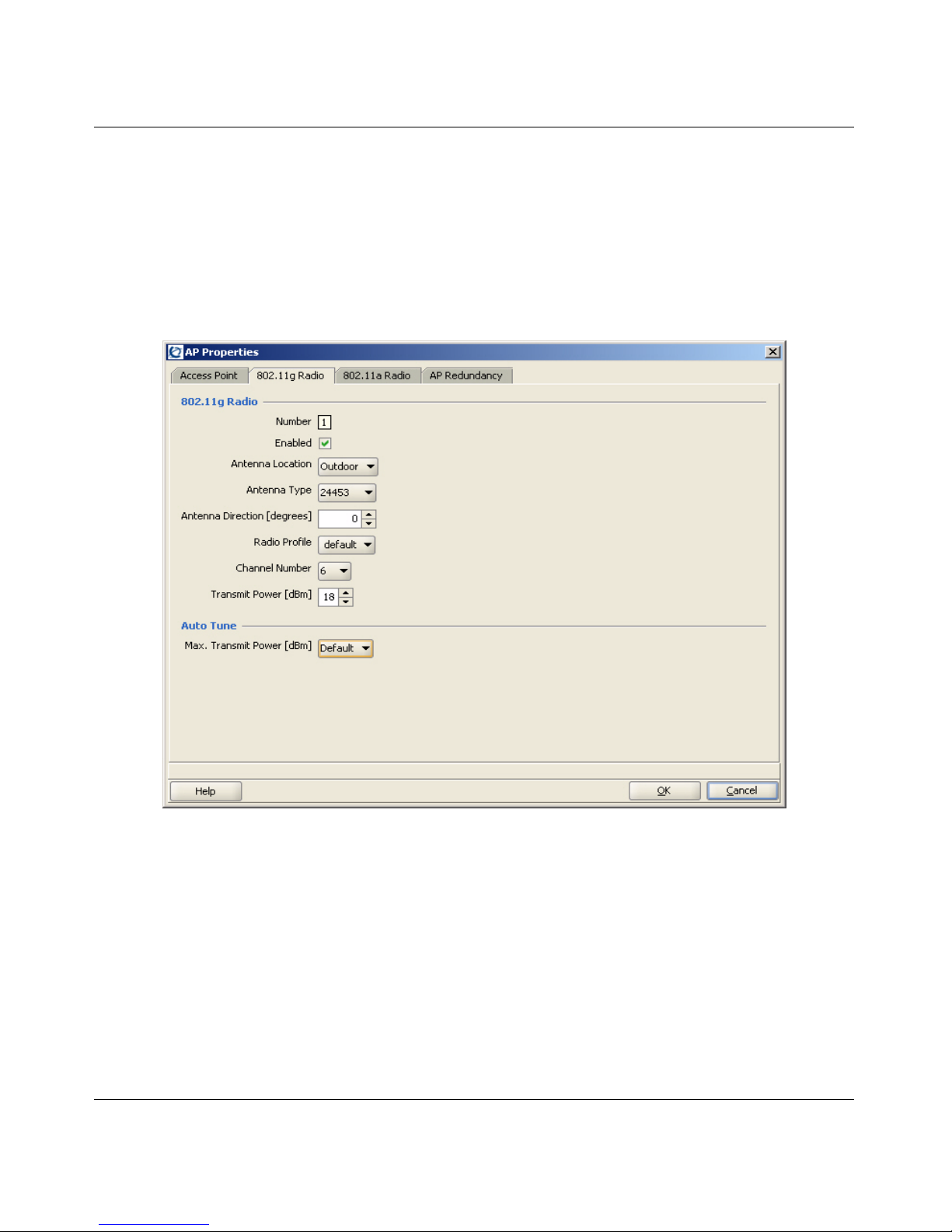

Use of external antenna configuration option CLI and WMS . . . . . . . . . . 54
Specifying the external antenna model . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Other related documentation references . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
WLAN 2300 Series Outdoor Solution with AP Mounted in
NEMA Enclosure ............................................................................................57
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Kit Contents for AP 2330A/2330B installed outdoors in NEMA Enclosure . . . 57
Site Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Contents 7
Nortel WLAN 2300 Series Outdoor Solution Guide
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Powerline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Heat /Cold loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Ethernet and Antenna Lightning Surge Protector . . . . . . . . . . . . . . . . . . . 60

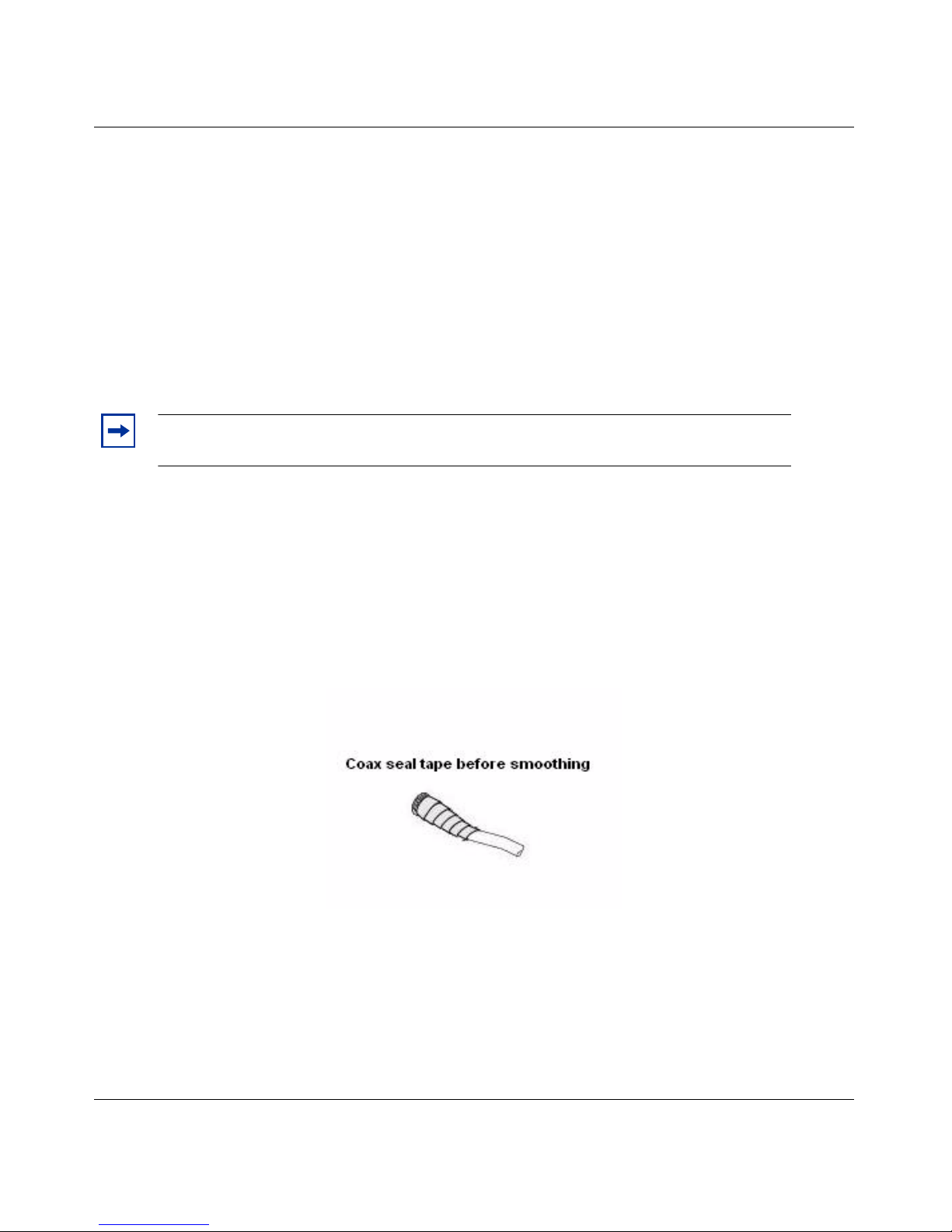

Applying coax seal tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Installation of AP 2330A/2330B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

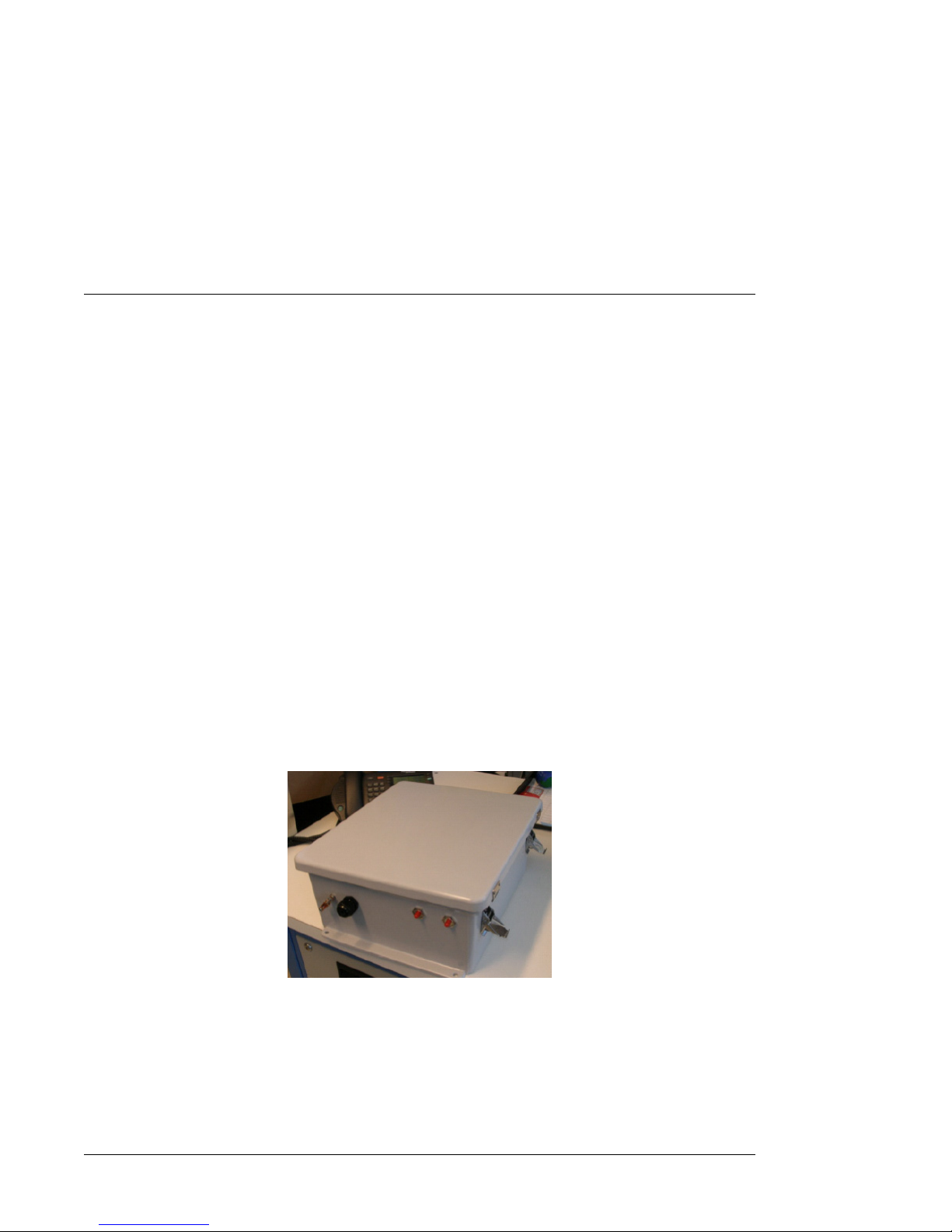

Installation of the NEMA Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

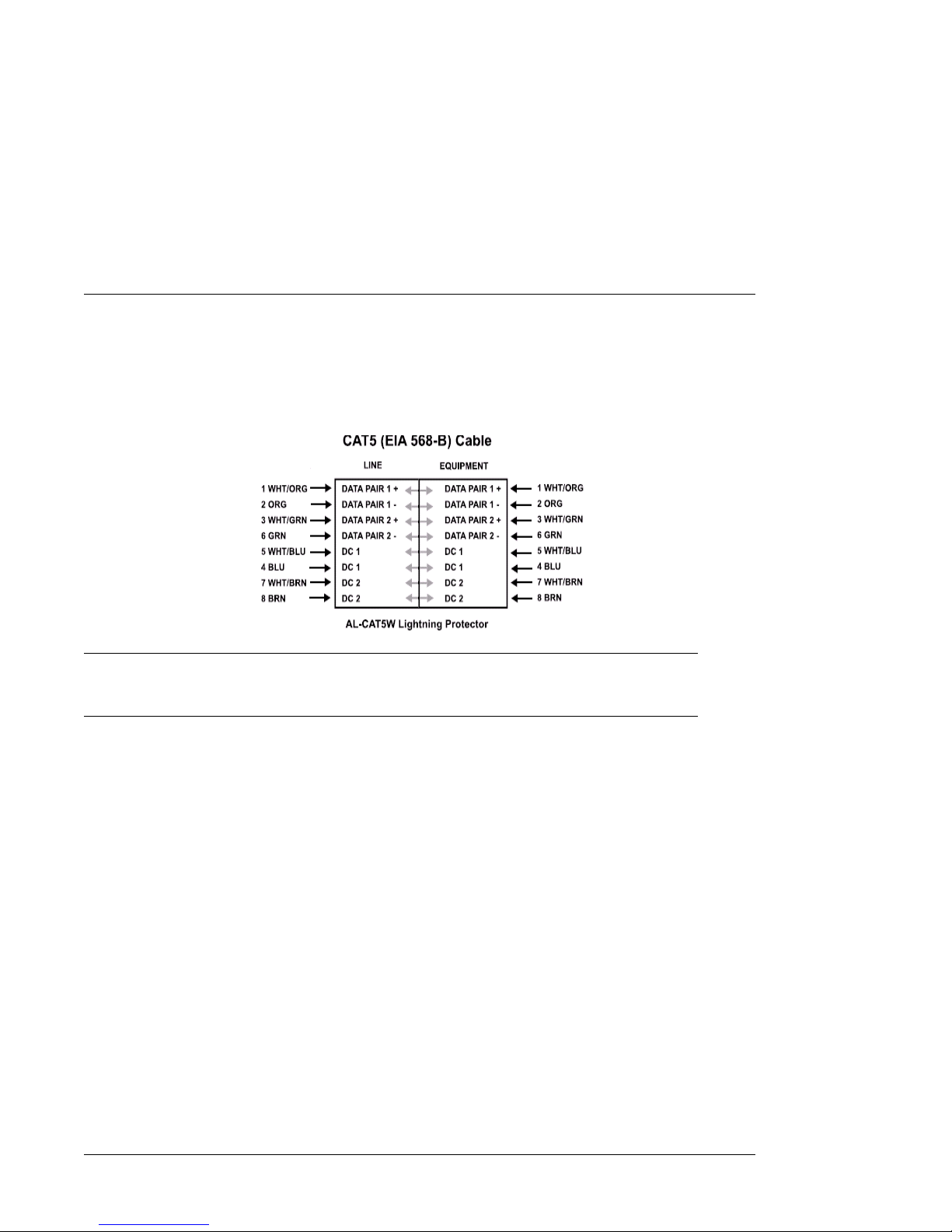

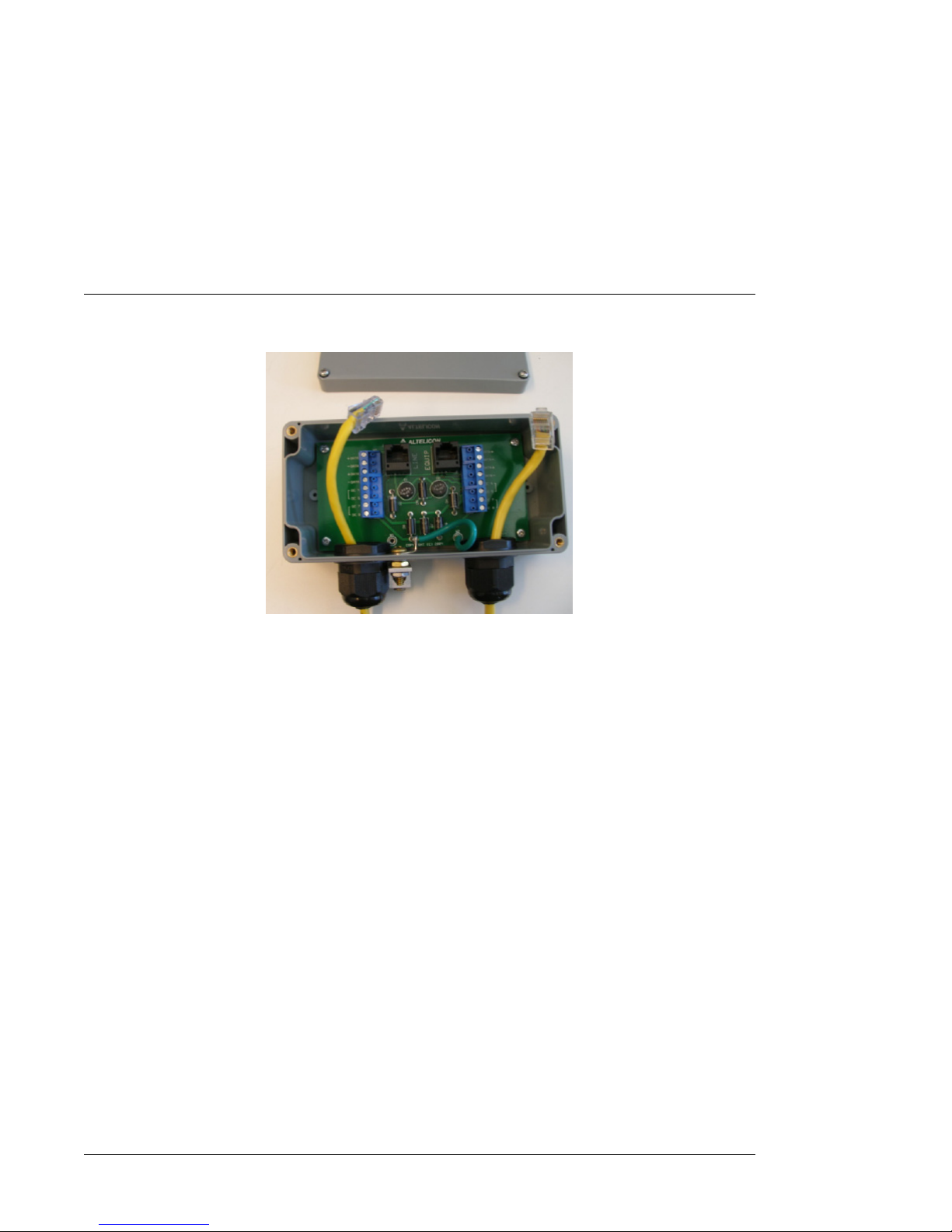

Installation of the Ethernet Lightning Surge Protector . . . . . . . . . . . . . . . . . . . 65
Terminal Strip Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Country of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Appendix..........................................................................................................69
Supported antenna information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

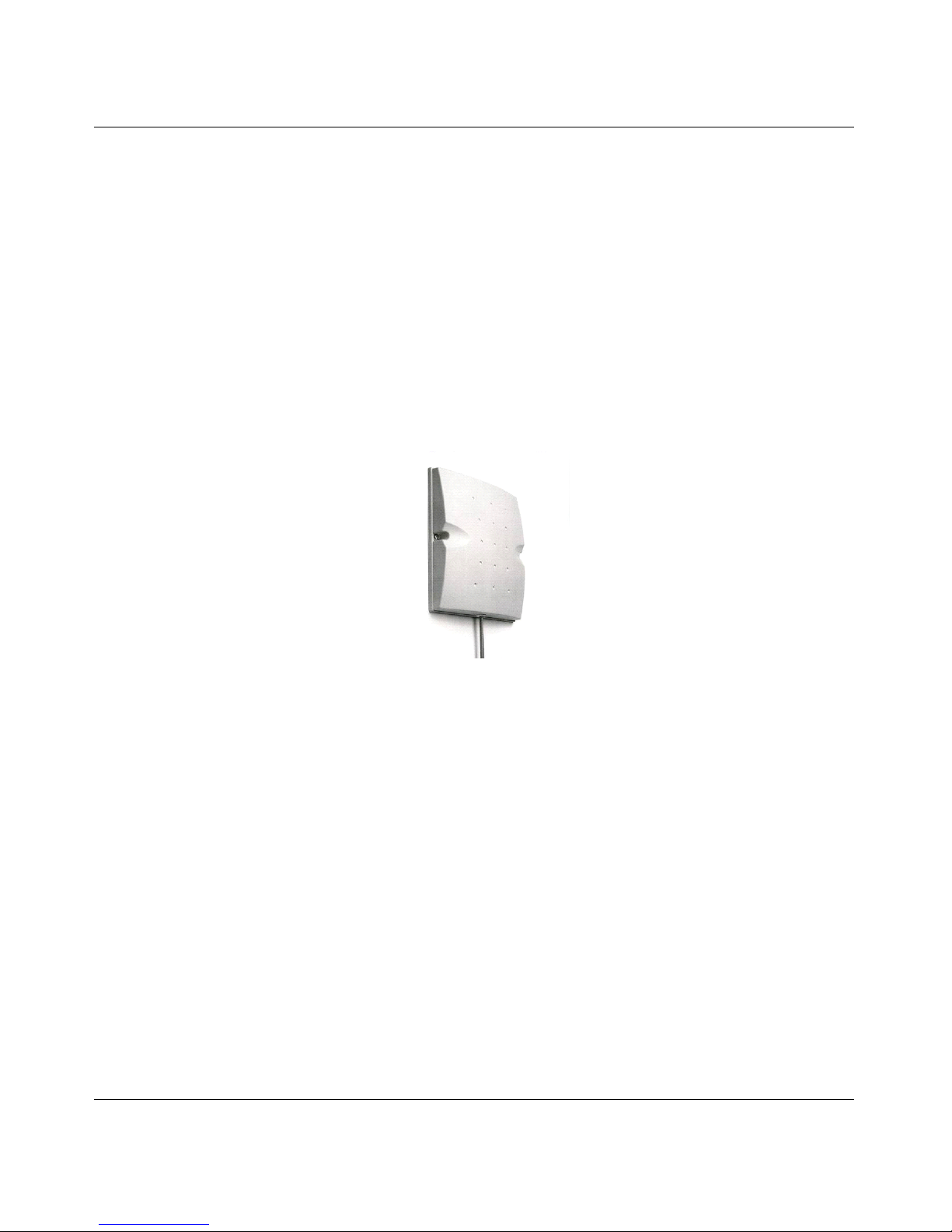

Outdoor external antenna options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Surge Suppression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Antenna properties and considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Antenna properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
RF Propagation and Path Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Antenna descriptions – 802.11a (5.0 GHz) antennas . . . . . . . . . . . . . . . . 84
Antenna descriptions – 802.11b/g (2.4GHz) antennas . . . . . . . . . . . . . . . 90
Mounting of Ethernet Lightning Surge Protector . . . . . . . . . . . . . . . . . . . . . . . . . 105
8 Contents
NN47250-503 (323847-C Version 02.01)
Basics of Nortel WLAN 2300 Series Outdoor Solution 9
Nortel WLAN 2300 Series Outdoor Solution Guide
Basics of Nortel WLAN 2300 Series
Outdoor Solution
Introduction
This document provides the basic outdoor hardware installation instructions for your WLAN 2300 Series.
For information about WLAN 2300 Series Outdoor Solution with Indoor Mounted AP, refer Chapter ,
“WLAN 2300 Series Outdoor Solution with Indoor Mounted AP,” on page 41

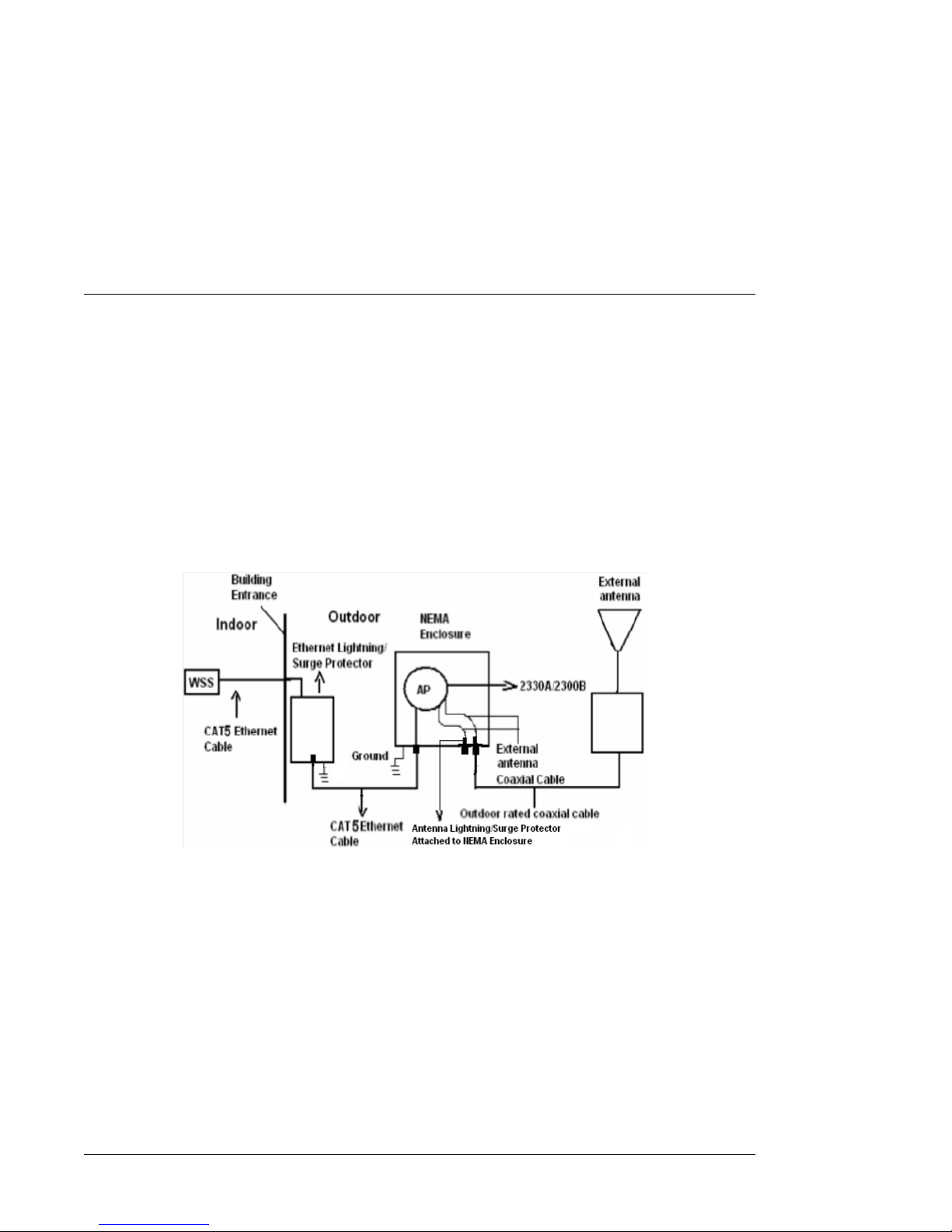

For information about WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure, refer
Chapter , “WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure,” on page 57
For more information about AP installation as well as safety and installation requirements, see the following:
• Nortel WLAN—Access Point 2330/2330A/2330B Installation Guide
What is the Nortel WLAN 2300 Series Outdoor Solution
The Nortel WLAN 2300 Series Outdoor Solution is the incorporation of existing and new Nortel components
to provide a simple yet effective solution to wireless LAN access in outdoor locations.
Note. WLAN Access Point 2330A requires WMS and WSS software Release 4.1 (or later) for correct
configuration and operation.l
Note. WLAN Access Point 2330B requires WMS and WSS software Release 5.0.11.2 (or later) for correct
configuration and operation.
10 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
How to get help
This section explains how to get help for Nortel products and services.
Getting help from the Nortel web site
The best way to get technical support for Nortel products is from the Nortel Technical Support Web site:
http://www.nortel.com/support
This site provides quick access to software, documentation, bulletins, and tools to address issues with Nortel
products. More specifically, the site enables you to:
• download software, documentation, and product bulletins
• search the Technical Support Web site and the Nortel Knowledge Base for answers to technical issues
• sign up for automatic notification of new software and documentation for Nortel equipment
• open and manage technical support cases
Getting help over the phone from a Nortel solutions center
If you don’t find the information you require on the Nortel Technical Support Web site, and have a Nortel
support contract, you can also get help over the phone from a Nortel Solutions Center.
In North America, call 1-800-4NORTEL (1-800-466-7835).
Outside North America, go to the following Web site to obtain the phone number for your region:
http://www.nortel.com/callus
Getting help from a specialist by using an express routing code
To access some Nortel Enterprise Technical Support (NETS) Centers, you can use an Express Routing Code
(ERC) to quickly route your call to a specialist in your Nortel product or service. To locate the ERC for your
product or service, go to:
http://www.nortel.com/erc
Getting help through a Nortel distributor or reseller
If you purchased a service contract for your Nortel product from a distributor or authorized reseller, contact the
technical support staff for that distributor or reseller.
Basics of Nortel WLAN 2300 Series Outdoor Solution 11
Nortel WLAN 2300 Series Outdoor Solution Guide
Regulatory compliance statements for WLAN Access
Point 2330A/2330B
Federal Communications Commission (FCC) compliance notices
This section includes the following FCC statements for the WLAN Access Point 2330A/2330B:
• Class B Interference Statement
• RF Radiation Exposure and Hazard Warning
• Non-Modification Statement
• Deployment Statement
Class B interference statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
AP 2330A
AP 2330B
12 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
RF radiation exposure and hazard statement
To ensure compliance with FCC RF exposure requirements, this device must be installed in a location such
that the antenna of the device will be greater than 20 cm (8 in.) away from all persons. Using higher gain
antennas and types of antennas not covered under the FCC certification of this product is not allowed.
Installers of the radio and end users of the product must adhere to the installation instructions provided in this
manual. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Non-modification statement
Use only the supplied internal antenna, or external antennas supplied by the manufacturer. Unauthorized
antennas, modifications, or attachments could damage the WLAN Access Point 2330A/2330B and violate
FCC regulations. Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment. Contact Nortel for a list of approved
2.4 GHz and 5.0 GHz external antennas.
This device must be operated with the CAT-5 Ethernet cable installed on each activated AP 2330A/2330B
Ethernet Port to ensure compliance with the Class B emissions standards. Failure to comply with this
installation requirement may cause the device to operate in excess of the allowable emissions limits.
Deployment statement
This product is certified for indoor deployment only. Outdoor operation is allowed by exception only.
Please follow the guidelines outlined in the Outdoor Operation Section in this guide.
Canadian IC statement
Operation is subject to the following two conditions in Canada:
1 this device may not cause interference, and
2 this device must accept any interference, including interference that may cause undesired operation of the
device
To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is
intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to licensing and not supported by the WLAN Access
Point 2330A/2330B. Because high power radars are allocated as primary users (meaning they have priority) in
the 5250-5350 MHz band, these radars could cause interference and/or damage to license exempt WLAN
devices.
Basics of Nortel WLAN 2300 Series Outdoor Solution 13
Nortel WLAN 2300 Series Outdoor Solution Guide
European Union and European Free Trade Association (EFTA) regulatory
compliance
This equipment may be operated in the countries that comprise the member countries of the European Union
and the European Free Trade Association. These countries, listed in the following paragraph, are referred to as
The European Community throughout this document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND,
FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA,
LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA,
SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY,
SWITZERLAND
The WLAN Access Point 2330A/2330B communicates with a Nortel Networks WLAN - Security Switch
using a standard CAT-5 (Category 5) or higher 10/100 Mbps twisted pair Ethernet cable to provide wireless
local area networking (WLAN) capabilities. The WLAN Access Point 2330A/2330B includes one 802.11a
and one 802.11b/g radio and two 802.11a and two 802.11b/g omnidirectional internal antennas. In addition,
the 2330A/2330B access point can use optional factory-supplied external omnidirectional and/or directional
high-gain antennas, one per the 802.11b/g and one per the 802.11a radios, as described in the external antenna
section of the WLAN Access Point 2330A/2330B Installation Guide. When using the external antennas,
connect them to the reverse-polarity R-SMA connectors located on the side of the WLAN Access Point
2330A/2330B.
Declaration of conformity
Marking by this symbol
indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union
(1999/5/EC). This equipment meets the following conformance standards:
Safety: EN 60950-1:2001 + A11:2004
EMC: EN 55022: 2006, EN 55024:1998 + A1:2001 + A2:2003, EN301489-1 V.1.4.1,
EN 301489-17 v1.2.1, CISPR22:1997, CISPR24
Including: EN 61000-3-2, -3-3, -4-2, -4-3, -4-4, -4-5, -4-6 and -4-11. The product is also licensed as
required for additional country specific standards as required for the International Marketplace.
Radio: EN 300-328 v.1.6.1 (2004-11) & EN 301-893 v.1.2.3 (2003-08)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation
techniques and Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN.
Certifications are harmonized to the EN standards covering essential requirements under article 3.2 of the
R&TTE Directive. Compliance includes testing with antennas as specified in attached table.
SAR: EN 50385:2002
14 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
European Community declaration of conformity
Table 1: European Community declaration of conformity
Bulgaria
Български
С това, nortel обявява, че този модел към радио към WLAN на 2330 аса
на 2330"B", е със съгласие при съществените изисквания и другите
съответни предоставяния Of Директивата 1999/5 на европейски съюз.
Czech Republic Èesky
Norteltímto prohlašuje, že tento WLAN Radio Model 2330A/2330B, je ve shodì se
základními požadavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES
Denmark Dansk
Undertegnede Nortelerklærer herved, at følgende udstyr WLAN Radio Model
2330A/2330B, overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF
English
English
Hereby, Nortel declares that this WLAN Radio Model 2330A/2330B, is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Estonia
Eesti
Käesolevaga kinnitab Nortelseadme WLAN Radio Model 2330A/2330B, vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
Finland
Suomi
Nortelvakuuttaa täten että WLAN Radio Model 2330A/2330B, tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden
ehtojen mukainen.
France
Français
Par la présente Norteldéclare que l'appareil WLAN Radio Model 2330A/2330B, est
conforme aux exigencies essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Germany
Deutsch
Hiermit erklärt Nortel., dass sich das Gerät WLAN Radio Model 2330A/2330B, in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Greece
E Λ ΛHNIKH
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Nortel. ΗΛ.ΝΕΙ ΟΤΙ WLAN Radio Model 2330A/2330B,
ΣΥΜΜΟΡΦ.ΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙ..ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ .ΙΑΤΑΞΕΙΣ ΤΗΣ Ο.ΗΓΙΑΣ 1999/5/ΕΚ
Hungary
Magyar
Alulirott, Nortelnyilatkozom, hogy a WLAN Radio Model 2330A/2330B, megfelel
a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
Basics of Nortel WLAN 2300 Series Outdoor Solution 15
Nortel WLAN 2300 Series Outdoor Solution Guide
Italy
Italiano
Con la presente Norteldichiara che questo WLAN Radio Model 2330A/2330B, è
conforme ai requisiti essenziali ed alle alter disposizioni pertinenti stabilite dalla
direttiva 1999/5/CE.
Latvia
Latviski
Ar šo Norteldeklarç, ka WLAN Radio Model 2330A/2330B, atbilst Direktîvas
1999/5/EKbûtiskajâm prasîbâm un citiem ar to saistîtajiem noteikumiem.
Lithuania
Lietuviø
Šiuo Norteldeklaruoja, kad šis WLAN Radio Model 2330A/2330B, atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Malta
Malti
Hawnhekk, Nortel., jiddikjara li dan WLAN Radio Model 2330A/2330B,
jikkonforma mal-tiijiet essenzjali u ma provvedimenti orajn relevanti li hemm
fid-Dirrettiva 1999/5/EC.
Netherlands
Netherlands
Hierbij verklaart Norteldat het toestel WLAN Radio Model 2330A/2330B, in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG
Poland
Polski
Niniejszym Nortelooewiadcza, ¿e WLAN Radio Model 2330A/2330B, jest zgodny
z zasadniczymi wymogami oraz pozosta³ymi stosownymi postanowieniami
Dyrektywy 1999/5/ EC.
Portugal
Português
Norteldeclara que este WLAN Radio Model 2330A/2330B, está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Romania
Român
Astfel, Nortel declarã acel acest WLAN Radio Model 2330A 2330B, este în
conformitate cu cerinþele necesare ºi proviziile alte semnificative de Directive 1999
5 EC.
Slovakia
Slovensky
Norteltýmto vyhlasuje, že WLAN Radio Model 2330A/2330B spåòa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Slovenia
Slovensko
Nortelizjavlja, da je ta WLAN Radio Model 2330A/2330B, v skladu z bistvenimi
zahtevami in ostalimi relevantnimi doloèili directive 1999/5/ES.
Spain
Español
Por medio de la presente Norteldeclara que el WLAN Radio Model 2330A/2330B,
cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE.
Sweden
Svenska
Härmed intygar Nortelatt denna WLAN Radio Model 2330A/2330B, står I
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/EG.
Table 1: European Community declaration of conformity
16 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Countries of operation and restrictions of use in the European
Community
Operation using the 2.400 to 2.4835 GHz channels in the European Community
The professional installer should use the configuration utility provided with this product to verify the current
channel of operation, the expected transmit power level, and to confirm that the device is operating in
conformance with the spectrum usage rules for the selected European Community country. If operation is
occurring outside of the allowable channels as indicated in this guide, then operation of the product must cease
immediately and the installer must consult with the local technical support staff responsible for the wireless
network.
This device is intended to be operated in all countries of the European Community. Additional restrictions of
use for the 2330A/2330B access point within the European Community countries in the 2.400 to 2.4835 GHz
band are listed below.
• The frequencies associated with channels 1 to 13 in the 2.400 to 2.4835 GHz band are allowed to be used
either indoors or outdoors in all countries of the European Community, except where noted in the
Outdoor Operation Section.
The 2330A/2330B, whether using the internal or approved external antennas, is guaranteed to meet this limit
by automatically adjusting the transmit power level through the operating software depending upon the gain of
the selected antenna.
Operation using the 5.15 to 5.25 GHz, 5.25 to 5.35 GHz,
and 5.470 to 5.725 GHz channels in the European Community
To remain in conformance with European National spectrum usage laws, follow the channel limitations
associated with the 5 GHz bands as specified in this document. The professional installer should verify the
current channel of operation and the expected transmit power level of the WLAN Access Point 2330A/2330B
to confirm that the device is operating in conformance with the spectrum usage rules for the European
Community country where the unit is being installed. If operation is occurring outside of the allowable
frequencies or above the power levels, as indicated in this guide, then operation of the product must cease
immediately and the installer must consult with the local technical support staff responsible for the wireless
network.
This device is intended to be operated in all countries of the European Community. Additional restrictions of
use for the 2330A/2330B access point within the European Community countries in the 5.15 to 5.25 GHz,
5.25 to 5.35 GHz, and 5.470 to 5.725 GHz bands are listed below.
• This device is restricted to indoor use only when operated in the European Community using the
5.15-5.25 GHz and 5.25-5.35 GHz bands, which includes channels 36, 40, 44, 48, 52, 56, 60 and 64.
• The 5 GHz Turbo Mode feature is not allowed for operation in any European Community country.
• In France, operation is restricted to the 5.15 to 5.25 GHz band. No operation is permitted in either the
5.25 to 5.35 GHz or 5.470 to 5.725 GHz bands because the device is noncompliant with the DFS
requirements stated in EN 301-893 v1.3.1.
Basics of Nortel WLAN 2300 Series Outdoor Solution 17
Nortel WLAN 2300 Series Outdoor Solution Guide
Dynamic Frequency Selection (DFS)
This device implements a DFS feature in accordance with the limits in EN 301-893v1.2.3, Section 4.6 and
Annex D, Tables D.1, D.2 and D.4 for a device operating in the mode defined as "Master". Section 4.6, Tables
6 and 7 of this document define the requirements prior to using a channel and during normal operation for a
Master device (i.e., Interference Detection Threshold, Channel Availability Check Time, Uniform Spreading,
Channel Closing Transmission Time and Channel Move Time). This product qualifies for this category since
the maximum achievable transmit power is greater than 23 dBm per the requirements of Table D.2 in Annex D
of the standard.
IEEE 802.11a operation in the 5250 to 5350 MHz and 5470 to 5725 MHz frequency bands is governed by
ETSI EN 301-893v1.2.3 and the R&TTE Directive 1999/5/EC. Effective March 31, 2008, EN 301-893 v1.2.3
will be replaced by EN 301-893v1.3.1. The AP-2330B access point will meet compliance with EN
301-893v1.3.1 by disabling operation, via software, in the 5250 to 5350 MHz and 5470 to 5725 MHz
frequency bands because it cannot meet the DFS requirements as outlined in EN 301-893v1.3.1.
Transmit Power Control (TPC)
European Regulatory requirements specify that wireless devices must employ Transmit Power Control (TPC)
to reduce the potential for interference to other communication systems operating in the 5 GHz frequency
bands. This device includes a provision for adjustment of Transmit Power in accordance with the limits in EN
301-893v1.2.3, Sections 4.3.1 and 4.3.2.
Korea MIC Compliance Statement
Possible radio wave interference during operation of concerned radio equipment.
18 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Taiwan Compliance Statement
Article 12
Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency,
enhance transmitting power or alter original characteristic as well as performance to an approved low power
radio-frequency device.
Article 14
The low power radio-frequency devices shall not influence aircraft security and interfere with legal
communications. If found, the user shall cease operating immediately until no interference is achieved. The
said legal communications means radio communications is operated in compliance with the
Telecommunications Act.
The low power radio-frequency devices must be susceptible with the interference from legal communications
or ISM radio wave radiated devices.
Basics of Nortel WLAN 2300 Series Outdoor Solution 19
Nortel WLAN 2300 Series Outdoor Solution Guide
4.7.5 Within the 5.25-5.35 GHz band, U-NII devices will be restricted to indoor operations to reduce any
potential for harmful interference to co-channel MSS operations.
4.7.6 The operation of the U-NII devices is subject to the conditions that no harmful interference is caused.
The user must stop operating the device immediately should harmful interference be caused and shall not
resume until the condition causing the harmful interference has been corrected.
Moreover, the interference must be accepted that may be caused by the operation of an authorized
communications, or ISM equipment.
4.7.7 Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is
maintained within the band of operation under all conditions of normal operation as specified in the user
manual.
20 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Outdoor Operating Restrictions
United States and Canada
2.4 GHz Band
IEEE 802.11b/g operation in the 2.400 to 2.4835 GHz ISM band is governed by FCC Part 15, Subparts B & C
in the US and IC RSS-210 in Canada. These rules state that the parameters for both indoor and outdoor
operation in this frequency band are identical.
5.0 GHz Bands
IEEE 802.11a operation in the following frequency bands, is governed by FCC Part 15, Subparts B & C and
FCC Part 15, Subpart E for the US and IC RSS-210, Issue 6 in Canada. There are restrictions of use in the
5.0 GHz frequency bands and they are outlined below:
The software settings that govern the operating parameters of the 2330A and 2330B access points have been
constructed to prohibit operation in the 5150 to 5250 MHz band when either "outdoor" mode or an "outdoor
antenna configuration" is selected. Please refer to the External Antenna Selection Guide for a complete listing
of the indoor and outdoor antennas.
In addition, the 2330B access point has been prohibited, via software, from operating in the 5250 to 5350 MHz
and 5470 to 5725 MHz frequency bands because it cannot meet the DFS requirements as outlined in the rules
of the FCC for Part 15, Subpart E that come into force on July 20, 2007.
The 2330A access point will not be marketed or sold in the US and Canada after July 20, 2007 because it is not
compliant with the FCC Part 15, Subpart E rules.
European Union (EU) and European Fair Trade Association (EFTA)
2.4 GHz Band
IEEE 802.11b/g operation in the 2400 to 2483.5 MHz WLAN band is governed by ETSI EN 300-328 v1.7.1.
These rules state that the parameters for both indoor and outdoor operation in this frequency band are identical
in all member states, except those listed below:
Table 2: Restrictions of use in 5.0 GHz frequency bands
5150 to 5250 MHz: Operation is restricted to INDOOR use ONLY (FCC Part 15.400 & IC
RSS-210)
5250 to 5350 MHz: Operation can be used indoors or outdoors (FCC Part 15.400 & IC RSS-210)
5470 to 5725 MHz: Operation can be used indoors or outdoors (FCC Part 15.400 & IC RSS-210)
5725 to 5825 MHz: Operation can be used indoors or outdoors (FCC Part 15.400 & IC RSS-210)
5725 to 5875 MHz: Operation can be used indoors or outdoors (FCC Part 15.247)
Basics of Nortel WLAN 2300 Series Outdoor Solution 21
Nortel WLAN 2300 Series Outdoor Solution Guide
5.0 GHz Bands
IEEE 802.11a operation in the frequency bands listed below, are governed by ETSI EN 301-893v1.2.3 and the
R&TTE Directive 1999/5/EC. Effective March 31, 2008, EN 301-893 v1.2.3 will be replaced by EN
301-893v1.3.1. The AP 2330B access point will meet compliance with EN 301-893v1.3.1 by disabling
operation, via software, in the 5250 to 5350 MHz and 5470 to 5725 MHz frequency bands because it cannot
meet the DFS requirements as outlined in EN 301-893v1.3.1.
Table 3: Excepted member states
France: Operation outdoors for IEEE 802.11b/g is limited to 2400 to 2454 MHz, channels 1 through 7,
at a maximum EIRP of 100 mW. The AP 2330A and AP 2330B access points are disabled
from operating on Channels 8 through 13 when either "outdoor" mode or an "outdoor antenna
configuration" is selected.
Greece: Operation outdoors for IEEE 802.11b/g is prohibited without obtaining a license. If the AP
2330A or AP 2330B is to be used beyond the boundaries of the owner's property, a general
authorization is required from the EETT (Hellenic Telecommunications and Post
Commission). Please refer to Notification Number 2004/50/GR entitled "201 V.1.0 Radio
Equipment Interface Requirement" for more details. Operation on all channels has been
prohibited when either "outdoor" mode or an "outdoor antenna configuration" is selected.
Italy: Operation outdoors for IEEE 802.11b/g is prohibited without obtaining a license. If the AP
2330A or AP 2330B is to be used beyond the boundaries of the owner's property, a general
authorization is required from the Ministry of Communications. Please check
http://www.comunicazioni.it/it for further details. Operation on all channels has been
prohibited when either "outdoor" mode or an "outdoor antenna configuration" is selected.
Latvia: Operation outdoors for IEEE 802.11b/g is prohibited without obtaining a license. If the AP
2330A or AP 2330B is to be used beyond the boundaries of the owner's property, outdoors or
with an outdoor antenna, a general authorization is first required from the Electronic
Communications Office. Please check http://www.esd.lv for further details. Operation on all
channels has been prohibited when either "outdoor" mode or an "outdoor antenna
configuration" is selected.
Spain: Operation outdoors for IEEE 802.11b/g is prohibited without obtaining a license. If the AP
2330A or AP 2330B is to be used beyond the boundaries of the owner's property, a general
authorization is required from the Direccion General De Telecomunicaciones y TI. Operation
on all channels has been prohibited when either "outdoor" mode or an "outdoor antenna
configuration" is selected.
Table 4: Restrictions of use in 5.0 GHz frequency bands
5150 to 5250 MHz: Operation is restricted to INDOOR use ONLY
5250 to 5350 MHz: Operation is restricted to INDOOR use ONLY
5470 to 5725 MHz: Operation can be used indoors or outdoors per EN 301-893v1.2.3 and v1.3.1
5725 to 5850 MHz: Operation currently NOT ALLOWED or supported in the AP 2330A or AP
2330B.
22 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Operating parameters for both indoor and outdoor operation in the frequency bands listed above are identical
in all member states, except those listed below:
Country Specific Outdoor Operation Restrictions
The following restrictions of use for outdoor operation apply to the 2330A and 2330B access points. These
must be followed to meet local regulatory restrictions and ensure that the access points operate in the
appropriate modes.
Table 5: Excepted Member States
France: No operation is permitted in either the 5.25 to 5.35 GHz or 5.470 to 5.725 GHz bands because
the device is noncompliant with the DFS requirements stated in EN 301-893 v1.3.1. Therefore,
no outdoor operation is supported in France for the AP 2330A or AP 2330B access points.
Italy: Operation outdoors for IEEE 802.11a is prohibited without obtaining a license. If the AP
2330A or AP 2330B is to be used beyond the boundaries of the owner's property, a general
authorization is required from the Ministry of communications. Please check
http://www.comunicazioni.it/it for further details. Operation on all channels has been
prohibited when either "outdoor" mode or an "outdoor antenna configuration" is selected.
Latvia: Operation outdoors for IEEE 802.11a is prohibited without obtaining a license. If the AP
2330A or AP 2330B is to be used beyond the boundaries of the owner's property, outdoors or
with an outdoor antenna, a general authorization is first required from the Electronic
Communications Office. Please check http://www.esd.lv for further details. Operation on all
channels has been prohibited when either "outdoor" mode or an "outdoor antenna
configuration" is selected.
Table 6: 2.4 GHz Outdoor Restrictions
REGION RESTRICTIONS
MIDDLE EAST
Egypt Outdoor operation is NOT permitted in the 2.4 GHz band
Israel Outdoor operation is permitted on Channels 5 to 13 ONLY
Jordan Outdoor operation is NOT permitted in the 2.4 GHz band
Kuwait Outdoor operation is NOT permitted in the 2.4 GHz band
Qatar Outdoor operation is NOT permitted in the 2.4 GHz band
Saudi Arabia Outdoor operation is NOT permitted in the 2.4 GHz band
United Arab Emirates Outdoor operation is NOT permitted in the 2.4 GHz band
AFRICA
Morocco Cannot use antennas 24883, 24113, 24123 or 24143 for outdoor operation.
CALA
Mexico Channels 1 through 6 allowed for outdoor operation ONLY
Basics of Nortel WLAN 2300 Series Outdoor Solution 23
Nortel WLAN 2300 Series Outdoor Solution Guide
Table 7: 5.0 GHz Outdoor Restrictions
REGION RESTRICTIONS
Europe
Russian Federation Outdoor operation is NOT permitted in the 5.0 GHz bands
APAC
Australia 5150 to 5250 MHz and 5250 to 5350 MHz operation is restricted to INDOOR use
ONLY
Hong Kong 5150 to 5250 MHz and 5250 to 5350 MHz operation is restricted to INDOOR use
ONLY
India Outdoor operation is NOT permitted in the 5.0 GHz bands
Indonesia Outdoor operation is NOT permitted in the 5.0 GHz bands
Japan Outdoor operation is NOT permitted in the 5.0 GHz bands
New Zealand 5150 to 5250 MHz and 5250 to 5350 MHz operation is restricted to INDOOR use
ONLY
Philippines 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
Taiwan 5250 to 5350 MHz operation is restricted to INDOOR use ONLY
Thailand Outdoor operation is NOT permitted in the 5.0 GHz bands
Vietnam 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
MIDDLE EAST
Bahrain Outdoor operation is NOT permitted in the 5.0 GHz bands
Egypt Outdoor operation is NOT permitted in the 5.0 GHz bands
Israel Outdoor operation is NOT permitted in the 5.0 GHz bands
Jordan Outdoor operation is NOT permitted in the 5.0 GHz bands
Kuwait Outdoor operation is NOT permitted in the 5.0 GHz bands
Oman 5150 to 5250 MHz and 5250 to 5350 MHz operation is restricted to INDOOR use
ONLY
Qatar Outdoor operation is NOT permitted in the 5.0 GHz bands
Saudi Arabia Outdoor operation is NOT permitted in the 5.0 GHz bands
United Arab Emirates Outdoor operation is NOT permitted in the 5.0 GHz bands
AFRICA
Kenya 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
Mauritius 5150 to 5250 MHz and 5250 to 5350 MHz operation is restricted to INDOOR use
ONLY
Morocco 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
24 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
External Antenna Statement
Intentional radiators, such as the Nortel WLAN Access Point 2330A/2330B are not intended to be operated
with any antenna(s) other than those furnished by Nortel. An intentional radiator may only be operated with
the antenna(s) with which it is authorized. For a complete listing of the authorized antennas for use with this
product, visit
http://www.nortel.com/support
In order to ensure continued compliance, use of an antenna not on the Nortel approved antenna list is not
allowed without specific authorization from Nortel. For additional questions or inquiries regarding specific
antennas, contact Nortel at 1-800-4NORTEL (1-800-466-7835), and use express routing code (ERC) 1572.
Use of an antenna not specifically authorized by Nortel may not comply with local regulatory requirements
with respect to radiated emission limits and may result in illegal operation of the product. The installer of the
wireless system and associated antenna is required to ensure that only those antennas on the Nortel approved
antenna list or those antennas specifically approved by Nortel on a case by case basis are deployed with the
intentional radiator. Be sure to associate the appropriate antenna model number and localized regulatory region
when selecting the Nortel authorized antenna(s).
Country Specific External Antenna Restrictions
The following list of countries cannot use the Nortel approved antennas listed in the table. Use of these
antennas would violate the local regulatory rules and approved certifications for that country or operation is
not allowed in the specified frequency bands.
AFRICA
South Africa 5150 to 5250 MHz and 5250 to 5350 MHz operation is restricted to INDOOR use
ONLY
Turkey 5150 to 5250 MHz and 5250 to 5350 MHz operation is restricted to INDOOR use
ONLY
CALA
Chile Outdoor operation is NOT permitted in the 5.0 GHz bands
Columbia 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
Costa Rica Outdoor operation is NOT permitted in the 5.0 GHz bands
Dominican Republic 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
Jamaica 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
Mexico 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
Panama 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
Peru 5150 to 5250 MHz operation is restricted to INDOOR use ONLY
Venezuela 5150 to 5250 MHz and 5250 to 5350 MHz operation is restricted to INDOOR use
ONLY
Basics of Nortel WLAN 2300 Series Outdoor Solution 25
Nortel WLAN 2300 Series Outdoor Solution Guide
Country 2.4 GHz 5.0 GHz
Costa Rica ALL antenna models
Indonesia ALL antenna models
Japan S2403BHN36RSM
S2403BPXN36RSM
S51514WPN36RSM
S2406PN36RSM S4901790PN36RS
S241290PN36RSM SR49120DAN36RS
SR24120DN36RSM
Korea S2406PN36RSM S51514WPN36RSM
S2409PN36RSM S4901790PN36RS
PC2415NA36RSM SR49120DAN36RS
S241290PN36RSM
SR24120DN36RSM
Nigeria ALL antenna models
Russian Federation ALL antenna models
Thailand ALL antenna models
26 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Translated caution statements, warning conventions
and warning messages
The following caution statement, warning conventions, and warning messages apply to this manual.
Caution! The AP-2330A/2330B radios are disabled by default and can be enabled only
by a system administrator using the WSS.
Attention! Les communications radios du AP 2300A/2330B sont désactivées par
défaut et peuvent être activées uniquement par un administrateur système utilisant le WSS.
Achtung! Die AP 2300A/2330B Radios sind standardmäßig ausgeschaltet und können
nur durch einen Systemadministrator unter Verwendung des WSS eingeschaltet werden.
Precaucion! Las radios AP 2300A/2330B se desactivan en forma predeterminada y
pueden activarse sólo con un administrador de sistema utilizando el WSS.
Cuidado! Os rádios do AP2300A/2330B estão desativados por padrão e só podem ser
ativados por um administrador de sistema usando WSS.
Attenzione! Le radiazioni del dispositivo AP2300A/2330B vengono disattivate per
impostazione predefinita e possono essere attivate soltanto da un amministratore di
sistema tramite WSS.
Basics of Nortel WLAN 2300 Series Outdoor Solution 27
Nortel WLAN 2300 Series Outdoor Solution Guide

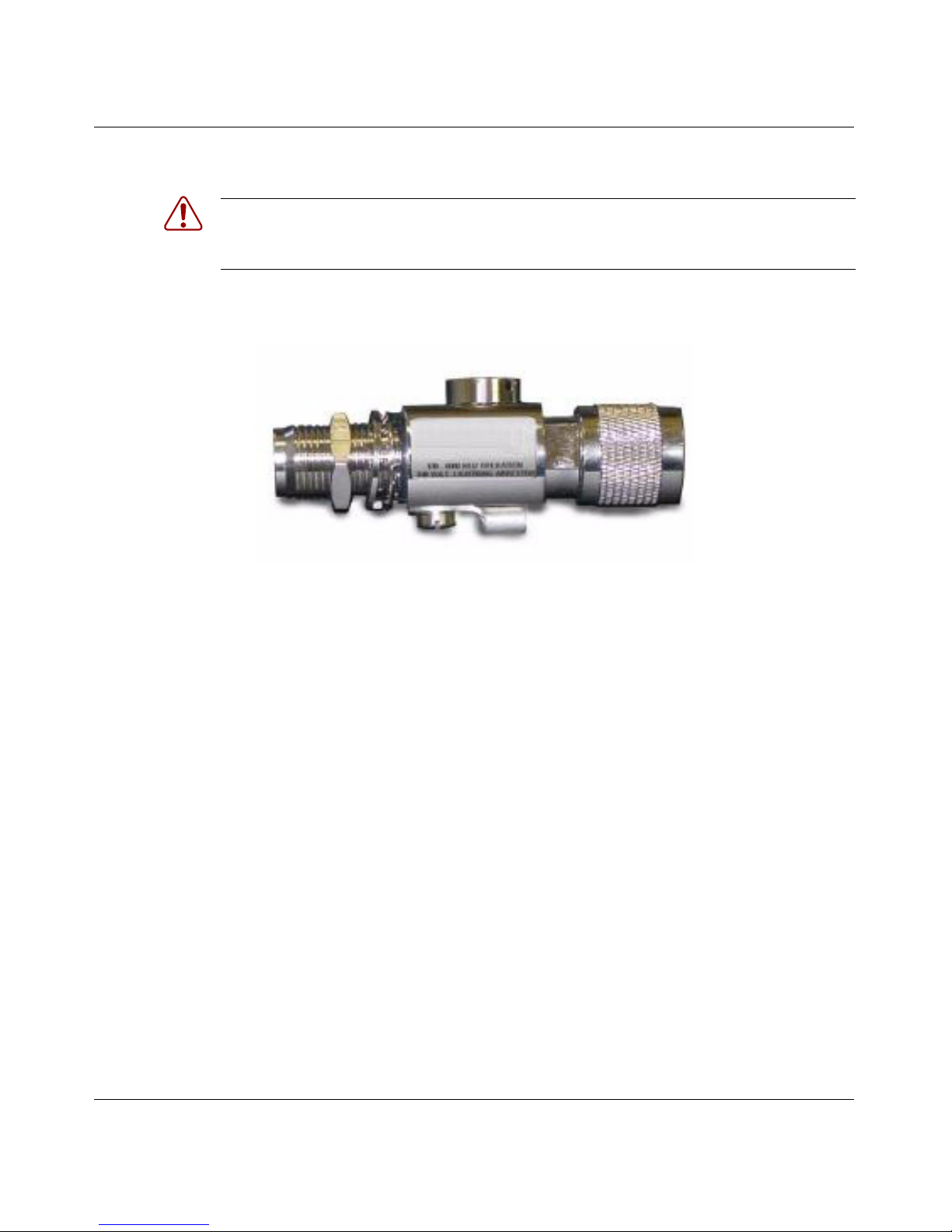

Caution! Do not install the outdoor antenna or connect it to the surge
suppressor/Access Point during a storm.
Attention ! N'installez pas l'antenne extérieure ou ne la reliez pas au point de la
montée subite suppressor/Access pendant un donner l' assaut à.
Achtung! Bringen Sie nicht die im Freienantenne an oder schließen Sie sie an den
Schwankung suppressor/Access Punkt während eines Sturms an.
Precaución! No instale la antena al aire libre ni conéctela con el punto de la oleada
suppressor/Access durante una tormenta.
Cuidado! Não instale a antena ao ar livre nem não a conecte ao ponto do surge
suppressor/Access durante uma tempestade.
Attenzione! Non installare o collegare l'antenna esterna allo stabilizzatore di
corrente/punto di accesso durante un temporale. .
28 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Caution! The power source equipment connected to the Access Point, such as the
Wireless Security Switch or PoE injector, must be provided with a reliable earth ground to
ensure safety of the system.
Attention ! La source d'alimentation branchée au point d'accès (commutateur de
sécurité sans fil ou alimentation électrique par câble Ethernet) doit être équipé d'une mise à
la terre fiable afin de garantir la sécurité du système.
Achtung! Die mit dem Zugriffspunkt verbundene Stromversorgungsanlage wie etwa
der WLAN-Sicherheitsschalter oder der PoE-Injektor muss korrekt geerdet sein, um die
Sicherheit des Systems zu gewährleisten..
Precaución! El equipo de suministro eléctrico conectado al Access Point (Punto de
acceso), como por ejemplo un Wireless Security Switch (Suiche de seguridad inalámbrico)
o PoE injector (inyector de corriente por Ethernet), debe contar con una conexión a tierra
confiable para garantizar la seguridad del sistema..
Cuidado! O equipamento de fonte de energia conectado ao Ponto de acesso, como o
Wireless Security Switch (Interruptor de segurança sem fio) ou o injetor PoE, devem estar
equipados com um fio terra confiável se modo a garantir a segurança do sistema.
Attenzione! l'apparecchiatura di alimentazione collegata al punto di accesso, ad
esempio il Wireless Security Switch o l'iniettore PoE, deve essere dotata di un'adeguata
messa a terra per garantire la sicurezza del sistema.
Basics of Nortel WLAN 2300 Series Outdoor Solution 29
Nortel WLAN 2300 Series Outdoor Solution Guide
Warning conventions
Warning! This situation or condition can cause injury.
Avertissement! Cette situation ou cette condition peuvent provoquer des blessures.
Warnung! Diese Situation oder dieser Zustand kann zu Verletzungen führen.
Advertencia! Esta situação ou condição podem causar dano.
Aviso! Esta situación o condición puede causar lesiones.
Avviso! Situazione o condizione che può causare ferite.
Warning! High voltage. This situation or condition can cause injury due to electric
shock.
Avertissement! Haute tension. Cette situation ou cette condition peuvent provoquer
des blessures dues à des décharges électriques.
Warnung! Hochspannung. Diese Situation oder dieser Zustand kann einen
Elektroschock verursachen.
Advertencia! Voltagem alta. Esta situação ou condição podem causar dano devido a
choque elétrico.
Aviso! Alta tensión. Esta situación o condición puede causar lesiones por descarga
eléctrica.
Avviso! Alta tensione. Questa situazione o condizione può causare ferite dovute a
scosse elettriche.
30 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Qualified service personnel warning
Warning! Installation must be performed by qualified service personnel only. Read and
follow all warning notices and instructions marked on the product or included in the
documentation.
Avertissement! L’installation doit être effectuée uniquement par des techniciens
qualifiés. Lisez et suivez toutes les notices d’avertissement et les instructions figurant sur le
produit ou comprises dans la documentation.
Warnung! Nur qualifiziertes Wartungspersonal darf die Installation vornehmen. Lesen
und befolgen Sie die Warnungshinweise und Anweisungen, die auf dem Produkt
gekennzeichnet oder in der Dokumentation enthalten sind.
Advertencia! Sólo el personal de servicio calificado podrá realizar la instalación. Lea
y siga todas las instrucciones y advertencias marcadas en el producto o incluidas en la
documentación.
Aviso! Apenas profissionais de atendimento técnico qualificados devem realizar a
instalação. Leia e siga todos os avisos e instruções destacados no produto ou que façam
parte da documentação.
Avviso! L'installazione deve essere eseguita esclusivamente da personale qualificato.
Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi nella
documentazione
Basics of Nortel WLAN 2300 Series Outdoor Solution 31
Nortel WLAN 2300 Series Outdoor Solution Guide
Radio safety warnings
Warning! Install this device in such a manner as to maintain a minimum of 20 cm (7.9
inches) separation distance between the radiating element(s) and all persons. This safety
warning conforms with FCC radio frequency exposure limits.
Avertissement! Installez cet appareil de façon à maintenir une distance d'au moins
20 cm entre les éléments rayonnants et tout individu. Cet avertissement de sécurité est
conforme aux limites d'exposition aux radiofréquences établies par la FCC.
Warnung! Installieren Sie das Gerät so, dass zwischen dem strahlenden Element bzw.
den strahlenden Elementen und allen Personen mindestens ein Abstand von 20 cm
eingehalten wird. Diese Sicherheitswarnung richtet sich nach den Grenzwerten für die
Belastung durch Hochfrequenz der FCC
Advertencia! Instale este dispositivo de tal manera que mantenga una distancia de
separación mínima de 20 cm. (7.9 pulgadas) entre los elementos emisores y todas las
personas. Esta advertencia de seguridad está de acuerdo con los límites de exposición de
frecuencia radioeléctrica de la FCC (Comisión Federal de las Comunicaciones).
Aviso! Instale o dispositivo de modo que exista um mínimo de 20 cm (7,9 polegadas) de
distância de separação entre o(s) elemento(s) radiador(es) e as pessoas. Esse aviso de
segurança está em conformidade com os limites de exposição à radiofreqüência
especificados pela FCC.
Avviso! Installare il dispositivo in modo tale da mantenere una distanza minima di 20 cm
tra gli elementi irradianti e le persone. Questo avviso sulla sicurezza è conforme ai limiti
FCC sull'esposizione alla frequenza radio.
32 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Warning! Do not operate access point near unshielded blasting caps or in an
otherwise explosive environment unless the device has been modified for such use by
qualified personnel.
Avertissement! Ne faites pas fonctionner de point d'accès à proximité de
détonateurs non blindés ou dans des milieux présentant des risques d'explosion à moins
que l'appareil n'ait été modifié pour cet usage par un personnel qualifié.
Warnung! Bedienen Sie den Zugangspunkt nicht in der Nähe von unabgeschirmten
Zündkapseln oder anderweitig explosionsgefährdeten Umgebungen, außer das Gerät
wurde durch geschultes Wartungspersonal für diese Verwendung geändert.
Advertencia! No maneje el punto de acceso cerca de cápsulas detonadoras no
aisladas o en ambientes explosivos a menos que el dispositivo haya sido modificado para
ese uso por personal calificado.
Aviso! Não opere um ponto de acesso próximo a detonadores sem proteção ou em
ambientes explosivos a não ser que o dispositivo tenha sido modificado para ser desta
forma utilizado por pessoal qualificado.
Avviso! Non utilizzare il punto di accesso nelle vicinanze di involucri esplosivi non
schermati o in qualsiasi ambiente in cui siano presenti sostanze esplosive, a meno che il
dispositivo non sia stato modificato per tale uso da personale qualificato.
Basics of Nortel WLAN 2300 Series Outdoor Solution 33
Nortel WLAN 2300 Series Outdoor Solution Guide
Warning! Do not touch or move the access point when the antennas are transmitting
or receiving.
Avertissement! Ne touchez pas le point d'accès lors de l'émission ou de la réception
des antennes.
Warnung! Berühren und bewegen Sie den Zugangspunkt nicht, wenn die Antennen
senden oder empfangen.
Advertencia! No toque ni mueva el punto de acceso cuando las antenas transmiten o
reciben.
Aviso! Não toque ou desloque o ponto de acesso enquanto as antenas estiverem
transmitindo ou recebendo dados.
Avviso! Non toccare o spostare il punto di accesso mentre le antenne sono in fase di
trasmissione o ricezione.
34 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Warning! Before using a wireless device in a hazardous location, consult the local
codes, national codes, and safety directors of the location for usage constraints.
Avertissement! Avant d'utiliser un appareil sans fil dans un endroit dangereux,
consultez la réglementation locale et nationale ainsi que les responsables de la sécurité de
l'endroit concerné pour obtenir des informations relatives aux conditions et aux limites
d'utilisation de cet appareil.
Warnung! Bevor Sie ein drahtloses Gerät an einem gefährlichen Ort verwenden,
informieren Sie sich über die regionalen und landesweiten Gesetze, und wenden Sie sich
an Orten mit Nutzungsbeschränkungen an die Sicherheitsbeauftragten.
Advertencia! Antes de utilizar un dispositivo inalámbrico en una ubicación peligrosa,
consulte los códigos locales, nacionales y los directorios de seguridad de la ubicación
acerca de las restricciones de uso.
Aviso! Antes de usar um dispositivo sem fio em local perigoso, consulte as normas
locais e nacionais, além de diretrizes de segurança locais para se informar sobre
restrições de uso.
Avviso! Prima di utilizzare un dispositivo wireless in un ambiente pericoloso, controllare
i codici locali e nazionali e consultare i relativi servizi antinfortunistici per le restrizioni
sull'uso.
Basics of Nortel WLAN 2300 Series Outdoor Solution 35
Nortel WLAN 2300 Series Outdoor Solution Guide
Warning! Intentional radiators, such as the Nortel WLAN Access Point 2330A/2330B
are not intended to be operated with any antenna(s) other than those furnished by Nortel.
An intentional radiator may only be operated with the antenna(s) with which it is authorized.
For a complete listing of the authorized antennas for use with this product, visit
http://www.nortel.com/support.
Avertissement! Les émetteurs intentionnels, tels que les points d'accès WLAN
2330/2330A/2330B de Nortel ne sont pas destinés à fonctionner avec des antennes autres
que celles fournies par Nortel. Un émetteur intentionnel peut fonctionner uniquement avec
une antenne agréée. Pour une liste complète des antennes agréées à utiliser avec ce
produit, rendez-vous sur le site Web http://www.nortel.com/support.
Warnung! Vorsätzliche Funksender wie der Nortel WLAN Access Point
2330/2330A/2330B dürfen nicht mit anderen, als den von Nortel bereitgestellten Antennen
verwendet werden. Ein vorsätzlicher Funksender darf nur mit den Antennen verwendet
werden, für die er autorisiert ist. Eine vollständige Liste mit allen autorisierten Antennen für
dieses Produkt finden Sie unter http://www.nortel.com/support.
Advertencia! Los equipos que generan transmisiones intencionales, como el Punto
de acceso 2330/2330A/2330B WLAN de Nortel no están ideados para funcionar con
ninguna antena que no esté diseñada por Nortel. Los equipos que generan transmisiones
intencionales pueden funcionar sólo con las antenas para las que están autorizados. Para
obtener una lista completa de las antenas autorizadas para este producto, visite
http://www.nortel.com/support.
Aviso! Radiadores por definição, como o Nortel WLAN Access Point 2330/2330A/2330B
não devem ser operados com nenhuma outra antena senão aquela fornecida pela Nortel.
Estes radiadores devem operar apenas com antena(s) cujo uso seja autorizado. Para uma
lista completa das antenas que têm autorização para serem usadas com o produto, acesse
http://www.nortel.com/support.
Avviso! I trasmettitori intenzionali, quali Nortel WLAN Access Point 2330/2330A/2330B
non sono progettati per il funzionamento con antenne di tipo diverso da quello fornito da
Nortel. Un trasmettitore intenzionale può funzionare esclusivamente con le antenne per le
quali dispone di autorizzazione. Per un elenco completo delle antenne autorizzate per l'uso
di questo prodotto, visitare il sito http://www.nortel.com/support.
36 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Warning! All wiring and cables to the Access Point, the surge suppressor and the
outdoor antenna should be routed separately. It is particularly important that AC wiring or
other outside cabling does not come in contact with the Access Point, antenna cables or
interface wiring.
Avertissement! Tous les câblage et câbles au point d'accès, au filtre de montée
subite et à l'antenne extérieure devraient être conduits séparément. Il est particulièrement
important que le câblage à C.A. ou tout autre câblage d'extérieur n'contacte pas le point
d'accès, antenne câble ou câblage d'interface.
Warnung! Alle Verdrahtung und Kabel zum Zugangspunkt, zum Schwankung Entstörer
und zur im Freienantenne sollten separat verlegt werden. Es ist, daß Wechselstrom
Verdrahtung oder anderes Außenseite Kabeln nicht mit den Zugangspunkt in Berührung
kommt, Antenne kabelt oder Schnittstelle Verdrahtung besonders wichtig.
Advertencia! Toda a fiação e cabos ao ponto de acesso, ao supressor de surge e à
antena ao ar livre devem ser distribuídos separada. É particularmente importante que a
fiação da C. A. ou outro cabografar da parte externa não vêm no contato com o ponto de
acesso, antena cabografa ou fiação da relação.
Aviso! Todos os cabos e fiações do Ponto de acesso, do filtro de linha e da antena
externa devem ser direcionados separadamente. É especialmente importante que o cabo
AC ou qualquer outro cabeamento externo não entrem em contato com o Ponto de
acesso, os cabos da antena ou a fiação da interface.
Avviso! Tutto il cablaggio e i cavi diretti al punto di accesso, allo stabilizzatore di corrente
e all'antenna esterna devono essere indirizzati separatamente. È estremamente
importante che il cablaggio CA o altri cavi esterni non vengano a contatto con il punto di
accesso, i cavi dell'antenna o dell'interfaccia.
Basics of Nortel WLAN 2300 Series Outdoor Solution 37
Nortel WLAN 2300 Series Outdoor Solution Guide
Earth ground warning
Warning! Earth grounding is required for a WSS installed in a rack. If you are relying
on the rack to provide ground, the rack itself must be grounded with a ground strap to the
earth ground. Metal screws attaching the switch to the rack provide ground attachment to
the rack.
Avertissement ! La mise à la terre est requise pour l'installation du WSS dans un
support. Si vous comptez sur le support pour relier l'appareil à la terre, le support doit
lui-même être mis à la terre via un conducteur de terre. Le support peut être relié à la terre
à l'aide de vis métalliques fixant le commutateur au support.
Warnung! Erdung ist erforderlich für ein WSS, das in einer Buchse installiert ist. Wenn
Sie die Erdung durch die Buchse gewährleisten, muss die Buchse selbst mit einem
Erdungsband an der Erde geerdet sein. Metallschrauben, mit denen der Schalter an der
Buchse befestigt wird, bieten Bodenkontakt für die Buchse.
Advertencia! Se requiere conexión a tierra para un WSS instalado en un soporte. Si
cuenta el soporte para que le brinde conexión a tierra, el soporte mismo puede conectarse
a tierra con una correa de descarga a tierra. Los tornillos de metal que adhieren el
interruptor al soporte le brindan conexión a tierra al soporte.
Aviso! É necessário o aterramento para um WSS instalado em um bastidor. Se você
depende do bastidor para o aterramento, o próprio bastidor deve ser aterrado com um
fio-terra ao terminal terra. Os parafusos de metal que prendem o switch ao bastidor
fornecem aterramento ao bastidor.
Avviso! Per i dispositivi WSS installati su un'intelaiatura è necessario un collegamento
con messa a terra. Per poter fornire la messa a terra, l'intelaiatura deve essere dotata di
una piattina di massa per il collegamento a terra. Le viti metalliche che collegano
l'interruttore all'intelaiatura forniscono il collegamento a terra dell'intelaiatura stessa.
38 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
Warning! A properly rated surge suppressor is required for any cable/antenna
combination exiting the building. The required components must be rated and approved for
use in the intended application.
Avertissement! Un filtre de montée subite correctement évalué est exigé pour
n'importe quelle combinaison de cable/antenna sortant le bâtiment. Les composants
exigés doivent être évalués et approuvés pour l'usage dans l'application prévue.
Warnung! Ein richtig Nennschwankung Entstörer wird für jede mögliche cable/antenna
Kombination angefordert, die das Gebäude herausnimmt. Die erforderlichen Bestandteile
müssen für Gebrauch in der beabsichtigten Anwendung steuerpflichtig und anerkannt sein.
Advertencia! Un supresor de oleada correctamente clasificado se requiere para
cualquier combinación de cable/antenna que sale del edificio. Los componentes
requeridos deben ser clasificados y aprobados para el uso en el uso previsto.
Aviso! Um filtro de linha apropriado é necessário para qualquer combinação de
cabo/antena que sai do prédio. Os componentes necessários devem ser avaliados e
aprovados para uso na aplicação desejada.
Avviso! per ogni combinazione cavo/antenna in uscita dall'edificio è richiesto uno
stabilizzatore di corrente appropriato alla tensione. I componenti necessari devono essere
conformi alla tensione richiesta e approvati per l'uso nell'applicazione desiderata.
Basics of Nortel WLAN 2300 Series Outdoor Solution 39
Nortel WLAN 2300 Series Outdoor Solution Guide
Warning! Nortel requires that the Access Point in the outdoor enclosure be powered
with a Power Over Ethernet (POE) that is supplied only from a Nortel WSS 2350 or WSS
2360/2361 wireless security switch.
Avertissement! Selon les consignes de Nortel, le point d'accès situé dans le boîtier
extérieur doit être alimenté par un module PoE (Power over Ethernet) fourni exclusivement
par un commutateur de sécurité sans fil Nortel WSS 2350 ou WSS 2360/2361.
Warnung! Bei Nortel muss der Zugriffspunkt im Außengehäuse über Power Over
Ethernet (POE) versorgt werden, das nur mit einem Nortel WSS 2350 oder WSS
2360/2361 WLAN-Sicherheitsschalter betrieben werden kann.
Advertencia! De acuerdo con los requisitos de Nortel, el punto de acceso del
gabinete externo debe utilizar una conexión eléctrica a través de Ethernet (POE),
suministrada sólo por un switch de seguridad inalámbrico WSS 2350 o WSS 2360/2361 de
Nortel.
Aviso! A Nortel exige que o Ponto de acesso na caixa externa seja alimentadopor uma
Power Over Ethernet (POE) gerada somente a partir de um interruptor de segurança sem
fio Nortel WSS 2350 ou WSS 2360/2361.
Avviso! Nortel richiede che il punto di accesso nella struttura esterna sia alimentato
mediante tecnologia POE (Power Over Ethernet), fornita solo dai prodotti Nortel WSS 2350
o WSS 2360/2361.
40 Basics of Nortel WLAN 2300 Series Outdoor Solution
NN47250-503 (323847-C Version 02.01)
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 41
Nortel WLAN 2300 Series Outdoor Solution Guide
WLAN 2300 Series Outdoor Solution
with Indoor Mounted AP
Introduction
This chapter provides the basic outdoor installation instructions for WLAN 2300 Series Outdoor Solution,
where the access point is mounted indoors.
Kit Contents
The Nortel WLAN 2300 Series Outdoor Solution with Indoor Mounted AP consists of the following
components:
An access point, a surge protector and grounding block, and an external antenna. Figure 1 shows a typical
installation.
The access point is mounted indoors and external antennas are typically mounted outdoors, the surge protector
and grounding block is installed outdoors at the building entrance. This document describes the solution
mounting procedures only.
Figure 1. Nortel WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
42 WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
NN47250-503 (323847-C Version 02.01)
Package contents
Table 8. Nortel WLAN 2300 Series Outdoor Solution kits for AP
InstalledoIndoors Outdoor Solution Kits for
Part
Number
Kit Components
DR4011019E5
Phase I Outdoor
starter bundle
Surge
suppressor
Coax-Seal tape 10 ft RoHS
Plenum rated
coax cable
1- Male
RSMA
connector
1- Female
RSMA
connector
Documentation
DR400085E5
Surge suppressor
Surge
suppressor
Coax-Seal tape Documentation
DR4018006E5
10 ft. Coax
extension
10 ft RoHS
Outdoor rated
coax cable
Coax seal tape 1- Female
RSMA
connector
1- Male
RSMA
connector
Documentation
DR4018007E5
25 ft. Coax
extension
25 ft RoHS
Outdoor rated
coax cable
Coax seal tape 1- Female
RSMA
connector
1- Male
RSMA
connector
Documentation
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 43
Nortel WLAN 2300 Series Outdoor Solution Guide
Basic outdoor installation information
Signal path distance
In an environment without obstacles in the signal path, the maximum communication distance between
antennas depends primarily on the types of antennas, the operating frequency, the data rate and the free space
loss between them. Make sure your proposed mounting site provides adequate clearance around the
transmitting antenna to enable adequate signal propagation. The Nortel WLAN 2300 Series Outdoor Solution
supports data rates up to 54 Mbps.
Signal attenuation and loss in outdoor installations
“Appendix” on page 69
Antenna polarization
“Appendix” on page 69
Signal path clearance
A radio beam is intended to travel from one antenna to another in a direct path. Therefore, the path between the
antennas must be free of major obstacles. The effects of obstacles and terrain, both along and near the path,
have a significant bearing on the propagation of radio signals and can cause both interference and signal
degradation.
When choosing a site, consider the effects of the following common obstacles:
• Trees and large plants
A tree directly in the path can completely block the signal. With sufficient clearance above the trees there are
usually no secondary effects, but you should allow for future tree growth.
• Man-made obstacles
A large round container such as a gas storage reservoir or water tower that is partially in the path causes some
blocking. These obstacles may also reflect some energy, which can interfere with other receivers. Square or
rectangular objects in or near the path have rectangular surfaces that can block and diffract signals over and
around them.
• Earth surface
The earth surface also interferes with signals if the antenna is mounted too low. Mount the antenna just high
enough to allow adequate clearance from the ground. Placing the antenna too high makes it susceptible to
interference from other systems.
Physical site survey
Perform a visual inspection of the site to determine and document the physical characteristics of the site and to
ensure that all requirements are met for the proper installation and operation of the system.
44 WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
NN47250-503 (323847-C Version 02.01)
Contact information and access permissions
Make sure the following general requirements are met before beginning the installation:
• Confirm customer-provided information, such as site contact names and telephone numbers.
• Examine the building (tenant) lease to verify or establish building roof or tower rights. If available, use
layout drawings to evaluate the feasibility of modifications or special permits that might be necessary.
• For a tower-mounted installation, find out if the owner, operator, or landlord requires a professional or
certified tower climber to do the work.
Physical site
Make sure the following physical site requirements are met before beginning the installation:
• Identify the roof area, wall, or tower for mounting the antenna. You must choose a site with a clear
line-of-sight from the transmitting antenna.
• Determine the access area, such as a stairway or a ladder.
• Identify existing equipment installations and assess the condition of proposed towers or mounting structures.
• Assess environmental conditions, such as temperature, ventilation, and humidity.
Warning! Install this device in such a manner as to maintain a minimum of 20
cm (7.9 inches) separation distance between the radiating element(s) and all
persons. This safety warning conforms with FCC radio frequency exposure limits.
Warning! Intentional radiators, such as the Nortel WLAN Access Points
2330A/2330B are not intended to be operated with any antenna(s) other than
those furnished by Nortel. An intentional radiator may only be operated with the
antenna(s) with which it is authorized. For a complete listing of the authorized
antennas for use with this product, visit http://www.nortel.com/support.
Caution! Do not install the outdoor antenna or connect it to the surge
suppressor/Access Point during a storm.
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 45
Nortel WLAN 2300 Series Outdoor Solution Guide
Hardware installation
Required components
Figure 2. Outdoor External Antenna Supported Connection Configurations
Outdoor external antenna connection scenarios
There are three basic connection scenarios that are supported for implementing the Nortel WLAN 2300 Series
Outdoor Solution. These are described in the following table:
46 WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
NN47250-503 (323847-C Version 02.01)
Based on these three scenarios, the following tables illustrate the additional amount of power loss that will be
realized when the extra cables and components are used to enable the access point to be mounted indoors and
the radiating element (i.e. antenna) to be mounted on the exterior of the premises. These additional losses need
to be factored into the overall system path loss equation when selecting placement of the access points and net
coverage areas. The current implementation of the WSS and WMS software does not allow for optimization of
performance by increasing the transmitter's output power to compensate for the added loss. That feature will
be available in a subsequent release of the WSS and WMS software. The values listed in the following tables
can be used to estimate a net reduction in total system power and coverage area.
For reference, a 3 dB reduction in power equates to halving the effective linear power. This translates to a
reduction in available range of a factor of four times. An additional loss of 3 dB would halve the power again
and reduce the range by another factor of four times. Hence, care should be taken to place the access point as
near to the point of debarkation from the premises as possible to reduce signal loss and optimize the outdoor
coverage area.
Table 9. Nortel WLAN 2300 Series Outdoor Solution configuration scenarios
Scenario 1 Scenario 2 Scenario 3
Configuration consists of the
AP 2330A or AP 2330B
connected to a 10-foot plenum
rated cable, which in turn is
connected to a Surge
Suppressor and then is
connected to one of the outdoor
rated antennas
Configuration consists of the
AP 2330A or AP 2330B
connected to a 10-foot plenum
rated cable, which in turn is
connected to a Surge
Suppressor, which in turn is
connected to a 10-foot outdoor
rated extension cable and then
is connected to one of the
outdoor rated antennas.
Configuration consists of the
AP 2330A or AP 2330B
connected to a 10-foot plenum
rated cable, which in turn is
connected to a Surge
Suppressor, which in turn is
connected to a 25-foot outdoor
rated extension cable and then
is connected to one of the
outdoor rated antennas.
Table 10. Loss associated with 10-foot plenum rated cable and surge
suppressor Loss associated Surge a
Connects AP
to Surge
Suppressor
Plenum Rated Cable (RG-58)
Component 10 ft Cable Surge Suppressor 10 ft Cable + Surge
Suppressor
Frequency
(MHz)
Loss (dB) Loss (linear) Loss (dB) Loss (linear) Loss (dB) Loss (linear)
2400 - 2500 -2.89 0.486 -0.13 0.029 -3.02 0.501
5150 - 5250 -4.96 0.681 -0.40 0.087 -5.36 0.709
5250 - 5350 -5.00 0.684 -0.38 0.083 -5.38 0.710
5470 - 5725 -5.23 0.700 -0.47 0.103 -5.70 0.731
5725 - 5850 -5.30 0.705 -0.57 0.123 -5.87 0.741
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 47
Nortel WLAN 2300 Series Outdoor Solution Guide
The following table summarizes the net effective loss for the three connection scenarios outlined above. In
general, for the 2.4 GHz operating frequency band, Scenario 1 will have an additional loss of 3.0 dB, Scenario
2 will have an additional loss of 4.9 dB and Scenario 3 will add a loss of 6.9 dB.
Surge suppressor (lightning arrestor)
The Nortel series gas-discharge surge suppressors (lightning arresters) provide high-level protection for
transmitters and receives at RF-communication sites. In the event of a local strike, the unit’s gas discharge tube
ionizes instantaneously to limit sudden voltage surges across the coaxial line. When connected to a satisfactory
ground, the unit can safely shunt up to 5000 Amps of impulse current away from sensitive station equipment.
Table 11. Loss associated with 10-foot and 25-foot outdoor rated extension
cables Loss associated with 10-
Connects surge
suppressor to
Antenna
Outdoor Cable (LMR-240)
Component 10 ft Cable 25 ft Cable
Frequency
(MHz)
Loss (dB) Loss (linear) Loss (dB) Loss (linear)
2400 - 2500 -1.84 0.345 -3.89 0.591
5150 - 5250 -2.68 0.460 -5.70 0.731
5250 - 5350 -2.79 0.474 -5.81 0.737
5470 - 5725 -2.78 0.473 -5.91 0.743
5725 - 5850 -2.81 0.476 -5.93 0.745
Table 12. Summary of loss for three scenarios
Outdoor Combinations
Configuration Scenario 1 Scenario 2 Scenario 3
Frequency
(MHz)
Loss (dB) Loss (linear) Loss (dB) Loss (linear) Loss (dB) Loss (linear)
2400 - 2500 -3.02 0.501 -4.86 0.673 -6.91 0.796
5150 - 5250 -5.36 0.709 -8.04 0.843 -11.06 0.922
5250 - 5350 -5.38 0.710 -8.17 0.847 -11.18 0.924
5470 - 5725 -5.70 0.731 -8.48 0.858 -11.61 0.931
5725 - 5850 -5.87 0.741 -8.68 0.865 -11.81 0.934
48 WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
NN47250-503 (323847-C Version 02.01)
Figure 3. Surge suppressor
Installation
For best results, install the surge suppressor in close proximity to a low-resistance ground at a point where the
coaxial cable enters the building. In most cases, one 8-foot rod driven into moist soil or multiple rods bonded
together will provide adequate grounding. (see National Electrical Code guidelines).
Install the surge suppressor in an accessible location that allows for periodic inspection and possible
replacement of the gas cartridge. Provide drip loops in the cables to prevent water from entering the building,
see (Figure 6 on page 50).
The life expectancy of the replaceable gas tube depends on the frequency and severity of electrostatic activity
at the site. Low-level conduction resulting from near-by storm activity has very little impact on the life of the
cartridge, but powerful surges induced by on-site strikes will eventually result in degraded performance or
failure. Degraded performance indicators include reduced receiver sensitivity, above normal VSWR readings,
and RF heating of the surge suppressor body during transmit mode. Should the discharge tube fail totally, it
becomes a permanently conductive protective shunt to ground. Periodic SWR checks provide a good indicator
of deteriorating performance, and routine replacement may be indicated following especially severe weather
events where multiple on-site strikes were known to have happened.
Warning! A properly rated surge suppressor is required for any
cable/antenna combination exiting the building. The required components must
be rated and approved for use in the intended application.
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 49
Nortel WLAN 2300 Series Outdoor Solution Guide

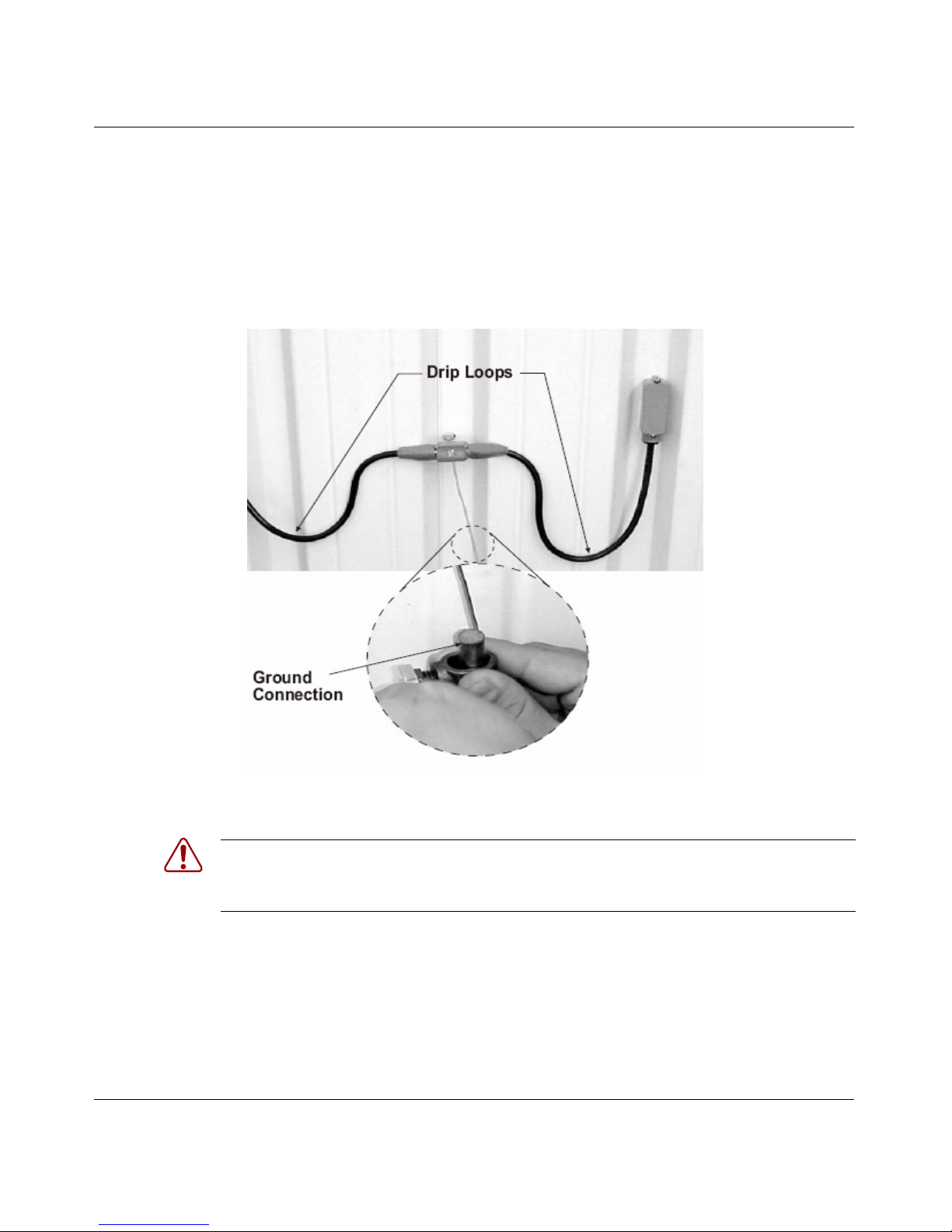

Figure 4. #8 Ground lead
Grounding principles
To connect the surge suppressor to ground, use the shortest and most direct run possible with #8 solid copper

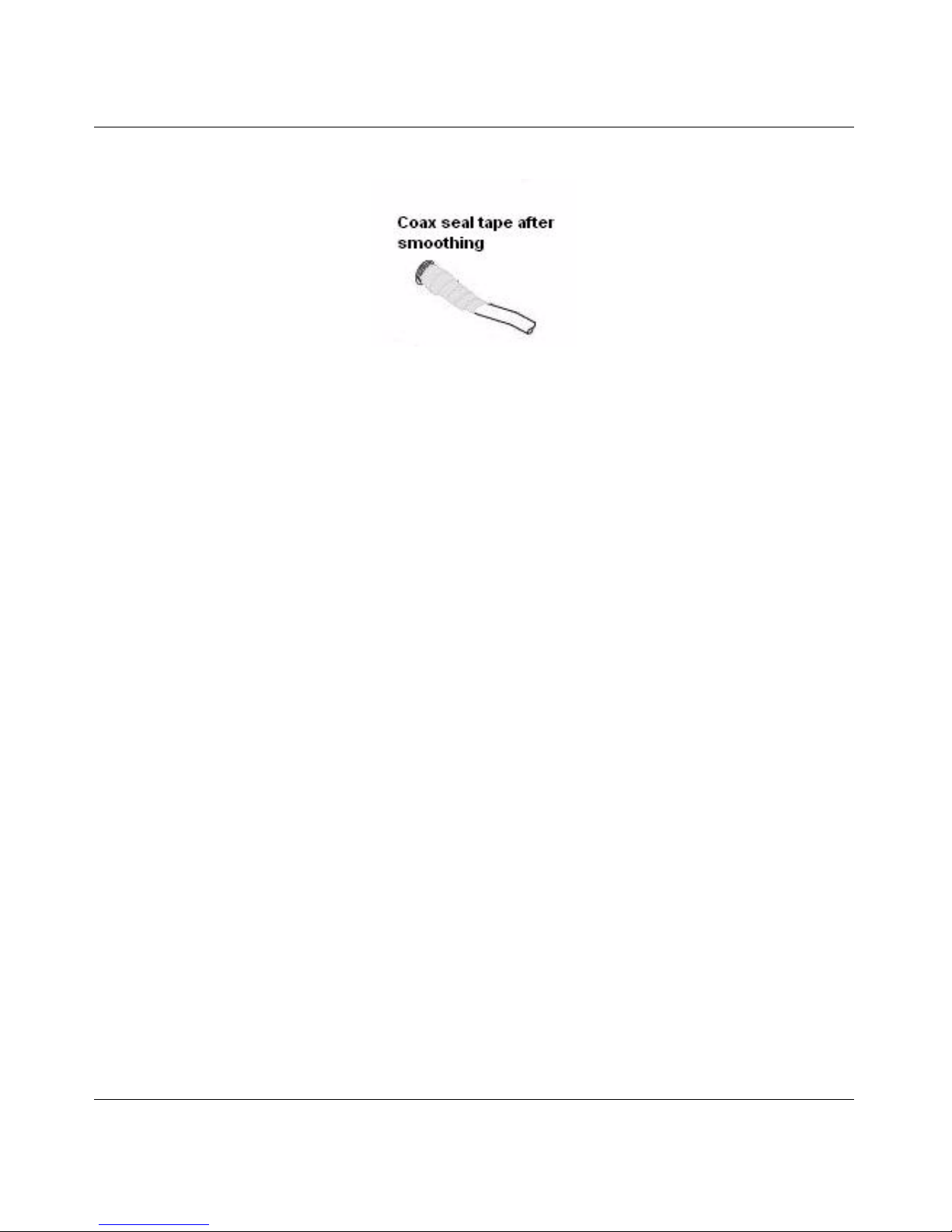

wire (or equivalent). For exterior installations, weatherproof the coax connectors with a suitable mastic or
rubberized tape to prevent water infiltration. (see Figure 4 on page 49).
Warning! All wiring and cables to the Access Point, the surge suppressor and
the outdoor antenna should be routed separately. It is particularly important
that AC wiring or other outside cabling does not come in contact with the
Access Point, antenna cables or interface wiring.
Caution! The power source equipment connected to the Access Point, such as the
Wireless Security Switch or PoE injector, must be provided with a reliable earth ground to
insure safety of the system.
50 WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
NN47250-503 (323847-C Version 02.01)

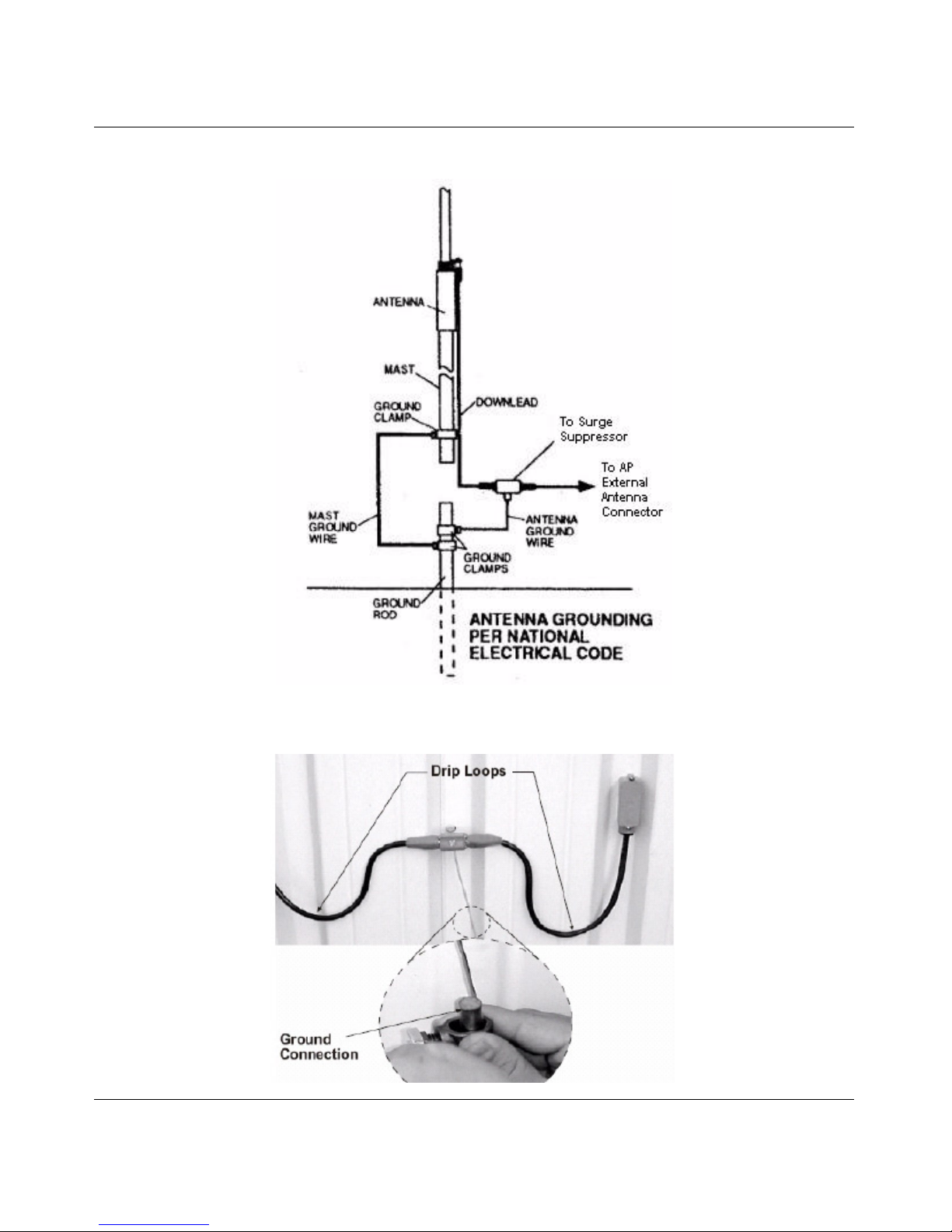

Figure 5. Typical installation diagram
Figure 6. Drip Loops
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 51
Nortel WLAN 2300 Series Outdoor Solution Guide

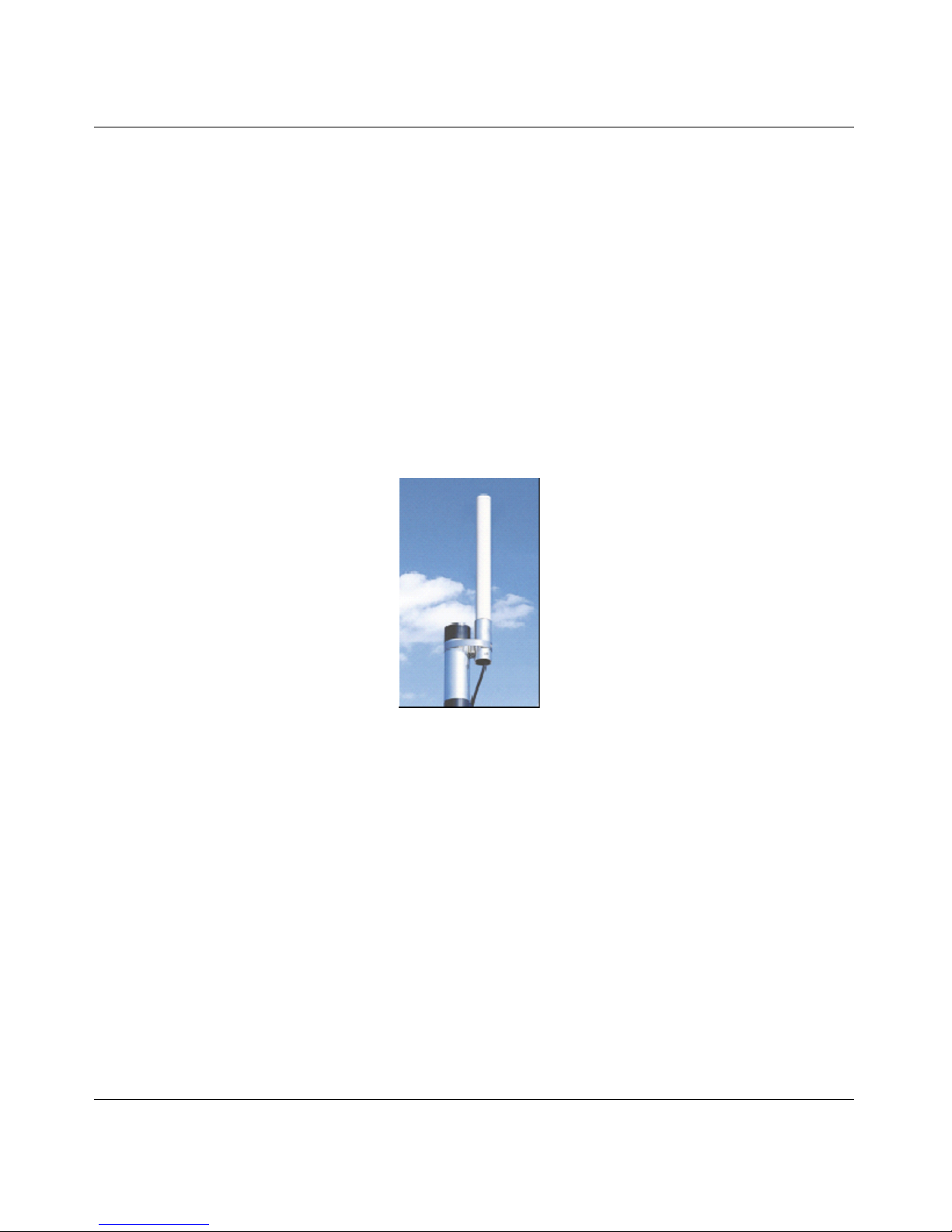

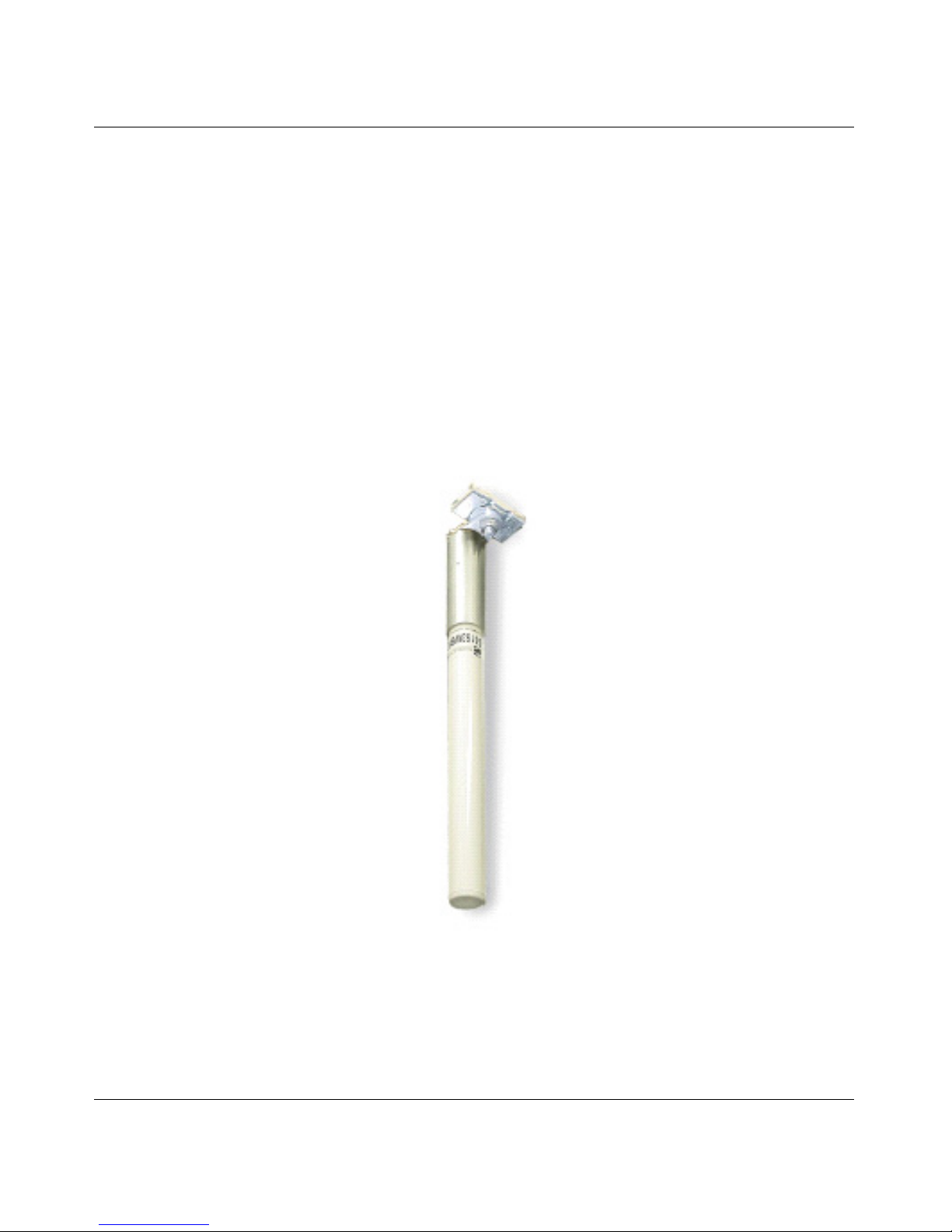

Outdoor external antennas
This section introduces the outdoor external antenna portfolio available for the WLAN 2300 Series System AP
Access Points 2330A and AP 2330B. The portfolio includes 802.11b/g (2.4 GHz) and 802.11a (5.0 GHz)
models for outdoor use. The addition of outdoor external antennas to the WLAN 2300 Series System portfolio
improves overall system value:
• Improved deployment flexibility - Planners can choose an antenna pattern that meets coverage requirements
while allowing for convenient AP placement and installation.
• Improved coverage and performance - External antennas allow planners to optimize coverage and deliver
higher available data rates to user concentrations.
• Can provide a low cost fix for trouble spots - Appropriately outfitting existing APs with external antennas
can greatly improve coverage and available data rates in areas that are not adequately serviced.
• Lower cost of coverage - External antennas improve overall system efficiency by effectively directing
available energy to where it's needed. This ensures overall system utility is maximized for any installation.
The WLAN 2300 series outdoor external antennas are the only external antennas certified by Nortel for use
with WLAN 2300 Series systems. WLAN Access Points AP 2330A and AP 2330B that are outfitted with
non-certified outdoor external antennas are not supported under Nortel support agreements.
The WLAN 2300 Series system must be upgraded to WSS Software Release 5.0.11.4 or later and WMS
Software Release 5.0.11.3 or later. This upgrade includes antenna pattern libraries for the WLAN 2300 series
outdoor external antenna portfolio and allows the system to:
• Compensate for extension cable loss and lightning protection circuitry that is essential for operation in an
outdoor environment.
• Correctly interpret received signal strength measurements from APs with external antennas when calculating
rogue device or client location.
The WLAN 2300 Series System outdoor external antenna portfolio is sourced from Cushcraft, a world leader
in the development of advanced antenna technology and products.
• The Cushcraft products have been modified for compatibility with the AP Access Points 2330A and AP
2330B.
• Nortel versions are equipped with an R-SMA type connector to comply with Nortel's quality and regulatory
standards and correctly interface with the AP 2330A and AP 2330B Access Points.
Note. A good ground system is essential for proper operation.
Warning! A properly rated surge suppressor is required for any
cable/antenna combination exiting the building. The required components must
be rated and approved for use in the intended application.
52 WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
NN47250-503 (323847-C Version 02.01)
• The Cushcraft model numbers presented throughout this bulletin refer to the Nortel specific versions and
may not exactly match similar versions promoted on Cushcraft's website or other product materials.
• Nortel has tested and measured each product. The antenna gains expressed in dBi measurements are the
Nortel tested values and may differ slightly from those published by Cushcraft for similar products.
Coax cable seal installation
Applying coax seal tape
You must weather seal all outside coaxial connections using the coax seal tape provided in the mounting kit.
Coax connections that are not properly sealed permit moisture to enter the connection, which leads to
performance degradation or link problems.
To apply the coax seal tape, follow these steps:
1 Make sure that the coaxial cables, connectors, and the connector area are clean and dry.
2 Peel the paper backing from a length of coax seal tape.
3 Wrap each connector with the coax seal tape, starting at the coaxial cable, extending across the connector
body, and finishing close the lightning arrestor surge suppressor or grounding block. Overlap each turn at
least 50 percent so there is a double thickness over all areas. See Figure 7 on page 52.
Figure 7. Applying the coax seal tape before smoothing.
Use your fingers to mold and form the coax seal tape around the cable and connector to form a smooth, neat
surface. Be sure to squeeze out any air pockets. See Figure 8 on page 53
Note. Do not use plastic or vinyl electrical tape on the connectors because it will
deteriorate during long-term exposure to ultraviolet light and extreme weather.
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 53
Nortel WLAN 2300 Series Outdoor Solution Guide
Figure 8. Coax seal tape after smoothing.
4 Visually inspect the seal to make sure the entire connector area is completely covered. If you find gaps,
apply additional Coax-Seal over the existing material and then mold it to shape
5 Repeat these steps for each coaxial connection outside.
Physical site survey
Perform a visual inspection to determine and document the physical characteristics of the site and to ensure
that all requirements are met for the proper installation and operation of the system.
Physical site
Make sure the following requirements for your physical site are met before beginning the installation:
• Identify the roof area, wall, or tower for mounting the solution. You must choose a site with a clear
line-of-sight from the transmitting antenna.
• Determine the access area, such as a stairway or a ladder.
• Identify existing equipment installations and assess the condition of proposed towers or mounting structures.
Assess environmental conditions, such as temperature, ventilation, and humidity.
Cable routes
Make sure the following cable route requirements are met before beginning the installation:
• Determine cable routes, building entry points, and any special routing or support requirements (conduits,
bracing, cable trays, safety structures, and so on). Make sure the total cable length between the access point
and the wireless security switch is no greater than 100 meters.
• Identify necessary floor, roof, or wall penetrations and specify the locations.
• Document existing grounding system and connection requirements for new equipment.
• Refer to these electrical codes for your local regulations:
NFPA 70 (US National Electrical Code)
Canadian Electrical Code, Part1, CSA 22.1
IEC 364, Part 1 through 7 for other countries
54 WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
NN47250-503 (323847-C Version 02.01)
Software installation
Country of operation
Before you can configure APs and radio parameters, you must specify the country in which you plan to operate
the radios. Since each country has different regulatory environments, the country code determines the transmit
power levels and channels you can configure on the radios. WSS software ensures that the values you can
configure are valid for the country you specify.
You must specify the country in which you plan to operate the WSS and its APs. WSS software does not allow
you to configure or enable the AP radios until you specify the country of operation
The country code is one of the parameters you set when you create a network plan. Be sure to select the
country code for the country in which the AP will be operated. It is a violation of regulatory laws to set the
country code to a country that is different than the actual country in which the AP is operating.
For a complete listing of the two-letter country codes, refer to the "Approved Countries for the WLAN 2300
Series Components" at http://www.nortel.com/support.
Use of external antenna configuration option CLI and WMS
Specifying the external antenna model
To specify the 2.4 GHz external antenna model using CLI, use the following command:
set {ap port-list | dap dap-num} radio {1 | 2} antennatype {internal | 24143 | 24123 | 24113 |
24203 | 24403 | 24453 | 24493 | 24553 | 24883 | mixed | 24143-OUT | 24143-OUT-10 |
24143-OUT-25 | 24143-NEMA | 24143-NEMA-10 | 24143-NEMA-25 | 24123-OUT |
24123-OUT-10 | 24123-OUT-25 | 24123-NEMA | 24123-NEMA-10 | 24123-NEMA-25 |
24113-OUT | 24113-OUT-10 | 24113-OUT-25 | 24113-NEMA | 24113-NEMA-10 |
24113-NEMA-25 | 24493-OUT | 24493-OUT-10 | 24493-OUT-25 | 24493-NEMA |
24493-NEMA-10 | 24493-NEMA-25 | 24883-OUT | 24883-OUT-10 | 24883-OUT-25 |
24883-NEMA | 24883-NEMA-10 | 24883-NEMA-25}
To specify the 5.0 GHz external antenna model using CLI, use the following command:
set {ap port-list | dap dap-num} radio {1 | 2} antennatype {internal | 5133 | 5303 | 5643 | 5173 |
5103 | mixed | 5133-OUT | 5133-OUT-10 | 5133-OUT-25 | 5133-NEMA | 5133-NEMA-10 |
5133-NEMA-25 | 5643-OUT | 5643-OUT-10 | 5643-OUT-25 | 5643-NEMA |
5643-NEMA-10 | 5643-NEMA-25}
Note. The options displayed are dependent upon the access point model number that
this CLI command is executed against. The following example is for an Access point
2330A.
WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 55
Nortel WLAN 2300 Series Outdoor Solution Guide
To configure antenna model 5643-OUT-10 for an AP 2330A on Distributed AP 1, type the following
command:
WSS# set dap 1 radio 1 antennatype 5643-OUT-10
success: change accepted.
To specify the external antenna model using WMS, use the AP Configuration menu and fill in the required
information.

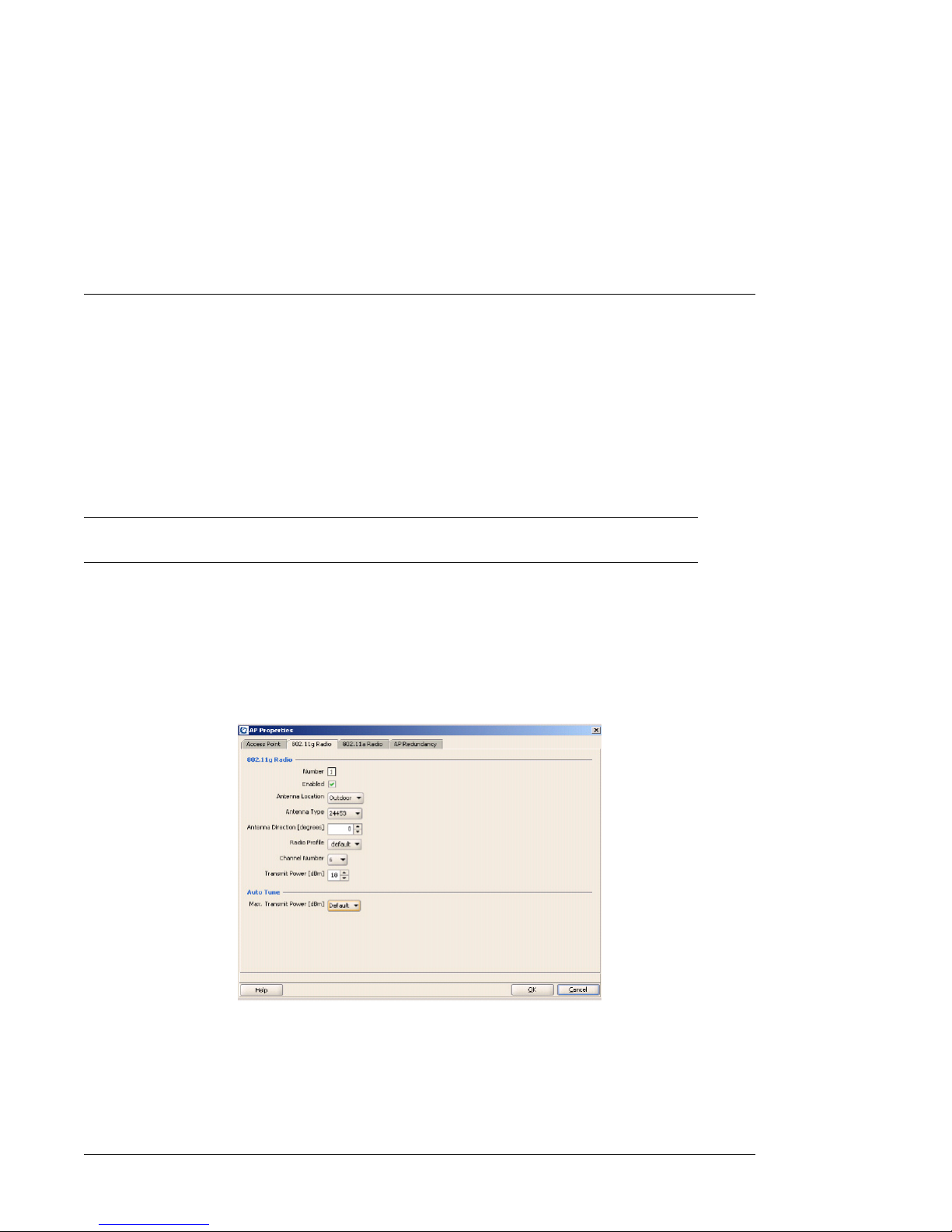

Figure 9. WMS AP external antenna configuration
56 WLAN 2300 Series Outdoor Solution with Indoor Mounted AP
NN47250-503 (323847-C Version 02.01)
Other related documentation references
• Nortel WLAN—Management System 2300 Series Reference Manual. Instructions for planning, configuring,
deploying, and managing the entire WLAN with the WLAN Management System tool suite
• Nortel WLAN—Security Switch 2300 Series Configuration Guide. Instructions for configuring and managing
the system through the WSS software CLI
• Nortel WLAN—Security Switch 2300 Series Command Line Reference. Functional and alphabetic reference to
all WSS software commands supported on WSSs and APs
• Nortel WLAN—Access Point 2330/2330A/2330B Installation Guide. Instructions for planning, configuring,
deploying, and managing the access points.
WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure 57
Nortel WLAN 2300 Series Outdoor Solution Guide
WLAN 2300 Series Outdoor Solution
with AP Mounted in NEMA Enclosure
Introduction
This chapter provides the NEMA Enclosure Installation Instructions for the WLAN 2300 Series Outdoor
Solution, where the AP is mounted outdoors.
Figure 10. Nortel WLAN 2300 Series Outdoor Solution
Kit Contents for AP 2330A/2330B installed outdoors in NEMA Enclosure
The kit consists of the following components:
• AP(either 2330A or 2330B) in separate box
• ODS NEMA enclosure
• Ethernet lightning Surge Suppressor
• Installation document
58 WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure
NN47250-503 (323847-C Version 02.01)

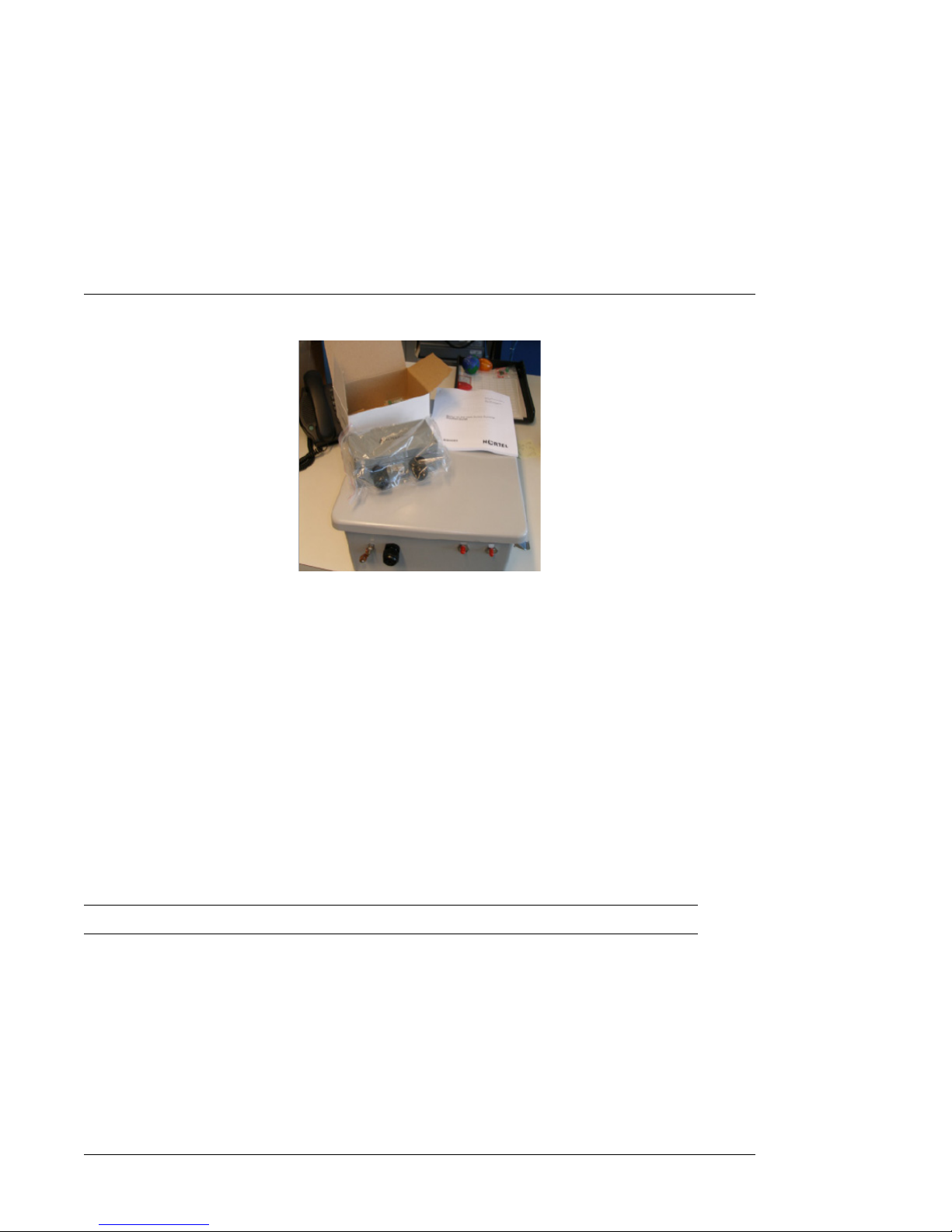

Figure 11. Kit Contents of the NEMA Outdoor Solution
Site Planning
Perform a visual inspection to determine and document the physical characteristics of the site.
Ensure that the Site Planning meets the following requirements before you begin the installation:
• Identify the roof area, wall, or tower for mounting the Outdoor Solution.
• Choose a site with a clear line-of-sight from the transmitting antenna.
• Determine the access area, such as a stairway or a ladder.
• Identify existing equipment installations and assess the condition of proposed towers or mounting structures.
• Assess environmental conditions, such as temperature, ventilation, and humidity.
Ethernet
The AP must be <100 meters from the WSS (WLAN Security Switch).
Note. Nortel recommends using outdoor CAT5E Ethernet Cable for all external connections.
Antenna
Ensure that antennas have advanced deployment flexibility, coverage, and performance.
This implies that planners should choose:
• An antenna pattern that meets coverage requirements while allowing for convenient AP placement and
installation.
• Antennas that optimize the coverage pattern and deliver higher available data rates to user concentrations.
• Coverage pattern and available data rates in areas that are not adequately serviced.
WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure 59
Nortel WLAN 2300 Series Outdoor Solution Guide
• Overall system efficiency by effectively directing available energy to where it's needed.
• System utility for any installation.
The WLAN 2300 series outdoor external antennas are the only external antennas certified by Nortel for use
with WLAN 2300 Series systems. WLAN Access Points AP 2330A and AP 2330B that are outfitted with
non-certified outdoor external antennas are not supported under Nortel support agreements.
The WLAN 2300 Series system must be upgraded to WSS Software 5.0.11.4 or later and WMS 5.0.11.3 or
later. This upgrade includes antenna pattern libraries for the WLAN 2300 series outdoor external antenna
portfolio and allows the system to:
• Compensate for extension cable loss and lightning protection circuitry that is essential for operation in an
outdoor environment.
• Correctly interpret received signal strength measurements from APs with external antennas when calculating
rogue device or client location.
The WLAN 2300 Series System outdoor external antenna portfolio is sourced from Cushcraft, a world leader
in the development of advanced antenna technology and products.
• The Cushcraft products have been modified for compatibility with the AP 2330A and AP 2330B Access
Points.
• Nortel versions are equipped with an R-SMA type connector to comply with Nortel's quality and regulatory
standards and correctly interface with the AP 2330A and AP 2330B Access Points.
• The Cushcraft model numbers presented throughout this bulletin refer to the Nortel specific versions and
may not exactly match similar versions promoted on Cushcraft's website or other product materials.
• Nortel has tested and measured each product. The antenna gains expressed in dBi measurements are the
Nortel tested values and may differ slightly from those published by Cushcraft for similar products.
Note. Only use Nortel approved antennas with the AP 2330A or AP 2330B access points.
Safety Precautions
In this section Powerline and Installation safety precautions are provided.
Powerline
• Coming in contact with power lines can be lethal.
• Ensure that there are no accessible power lines near the installation site to avoid accidental or incidental
human contact with these lines.
• Ensure that antennas, masts, towers, guy wires or cables cannot come into contact with these powerlines. Try
to plan for potential leaning or falling of this equipment into these lines.
• You may get injured or killed if you are touching or holding any part of equipment when it contacts electric
power lines.
• Ensure there is NO possibility that equipment or personnel can come in contact directly or indirectly with
power lines.
60 WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure
NN47250-503 (323847-C Version 02.01)
• If anything, such as a wire or mast, does come in contact with a powerline, DO NOT TOUCH IT OR
ATTEMPT TO MOVE IT. Call the power company.
• Do not attempt to errect antennas or towers on windy days.
Installation
• The horizontal distance from a tower, mast or antenna to the nearest power line should be at least twice the
total length of the mast/antenna combination. This will ensure that the mast will not contact the power line if
it falls either during installation or later.
• Make sure that all towers and masts are securely grounded and electric cables connected to antennas have
lightning protection. This will help to prevent fire damage or human injury in case of lightning, static
build-up, or short circuit when equipment is connected to the antenna.
Heat /Cold loading
The NEMA Enclosure environment must not exceed the operating specifications for the AP (2330 A or
2330B). Temperature must be between 0 to 50 degrees C and humidity between 10 to 95%, non condensing.
Reference Information
The following section describes the Ethernet Lightning Surge Protector, Terminal Strip Connection, Coax
cable seal Installation, and Antennas.
Ethernet and Antenna Lightning Surge Protector
The Nortel series gas-discharge Antenna surge Protector (lightning protector) provides high-level protection
for transmitters and receivers at RF-communication sites. In the event of a local strike, the unit’s gas discharge
tube ionizes instananeously to limit sudden voltage surges across the coaxial line. When connected to a
satisfactory ground, the unit can safely shunt up to 5000 Amps of impulse current away from sensitive station
equipment.
Warning! A rated surge Protector is required for any cable/antenna combination exiting the
building. The required components must be rated and approved for use in the intended
application.
Installation
The Ethernet Lightning Surge Protector is mounted close to the building entrance. The cables must enter the
building through customer provided access, possibly through the drilled hole where there are communications
pipes.
For better results, install the Lightning Surge Protector in close proximity to a low-resistance ground at a point
where the Ethernet cable enters the building. In most cases, one 8-foot rod driven into moist soil or multiple
rods bonded together will provide adequate grounding.
Install the Lightning Surge Protector in an accessible location that allows for periodic inspection. Provide drip
loops in the cables to prevent water from entering the building.
WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure 61
Nortel WLAN 2300 Series Outdoor Solution Guide
Grounding principles
To connect the Surge Protector to ground, use the shortest and most direct run possible with #8 solid copper
wire (or equivalent).
Refer to your local electric code standards for correct installation.
Applying coax seal tape
For applying Coax seal tape refer:
See “Coax cable seal installation” page 52
Installation of AP 2330A/2330B
In this section you will find instructions on installing the AP 2330A/2330B in an outdoor mounted enclosure.
Installation of the NEMA Enclosure
1 Remove the NEMA Enclosure from the ODS kit and place it on a flat surface near the installation
location. The following figure shows the enclosure connections from left to right: ground lug, Ethernet
Gland, and two external antenna connectors.
Figure 12. NEMA Enclosure
2 Open the enclosure cover by pushing the latches down on the side and lifting the cover up.
62 WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure
NN47250-503 (323847-C Version 02.01)

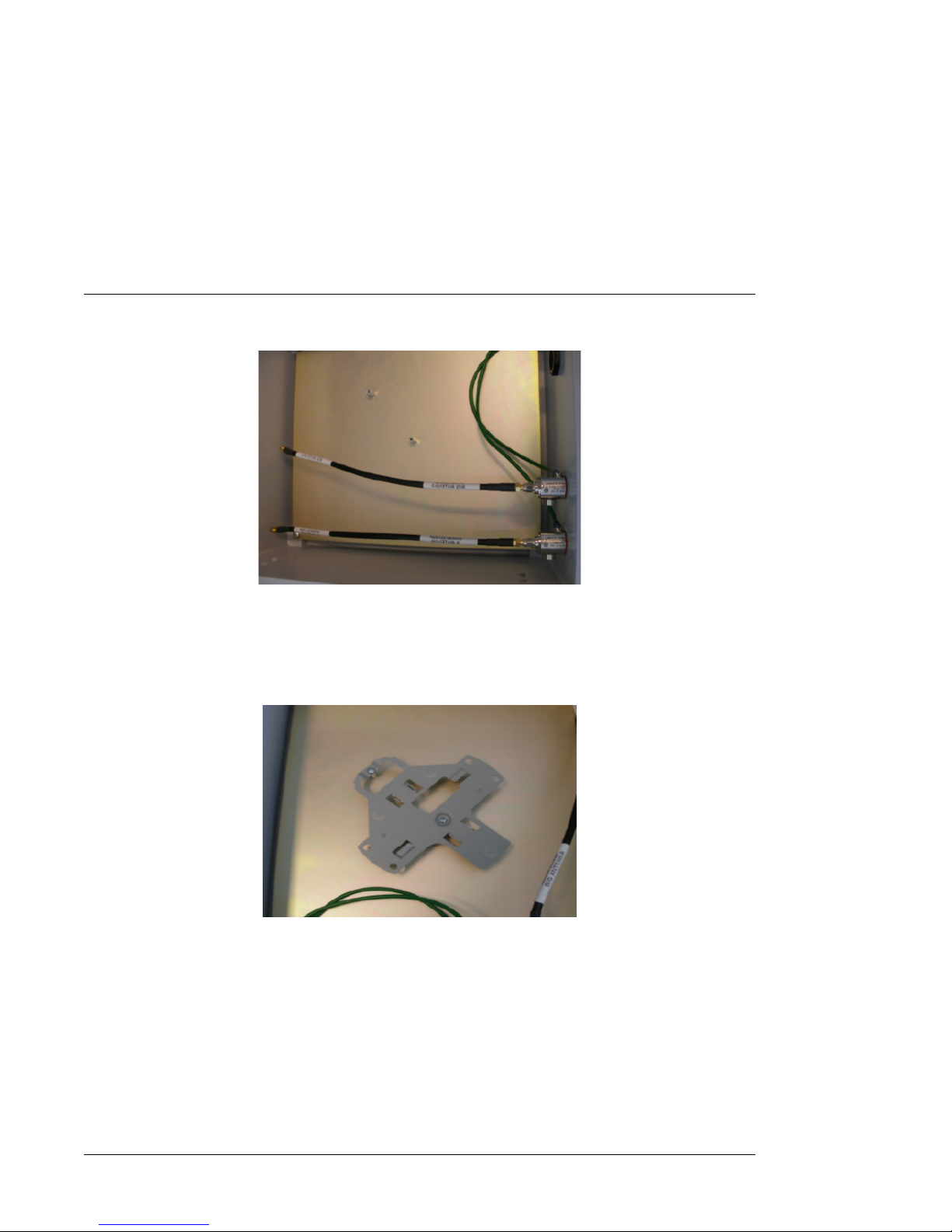

Figure 13. External Antenna cables in the Enclosure
3 Obtain the AP mounting bracket from the AP kit.
4 Use two 6/32 screws to secure the mounting bracket to the standoffs in the enclosure as shown in
Figure 14
Figure 14. Mounting Bracket
5 Unscrew the Ethernet Gland nut on the outside of the enclosure.
6 Remove the split rubber washers from the Ethernet Gland nut.
7 Slide the Ethernet Gland nut onto the Ethernet cable.
Make sure the threaded end is facing the Ethernet cable connector on the enclosure.
8 Slide the rubber washers onto the Ethernet cable.
The rubber washers and gland nut on the Ethernet cable are shown in Figure 15 .
WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure 63
Nortel WLAN 2300 Series Outdoor Solution Guide

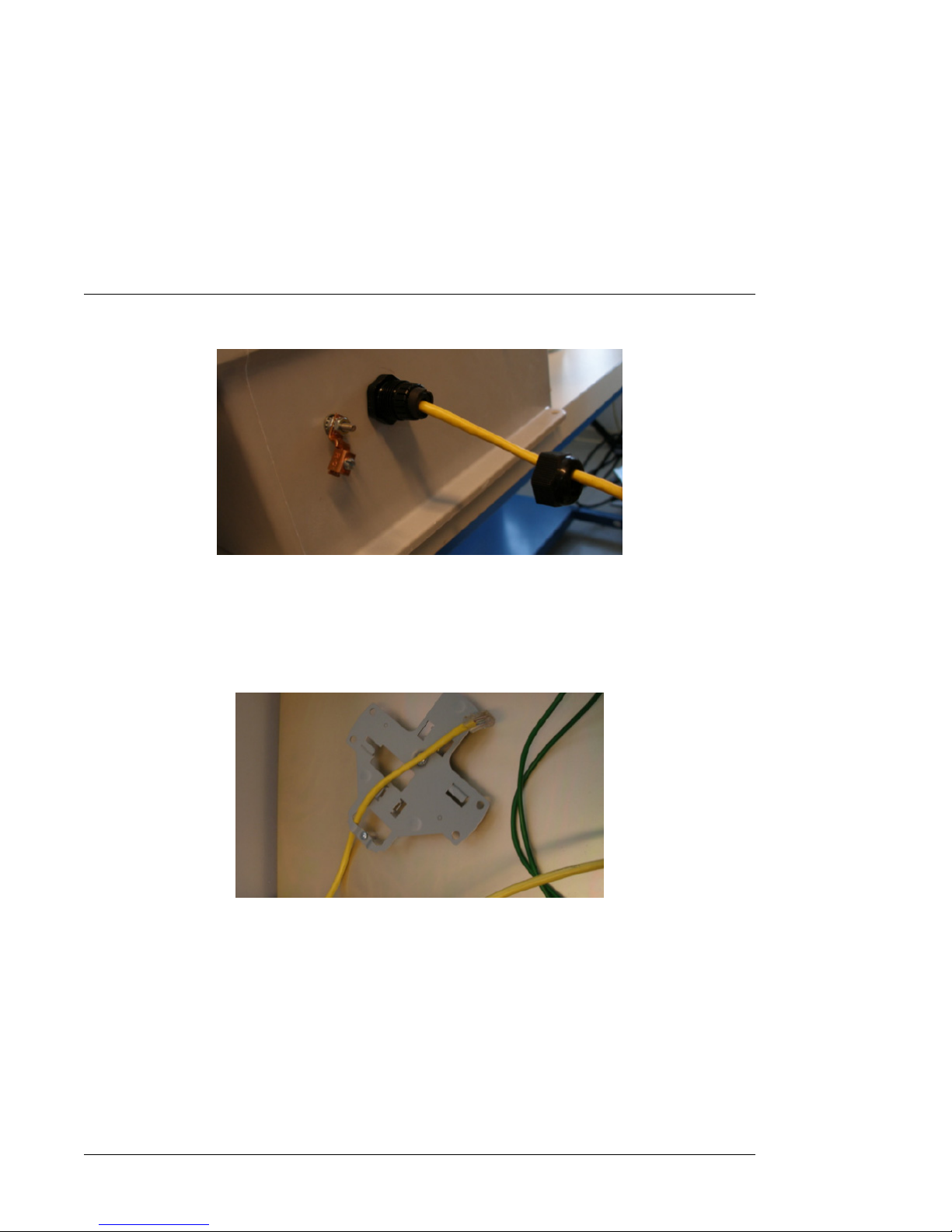

Figure 15. Rubber Washers into the Ethernet cable
9 Insert enough of the Ethernet cable into the enclosure so that you can connect it to the AP.
10 Tighten the Gland nut, but not 100%. Tighten it just enough to ensure it stays in place.
11 Loop the Ethernet cable through the mounting bracket as shown in Figure 16 .

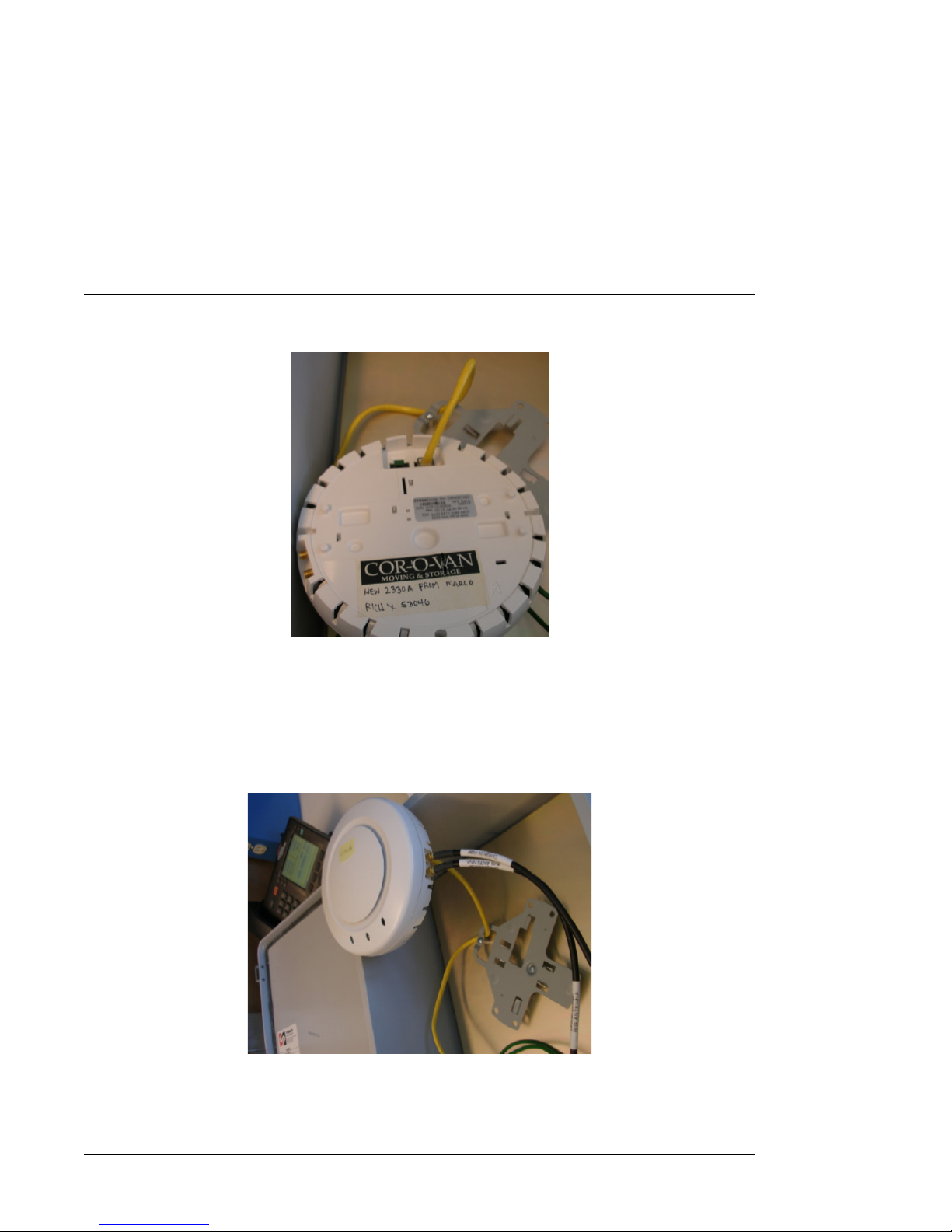

Figure 16. Ethernet cable in the Mounting Bracket
12 Connect the Ethernet cable to Port 1 on the AP as shown in Figure 17
64 WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure
NN47250-503 (323847-C Version 02.01)
Figure 17. Connecting Ethernet cable to Port 1
13 Connect the external antenna cables to the AP as shown in Figure 18 .
11A Antenna cable connects to top connector.
11BG Antenna cable connects to bottom connector.
Figure 18. Connecting external antenna cables to the AP
14 Use a 5/16 wrench to tighten the external antenna connectors to the recommended specifications.
WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure 65
Nortel WLAN 2300 Series Outdoor Solution Guide
Note. Be careful not to over-tighten the coaxial cable connections. Damage to the AP may result if too
much torque is applied to the connection.
15 Attach AP to the AP mounting bracket.
16 From AP side opposite of Antenna connections, find location to lock Mounting plate.
For more information about Installation of Mounting Plate, refer to the Nortel WLAN Access Point
2330/2330A/2330B Installation Guide.
17 Use AP mounting tool(nail) to lock the AP to the bracket.
18 Secure Cover on the enclosure.
19 Complete tightening of the Ethernet Gland nut.
20 Mount the NEMA enclosure with appropriate mounting hardware that supports the ODS NEMA
Enclosure.
21 Ground the enclosure by attaching the ground cable to the ground lug according to Local Electrical Code.
22 Attach external antennas to NEMA Enclosure with Nortel approved cable.
Installation of the Ethernet Lightning Surge Protector
1 Obtain the Ethernet Lightning Surge Protector from the Kit.
2 Remove the cover of the Ethernet Lightning Surge Protector.
3 Unscrew the Ethernet Gland nut on the left side of the Ethernet Lightning Surge Protector.
4 Remove the rubber washers from the Ethernet Gland.
5 Slide the Ethernet Gland nut onto the Ethernet cable.
Make sure the threaded end is facing the Ethernet cable connector on the enclosure.
6 Slide the rubber washers onto the Ethernet cable.
7 Insert the Ethernet cable into the Ethernet Lightning Surge Protector and connect it to the connector
labeled LINE as shown in Figure 19 .
66 WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure
NN47250-503 (323847-C Version 02.01)
Figure 19. Connecting Ethernet Lightning Surge Protector to the Connector
8 Tighten the Ethernet Gland nut.
9 Connect the Ethernet cable to the WLAN Security Switch (WSS).
10 Unscrew the Ethernet Gland nut on the right side of the Ethernet Lightning Surge Protector.
11 Remove the rubber washers from the Ethernet Gland.
12 Slide the Ethernet Gland nut onto the Ethernet cable.
Make sure the threaded end is facing the Ethernet cable connector on the enclosure.
13 Slide the rubber washers onto the Ethernet cable.
14 Connect the Ethernet cable to the Ethernet Lightning Protector connector labeled EQUIP.
15 Tighten the Ethernet Gland nut.
16 Replace the cover of the Ethernet Lightning Surge Protector.
17 Mount the Ethernet Lightning Surge Protector with the appropriate hardware available in the kit.
Refer to the Mounting instructions in the box.
For more Information about the Mounting of the Ethernet Surge Protector refer Appendix.See “Surge
suppressor (lightning arrestor)” page 47
18 Ground Ethernet Lightning Surge Protector by attaching Ground cable to Ground lug according to local
electric code
Terminal Strip Connection
You can use terminal strips if you do not have RJ 45 jack connectors.
To use Terminal Strip perform the following steps:
1 Install the data cable through the strain relief.
WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure 67
Nortel WLAN 2300 Series Outdoor Solution Guide
2 Strip back cable jackets.
3 Terminate the data wires to the screw down terminal blocks.
To pin out the Terminal strips refer Figure 20 .
Figure 20. Terminal Strip Connection
Warning! Nortel requires that the Access Point in the outdoor enclosure be powered with a
Power Over Ethernet (POE) that is supplied only from a Nortel WSS 2350 or WSS 2360/2361
wireless security switch.
Software
Country of operation
Before you can configure APs and radio parameters, you must specify the country in which you plan to operate
the radios. Since each country has different regulatory environments, the country code determines the transmit
power levels and channels you can configure on the radios. WSS Software ensures that the values you can
configure are valid for the country you specify.
You must specify the country in which you plan to operate the WSS and its APs. WSS Software does not allow
you to configure or enable the AP radios until you specify the country of operations.
The country code is one of the parameters you set when you create a network plan. Be sure to select the
country code for the country in which the AP will be operated. It is a violation of regulatory laws to set the
country code to a country that is different than the actual country in which the AP is operating.
For a complete listing of the two-letter country codes, refer to the "Approved Countries for the WLAN
2300Series Components" at http://www.nortel.com/support.
To specify the 2.4 GHz external antenna model using CLI, use the following command:
68 WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure
NN47250-503 (323847-C Version 02.01)
set {ap port-list | dap dap-num} radio {1 | 2} antennatype {internal | 24143 | 24123 | 24113 | 24203 | 24403 |
24453 | 24493 | 24553 | 24883 | mixed | 24143-OUT | 24143-OUT-10 | 24143-OUT-25 | 24143-NEMA |
24143-NEMA-10 | 24143-NEMA-25 | 24123-OUT | 24123-OUT-10 | 24123-OUT-25 | 24123-NEMA |
24123-NEMA-10 | 24123-NEMA-25 | 24113-OUT | 24113-OUT-10 | 24113-OUT-25 | 24113-NEMA |
24113-NEMA-10 | 24113-NEMA-25 | 24493-OUT | 24493-OUT-10 | 24493-OUT-25 | 24493-NEMA |
24493-NEMA-10 | 24493-NEMA-25 | 24883-OUT | 24883-OUT-10 | 24883-OUT-25 | 24883-NEMA |
24883-NEMA-10 | 24883-NEMA-25}
To specify the 5.0 GHz external antenna model using CLI, use the following command:
set {ap port-list | dap dap-num} radio {1 | 2} antennatype {Internal | 5133 | 5303 | 5643 |5173 | 5103 | mixed
| 5133-OUT | 5133-OUT-10 | 5133-OUT-25 | 5133-NEMA | 5133-NEMA-10 | 5133-NEMA-25 | 5643-OUT |
5643-OUT-10 | 5643-OUT-25 | 5643-NEMA | 5643-NEMA-10 | 5643-NEMA-25}
Note. The options displayed are dependent upon the access point model number that this CLI command is
executed against. The following example is for a 2330A access point.
To configure antenna model 5643-OUT-10 for a 2330A on Distributed AP 1, type the following command:
WSS# set dap 1 radio 1 antennatype 5643-OUT-10
To specify the external antenna model using WMS, use the AP Configuration menu and fill in the required
information refer Figure 21 .
Figure 21. Configuring an Antenna
Appendix 69
Nortel WLAN 2300 Series Outdoor Solution Guide
Appendix
Supported antenna information
Outdoor external antenna options
The outdoor external antenna WSS model string relates directly to the base external antenna being used in the
connection scenarios outlined previously.
For example, WSS model string 24493-OUT would imply a configuration that includes the 10-foot
plenum-rated R-SMA (M) to R-SMA (F) indoor RoHS compliant cable, the surge suppressor (DR4000085E5)
and the S2403BPXN36RSM antenna (DR4000088E6). Additionally, WSS model string 24493-OUT-10 would
include the 10-foot plenum-rated R-SMA (M) to R-SMA (F) indoor RoHS compliant cable, the lightning
arrester (DR4000085E5), the 10-foot R-SMA (F) to R-SMA (M) OUTDOOR LMR-240, RoHS compliant
cable (DR4018006E5) and the S2403BPXN36RSM antenna (DR4000088E6).
The following table lists the outdoor accessories associated with constructing the connection scenarios
outlined previously:
Table 13: Outdoor accessories
Cushcraft P/N Nortel P/N Description
LAC6NRSMMF DR4000085E5 Surge suppressor (Lightning
Arrestor) with coaxial seal tape.
Connectors: R-SMA female input
and R-SMA male output.
CANRSM120TRSMF 323843-A (N0152955) 10' plenum-rated R-SMA (M) to
R-SMA (F) INDOOR LMR-195,
RoHS compliant cable. Cannot
order separately. Included in
DR4011019E5.
CANRSM120WRSMF DR4018006E5 10' outdoor R-SMA (F) to R-SMA
(M) (OUTDOOR LMR-240,
RoHS compliant cable)
CANRSM300WRSMF DR4018007E5 25' outdoor R-SMA (F) to R-SMA
(M) (OUTDOOR LMR-240,
RoHS compliant cable)
Bundled by SLR-COLA DR4011019E5 Outdoor Starter bundle. Includes
one 10' plenum-rated extension
cable (323843-A (N0152955)),
coaxial seal tape kit and surge
suppressor (LAC6NRSMMF)
70 Appendix
NN47250-503 (323847-C Version 02.01)
Surge Suppression
When installing the antenna in an outdoor configuration, the surge suppressor, DR4000085E5, is required to
be inserted into the connection at or near the demarkation point from the building. Please refer to the following
illustration for proper connection to the cables and proper grounding of the surge suppressor component.
Figure 22. Cable connection and grounding
Warning! A properly rated surge suppressor is required for any
cable/antenna combination exiting the building. The required components must
be rated and approved for use in the intended application.
Appendix 71
Nortel WLAN 2300 Series Outdoor Solution Guide
Table 14: Outdoor External Antenna Selection Guide
Cushcraft
Nortel
Model
Number
WSS
Model
String
WLAN AP-2330A and AP-2330B 2.4 GHz
Antennas
S2403BPXN36RSM DR4000088E6 24993 WLAN Collinear Omni-directional Dipole Antenna that contains
two collocated elements with an average gain of 4.9 dBi and a
3-foot cable with a Reverse SMA connector. For use in
Warehouses, Auditoriums, Shopping Malls, industrial complexes
and more. It can be mounted either on a pole or hung from a
ceiling.
24993NEMA
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable and the lightning protection circuitry.
24493NEMA-10
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 10-foot
outdoor rated extension cable.
24493-
NEMA-25
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 25-foot
outdoor rated extension cable.
24993-
OUT
Output power is compensated for the addition of lightning
protection circuitry and the 10-foot plenum rated cable.
24993-
OUT-10
The "10" refers to the addition of the 10-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 10-foot outdoor rated extension
cable.
24993-
OUT-25
The "25" refers to the addition of the 25-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 25-foot outdoor rated extension
cable.
S2409PN36RSM DR4000076E6 24883 WLAN Directional Patch Panel Array Antenna with an average
gain of 8.8 dBi and a 3-foot cable with a Reverse SMA connector.
For use where a shaped pattern is needed to provide enhanced
coverage of deep rooms, warehouse bays, or any elongated
activity zone.
72 Appendix
NN47250-503 (323847-C Version 02.01)
Cushcraft
Nortel
Model
Number
WSS
Model
String
WLAN AP-2330A and AP-2330B 2.4 GHz
Antennas
24883NEMA
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable and the lightning protection circuitry.
24883NEMA-10
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 10-foot
outdoor rated extension cable.
24883NEMA-25
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 25-foot
outdoor rated extension cable.
24883OUT
Output power is compensated for the addition of lightning
protection circuitry and the 10-foot plenum rated cable.
24883OUT-10
The "10" refers to the addition of the 10-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 10-foot outdoor rated extension
cable.
24883OUT-25
The "25" refers to the addition of the 25-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 25-foot outdoor rated extension
cable.
PC2415NA36RSM DR4000077E6 24143 WLAN 15-Element Yagi Antenna with an average gain of
14.1 dBi, 3-foot cable with a Reverse SMA connector and an
articulating mount. Antenna is rugged, easy to install and
provides a very symmetrical and uniform pattern. Designed for
long, narrow coverage environments, like a tunnel.
24143NEMA
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable and the lightning protection circuitry.
24143NEMA-10
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 10-foot
outdoor rated extension cable.
24143NEMA-25
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 25-foot
outdoor rated extension cable.
24143-OUT Output power is compensated for the addition of lightning
protection circuitry and the 10-foot plenum rated cable.
Appendix 73
Nortel WLAN 2300 Series Outdoor Solution Guide
Cushcraft
Nortel
Model
Number
WSS
Model
String
WLAN AP-2330A and AP-2330B 2.4 GHz
Antennas
24143OUT-10
The "10" refers to the addition of the 10-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 10-foot outdoor rated extension
cable.
24143OUT-25
The "25" refers to the addition of the 25-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 25-foot outdoor rated extension
cable.

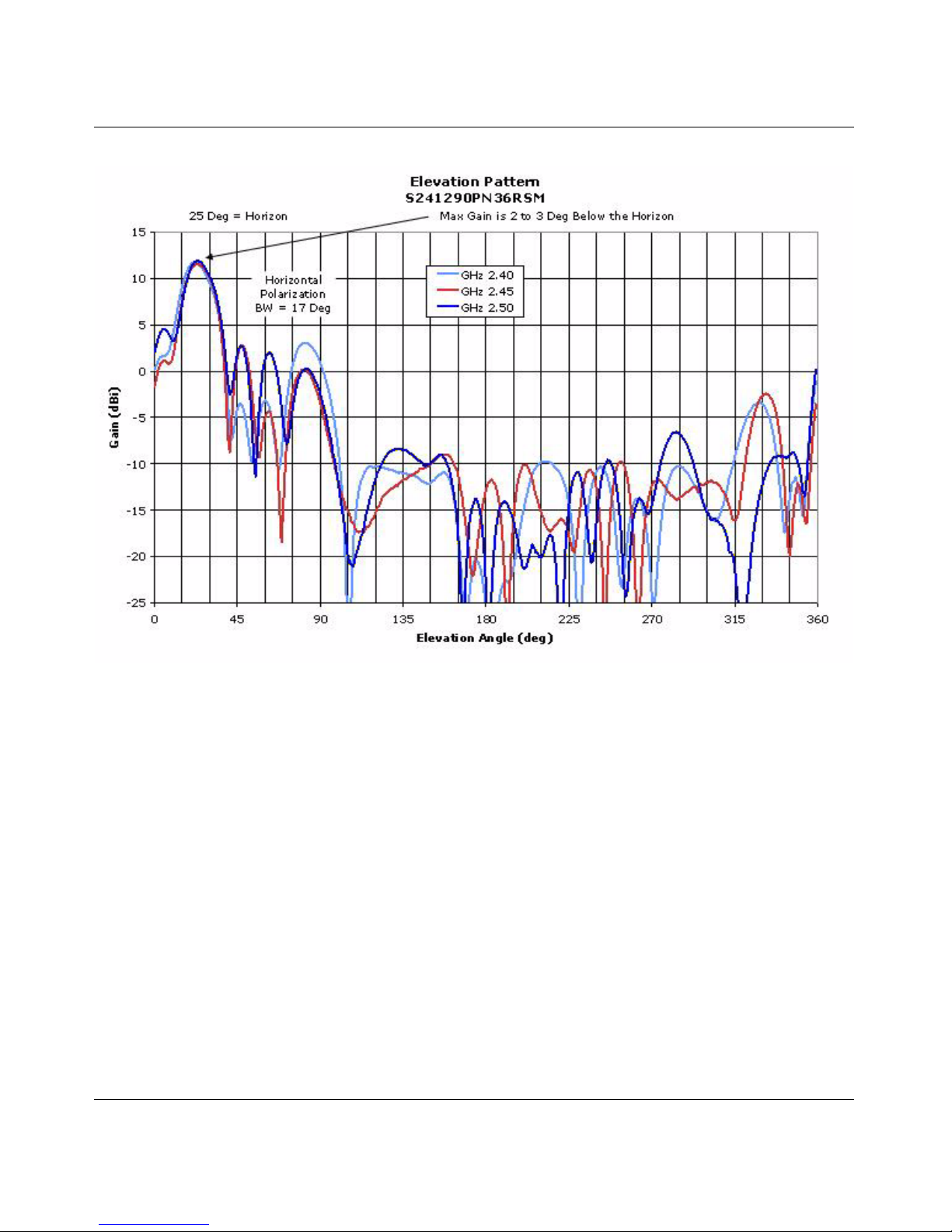

S241290PN36RSM DR4000086E6 24123 WLAN Directional Patch Panel Array Antenna with an average
gain of 12 dBi, 3-foot cable with a Reverse SMA connector and
either a tilt, wall or pole mounting capability. Antenna is rugged,
easy to install and provides a very symmetrical and uniform 90
degree H-plane and 17 degree E-plane pattern. Designed for long,
wide coverage environments.
24123NEMA
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable and the lightning protection circuitry.
24123NEMA-10
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 10-foot
outdoor rated extension cable.
24123NEMA-25
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 25-foot
outdoor rated extension cable.
24123OUT
Output power is compensated for the addition of lightning
protection circuitry and the 10-foot plenum rated cable.
24123OUT-10
The "10" refers to the addition of the 10-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 10-foot outdoor rated extension
cable.
24123OUT-25
The "25" refers to the addition of the 25-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 25-foot outdoor rated extension
cable.
74 Appendix
NN47250-503 (323847-C Version 02.01)
Cushcraft
Nortel
Model
Number
WSS
Model
String
WLAN AP-2330A and AP-2330B 2.4 GHz
Antennas
SR24120DN36RSM DR4000087E6 24113 WLAN Directional Patch Panel Array Antenna with an average
gain of 11 dBi, 3-foot cable with a Reverse SMA connector and
either a tilt, wall or pole mounting capability. Antenna is rugged,
easy to install and provides a very symmetrical and uniform 120
degree H-plane and 14 degree E-plane pattern. Designed for long,
wide coverage environments.
24113NEMA
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable and the lightning protection circuitry.
24113NEMA-10
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 10-foot
outdoor rated extension cable.
24113NEMA-25
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 25-foot
outdoor rated extension cable.
24113-OUT Output power is compensated for the addition of lightning
protection circuitry and the 10-foot plenum rated cable.
24113OUT-10
The "10" refers to the addition of the 10-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 10-foot outdoor rated extension
cable.
24113OUT-25
The "25" refers to the addition of the 25-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 25-foot outdoor rated extension
cable.
Cushcraft
Nortel
Model
Number
WSS
Model
String
WLAN AP-2330A and AP-2330B
5.0 GHz Antennas
S5153WBPN36RSM DR4000070E6 5643 WLAN Collinear Omni-directional Dipole Antenna that contains
two collocated elements. It has an average gain of 4.5 dBi from
5.15 - 5.25 GHz, 3.8 dBi from 5.25 - 5.35 GHz, 4.7 dBi from
5.47 -5.725 GHz and 4.4 dBi from 5.725 - 5.85 GHz. It is 7" in
height, and has a 3-foot cable with a Reverse SMA connector. For
use in Warehouses, Auditoriums, Shopping Malls, industrial
complexes and other locations.
5643NEMA
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable and the lightning protection circuitry.
Appendix 75
Nortel WLAN 2300 Series Outdoor Solution Guide
Cushcraft
Nortel
Model
Number
WSS
Model
String
WLAN AP-2330A and AP-2330B
5.0 GHz Antennas
5643NEMA-10
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 10-foot
outdoor rated extension cable.
5643NEMA-25
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 25-foot
outdoor rated extension cable.
5643-OUT Output power is compensated for the addition of lightning
protection circuitry and the 10-foot plenum rated cable.
5643OUT-10
The "10" refers to the addition of the 10-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 10-foot outdoor rated extension
cable.
5643OUT-25
The "25" refers to the addition of the 25-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 25-foot outdoor rated extension
cable.

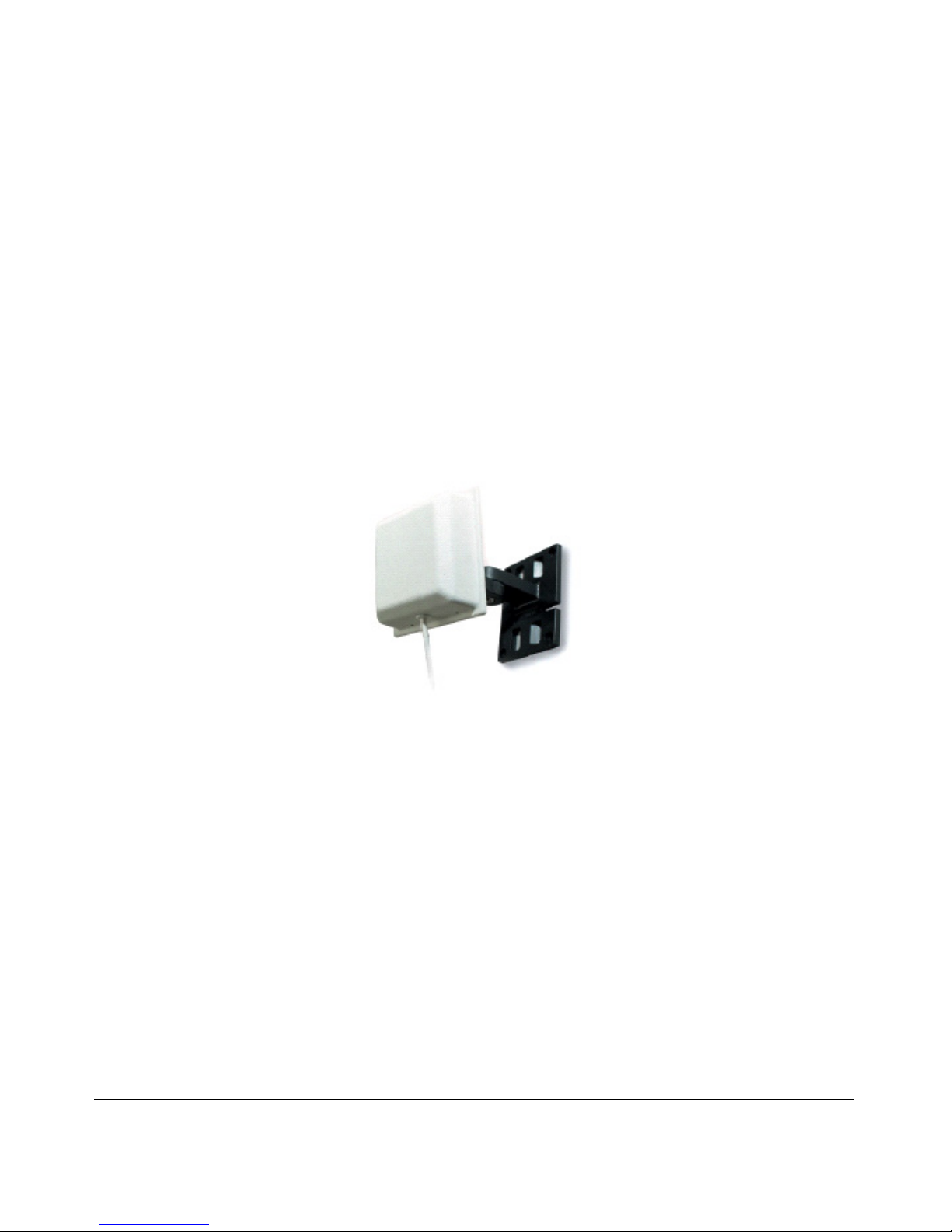

S51514WPN36RSM DR4000071E6 5133 WLAN Directional Patch Panel Antenna with an average gain of
13.1 dBi from 5.15 - 5.25 GHz, 13.0 dBi from 5.25 - 5.35 GHz,
13.0 dBi from 5.470 - 5.725 GHz and 12.9 dBi from
5.725 - 5.85 GHz. It has a 3-foot cable with a Reverse SMA
connector. For use in campus or in-building applications. It offers
a very precise and controllable pattern. Must order mounting
bracket separately.
5133NEMA
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable and the lightning protection circuitry.
5133NEMA-10
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 10-foot
outdoor rated extension cable.
5133NEMA-25
To be used with the outdoor NEMA enclosure only. Output
power is compensated for the addition of the 10-foot plenum
rated cable, the lightning protection circuitry and the 25-foot
outdoor rated extension cable.
5133-OUT Output power is compensated for the addition of lightning
protection circuitry and the 10-foot plenum rated cable.
76 Appendix
NN47250-503 (323847-C Version 02.01)
Cushcraft
Nortel
Model
Number
WSS
Model
String
WLAN AP-2330A and AP-2330B
5.0 GHz Antennas
5133OUT-10
The "10" refers to the addition of the 10-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 10-foot outdoor rated extension
cable.
5133OUT-25
The "25" refers to the addition of the 25-foot outdoor-rated
LMR-240 extension cable. Output power is compensated for the
addition of the 10-foot plenum rated cable, the lightning
protection circuitry and the 25-foot outdoor rated extension
cable.
Appendix 77
Nortel WLAN 2300 Series Outdoor Solution Guide
Antenna properties and considerations
In the design and installation of a WLAN system, system installers need to have some fundamental knowledge
of antenna performance and RF propagation characteristics to ensure efficient performance of the network.
This knowledge will assist these individuals with the proper selection of system antennas, as well as, guiding
their decisions on antenna mounting location and orientation in an effort to ensure optimum system coverage
and performance. A properly selected antenna system has the capability of improving overall system
performance and may lead to a reduction in system cost if the overall number of access points can be reduced.
Conversely, a poorly selected antenna system may degrade system performance and may lead to an increase in
overall system cost.
Antenna properties
The external antennas supported by the Nortel WLAN 2300 system are passive devices. A key attribute
included in their design is that they are DC-coupled to the output of the WLAN access point to enable the
software to detect their presence and direct the energy out their aperture rather than through the internal
antennas mounted within the access point housing. Since they are passive devices, they do not process nor
amplify the RF signal. Even if they are 100% efficient, they cannot radiate more total power than is delivered
to their input terminal from the access point.
The basic properties that are used to describe the performance of an antenna include impedance and VSWR
(Voltage Standing Wave Ratio), radiation patterns, 3-dB beamwidth, directivity, gain, EIRP (Effective
Isotropic Radiated Power), polarization and bandwidth. These properties and their impact on system
performance are discussed in the following sections.
Impedance and VSWR
In order to achieve maximum power transfer between an access point and an antenna, the input impedance of
the antenna must identically match the characteristic impedance of the output of the access point. If the two
impedances do not match, a reflected wave will be created at the antenna input and travel back towards the
access point. This reflection is associated with a mismatch loss between the access point and the antenna and
results in an overall reduction of system efficiency and available transmission power. The WLAN supported
external antennas have been designed to match the output impedance of the WLAN 2300 series access points
to ensure optimum system power transfer.
The Voltage Standing Wave Ratio or VSWR is the ratio between the maximum voltage and the minimum
voltage that appears along the transmission line connecting the access point to the antenna. The VSWR, which
can be derived from the level of reflected and forward waves, is also an indication of how closely or efficiently
an antenna's input impedance is matched to the characteristic impedance of the cabling and output impedance
of the access point. An increase in VSWR indicates an increase in the mismatch between the antenna and the
access point. These increases can be a direct result of corrosion, damaged cables, loose connections or seals
and lengthy cable extensions from the access point. All of these concerns must be checked and optimized
during the installation of the antenna system by the professional installer.
To indicate how increased VSWR impacts overall system performance, the table below details the percentage
of power reflected by the antenna, and the resultant overall transmission loss, for several typical VSWR values.
For a 1.5:1 VSWR, the transmission loss is approximately 0.2 dB or a 4.0% reduction in efficiency.
78 Appendix
NN47250-503 (323847-C Version 02.01)

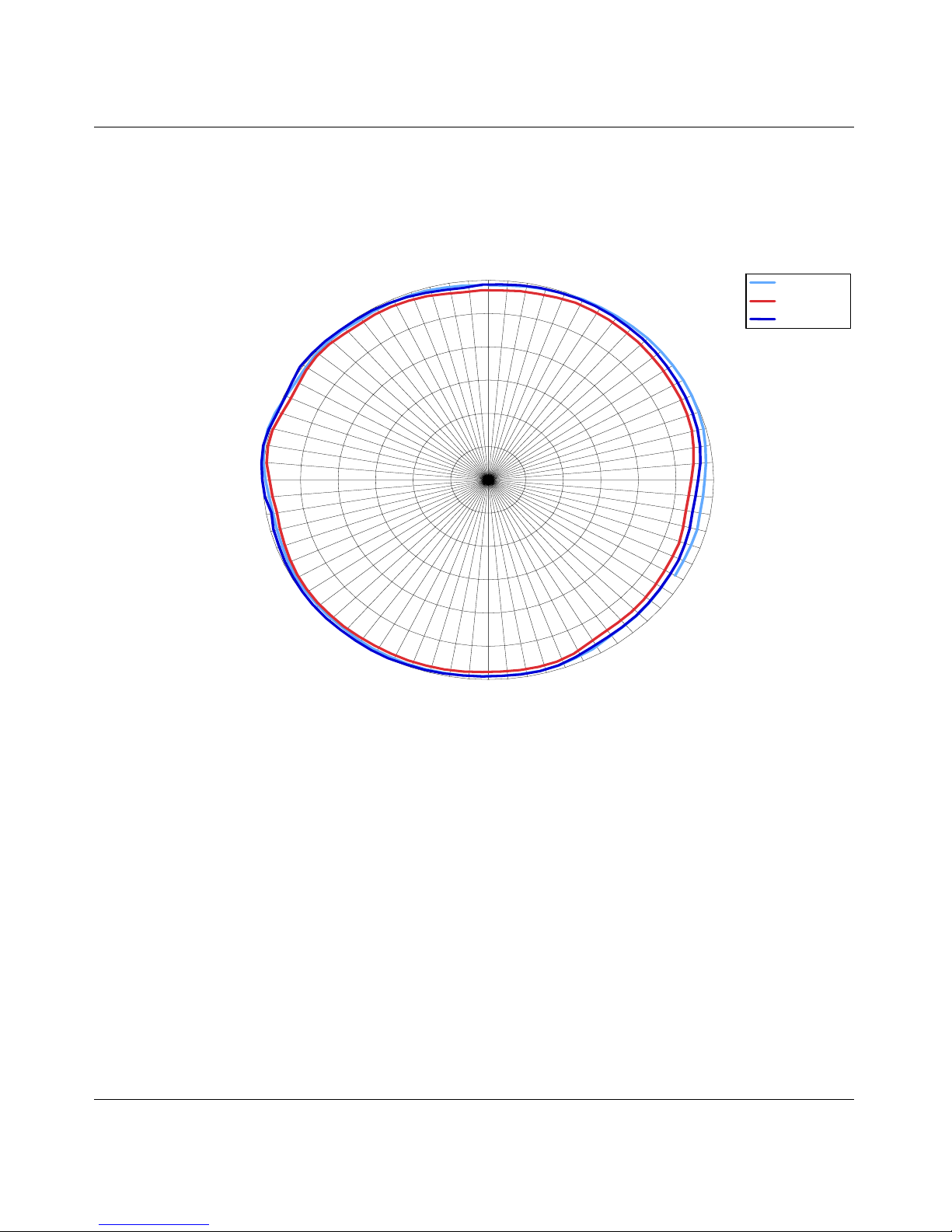

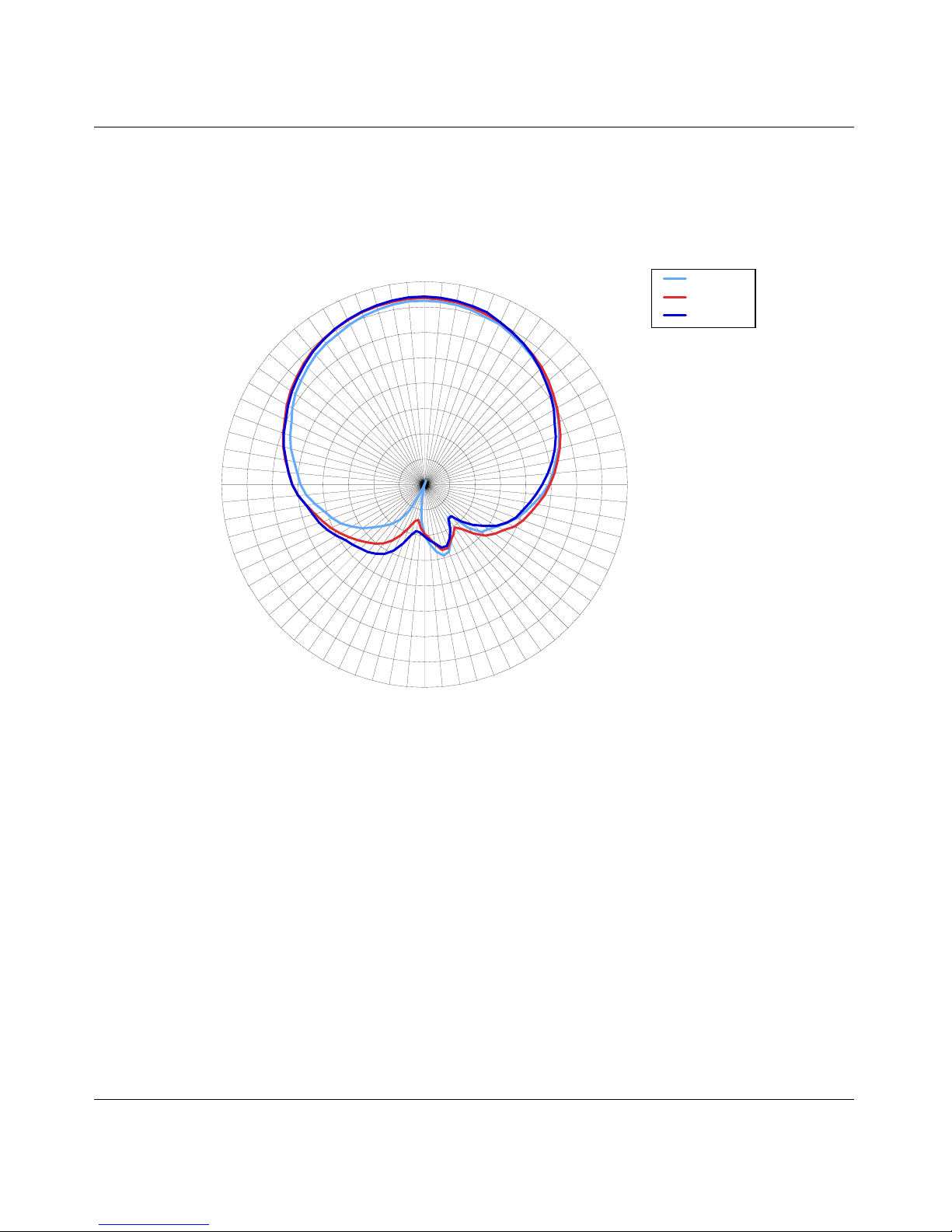

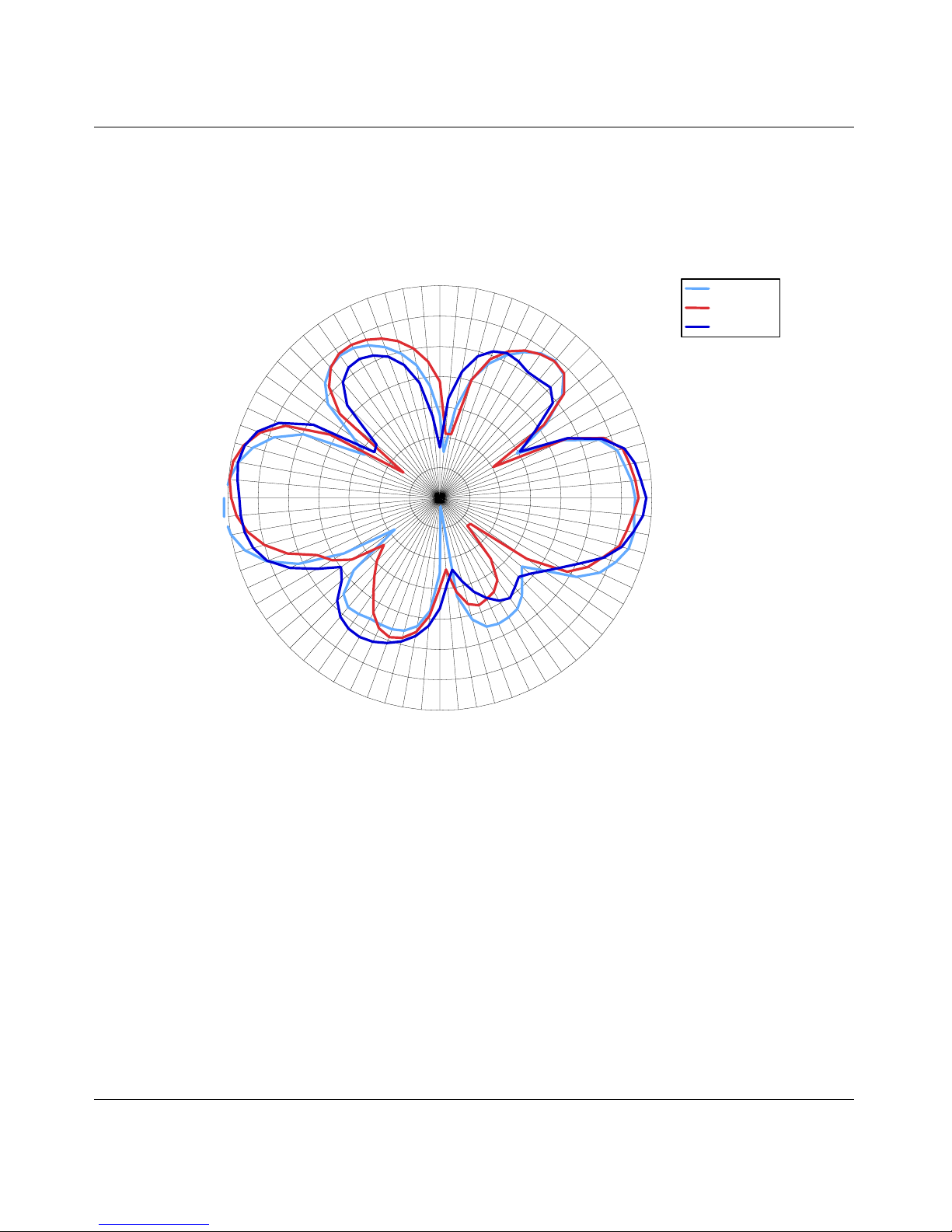

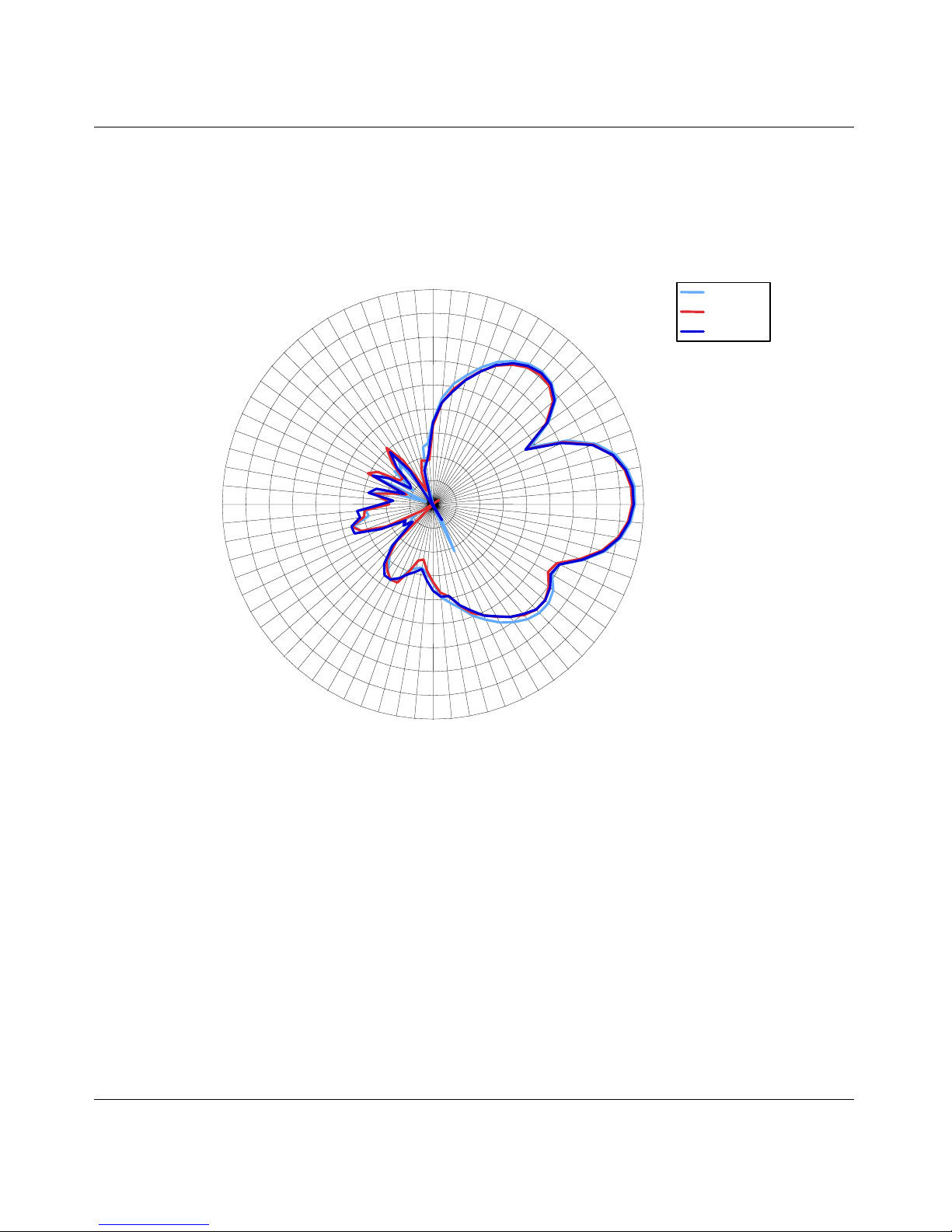

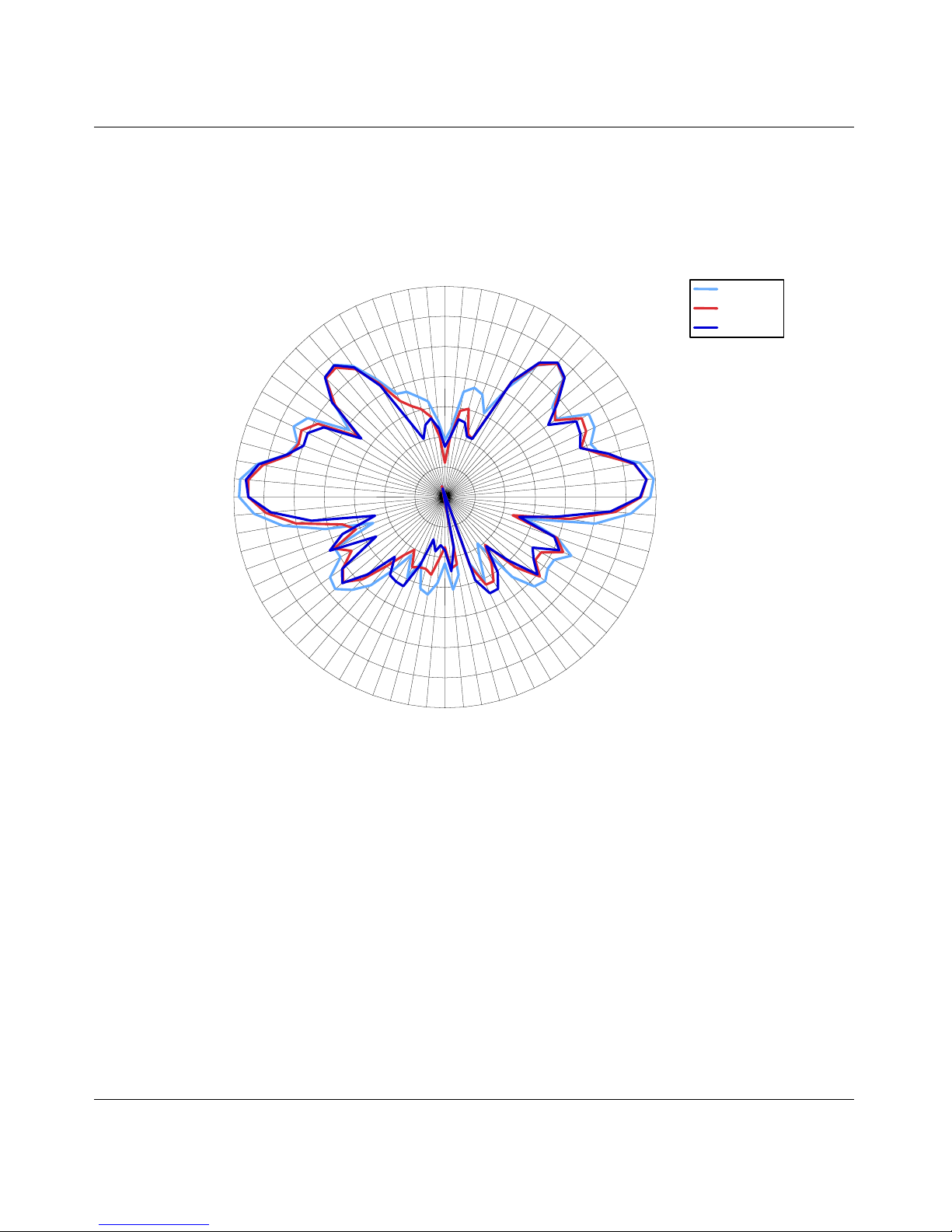

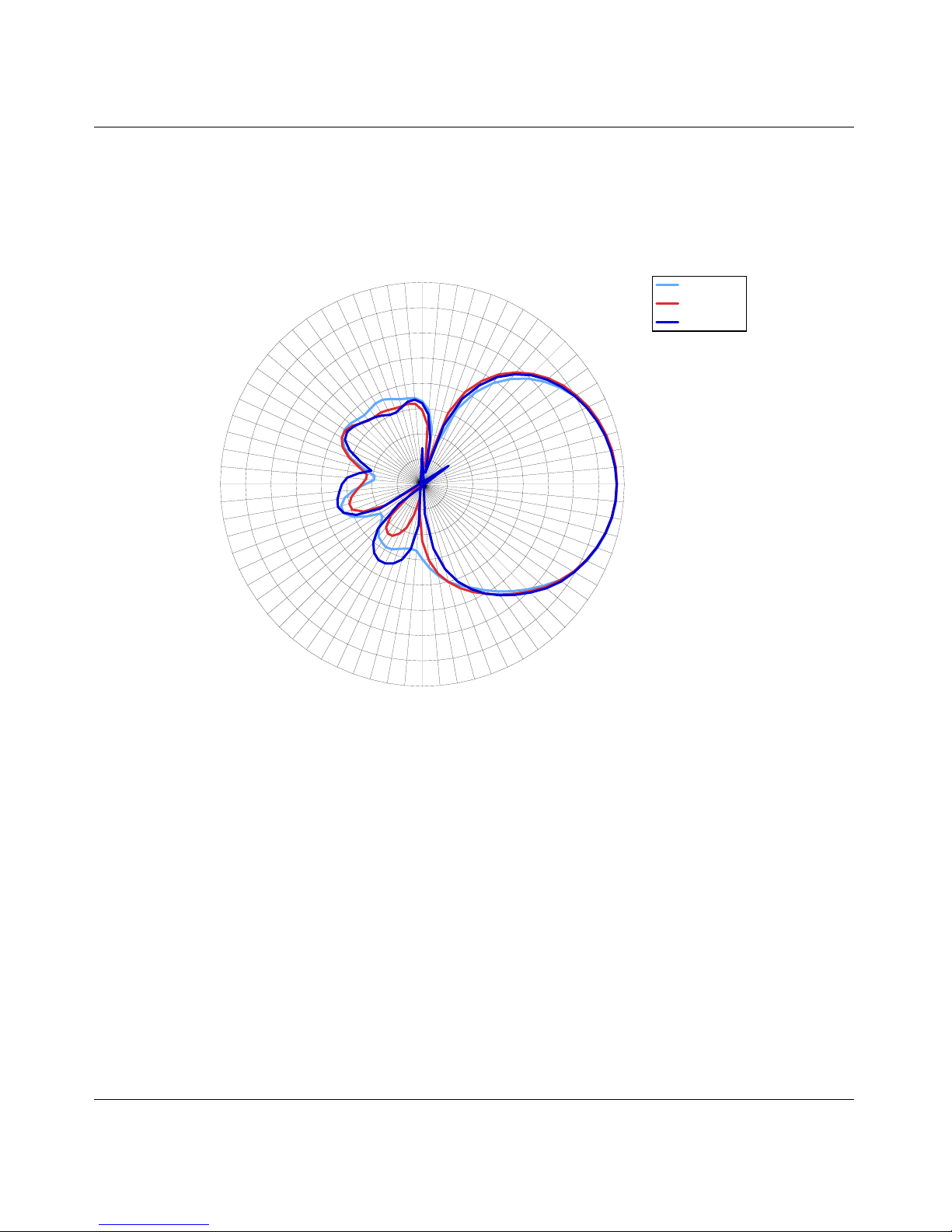

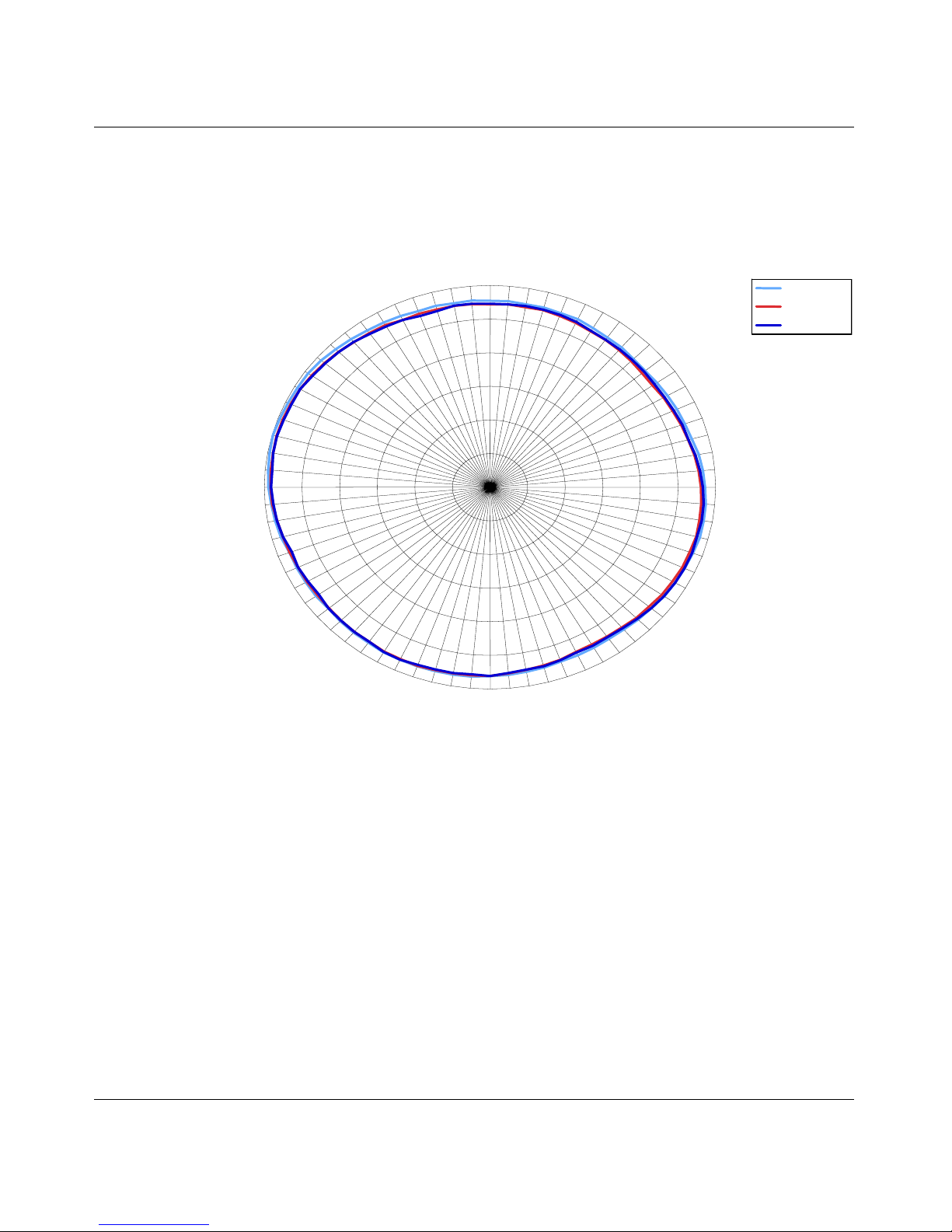

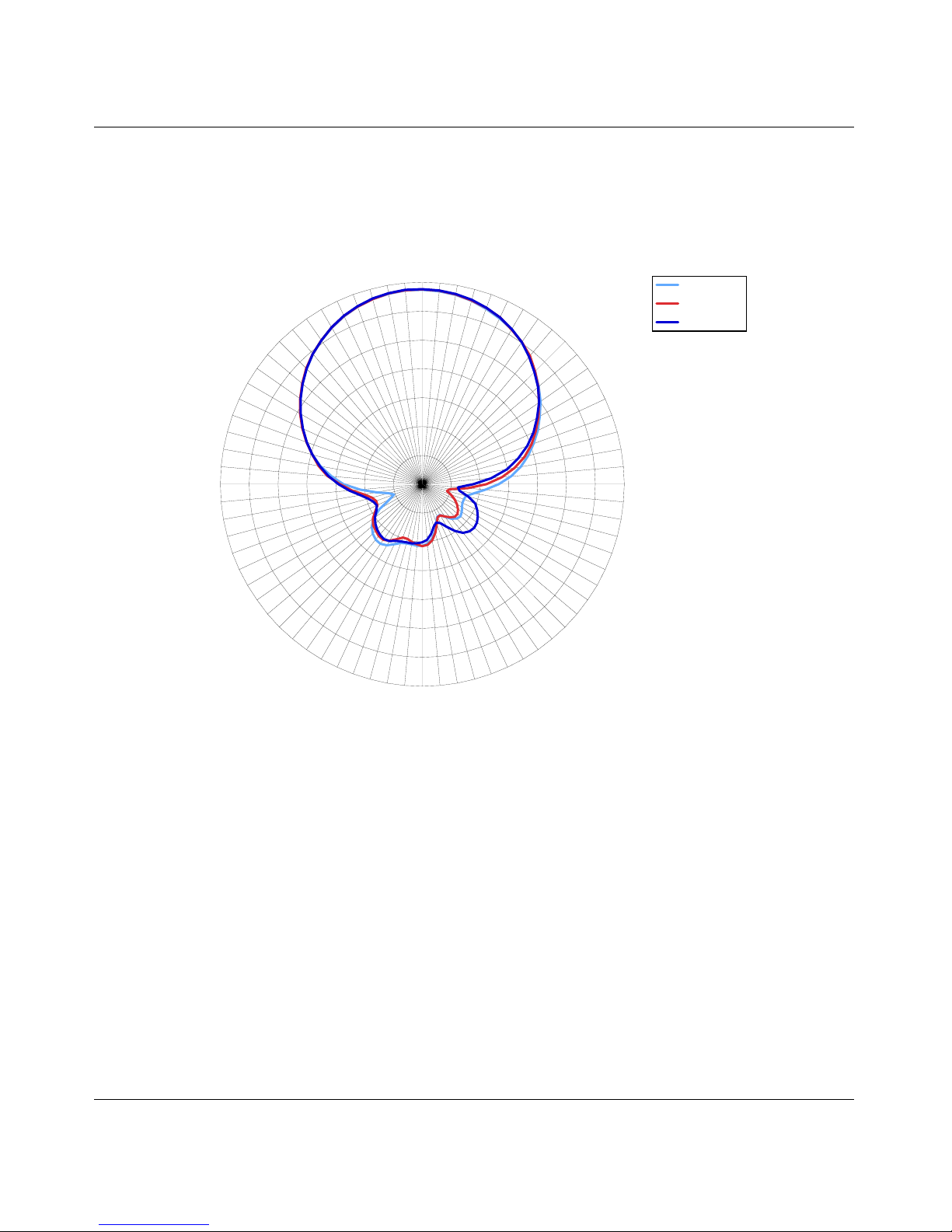

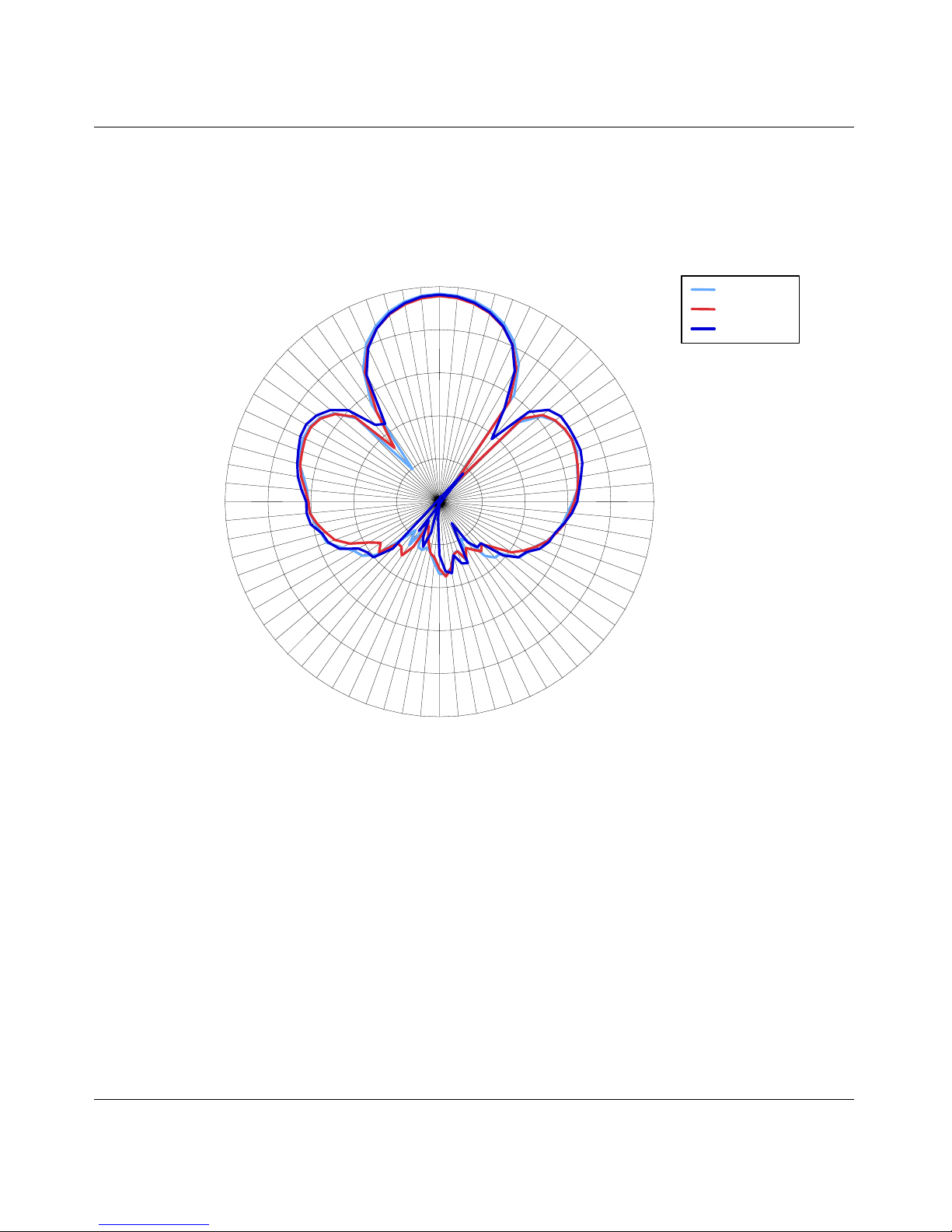

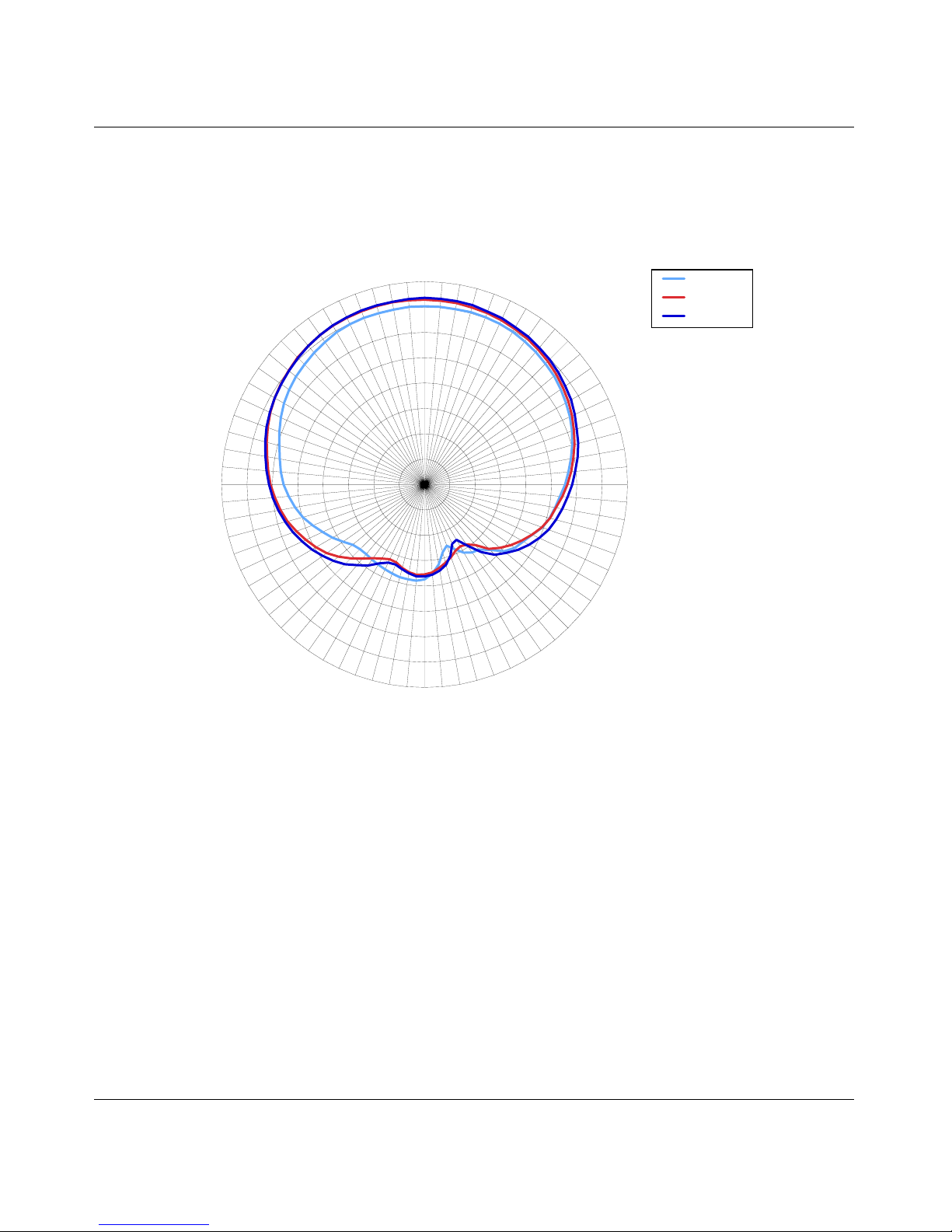

Radiation Patterns and 3-dB Beamwidth
The radiation patterns of an antenna describe how the antenna directs the energy it radiates. As stated earlier,
an antenna cannot radiate more total energy than is delivered to its input. All antennas, if 100% efficient, will
radiate the same total energy for equal input power, regardless of the shape of the radiating pattern.
In many cases, the convention of an E-plane and H-plane pattern is used in the presentation of antenna pattern
data. The E-plane is the plane that contains the antenna's radiated electric field potential while the H-plane is
the plane that contains the antenna's radiated magnetic field potential. These planes are always orthogonal. For
dipole and Yagi antennas, the E-plane is always in the plane parallel to the linear antenna elements.
The information obtained from these plots includes the 3-dB beamwidth. The 3-dB beamwidth of an antenna
is a measure of the angular width or spread of the signal at the points on the radiating signal where the power
has been reduced to 1/2 of its original power level.
Additional factors that affect the antenna's efficiency are the antenna side lobe level and front to back ratio.
These parameters are measures of how much energy the antenna radiates outside of its main beam. The side
lobe level describes the relative level of minor pattern lobes outside the main beam while the front to back ratio
describes the level of radiation directly opposite (180 degrees away) from the main beam. Ideally, these levels
should be as low as possible since they reduce the directivity and efficiency of the main beam. When
transmitting, the presence of side and back lobes may cause interference to other nearby access points, and
when receiving, they may allow interference into the access point from surrounding WLANs or rogue devices.
Directivity and Gain
The directivity of an antenna is a relative measure of how an antenna focuses or directs the energy it radiates in
the main beam of the antenna pattern. It is defined as the ratio of the antenna radiation intensity in a specific
direction to the radiation intensity of an isotropic radiator for the same radiated power. The higher the
directivity, the more focused the antenna pattern.
The gain of an antenna is closely related to its directivity, but takes into consideration the losses in the antenna,
such as conduction and dielectric losses, as well as, the directional capabilities of the antenna. By definition, it
is equal to 4 times the ratio of the maximum radiation intensity to the net power accepted by the antenna at its
input.
Gain is measured on a far-field outdoor test range by comparing the gain of the antenna under test to that of a
pre-calibrated Standard Gain antenna:
Table 15: VSWR, % Reflected Power and Transmission Loss
VSWR % Reflected Power Transmission Loss [dB]
1.0 : 1 0.00 0.00
1.1 : 1 0.23 0.01
1.2 : 1 0.83 0.04
1.5 : 1 4.00 0.18
2.0 : 1 11.11 0.51
2.5 : 1 18.37 0.88
3.0 : 1 25.00 1.25
Appendix 79
Nortel WLAN 2300 Series Outdoor Solution Guide

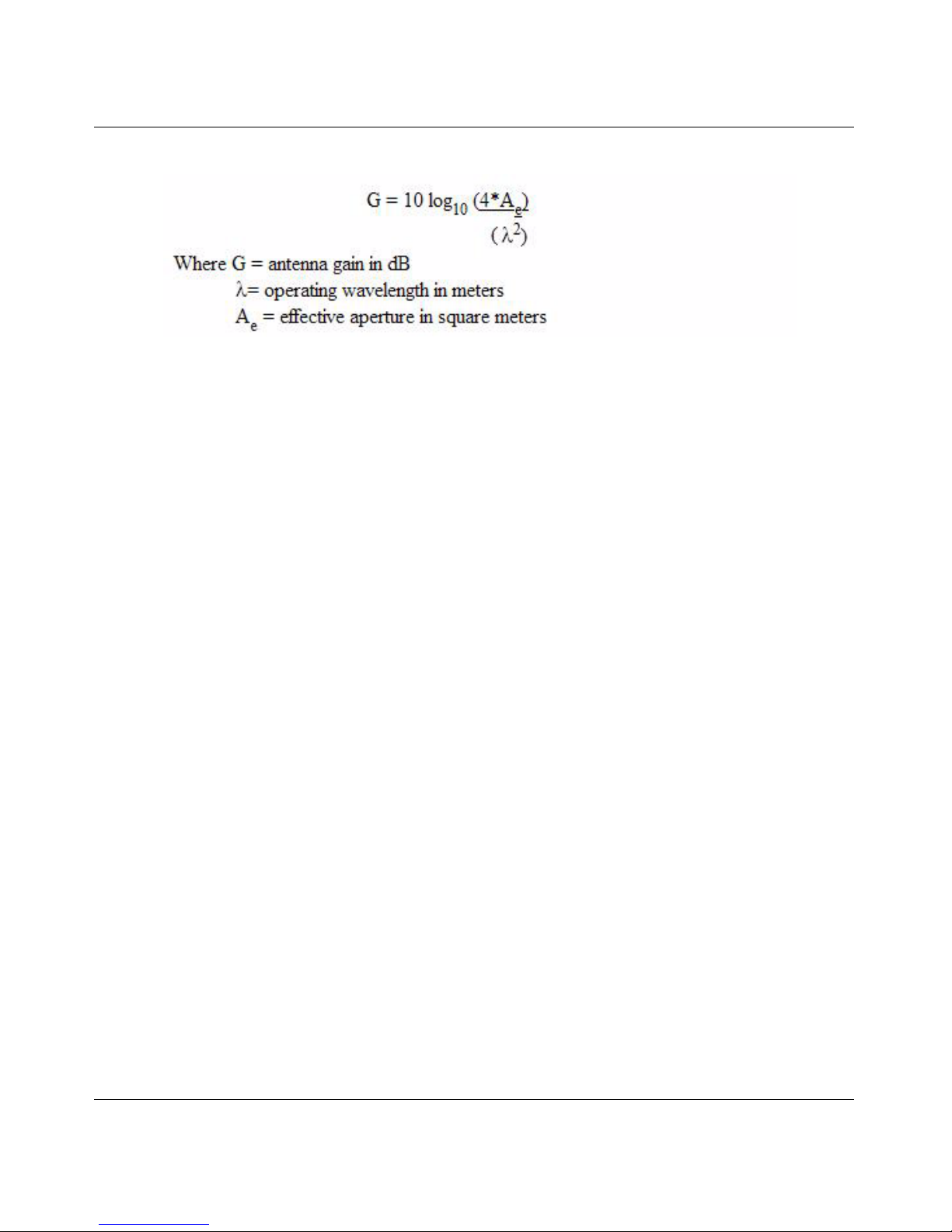

If we double the length of the aperture, the gain of the antenna is doubled, which means the gain increases by
3 dB.
An antenna's efficiency is a measure of the ratio of the gain of an antenna to its directivity. If an antenna were
100% efficient, it would have a gain equal to its directivity. The VSWR provides an indication of how closely
the impedance of an antenna matches the impedance of the connecting access point. If an impedance mismatch
exists, a reflected wave will be created and will reduce the level of forward energy transferred from the access
point into the antenna. This effectively reduces the total level of radiated energy and the effective gain of the
antenna.
Effective Radiated Power
Effective Isotropic Radiated Power (EIRP) is a figure of merit for the net radiated power in a given direction. It
is equal to the product of the power supplied to an antenna and the antenna gain in a given direction relative to
an isotropic radiator. It can be expressed in watts or dBm.
Polarization
The polarization of an antenna describes the orientation and sense of the radiated wave's electric field vector.
All radiated waves are defined as elliptically polarized. In this general case, the antenna's total electric field
(E-field) has two components that lie in the same plane. These two E-field components may be of different
strength and are oriented at different angles.
The most common cases of elliptical polarization are:
Circular, in which the two E-field components are equal in magnitude, 90 degrees out of phase and spatially
oriented at 90 degrees from one another, and
Linear, in which the wave has a single E-field component. In a linear polarized antenna, the E-field is either in
a vertical line, a horizontal line or a slanted line, such as 45 degrees from the horizontal.
The term axial ratio is used to define the relative strength of the two E-field components in an elliptically
polarized wave. For pure circular polarization the axial ratio is 0 dB and for linear polarization the axial ratio is
infinite.
The important performance issue relative to signal polarization is that maximum energy transfer between a
transmitting antenna and a receiving antenna will only occur if both antennas have identical axial ratio,
identical polarization sense and the same spatial orientation. It is assumed that nothing in the propagation path
causes the signal polarization to change, which is known as polarization distortion.
80 Appendix
NN47250-503 (323847-C Version 02.01)
With linearly polarized antennas, the polarization of each antenna must be of the same orientation to achieve
maximum energy transfer between the two antennas. If the two linearly polarized antennas are not identically
oriented, there will be a reduction in energy transfer due to polarization mismatch. The table below provides a
summary of polarization mismatch loss between two linearly polarized antennas that do not have the same
angular orientation.
The following table provides a summary of the polarization mismatch between a linearly polarized and a
circularly polarized wave as a function of the circularly polarized wave's axial ratio. It is assumed that the
circularly polarized wave's field components are orthogonal.
Table 16: Polarization mismatch
Orientation angle Polarization mismatch (dB)
0.0 (aligned) 0.00
15.0 0.30
30.0 1.25
45.0 3.01
60.0 6.02
75.0 11.74
90.0 (orthogonal) infinite
Table 17: Polarization mismatch between linear and circular
polarized waves
Axial Ratio
Minimum Polarization
Loss [dB]
Maximum Polarization
Loss [dB]
0.00 3.01 3.01
0.25 2.89 3.14
0.50 2.77 3.27
0.75 2.65 3.40
1.00 2.54 6.54
1.50 2.33 3.83
2.00 2.12 4.12
3.00 1.77 4.77
4.00 1.46 5.46
5.00 1.19 6.19
10.00 0.41 10.41
Appendix 81
Nortel WLAN 2300 Series Outdoor Solution Guide
Bandwidth
The term bandwidth simply defines the frequency range over which an antenna meets a certain set of
performance criteria. The important issue to consider regarding bandwidth is the performance tradeoffs
between all of the properties described above as the bandwidth is widened to cover more area.
Summary of Related Performance Tradeoff Issues
The antenna properties described above are all related in varying degrees. In selecting or designing an antenna
system, the tradeoffs between all of these performance properties must be considered in order to ensure
optimum system performance. These factors must also be weighed against factors beyond the actual antenna
properties such as RF propagation and path loss.
In all cases, the required or specified performance properties of an antenna can only be achieved over a limited
frequency bandwidth. The extent of this realizable bandwidth is a function of the performance requirements,
antenna type selected and the antenna size relative to the operating wavelength. Typically, optimum antenna
performance is achieved at the center frequency of the operating band.
In the case of VSWR, system performance is typically degraded at the edges of the operating frequency band.
The overall effect on system performance is a decrease in antenna gain due to impedance mismatch losses. The
antenna's radiation patterns, beamwidth, directivity (gain) and bandwidth are more directly related. As with
VSWR, performance is usually degraded at the edges of the operating band.
The 3-dB beamwidth and directivity (gain) are inversely proportional. As the antenna beamwidth decreases,
the directivity increases. These parameters are also related to the antenna size or aperture. As the antenna
aperture or size increases with respect to the operating wavelength, the radiation beamwidth decreases.
Therefore, to achieve increased antenna gain, it is required that the antenna size increase.
For linearly polarized antennas, polarization is generally not a function of bandwidth. However, this is not
always the case for circularly polarized antennas. In most cases, the polarization axial ratio for a circularly
polarized antenna increases at the edges of the operating frequency band.
RF Propagation and Path Loss
In addition to the antenna properties and wireless system hardware, other factors can influence the overall
performance of the WLAN system. These factors affect the propagation of RF signals through the air medium
and need to be considered when architecting a WLAN.
Path loss is encountered when an RF signal propagates through the air. The relative signal strength of the
propagating wave diminishes as a function of distance traveled from the transmitting antenna.
The free space propagation loss factor is described by the following equation,
82 Appendix
NN47250-503 (323847-C Version 02.01)
To minimize path loss effects, you can either increase the transmit power, increases the system gain, decrease
the operating frequency or increase the receiver sensitivity on the other end of the wireless communications
link. In addition, path loss increases by a factor of approximately 6 dB for every doubling of frequency or path
distance. This factor is significant because it means that a doubling of the antenna or system gain, an increase
of 3 dB, will not double the propagation distance of the signal. To double the usable coverage area or path
distance, the antenna or system gain would have to increase by a factor of four, which equates to an increase of
6 dB.
Table 18: Path loss in [dB] for loss coefficient of n=2
Frequency (MHz)
Distance
(m)
2400 2450 2500 5150 5250 5350 5470 5725 5850
10 -60.0 -60.2 -60.4 -66.7 -66.8 -67.0 -67.2 -67.6 -67.8
50 -74.0 -74.0 -74.4 -80.7 -80.8 -81.0 -81.2 -81.6 -81.8
100 -80.0 -80.0 -80.4 -86.7 -86.8 -87.0 -87.2 -87.6 -87.8
150 -83.6 -83.6 -83.9 -90.2 -90.4 -90.5 -90.7 -91.1 -91.3
200 -86.1 -86.1 -86.4 -92.7 -92.9 -93.0 -93.2 -93.6 -93.8
250 -88.0 -88.0 -88.4 -94.6 -94.8 -95.0 -95.2 -95.6 -95.7
300 -89.4 -89.6 -89.9 -96.2 -96.4 -96.6 -96.7 -97.1 -97.3
350 -90.9 -90.9 -91.3 -97.6 -97.7 -97.9 -98.1 -98.5 -98.7
400 -92.1 -92.1 -92.4 -98.7 -98.9 -99.1 -99.2 -99.6 -99.8
500 -94.0 -94.0 -94.4 -100.7 -100.8 -101.0 -101.2 -101.6 -101.8
750 -97.5 -97.5 -97.9 -104.2 -104.3 -104.5 -104.7 -105.1 -105.3
1000 -100.0 -100.2 -100.4 -106.7 -106.8 -107.0 -107.2 -107.6 -107.8
Appendix 83
Nortel WLAN 2300 Series Outdoor Solution Guide
In addition to the free space path loss mentioned above, RF signals will be attenuated as they pass through
objects such as foliage, walls and buildings. The level of signal attenuation in these instances can increase the
loss and reduce the communications range by an additional amount of 10 to 20 dB or greater. Care should be
used when installing the antennas and access points to ensure that no objects or barriers are blocking the
communication paths of the antennas.
Most, if not all, antenna performance characteristics are specified under free space conditions. It is important
to realize that these performance characteristics may change once the antenna is located in its operating
environment. Surrounding objects, such as the earth, walls, buildings, floors, etc. will impact the antenna's
specified performance. The fact that antenna performance may change in the operating environment does not
invalidate the use of free space data. It is impossible to specify performance for all environments and the free
space performance characteristics provide the most suitable reference for comparing relative antenna
performance.
When an antenna is located near the earth, its radiated field couples with the earth and changes the antenna's
radiation pattern and impedance characteristics. The antenna impedance is changed from its free space value
by the addition of a component known as ground impedance. The presence of this component changes how RF
energy is delivered to the antenna in that some energy normally radiated by the antenna is now dissipated in the
earth. This will reduce the system efficiency.
In addition to impacting the antenna impedance, the earth also changes the antenna's radiation pattern and
polarization depending upon the height the antenna is located above the ground. When an antenna is located
over the earth, an "image" is generated in the earth. This image will contribute to the total radiated field by
vector summing the direct and reflected waves. This is essentially a multipath phenomenon and illustrates how
the antenna height affects pattern performance. Mechanical down-tilt can be used to try and compensate for
these effects. Down-tilt refers to tilting the main beam downward, away from the perpendicular with the
horizon. Mechanical down-tilt really only applies to sectorized antennas that have narrow horizontal
beamwidths of less than or equal to 60 degrees. The narrower the azimuth pattern, the more uniform the tilt
will be across the 3-dB beamwidth of the antenna.
Optimizing antenna location can reduce multipath and interference problems. This includes antenna height, as
well as, location relative to nearby objects. Protecting against multipath fading is difficult and may require
other techniques, such as diversity, to mitigate multipath interference. Overall antenna selection and location
optimization is not an arbitrary task. It does require an evaluation of system coverage and range requirements,
a review of access point locations, and a review of surrounding objects that may become a source of
interference.
84 Appendix
NN47250-503 (323847-C Version 02.01)
Antenna descriptions – 802.11a (5.0 GHz) antennas
1 Nortel Order Number: DR4000070E6
z Wide-band Omni Antenna
z Cushcraft Model S5153WBPN36RSM
z 5.15 - 5.25 GHz, 4.5 dBi Peak Gain
z 5.25 - 5.35 GHz, 3.8 dBi Peak Gain
z 5.47 - 5.725 GHz, 4.7 dBi Peak Gain
z 5.725 - 5.85 GHz, 4.4 dBi Peak Gain
z Rugged design suitable for outdoor environments
z Ceiling, I-beam and mast mounting options
z Suitable for large indoor open spaces and locations with high ceilings
z Slim aspect measuring 11.5” x 1”
Appendix 85
Nortel WLAN 2300 Series Outdoor Solution Guide
Azimuth Pattern
S5153WBPN36RS
M
-2
5-20-15-10
-5
0
5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
5.15 GHz
5.47 GHz
5.85 GHz
dBi
86 Appendix
NN47250-503 (323847-C Version 02.01)
Elevation Pattern
S5153WBPN36RS
M
-3
0-25-20-15-10
-5
0
5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
5.15 GHz
5.47 GHz
5.85 GHz
3 dB BW = 15 Deg
1 dB BW = 8 Deg
dBi
Zero Deg = Overhead
90 Deg = Horizon
Appendix 87
Nortel WLAN 2300 Series Outdoor Solution Guide
2 Nortel Order Number: DR4000071E6
z High-Gain Directional Panel Antenna
z Cushcraft Model S51514WPN36RSM
z 5.15 - 5.25 GHz, 13.1 dBi Peak Gain
z 5.25 - 5.35 GHz, 13.0 dBi Peak Gain
z 5.47 - 5.725 GHz, 13.0 dBi Peak Gain
z 5.725 - 5.85 GHz, 12.9 dBi Peak Gain
z Weatherproof housing for indoor/outdoor deployments
z Wall or pole mounting
z Articulating feature allows customizable antenna pattern
z Measures 4” x 4” x 1.4”
88 Appendix
NN47250-503 (323847-C Version 02.01)
Azimuth Pattern
S51514WPN36RSM
-3
5-25-15
-5
5
1
5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
5.15 GH
z
5.47 GH
z
5.85 GH
z
3 dB BW = 33 Deg
1 dB BW = 18 Deg
dBi
Zero Deg = Broadsid
e
Appendix 89
Nortel WLAN 2300 Series Outdoor Solution Guide
Elevation Pattern
S51514WPN36RSM
-3
0-25-20-15-10
-5
0
5
1
0
15
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
5.15 GHz
5.47 GHz
5.85 GHz
3 dB BW = 27 Deg
1 dB BW = 15 Deg
dBi
Zero Deg = Overhead
90 Deg = Broadsid
e
90 Appendix
NN47250-503 (323847-C Version 02.01)
Antenna descriptions – 802.11b/g (2.4GHz) antennas
3 Nortel Order Number: DR4000088E6
z Omnidirectional Colinear Dipole Antenna
z Cushcraft Model S2403BPXN36RSM
z 2.4-2.5GHz, 4.9 dBi Gain
z Indoor/outdoor deployments
z Ideal for large open areas
z Pole or suspended ceiling mount
z Measures 11.5” x 1”
Appendix 91
Nortel WLAN 2300 Series Outdoor Solution Guide
Azimuth Pattern
S2403BPXN36RSM
-25
-2
0
-15
-1
0
-5
0
5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
9
0
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
2412 MHz
2437 MHz
2462 MHz
dBi
92 Appendix
NN47250-503 (323847-C Version 02.01)
Elevation Pattern
S2403BPXN36RSM
-3
0-25-20-15-10
-5
0
5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
2412 MH
z
2437 MH
z
2462 MH
z
dBi
Zero Deg = Overhead
90 Deg = Horizo
n
Appendix 93
Nortel WLAN 2300 Series Outdoor Solution Guide
4 Nortel Order Number: DR4000076E6
z Directional Panel Antenna
z Cushcraft Model S2409PN36RSM
z 2.4-2.5GHz, 8.8 dBi Gain
z Indoor/Outdoor deployments
z Well-suited for wall mounting applications
z Good for hallways and corridors where multi-path and scattering can be a problem
z 3 foot cable
z Measures only 6” x 6” x 1.25”
94 Appendix
NN47250-503 (323847-C Version 02.01)
Azimuth Pattern
S2409PN36RSM
-25
-20
-15
-10
-5
0
5
10
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
2412 MHz
2437 MHz
2462 MHz
3 dB BW = 66 Deg
1 dB BW = 30 Deg
dBi
Zero Deg = Broadside
Appendix 95
Nortel WLAN 2300 Series Outdoor Solution Guide
Elevation Pattern
S2409PN36RSM
-30
-25
-20
-15
-10
-5
0
5
10
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
2412 MHz
2437 MHz
2462 MHz
3 dB BW = 55 Deg
1 dB BW = 31 Deg
dBi
Zero Deg = Overhead
90 Deg = Broadside
96 Appendix
NN47250-503 (323847-C Version 02.01)

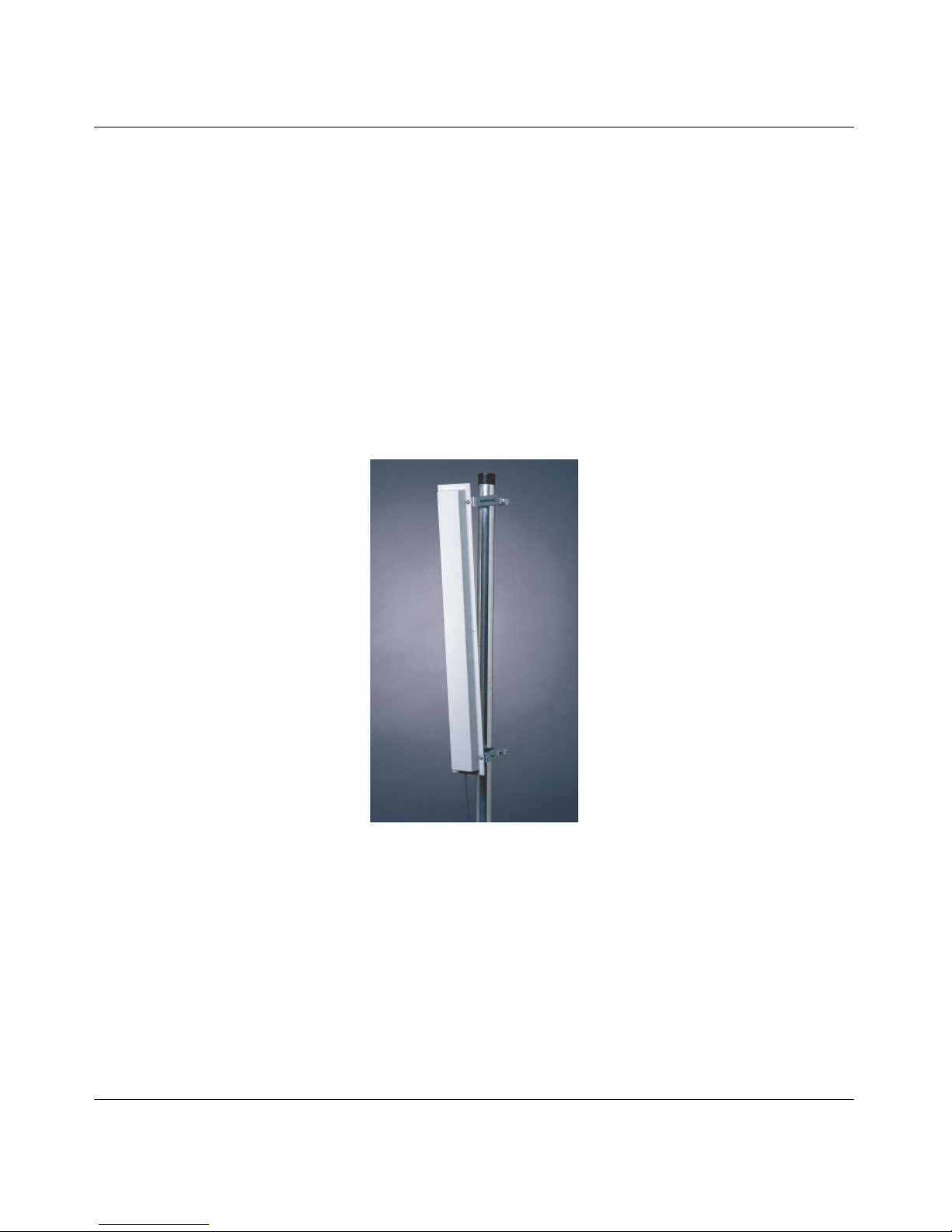

5 Nortel Order Number: DR4000086E6
z Directional Patch Panel Array
z Cushcraft Model S241290PN36RSM
z 2.4-2.5GHz, 12 dBi Gain
z Outdoor deployments
z 90 degree H-plane and 17 degree E-plan
z Designed for long, wide coverage environments
z 3 foot cable with tilt mount available
z Measures 26" x 3" x 1"
Appendix 97
Nortel WLAN 2300 Series Outdoor Solution Guide
Azimuth Pattern
S241290PN36RSM
Vertical Polarization
-25
-20
-15
-10
-5
0
5
10
15
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
2.40 GHz
2.45 GHz
2.50 GHz
dBi
Horizontal
Polarization
BW = 64 Deg
98 Appendix
NN47250-503 (323847-C Version 02.01)
Appendix 99
Nortel WLAN 2300 Series Outdoor Solution Guide
6 Nortel Order Number: DR4000087E6
z Directional Patch Panel Array
z Cushcraft Model SR24120DN36RSM
z 2.4-2.5GHz, 11 dBi Gain
z Outdoor deployments
z 120 degree H-plane and 14 degree E-plan
z Designed for long, wide coverage environments
z 3 foot cable
z Measures 23" x 3" x 2"
100 Appendix
NN47250-503 (323847-C Version 02.01)
Azimuth Pattern
SR24120DN36RSM
Vertical Polarization
-25
-20
-15
-10
-5
0
5
10
15
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
2.40 GHz
2.45 GHz
2.50 GHz
dBi
Horizontal
Polarization
BW = 105 Deg
