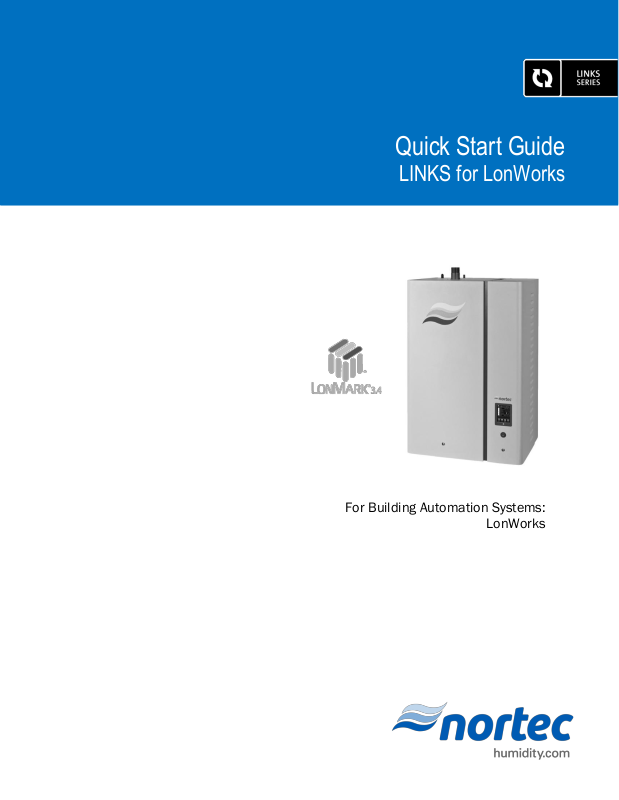

Nortec LINKS Quick Start Manual

Page 1
Quick Start Guide
For Building Automation Systems:
LonWorks
Page 2
Configuration
Re quirements
Laptop CAT5 Ethernet Cable
Commissionin g the LINKS ca r d on a LonWo rks Ne t w ork
1. The LonWorks Administrator will prompt when to hit the Service Pin on the LINKS card at the
correct step of the Commissioning process which is different for each LonWorks Network
Management Tool.
Instructions to D ow nlo a d XIF F i l e
1. Connect a CAT5 Ethernet cable (Straight through or Cross-Over) between the PC and
ProtoCarrier.
2. The Default IP Address of ProtoCarrier is 192.168.168.24, Subnet Mask is 255.255.255.0. If
the PC and ProtoCarrier are on different IP Networks, assign a static IP Address to the PC on the
192.168.1.xxx network.
For Windows XP
Go to > >
Right-click on Local Area Connection > Properties
Highlight >
For Windows 7
Go to > > > >
Page 3
Configuration
Right-click on Local Area Connection > Properties
Highlight >
3. For Windows XP and Windows 7, use the following IP Address:
4. Click twice.
5. Open a web browser and go to the following address: [IP Address of ProtoCarrier]/fserver.xif
Example: 192.168.168.24/fserver.xif
If the web browser prompts to save the file, save the file onto the PC. If the web browser
displays the xif file as a web page, save the file onto the local PC as “fserver.xif”
Page 4
All information contained in this Quick Start Guide is for
Member of the Condair Group
Printed in Canada 2589565-A
general information purposes only. For complete Nortec installation/operation recommendations for your Nortec equipment, please refer to the installation manual for your specific system, accessories, and components.
All electrical connections must be installed in accordance with local and national electrical code requirements by a licensed electrician.
All water supply and drain line connections must be installed in accordance with local plumbing codes by a licensed plumber.
Nortec does not accept any liability for installations of humidity equipment installed by unqualified personnel or the use of parts/components/equipment that are not authorized or approved by Nortec.
