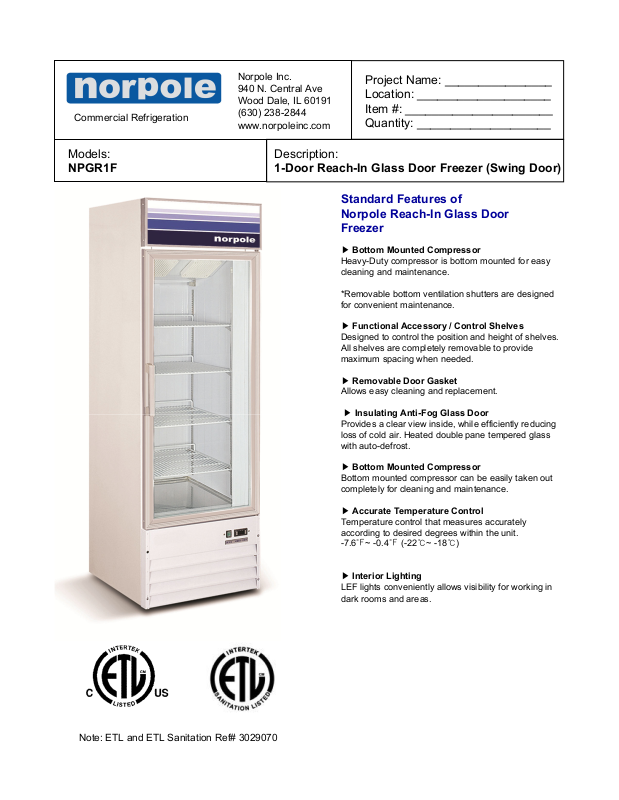

Norpole NPGR1F User Manual
Commercial Refrigeration
Norpole Inc.
940 N. Central Ave
Wood Dale, IL 60191
(630) 238-2844
www.norpoleinc.com
Project Name: ________________
Location: ____________________
Item #: ______________________
Quantity: ____________________
Models:
NPGR1F
Description:
1-Door Reach-In Glass Door Freezer (Swing Door)
Standard Features of
Norpole Reach-In Glass Door
Freezer
▶ Bottom Mounted Compressor
Heavy-Duty compressor is bottom mounted for easy
cleaning and maintenance.
*Removable bottom ventilation shutters are designed
for convenient maintenance.
▶ Functional Accessory / Control Shelves
Designed to control the position and height of shelves.
All shelves are completely removable to provide
maximum spacing when needed.
▶ Removable Door Gasket
Allows easy cleaning and replacement.
▶ Insulating Anti-Fog Glass Door
Provides a clear view inside, while efficiently reducing
loss of cold air. Heated double pane tempered glass
with auto-defrost.
Note: ETL and ETL Sanitation Ref# 3029070
▶ Bottom Mounted Compressor
Bottom mounted compressor can be easily taken out
completely for cleaning and maintenance.
▶ Accurate Temperature Control
Temperature control that measures accurately
according to desired degrees within the unit.
-7.6℉~ -0.4℉(-22℃~ -18℃)
▶ Interior Lighting
LEF lights conveniently allows visibility for working in
dark rooms and areas.
Commercial Appliance
NPGR1F Series
1-Door Reach-In Glass Door Freezer
White Swing Door
Model
Voltage
Amp
Interior Volume
Temp.
Temp. Control
Refrigerant
Dimensions (inch/mm)
Compressor Rating
Net Weight (lb/kg)
Included
Free zer
Free zer
Refrigerator
NPGR1F
115V, 60Hz
8.6
15.8 cu.ft.
-0℉ to -10℉ (-17℃ to -23℃)
Manual
R-404a
27W x 36D x 85H / 685.80 W x 914.40 D x 2159H
3/4 HP
377/171
Users Guide
Shelf (4)
Shelf Clips (16)
Warranty included)
(
D: 36”
(1)
W: 27”
H: 85”
NPGR1F
Note: Continuous product development may necessitate specification changes and design
Norpole Inc. - Commercial Refrigeration
940 N. Central Ave • Wood Dale, IL 60191 • (630) 238-2844 • FAX (630) 938-4700 • www.norpoleinc.com
