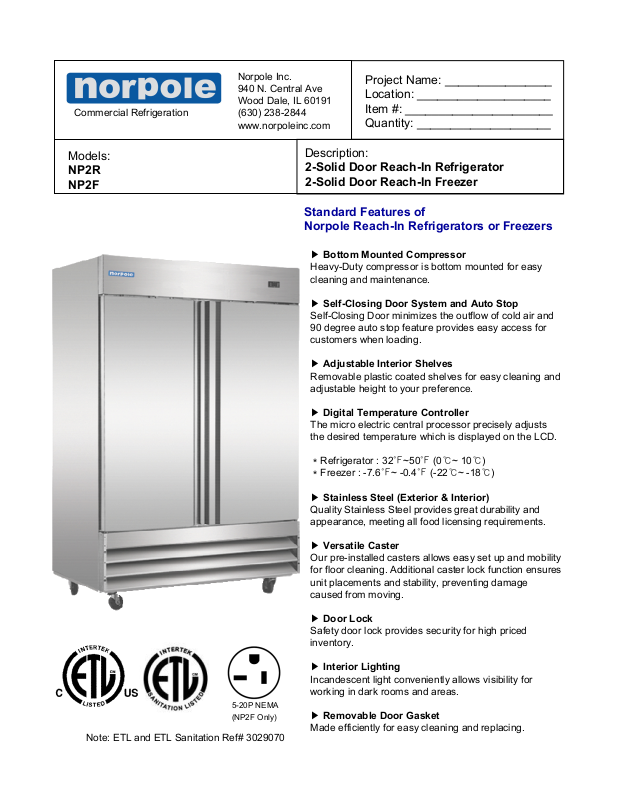

Page 1
Commercial Refrigeration
Norpole Inc.
940 N. Central Ave
Wood Dale, IL 60191
(630) 238-2844
www.norpoleinc.com
Project Name: ________________
Location: ____________________
Item #: ______________________
Quantity: ____________________
Models:
NP2R
NP2F
Description:
2-Solid Door Reach-In Refrigerator
2-Solid Door Reach-In Freezer
Standard Features of
Norpole Reach-In Refrigerators or Freezers
▶ Bottom Mounted Compressor
Heavy-Duty compressor is bottom mounted for easy
cleaning and maintenance.
▶ Self-Closing Door System and Auto Stop
Self-Closing Door minimizes the outflow of cold air and
90 degree auto stop feature provides easy access for
customers when loading.
▶ Adjustable Interior Shelves
Removable plastic coated shelves for easy cleaning and
adjustable height to your preference.
▶ Digital Temperature Controller
The micro electric central processor precisely adjusts
the desired temperature which is displayed on the LCD.
5-20P NEMA
(NP2F Only)
Note: ETL and ETL Sanitation Ref# 3029070
＊Refrigerator : 32℉~50℉ (0℃~ 10℃)
＊Freezer : -7.6℉~ -0.4℉ (-22℃~ -18℃)
▶ Stainless Steel (Exterior & Interior)
Quality Stainless Steel provides great durability and
appearance, meeting all food licensing requirements.
▶ Versatile Caster
Our pre-installed casters allows easy set up and mobility
for floor cleaning. Additional caster lock function ensures
unit placements and stability, preventing damage
caused from moving.
▶ Door Lock
Safety door lock provides security for high priced
inventory.
▶ Interior Lighting
Incandescent light conveniently allows visibility for
working in dark rooms and areas.
▶ Removable Door Gasket
Made efficiently for easy cleaning and replacing.
Page 2
Commercial Appliance
Model
Voltage
Amp
Inside
volume
Temp.
Refrigerator
Freeze r
Refrigerator
Freeze r
Temp. Control
Refrigerant Refrigerator
Freezer
Dimensions (inch/mm)
Compressor HP Rating
Net Weight (lb/kg)
Included
2-Solid Door Reach-In Refrigerator or Freezer
NP2R Series
NP2R NP2F
115V/120V, 60Hz
9 10
46.65 cu.ft. (1,321 L )
-
32℉~50℉ (0℃~ +10℃)
-
Digital Automatic
-
53.98 W x 32.20 D x 82.48 H / (1,371 x 818 x 2,095)
1/2 HP 3/4 HP
447.54/203 447.54/203
Users Guide
Shelf (6)
Shelf Clips (12)
Warranty included)
(
-
46.65 cu.ft. (1,321 L)
-
-7.6℉~ -0.4℉ (-22℃~ -18℃)
-
R-404a
(1)
NP2R/NP2F
Note: Continuous product development may necessitate specification changes and design
Norpole Inc. - Commercial Refrigeration
940 N. Central Ave • Wood Dale, IL 60191 • (630) 238-2844 • FAX (630) 938-4700 • www.norpoleinc.com
