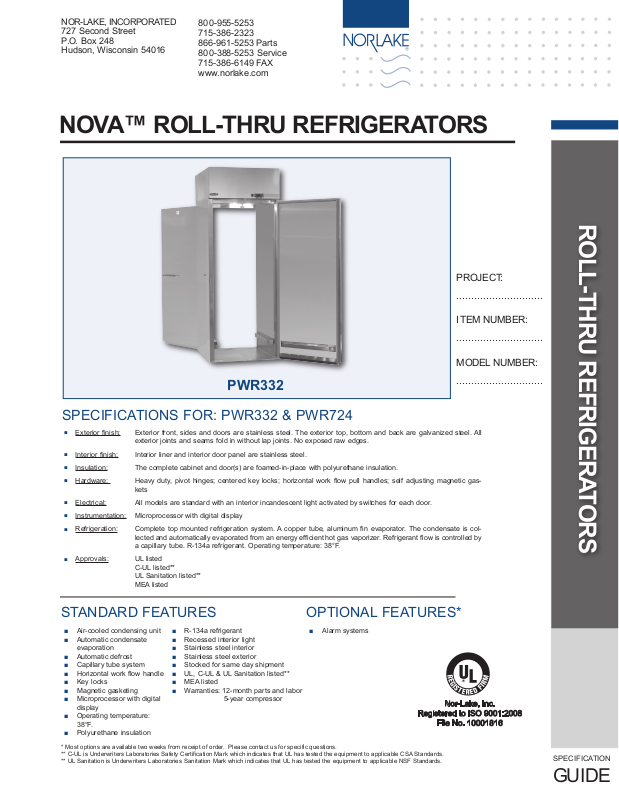

Norlake PWR332, PWR724 Specifications

NOR-LAKE, INCORPORATED

Nor-Lake, Inc.

Registered to ISO 9001:2008

File No. 10001816

727 Second Street P.O. Box 248 Hudson, Wisconsin 54016

800-955-5253 715-386-2323 866-961-5253 Parts 800-388-5253 Service 715-386-6149 FAX www.norlake.com

NOVA™ ROLL-THRU REFRIGERATORS

PROJECT:

.............................

ITEM NUMBER:

.............................

MODEL NUMBER:

PWR332

SPECIFICATIONS FOR: PWR332 & PWR724

■

Exterior finish: Exterior front, sides and doors are stainless steel. The exterior top, bottom and back are galvanized steel. All

■

Interior finish: Interior liner and interior door panel are stainless steel.

■

Insulation: The complete cabinet and door(s) are foamed-in-place with polyurethane insulation.

■

Hardware: Heavy duty, pivot hinges; centered key locks; horizontal work flow pull handles; self adjusting magnetic gas-

■

Electrical: All models are standard with an interior incandescent light activated by switches for each door.

■

Instrumentation: Microprocessor with digital display

■

Refrigeration: Complete top mounted refrigeration system. A copper tube, aluminum fin evaporator. The condensate is col-

■

Approvals: UL listed

exterior joints and seams fold in without lap joints. No exposed raw edges.

kets

lected and automatically evaporated from an energy efficient hot gas vaporizer. Refrigerant flow is controlled by a capillary tube. R-134a refrigerant. Operating temperature: 38°F.

C-UL listed** UL Sanitation listed** MEA listed

.............................

ROLL-THRU REFRIGERATORS

STANDARD FEATURES OPTIONAL FEATURES*

Air-cooled condensing unit

■

Automatic condensate

■

evaporation

Automatic defrost

■

Capillary tube system

■

Horizontal work flow handle

■

Key locks

■

Magnetic gasketing

■

Microprocessor with digital

display

■

Operating temperature:

°F.

Polyurethane insulation

■

* Most options are available two weeks from receipt of order. Please contact us for specific questions. ** C-UL is Underwriters Laboratories Safety Certification Mark which indicates that UL has tested the equipment to applicable CSA Standards. ** UL Sanitation is Underwriters Laboratories Sanitation Mark which indicates that UL has tested the equipment to applicable NSF Standards.

R-134a refrigerant

■

Recessed interior light

■

Stainless steel interior

■

Stainless steel exterior

■

Stocked for same day shipment

■

UL, C-UL & UL Sanitation listed**

■

MEA listed

■

Warranties: 12-month parts and labor

■

5-year compressor

Alarm systems■

SPECIFICATION

GUIDE

31 3/4"

36 7/8"

33"

39 3/8"

PWR332

63 1/2"

36 7/8"

33"

39 3/8"

315

45/

PWR332

PWR724

SPECIFICATIONS

PWR332 PWR724

Crated Height 88-1/2" 88-1/2"

Crated Width 35-3/4" 67-1/2"

Crated Depth 44-3/4" 44-3/4"

Crated Weight (lbs) 596 690

Interior Height 68-3/8" 68-3/8"

Interior Width 27-3/4" 59-1/2"

Interior Depth 33 33

Overall Height 84-3/4" 84-3/4"

Overall Width 31-3/4" 63-1/2"

Overall Depth 39-3/4" 39-3/8"

Gross Cubage (ft.3) 33 72

Condensing Unit Size 1/3HP 3/4HP

Refrigerant R-134a R-134a

Electrical Characteristics 115/60/1 115/60/1

Cord & Plug Furnished Yes Yes

Maximum Fuse Size 15 15

NEMA Plug Conguration 5-15P 14-20P

Total Amp Draw 7.7 10.4

Specications subject to change without notice.

PWR724
