RefRigeRated PRePaRation tables
RefRigeRated PRePaRation tables
SPECIFICATIONS: RR152, RR192, RR243, RR283 & RR324
■ Exterior Finish: The exterior front, sides, top and doors are stainless steel. The bottom and
back are galvanized steel.
■ Interior Finish: Interior liner and interior door panel are smooth aluminum.
■ Insulation: The complete cabinet and doors are foamed-in-place with polyurethane
insulation.
■ Hardware: Pull door handles, one adjustable gray epoxy shelf per door, four casters.
■ Electrical: 115/60/1, cord and plug furnished.
■ Refrigeration: Base mount refrigeration system. Separate temperature controls for the
pan well and storage areas. Automatic defrost in the storage area with
a separate power switch in the pan well area for easy manual defrost.
Refrigerated preparation tables may be built in on three sides. The air
intake and exhaust is through the base of the unit. Maximum operating
sound level 56-59 dBA. Operating temperature: 33˚ - 41˚F in pan well
area, 38˚F in storage area.
■ Approvals: UL listed
C-UL listed**
UL Sanitation listed to NSF #7**
SPECIFICATION
GUIDE
Page 2
standaRd featuRes
■
Air-cooled condensing unit
■
Automatic defrost in storage area
■
Manual defrost in pan well area
■
Expansion valve control
■
Casters standard equipment
■
Stainless steel exterior (galv. back)
■
2 stainless steel doors on RR152 & RR192
■
3 stainless steel doors on RR243 & RR283
■
4 stainless steel doors on RR324
■
Pan well holds (maximum):
RR152: (6) 1/3 or (12) 1/6 size
RR192: (8) 1/3 or (16) 1/6 size
RR243: (9) 1/3 or (18) 1/6 size
RR283: (11) 1/3 or (22) 1/6 size
RR324: (12) 1/3 or (24) 1/6 size
■
Pans not included
■
Maximum operating sound level 56-59 dBA
■
Operating temperature: 33˚F - 41˚F in pan well area,
38˚F storage area
■
Polyurethane insulation
■
Raised condiment rail
■
Stainless steel lids for condiment rail
standaRd featuRes
■
Stocked for same day shipment
■
Gray epoxy shelves
■
UL, C-UL & UL Sanitation listed to NSF #7**
■
Warranties: 18 month labor plus 1 year parts
oPtional featuRes*
■
6" legs
■
Cutting board (20" deep)
■
Door locks
■
Full door pan slides
■
Painted enamel front, back and sides
■
Polycarbonate pans
■
Refrigerated drawers (set of 2 per door opening)
except right door
■
Stainless steel exterior (S/S back)
■
Stainless steel interior
■
Stainless steel pans
■
Warranties: 5 year compressor plus 1 year service
* Most options are available two weeks from receipt of order. Please contact us for specic questions.
** C-UL is Underwriters Laboratories Safety Certication Mark which indicates that UL has tested the equipment to applicable CSA Standards.
** UL Sanitation is Underwriters Laboratories Sanitation Mark which indicates that UL has tested the equipment to applicable NSF Standards.
sPecifications
RR152 RR192 RR243 RR283 RR324
Crated Height 50-1/4" 50-1/4" 50-1/4" 50-1/4" 50-1/4"
Crated Width 53" 65" 77" 89" 101"
Crated Depth 40-1/2" 40-1/2" 40-1/2" 40-1/2" 40-1/2"
Crated Weight (lbs.) 420 450 470 480 490
Interior Height 17-1/2" 17-1/2" 17-1/2" 17-1/2" 17-1/2"
Interior Width 43-1/2" 55-1/2" 67-1/2" 79-1/2" 91-1/2"
Interior Depth 28-1/4" 28-1/4" 28-1/4" 28-1/4" 28-1/4"
Overall Height 43-1/2" 43-1/2" 43-1/2" 43-1/2" 43-1/2"
Overall Width 47-3/4" 59-3/4" 71-3/4" 83-3/4" 95-3/4"
Overall Depth 35" 35" 35" 35" 35"
Gross Cubage (ft.3) 15 19 24 28 32
Shelf Area (sq. ft.) Incl. Bottom 15.3 19.9 24.3 28.9 33.4
Number of Shelves 1 per door 1 per door 1 per door 1 per door 1 per door
Number of Casters 4 4 4 4 4
Number of Legs 4 optional 4 optional 4 optional 4 optional 4 optional
Condensing Unit Size 1/4 1/4 1/3 1/3 1/3
Refrigerant R-134a R-134a R-134a R-134a R-134a
Electrical Characteristics 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
Cord & Plug Furnished Yes Yes Yes Yes Yes
Maximum Fuse Size 15 15 15 15 15
NEMA Plug Conguration 5-15P 5-15P 5-15P 5-15P 5-15P
Total Amp Draw 9.1 8.5 8.8 8.8 8.8
Specications subject to change without notice.
Page 3

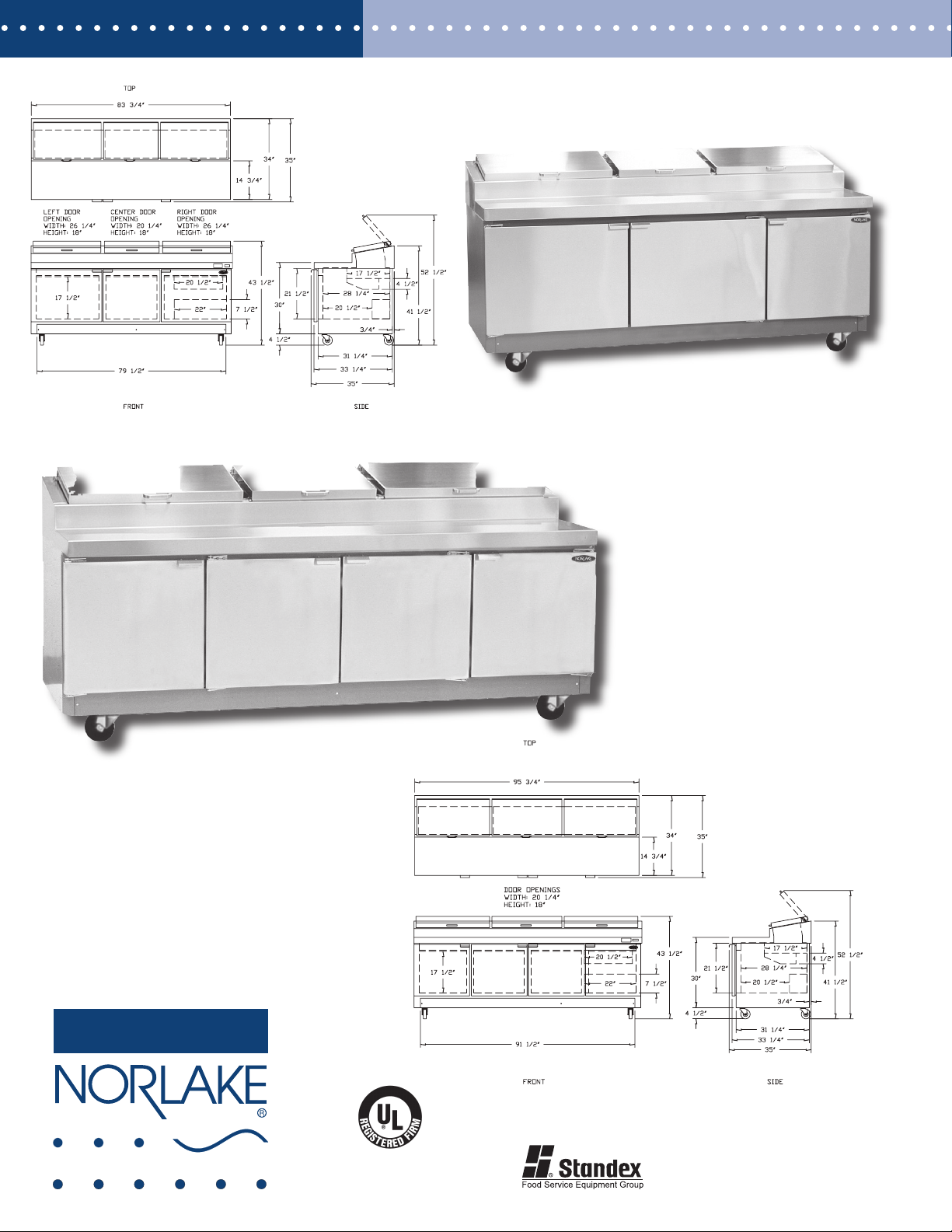

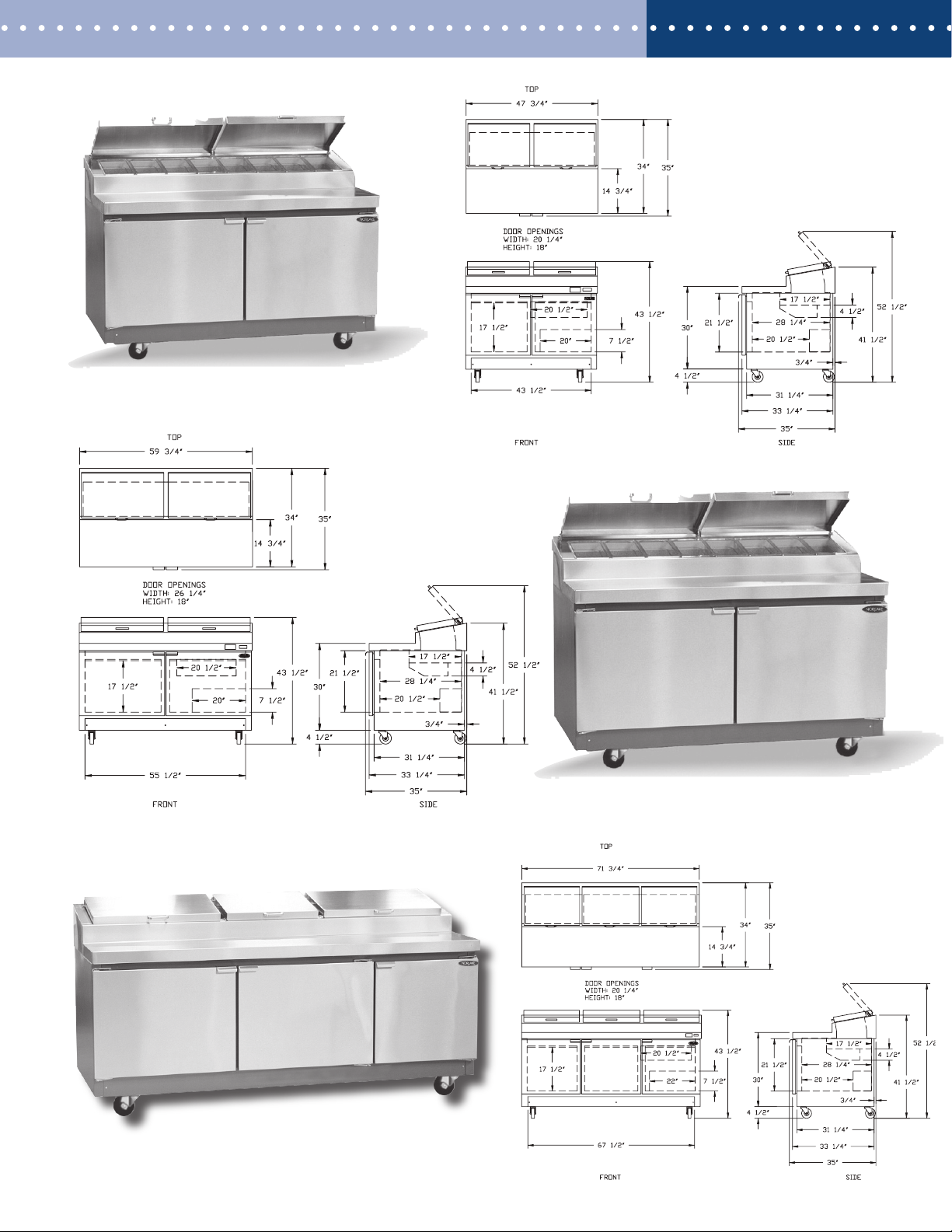

RR152
